Altering a Queue

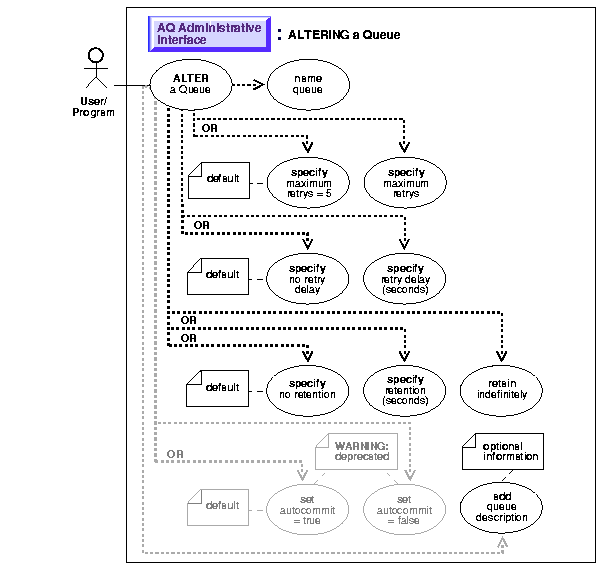

Figure 9-8 Use Case Diagram: Alter a Queue

Text description of the illustration adq09qad13.gif

To refer to the table of all basic operations having to do with the Administrative Interface see: "Use Case Model: Administrative Interface -- Basic Operations"

Purpose

Alter existing properties of a queue. Only max_retries, comment, retry_delay, and retention_time can be altered.

Usage Notes

To view retained messages, you can either dequeue by message ID or use SQL.

When a queue, queue table, or subscriber is created, modified, or dropped, and if GLOBAL_TOPIC_ENABLED = TRUE, a corresponding LDAP entry is also created.

Syntax

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Use the following syntax references for each programmatic environment:

• PL/SQL (DBMS_AQADM Package): Oracle9i Supplied PL/SQL Packages and Types Reference DBMS_AQADM, ALTER_QUEUE_TABLE procedure

• Visual Basic (OO4O): There is no applicable syntax reference for this use case

• Java (JDBC): Oracle9i Supplied Java Packages Reference oracle.AQ, alter

Examples

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Examples are provided in the following programmatic environments:

• PL/SQL (DBMS_AQADM): Altering a Queue

• VB (OO4O): Example not provided.

• Java (JDBC): Altering a Queue

PL/SQL (DBMS_AQADM): Altering a Queue

/* Alter queue to change retention time, saving messages for 1 day after
   dequeueing:  */
EXECUTE dbms_aqadm.alter_queue (
   queue_name        => 'aq.Anothermsg_queue',
   retention_time    => 86400);

Java (JDBC): Altering a Queue

/* Alter a queue to change retention time, saving messages for 1 day
   after dequeuing */
public static void example(AQSession aq_sess) throws AQException
{
     AQQueueProperty         queue_prop;
     AQQueue                 queue;

     /* Get the queue object */
     queue = aq_sess.getQueue("AQ", "Anothermsg_queue");

     /* Create a new AQQueueProperty object: */
     queue_prop = new AQQueueProperty();

     /* Change retention time to 1 day */
     queue_prop.setRetentionTime(new Double(86400));

     /* Alter the queue */
     queue.alterQueue(queue_prop);

}
