Understanding the Oracle Programmatic Environments

This chapter presents brief introductions to these application development systems:

Overview of Developing an Oracle Application

As an application developer, you have many choices when it comes to writing a program to interact with the database.

Client/Server Model

In a traditional client/server program, the code of your application runs on a machine other than the database server. Database calls are transmitted from this client machine to the database server. Data is transmitted from the client to the server for insert and update operations, and returned from the server to the client for query operations. The data is processed on the client machine. Client/server programs are typically written using precompilers, where SQL statements are embedded within the code of another language such as C, C++, or COBOL.

Server-Side Coding

You can develop application logic that resides entirely inside the database, using triggers that are executed automatically when changes occur in the database, or stored procedures that are called explicitly. Offloading the work from your application lets you reuse code that performs verification and cleanup, and control database operations from a variety of clients. For example, by making stored procedures callable through a web server, you can construct a web-based user interface that performs the same functions as a client/server application.

Two-Tier Versus Three-Tier Models

Client/server computing is often referred to as a two-tier model: your application communicates directly with the database server. In the three-tier model, another server (known as the application server) processes the requests. The application server might be a basic web server, or might perform advanced functions like caching and load-balancing. Increasing the processing power of this middle tier lets you lessen the resources needed by client systems, resulting in a thin client configuration where the client machine might need only a web browser or other means of sending requests over the TCP/IP or HTTP protocols.

User Interface

The interface that your application displays to end users depends on the technology behind the application, as well as the needs of the users themselves. Experienced users might enter SQL commands that are passed on to the database. Novice users might be shown a graphical user interface that uses the graphics libraries of the client system (such as Windows or X-Windows). Any of these traditional user interfaces can also be provided in a web using HTML and Java.

Stateful Versus Stateless User Interfaces

In traditional client/server applications, the application can keep a record of user actions and use this information over the course of one or multiple sessions. For example, past choices can be presented in a menu so that they do not have to be entered again. When the application is able to save information like this, we refer to the application as stateful.

The easiest kinds of web or thin-client applications to develop are stateless. This means that they gather all the required information, process it using the database, and then start over from the beginning with the next user. This is a popular way to process single-screen requests such as customer registration.

There are many ways to add stateful behavior to web applications that are stateless by default. For example, an entry form on one web page can pass information on to subsequent web pages, allowing you to construct a wizard-like interface that remembers the user's choices through several different steps. Cookies can be used to store small items of information on the client machine, and retrieve them when the user returns to a Web site. Servlets can be used to keep a database session open and store variables between requests from the same client.

Overview of PL/SQL

PL/SQL is Oracle's procedural extension to SQL, the standard database access language. An advanced 4GL (fourth-generation programming language), PL/SQL offers seamless SQL access, tight integration with the Oracle server and tools, portability, security, and modern software engineering features such as data encapsulation, overloading, exception handling, and information hiding.

With PL/SQL, you can manipulate data with SQL statements, and control program flow with procedural constructs such as IF-THEN and LOOP. You can also declare constants and variables, define procedures and functions, use collections and object types, and trap run-time errors.

Applications written using any of the Oracle programmatic interfaces can call PL/SQL stored procedures and send blocks of PL/SQL code to the server for execution. 3GL applications can access PL/SQL scalar and composite datatypes through host variables and implicit datatype conversion.

Because it runs inside the database, PL/SQL code is very efficient for data-intensive operations, and minimizes network traffic in client/server applications.

PL/SQL's tight integration with Oracle Developer lets you develop the client and server components of your application in the same language, then partition the components for optimal performance and scalability. Also, Oracle's Web Forms lets you deploy your applications in a multitier Internet or intranet environment without modifying a single line of code.

For more information, see PL/SQL User's Guide and Reference.

A Simple PL/SQL Example

The procedure debit_account takes money from a bank account. It accepts an account number and an amount of money as parameters. It uses the account number to retrieve the account balance from the database, then computes the new balance. If this new balance is less than zero, the procedure jumps to an error routine; otherwise, it updates the bank account.

PROCEDURE debit_account (acct_id INTEGER, amount REAL) IS
   old_balance REAL;
   new_balance REAL;
   overdrawn   EXCEPTION;
   SELECT bal INTO old_balance FROM accts
      WHERE acct_no = acct_id;
   new_balance := old_balance - amount;
   IF new_balance < 0 THEN
      RAISE overdrawn;
      UPDATE accts SET bal = new_balance
         WHERE acct_no = acct_id;
   END IF;
   WHEN overdrawn THEN
      -- handle the error
END debit_account;

Advantages of PL/SQL

PL/SQL is a completely portable, high-performance transaction processing language that offers the following advantages:

Full Support for SQL

PL/SQL lets you use all the SQL data manipulation, cursor control, and transaction control commands, as well as all the SQL functions, operators, and pseudocolumns. So, you can manipulate Oracle data flexibly and safely. PL/SQL fully supports SQL datatypes, reducing conversions as data is passed between applications and the database.

Dynamic SQL is a programming technique that lets you build and process SQL statements "on the fly" at run time. It gives PL/SQL flexibility comparable to scripting languages such as Perl, Korn shell, and Tcl.

Tight Integration with Oracle

PL/SQL supports all the SQL datatypes. Combined with the direct access that SQL provides, these shared datatypes integrate PL/SQL with the Oracle data dictionary.

The %TYPE and %ROWTYPE attributes let your code adapt as table definitions change. For example, the %TYPE attribute declares a variable based on the type of a database column. If the column's type changes, your variable uses the correct type at run time. This provides data independence and reduces maintenance costs.

Better Performance

If your application is database intensive, you can use PL/SQL blocks to group SQL statements before sending them to Oracle for execution. This can drastically reduce the communication overhead between your application and Oracle.

PL/SQL stored procedures are compiled once and stored in executable form, so procedure calls are quick and efficient. A single call can start a compute-intensive stored procedure, reducing network traffic and improving round-trip response times. Executable code is automatically cached and shared among users, lowering memory requirements and invocation overhead.

Higher Productivity

PL/SQL adds procedural capabilities to such as Oracle Forms and Oracle Reports. For example, you can use an entire PL/SQL block in an Oracle Forms trigger instead of multiple trigger steps, macros, or user exits.

PL/SQL is the same in all environments. As soon as you master PL/SQL with one Oracle tool, you can transfer your knowledge to other tools, and so multiply the productivity gains. For example, scripts written with one tool can be used by other tools.


PL/SQL stored procedures increase scalability by centralizing application processing on the server. Automatic dependency tracking helps to develop scalable applications.

The shared memory facilities of the shared server (formerly known as Multi-Threaded Server or MTS) enable Oracle to support many thousands of concurrent users on a single node. For more scalability, you can use the Oracle Net Connection Manager to multiplex network connections.


Once validated, a PL/SQL stored procedure can be used with confidence in any number of applications. If its definition changes, only the procedure is affected, not the applications that call it. This simplifies maintenance and enhancement. Also, maintaining a procedure on the server is easier than maintaining copies on various client machines.

PL/SQL Support for Object-Oriented Programming

Object Types

An object type is a user-defined composite datatype that encapsulates a data structure along with the functions and procedures needed to manipulate the data. The variables that form the data structure are called attributes. The functions and procedures that characterize the behavior of the object type are called methods, which you can implement in PL/SQL.

Object types are an ideal object-oriented modeling tool, which you can use to reduce the cost and time required to build complex applications. Besides allowing you to create software components that are modular, maintainable, and reusable, object types allow different teams of programmers to develop software components concurrently.


A collection is an ordered group of elements, all of the same type (for example, the grades for a class of students). Each element has a unique subscript that determines its position in the collection. PL/SQL offers two kinds of collections: nested tables and varrays (short for variable-size arrays).

Collections work like the set, queue, stack, and hash table data structures found in most third-generation programming languages. Collections can store instances of an object type and can also be attributes of an object type. Collections can be passed as parameters. So, you can use them to move columns of data into and out of database tables or between client-side applications and stored subprograms. You can define collection types in a PL/SQL package, then use the same types across many applications.


Applications written in PL/SQL can run on any operating system and hardware platform where Oracle runs. You can write portable program libraries and reuse them in different environments.


PL/SQL stored procedures let you divide application logic between the client and the server, to prevent client applications from manipulating sensitive Oracle data. Database triggers written in PL/SQL can prevent applications from making certain updates, and can audit user queries.

You can restrict access to Oracle data by allowing users to manipulate it only through stored procedures that have a restricted set of privileges. For example, you can grant users access to a procedure that updates a table, but not grant them access to the table itself.

Built-In Packages for Application Development

Built-In Packages for Server Management

Built-In Packages for Distributed Database Access

These provide access to snapshots, advanced replication, conflict resolution, deferred transactions, and remote procedure calls.

Overview of Java Stored Procedures, JDBC, and SQLJ

Oracle9i embeds the OracleJVM, a J2SE 1.3-compliant JVM. Oracle can store Java classes and execute them inside the database, as stored procedures and triggers. These classes can manipulate data, but cannot display GUI elements such as AWT or Swing components. Running inside the database allows these Java classes to be called many times and manipulate large amounts of data, without the processing and network overhead that comes with running on the client machine.

Oracle9i includes the core JDK libraries such as java.lang,, and so on. Oracle9i supports client-side Java standards such as JDBC and SQLJ, and provides server-side JDBC and SQLJ drivers that allow data-intensive Java code to run within the database.

For background information about Java and how Oracle supports it, see Oracle9i Database Concepts.

Overview of Writing Procedures and Functions in Java

You write these named blocks and then define them using the loadjava command or SQL CREATE FUNCTION, CREATE PROCEDURE, or CREATE PACKAGE statements. These Java methods can accept arguments and are callable from:

Overview of Writing Database Triggers in Java

A database trigger is a stored procedure that Oracle invokes ("fires") automatically when certain events occur, for example, when a DML operation modifies a certain table. Triggers enforce business rules, prevent incorrect values from being stored, and reduce the need to perform checking and cleanup operations in each application.

Why Use Java for Stored Procedures and Triggers?

Overview of Oracle JDBC

JDBC (Java Database Connectivity) is an API (Applications Programming Interface) that allows Java to send SQL statements to an object-relational database such as Oracle.

The JDBC standard defines four types of JDBC drivers:

JDBC is based on the X/Open SQL Call Level Interface, and complies with the SQL92 Entry Level standard.

You can use JDBC to do dynamic SQL. Dynamic SQL means that the embedded SQL statement to be executed is not known before the application is run, and requires input to build the statement.

The drivers that are implemented by Oracle have extensions to the capabilities in the JDBC standard that was defined by Sun Microsystems. Oracle's implementations of JDBC drivers are described next. The Oracle database server support of and extensions to various levels of the JDBC standard are described in "How Oracle Supports and Extends the JDBC Standards".

JDBC Thin Driver

The JDBC thin driver is a Type 4 (100% pure Java) driver that uses Java sockets to connect directly to a database server. It has its own implementation of a Two-Task Common (TTC), a lightweight implementation of TCP/IP from Oracle Net. It is written entirely in Java and is therefore platform-independent.

The thin driver does not require Oracle software on the client side. It does need a TCP/IP listener on the server side. Use this driver in Java applets that are downloaded into a Web browser, or in applications where you do not want to install Oracle client software. The thin driver is self-contained, but it opens a Java socket, and thus can only run in a browser that supports sockets.


The OCI driver is a Type 2 JDBC driver. It makes calls to the OCI (Oracle Call Interface) which is written in C, to interact with an Oracle database server, thus using native and Java methods.

The OCI driver allows access to more features than the thin driver, such as Transparent Application Fail-Over, advanced security, and advanced LOB manipulation.

The OCI driver provides the highest compatibility between the different Oracle versions, from 7 to 9i. It also supports all installed Net8 and Oracle Net adapters, including IPC, named pipes, TCP/IP, and IPX/SPX.

Because it uses native methods (a combination of Java and C) the OCI driver is platform-specific. It requires a client Oracle8i or later installation including Oracle Net (formerly known as Net8), OCI libraries, CORE libraries, and all other dependent files. The OCI driver usually executes faster than the thin driver.

The OCI driver is not appropriate for Java applets, because it uses a C library that is platform-specific and cannot be downloaded into a Web browser. It is usable in J2EE components running in middle-tier application servers, such as the Oracle9i Application Server. Oracle9iAS provides middleware services and tools that support access between applications and browsers.

JDBC Server-Side Internal Driver

The JDBC server-side internal driver is a Type 2 driver that runs inside the database server, reducing the number of round-trips needed to access large amounts of data. The driver, the Java server VM, the database, the Java native compiler which speeds execution by as much as 10 times, and the SQL engine all run within the same address space.

This driver provides server-side support for any Java program used in the database: SQLJ stored procedures, functions, and triggers, and Java stored procedures. You can also call PL/SQL stored procedures, functions, and triggers.

The server driver fully supports the same features and extensions as the client-side drivers.

How Oracle Supports and Extends the JDBC Standards

Among the Oracle extensions to the JDBC 1.22 standard are:

Oracle supports all APIs from the JDBC 2.0 standard, including the core APIs, optional packages, and numerous extensions. Some of the highlights include datasources, JTA and distributed transactions.

Oracle has supports these features from the JDBC 3.0 standard:

Sample JDBC 2.0 Program

The following example shows the preferred style of looking up a data source using JNDI in JDBC 2.0:

// import the JDBC packages
import java.sql.*;
import javax.sql.*;
import oracle.jdbc.pool.*;
   InitialContext ictx = new InitialContext();
   DataSource ds = (DataSource)ictx.lookup("jdbc/OracleDS");
   Connection conn = ds.getConnection();
   Statement stmt = conn.createStatement();
   ResultSet rs = stmt.executeQuery("SELECT ename FROM emp");
   while ( ) {
   out.println( rs.getString("ename") + "<br>");

Sample Pre-2.0 JDBC Program

The following source code registers an Oracle JDBC Thin driver, connects to the database, creates a Statement object, executes a query, and processes the result set.

The SELECT statement retrieves and lists the contents of the ENAME column of the EMP table.

import java.sql.*
import java.math.*
import java.awt.*

class JdbcTest {
  public static void main (String args []) throws SQLException {
    // Load Oracle driver
    DriverManager.registerDriver (new oracle.jdbc.OracleDriver());
    // Connect to the local database
    Connection conn =
      DriverManager.getConnection ("jdbc:oracle:thin:@myhost:1521:orcl",
                                   "scott", "tiger");

    // Query the employee names
    Statement stmt = conn.createStatement ();
    ResultSet rset = stmt.executeQuery ("SELECT ENAME FROM EMP");

    // Print the name out
    while ( ())
      System.out.println (rset.getString (1));
    // Close the result set, statement, and the connection

An Oracle extension to the JDBC drivers is a form of the getConnection() method that uses a Properties object. The Properties object lets you specify user, password, and database information as well as row prefetching and execution batching.

To use the OCI driver in this code, replace the Connection statement with:

Connection conn = DriverManager.getConnection ("jdbc:oracle:oci8:@MyHostString",
    "scott", "tiger");

where MyHostString is an entry in the TNSNAMES.ORA file.

If you are creating an applet, the getConnection() and registerDriver() strings will be different.

JDBC in SQLJ Applications

JDBC code and SQLJ code (see "Overview of Oracle SQLJ") interoperates, allowing dynamic SQL statements in JDBC to be used with both static and dynamic SQL statements in SQLJ. A SQLJ iterator class corresponds to the JDBC result set. For more information on JDBC, see Oracle9i JDBC Developer's Guide and Reference.

Overview of Oracle SQLJ

SQLJ is:


The Oracle software tool SQLJ has two parts: a translator and a runtime. You execute on any Java VM with a JDBC driver and a SQLJ runtime library.

A SQLJ source file contains Java source with embedded static SQL statements. The SQLJ translator is 100% Pure Java and is portable to any standard JDK 1.1 or higher VM.

The Oracle SQLJ implementation typically runs in three steps:

Oracle9i supports SQLJ stored procedures, functions, and triggers which execute in a Java VM integrated with the data server. SQLJ is integrated with Oracle's JDeveloper. Source-level debugging support is available in JDeveloper.

Here is an example of the simplest SQLJ executable statement, which returns one value because empno is unique in the emp table:

String name;
#sql  { SELECT ename INTO :name FROM emp WHERE empno=67890 };
System.out.println("Name is " + name + ", employee number = " + empno);

Each host variable (or qualified name or complex Java host expression) is preceded by a colon (:). Other SQLJ statements are declarative (declares Java types) and allow you to declare an iterator (a construct related to a database cursor) for queries that retrieve many values:

#sql iterator EmpIter (String EmpNam, int EmpNumb);

Benefits of SQLJ

SQLJ's simple extensions to Java allow rapid development and easy maintenance of applications that perform database operations through embedded SQL.

In particular, Oracle's implementation of SQLJ:

Comparing SQLJ with JDBC

JDBC provides a complete dynamic SQL interface from Java to databases. It allows experienced programmers full control over database operations. SQLJ simplifies Java database programming to improve programmer productivity.

JDBC provides fine-grained control of the execution of dynamic SQL from Java, while SQLJ provides a higher-level binding to SQL operations in a specific database schema. Here are some differences:

Here are similarities:

SQLJ Example for Object Types

Here is a simple use of user-defined objects and object refs taken from Oracle9i SQLJ Developer's Guide and Reference, where more information on SQLJ is available:

The following items are created using the SQL script below:

Next, JPublisher is used to generate the Address class for mapping to Oracle ADDRESS objects. We omit the details.

The following SQLJ sample declares and sets an input host variable of Java type Address to update an ADDRESS object in a column of the employees table. Both before and after the update, the office address is selected into an output host variable of type Address and printed for verification.

// Updating an object

static void updateObject()

   Address addr;
   Address new_addr;
   int empno = 1001;

   try {
      #sql {
         SELECT office_addr
         INTO :addr
         FROM employees
         WHERE empnumber = :empno };
      System.out.println("Current office address of employee 1001:");


      /* Now update the street of address */

      String street ="100 Oracle Parkway";

      /* Put updated object back into the database */

      try {
         #sql {
            UPDATE employees
            SET office_addr = :addr
            WHERE empnumber = :empno };
            ("Updated employee 1001 to new address at Oracle Parkway.");

         /* Select new address to verify update */
         try {
            #sql {
               SELECT office_addr
               INTO :new_addr
               FROM employees
               WHERE empnumber = :empno };
            System.out.println("New office address of employee 1001:");

         } catch (SQLException exn) {
         System.out.println("Verification SELECT failed with "+exn); }
      } catch (SQLException exn) {
      System.out.println("UPDATE failed with "+exn); }

   } catch (SQLException exn) {
   System.out.println("SELECT failed with "+exn); }

Note the use of the setStreet() accessor method of the Address instance. Remember that JPublisher provides such accessor methods for all attributes in any custom Java class that it produces.

SQLJ Stored Procedures in the Server

SQLJ applications can be stored and run in the server. You have the option of translating, compiling, and customizing SQLJ source on a client and loading the generated classes and resources into the server with the loadjava utility, typically using a Java archive (.jar) file.

Or, you have a second option of loading SQLJ source code into the server, also using loadjava, and having it translated and compiled by the server's embedded translator.

Programming with J2EE, OC4J, SOAP, JAAS, Servlets, JSPs, EJBs, CORBA, and UDDI

To develop applications with all these industry-standard components, you use the Java support in the Oracle9i Application Server. You can find Oracle9iAS documentation at

With the introduction of Oracle9i Application Server Containers for J2EE (OC4J)--a new, lighter-weight, easier-to-use, faster, and certified J2EE container--Oracle will desupport the Java 2 Enterprise Edition (J2EE) and CORBA stacks from the database, starting with Oracle9i Database release 2. However, the database-embedded Java VM (Oracle JVM) will still be present and will continue to be enhanced to offer Java 2 Standard Edition (J2SE) features, Java Stored Procedures, JDBC, and SQLJ in the database.

As of Oracle9i Database release 2 (version 9.2.0), Oracle will no longer support

the following technologies in the database:

Customers will no longer be able to deploy servlets, JSP pages, EJBs, and CORBA objects in Oracle databases. Oracle9i Database release 1 (version 9.0.1) will be the last database release to support the J2EE and CORBA stack. Oracle is encouraging customers to migrate existing J2EE applications running in the database to OC4J now.

Overview of Pro*C/C++

The Pro*C/C++ precompiler is a software tool that allows the programmer to embed SQL statements in a C or C++ source file. Pro*C/C++ reads the source file as input and outputs a C or C++ source file that replaces the embedded SQL statements with Oracle runtime library calls, and is then compiled by the C or C++ compiler.

When there are errors found during the precompilation or the subsequent compilation, modify your precompiler input file and re-run the two steps.

How You Implement a Pro*C/C++ Application

Here is a simple code fragment from a C source file that queries the table EMP which is in the schema SCOTT:

#define  UNAME_LEN   10
int   emp_number;
/* Define a host structure for the output values of a SELECT statement. */
/* No declare section needed if precompiler option MODE=ORACLE          */
struct {
    VARCHAR  emp_name[UNAME_LEN];
    float    salary;
    float    commission;
} emprec;
/* Define an indicator structure to correspond to the host output structure. */
struct {
    short emp_name_ind;
    short sal_ind;
    short comm_ind;
} emprec_ind;
/* Select columns ename, sal, and comm given the user's input for empno. */
    EXEC SQL SELECT ename, sal, comm
        INTO :emprec INDICATOR :emprec_ind
        FROM emp
        WHERE empno = :emp_number;

The embedded SELECT statement is only slightly different from an interactive (SQL*Plus) version. Every embedded SQL statement begins with EXEC SQL. The colon, ':', precedes every host (C) variable. The returned values of data and indicators (set when the data value is NULL or character columns have been truncated) can be stored in structs (such as in the above code fragment), in arrays, or in arrays of structs. Multiple result set values are handled very simply in a manner that resembles the case shown, where there is only one result, because of the unique employee number. You use the actual names of columns and tables in embedded SQL.

Use the default precompiler option values, or you can enter values which give you control over the use of resources, how errors are reported, the formatting of output, and how cursors (which correspond to a particular connection or SQL statement) are managed. Cursors are used when there are multiple result set values.

Enter the options either in a configuration file, on the command line, or inline inside your source code with a special statement that begins with EXEC ORACLE. If there are no errors found, you can then compile, link, and execute the output source file, like any other C program that you write.

Use the precompiler to create server database access from clients that can be on many different platforms. Pro*C/C++ allows you the freedom to design your own user interfaces and to add database access to existing applications.

Before writing your embedded SQL statements, you may want to test interactive versions of the SQL in SQL*Plus. You then make only minor changes to start testing your embedded SQL application.

Highlights of Pro*C/C++ Features

The following is a short subset of the capabilities of Pro*C/C++. For complete details, see the Pro*C/C++ Precompiler Programmer's Guide.

Overview of Pro*COBOL

The Pro*COBOL precompiler is a software tool that allows the programmer to embed SQL statements in a COBOL source code file. Pro*COBOL reads the source file as input and outputs a COBOL source file that replaces the embedded SQL statements with Oracle runtime library calls, and is then compiled by the COBOL compiler.

When there are errors found during the precompilation or the subsequent compilation, modify your precompiler input file and re-run the two steps.

How You Implement a Pro*COBOL Application

Here is a simple code fragment from a source file that queries the table EMP which is in the schema SCOTT:

     05  EMP-NAME    PIC X(10) VARYING.
     05  SALARY      PIC S9(5)V99 COMP-3 VALUE ZERO.
         FROM EMP

The embedded SELECT statement is only slightly different from an interactive (SQL*Plus) version. Every embedded SQL statement begins with EXEC SQL. The colon, ':', precedes every host (COBOL) variable. The SQL statement is terminated by END-EXEC. The returned values of data and indicators (set when the data value is NULL or character columns have been truncated) can be stored in group items (such as in the above code fragment), in tables, or in tables of group items. Multiple result set values are handled very simply in a manner that resembles the case shown, where there is only one result, given the unique employee number. You use the actual names of columns and tables in embedded SQL.

Use the default precompiler option values, or you can enter values which give you control over the use of resources, how errors are reported, the formatting of output, and how cursors (which correspond to a particular connection or SQL statement) are managed.

Enter the options either in a configuration file, on the command line, or inline inside your source code with a special statement that begins with EXEC ORACLE. If there are no errors found, you can then compile, link, and execute the output source file, like any other COBOL program that you write.

Use the precompiler to create server database access from clients that can be on many different platforms. Pro*COBOL allows you the freedom to design your own user interfaces and to add database access to existing COBOL applications.

The embedded SQL statements available conform to an ANSI standard, so that you can access data from many databases in a program, including remote servers networked through Oracle Net.

Before writing your embedded SQL statements, you may want to test interactive versions of the SQL in SQL*Plus. You then make only minor changes to start testing your embedded SQL application.

Highlights of Pro*COBOL Features

The following is a short subset of the capabilities of Pro*COBOL. For complete details, see the Pro*COBOL Precompiler Programmer's Guide.

You can call stored PL/SQL or Java subprograms. You can improve performance by embedding PL/SQL blocks. These blocks can call PL/SQL functions or procedures written by you or provided in Oracle packages.

Precompiler options allow you to define how cursors, errors, syntax-checking, file formats, and so on, are handled.

Using precompiler options, you can check the syntax and semantics of your SQL or PL/SQL statements during precompilation, as well as at runtime.

You can conditionally precompile sections of your code so that they can execute in different environments.

Use tables, or group items, or tables of group items as host and indicator variables in your code to improve performance.

You can program how errors and warnings are handled, so that data integrity is guaranteed.

Pro*COBOL supports dynamic SQL, a technique that allows users to input variable values and statement syntax.

Overview of OCI and OCCI

The Oracle Call Interface (OCI) and Oracle C++ Interface (OCCI) are application programming interfaces (APIs) that allow you to create applications that use a third-generation language's native procedures or function calls to access an Oracle database server and control all phases of SQL statement execution. These APIs provide:

OCI lets you manipulate data and schemas in an Oracle database using a host programming language, such as C. OCCI is an object-oriented interface suitable for use with C++. These APIs provide a library of standard database access and retrieval functions in the form of a dynamic runtime library (OCILIB) that can be linked in an application at runtime. This eliminates the need to embed SQL or PL/SQL within 3GL programs.

For more information about the OCI and OCCI calls, see Oracle Call Interface Programmer's Guide, Oracle C++ Call Interface Programmer's Guide, Oracle9i Application Developer's Guide - Advanced Queuing, Oracle9i Globalization and National Language Support Guide, and Oracle9i Data Cartridge Developer's Guide.

Advantages of OCI

OCI provides significant advantages over other methods of accessing an Oracle database:

Parts of the OCI

The OCI encompasses four main sets of functionality:

Procedural and Non-Procedural Elements

The Oracle Call Interface (OCI) lets you develop applications that combine the non-procedural data access power of Structured Query Language (SQL) with the procedural capabilities of most programming languages, such as C and C++.

The combination of both non-procedural and procedural language elements in an OCI program provides easy access to an Oracle database in a structured programming environment.

The OCI supports all SQL data definition, data manipulation, query, and transaction control facilities that are available through an Oracle database server. For example, an OCI program can run a query against an Oracle database. The queries can require the program to supply data to the database using input (bind) variables, as follows:

SELECT name FROM employees WHERE empno = :empnumber

In the above SQL statement,:empnumber is a placeholder for a value that will be supplied by the application.

You can also use PL/SQL, Oracle's procedural extension to SQL. The applications you develop can be more powerful and flexible than applications written in SQL alone. The OCI also provides facilities for accessing and manipulating objects in an Oracle database server.

Building an OCI Application

As Figure 1-1 shows, you compile and link an OCI program in the same way that you compile and link a non-database application. There is no need for a separate preprocessing or precompilation step.

Figure 1-1 The OCI Development Process

Text description of adg81089.gif follows
Text description of the illustration adg81089.gif

Note: On some platforms, it may be necessary to include other libraries, in addition to the OCI library, to properly link your OCI programs. Check your Oracle system-specific documentation for further information about extra libraries that may be required.

Overview of Oracle Objects for OLE (OO4O)

Oracle Objects for OLE (OO4O) is a product designed to allow easy access to data stored in Oracle databases with any programming or scripting language that supports the Microsoft COM Automation and ActiveX technology. This includes Visual Basic, Visual C++, Visual Basic For Applications (VBA), IIS Active Server Pages (VBScript and JavaScript), and others.

OO4O consists of the following software layers:

Figure 1-2, "Software Layers" illustrates the OO4O software components.

Figure 1-2 Software Layers

Text description of adg81090.gif follows
Text description of the illustration adg81090.gif

Note: See the OO4O online help for detailed information about using OO4O.

OO4O Automation Server

The OO4O Automation Server is a set of COM Automation objects for connecting to Oracle database servers, executing SQL statements and PL/SQL blocks, and accessing the results.

Unlike other COM-based database connectivity APIs, such as Microsoft ADO, the OO4O Automation Server has been developed and evolved specifically for use with Oracle database servers.

It provides an optimized API for accessing features that are unique to Oracle and are otherwise cumbersome or inefficient to use from ODBC or OLE database-specific components.

OO4O provides key features for accessing Oracle databases efficiently and easily in environments ranging from the typical two-tier client/server applications, such as those developed in Visual Basic or Excel, to application servers deployed in multitiered application server environments such as web server applications in Microsoft Internet Information Server (IIS) or Microsoft Transaction Server (MTS).

Features include:

OO4O Object Model

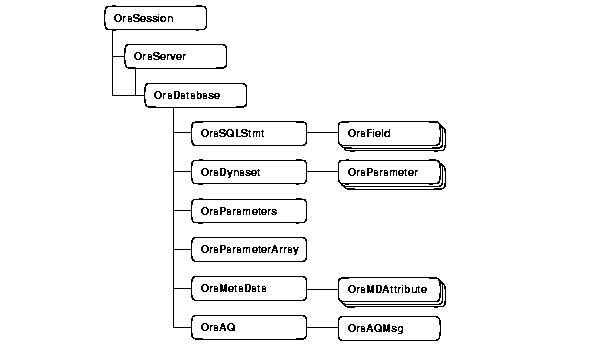

The Oracle Objects for OLE object model is illustrated in Figure 1-3, "Objects and Their Relation".

Figure 1-3 Objects and Their Relation

Text description of adg81092.gif follows
Text description of the illustration adg81092.gif


An OraSession object manages collections of OraDatabase, OraConnection, and OraDynaset objects used within an application.

Typically, a single OraSession object is created for each application, but you can create named OraSession objects for shared use within and between applications.

The OraSession object is the top-most level object for an application. It is the only object created by the CreateObject VB/VBA API and not by an Oracle Objects for OLE method. The following code fragment shows how to create an OraSession object:

Dim OraSession as Object
Set OraSession = CreateObject("OracleInProcServer.XOraSession")


OraServer represents a physical network connection to an Oracle database server.

The OraServer interface is introduced to expose the connection multiplexing feature provided in the Oracle Call Interface. After an OraServer object is created, multiple user sessions (OraDatabase) can be attached to it by invoking the OpenDatabase method. This feature is particularly useful for application components, such as Internet Information Server (IIS), that use Oracle Objects for OLE in an n-tier distributed environments.

The use of connection multiplexing when accessing Oracle severs with a large number of user sessions active can help reduce server processing and resource requirements while improving the server scalability.


An OraDatabase interface adds additional methods for controlling transactions and creating interfaces representing of Oracle object types. Attributes of schema objects can be retrieved using the Describe method of the OraDatabase interface.

In older releases, an OraDatabase object is created by invoking the OpenDatabase method of an OraSession interface. The Oracle Net alias, user name, and password are passed as arguments to this method. In Oracle8i and later, invocation of this method results in implicit creation of an OraServer object.

As described in the OraServer interface description, an OraDatabase object can also be created using the OpenDatabase method of the OraServer interface.

Transaction control methods are available at the OraDatabase (user session) level. Transactions may be started as Read-Write (default), Serializable, or Read-only. These include:

For example:

UserSession.ExecuteSQL("delete emp where empno = 1234")


An OraDynaset object permits browsing and updating of data created from a SQL SELECT statement.

The OraDynaset object can be thought of as a cursor, although in actuality several real cursors may be used to implement the OraDynaset's semantics. An OraDynaset automatically maintains a local cache of data fetched from the server and transparently implements scrollable cursors within the browse data. Large queries may require significant local disk space; application implementers are encouraged to refine queries to limit disk usage.


An OraField object represents a single column or data item within a row of a dynaset.

If the current row is being updated, then the OraField object represents the currently updated value, although the value may not yet have been committed to the database.

Assignment to the Value property of a field is permitted only if a record is being edited (using Edit) or a new record is being added (using AddNew). Other attempts to assign data to a field's Value property results in an error.


An OraMetaData object is a collection of OraMDAttribute objects that represent the description information about a particular schema object in the database.

The OraMetaData object can be visualized as a table with three columns:

The OraMDAttribute objects contained in the OraMetaData object can be accessed by subscripting using ordinal integers or by using the name of the property. Referencing a subscript that is not in the collection (0 to Count-1) results in the return of a NULL OraMDAttribute object.


An OraParameter object represents a bind variable in a SQL statement or PL/SQL block.

OraParameter objects are created, accessed, and removed indirectly through the OraParameters collection of an OraDatabase object. Each parameter has an identifying name and an associated value. You can automatically bind a parameter to SQL and PL/SQL statements of other objects (as noted in the objects' descriptions), by using the parameter's name as a placeholder in the SQL or PL/SQL statement. Such use of parameters can simplify dynamic queries and increase program performance.


An OraParamArray object represents an "array" type bind variable in a SQL statement or PL/SQL block as opposed to a "scalar" type bind variable represented by the OraParameter object.

OraParamArray objects are created, accessed, and removed indirectly through the OraParameters collection of an OraDatabase object. Each parameter has an identifying name and an associated value.


An OraSQLStmt Object represents a single SQL statement. Use the CreateSQL method to create the OraSQLStmt object from an OraDatabase.

During create and refresh, OraSQLStmt objects automatically bind all relevant, enabled input parameters to the specified SQL statement, using the parameter names as placeholders in the SQL statement. This can improve the performance of SQL statement execution without re-parsing the SQL statement.


The SQLStmt object (updateStmt) can be later used to execute the same query using a different value for the :SALARY placeholder. This is done as follows:

OraDatabase.Parameters("SALARY").value = 200000
updateStmt.Parameters("ENAME").value = "KING"


An OraAQ object is instantiated by invoking the CreateAQ method of the OraDatabase interface. It represents a queue that is present in the database.

Oracle Objects for OLE provides interfaces for accessing Oracle's Advanced Queuing (AQ) Feature. It makes AQ accessible from popular COM-based development environments such as Visual Basic. For a detailed description of Oracle AQ, please refer to Oracle9i Application Developer's Guide - Advanced Queuing.


The OraAQMsg object encapsulates the message to be enqueued or dequeued. The message can be of any user-defined or raw type.

For a detailed description of Oracle AQ, please refer to Oracle9i Application Developer's Guide - Advanced Queuing.


The OraAQAgent object represents a message recipient and is only valid for queues which allow multiple consumers.

The OraAQAgent object represents a message recipient and is only valid for queues which allow multiple consumers.

An OraAQAgent object can be instantiated by invoking the AQAgent method. For example:

Set agent = qMsg.AQAgent(name)

An OraAQAgent object can also be instantiated by invoking the AddRecipient method. For example:

Set agent = qMsg.AddRecipient(name, address, protocol).

Support for Oracle LOB and Object Datatypes

Oracle Objects for OLE provides full support for accessing and manipulating instances of object datatypes and LOBs in an Oracle database server. Figure 1-4, "Supported Oracle Datatypes" illustrates the datatypes supported by OO4O.

Instances of these types can be fetched from the database or passed as input or output variables to SQL statements and PL/SQL blocks, including stored procedures and functions. All instances are mapped to COM Automation Interfaces that provide methods for dynamic attribute access and manipulation. These interfaces may be obtained from:

Figure 1-4 Supported Oracle Datatypes

Text description of adg81091.gif follows
Text description of the illustration adg81091.gif


The OraBlob and OraClob interfaces in OO4O provide methods for performing operations on large objects in the database of data types BLOB, CLOB, and NCLOB. In this help file BLOB, CLOB, and NCLOB datatypes are also referred to as LOB datatypes.

LOB data is accessed using Read and the CopyToFile methods.

LOB data is modified using Write, Append, Erase, Trim, Copy, CopyFromFile, and CopyFromBFile methods. Before modifying the content of a LOB column in a row, a row lock must be obtained. If the LOB column is a field of an OraDynaset, then the lock is obtained by invoking the Edit method.


The OraBFile interface in OO4O provides methods for performing operations on large objects BFILE data type in the database.

The BFILEs are large binary data objects stored in operating system files (external) outside of the database tablespaces.

The Oracle Data Control

The Oracle Data Control (ODC) is an ActiveX Control that is designed to simplify the exchange of data between an Oracle database and visual controls such edit, text, list, and grid controls in Visual Basic and other development tools that support custom controls.

ODC acts an agent to handle the flow of information from an Oracle database and a visual data-aware control, such as a grid control, that is bound to it. The data control manages various user interface (UI) tasks such as displaying and editing data. It also executes and manages the results of database queries.

The Oracle Data Control is compatible with the Microsoft data control included with Visual Basic. If you are familiar with the Visual Basic data control, learning to use the Oracle Data Control is quick and easy. Communication between data-aware controls and a Data Control is governed by a protocol that has been specified by Microsoft.

The Oracle Objects for OLE C++ Class Library

The Oracle Objects for OLE C++ Class Library is a collection of C++ classes that provide programmatic access to the Oracle Object Server. Although the class library is implemented using OLE Automation, neither the OLE development kit nor any OLE development knowledge is necessary to use it. This library helps C++ developers avoid the chore of writing COM client code for accessing the OO4O interfaces.

Additional Sources of Information

For detailed information about Oracle Objects for OLE refer to the online help that is provided with the OO4O product:

To view examples of the use of Oracle Object for OLE, see the samples located in the ORACLE_HOME\OO4O directory of the Oracle installation. Additional OO4O examples can be found in the following Oracle publications, including:

Choosing a Programming Environment

To choose a programming environment for a new development project:

The following examples illustrate easy choices:

Choosing Whether to Use OCI or a Precompiler

Precompiler applications typically contain less code than equivalent OCI applications, which can help productivity.

Some situations require detailed control of the database and are suited for OCI applications (either pure OCI or a precompiler application with embedded OCI calls):

Using Built-In Packages and Libraries

Both Java and PL/SQL have built-in packages and libraries, as mentioned in the overviews for those languages.

PL/SQL and Java interoperate in the server. You can execute a PL/SQL package from Java or wrap a PL/SQL class with a Java wrapper so that it can be called from distributed CORBA and EJB clients. The following table shows PL/SQL packages and their Java equivalents:

Table 1-1 PL/SQL and Java Equivalent Software
PL/SQL Package Java Equivalent


Call package with SQLJ or JDBC.


JDBC has this functionality.


Schedule a job that has a Java Stored procedure.


Call with SQLJ or JDBC.


Use JavaMail.


Use subclass oracle.aurora.rdbms.OracleDBMSOutputStream or Java stored procedure DBMS_JAVA.SET_STREAMS.


Call with SQLJ or JDBC.


Use JDBC to execute an ALTER SESSION statement.


Call with SQLJ or JDBC.




Use JDBC to execute an ALTER SESSION statement.


Call with SQLJ or JDBC.


Grant the JAVAUSERPRIV privilege and then use Java I/O entry points.

Java versus PL/SQL

Both Java and PL/SQL can be used to build applications in the database and will have future performance improvements. Here are guidelines for their use:

PL/SQL Is Optimized for Database Access

PL/SQL uses the same datatypes as SQL. SQL datatypes are thus easier to use and SQL operations are faster than with Java, especially when a large amount of data is involved, when mostly database access is done, or when bulk operations are used.

PL/SQL Is Integrated with the Database

PL/SQL is the extension to SQL and uses the same datatypes. PL/SQL has data encapsulation, information hiding, overloading, and exception-handling.

Some advanced PL/SQL capabilities are not available for Java in Oracle9i. Examples are autonomous transactions and the dblink facility for remote databases. Code development is usually faster in PL/SQL than when using Java.

Both Java and PL/SQL Have Object-Oriented Features

Java has inheritance, polymorphism, and component models for developing distributed systems. PL/SQL has inheritance and type evolution, the ability to change methods and attributes of a type while preserving subtypes and table data that use the type.

Java Is Used for Open Distributed Applications

Java has a richer type system than PL/SQL and is an object-oriented language. Java can use CORBA (which can have many different computer languages in its clients) and EJB. However, PL/SQL packages can also be called from CORBA or EJB clients.

You can run XML tools, the Internet File System, or JavaMail from Java.

Many Java-based development tools are available throughout the industry.

Go to previous page Go to next page
Copyright © 1996, 2002 Oracle Corporation.

All Rights Reserved.
Go To Documentation Library
Go To Product List
Book List
Go To Table Of Contents
Go To Index

Master Index
