Release 2 (9.2)
Part Number A96571-02
This chapter explains concepts relating to Streams support for information sharing between Oracle databases and non-Oracle databases.
This chapter contains these topics:
To share DML changes from an Oracle source database to a non-Oracle destination database, the Oracle database functions as a proxy and carries out some of the steps that would normally be done at the destination database. That is, the events intended for the non-Oracle destination database are dequeued in the Oracle database itself and an apply process at the Oracle database applies the changes to the non-Oracle database across a network connection through a gateway. Figure 9-1 shows an Oracle databases sharing data with a non-Oracle database.
In an Oracle to non-Oracle environment, the capture process functions the same way as it would in an Oracle-only environment. That is, it finds changes in the redo log, captures them based on capture process rules, and enqueues the captured changes as logical change records (LCRs) in a
SYS.AnyData queue. In addition, a single capture process may capture changes that will be applied at both Oracle and non-Oracle databases.
SYS.AnyData queue that stages the captured LCRs functions the same way as it would in an Oracle-only environment, and you can propagate LCRs to any number of intermediate queues in Oracle databases before they are applied at a non-Oracle database.
An apply process running in an Oracle database uses Heterogeneous Services and a gateway to apply changes encapsulated in LCRs directly to database objects in a non-Oracle database. The LCRs are not propagated to a queue in the non-Oracle database, as they would be in an Oracle-only Streams environment. Instead, the apply process applies the changes directly through a database link to the non-Oracle database.
Chapter 4, "Streams Apply Process" for detailed information about the apply process
This section describes the configuration of an apply process that will apply changes to a non-Oracle database.
When you create an apply process that will apply changes to a non-Oracle database, you must previously have configured Heterogeneous Services, the gateway, and a database link, which will be used by the apply process to apply the changes to the non-Oracle database. The database link must be created with an explicit
When the database link is created and working properly, create the apply process using the
CREATE_APPLY procedure in the
DBMS_APPLY_ADM package and specify the database link for the
apply_database_link parameter. After you create an apply process, you can use apply process rules to specify which changes are applied at the non-Oracle database.
If you use substitute key columns for any of the tables at the non-Oracle database, then specify the database link to the non-Oracle database when you run the
SET_KEY_COLUMNS procedure in the
You must set the
parallelism apply process parameter to
1, the default setting, when an apply process is applying changes to a non-Oracle database. Currently, parallel apply to non-Oracle databases is not supported. However, you may use multiple apply processes to apply changes a non-Oracle database.
If you use a DML handler to process row LCRs for any of the tables at the non-Oracle database, then specify the database link to the non-Oracle database when you run the
SET_DML_HANDLER procedure in the
If you want to use a message handler to process user-enqueued messages for a non-Oracle database, then, when you run the
CREATE_APPLY procedure in the
DBMS_APPLY_ADM package, specify the database link to the non-Oracle database using the
apply_database_link parameter, and specify the message handler procedure using the
Currently, error handlers and conflict handlers are not supported when sharing data from an Oracle database to a non-Oracle database. If an apply error occurs, then the transaction containing the LCR that caused the error is moved into an exception queue in the Oracle database.
When applying changes to a non-Oracle database, an apply process applies changes made to columns of only the following datatypes:
The apply process does not apply changes in columns of the following datatypes to non-Oracle databases:
UROWID, and user-defined types (including object types,
REFs, varrays, and nested tables). The apply process raises an error when an LCR contains a datatype that is not listed, and the transaction containing the LCR that caused the error is moved to an exception queue in the Oracle database.
Each transparent gateway may have further limitations regarding datatypes. For a datatype to be supported in an Oracle to non-Oracle environment, the datatype must be supported by both Streams and the gateway being used.
When you specify that DML changes made to certain tables should be applied at a non-Oracle database, an apply process can apply only the following types of DML changes:
Before you start an apply process that applies changes to a non-Oracle database, complete the following steps to instantiate each table at the non-Oracle database:
DBMS_HS_PASSTHROUGHpackage or the tools supplied with the non-Oracle database to create the table at the non-Oracle database.
Oracle9i Heterogeneous Connectivity Administrator's Guide and your Oracle supplied gateway-specific documentation for more information about Heterogeneous Services and transparent gateways
GET_SYSTEM_CHANGE_NUMBERfunction in the
ENABLE_AT_SYSTEM_CHANGE_NUMBERprocedure in the
DBMS_FLASHBACKpackage to set the current session to the obtained SCN. This action ensures that all fetches are done using the same SCN.
For example, the following PL/SQL procedure gets the flashback SCN, fetches each row in the
hr.regions table in the current Oracle database, and inserts them into the
hr.regions table in the
het.net non-Oracle database. Notice that flashback is disabled before the rows are inserted into the non-Oracle database.
SET SERVEROUTPUT ON CREATE OR REPLACE PROCEDURE insert_reg IS CURSOR c1 IS SELECT region_id, region_name FROM hr.regions; c1_rec c1 % ROWTYPE; scn NUMBER; BEGIN scn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER(); DBMS_FLASHBACK.ENABLE_AT_SYSTEM_CHANGE_NUMBER( query_scn => scn); /* Open c1 in flashback mode */ OPEN c1; /* Disable Flashback */ DBMS_FLASHBACK.DISABLE; LOOP FETCH c1 INTO c1_rec; EXIT WHEN c1%NOTFOUND; /* Note that all the DML operations inside the loop are performed with Flashback disabled */ INSERT INTO firstname.lastname@example.org VALUES ( c1_rec.region_id, c1_rec.region_name); END LOOP; COMMIT; DBMS_OUTPUT.PUT_LINE('SCN = ' || scn); EXCEPTION WHEN OTHERS THEN DBMS_FLASHBACK.DISABLE; RAISE; END; /
Make a note of the SCN returned.
SET_TABLE_INSTANTIATION_SCNprocedure in the
DBMS_APPLY_ADMpackage to instruct the apply process to skip all LCRs with changes that occurred before the SCN you obtained in Step 3. Make sure you set the
apply_database_linkparameter to the database link for the remote non-Oracle database.
"Setting Instantiation SCNs at a Destination Database" and Oracle9i Supplied PL/SQL Packages and Types Reference for more information about the
In an Oracle to non-Oracle environment, you can specify rule-based transformations during capture or apply the same way as you would in an Oracle-only environment. In addition, if your environment propagates LCRs to one or more intermediate Oracle databases before they are applied at a non-Oracle database, then you can specify a rule-based transformation during propagation from a queue at an Oracle database to another queue at an Oracle database.
Messaging Gateway is a feature of the Oracle database that provides propagation between Oracle queues and non-Oracle message queuing systems. Messages enqueued into an Oracle queue are automatically propagated to a non-Oracle queue, and the messages enqueued into a non-Oracle queue are automatically propagated to an Oracle queue. It provides guaranteed message delivery to the non-Oracle messaging system and supports the native message format for the non-Oracle messaging system. It also supports specification of user-defined transformations that are invoked while propagating from an Oracle queue to the non-Oracle messaging system or from the non-Oracle messaging system to an Oracle queue.
Oracle9i Application Developer's Guide - Advanced Queuing for more information about the Messaging Gateway
If the apply process encounters an unhandled error when it tries to apply an LCR at a non-Oracle database, then the transaction containing the LCR is placed in an exception queue in the Oracle database that is running the apply process. The apply process detects data conflicts in the same way as it does in an Oracle-only environment, but automatic conflict resolution is not supported currently in an Oracle to non-Oracle environment. Therefore, any data conflicts encountered are treated as apply errors.
Chapter 22, "Single Source Heterogeneous Replication Example" contains a detailed example that includes sharing data in an Oracle to non-Oracle Streams environment.
To capture and propagate changes from a non-Oracle database to an Oracle database, a custom application is required. This application gets the changes made to the non-Oracle database by reading from transaction logs, by using triggers, or by some other method. The application must assemble and order the transactions and must convert each change into a logical change record (LCR). Then, the application must enqueue the LCRs into a queue in an Oracle database using the

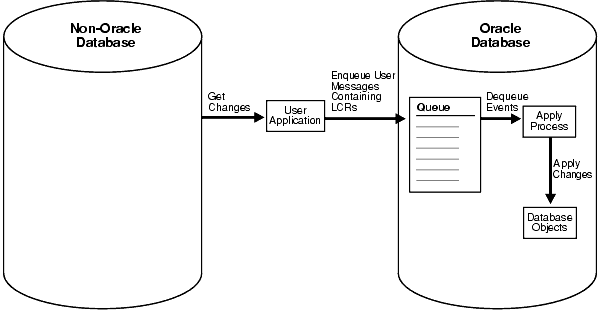

DBMS_AQ package. The application must commit after enqueuing all LCRs in each transaction. Figure 9-2 shows a non-Oracle databases sharing data with an Oracle database.
Because the custom user application is responsible for assembling changes at the non-Oracle database into LCRs and enqueuing the LCRs into a queue at the Oracle database, the application is completely responsible for change capture. This means that the application must construct LCRs that represent changes at the non-Oracle database and then enqueue these LCRs into the queue at the Oracle database. The application must enqueue transactions serially in the same order as the transactions committed on the non-Oracle source database.
If you want to ensure the same transactional consistency at both the Oracle database where changes are applied and the non-Oracle database where changes originate, then you must use a transactional queue to stage the LCRs at the Oracle database. For example, suppose a single transaction contains three row changes, and the custom application enqueues three row LCRs, one for each change, and then commits. With a transactional queue, a commit is performed by the apply process after the third row LCR, retaining the consistency of the transaction. If you use a nontransactional queue, then a commit is performed for each row LCR by the apply process. The
SET_UP_QUEUE procedure in the
DBMS_STREAMS_ADM package creates a transactional queue automatically.
In a non-Oracle to Oracle environment, the apply process functions the same way as it would in an Oracle-only environment. That is, it dequeues each event from its associated queue based on apply process rules, performs any rule-based transformation, and either sends the event to a handler or applies it directly. Error handling and conflict resolution also function the same as they would in an Oracle-only environment. So, you can specify a prebuilt update conflict handler or create a custom conflict handler to resolve conflicts.
There is no automatic way to instantiate tables that exist at a non-Oracle database at an Oracle database. However, you can perform the following general procedure to instantiate a table manually:
Oracle9i Database Utilities for information about using SQL*Loader
Streams supports data sharing between two non-Oracle databases through a combination of non-Oracle to Oracle data sharing and Oracle to non-Oracle data sharing. Such an environment would use Streams in an Oracle database as an intermediate database between two non-Oracle databases.
For example, a non-Oracle to non-Oracle environment may consist of the following databases:
A user application assembles changes at
het1.net and enqueues them into a queue in
dbs1.net. Then, the apply process at
dbs1.net applies the changes to
het2.net using Heterogeneous Services and a gateway. Another apply process at
dbs1.net could apply some or all of the changes in the queue locally at
dbs1.net. One or more propagations at
dbs1.net could propagate some or all of the changes in the queue to other Oracle databases.
