This chapter introduces you to Oracle XML DB. It describes Oracle XML DB features and architecture.
This chapter contains these topics:
Oracle XML DB provides high-performance storage and retrieval of XML. It extends Oracle Database, by delivering the functionality associated with both a native XML database and a relational database. It include the following features:
Supports the World Wide Web Consortium (W3C) XML and XML Schema data models and provides standard access methods for navigating and querying XML. It absorbs these data models into Oracle Database.
Lets you store, query, update, transform, or otherwise process XML, while at the same time provides SQL access to the same XML data. Similarly it allows XML operations on SQL data.
Includes a simple, light-weight XML repository that allows XML content to be organized and managed using a file/folder/URL metaphor.
Provides a storage-independent, content-independent and programming-language-independent infrastructure for storing and managing XML data. It delivers new methods for navigating and querying XML content stored in the database. For example, Oracle XML DB XML repository facilitates this by managing XML document hierarchies.
Provides industry-standard methods for accessing and updating XML, including W3C XPath recommendation and the ISO-ANSI SQL/XML standard. FTP, HTTP, and WebDAV support make it possible to move XML-content in and out of Oracle Database. Industry-standard APIs allow for programmatic access and manipulation of XML content using Java, C, and PL/SQL.
XML-specific memory management and optimizations.
Enterprise-level Oracle Database features, such as reliability, availability, scalability, and unbreakable security for XML content.
Oracle XML DB is not a separate server but rather the name for a distinct group of technologies related to high-performance XML storage and retrieval available in Oracle Database. Oracle XML DB can also be thought of as an evolution of the Oracle Database that encompasses both SQL and XML data models in a highly interoperable manner, thus providing native XML support.
You can build applications using Oracle XML DB in conjunction with Oracle XML Developer's Kit (XDK). XDK provides common development-time utilities that can run in the middle tier in Oracle Application Server or in Oracle Database.
See Also:Oracle XML Developer's Kit Programmer's Guide. for more information about XDK
XMLType tables and views storage
Oracle XML DB repository, also referred to in this manual as XML repository or repository
XMLType Storage describes the architecture in more detail.
Figure 1-1 Oracle XML DB Architecture: XMLType Storage and Repository
Figure 1-2 describes the
XMLType tables and views storage architecture.
When XML Schema are registered with Oracle XML DB, XML elements for
XMLType tables, tables with
XMLType columns, and
XMLType views, are mapped to database tables. These can be viewed and accessed in XML repository.
XMLType tables and tables with
XMLType columns can be stored in Character Large Objects (
CLOB) or natively using structured XML.
XMLType views can be stored in local tables or remote tables. The latter can be accessed through DBLinks.
Options for accessing data in XML repository include:
Oracle XML DB repository (XML repository or repository) is an XML data repository in Oracle Database optimized for handling XML data. At the heart of Oracle XML DB repository is the Oracle XML DB foldering module.
The contents of Oracle XML DB repository are referred to as resources. These can be either containers (directories or folders) or files. All resources are identified by a path name and have a (extensible) set of (metadata) properties such as Owner, CreationDate, and so on, in addition to the actual contents defined by the user.
Figure 1-1 shows the following Oracle XML DB XML application program interfaces (APIs):
Oracle XML DB Resource APIs. These are used to access
XMLType and other data. In other words, to access data in the Oracle XML DB hierarchically indexed repository. The APIs are available in the following languages:
SQL, through the
Java through the Resource API for Java
C (OCI) through the C API for XML
Oracle Data Provider for .NET (ODP.NET)
See Also:Part V. " Oracle XML DB Repository: Foldering, Security, and Protocols"
Oracle XML DB Protocol Server. Oracle XML DB supports FTP, HTTP, and WebDAV protocols, as well as JDBC, for fast access of XML data stored in Oracle Database in
XMLType tables and columns. See Chapter 24, " FTP, HTTP, and WebDAV Access to Repository Data".
Besides supporting APIs that access and manipulate data Oracle XML DB repository provides API for the following services:
Versioning. Oracle XML DB uses the
DBMS_XDB_VERSION PL/SQL package for versioning resources in Oracle XML DB repository. Subsequent updates to the resource results in new versions being created while the data corresponding to previous versions is retained. Versioning support is based on the IETF WebDAV standard.
ACL Security. Oracle XML DB resource security is based on the ACL (Access Control Lists) mechanism. Every resource or document in Oracle XML DB has an associated ACL that lists its privileges. Whenever resources are accessed or manipulated, the ACLs determine if the operation is legal. An ACL is an XML document that contains a set of Access Control Entries (ACE). Each ACE grants or revokes a set of permissions to a particular user or group (database role). This access control mechanism is based on the WebDAV specification.
Foldering. Oracle XML DB repository foldering module manages a persistent hierarchy of containers (folders or directories) and resources. Other Oracle XML DB modules, such as protocol servers, the schema manager, and the Oracle XML DB
RESOURCE_VIEW API use the foldering module to map path names to resources.
Figure 1-2 Oracle XML DB: XMLType Storage and Retrieval Architecture

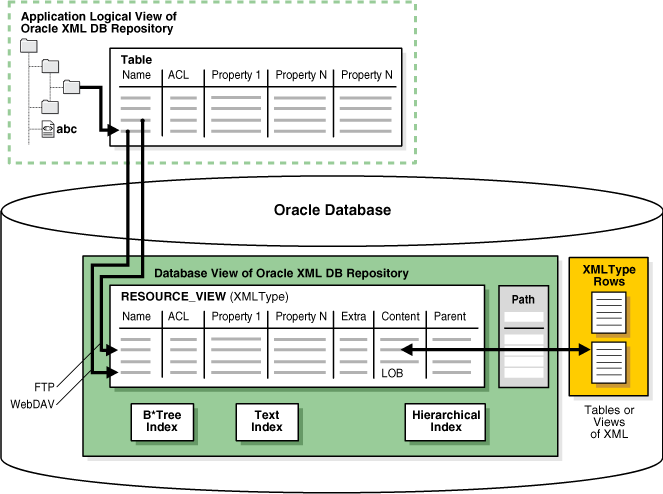

Figure 1-3 describes the Oracle XML DB repository architecture. A resource is any piece of content managed by Oracle XML DB. Each resource has a name, an associated access control list that determines who can see the resource, certain static properties, and additional properties that are extensible by the application. Applications using the repository obtain a logical view of parent-child folders. You can access this Oracle Database repository, for example, in SQL, using the
In addition to the resource information, the
RESOURCE_VIEW also contains a
Path column, which holds the paths to each resource.
Figure 1-3 Oracle XML DB Repository Architecture
The relational model table-row-column metaphor, is accepted as an effective mechanism for managing structured data. The model is not as effective for managing semi-structured and unstructured data, such as document- or content-oriented XML. For example, a book is not easily represented as a set of rows in a table. It is more natural to represent a book as a hierarchy, book:chapter:section:paragraph, and to represent the hierarchy as a set of folders and subfolders.
A hierarchical metaphor manages document-centric XML content. Relational databases are traditionally not good at managing hierarchical structures and traversing a path or URL. Oracle XML DB provides a hierarchically organized XML repository that can be queried and through which document-centric XML content can be managed.
A hierarchical index speeds up folder and path traversals. Oracle XML DB includes a new, patented hierarchical index that speeds up folder and path traversals in Oracle XML DB repository. The hierarchical index is transparent to end users, and allows Oracle XML DB to perform folder and path traversals at speeds comparable to or faster than conventional file systems.
Access XML documents using FTP, HTTP, and WebDAV protocols; SQL, PL/SQL, Java, and C languages. You can access XML documents in the repository using standard connect-access protocols such as FTP, HTTP, and WebDAV, in addition to languages SQL, PL/SQL, Java, and C. Oracle XML DB repository provides content authors and editors direct access to XML content stored in Oracle Database.
A resource in this context is a file or folder, identified by a URL. WebDAV is an IETF standard that defines a set of extensions to the HTTP protocol. It allows an HTTP server to act as a file server for a DAV-enabled client. The WebDAV standard uses the term resource to describe a file or a folder. Every resource managed by a WebDAV server is identified by a URL. Oracle XML DB adds native support to Oracle Database for these protocols. The protocols were designed for document-centric operations. By providing support for these protocols Oracle XML DB allows Windows Explorer, Microsoft Office, and products from vendors such as Altova, Macromedia, and Adobe, to work directly with XML content stored in Oracle XML DB repository. Figure 1-4 shows the root level directory of the Oracle XML DB repository as seen from Microsoft Web Folder.
Figure 1-4 Microsoft Web Folder View of Oracle XML DB Repository
See Also:Chapter 3, " Using Oracle XML DB"
Hence, WebDAV clients such as Microsoft Windows Explorer can connect directly to XML DB repository. No additional Oracle Database or Microsoft-specific software or other complex middleware is needed. End users can work directly with Oracle XML DB repository using familiar tools and interfaces.
One key features of the Oracle XML DB architecture is that HTTP, WebDAV, and FTP protocols are supported using the same architecture used to support Oracle Data Provider for .NET (ODP.NET) in a shared server configuration. The Listener listens for HTTP and FTP requests in the same way that it listens for ODP .NET service requests. When the listener receives an HTTP or FTP request it hands it off to an Oracle Database shared server process which services it and sends the appropriate response back to the client.As can be seen from Figure 1-5, you can use the TNS Listener command
lsnrctl status to verify that HTTP and FTP support has been enabled.
Figure 1-5 Listener Status with FTP and HTTP Protocol Support Enabled
All Oracle XML DB functionality is accessible from C, PL/SQL, and Java. Today, the most popular methods for building web-based applications are servlets plus JSPs (Java Server Pages) and XSL plus XSPs (XML Style Sheets plus XML Server Pages). Typical API implementation includes:
Servlets and JSPs. These APIs access data using JDBC.
XSL/XSPs. These APIs expect data in the form of XML documents that are processed using a Document Object Model (DOM) API implementation.
Oracle XML DB supports both styles of application development. It provides Java, PL/SQL, and C implementations of the DOM API.Applications that use JDBC, such as those based on servlets, need prior knowledge of the data structure they are processing. Oracle JDBC drivers allow you to access and update
XMLType tables and columns, and call PL/SQL procedures that access Oracle XML DB repository.Applications that use DOM, such as those based on XSLT transformations, typically require less knowledge of the data structure. DOM-based applications use string names to identify pieces of content, and must dynamically walk through the DOM tree to find the required information. For this Oracle XML DB supports the use of the DOM API to access and update
XMLType columns and tables. Programming to a DOM API is more flexible than programming through JDBC, but it may require more resources at run time.
Any database used for managing XML must be able to persist XML documents. Oracle XML DB is capable of much more than this. It provides standard database features such as transaction control, data integrity, replication, reliability, availability, security, and scalability., while also allowing for efficient indexing, querying, updating, and searching of XML documents in an XML-centric manner.
The hierarchical nature of XML presents the traditional relational database with a number of challenges:
In a relational database the table-row metaphor locates content. Primary-Key Foreign-Key relationships help define the relationships between content. Content is accessed and updated using the table-row-column metaphor. XML on the other hand uses hierarchical techniques to achieve the same functionality. A URL is used to locate an XML document. URL-based standards such as XLink are used to defined the relationships between XML documents. W3C Recommendations like XPath are used to access and update content contained within XML documents. Both URLs and XPath expressions are based on hierarchical metaphors. A URL uses a path through a folder hierarchy to identify a document whereas XPath uses a path through an XML document's node hierarchy to access part of an XML document.
Oracle XML DB addresses these challenges by introducing new SQL operators and methods that allow the use of XML-centric metaphors, such as XPath expressions for querying and updating XML Documents. The major features of Oracle XML DB are:
XMLType Storage. This was described previously .
Oracle XML DB Repository. This was described previously .
XMLType is a native server datatype that allows the database to understand that a column or table contains XML. This is similar to the way that the
DATE datatype allows the database to understand that a column contains a date.
XMLType also provides methods that allow common operations such as XML schema validation and XSL transformations on XML content.You can use the
XMLType data-type like any other datatype. For example, you can use
Creating a column in a relational table
Declaring PL/SQL variables
Defining and calling PL/SQL procedures and functions
XMLType is an object type, you can also create a table of
XMLType. By default, an
XMLType table or column can contain any well-formed XML document.
The following example shows creating a simple table with an
Oracle XML DB stores the content of the document as XML text using the Character Large Object (
CLOB) datatype. This allows for maximum flexibility in terms of the shape of the XML structures that can be stored in a single table or column and the highest rates of ingestion and retrieval.
XMLType tables or columns can be constrained and conform to an XML schema. This has several advantages:
The database will ensure that only XML documents that validate against the XML schema can be stored in the column or table.
Since the contents of the table or column conform to a known XML structure, Oracle XML DB can use the information contained in the XML schema to provide more intelligent query and update processing of the XML.
XMLType to an XML schema provides the option of storing the content of the document using structured-storage techniques. Structured-storage decomposes or 'shreds' the content of the XML document and stores it as a set of SQL objects rather than simply storing the document as text in a
CLOB. The object-model used to store the document is automatically derived from the contents of the XML schema.
XMLType datatype provides the following structures:
Constructors. These allow an
XMLType value to be created from a
Methods. A number of XML-specific methods that can operate on
XMLType objects. The methods provided by
XMLType provide support for common operations such as:
Extracting a subset of nodes contained in the
Checking whether or not a particular node exists in the
Validating the contents of the
XMLType against an XML schema, using
Performing an XSL Transformation, using
Support for the Worldwide Web Consortium (W3C) XML Schema Recommendation is a key feature in Oracle XML DB. XML Schema specifies the structure, content, and certain semantics of a set of XML documents. It is described in detail at
XML Schema unifies both document and data modeling. In Oracle XML DB, you can create tables and types automatically using XML schema. In short, this means that you can develop and use a standard data model for all your data, structured, unstructured, and pseudo/semi-structured. You can use Oracle XML DB to enforce this data model for all your data.
You can create XML schema-based
XMLType tables and columns and optionally specify, for example, that they:
Conform to pre-registered XML schema
Are stored in structured storage format specified by the XML schema maintaining DOM fidelity
You can also choose to wrap existing relational and object-relational data into XML format using
You can store an
XMLType object as an XML schema-based object or a non-XML schema-based object:
XML Schema-based objects. These are stored in Oracle XML DB as Large Objects (LOBs) or in structured storage (object-relationally) in tables, columns, or views.
Non-XML schema-based objects. These are stored in Oracle XML DB as LOBs.
You can map from XML instances to structured or LOB storage. The mapping can be specified in XML schema and the XML schema must be registered in Oracle XML DB. This is a required step before storing XML schema-based instance documents. Once registered, the XML schema can be referenced using its URL.
The W3C Schema Working Group publishes an XML Schema, often referred to as the "Schema for Schemas". This XML schema provides the definition, or vocabulary, of the XML Schema language. An XML schema definition (XSD) is an XML document, that is compliant with the vocabulary defined by the "Schema for Schemas". An XML schema uses vocabulary defined by W3C XML Schema Working Group to create a collection of type definitions and element declarations that declare a shared vocabulary for describing the contents and structure of a new class of XML documents.
The XML Schema language provides strong typing of elements and attributes. It defines 47 scalar data types. The base set of data types can be extended using object-oriented techniques like inheritance and extension to define more complex types. W3C XML Schema vocabulary also includes constructs that allow the definition of complex types, substitution groups, repeating sets, nesting, ordering, and so on. Oracle XML DB supports all of constructs defined by the XML Schema Recommendation, except for redefines.
XML schema are most commonly used as a mechanism for validating that instance documents conform with their specifications. Oracle XML DB includes methods and SQL operators that allow an XML schema to be used for this.
Note:This manual uses the term XML schema (lower-case "s") to infer any schema that conforms to the W3C XML Schema (upper-case "S") Recommendation. Also, since an XML schema is used to define a class of XML documents, the term "instance document" is often used to describe an XML document that conforms to a particular XML Schema.
See Also:Appendix B, " XML Schema Primer" and Chapter 5, " XML Schema Storage and Query: The Basics" for more information about using XML schema and using XML schema with Oracle XML DB
One key decision to make when using Oracle XML DB for persisting XML documents is when to use structured- and when to use unstructured storage.
Unstructured-storage provides for the highest possible throughput when inserting and retrieving entire XML documents. It also provides the greatest degree of flexibility in terms of the structure of the XML that can be stored in a
XMLType table or column. These throughput and flexibility benefits come at the expense of certain aspects of intelligent processing. There is little the database can do to optimize queries or updates on XML stored using a
Structured-storage has a number of advantages for managing XML, including optimized memory management, reduced storage requirements, b-tree indexing and in-place updates. These advantages are at a cost of somewhat increased processing overhead during ingestion and retrieval and reduced flexibility in terms of the structure of the XML that can be managed by a given
XMLType table or column.
Table 1-1 outlines the merits of structured and unstructured storage.
Table 1-1 XML Storage Options: Structured or Unstructured
|Unstructured Storage||Structured Storage|
|Throughput||Highest possible throughput when ingesting and retrieving the entire content of an XML document.||The decomposition process results in slightly reduced throughput when ingesting retrieving the entire content of an XML document.|
|Flexibility||Provides the maximum amount of flexibility in terms of the structure of the XML documents that can be stored in an
||Limited Flexibility. Only document that conform with the XML Schema can be stored in the |
|XML Fidelity||Delivers Document Fidelity: Maintains the original XML byte for byte, which may be important to some applications.||DOM Fidelity: A DOM created from an XML document that has been stored in the database will be identical to a DOM created from the original document. However trailing new lines, white space characters between tags and some data formatting may be lost.|
|Update Operations||When any part of the document is updated the entire document must be written back to disk.||The majority of update operations can be performed using Query Rewrite. This allows in-place, piece-wise update, leading to significantly reduced response times and greater throughput.|
|XPath based queries||XPath operations evaluated by constructing DOM from
||XPath operations may be evaluated using query-rewrite, leading to significantly improved performance, particularly with large collections of documents.|
|SQL Constraint Support||SQL constraints are not currently available.||SQL constraints are supported.|
|Indexing Support||Text and function-based indexes.||B-Tree, text and function-based indexes.|
|Optimized Memory Management||XML operations on the document require creating a DOM from the document.||XML operations can be optimized to reduce memory requirements.|
Much valuable information in an organization is in the form of semi-structured and unstructured data. Typically this data is in files stored on a file server or in a
CLOB column inside a database. The information in these files is in proprietary- or application-specific formats. It can only be accessed through specialist tools, such as word processors or spreadsheets, or programmatically using complex, proprietary APIs. Searching across this information is limited to facilities provided by a crawler or full text indexing.
Major reasons for the rapid adoption of XML are that it allows for:
Stronger data management
More open access to semi-structured and unstructured content.
Replacing proprietary file formats with XML allows organizations to achieve much higher levels of reuse of their semi-structured and unstructured data. The content can be accurately described using XML Schema. The content can be easily accessed and updated using standard APIs based on DOM and XPath.
For example, information contained in an Excel spreadsheet is only accessible to the Excel program, or to a program that uses Microsoft's COM APIs. The same information, stored in an XML document is accessible to any tool that can leverage the XML programming model. Structured data on the other hand does not suffer from these limitations. Structured data is typically stored as rows in tables within a relational database. These tables are accessed and searched using the relational model and the power and openness of SQL from a variety of tools and processing engines.
A key objective of Oracle XML DB is to provide XML/ SQL duality. This means that the XML programmer can leverage the power of the relational model when working with XML content and the SQL programmer can leverage the flexibility of XML when working with relational content. This provides application developers with maximum flexibility, allowing them to use the most appropriate tools to solving a particular business problem.
Relational and XML Metaphors are Interchangeable: Oracle XML DB erases the traditional boundary between applications that work with structured data and those that work with semi-structured and unstructured content. With Oracle XML DB the relational and XML metaphors become interchangeable.
XML/SQL duality means that the same data can be exposed as rows in a table and manipulated using SQL or exposed as nodes in an XML document and manipulated using techniques such as DOM or XSL transformation. Access and processing techniques are totally independent of the underlying storage format!
These features provide new, simple solutions to common business problems. For example:
Relational data can quickly and easily be converted into HTML pages. Oracle XML DB provides new SQL operators that make it possible to generate XML directly from a SQL query. The XML can be transformed into other formats, such as HTML using the database-resident XSLT processor.
You can easily leverage all of the information contained in their XML documents without the overhead of converting back and forth between different formats. With Oracle XML DB you can access XML content using SQL queries, On-line Analytical Processing (OLAP), and Business-Intelligence/Data Warehousing operations.
Text, spatial data, and multimedia operations can be performed on XML Content.
Oracle XML DB provides an implementation of the majority of operators incorporated into the forthcoming SQL/XML standard. SQL/XML is defined by specifications prepared by the International Committee for Information Technology Standards (Technical Committee H2), the main standards body for developing standards for the syntax and semantics of database languages, including SQL.
http://www.ncits.org/tc_home/h2.htm for more information. SQL/XML operators fall into two categories:
The first category consists of a set of operators that make it possible to query and access XML content as part of normal SQL operations.
The second category consists of a set of operators that provide an industry standard method for generating XML from the result of a SQL
With these SQL/XML operators you can address XML content in any part of a SQL statement. They use XPath notation to traverse the XML structure and identify the node or nodes on which to operate. The XPath Recommendation is described in detail at
http://www.w3.org/TR/xpath. The ability to embed XPath expressions in SQL statements greatly simplifies XML access. The following describes briefly the provided SQL/XML operators:
existsNode(). This is used in the
WHERE clause of a SQL statement to restrict the set of documents returned by a query. The
existsNode() operator takes an XPath expression and applies it an XML document. The operator and returns true (
1) or false (
0) depending on whether or not the document contains a node which matches the XPath expression.
extract(). This takes an XPath expression and returns the nodes that match the expression as an XML document or fragment. If only a single node matches the XPath expression, the result is a well-formed XML document. If multiple nodes match the XPath expression, the result is a document fragment.
extractValue(). This takes an XPath expression and returns the corresponding leaf level node. The XPath expression passed to
extractValue() should identify a single attribute, or an element which has precisely one text node child. The result is returned in the appropriate SQL data type.
updateXML(). This allows partial updates to be made to an XML document, based on a set of XPath expressions. Each XPath expression identifies a target node in the document, and a new value for that node. The
updateXML() operator allows multiple updates to be specified for a single XML document.
XMLSequence(). This makes it possible to expose the members of a collection as a virtual table
Detailed examples of the way in which these functions are used are provided in the
PurchaseOrder examples in Chapter 3, " Using Oracle XML DB".
The SQL/XML operators, and corresponding
XMLType methods, allow XPath expressions to be used to search collections of XML documents and to access a subset of the nodes contained within an XML document
Oracle XML DB has two methods of evaluating XPath expressions that operate on XMLType columns and tables. For XML:
Stored using structured storage techniques, Oracle XML DB attempts to translate the XPath expression in a SQL/XML operator into an equivalent SQL query. The SQL query references the object-relational data structures that underpin a schema-based
XMLType. While this process is referred to as query-rewrite, it can also occur when performing
Stored using unstructured storage, Oracle XML DB will evaluate the XPath using functional evaluation. Functional evaluation builds a DOM tree for each XML document and then resolves the XPath programmatically using the methods provided by the DOM API. If the operation involves updating the DOM tree, the entire XML document has to be written back to disc when the operation is completed.
Query-rewrites allow the database to efficiently process SQL statements containing one or more XPath expressions using conventional relational SQL. By translating the XPath expression into a conventional SQL statement, Oracle XML DB insulates the database optimizer from having to understand XPath notation and the XML data model. The database optimizer simply processes the re-written SQL statement in the same manner as other SQL statements.
This means that the database optimizer can derive an execution plan based on conventional relational algebra. This allows Oracle XML DB to leverage all the features of the database and ensure that SQL statements containing XPath expressions are executed in a highly performant and efficient manner. To sum up, there is little overhead with query-rewrites and Oracle XML DB can execute XPath-based queries at near-relational speed, while preserving the XML abstraction.
Query-rewrites are possible when:
The SQL statement contains SQL/XML operators or
XMLType methods that use XPath expressions to refer to one or more nodes within a set of XML documents.
XMLType column or table containing the XML documents is associated with a registered XML Schema.
XMLType column or table uses structured storage techniques to provide the underlying storage model.
The nodes referenced by the XPath expression can be mapped, using the XML Schema, to attributes of the underlying SQL object model.
The query-rewrite process is described as follows:
Identify the set of XPath expressions included in the SQL statement.
Translate each XPath expression into an object relational SQL expression that references the tables, types, and attributes of the underlying SQL: 1999 object model.
Re-write the original SQL statement into an equivalent object relational SQL statement.
Pass the new SQL statement to the database optimizer for plan generation and query execution.
In certain cases query-rewrite is not possible. This normally occurs when there is no SQL equivalent of the XPath expression. In this situation Oracle XML DB performs a functional evaluation of the XPath expressions. In general, functional evaluation of a SQL statement is more expensive than query-rewrite, particularly if the number of documents that needs to be processed is large. However the major advantage of functional evaluation is that it is always possible, regardless of whether or not the
XMLType is stored using structured storage and regardless of the complexity of the XPath expression. When documents are stored using unstructured storage (in a CLOB), functional evaluation is necessary any time the
updatexml() operators are used. The
existsNode() operator will also result in functional evaluation unless a
CTXXPATH index or function-based index can be used to resolve the query.Understanding the concept of query-re-write, and the conditions under which query re-write can take place, is a key step in developing Oracle XML DB applications that will deliver the required levels of scalability and performance.
The following sections describe several benefits for using Oracle XML DB advantages including:

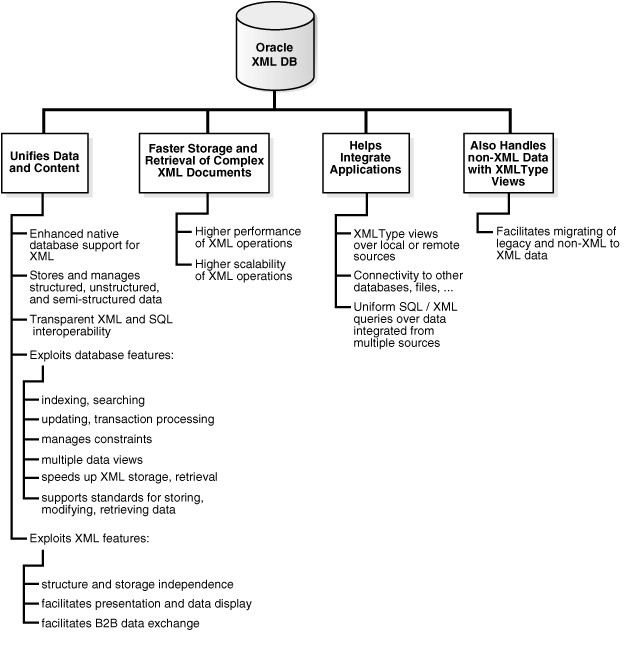

Figure 1-6 summarizes the Oracle XML DB benefits.
Figure 1-6 Oracle XML DB Benefits
Most applications' data and Web content is stored in a relational database or a file system, or a combination of both. XML is used mostly for transport and is generated from a database or a file system. As the volume of XML transported grows, the cost of regenerating these XML documents grows and these storage methods become less effective at accommodating XML content. See Figure 1-7. Oracle XML DB is effective at accommodating XML content. It provides enhanced native support for XML.
Figure 1-7 Unifying Data and Content: Some Common XML Architectures
Organizations today typically manage their structured data and unstructured data differently:
Unstructured data, in tables, makes document access transparent and table access complex
Structured data, often in binary large objects (such as in BLOBs) makes access more complex and table access transparent.
With Oracle XML DB you can store and manage both structured, unstructured, and pseudo or semi-structured data, using a standard data model, and standard SQL and XML.
Oracle XML DB provides complete transparency and interchangeability between XML and SQL. You can perform both the following:
XML operations on object-relational (such as table) data
SQL operations on XML documents
This makes the database much more accessible to XML-shaped data content.
Oracle Database has strong XML support with the following key capabilities:
Indexing and Search: Applications use queries such as "find all the product definitions created between March and April 2002", a query that is typically supported by a B*Tree index on a date column. Oracle XML DB can enable efficient structured searches on XML data, saving content-management vendors the need to build proprietary query APIs to handle such queries. See Chapter 4, " XMLType Operations ", Chapter 9, " Full Text Search Over XML", and Chapter 15, " Generating XML Data from the Database".
Updates and Transaction Processing: Commercial relational databases use fast updates of subparts of records, with minimal contention between users trying to update. As traditionally document-centric data participate in collaborative environments through XML, this requirement becomes more important. File or
CLOB storage cannot provide the granular concurrency control that Oracle XML DB does. See Chapter 4, " XMLType Operations ".
Managing Relationships: Data with any structure typically has foreign key constraints. Currently, XML data-stores lack this feature, so you must implement any constraints in application code. Oracle XML DB enables you to constrain XML data according to XML schema definitions and hence achieve control over relationships that structured data has always enjoyed. See Chapter 5, " XML Schema Storage and Query: The Basics" and the purchase-order examples at the end of Chapter 4, " XMLType Operations ".
Multiple Views of Data: Most enterprise applications need to group data together in different ways for different modules. This is why relational views are necessary—to allow for these multiple ways to combine data. By allowing views on XML, Oracle XML DB creates different logical abstractions on XML for, say, consumption by different types of applications. See Chapter 16, " XMLType Views".
Performance and Scalability: Users expect data storage, retrieval, and query to be fast. Loading a file or
CLOB value, and parsing, are typically slower than relational data access. Oracle XML DB dramatically speeds up XML storage and retrieval. See Chapter 2, " Getting Started with Oracle XML DB" and Chapter 3, " Using Oracle XML DB".
Ease of Development: Databases are foremost an application platform that provides standard, easy ways to manipulate, transform, and modify individual data elements. While typical XML parsers give standard read access to XML data they do not provide an easy way to modify and store individual XML elements. Oracle XML DB supports a number of standard ways to store, modify, and retrieve data: using XML Schema, XPath, DOM, and Java.
If the drawbacks of XML file storage force you to break down XML into database tables and columns, there are several XML advantages you have left:
Structure Independence: The open content model of XML cannot be captured easily in the pure tables-and-columns world. XML Schemas allow global element declarations, not just scoped to a container. Hence you can find a particular data item regardless of where in the XML document it moves to as your application evolves. See Chapter 5, " XML Schema Storage and Query: The Basics".
Storage Independence: When you use relational design, your client programs must know where your data is stored, in what format, what table, and what the relationships are among those tables.
XMLType enables you to write applications without that knowledge and allows DBAs to map structured data to physical table and column storage. See Chapter 5, " XML Schema Storage and Query: The Basics" and Chapter 18, " Accessing Oracle XML DB Repository Data".
Ease of Presentation: XML is understood natively by browsers, many popular desktop applications, and most internet applications. Relational data is not generally accessible directly from applications, but requires programming to be made accessible to standard clients. Oracle XML DB stores data as XML and pump it out as XML, requiring no programming to display your database content. See:
Oracle XML Developer's Kit Programmer's Guide, in the chapter, "XSQL Pages Publishing Framework". It includes
Ease of Interchange: XML is the language of choice in business-to-business (B2B) data exchange. If you are forced to store XML in an arbitrary table structure, you are using some kind of proprietary translation. Whenever you translate a language, information is lost and interchange suffers. By natively understanding XML and providing DOM fidelity in the storage/retrieval process, Oracle XML DB enables a clean interchange. See:
Users today face a performance barrier when storing and retrieving complex, large, or many XML documents. Oracle XML DB provides very high performance and scalability for XML operations. The major performance features are:
XMLType. See Chapter 4, " XMLType Operations ".
The lazily evaluated virtual DOM support. See Chapter 10, " PL/SQL API for XMLType ".
Database-integrated XPath and XSLT support. This support is described in several chapters, including Chapter 4, " XMLType Operations " and Chapter 8, " Transforming and Validating XMLType Data".
XML Schema-caching support. See Chapter 5, " XML Schema Storage and Query: The Basics".
CTXPATH Text indexing. See Chapter 9, " Full Text Search Over XML".
The hierarchical index over the repository. See Chapter 18, " Accessing Oracle XML DB Repository Data".
Oracle XML DB enables data from disparate systems to be accessed through gateways and combined into one common data model. This reduces the complexity of developing applications that must deal with data from different stores.
XMLType views provide a way for you wrap existing relational and object-relational data in XML format. This is especially useful if, for example, your legacy data is not in XML but you need to migrate to an XML format. Using
XMLType views you do not need to alter your application code.
See Also:Chapter 16, " XMLType Views"
XMLType views you must first register an XML Schema with annotations that represent the bi-directional mapping from XML to SQL object types and back to XML. An
XMLType view conforming to this schema (mapping) can then be created by providing an underlying query that constructs instances of the appropriate SQL object type. Figure 1-6 summarizes the Oracle XML DB advantages.
Oracle enables special indexing on XML, including Oracle Text indexes for section searching, special operators to process XML, aggregation of XML, and special optimization of queries involving XML.
XML data stored in Character Large Objects (
CLOB datatype) or stored in
XMLType columns in structured storage (object-relationally), can be indexed using Oracle Text.
inPath() operators are designed to optimize XML data searches where you can search within XML text for substring matches.
Oracle9i release 2 (9.2) and higher also provides:
CONTAINS() function that can be used with
existsNode() for XPath based searches. This is for use as the
ora:contains function in an XPath query, as part of
The ability to create indexes on
CTXXPATH, which allows higher performance XPath searching in Oracle XML DB under
Oracle Streams Advanced Queuing supports the use of:
XMLType as a message/payload type, including XML Schema-based
Queuing or dequeuing of
You can use Oracle Enterprise Manager (Enterprise Manager) to manage and administer your Oracle XML DB application. Enterprise Manager's graphical user interface facilitates your performing the following tasks:
Configuring Oracle XML DB, including protocol server configuration
Viewing and editing Oracle XML DB configuration parameters
Registering XML schema
Managing resource security, such as editing resource ACL definitions
Granting and revoking resource privileges
Creating and editing resource indexes
Viewing and navigating your Oracle XML DB hierarchical repository
Create XML schema-based tables and views
Creating your storage infrastructure based on XML schemas
Editing an XML schema
XMLType table and a table with
Creating a view based XML Schema
Creating a function-based index based on XPath expressions
Oracle XML DB is available with Oracle9i release 2 (9.2) and higher.
Oracle XML DB supports all major XML, SQL, Java, and Internet standards:
W3C XML Schema 1.0 Recommendation. You can register XML schemas, validate stored XML content against XML schemas, or constrain XML stored in the server to XML schemas.
W3C XPath 1.0 Recommendation. You can search or traverse XML stored inside the database using XPath, either from HTTP requests or from SQL.
ISO-ANSI Working Draft for XML-Related Specifications (SQL/XML) [ISO/IEC 9075 Part 14 and ANSI]. You can use the emerging ANSI SQL/XML functions to query XML from SQL. The task force defining these specifications falls under the auspices of the International Committee for Information Technology Standards (INCITS). The SQL/XML specification will be fully aligned with SQL:2003. SQL/XML functions are sometimes referred to as SQLX functions.
Java Database Connectivity (JDBC) API. JDBC access to XML is available for Java programmers.
W3C XSL 1.0 Recommendation. You can transform XML documents at the server using XSLT.
W3C DOM Recommendation Levels 1.0 and 2.0 Core. You can retrieve XML stored in the server as an XML DOM, for dynamic access.
Protocol support. You can store or retrieve XML data from Oracle XML DB using standard protocols such as HTTP, FTP, and IETF WebDAV, as well as Oracle Net. See Chapter 24, " FTP, HTTP, and WebDAV Access to Repository Data".
Java Servlet version 2.2, (except that the servlet WAR file,
web.xml is not supported in its entirety, and only one
ServletContext and one
web-app are currently supported, and stateful servlets are not supported). See Chapter 25, " Writing Oracle XML DB Applications in Java".
Simple Object Access Protocol (SOAP). You can access XML stored in the server from SOAP requests. You can build, publish, or find Web Services using Oracle XML DB and Oracle9iAS, using WSDL and UDDI. You can use Oracle Streams Advanced Queuing IDAP, the SOAP specification for queuing operations, on XML stored in Oracle Database. See Chapter 29, " Exchanging XML Data With Oracle Streams AQ " and Oracle Streams Advanced Queuing User's Guide and Reference.
Besides your regular channels of support through your customer representative or consultant, technical support for Oracle Database XML-enabled technologies is available free through the Discussions option on Oracle Technology Network (OTN):
This manual contains examples that illustrate the use of Oracle XML DB and
XMLType. The examples are based on a number of database schema, sample XML documents, and sample XML schema.
Visit OTN to view Oracle XML DB examples, white papers, case studies, and demonstrations.
You can peruse more Oracle XML DB examples on OTN:
Note that comprehensive XML classes on how to use Oracle XML DB are also available. See the Oracle University link on OTN.
Several detailed Oracle XML DB case studies are available on OTN and include the following:
Oracle XML DB Downloadable Demonstration. This detailed demonstration illustrates how to use many Oracle XML DB features. Parts of this demonstration are also included in Chapter 3, " Using Oracle XML DB".
Content Management System (CMS) application. This illustrates how you can store files on the database using Oracle XML DB repository in hierarchically organized folders, place the files under version control, provide security using ACLs, transform XML content to a desired format, search content using Oracle Text, and exchange XML messages using Oracle Streams Advanced Queueing (to request privileges on files or for sending externalization requests). See
XML Dynamic News. This is a complete J2EE 1.3 based application that demonstrates Java and Oracle XML DB features for an online news portal. News feeds are stored and managed persistently in Oracle XML DB. Various other news portals can customize this application to provide static or dynamic news services to end users. End users can personalize their news pages by setting their preferences. The application also demonstrates the use of Model View Controller architecture and various J2EE design patterns. See
SAX Loader Application. This demonstrates an efficient way to break up large files containing multiple XML documents outside the database and insert them into the database as a set of separate documents. This is provided as a standalone and a web-based application. Oracle XML DB Utilities Package. This highlights the subprograms provided with the
XDB_Utilities package. These subprograms operate on
CLOB values, DOM, and Oracle XML DB Resource APIs. With this package, you can perform basic XML DB foldering operations, read and load XML files into a database, and perform basic DOM operations through PL/SQL.Card Payment Gateway Application. This application use s Oracle XML DB to store all your data in XML format and enables access to the resulting XML data using SQL. It illustrates how a credit card company can store its account and transaction data in the database and also maintain XML fidelity. Survey Application. This application determines what members want from Oracle products. OTN posts the online surveys and studies the responses. This Oracle XML DB application demonstrates how a company can create dynamic, interactive HTML forms, deploy them to the Internet, store the responses as XML, and analyze them using the XML enabled Oracle Database.
