This chapter describes a sample application that provides an overview of how to create and use user-defined datatypes (Oracle Objects). An application is first developed with the relational model and then with the object-relational model.
This chapter contains the following sections:
User-defined types are schema objects in which users formalize the data structures and operations that appear in their applications.
The examples in this chapter illustrate the most important aspects of defining, using, and evolving user-defined types. One important aspect of working with user-defined types is creating methods that perform operations on objects. In the example, definitions of object type methods use the PL/SQL language. Other aspects of using user-defined types, such as defining a type, use SQL.
The examples develop different versions of a database schema for an application that manages customer purchase orders. First a purely relational version is shown, and then an equivalent, object-relational version. Both versions provide for the same basic kinds of entities—customers, purchase orders, line items, and so on. But the object-relational version creates user-defined types for these entities and manages data for particular customers and purchase orders by instantiating instances of the respective user-defined types.
PL/SQL and Java provide additional capabilities beyond those illustrated in this chapter, especially in the area of accessing and manipulating the elements of collections.
Client applications that use the Oracle Call Interface (OCI), Pro*C/C++, or Oracle Objects for OLE (OO4O) can take advantage of its extensive facilities for accessing objects and collections, and manipulating them on clients.
This section implements the relational version of the purchase order schema depicted in Figure 9-1.
The basic entities in this example are:
The stock of products for sale
As shown in Figure 9-1, a customer has contact information, so that the address and set of telephone numbers is exclusive to that customer. The application does not allow different customers to be associated with the same address or telephone numbers. If a customer changes his address, the previous address ceases to exist. If someone ceases to be a customer, the associated address disappears.
A customer has a one-to-many relationship with a purchase order. A customer can place many orders, but a given purchase order is placed by one customer. Because a customer can be defined before he places an order, the relationship is optional rather than mandatory.
Similarly, a purchase order has a many-to-many relationship with a stock item. Because this relationship does not show which stock items appear on which purchase orders, the entity-relationship has the notion of a line item. A purchase order must contain one or more line items. Each line item is associated only with one purchase order. The relationship between line item and stock item is that a stock item can appear on zero, one, or many line items, but each line item refers to exactly one stock item.

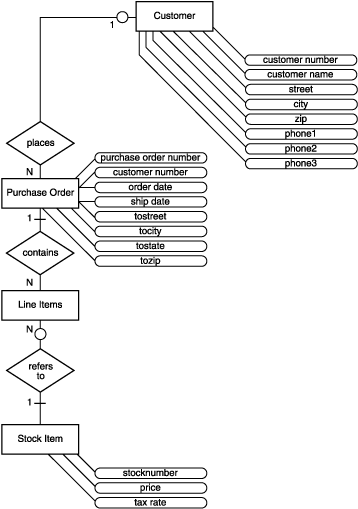

Figure 9-1 Entity-Relationship Diagram for Purchase Order Application
The relational approach normalizes everything into tables. The table names are
Each part of an address becomes a column in the
Customer_reltab table. Structuring telephone numbers as columns sets an arbitrary limit on the number of telephone numbers a customer can have.
The relational approach separates line items from their purchase orders and puts each into its own table, named
As depicted in Figure 9-1, a line item has a relationship to both a purchase order and a stock item. These are implemented as columns in
LineItems_reltab table with foreign keys to
Note:We have adopted a convention in this section of adding the suffix
You may find it useful to make distinctions between tables (
The relational approach results in the following tables:
Customer_reltab table has the following definition:
Example 9-1 Creating the Customer_reltab Table
CREATE TABLE Customer_reltab ( CustNo NUMBER NOT NULL, CustName VARCHAR2(200) NOT NULL, Street VARCHAR2(200) NOT NULL, City VARCHAR2(200) NOT NULL, State CHAR(2) NOT NULL, Zip VARCHAR2(20) NOT NULL, Phone1 VARCHAR2(20), Phone2 VARCHAR2(20), Phone3 VARCHAR2(20), PRIMARY KEY (CustNo));
Customer_reltab, stores all the information about customers, which means that it fully contains information that is intrinsic to the customer (defined with the
NULL constraint) and information that is not as essential. According to this definition of the table, the application requires that every customer have a shipping address.
Our Entity-Relationship (E-R) diagram showed a customer placing an order, but the table does not make allowance for any relationship between the customer and the purchase order. This relationship must be managed by the purchase order.
PurchaseOrder_reltab table has the following definition:
Example 9-2 Creating the PurchaseOrder_reltab Table
CREATE TABLE PurchaseOrder_reltab ( PONo NUMBER, /* purchase order no */ Custno NUMBER references Customer_reltab, /* Foreign KEY referencing customer */ OrderDate DATE, /* date of order */ ShipDate DATE, /* date to be shipped */ ToStreet VARCHAR2(200), /* shipto address */ ToCity VARCHAR2(200), ToState CHAR(2), ToZip VARCHAR2(20), PRIMARY KEY(PONo));
PurchaseOrder_reltab manages the relationship between the customer and the purchase order by means of the foreign key (FK) column
CustNo, which references the
CustNo key of the
PurchaseOrder_reltab table contains no information about related line items. The line items table (next section) uses the purchase order number to relate a line item to its parent purchase order.
LineItems_reltab table has the following definition:
Example 9-3 Creating the LineItems_reltab Table
CREATE TABLE LineItems_reltab ( LineItemNo NUMBER, PONo NUMBER REFERENCES PurchaseOrder_reltab, StockNo NUMBER REFERENCES Stock_reltab, Quantity NUMBER, Discount NUMBER, PRIMARY KEY (PONo, LineItemNo));
The table name is in the plural form
LineItems_reltab to emphasize to someone reading the code that the table holds a collection of line items.
As shown in the E-R diagram, the list of line items has relationships with both the purchase order and the stock item. These relationships are managed by
LineItems_reltab by means of two foreign key columns:
PONo, which references the
PONo column in
StockNo, which references the
StockNo column in
In our application, statements like these insert data into the tables:
Example 9-5 Establish Inventory
INSERT INTO Stock_reltab VALUES(1004, 6750.00, 2); INSERT INTO Stock_reltab VALUES(1011, 4500.23, 2); INSERT INTO Stock_reltab VALUES(1534, 2234.00, 2); INSERT INTO Stock_reltab VALUES(1535, 3456.23, 2);
Example 9-6 Register Customers
INSERT INTO Customer_reltab VALUES (1, 'Jean Nance', '2 Avocet Drive', 'Redwood Shores', 'CA', '95054', '415-555-1212', NULL, NULL); INSERT INTO Customer_reltab VALUES (2, 'John Nike', '323 College Drive', 'Edison', 'NJ', '08820', '609-555-1212', '201-555-1212', NULL);
Example 9-7 Place Orders
INSERT INTO PurchaseOrder_reltab VALUES (1001, 1, SYSDATE, '10-MAY-1997', NULL, NULL, NULL, NULL); INSERT INTO PurchaseOrder_reltab VALUES (2001, 2, SYSDATE, '20-MAY-1997', '55 Madison Ave', 'Madison', 'WI', '53715');
The application can execute queries like these:
Example 9-9 Get Customer and Line Item Data for a Specific Purchase Order
SELECT C.CustNo, C.CustName, C.Street, C.City, C.State, C.Zip, C.phone1, C.phone2, C.phone3, P.PONo, P.OrderDate, L.StockNo, L.LineItemNo, L.Quantity, L.Discount FROM Customer_reltab C, PurchaseOrder_reltab P, LineItems_reltab L WHERE C.CustNo = P.CustNo AND P.PONo = L.PONo AND P.PONo = 1001;
Example 9-10 Get the Total Value of Purchase Orders
SELECT P.PONo, SUM(S.Price * L.Quantity) FROM PurchaseOrder_reltab P, LineItems_reltab L, Stock_reltab S WHERE P.PONo = L.PONo AND L.StockNo = S.StockNo GROUP BY P.PONo;
The application can execute statements like these to update the data:
The application can execute statements similar to Example 9-13 to delete data.
The object-relational approach begins with the same entity relationships as in "Entities and Relationships". Viewing these from the object-oriented perspective, as in the following class diagram, allows us to translate more of the real-world structure into the database schema.
Figure 9-2 Class Diagram for Purchase Order Application
Instead of breaking up addresses or multiple phone numbers into unrelated columns in relational tables, the object-relational approach defines types to represent an entire address and an entire list of phone numbers. Similarly, the object-relational approach uses nested tables to keep line items with their purchase orders instead of storing them separately.
The main entities—customers, stock, and purchase orders—become object types. Object references are used to express some of the relationships among them. Collection types—varrays and nested tables—are used to model multi-valued attributes.
Note:This chapter implements an object-relational interface by building an object-relational schema from scratch. On this approach, we create object tables for data storage. Alternatively, instead of object tables, you can use object views to implement an object-relational interface to existing data stored in relational tables. Chapter 5 discusses object views.
You create a user-defined type with a
TYPE statement. For example, the following statement creates the type
Example 9-14 Creating the StockItem_objtyp Object
CREATE TYPE StockItem_objtyp AS OBJECT ( StockNo NUMBER, Price NUMBER, TaxRate NUMBER );
Instances of type
StockItem_objtyp are objects representing the stock items that customers order. They have three numeric attributes.
StockNo is the primary key.
The order in which you define types can make a difference. Ideally, you want to wait to define types that refer to other types until you have defined the other types they refer to.
For example, the type
LineItem_objtyp refers to, and thus presupposes,
StockItem_objtyp by containing an attribute that is a
REF to objects of
StockItem_objtyp. You can see this in the statement that creates the type
Example 9-15 Creating the LineItem_objtyp Object
CREATE TYPE LineItem_objtyp AS OBJECT ( LineItemNo NUMBER, Stock_ref REF StockItem_objtyp, Quantity NUMBER, Discount NUMBER );
Instances of type
LineItem_objtyp are objects that represent line items. They have three numeric attributes and one
REF attribute. The
LineItem_objtyp models the line item entity and includes an object reference to the corresponding stock object.
Sometimes the web of references among types makes it difficult or impossible to avoid creating a type before all the types that it presupposes are created. To deal with this sort of situation, you can create what is called an incomplete type to use as a placeholder for other types that you want to create to refer to. Then, when you have created the other types, you can come back and replace the incomplete type with a complete one.
For example, if we had needed to create
LineItem_objtyp before we created
StockItem_objtyp, we could have used a statement like the following to create
LineItem_objtyp as an incomplete type:
CREATE TYPE LineItem_objtyp;
The form of the
TYPE statement used to create an incomplete type lacks that phrase
OBJECT and also lacks the specification of attributes.
To replace an incomplete type with a complete definition, include the phrase
REPLACE as shown in the following example:
Example 9-16 Replacing the LineItem_objtyp Object
CREATE OR REPLACE TYPE LineItem_objtyp AS OBJECT ( LineItemNo NUMBER, Stock_ref REF StockItem_objtyp, Quantity NUMBER, Discount NUMBER );
It is never wrong to include the words
REPLACE, even if you have no incomplete type to replace.
Example 9-17 Creating the PhoneList_vartyp Type
CREATE TYPE PhoneList_vartyp AS VARRAY(10) OF VARCHAR2(20);
Any data unit, or instance, of type
PhoneList_vartyp is a varray of up to 10 telephone numbers, each represented by a data item of type
Either a varray or a nested table could be used to contain a list of phone numbers. In this case, the list is the set of contact phone numbers for a single customer. A varray is a better choice than a nested table for the following reasons:
The order of the numbers might be important: varrays are ordered while nested tables are unordered.
The number of phone numbers for a specific customer is small. Varrays force you to specify a maximum number of elements (10 in this case) in advance. They use storage more efficiently than nested tables, which have no special size limitations.
You can query a nested table but not a varray. But there is no reason to query the phone number list, so using a nested table offers no benefit.
In general, if ordering and bounds are not important design considerations, then designers can use the following rule of thumb for deciding between varrays and nested tables: If you need to query the collection, then use nested tables; if you intend to retrieve the collection as a whole, then use varrays.
See Also:Chapter 8, " Design Considerations for Oracle Objects " for more information about the design considerations for varrays and nested tables
The following statement defines the object type
Address_objtyp to represent addresses:
Example 9-18 Creating the Address_objtyp Object
CREATE TYPE Address_objtyp AS OBJECT ( Street VARCHAR2(200), City VARCHAR2(200), State CHAR(2), Zip VARCHAR2(20) ) /
All of the attributes of an address are character strings, representing the usual parts of a simplified mailing address.
The following statement defines the object type
Customer_objtyp, which uses other user-defined types as building blocks.
Example 9-19 Creating the Customer_objtyp Object
CREATE TYPE Customer_objtyp AS OBJECT ( CustNo NUMBER, CustName VARCHAR2(200), Address_obj Address_objtyp, PhoneList_var PhoneList_vartyp, ORDER MEMBER FUNCTION compareCustOrders(x IN Customer_objtyp) RETURN INTEGER ) NOT FINAL;
Instances of the type
Customer_objtyp are objects that represent blocks of information about specific customers. The attributes of a
Customer_objtyp object are a number, a character string, an
Address_objtyp object, and a varray of type
FINAL enables us to create subtypes of the customer type later if we wish. By default, types are created as
FINAL, which means that the type cannot be further specialized by deriving subtypes from it. We define a subtype of
Customer_objtyp for a more specialized kind of customer later in this chapter.
Customer_objtyp object also has an associated order method, one of the two types of comparison methods. Whenever Oracle needs to compare two
Customer_objtyp objects, it implicitly invokes the
compareCustOrders method to do so.
Note:The PL/SQL to implement the comparison method appears in "The compareCustOrders Method".
ORDER method must be called for every two objects being compared, whereas a map method is called once for each object. In general, when sorting a set of objects, the number of times an
ORDER method is called is more than the number of times a map method would be called.
The following statement defines a type for a nested table of line items. Each purchase order will use an instance of this nested table type to contain the line items for that purchase order:
Example 9-20 Creating the LineItemList_ntabtyp Type
CREATE TYPE LineItemList_ntabtyp AS TABLE OF LineItem_objtyp;
An instance of this type is a nested table object (in other words, a nested table), each row of which contains an object of type
LineItem_objtyp. A nested table of line items is a better choice to represent the multivalued line item list than a varray of
LineItem_objtyp objects, because:
If an application needs to index on line item data, this can be done with nested tables but not with varrays.
The order in which line items are stored is probably not important, and a query can order them by line item number when necessary.
There is no practical upper bound on the number of line items on a purchase order. Using a varray requires specifying an arbitrary upper bound on the number of elements.
The following statement defines the object type
Example 9-21 Creating the PurchaseOrder_objtyp Object
CREATE TYPE PurchaseOrder_objtyp AUTHID CURRENT_USER AS OBJECT ( PONo NUMBER, Cust_ref REF Customer_objtyp, OrderDate DATE, ShipDate DATE, LineItemList_ntab LineItemList_ntabtyp, ShipToAddr_obj Address_objtyp, MAP MEMBER FUNCTION getPONo RETURN NUMBER, MEMBER FUNCTION sumLineItems RETURN NUMBER );
Instances of type
PurchaseOrder_objtyp are objects representing purchase orders. They have six attributes, including a
Address_objtyp object, and a nested table of type
LineItemList_ntabtyp, which is based on type
PONo is the primary key and
Cust_ref is a foreign key.
Objects of type
PurchaseOrder_objtyp have two methods:
getPONo, is a map method, one of the two kinds of comparison methods. A map method returns the relative position of a given record within the order of records within the object. So, whenever Oracle needs to compare two
PurchaseOrder_objtyp objects, it implicitly calls the
getPONo method to do so.
The statement does not include the actual PL/SQL programs implementing the methods
sumLineItems. Those appear in "Method Definitions".
If a type has no methods, its definition consists just of a
TYPE statement. However, for a type that has methods, you must also define a type body to complete the definition of the type. You do this with a
BODY statement. As with
TYPE, you can include the words
REPLACE. You must include this phrase if you are replacing an existing type body with a new one, to change the methods.
The following statement defines the body of the type
PurchaseOrder_objtyp. The statement supplies the PL/SQL programs that implement the type's methods:
Example 9-22 Creating the PurchaseOrder_objtyp Type Body
CREATE OR REPLACE TYPE BODY PurchaseOrder_objtyp AS MAP MEMBER FUNCTION getPONo RETURN NUMBER is BEGIN RETURN PONo; END; MEMBER FUNCTION sumLineItems RETURN NUMBER is i INTEGER; StockVal StockItem_objtyp; Total NUMBER := 0; BEGIN FOR i in 1..SELF.LineItemList_ntab.COUNT LOOP UTL_REF.SELECT_OBJECT(LineItemList_ntab(i).Stock_ref,StockVal); Total := Total + SELF.LineItemList_ntab(i).Quantity * StockVal.Price; END LOOP; RETURN Total; END; END; /
getPONo method simply returns the value of the
PONo attribute—namely, the purchase order number—of whatever instance of the type
PurchaseOrder_objtyp that calls the method. Such
get methods allow you to avoid reworking code that uses the object if its internal representation changes.
sumLineItems method uses a number of object-relational features:
As already noted, the basic function of the
sumLineItems method is to return the sum of the values of the line items of its associated
PurchaseOrder_objtyp object. The keyword
SELF, which is implicitly created as a parameter to every function, lets you refer to that object.
COUNT gives the count of the number of elements in a PL/SQL table or array. Here, in combination with
LOOP, the application iterates through all the elements in the collection — in this case, the items of the purchase order. In this way
COUNT counts the number of elements in the nested table that match the
LineItemList_ntab attribute of the
PurchaseOrder_objtyp object, here represented by
A method from package
UTL_REF is used in the implementation. The
UTL_REF methods are necessary because Oracle does not support implicit dereferencing of
REFs within PL/SQL programs. The
UTL_REF package provides methods that operate on object references. Here, the
SELECT_OBJECT method is called to obtain the
StockItem_objtyp object corresponding to the
CURRENT_USER syntax specifies that the
PurchaseOrder_objtyp is defined using invoker rights: the methods are executed under the rights of the current user, not under the rights of the user who defined the type.
The PL/SQL variable
StockVal is of type
SELECT_OBJECT sets it to the object whose reference is the following:
This object is the actual stock item referred to in the currently selected line item.
Having retrieved the stock item in question, the next step is to compute its cost. The program refers to the stock item's cost as
Price attribute of the
StockItem_objtyp object. But to compute the cost of the item, you also need to know the quantity of items ordered. In the application, the term
Quantity represents the
Quantity attribute of the currently selected
The remainder of the method program is a loop that sums the values of the line items. The method returns the total.
The following statement defines the
compareCustOrders method in the type body of the
Customer_objtyp object type:
Example 9-23 Creating the Customer_objtyp Type Body
CREATE OR REPLACE TYPE BODY Customer_objtyp AS ORDER MEMBER FUNCTION compareCustOrders (x IN Customer_objtyp) RETURN INTEGER IS BEGIN RETURN CustNo - x.CustNo; END; END; /
As mentioned earlier, the order method
compareCustOrders operation compares information about two customer orders. It takes another
Customer_objtyp object as an input argument and returns the difference of the two
CustNo numbers. The return value is:
a negative number if its own object has a smaller value of
a positive number if its own object has a larger value of
zero if the two objects have the same value of
CustNo—in which case both orders are associated with the same customer.
Whether the return value is positive, negative, or zero signifies the relative order of the customer numbers. For example, perhaps lower numbers are created earlier in time than higher numbers. If either of the input arguments (
SELF and the explicit argument) to an
ORDER method is
NULL, Oracle does not call the
ORDER method and simply treats the result as
We have now defined all of the user-defined types for the object-relational version of the purchase order schema. We have not yet created any instances of these types to contain actual purchase order data, nor have we created any tables in which to store such data. We show how to do this in the next section.
Creating an object type is not the same as creating a table. Creating a type merely defines a logical structure; it does not create storage. To use an object-relational interface to your data, you must create object types whether you intend to store your data in object tables or leave it in relational tables and access it through object views. Object views and object tables alike presuppose object types: an object table or object view is always a table or view of a certain object type. In this respect it is like a relational column, which always has a specified data type.
See Also:Chapter 5, " Applying an Object Model to Relational Data" for a discussion of object views
Like a relational column, an object table can contain rows of just one kind of thing, namely, object instances of the same declared type as the table. (And, if the table is substitutable, it can contain instances of subtypes of its declared type as well.)
Each row in an object table is a single object instance. So, in one sense, an object table has, or consists of, only a single column of the declared object type. But this is not as different as it may seem from the case with relational tables. Each row in a relational table theoretically represents a single entity as well—for example, a customer, in a relational
Customers table. The columns of a relational table store data for attributes of this entity.
Similarly, in an object table, attributes of the object type map to columns that can be inserted into and selected from. The major difference is that, in an object table, data is stored—and can be retrieved—in the structure defined by the table's type, making it possible for you to retrieve an entire, multilevel structure of data with a very simple query.
The following statement defines an object table
Customer_objtab to hold objects of type
Example 9-24 Creating the Customer_objtab Table
CREATE TABLE Customer_objtab OF Customer_objtyp (CustNo PRIMARY KEY) OBJECT IDENTIFIER IS PRIMARY KEY ;
Unlike with relational tables, when you create an object table, you specify a data type for it, namely, the type of objects it will contain.
The table has a column for each attribute of
CustNo NUMBER /* Primmary key */ CustName VARCHAR2(200) Address_obj Address_objtyp PhoneList_var PhoneList_vartyp
See Example 9-18, "Creating the Address_objtyp Object" and Example 9-17, "Creating the PhoneList_vartyp Type" for the definitions of those types.

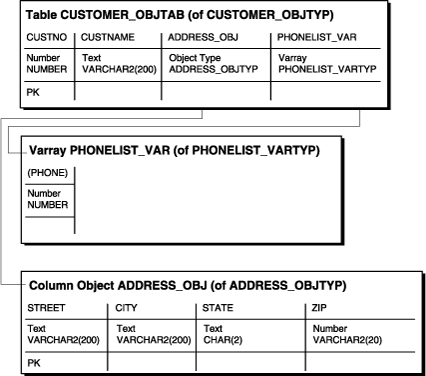

Figure 9-3 Object Relational Representation of Table Customer_objtab
Because there is a type
Customer_objtyp, you could create numerous object tables of the same type. For example, you could create an object table
Customer_objtab2 also of type
You can introduce variations when creating multiple tables. The statement that created
Customer_objtab defined a primary key constraint on the
CustNo column. This constraint applies only to this object table. Another object table of the same type might not have this constraint.
Customer_objtab contains customer objects, represented as row objects. Oracle allows row objects to be referenceable, meaning that other row objects or relational rows may reference a row object using its object identifier (OID). For example, a purchase order row object may reference a customer row object using its object reference. The object reference is a system-generated value represented by the type
REF and is based on the row object's unique OID.
Oracle requires every row object to have a unique OID. You may specify the unique OID value to be system-generated or specify the row object's primary key to serve as its unique OID. You indicate this when you execute the
TABLE statement by specifying
GENERATED. The latter is the default. Using the primary key as the object identifier can be more efficient in cases where the primary key value is smaller than the default 16 byte system-generated identifier. For our example, the primary key is used as the row object identifier.
Note that the
Address_obj column of
Address_objtyp objects. As this shows, an object type may have attributes that are themselves object types. Object instances of the declared type of an object table are called row objects because one object instance occupies an entire row of the table. But embedded objects such as those in the
Address_obj column are referred to as column objects. These differ from row objects in that they do not take up an entire row. Consequently, they are not referenceable—they cannot be the target of a
REF. Also, they can be
The attributes of
Address_objtyp objects are of built-in types. They are scalar rather than complex (that is, they are not object types with attributes of their own), and so are called leaf-level attributes to reflect that they represent an end to branching. Columns for
Address_objtyp objects and their attributes are created in the object table
Customer_objtab. You can refer or navigate to these columns using the dot notation. For example, if you want to build an index on the
Zip column, you can refer to it as
PhoneList_var column contains varrays of type
PhoneList_vartyp. We defined each object of type
PhoneList_vartyp as a varray of up to 10 telephone numbers, each represented by a data item of type
VARCHAR2. See Example 9-17.
Because each varray of type
PhoneList_vartyp can contain no more than 200 characters (10 x 20), plus a small amount of overhead, Oracle stores the varray as a single data unit in the
PhoneList_var column. Oracle stores varrays that do not exceed 4000 bytes in inline
BLOBs, which means that a portion of the varray value could potentially be stored outside the table.
The next statement creates an object table for
Example 9-25 Creating the Stock_objtab Table
CREATE TABLE Stock_objtab OF StockItem_objtyp (StockNo PRIMARY KEY) OBJECT IDENTIFIER IS PRIMARY KEY ;
Each row of the table is a
StockItem_objtyp object having three numeric attributes:
StockNo NUMBER Price NUMBER TaxRate NUMBER
Oracle creates a column for each attribute. The
TABLE statement places a primary key constraint on the
StockNo column and specifies that the primary key be used as the row object's identifier.
The next statement defines an object table for
Example 9-26 Creating the PurchaseOrder_objtab Table
CREATE TABLE PurchaseOrder_objtab OF PurchaseOrder_objtyp ( /* Line 1 */ PRIMARY KEY (PONo), /* Line 2 */ FOREIGN KEY (Cust_ref) REFERENCES Customer_objtab) /* Line 3 */ OBJECT IDENTIFIER IS PRIMARY KEY /* Line 4 */ NESTED TABLE LineItemList_ntab STORE AS PoLine_ntab ( /* Line 5 */ (PRIMARY KEY(NESTED_TABLE_ID, LineItemNo)) /* Line 6 */ ORGANIZATION INDEX COMPRESS) /* Line 7 */ RETURN AS LOCATOR /* Line 8 */ /
TABLE statement creates the
PurchaseOrder_objtab object table. The significance of each line is as follows:
CREATE TABLE PurchaseOrder_objtab OF PurchaseOrder_objtyp (
This line indicates that each row of the table is a
PurchaseOrder_objtyp object. Attributes of
PurchaseOrder_objtyp objects are:
PONo NUMBER Cust_ref REF Customer_objtyp OrderDate DATE ShipDate DATE LineItemList_ntab LineItemList_ntabtyp ShipToAddr_obj Address_objtyp
See Example 9-19, "Creating the Customer_objtyp Object" and Example 9-20, "Creating the LineItemList_ntabtyp Type" for the definitions of those types.

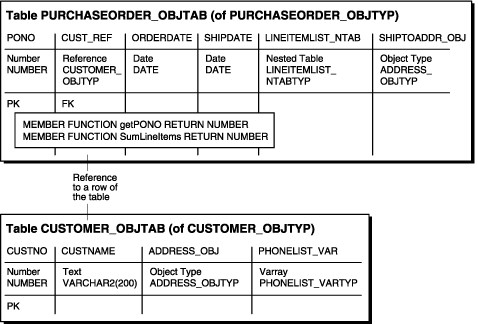

Figure 9-4 Object Relational Representation of Table PurchaseOrder_objtab
PRIMARY KEY (PONo),
This line specifies that the
PONo attribute is the primary key for the table.
FOREIGN KEY (Cust_ref) REFERENCES Customer_objtab)
This line specifies a referential constraint on the
Cust_ref column. This referential constraint is similar to those specified for relational tables. When there is no constraint, the
REF column permits you to reference any row object. However, in this case, the
REFs can refer only to row objects in the
Customer_objtab object table.
OBJECT IDENTIFIER IS PRIMARY KEY
This line indicates that the primary key of the
PurchaseOrder_objtab object table be used as the row's OID.
NESTED TABLE LineItemList_ntab STORE AS PoLine_ntab ( (PRIMARY KEY(NESTED_TABLE_ID, LineItemNo)) ORGANIZATION INDEX COMPRESS) RETURN AS LOCATOR
These lines pertain to the storage specification and properties of the nested table column,
LineItemList_ntab. The rows of a nested table are stored in a separate storage table. This storage table is not directly queryable by the user but can be referenced in DDL statements for maintenance purposes. A hidden column in the storage table, called the
NESTED_TABLE_ID, matches the rows with their corresponding parent row. All the elements in the nested table belonging to a particular parent have the same
NESTED_TABLE_ID value. For example, all the elements of the nested table of a given row of
PurchaseOrder_objtab have the same value of
NESTED_TABLE_ID. The nested table elements that belong to a different row of
PurchaseOrder_objtab have a different value of
In the preceding
TABLE example, Line 5 indicates that the rows of
LineItemList_ntab nested table are to be stored in a separate table (referred to as the storage table) named
AS clause also permits you to specify the constraint and storage specification for the storage table. In this example, Line 7 indicates that the storage table is an index-organized table (
IOT). In general, storing nested table rows in an IOT is beneficial because it provides clustering of rows belonging to the same parent. The specification of
COMPRESS on the
IOT saves storage space because, if you do not specify
NESTED_TABLE_ID part of the
IOT's key is repeated for every row of a parent row object. If, however, you specify
NESTED_TABLE_ID is stored only once for each parent row object.
See Also:"Nested Table Storage" for information about the benefits of organizing a nested table as an IOT, specifying nested table compression, and for more information about nested table storage in general
In Line 6, the specification of
LineItemNo attribute as the primary key for the storage table serves two purposes: first, it specifies the key for the
IOT; second, it enforces uniqueness of the column
LineItemNo of the nested table within each row of the parent table. By including the
LineItemNo column in the key, the statement ensures that the
LineItemNo column contains distinct values within each purchase order.
Line 8 indicates that the nested table,
LineItemList_ntab, is returned in the locator form when retrieved. If you do not specify
LOCATOR, the default is
VALUE, which causes the entire nested table to be returned instead of just a locator to it. If a nested table collection contains many elements, it is inefficient to return the entire nested table whenever the containing row object or the column is selected.
Specifying that the nested table's locator is returned enables Oracle to send the client only a locator to the actual collection value. An application can find whether a fetched nested table is in the locator or value form by calling the
IS_LOCATOR interfaces. Once you know that the locator has been returned, the application can query using the locator to fetch only the desired subset of row elements in the nested table. This locator-based retrieval of the nested table rows is based on the original statement's snapshot, to preserve the value or copy semantics of the nested table. That is, when the locator is used to fetch a subset of row elements in the nested table, the nested table snapshot reflects the nested table when the locator was first retrieved.
Recall the implementation of the
sumLineItems method of
PurchaseOrder_objtyp in "Method Definitions". That implementation assumed that the
LineItemList_ntab nested table would be returned as a
VALUE. In order to handle large nested tables more efficiently, and to take advantage of the fact that the nested table in the
PurchaseOrder_objtab is returned as a locator, the
sumLineItems method must be rewritten as follows:
Example 9-27 Replacing the PurchaseOrder_objtyp Type Body
CREATE OR REPLACE TYPE BODY PurchaseOrder_objtyp AS MAP MEMBER FUNCTION getPONo RETURN NUMBER is BEGIN RETURN PONo; END; MEMBER FUNCTION sumLineItems RETURN NUMBER IS i INTEGER; StockVal StockItem_objtyp; Total NUMBER := 0; BEGIN IF (UTL_COLL.IS_LOCATOR(LineItemList_ntab)) -- check for locator THEN SELECT SUM(L.Quantity * L.Stock_ref.Price) INTO Total FROM TABLE(CAST(LineItemList_ntab AS LineItemList_ntabtyp)) L; ELSE FOR i in 1..SELF.LineItemList_ntab.COUNT LOOP UTL_REF.SELECT_OBJECT(LineItemList_ntab(i).Stock_ref,StockVal); Total := Total + SELF.LineItemList_ntab(i).Quantity * StockVal.Price; END LOOP; END IF; RETURN Total; END; END; /
sumLineItems method checks whether the nested table attribute,
LineItemList_ntab, is returned as a locator using the
IS_LOCATOR function. If the condition evaluates to
TRUE, the nested table locator is queried using the
The querying of the nested table locator results in more efficient processing of the large line item list of a purchase order. The previous code that iterates over the
LineItemList_ntab is kept to deal with the case where the nested table is returned as a
After the table is created, the
TABLE statement is issued to add the
FOR constraint on a
FOR constraint on a
REF is not allowed in a
TABLE statement. To specify that
Stock_ref can reference only the object table
Stock_objtab, issue the following
TABLE statement on the
PoLine_ntab storage table:
Example 9-28 Adding the SCOPE FOR Constraint
ALTER TABLE PoLine_ntab ADD (SCOPE FOR (Stock_ref) IS stock_objtab) ;
This statement specifies that the
Stock_ref column of the nested table is scoped to
Stock_objtab. This indicates that the values stored in this column must be references to row objects in
SCOPE constraint is different from the referential constraint in that the
SCOPE constraint has no dependency on the referenced object. For example, any referenced row object in
Stock_objtab may be deleted, even if it is referenced in the
Stock_ref column of the nested table. Such a deletion renders the corresponding reference in the nested table a
Figure 9-5 Object Relational Representation of Nested Table LineItemList_ntab
Oracle does not support a referential constraint specification for storage tables. In this situation, specifying the
SCOPE clause for a
REF column is useful. In general, specifying scope or referential constraints for
REF columns has several benefits:
It saves storage space because it allows Oracle to store just the row object's unique identifier as the
REF value in the column.
It enables an index to be created on the storage table's
It allows Oracle to rewrite queries containing dereferences of these
REFs as joins involving the referenced table.
At this point, all of the tables for the purchase order application are in place. The next section shows how to operate on these tables.

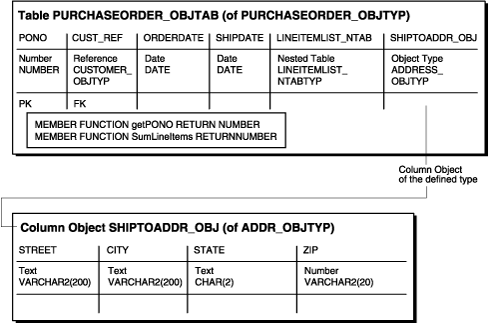

Figure 9-6 Object Relational Representation of Table PurchaseOrder_objtab
Here is how to insert the same data into the object tables that we inserted earlier into relational tables. Notice how some of the values incorporate calls to the constructors for object types, to create instances of the types.
Example 9-29 Inserting Values in Stock_objtab
INSERT INTO Stock_objtab VALUES(1004, 6750.00, 2) ; INSERT INTO Stock_objtab VALUES(1011, 4500.23, 2) ; INSERT INTO Stock_objtab VALUES(1534, 2234.00, 2) ; INSERT INTO Stock_objtab VALUES(1535, 3456.23, 2) ;
Example 9-30 Inserting Values in Customer_objtab
INSERT INTO Customer_objtab VALUES ( 1, 'Jean Nance', Address_objtyp('2 Avocet Drive', 'Redwood Shores', 'CA', '95054'), PhoneList_vartyp('415-555-1212') ) ; INSERT INTO Customer_objtab VALUES ( 2, 'John Nike', Address_objtyp('323 College Drive', 'Edison', 'NJ', '08820'), PhoneList_vartyp('609-555-1212','201-555-1212') ) ;
Example 9-31 Inserting Values in PurchaseOrder_objtab
INSERT INTO PurchaseOrder_objtab SELECT 1001, REF(C), SYSDATE, '10-MAY-1999', LineItemList_ntabtyp(), NULL FROM Customer_objtab C WHERE C.CustNo = 1 ;
The preceding statement constructs a
PurchaseOrder_objtyp object with the following attributes:
PONo 1001 Cust_ref REF to customer number 1 OrderDate SYSDATE ShipDate 10-MAY-1999 LineItemList_ntab an empty LineItem_ntabtyp ShipToAddr_obj NULL
The following statement uses a
TABLE expression to identify the nested table as the target for the insertion, namely the nested table in the
LineItemList_ntab column of the row object in the
PurchaseOrder_objtab table that has a
PONo value of 1001.
Example 9-32 Inserting Values in LineItemList_ntab
INSERT INTO TABLE ( SELECT P.LineItemList_ntab FROM PurchaseOrder_objtab P WHERE P.PONo = 1001 ) SELECT 01, REF(S), 12, 0 FROM Stock_objtab S WHERE S.StockNo = 1534 ;
The preceding statement inserts a line item into the nested table identified by the
TABLE expression. The inserted line item contains a
REF to the row object with a
StockNo value of
1534 in the object table
The following statements follow the same pattern as the previous ones:
Example 9-33 Inserting Values in PurchaseOrder_objtab and LineItemList_ntab
INSERT INTO PurchaseOrder_objtab SELECT 2001, REF(C), SYSDATE, '20-MAY-1997', LineItemList_ntabtyp(), Address_objtyp('55 Madison Ave','Madison','WI','53715') FROM Customer_objtab C WHERE C.CustNo = 2 ; INSERT INTO TABLE ( SELECT P.LineItemList_ntab FROM PurchaseOrder_objtab P WHERE P.PONo = 1001 ) SELECT 02, REF(S), 10, 10 FROM Stock_objtab S WHERE S.StockNo = 1535 ; INSERT INTO TABLE ( SELECT P.LineItemList_ntab FROM PurchaseOrder_objtab P WHERE P.PONo = 2001 ) SELECT 10, REF(S), 1, 0 FROM Stock_objtab S WHERE S.StockNo = 1004 ; INSERT INTO TABLE ( SELECT P.LineItemList_ntab FROM PurchaseOrder_objtab P WHERE P.PONo = 2001 ) VALUES(11, (SELECT REF(S) FROM Stock_objtab S WHERE S.StockNo = 1011), 2, 1) ;
Example 9-34 Query Purchase Orders
SELECT p.PONo FROM PurchaseOrder_objtab p ORDER BY VALUE(p) ;
Oracle invokes the map method
getPONo for each
PurchaseOrder_objtyp object in the selection. Because that method returns the object's
PONo attribute, the selection produces a list of purchase order numbers in ascending numerical order.
The following queries correspond to the queries executed under the relational model.
Example 9-35 Query Customer and Line Item Data for Purchase Order 1001
SELECT DEREF(p.Cust_ref), p.ShipToAddr_obj, p.PONo, p.OrderDate, LineItemList_ntab FROM PurchaseOrder_objtab p WHERE p.PONo = 1001 ;
Example 9-36 Query Total Value of Each Purchase Order
SELECT p.PONo, p.sumLineItems() FROM PurchaseOrder_objtab p ;
Example 9-37 Query Purchase Order and Line Item Data for Stock Item 1004
SELECT po.PONo, po.Cust_ref.CustNo, CURSOR ( SELECT * FROM TABLE (po.LineItemList_ntab) L WHERE L.Stock_ref.StockNo = 1004 ) FROM PurchaseOrder_objtab po ;
The preceding query returns a nested cursor for the set of
LineItem_obj objects selected from the nested table. The application can fetch from the nested cursor to get the individual
LineItem_obj objects. The query can also be expressed by unnesting the nested set with respect to the outer result:
SELECT po.PONo, po.Cust_ref.CustNo, L.* FROM PurchaseOrder_objtab po, TABLE (po.LineItemList_ntab) L WHERE L.Stock_ref.StockNo = 1004 ;
The preceding query returns the result set as a flattened form (or First Normal Form). This type of query is useful when accessing Oracle collection columns from relational tools and APIs, such as ODBC. In the preceding unnesting example, only the rows of the
PurchaseOrder_objtab object table that have any
LineItemList_ntab rows are returned. To fetch all rows of the
PurchaseOrder_objtab table, regardless of the presence of any rows in their corresponding
LineItemList_ntab, then the (+) operator is required:
SELECT po.PONo, po.Cust_ref.CustNo, L.* FROM PurchaseOrder_objtab po, TABLE (po.LineItemList_ntab) (+) L WHERE L.Stock_ref.StockNo = 1004 ;
Example 9-38 Query Average Discount across all Line Items of all Purchase Orders
This request requires querying the rows of all
LineItemList_ntab nested tables of all
PurchaseOrder_objtab rows. Again, unnesting is required:
SELECT AVG(L.DISCOUNT) FROM PurchaseOrder_objtab po, TABLE (po.LineItemList_ntab) L ;
The following example has the same effect as the two deletions needed in the relational case shown in Example 9-13. In Example 9-39, Oracle deletes the entire purchase order object, including its line items, in a single SQL operation. In the relational case, line items for the purchase order must be deleted from the line items table, and the purchase order must be separately deleted from the purchase orders table.
Note:I f you are performing the SQL statements in this sample, do not execute the DELETE statement in Example 9-39 because the purchase order is needed in the following examples.
Even a completed, fully built application tends to be a work in progress. Sometimes requirements change, forcing a change an underlying object model or schema to adapt it to new circumstances, and sometimes there are ways to improve an object model so that it does a better job of what it was originally intended to do.
Suppose that, after living with our object-relational application for a while, we discover some ways that we could improve the design. In particular, suppose that we discover that users almost always want to see a history of purchases when they bring up the record for a customer. To do this with the present object model requires a join on the two tables
PurchaseOrder_objtab that hold information about customers and purchase orders. We decide that a better design would be to provide access to data about related purchase orders directly from the customers table.
One way to do this is to change the
Customer_objtyp so that information about a customer's purchase orders is included right in the object instance that represents that customer. In other words, we want to add an attribute for purchase order information to
Customer_objtyp. To hold information about multiple purchase orders, the attribute must be a collection type—a nested table.
Adding an attribute is one of several ways that you can alter, or evolve, a user-defined type. When you evolve a type, Oracle applies your changes to the type itself and to all its dependent schema objects, including subtypes of the type, other object types that have the altered type as an attribute, and tables and columns of the altered type.
Customer_objtyp to add an attribute for a nested table of purchase orders, several steps are needed:
Create a new type for a nested table of purchase orders
Customer_objtyp to add a new attribute of the new type
Customer_objtab object table, name and scope the storage tables for the newly added nested tables
Customer_objtab object table for the new attribute actually adds two levels of nested tables, one inside the other, because a purchase order itself contains a nested table of line items.
Both the purchase orders nested table and the line items nested table need to be scoped so that they can contain primary key-based
REFs. More on this in the next section.
Figure 9-7 Nested Tables in the Customer Object Type
When we are done with the preceding steps, information about customers and purchase orders will be more logically related in our model, and we will be able to query the customers table for all information about customers, purchase orders, and line items. We will also be able to insert a new purchase order for a new customer with a single
INSERT statement on the customers table.
Before we can add a nested table of purchase orders as an attribute of
Customer_objtyp, we need to define a type for this sort of nested table. The following statement does this:
Example 9-40 Create PurchaseOrderList_ntabtyp
CREATE TYPE PurchaseOrderList_ntabtyp AS TABLE OF PurchaseOrder_objtyp; /
Now we can use an
TYPE statement to add an attribute of this type to
Example 9-41 Alter Customer_objtyp
ALTER TYPE Customer_objtyp ADD ATTRIBUTE (PurchaseOrderList_ntab PurchaseOrderList_ntabtyp) CASCADE;
If a type being altered has dependent types or tables, an
TYPE statement on the type needs to specify either
INVALIDATE to say how to apply the change to the dependents.
CASCADE performs validation checks on the dependents before applying a type change. These checks confirm that the change does not entail doing something illegal, such as dropping an attribute that is being used as a partitioning key of a table. If a dependent fails validation, the type change aborts. On the other hand, if all dependents validate successfully, the system goes ahead with whatever changes to metadata and data are required to propagate the change to the type. These can include automatically adding and dropping columns, creating storage tables for nested tables, and so forth.
INVALIDATE option skips the preliminary validation checks and directly applies the type change to dependents. These are then validated the next time that they are accessed. Altering a type this way is saves the time required to do the validations, but if a dependent table cannot be validated later when someone tries to access it, its data cannot be accessed until the table is made to pass the validation.
We need to add scope for a
REF column in each of the new nested tables of purchase orders and line items that are added to the
Customer_objtab table. For convenience, first we rename the new tables from system-generated names to recognizable names. Then, using the names we have given them, we can alter the storage tables to add scope for their
The reason we must do all this is that, in order for a column to store
REFs to objects in a table that bases its object identifiers on the primary key, the column must be scoped to that table or have a referential constraint placed on it. Scoping a column to a particular table declares that all
REFs in the column are
REFs to objects in that table. This declaration is necessary because a primary key-based object identifier is guaranteed unique only in the context of the particular table: it may not be unique across all tables. If you try to insert a primary key-based
REF, or user-defined
REF, into an unscoped column, you will get an error similar to:
cannot INSERT object view REF or user-defined REF
Line items contain a
REF to objects in table
Stock_objtab, whose object identifier uses the table's primary key. This is why we had to add scope for the
REF column in the storage table for the line items nested table in table
PurchaseOrder_objtab after we created that table. Now we have to do it again for the new nested table of line items in table
We have to do the same again for the new nested table of purchase orders we are adding in table
Customer_objtab: a purchase order references a customer in the table
Customer_objtab, and object identifiers in this table are primary-key based as well.
Using the following statement, we determine the names of the system-generated tables so they can be renamed:
SELECT TABLE_NAME, PARENT_TABLE_NAME, PARENT_TABLE_COLUMN FROM USER_NESTED_TABLES;
The output is similar to the following:
TABLE_NAME PARENT_TABLE_NAME PARENT_TABLE_COLUMN ----------------------------- ----------------------------- ---------------------- SYSNTQOFArJyBTHu6iOMMKU4wHw== CUSTOMER_OBJTAB PURCHASEORDERLIST_NTAB POLINE_NTAB PURCHASEORDER_OBJTAB LINEITEMLIST_NTAB SYSNTZqu6IQItR++UAtgz1rMB8A== SYSNTQOFArJyBTHu6iOMMKU4wHw== LINEITEMLIST_NTAB
For convenience, rename the system-generated nested tables to appropriate names. For example, using the system-generated names in the previous sample output:
Example 9-42 Rename Nested Tables
ALTER TABLE "SYSNTQOFArJyBTHu6iOMMKU4wHw==" RENAME TO PO_List_nt; ALTER TABLE "SYSNTZqu6IQItR++UAtgz1rMB8A==" RENAME TO Items_List_nt;
The new storage tables are named
Items_List_nt. The following statements scope the
REF columns in these tables to specific tables:
Example 9-43 Add Scope for REF to Nested Tables
ALTER TABLE PO_List_nt ADD (SCOPE FOR (Cust_Ref) IS Customer_objtab); ALTER TABLE Items_List_nt ADD (SCOPE FOR (Stock_ref) IS Stock_objtab);
There is just one more thing to do before inserting purchase orders for customers in
Customer_objtab. An actual nested table of
PurchaseOrderList_ntabtyp must be instantiated for each customer in the table.
When a column is added to a table for a new attribute, column values for existing rows are initialized to
NULL. This means that each existing customer's nested table of purchase orders is atomically
NULL—there is no actual nested table there, not even an empty one. Until we instantiate a nested table for each customer, attempts to insert purchase orders will get an error similar to:
reference to NULL table value
The following statement prepares the column to hold purchase orders by updating each row to contain an actual nested table instance:
Example 9-44 Update Customer_objtab
UPDATE Customer_objtab c SET c.PurchaseOrderList_ntab = PurchaseOrderList_ntabtyp();
In the preceding statement,
PurchaseOrderList_ntabtyp() is a call to the nested table type's constructor method. This call, with no purchase orders specified, creates an empty nested table.
At this point, we have evolved the type
Customer_objtyp to add a nested table of purchase orders, and we have set up the table
Customer_objtab so that it is ready to store purchase orders in the nested table. Now we are ready to insert purchase orders into
There are two purchase orders already in table
PurchaseOrder_objtab. The following two statements copy these into
Example 9-45 Insert Purchase Orders into Customer_objtab
INSERT INTO TABLE ( SELECT c.PurchaseOrderList_ntab FROM Customer_objtab c WHERE c.CustNo = 1 ) SELECT VALUE(p) FROM PurchaseOrder_objtab p WHERE p.Cust_Ref.CustNo = 1; INSERT INTO TABLE ( SELECT c.PurchaseOrderList_ntab FROM Customer_objtab c WHERE c.CustNo = 2 ) SELECT VALUE(p) FROM PurchaseOrder_objtab p WHERE p.Cust_Ref.CustNo = 2;
Each of the preceding
INSERT statements has two main parts: a
TABLE expression that specifies the target table of the insert operation, and a
SELECT that gets the data to be inserted. The
WHERE clause in each part picks out the customer object to receive the purchase orders (in the
TABLE expression) and the customer whose purchase orders are to be selected (in the subquery that gets the purchase orders).
WHERE clause in the subquery uses dot notation to navigate to the
p.Cust_Ref.CustNo. Note that a table alias
p is required whenever you use dot notation. To omit it and say instead
Cust_Ref.CustNo would produce an error.
Another thing to note about the dot notation in this
WHERE clause is that we are able to navigate to the
CustNo attribute of a customer right through the
REF attribute of a purchase order. SQL (though not PL/SQL) implicitly dereferences a
REF used with the dot notation in this way.
TABLE expression in the first part of the
INSERT statement tells the system to treat the collection returned by the expression as a table. The expression is used here to select the nested table of purchase orders for a particular customer as the target of the insert.
In the second part of the
INSERT statement, the
VALUE() function returns selected rows as objects. In this case, each row is a purchase order object, complete with its own collection of line items. Purchase order rows are selected from one table of type
PurchaseOrder_objtyp for insertion into another table of that type.
INSERT statements use the customer-reference attribute of
PurchaseOrder_objtyp to identify the customer to whom each of the existing purchase orders belongs. However, now that all the old purchase orders are copied from the purchase orders table into the upgraded
Customer_objtab, this customer-reference attribute of a purchase order is obsolete. Now purchase orders are stored right in the customer object itself.
TYPE statement evolves
PurchaseOrder_objtyp to drop the customer-reference attribute. The statement also drops the
ShipToAddr_obj attribute as redundant, assuming that the shipping address is always the same as the customer address.
INSERT example showed how to use the
VALUE() function to select and insert into the nested table of purchase orders an existing purchase order object complete with its own nested table of line items. The following example shows how to insert a new purchase order that has not already been instantiated as a purchase order object. In this case, the purchase order's nested table of line items must be instantiated, as well as each line item object with its data. Line numbers are shown on the left for reference.
Example 9-47 Insert into LineItemList_ntabtyp with VALUE()
SQL> INSERT INTO TABLE ( 2 SELECT c.PurchaseOrderList_ntab 3 FROM Customer_objtab c 4 WHERE c.CustName = 'John Nike' 5 ) 6 VALUES (1020, SYSDATE, SYSDATE + 1, 7 LineItemList_ntabtyp( 8 LineItem_objtyp(1, MAKE_REF(Stock_objtab, 1004), 1, 0), 9 LineItem_objtyp(2, MAKE_REF(Stock_objtab, 1011), 3, 5), 10 LineItem_objtyp(3, MAKE_REF(Stock_objtab, 1535), 2, 10) 11 ) 12 );
Lines 1-5 use a
TABLE expression to select the nested table to insert into—namely, the nested table of purchase orders for customer John Nike.
VALUES clause (lines 6-12) contains a value for each attribute of the new purchase order, namely:
PONo OrderDate ShipDate LineItemList_ntab
Line 6 of the
INSERT statement specifies values for the three purchase order attributes
Only attribute values are given; no purchase order constructor is specified. You do not need to explicitly specify a purchase order constructor to instantiate a purchase order instance in the nested table because the nested table is declared to be a nested table of purchase orders. If you omit a purchase order constructor, the system instantiates a purchase order automatically. You can, however, specify the constructor if you want to, in which case the
VALUES clause will look like this:
VALUES ( PurchaseOrder_objtyp(1020, SYSDATE, SYSDATE + 1, LineItemList_ntabtyp( LineItem_objtyp(1, MAKE_REF(Stock_objtab, 1004), 1, 0), LineItem_objtyp(2, MAKE_REF(Stock_objtab, 1011), 3, 5), LineItem_objtyp(3, MAKE_REF(Stock_objtab, 1535), 2, 10) ) ) )
Lines 7-11 instantiate and supply data for a nested table of line items. The constructor method
LineItemList_ntabtyp(…) creates an instance of such a nested table that contains three line items.
The line item constructor
LineItem_objtyp() creates an object instance for each line item. Values for line item attributes are supplied as arguments to the constructor.
MAKE_REF function creates a
REF for the
Stock_ref attribute of a line item. The arguments to
MAKE_REF are the name of the stock table and the primary key value of the stock item there that we want to reference. We can use
MAKE_REF here because object identifiers in the stock table are based on the primary key: if they were not, we would have to use the
REF function in a subquery to get a
REF to a row in the stock table.
You can query a top-level nested table column by naming it in the
SELECT list like any other top-level (as opposed to embedded) column or attribute, but the result is not very readable. For instance, the following query selects the nested table of purchase orders for John Nike:
Example 9-48 Query Customer_objtab for Customer John Nike
SELECT c.PurchaseOrderList_ntab FROM Customer_objtab c WHERE CustName = 'John Nike';
The query produces a result similar to the following:
PURCHASEORDERLIST_NTAB(PONO, ORDERDATE, SHIPDATE, LINEITEMLIST_NTAB(LINEITEMNO, -------------------------------------------------------------------------------- PURCHASEORDERLIST_NTABTYP(PURCHASEORDER_OBJTYP(2001, '25-SEP-01', '20-MAY-97', L INEITEMLIST_NTABTYP(LINEITEM_OBJTYP(10, 00004A038A00468ED552CE6A5803ACE034080020 B8C8340000001426010001000100290000000000090600812A00078401FE0000000B03C20B050000 ...
For humans, at least, you probably want to display the instance data in an unnested form and not to show the
REFs at all.
TABLE expressions—this time in the
FROM clause of a query—can help you do this.
For example, the following query selects the PO number, order date, and shipdate for all purchase orders belonging to John Nike:
Example 9-49 Query Customer_objtab Using TABLE Expression
SELECT p.PONo, p.OrderDate, p.Shipdate FROM Customer_objtab c, TABLE(c.PurchaseOrderList_ntab) p WHERE c.CustName = 'John Nike'; PONO ORDERDATE SHIPDATE ---------- --------- --------- 2001 25-SEP-01 26-SEP-01 1020 25-SEP-01 26-SEP-01
TABLE expression takes a collection as an argument and can be used like a SQL table in SQL statements. In the preceding query, listing the nested table of purchase orders in a
TABLE expression in the
FROM clause enables us to select columns of the nested table just as if they were columns of an ordinary table. The columns are identified as belonging to the nested table by the table alias they use:
p. As the example shows, a
TABLE expression in the
FROM clause can have its own table alias.
TABLE expression, the nested table is identified as a column of customer table
Customer_objtab by the customer table's own table alias
c. Note that the table
Customer_objtab appears in the
FROM clause before the
TABLE expression that refers to it. This ability of a
TABLE expressions to make use of a table alias that occurs to the left of it in the
FROM clause is called left correlation. It enables you to daisy-chain tables and
TABLE expressions that make use of the table alias of another
TABLE expression. In fact, this is how you are able to select columns of nested tables that are embedded in other nested tables.
Here, for example, is a query that selects information about all line items for PO number 1020:
Example 9-50 Query Customer_objtab for Purchase Order 1020
SELECT p.PONo, i.LineItemNo, i.Stock_ref.StockNo, i.Quantity, i.Discount FROM Customer_objtab c, TABLE(c.PurchaseOrderList_ntab) p, TABLE(p.LineItemList_ntab) i WHERE p.PONo = 1020; PONO LINEITEMNO STOCK_REF.STOCKNO QUANTITY DISCOUNT ---------- ---------- ----------------- ---------- ---------- 1020 1 1004 1 0 1020 2 1011 3 5 1020 3 1535 2 10
The query uses two
TABLE expressions, the second referring to the first. Line item information is selected from the inner nested table that belongs to purchase order number 1020 in the outer nested table.
Notice that no column from the customer table occurs in either the
SELECT list or the
WHERE clause. The customer table is listed in the
FROM clause solely to provide a starting point from which to access the nested tables.
Here is a variation on the preceding query. This version shows that you can use the
* wildcard to specify all columns of a
TABLE expression collection:
SELECT p.PONo, i.* FROM Customer_objtab c, TABLE(c.PurchaseOrderList_ntab) p, TABLE(p.LineItemList_ntab) i WHERE p.PONo = 1020;
Suppose that we deal with a lot of our larger, regular customers through an account manager. We would like to add a field for the ID of the account manager to the customer record for these customers.
Earlier, when we wanted to add an attribute for a nested table of purchase orders, we evolved the customer type itself. We could do that again to add an attribute for account manager ID, or we could create a subtype of the customer type and add the attribute only in the subtype. Which should we do?
To make this kind of decision, you need to consider whether the proposed new attribute can be meaningfully and usefully applied to all instances of the base type—to all customers, in other words—or only to an identifiable subclass of the base type.
All customers have purchase orders, so it was appropriate to alter the type itself to add an attribute for them. But not all customers have an account manager; in fact, it happens that only our corporate customers do. So, instead of evolving the customer type to add an attribute that will not be meaningful for customers in general, it makes more sense to create a new subtype for the special kind of customer that we have identified and to add the new attribute there.
You can create a subtype under a base type only if the base type allows subtypes. Whether a type can be subtyped depends on the type's
FINAL property. By default, new types are created as
FINAL. This means that they are the last of the series and cannot have subtypes created under them. To create a type that can be subtyped, you must specify
FINAL in the
TYPE statement as we did when we created the customer type.
You define a subtype by using a
TYPE statement with the
UNDER keyword. The following statement creates a new subtype
Customer_objtyp. The type is created as
FINAL so that it can have subtypes if we want to add them later.
Example 9-51 Create Corp_Customer_objtyp
CREATE TYPE Corp_Customer_objtyp UNDER Customer_objtyp (account_mgr_id NUMBER(6) ) NOT FINAL; /
When you use a
TYPE statement to create a new subtype, you list only the new attributes and methods that you are adding. The subtype inherits all existing attributes and methods from its base type, so these do not need to be specified. The new attributes and methods are added after the inherited ones. For example, the complete list of attributes for the new
Corp_Customer_objtyp subtype looks like this:
CustNo CustName Address_obj Phonelist_var PurchaseOrderList_ntab Account_mgr_id
By default, you can store instances of a subtype in any column or object table that is of any base type of the subtype. This ability to store subtype instances in a base type slot is called substitutability. Columns and tables are substitutable unless they have been explicitly declared to be
SUBSTITUTABLE. The system automatically adds new columns for subtype attributes and another, hidden column for the type ID of the instance stored in each row.
Actually, it is possible to create a subtype of a
FINAL type, but first you must use an
TYPE statement to evolve the type from a
FINAL type to a
FINAL one. If you want existing columns and tables of the altered type to be able to store instances of new subtypes, specify the
SUBSTITUTABLE in the
If a column or object table is substitutable, you can insert into it not only instances of the declared type of the column or table but also instances of any subtype of the declared type. In the case of table
Customer_objtab, this means that the table can be used to store information about all kinds of customers, both ordinary and corporate. However, there is one important difference in the way information is inserted for a subtype: you must explicitly specify the subtype's constructor. Use of the constructor is optional only for instances of the declared type of the column or table.
For example, the following statement inserts a new ordinary customer, William Kidd.
Example 9-52 Insert Data for Ordinary Customer
INSERT INTO Customer_objtab VALUES ( 3, 'William Kidd', Address_objtyp('43 Harbor Drive', 'Redwood Shores', 'CA', '95054'), PhoneList_vartyp('415-555-1212'), PurchaseOrderList_ntabtyp() );
VALUES clause contains data for each
Customer_objtyp attribute but omits the
Customer_objtyp constructor. The constructor is optional here because the declared type of the table is
Customer_objtyp. For the nested table attribute, the constructor
PurchaseOrderList_ntabtyp() creates an empty nested table, but no data is specified for any purchase orders.
Here is a statement that inserts a new corporate customer in the same table. Note the use of the constructor
Corp_Customer_objtyp() and the extra data value
531 for the account manager ID:
Example 9-53 Insert Data for Corporate Customer
INSERT INTO Customer_objtab VALUES ( Corp_Customer_objtyp( -- Subtype requires a constructor 4, 'Edward Teach', Address_objtyp('65 Marina Blvd', 'San Francisco', 'CA', '94777'), PhoneList_vartyp('415-555-1212', '416-555-1212'), PurchaseOrderList_ntabtyp(), 531 ) );
The following statements insert a purchase order for each of the two new customers. Unlike the statements that insert the new customers, the two statements that insert purchase orders are structurally the same except for the number of line items in the purchase orders:
Example 9-54 Insert Purchase Order for Ordinary Customer
INSERT INTO TABLE ( SELECT c.PurchaseOrderList_ntab FROM Customer_objtab c WHERE c.CustName = 'William Kidd' ) VALUES (1021, SYSDATE, SYSDATE + 1, LineItemList_ntabtyp( LineItem_objtyp(1, MAKE_REF(Stock_objtab, 1535), 2, 10), LineItem_objtyp(2, MAKE_REF(Stock_objtab, 1534), 1, 0) ) );
Example 9-55 Insert Purchase Order for Corporate Customer
INSERT INTO TABLE ( SELECT c.PurchaseOrderList_ntab FROM Customer_objtab c WHERE c.CustName = 'Edward Teach' ) VALUES (1022, SYSDATE, SYSDATE + 1, LineItemList_ntabtyp( LineItem_objtyp(1, MAKE_REF(Stock_objtab, 1011), 1, 0), LineItem_objtyp(2, MAKE_REF(Stock_objtab, 1004), 3, 0), LineItem_objtyp(3, MAKE_REF(Stock_objtab, 1534), 2, 0) ) );
A substitutable column or table can contain data of several data types. This enables you, for example, to retrieve information about all kinds of customers with a single query of the customers table. But you can also retrieve information just about a particular kind of customer, or about a particular attribute of a particular kind of customer.
The following examples show some useful techniques for getting the information you want from a substitutable table or column.
Example 9-56 Selecting All Corporate Customers and Their Subtypes
The following query uses a
WHERE clause that contains an
OF predicate to filter out customers that are not some kind of corporate customer. In other words, the query returns all kinds of corporate customers but does not return instances of any other kind of customer:
SELECT VALUE(c) FROM Customer_objtab c WHERE VALUE(c) IS OF (Corp_Customer_objtyp);
Example 9-57 Selecting All Corporate Customers with No Subtypes
This query is identical to the preceding one except that it adds the
ONLY keyword in the
OF predicate to filter out any subtypes of
Corp_Customer_objtyp. Rows are returned only for instances whose most specific type is
SELECT p.PONo FROM Customer_objtab c, TABLE(c.PurchaseOrderList_ntab) p WHERE VALUE(c) IS OF (ONLY Corp_Customer_objtyp);
Example 9-58 Selecting PONo Just for Corporate Customers
The following query uses a
TABLE expression to get purchase order numbers (from the nested table of purchase orders). Every kind of customer has this attribute, but the
WHERE clause confines the search just to corporate customers:
SELECT p.PONo FROM Customer_objtab c, TABLE(c.PurchaseOrderList_ntab) p WHERE VALUE(c) IS OF (Corp_Customer_objtyp);
Example 9-59 Selecting a Subtype Attribute
The following query returns data for account manager ID. This is an attribute possessed only by the corporate customer subtype: the declared type of the table lacks it.
In this query the
TREAT() function is used to cause the system to try to regard or treat each customer as a corporate customer in order to access the subtype attribute
SELECT CustName, TREAT(VALUE(c) AS Corp_Customer_objtyp).Account_mgr_id FROM Customer_objtab c WHERE VALUE(c) IS OF (ONLY Corp_Customer_objtyp);
TREAT() is necessary here because
Account_mgr_id is not an attribute of the table's declared type
Customer_objtyp. If you simply list the attribute in the
SELECT list as if it were, a query like the following one will return the error
name error. This is so even with a
WHERE clause that excludes all but instances of
WHERE clause is not enough here because it merely excludes rows from the result.
rem Following statement returns error, invalid column name for Account_mgr_id SELECT CustName, Account_mgr_id FROM Customer_objtab WHERE VALUE(c) IS OF (ONLY Corp_Customer_objtyp);
Example 9-60 Discovering the (Sub)Type of Each Instance
Every substitutable column or object table has an associated hidden type-ID column that identifies the type of the instance in each row. You can look up the type ID of a type in the
USER_TYPES catalog view.
SYS_TYPEID() returns the type ID of a particular instance. The following query uses
SYS_TYPEID() and a join on the
USER_TYPES catalog view to return the type name of each customer instance in the table
SELECT c.CustName, u.TYPE_NAME FROM Customer_objtab c, USER_TYPES u WHERE SYS_TYPEID(VALUE(c)) = u.TYPEID; CUSTNAME TYPE_NAME ------------------------------------- --------------------- Jean Nance CUSTOMER_OBJTYP John Nike CUSTOMER_OBJTYP William Kidd CUSTOMER_OBJTYP Edward Teach CORP_CUSTOMER_OBJTYP
See Also:"Functions and Operators Useful with Objects" for more on
