4 Configuration Management Concepts

This chapter describes how configuration information for Oracle Net Services can be stored in localized configuration files or centralized in a directory server.

The topics covered include:

4.1 Configuration Models

Configuration information can be stored in a localized configuration file or a centralized repository, as described in the Table 4-1.

Table 4-1 Oracle Net Configuration Models

Network Configuration Model Description

Localized management

Network address information stored in tnsnames.ora files on each computer in the network.

Centralized management

Network address information is stored in centralized directory services, including a LDAP-compliant directory server.


4.2 Localized Configuration File Support

Depending on the configuration model used, network computers can be configured with the files described in Table 4-2.

Table 4-2 Oracle Net Configuration Files

Configuration File Description

cman.ora

Located on the computer where Oracle Connection Manager runs, this configuration file includes:

  • A listening endpoint

  • Access control rule list

  • Parameter list

Each Oracle Connection Manager configuration is encapsulated within a single NV string, which consists of the components just described.

listener.ora

Located on the database server, this configuration file for the listener may include:

  • Protocol addresses it is accepting connection requests on

  • Database and nondatabase services it is listening for

  • Control parameters used by the listener

sqlnet.ora

Located on client and database server computer, this file may include:

  • Client domain to append to unqualified service names or net service names

  • Order of naming methods the client should use when resolving a name

  • Logging and tracing features to use

  • Route of connections

  • External naming parameters

  • Oracle Advanced Security parameters

  • Database access control parameters

tnsnames.ora

Located primarily on the clients, this file contains net service names mapped to connect descriptors. This file is used for the local naming method.


Configuration files are typically created in $ORACLE_HOME/network/admin on UNIX operating systems and %ORACLE_HOME%\network\admin on Windows operating systems. However, configuration files can be created in a variety of places, because Oracle Net searches for the configuration files in a variety of places.

The search order for sqlnet.ora is as follows:

  1. The directory specified by the TNS_ADMIN environment variable

  2. The $ORACLE_HOME/network/admin directory on UNIX operating systems and the %ORACLE_HOME%\network\admin directory on Windows operating systems

The search order for cman.ora, listener.ora, and tnsnames.ora is as follows:

  1. The directory specified by the TNS_ADMIN environment variable

  2. On UNIX operating systems, the global configuration directory

    For example, on the Solaris Operating System, this directory is /var/opt/oracle.

  3. The $ORACLE_HOME/network/admin directory on UNIX operating systems and the %ORACLE_HOME%\network\admin directory on Windows operating systems.

    Note:

    On Windows, TNS_ADMIN is used if it is set in the environment of the process; if TNS_ADMIN is not defined in the environment, or if the process is a service or other such process which does not have an environment, Windows scans the Registry for TNS_ADMIN.

    See Also:

    Oracle operating system-specific documentation

4.3 Directory Server Support

Today, network information is stored in multiple systems and in multiple directory formats. With new requirements for Internet computing and new e-business technologies, a common repository infrastructure is needed as a foundation for management and configuration of all data and resources. This kind of infrastructure reduces the cost of managing and configuring resources in a network.

Support of Oracle Internet Directory provides a centralized vehicle for managing and configuring a distributed Oracle network. The directory server can replace client-side and server-side localized tnsnames.ora files.

This section contains these topics:

4.3.1 Directory Naming Overview

Oracle Net Services use a centralized directory server as one of the primary methods for storage of connect identifiers. Clients can use the connect identifiers in their connect string. The directory server resolves the connect identifier to a connect descriptor that is passed back to the client. This feature is called directory naming

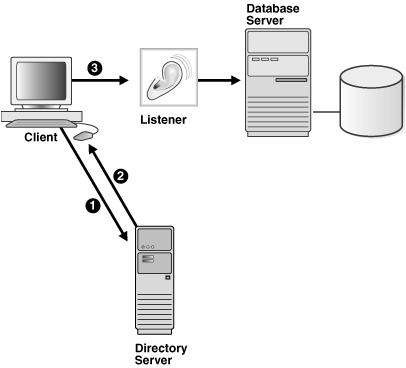

Figure 4-1 shows a client resolving a connect identifier through a directory server.

  1. The client contacts the directory server to resolve a connect identifier to a connect descriptor.

  2. The directory server resolves the connect identifier and retrieves the connect descriptor for the client.

  3. The client sends the connection request to the listener, using the connect descriptor.

Figure 4-1 Client Using a Directory Server to Resolve a Connect Identifier

Description of Figure 4-1 follows
Description of "Figure 4-1 Client Using a Directory Server to Resolve a Connect Identifier"

Note:

Java Database Connectivity (JDBC) Drivers support directory naming. See the Oracle Database JDBC Developer's Guide and Reference for further information.

4.3.2 Naming Configuration Storage in a Directory Server

Directory servers store information in a tree structure called a directory information tree (DIT). Each node in the tree is called an entry. Oracle Net Services makes use of both the tree structure and specific entries in the tree. For example, consider Figure 4-2.

Figure 4-2 Database Service and Net Service Entries in a DIT

Description of Figure 4-2 follows
Description of "Figure 4-2 Database Service and Net Service Entries in a DIT"

The cn=sales and cn=db1 entries represent a net service name and a database service, respectively. Additional entries under cn=sales and cn=db1 contain the connect descriptor information. These entries are not represented in the graphic. The cn=sales and cn=db1 entries enable clients to connect to the database using connect strings CONNECT username@sales and CONNECT username@db1.

Each entry is uniquely identified by a distinguished name (DN). The DN tells you exactly where the entry resides in the directory server's hierarchy. The DN for db1 is dn:cn=db1,cn=OracleContext,dc=jp,dc=example,dc=com, and the DN for sales is dn:cn=sales,cn=OracleContext,dc=jp,dc=example,dc=com. Note that the format of a DN places the lowest component of the DIT to the left, then moves progressively up the DIT. Each DN is made up of a sequence of relative distinguished names (RDNs), much the way a directory path contains a sequence of directories. In the entry for db1, the RDN is cn=db1. An entry is made up of a set of attributes. For example, in cn=db1, cn is one of the entry's attributes. The attribute, along with its value, uniquely identifies the entry.

Notice that db1 and sales reside under cn=OracleContext. This entry is a special RDN called an Oracle Context. The entries under the Oracle Context support various directory-enabled features, including directory naming.

During directory usage configuration, you establish a default Oracle Context. Clients use this Oracle Context as the default location to look up connect identifiers in the directory server. With Oracle Internet Directory, an Oracle Context located at the root of the DIT, with DN of dn:cn=OracleContext, points to a default Oracle Context in an identity management realm. An identity management realm is a collection of identities governed by the same administrative policies. This Oracle Context is referred to as a realm Oracle Context. Unless configured to use another Oracle Context, clients use this realm-specific Oracle Context as the default Oracle Context.

The default Oracle Context affects the connect string. For example, if a client must access the db1 and sales entry frequently, a reasonable default Oracle Context would be dc=jp,dc=example,dc=com. cn=OracleContext does not have to be explicitly specified in the connect string. If a client's directory entry does not match the directory entry where the service is located, then the client must specify an entry's absolute name in the connect string, as described in "Client Connections Using Directory Naming".

See Also:

Oracle Internet Directory Administrator's Guide for further information about an identity management realm

4.3.3 Net Service Alias Entries

In addition to database service and net service name entries, directory naming enables you to create net service alias entries. A net service alias is an alternative name for a net service name or database service. A net service alias entry does not have connect descriptor information. Instead, it only references the location of the entry for which it is an alias. When a client requests a directory lookup of a net service alias, the directory determines that the entry is a net service alias and completes the lookup as if it is the referenced entry. For example, in Figure 4-3, a net service alias of db1alias is created for a database service of db1. When db1alias is used to connect to a database service, as in CONNECT username@db1alias, it will actually resolve to and use the connect descriptor information for db1.

Figure 4-3 Net Service Alias db1alias in a Directory Server

Description of Figure 4-3 follows
Description of "Figure 4-3 Net Service Alias db1alias in a Directory Server"

There are several uses for using net service aliases. As shown in Figure 4-3, a net service alias can be useful as a way for clients to refer to a net service name by another name. Another use is to have a net service alias in one Oracle Context for a database service or net service name in a different Oracle Context. This enables a database service or net service name to be defined once in the directory server, but referred to by clients that use other Oracle Contexts.

In Figure 4-4, database service db1 resides in dc=jp,dc=example,dc=com. A net service alias named db1 is created in dc=us,dc=example,dc=com. This enables clients in both Japan and the United States to use the connect string CONNECT username@db1 as opposed to clients in the United States needing to specify CONNECT username@db1.jp.example.com.

Figure 4-4 Net Service Alias db1 in a Directory Server

Description of Figure 4-4 follows
Description of "Figure 4-4 Net Service Alias db1 in a Directory Server"

4.3.4 Directory Entries

DITs are commonly structured using:

  • A Domain Name Space (DNS) structure

  • A geographical and organization structure

Other structures are also permitted, but Oracle Corporation provides support for these structures.

Figure 4-5 shows a DIT structured according to DNS domain components.

Figure 4-5 Domain Component DIT

Description of Figure 4-5 follows
Description of "Figure 4-5 Domain Component DIT"

Figure 4-6 shows a DIT structured according to country, organization, and organizational units. This structure is commonly referred to as an X.500 DIT.

Figure 4-6 X.500 Style DIT

Description of Figure 4-6 follows
Description of "Figure 4-6 X.500 Style DIT"

4.3.5 Adding or Modifying Entries in the Directory Server

Database Configuration Assistant creates database service entries during or after some modes of installation. You can then use Oracle Enterprise Manager or Oracle Net Manager to modify the Oracle Net attributes of the database service entries. You can also use these tools to create net service name and net service alias entries.

Figure 4-7 shows how the tools interface with the directory server.

Figure 4-7 Creating Entries in the Directory Server with Applications

Description of Figure 4-7 follows
Description of "Figure 4-7 Creating Entries in the Directory Server with Applications"

Note:

Oracle Enterprise Manager is supported but not represented in this figure.

Clients that are configured for directory naming, as described in "Client Connections Using Directory Naming", can connect to a database using entries created by these configuration tools.

To use these configuration tools to add entries, a DIT structure containing a root Oracle Context and identity management realm must exist. The directory administrator creates this structure with Oracle Internet Directory Configuration Assistant. For some deployments, the directory administrator may need to create additional Oracle Contexts.

To create directory naming entries with the Oracle Enterprise Manager or Oracle Net Manager, you must be a member of the following groups:

  • OracleDBCreators group (cn=OracleDBCreators,cn=OracleContext...) or the OracleContextAdmins group (cn=OracleContextAdmins,cn=Groups,cn=OracleContext...) to create a database service entry with Database Configuration Assistant

  • OracleNetAdmins group (cn=OracleNetAdmins,cn=OracleContext...) or the OracleContextAdmins group to create net service names or net service aliases with Oracle Net Manager

The directory user that created the Oracle Context is automatically added to these groups. Other users can be added to these groups by the directory administrator.

The OracleContextAdmins group is a super-user group for the Oracle Context. Members of the OracleContextAdmins group can add all supported types of entries to the Oracle Context.

See Also:

4.3.6 Client Connections Using Directory Naming

Most clients only need to perform name lookups in the directory server. To perform a lookup, the directory server must allow anonymous authentication. Directory servers usually do this by default.

To look up entries, a client must be able to find the directory server in which that entry resides. Clients locate a directory in one of two ways:

  • Dynamically, by using DNS. In this case, the directory server location information is stored and managed in a central domain name server, and the client, at request processing time, retrieves this information from the DNS server dynamically.

  • Statically, in a directory server usage file (ldap.ora) created by Oracle Internet Directory Configuration Assistant and stored on the client host

Once a directory is found, clients are directed to the realm Oracle Context from the root Oracle Context.

In the same way they might use other naming methods, clients make connections to a database using connect identifiers. A connect identifier can be a database service, net service name, or net service alias. These can be referred to by their common names, or they can require additional directory location information. The default Oracle Context determines how the connect identifier must be specified.

An entry may be identified in one of two ways:

4.3.6.1 Using the Entry's Relative Name

In the following example, an entry is identified by its relative name, and the service can be referred to by its common name. A relative name can be used if the entry is in the same Oracle Context that was configured to be the default Oracle Context for the client's Oracle home.

Consider a directory server that contains an entry for a database called sales with a DN of dn:cn=sales,cn=OracleContext,o=example,c=us, as shown in Figure 4-8. If the client is configured with a default realm Oracle Context of cn=OracleContext,o=example,c=us, then the connect identifier can simply be sales.

Figure 4-8 Relative Naming

Description of Figure 4-8 follows
Description of "Figure 4-8 Relative Naming"

4.3.6.2 Using the Entry's Absolute Name

Consider the same directory structure as shown Figure 4-8, but with the client's Oracle home configured with a default realm Oracle Context of cn=OracleContext,o=example,c=jp.

Because the client is configured with a default Oracle Context that does not match the location of sales in the directory server, a connect string that uses sales does not work. Instead, the client must specifically identify the location of sales, which can be done in one of two ways:

  • The entry's complete DN can be used in the connect string, for example:

    CONNECT username@"cn=sales,cn=OracleContext,o=example,c=us"
    Enter password: password


    Many applications do not support the use of a DN.

  • The entry can be referred to by a fully qualified name, a name that includes the name of the object and its location in the directory server, for example:

    CONNECT username@sales.example.us
    Enter password: password


Note:

JDBC Thin drivers support absolute naming only when the complete DN is used.

See Also:

"Absolute Name Specification for Directory Naming" for further information about absolute names

4.3.7 Oracle Net Configuration and Directory Server Design

If you are responsible for designing directory servers for directory naming, consider the following issues:

4.3.7.1 Performance

Connect identifiers are stored in a directory server for all clients to access. Depending on the number of clients, there can be a significant load on a directory server.

During a connect identifier lookup, a name is searched under a specific Oracle Context. Because of the scope of the lookup, you probably want users to experience relatively quick performance so that the database connect time is not affected. Users may begin to notice slow connect times if lookups takes more than one second.

You can resolve performance problems by changing the network topology or implementing replication.

See Also:

Directory server vendor documentation for details on resolving performance issues

4.3.7.2 Security

Because administrative clients can create and modify entries in the directory server, security is essential. This section covers the following security-related topics:

4.3.7.2.1 Authentication Methods

Clients use two different methods of authentication depending upon the task that is to be performed.

  • Clients that perform lookups for information in the directory server typically use anonymous authentication.

    In Oracle Database 11g, it is possible to configure clients to authenticate their LDAP bind during name lookup. Sites that need to either protect their net service data or disable anonymous binds to the directory, or both, must configure their clients to use wallets in order to authenticate during name lookup. These clients require setting the following two new parameters in the sqlnet.ora file:

    names.ldap_authenticate_bind = TRUE
    wallet_location = location_value

  • Clients that add or modify entries in a directory must authenticate with the directory server. Database Configuration Assistant or Oracle Net Manager may be used to add or modify the entries. Only authenticated users with proper privileges can modify entries. Use one of the following authentication methods:

    • Simple Authentication

      The client identifies itself to the directory server by means of a DN and a password, which are sent in the clear over the network. The server verifies that the DN and password sent by the client match the DN and password stored in the directory server.

    • Strong Authentication

      Directories provide strong authentication by using public-key encryption available with Secure Sockets Layer (SSL). In public-key encryption, the sender of a message encrypts the message with the public key of the recipient. Upon delivery, the recipient decrypts the message using the recipient's private key.

    • Configuration on Systems that Require Authenticated Name Lookups

4.3.7.2.2 Access Control Lists

Authentication is used with access control lists (ACLs) to determine whether clients can read, modify, or add information in the directory server.

See Also:

Documentation from your directory server vendor for information about how to set ACLs on directory entry

ACLs specify the following:

  • The entries that the user can access

  • The authentication method used to access the entry

  • The access rights, or what the user can do with the object (read/write)

ACLs are established for a group of users. During Oracle Context creation, the OracleDBCreators, OracleNetAdmins, and OracleContextAdmins groups are created.

The user who creates the Oracle Context with Oracle Net Configuration Assistant is automatically added as the first member of these groups.

Table 4-3 describes ACL requirements for these groups and anonymous users and their relation to Oracle Net entries in the directory server.

Table 4-3 LDAP Directory User Groups

Group ACL Requirements

Anonymous users

All Oracle Net attributes and objects in the directory server have read access for the anonymous user. Read access of these objects for anonymous is also applied to the Oracle Context. This enables anonymous users to browse directory naming entries contained within the cn=OracleContext RDN. This does not include objects used for enterprise user security.

Oracle Net Configuration Assistant sets up this access right during client installation.

OracleContextAdmins group users

Members of OracleContextAdmins (cn=OracleContextAdmins,cn=Groups,cn=OracleContext,...) have create, modify, and read access to all directory naming objects. Oracle Net Configuration Assistant establishes these access rights for this group during Oracle Context creation.

In addition to the Oracle Context creator, other users can be added to this group by the directory administrator with Oracle Enterprise Manager.

OracleDBCreators group users

Members of OracleDBCreators (cn=OracleDBCreators,cn=OracleContext,...) have create and read access to database service objects and attributes. Oracle Net Configuration Assistant establishes these access rights for this group during Oracle Context creation.

In addition to the Oracle Context creator, other users can be added to this group by the directory administrator with Oracle Enterprise Manager.

See Also: Oracle Database Advanced Security Administrator's Guide for further information about the OracleDBCreators group

OracleNetAdmins group users

Members of OracleNetAdmins (cn=OracleOracleNetAdmins,cn=OracleContext,...) have create, modify, and read access to directory naming objects and attributes. Oracle Net Configuration Assistant establishes these access rights for this group during Oracle Context creation.

In addition to the Oracle Context creator, other users can be added to this group by the directory administrator.

See Also: "Administering the OracleNetAdmins Group" for information on adding users to the OracleNetAdmins group


In situations where a high degree of security is desired for lookup or read-access to Oracle Net Services name and related data, administrators can define additional read-access control for some or all of this data. Such ACL definitions can prevent anonymous users from reading the Oracle Net Services data. If read-access to Oracle Net Services data is restricted, clients must use authenticated binds in order to do name lookup.

See Also:

"Authentication Methods" for information about configuring clients to use authenticated binds for name lookup

There are currently no predefined groups or procedures in Oracle's configuration tools for defining read-access restrictions on this data, so administrators must use standard object management tools from their directory system in order to manually create any necessary groups and ACLs.

ACLs can be added to Oracle Net Services objects using ldapmodify and an LDIF-format file. The following is a simple example that restricts all access by a given user, cn=user1:

dn: cn=emn10,cn=oraclecontext,dc=stiger,dc=com
replace: orclentrylevelaci
orclentrylevelaci: access to attr=(*)
 by dn="cn=user1" (noread,nosearch,nowrite,nocompare)

This example illustrates the basic form of an ACL for a single object but this approach is not necessarily the best way to define access. Because the access definitions for objects are complex and may involve security properties which are inherited from parent nodes in the DIT, Oracle recommends that administrators refer to the relevant tools and documentation for the directory system they are using, and formulate or integrate access management for Oracle Net Services objects into a directory-wide policy and security implementation.

For Oracle Internet Directory directories, oidadmin has functionality to create users, groups, and also define ACLs for objects and general directory security.

See Also:

4.3.7.3 Schema

Directories must be populated with the correct version of the Oracle schema before Oracle Contexts or a database service or net service name entry can be created. The Oracle schema defines the type of objects, called object classes, that can be stored in the directory server and their attributes. Table 4-4 lists the object classes for database service, net service name, and net service alias entries.

Table 4-4 Oracle Net Services LDAP Main Object Classes

Object Class Description

orclDbServer

Defines the attributes for database service entries

orclNetService

Defines the attributes for net service name entries

orclNetServiceAlias

Defines the attributes for net service alias entries


Table 4-5 lists the object classes used by orclDbServer, orclNetService, and orclNetServiceAlias.

Table 4-5 Oracle Net Services LDAP Derived Object Classes

Object Class Description

orclNetAddress

Defines a listener protocol address

orclNetAddressList

Defines a list of addresses

orclNetDescription

Specifies a connect descriptor containing the protocol address of the database and the connect information to the service

orclNetDescriptionList

Defines a list of connect descriptors


These object classes use attributes that specify the contents of connect descriptors.

See Also:

Oracle Database Net Services Reference for further information about these object classes and their attributes

4.3.8 Limitations of Directory Naming Support with Microsoft Active Directory

In addition to Oracle Internet Directory, directory naming support is also provided with Microsoft Active Directory. Note the following limitations:

  • Oracle provides support for Microsoft Active Directory only on Windows operating systems. Therefore, client computers and the database server must also run on Windows operating systems to access or create entries in Microsoft Active Directory.

  • The following features are not supported by Microsoft Active Directory:

    • Multiple Oracle Contexts

      Microsoft Active Directory can support only one Oracle Context.

    • Net service aliases

      You cannot create net service aliases in Microsoft Active Directory. However, you can create net service names.

    • Automatic client discovery of directory servers for clients

      You must statically configure directory server usage on the clients. The Oracle Internet Directory Configuration will not provide directory server usage for Microsoft Active Directory. You must use Oracle Net Configuration Assistant.
