Oracle® Enterprise Manager

System Monitoring Plug-in Installation Guide for Microsoft SQL Server

Release 11 (4.1.3.1.0)

E16546-03

August 2010

This document provides a brief description about the Oracle System Monitoring Plug-in for Microsoft SQL Server, details on the versions the plug-in supports, prerequisites for installing the plug-in, and step-by-step instructions on how to download, install, verify, and validate the plug-in.

Description

The System Monitoring Plug-in for Microsoft SQL Server extends Oracle Enterprise Manager Grid Control to add support for managing Microsoft SQL Server instances. By deploying the plug-in within your Grid Control environment, you gain the following management features:

Versions Supported

This plug-in supports the following versions of products:

Prerequisites

The following prerequisites must be met before you can deploy the plug-in:

Configuring the Management Agent to Deploy the Plug-In

To configure the Agent, you must first ensure that the user starting the Agent service belongs to the Local Administrators Group. Also, you must set the preferred credentials on all Agents where you want to deploy the plug-in. To do so, follow the instructions given in the following sections.

Assigning Advanced Privileges to User

To assign advanced privileges, do the following:

  1. Locally on the Microsoft Windows node hosting the Agent, check that the user starting the Agent service belongs to the Local Administrators Group. If not, add it.

  2. Open the Local Security Settings Windows Tool and give the following Advanced Privileges to the user starting the Agent service:

    • Act as part of the operating system

    • Adjust memory quotas for a process

    • Logon as batch job

    • Replace a process level token

  3. Restart the Agent service if it is running.

  4. Set the Preferred Credentials for the Host and the Agent in the Grid Control. For more information, see Setting and Validating Preferred Credentials.

    • The OS user set in the Preferred Credentials must belong to the Local Administrators Group.

    • This OS user must have the following Advanced Privileges:

      • Act as part of the operating system

      • Adjust memory quotas for a process

      • Logon as batch job

      • Replace a process level token

Setting and Validating Preferred Credentials

To set the preferred credentials on all Agents where you want to deploy the plug-in, do the following:

  1. In Enterprise Manager Grid Control, click Preferences.

  2. In the Preferences page, click Preferred Credentials in the left pane.

    The Preferred Credentials page appears.

  3. For the corresponding Target Type, for the Host target type, from the Set Credentials column, click the icon.

  4. In the Host Preferred Credentials page, in the Target Credentials section, for the host that is running the Management Agent where the plug-in has to be deployed, specify the user name and password.

  5. After setting the credentials, on the same page, click Test. If you test runs successfully, your credentials are set correctly.

  6. Run the OS Command job for the Management Agent where the plug-in has to be deployed.

    • Log in to Enterprise Manager Grid Control.

    • Click the Jobs tab.

    • In the Job Activity page, from the Create Job list, select OS Command, and click Go.

    • Fill up the details required in the following pages, and click Submit to run the job. If the job runs successfully, your credentials are set correctly.

Deploying the Plug-in

After you ensure that the prerequisites are met, follow these steps to deploy the plug-in.

  1. Download the SQL Server Plug-in archive to your desktop or computer on which the browser is launched. You can download the archive from the Oracle Technology Network (OTN).

  2. Log into Enterprise Manager Grid Control as a Super Administrator.

  3. Click the Setup link in the upper right corner of the Grid Control Home page, then click the Management Plug-ins link on the left side of the Setup page.

  4. Click Import.

  5. Click Browse and select the plug-in archive.

  6. Click List Archive.

  7. Select the plug-in and click OK.

  8. Verify that you have set preferred credentials on all Agents where you want to deploy the plug-in.

  9. In the Management Plug-ins page, click the icon in the Deploy column for the SQL Server plug-in. The Deploy Management Plug-in wizard appears.

  10. Click Add Agents, then select one or more Agents to which you want to deploy the plug-in. The wizard reappears and displays the Agent you selected.

  11. Click Next, then click Finish.

    If you see an error message stating that the preferred credential is not set up, go to the Preferences page and add the preferred credentials for the Agent target type.

    If there are no errors, then you will see the following screen:

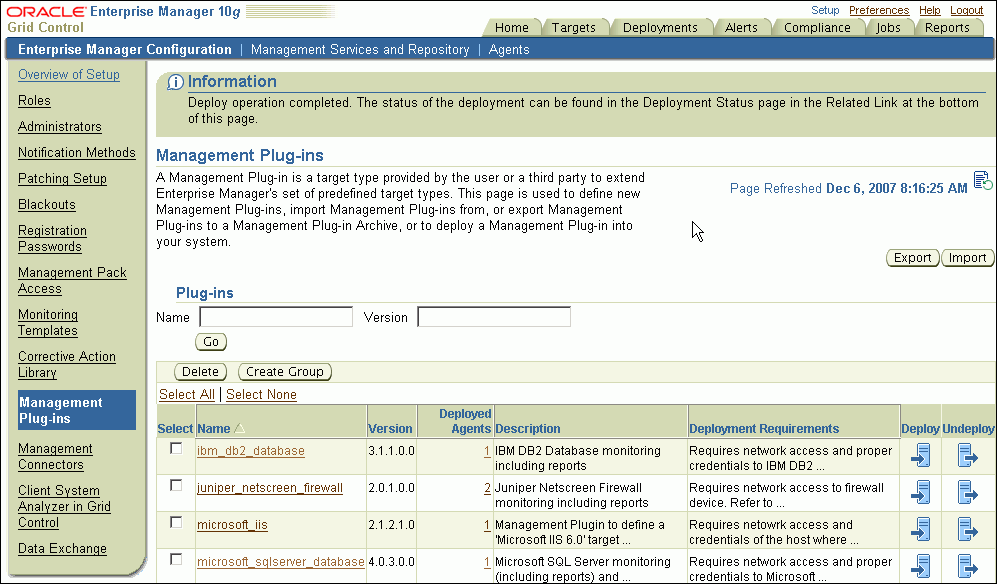

    Figure 1 Successful Deployment

    Successful Deployment
  12. To check the deployment status, go to Related Links and click the link Deployment Status.

Note:

If you want to perform local monitoring of Microsoft SQL Server 2005 Cluster, then:
  • Deploy the plug-in on each node of the cluster where the local Agent is running. Local Agent is the agent running on each node of the cluster. Do not deploy on the virtual host.

  • Repeat steps 8, 9, 10, and 11.

  • Navigate to the bin directory of Virtual Agent Service host and run the following command:

    .\emctl reload agent

On this Virtual Agent Service home page, if the Add drop-down list does not list the target name Microsoft SQL Server, then refresh the home page.

Enabling and Finding TCP/IP Port Information

The following sections provide information you require to enable the TCP/IP port and to find the TCP/IP port for a particular SQL server instance.

Enabling TCP/IP Port

For SQL Server 2000

  1. From the SQL Server Enterprise Manager, right-click the SQL Server instance in the left panel and select Properties. SQL Server Properties dialog box appears.

  2. In General tab, click Network Configuration. The SQL Server Network Utility dialog box appears.

  3. Ensure that TCP/IP is listed in the Enabled protocols list.

For SQL Server 2005 and SQL Server 2008

  1. From the SQL Server Configuration Manager, select SQL Server 2005 Network Configuration in the left panel and navigate to the SQL Server instance.

    The right panel displays all protocols for the specified SQL Server instance and their status.

  2. Ensure that TCP/IP is enabled.

  3. (If TCP/IP is disabled), right-click TCP/IP and select Properties. The TCP/IP Properties dialog box appears.

  4. In the Protocol tab, select enabled, and click Apply.

  5. Restart the SQL Server instance.

Finding TCP/IP Port

After enabling the TCP/IP protocol, restart the SQL Server to apply the changes.

For SQL Server 2000

  1. From the SQL Server Enterprise Manager, right-click the SQL Server instance in the left panel and select Properties. The SQL Server Properties dialog box appears.

  2. In the General tab, click Network Configuration. The SQL Server Network Utility dialog box appears.

  3. Select TCP/IP, click on the Properties dialog box to know the TCP/IP port.

For SQL Server 2005 and SQL Server 2008

  1. From the SQL Server Configuration Manager, select SQL Server 2005 Network Configuration in the left panel and navigate to the SQL Server instance.

    The right panel displays all protocols for the specified SQL Server instance and their status.

    In the IP Addresses tab, TCP Dynamic Ports row of IP All will give the TCP/IP port of instance.

Enabling SQL Authentication or Mixed Authentication

Modify the permissions for database authentication so that you enable SQL authentication or mixed authentication, and set sysadmin role for the database user that you are going to use for discovering the target and running jobs.

On the SQL Server, for the user you are going to use for monitoring and running jobs, set the write permissions by following these steps:

Note:

If you do not have a user, then create one. To do so, from the task bar, go to Start, select Settings, and then Control Panel. In the Control Panel, double-click Users and Passwords and click Add in the Users tab.
  1. In the Control Panel, double-click Administrative Tools and then Computer Management. The Computer Management screen appears.

  2. In the left panel, go to Services and Applications and select the Microsoft SQL Server and navigate down to Security.

  3. Double-click Security, and select Logins.

  4. Right-click Logins and click NewLogin. The SQL Server Login Properties-New Login dialog box appears.

  5. Click General tab, specify the name for the new login, select SQL Server Authentication and specify a unique password to use when connecting to the server using SQL Authentication.

  6. Click Server Roles tab and ensure that sysadmin is selected in the Server Roles section.

  7. Click Database Access tab, and ensure that in the Permit in Database Role section, no role is selected for any database.

Installing and Enabling Windows Management Instrumentation

(For SQL Server 2000) Install and enable Windows Management Instrumentation (WMI) provider of the SQL Server. Enable support by running the setup.exe file located in the SQL Server Installation CD:

<CD_Drive>/x86/other/wmi

Modifying Permissions

Modify Windows Management Instrumentation Control permissions, registry permissions, and DCOM remote access permissions as described in the section Modifying Permissions in the Enterprise Manager System Monitoring Plug-in Troubleshooting Guide available at the following location:

http://www.oracle.com/technology/documentation/oem.html

Adding Instances for Monitoring

Follow these steps to add the plug-in target to Grid Control for central monitoring and management:

  1. From the Agent home page where the plug-in was deployed, select the Microsoft SQL Server target type from the Add drop-down list, then click Go. The Add Microsoft SQL Server page appears.

    Note:

    If you are performing a local monitoring of Microsoft SQL Server 2005 Cluster, then the Agent home page will be the Virtual Agent Service home page.
  2. Provide the following information for the properties:

    • Name — Unique target name across all the Grid Control targets, such as SqlServer2k_Hostname. This is the display name in the Grid Control. It represents this SQL Server target across all user interfaces within Grid Control.

    • JDBC URL — URL for JDBC.

      For example,

      jdbc:sqlserver://<host>:<port>


      Note:

      You can specify either IP Address or host name. However, ensure that the host name can be resolved consistently on the network. Standard TCP tools such as "nslookup" and "traceroute" can be used to verify the host name. Also, if you are monitoring a Microsoft SQL Server 2005 Cluster, then specify the IP address or host name of the virtual SQL Server of the cluster.
    • JDBC Driver — (Optional) Microsoft SQL Server 2005 JDBC driver class name.

      For example,

      com.microsoft.sqlserver.jdbc.SQLServerDriver

    • Database Username (Required for SQL Authentication) — Valid user for the database in sysadmin fixed server role.

    • Password for the Database User (Required for SQL Authentication) — Corresponding password for the database user

    • System Username (Needed when SQLServer is at remote location) — Valid host user name. Required only for remote Agent monitoring. For more information, see Configuring Remote Connections to Monitor Targets.

    • System Password (Needed when SQLServer is at remote location) — Password for the Username. Required only for remote Agent monitoring.

    • Connect Using Windows Integrated Authentication (Yes/No) — Yes for Windows Integrated Authentication, No for SQL Authentication

    • Role — (Optional)

  3. Click Test Connection to make sure the parameters you entered are correct.

  4. For Oracle Management Service version 10g Release 3 (10.2.0.3) or lower, reenter the encrypted parameters from step 2 if the connection test was successful, then click OK.

    Note:

    For Oracle Management Service 10g Release 3 (10.2.0.3), if you do not reenter the encrypted parameters (Database Username, Password for the Database User, System Username, System Password) before clicking OK, you might encounter an error informing you that the login failed.

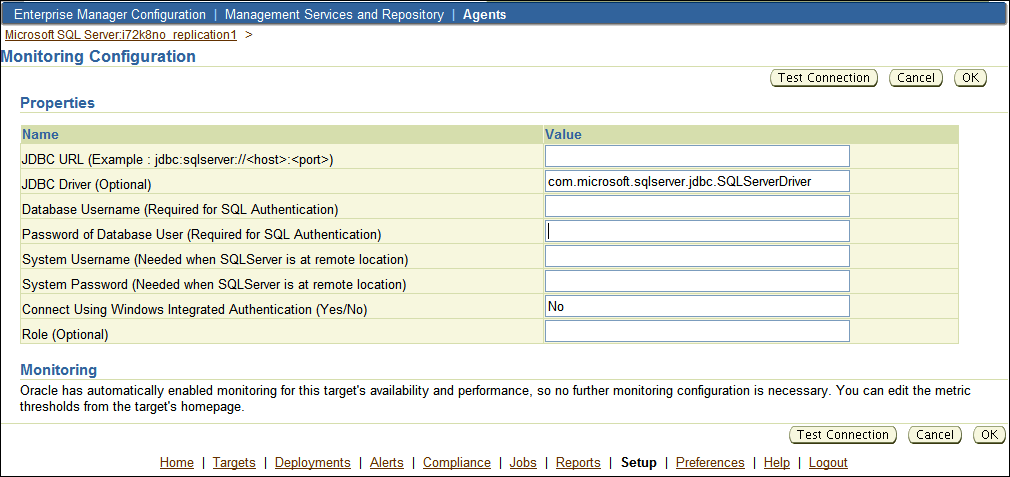

    Figure 2 Add Microsoft SQL Server

    Add Microsoft SQL Server

After you deploy and configure the plug-in to monitor one or more targets in the environment, you can customize the monitoring settings of the plug-in. This alters the collection intervals and threshold settings of the metrics to meet the particular needs of your environment. If you decide to disable one or more metric collections, this could impact the reports that the metric is a part of.

Verifying and Validating the Plug-in

After waiting a few minutes for the plug-in to start collecting data, use the following steps to verify and validate that Enterprise Manager is properly monitoring the plug-in target:

  1. Click the SQL Server target link from the Agent home page Monitored Targets table.

    The Microsoft SQL Server home page appears.

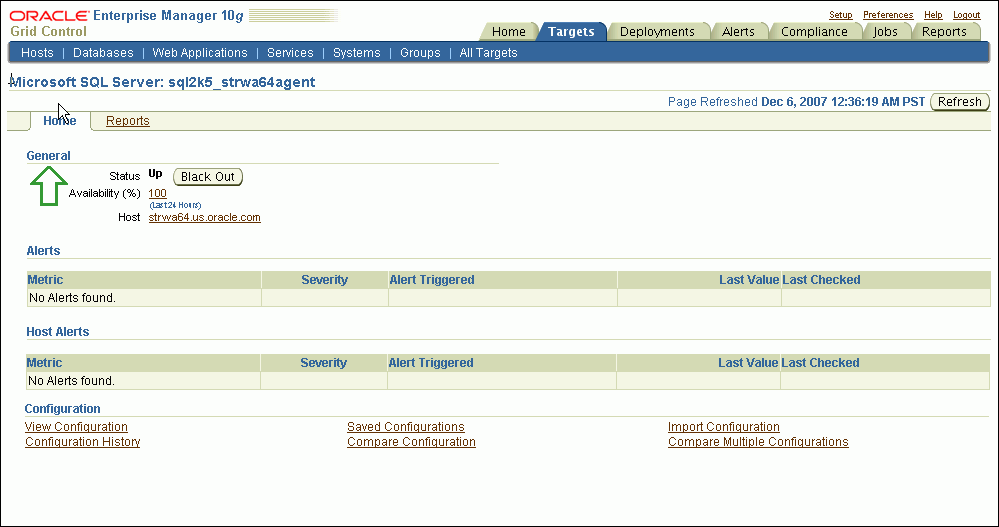

    Figure 3 Microsoft SQL Server Home Page

    Surrounding text describes Figure 3 .
  2. Verify that no metric collection errors are reported in the Metrics table.

  3. Ensure that reports can be seen and no errors are reported by clicking the Reports property page.

  4. Ensure that configuration data can be seen by clicking the View Configuration link in the Configuration section. If configuration data does not immediately appear, click Refresh in the View Configuration page.

Upgrading the Plug-in

Follow these steps to upgrade the plug-in:

  1. Download the SQL Server Plug-in archive to your desktop or computer on which the browser is launched. You can download the archive from the Oracle Technology Network (OTN).

  2. Log into Enterprise Manager Grid Control as a Super Administrator.

  3. Click the Setup link in the upper right corner of the Grid Control Home page, then click the Management Plug-ins link on the left side of the Setup page.

  4. Click Import.

  5. Click Browse and select the plug-in archive that you have downloaded for upgrading.

  6. Click List Archive.

  7. Select the plug-in and click OK.

  8. Verify that preferred credentials are set on all Agents to which you want to deploy the plug-in.

  9. Blackout the Microsoft SQL Server targets for agents to which you want to deploy higher version of the plug-in. Ensure that you select immediate blackout.

  10. In the Management Plug-ins page, click the icon in the Deploy column for the SQL Server plug-in. The Deploy Management Plug-in wizard appears.

  11. Click Add Agents, then select one or more Agents to which you want to deploy the plug-in. The wizard reappears and displays the Agent you selected.

  12. Click Next, then click Finish.

    If you see an error message stating that the preferred credential is not set up, go to the Preferences page and add the preferred credentials for the Agent target type.

  13. Remove blackout for the targets (required only if Step 9 applies).

Undeploying the Plug-in

Follow these steps to undeploy the plug-in from an Agent:

  1. Log in to Enterprise Manager Grid Control as a Super Administrator.

  2. Select the Targets tab, then the All Targets subtab. The All Targets page appears.

  3. Select the Microsoft SQL Server Plug-in target and click Remove. You must do this step for all targets of the specific version of the plug-in.

  4. Make sure that the preferred credentials are set on the Agents where the plug-in is deployed.

  5. Click the Setup link in the upper right corner of the All Targets page, then click the Management Plug-ins link on the left side of the Setup page. The Management Plug-ins page appears.

  6. Click the icon in the Undeploy column for the Microsoft SQL Server Plug-in. The Undeploy Management Plug-in page appears.

  7. Check all the Agents that are currently deployed with the Microsoft SQL Server Plug-in and click OK.

    You must undeploy the plug-in from every Agent in the system to completely remove it from the enterprise.

  8. Select the Microsoft SQL Server Plug-in on the Management Plug-in page and click Delete.

Configuring Connections

This section provides details about configuring connections for monitoring targets and executing jobs.

Configuring Remote Connections to Monitor Targets

If you want to monitor targets using remote Agents, then Oracle recommends that you do the following security configurations on every system where SQL Server target resides.

  • Set WMI namespace security (Refer to the 'Modifying Windows Management Instrumentation Control Permissions' section of the Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide.)

  • Restrict access to the registry from a remote computer (Refer to the 'Modifying Registry Permissions' section of the Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide.)

  • Set DCOM Security to allow user to access remotely (Refer to the 'Modifying DCOM Remote Access Permissions' section of the Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide.)

  • Set privileges for System User to access Windows performance counters remotely as follows:

    1. Locally on the Microsoft Windows node hosting the Agent, open the Local Security Settings Windows Tool. Go to Start, select Control Panel, and then select Administrative Tools, select Computer Management, select System Tools, then Local Users and Groups, and select Groups.)

    2. Add System Username to Performance Monitor Group.

  • Set access privileges of SQL Server Services to allow user to access a computer remotely (Refer to the 'Modifying Access Privileges of SQL Server Services' section of the Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide.)

  • Set privileges for System User of target on Oracle Enterprise Manager Agent for Windows Integrated Authentication based monitoring.

    1. Locally on the Microsoft Windows node hosting the Agent, open the Local Security Settings Windows Tool. Go to Start, select Control Panel, and then select Administrative Tools, and select Local Security Policy.

    2. Click on Local Policies and then User Rights Assignment.

    3. Assign the following right to the System User of the target:

      Logon as batch job

  • Configure Allow Remote Administration Exception in Windows Firewall if Windows firewall is enabled on the SQL Server target system.

Configuring Connections to Execute Jobs

If you want to execute jobs using local or remote Agents, then Oracle recommends that you do the following security configurations on every system where SQL Server target resides.

  • Set WMI namespace security (Refer to the 'Modifying Windows Management Instrumentation Control Permissions' section of the Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide.)

  • Set DCOM Security to allow user to access a computer remotely (Refer to the 'Modifying DCOM Remote Access Permissions' section of the Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide.)

For configuration details, refer to the following:

  • Microsoft Help and Support Web site.

    To access the Web site, go to the following URL:

    http://support.microsoft.com

  • Oracle Enterprise Manager Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide available at the following URL:

    http://www.oracle.com/technology/documentation/oem.html

  • Document 367797.1 on My Oracle Support.

    To locate document 367797.1:

    1. Go to the following URL:

      http://metalink.oracle.com

    2. Click Advanced at the top of the Oracle My Oracle Support page.

    3. Enter 367797.1 in the Document ID field and click Submit.

Creating and Editing Jobs

To create and edit jobs, follow these steps:

Note:

Currently jobs are supported only for stand-alone Microsoft SQL Server instances. Jobs submitted for Microsoft SQL Server 2005 cluster instances will fail with the appropriate error message.
  1. In Grid Control, click the Jobs tab. Grid Control displays the Job Activity page.

  2. Select a job type from the Create Job menu and click Go.

    You can select one of these:

    • Microsoft SQL Server and/or SQL Agent Start

    • Microsoft SQL Server and/or SQL Agent Stop

    • Microsoft SQL Server Pause or Resume

    Note:

    If you want to edit a job, then select an existing job from the list and click Edit.
  3. In the General tab of the Create <Job Type> Job page, provide a name for the job and add the individual targets or one composite target such as a Group.

    Note:

    If you are editing a job, then modify the job name and the selected targets.
  4. In the Parameters tab of the Create <Job Type> Job page, from the Options menu, select an appropriate option to make the job function accordingly when it starts.

    You can select one of these options:

    Table 1 Job Parameters Options

    Job Type Available Options

    Microsoft SQL Server and/or SQL Agent Start

    • Start SQL Server and SQL Server Agent services

      (You will select this option when both, SQL Server and SQL Server Agent, are stopped or when SQL Server is running but the SQL Server Agent is stopped)

    • Start SQL Server service

      (You will select this option when both, SQL Server and SQL Server Agent, are stopped and if you want to start only the SQL Sever)

    Microsoft SQL Server and/or SQL Agent Stop

    • Stop SQL Server and SQL Server Agent services

      (You will select this option when both, SQL Server and SQL Server Agent, are running, when SQL Server is paused but the SQL Server Agent is running, when SQL Server is running/paused but the SQL Server Agent is stopped)

    • Stop SQL Server Agent service

      (You will select this option when you want to stop a running SQL Server Agent)

    Microsoft SQL Server Pause or Resume

    • Pause SQL Server service

      (You will select this option when you want to pause a running SQL Server)

    • Resume SQL Server service

      (You will select this option when you want to resume a paused SQL Server)


    Grid Control starts the SQL server and agent services according to the selection made.

    Note:

    If you are editing a job, then modify the options for that job.
  5. In the Credentials tab of the Create <Job Type> Job page, select an appropriate option for credentials.

    You can choose to use the preferred credentials that are already set or override the preferred credentials with new credentials. In either case, you need to provide the credentials for agent host and database host.

    To set the preferred credentials, click Preferences at the top-right corner of the Grid Control console. From the left-vertical navigation bar, click Preferred Credentials. Grid Control displays the Preferred Credentials page. On this page, you can set the preferred credentials

    Note:

    If you are editing a job, then modify the credentials set for that job.
  6. In the Schedule tab of the Create <Job Type> Job page, schedule the job.

    Note:

    If you are editing a job, then modify the schedule prepared for that job.
  7. In the Access tab of the Create <Job Type> Job page, define or modify the access you want other users to have to this job.

    Note:

    If you want to edit, then modify the access levels for that job.
  8. Click Submit to create the job.

Troubleshooting the Plug-In

To resolve various issues that you might encounter while using the plug-in, see the Oracle Enterprise Manager System Monitoring Plug-in Troubleshooting Guide available at the following URL:

http://www.oracle.com/technology/documentation/oem.html

Documentation Accessibility

Our goal is to make Oracle products, services, and supporting documentation accessible to all users, including users that are disabled. To that end, our documentation includes features that make information available to users of assistive technology. This documentation is available in HTML format, and contains markup to facilitate access by the disabled community. Accessibility standards will continue to evolve over time, and Oracle is actively engaged with other market-leading technology vendors to address technical obstacles so that our documentation can be accessible to all of our customers. For more information, visit the Oracle Accessibility Program Web site at http://www.oracle.com/accessibility/.

Accessibility of Code Examples in Documentation

Screen readers may not always correctly read the code examples in this document. The conventions for writing code require that closing braces should appear on an otherwise empty line; however, some screen readers may not always read a line of text that consists solely of a bracket or brace.

Accessibility of Links to External Web Sites in Documentation

This documentation may contain links to Web sites of other companies or organizations that Oracle does not own or control. Oracle neither evaluates nor makes any representations regarding the accessibility of these Web sites.

Deaf/Hard of Hearing Access to Oracle Support Services

To reach Oracle Support Services, use a telecommunications relay service (TRS) to call Oracle Support at 1.800.223.1711. An Oracle Support Services engineer will handle technical issues and provide customer support according to the Oracle service request process. Information about TRS is available at http://www.fcc.gov/cgb/consumerfacts/trs.html, and a list of phone numbers is available at http://www.fcc.gov/cgb/dro/trsphonebk.html.


System Monitoring Plug-in Installation Guide for Microsoft SQL Server, Release 11 (4.1.3.1.0)

E16546-03

Copyright © 2010, Oracle and/or its affiliates. All rights reserved.

This software and related documentation are provided under a license agreement containing restrictions on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means. Reverse engineering, disassembly, or decompilation of this software, unless required by law for interoperability, is prohibited.

The information contained herein is subject to change without notice and is not warranted to be error-free. If you find any errors, please report them to us in writing.

If this software or related documentation is delivered to the U.S. Government or anyone licensing it on behalf of the U.S. Government, the following notice is applicable:

U.S. GOVERNMENT RIGHTS Programs, software, databases, and related documentation and technical data delivered to U.S. Government customers are "commercial computer software" or "commercial technical data" pursuant to the applicable Federal Acquisition Regulation and agency-specific supplemental regulations. As such, the use, duplication, disclosure, modification, and adaptation shall be subject to the restrictions and license terms set forth in the applicable Government contract, and, to the extent applicable by the terms of the Government contract, the additional rights set forth in FAR 52.227-19, Commercial Computer Software License (December 2007). Oracle USA, Inc., 500 Oracle Parkway, Redwood City, CA 94065.

This software is developed for general use in a variety of information management applications. It is not developed or intended for use in any inherently dangerous applications, including applications which may create a risk of personal injury. If you use this software in dangerous applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure the safe use of this software. Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this software in dangerous applications.

Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners.

This software and documentation may provide access to or information on content, products, and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle Corporation and its affiliates will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.
