This chapter describes how to design and implement a WLE server application, using the Basic University sample application as an example. The content of this chapter assumes that the design of the application to be implemented is complete and is expressed in OMG IDL. This chapter focuses on design and implementation choices that are oriented to the server application.
This chapter discusses the following topics:
The Basic University sample application provides the student with the ability to browse course information from a central University database. Using the Basic sample application, the student can do the following:
How the Basic University Sample Application Works
In its OMG IDL file, the Basic University sample application defines the following interfaces:
The Basic University Sample Application OMG IDL
Interface |
Description |
Operations |
|---|---|---|

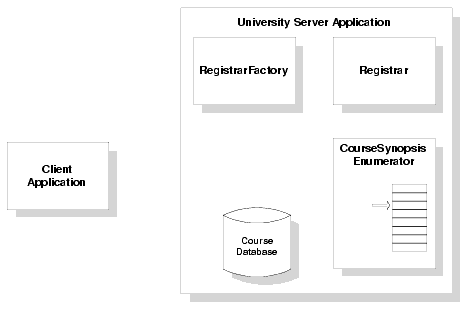

The Basic University sample application is shown in Figure 3-1.
For the purposes of explaining what happens when the Basic University sample application runs, the following separate groups of events are described:
Figure 3-1 Basic University Sample Application
The following sequence shows a typical set of events that take place when the Basic client and server applications are started and the client application obtains an object reference to the Registrar
object:
Application Startup
The following sequence traces the events that may occur when the student browses a list of course synopses:
To create the object reference CourseSynopsisEnumerator object, the Registrar object does the following:
(If the number_remaining variable is 0, the Registrar object invokes the destroy() operation on the CourseSynopsisEnumerator object and returns a nil reference to the client application.)
The following sequence shows a typical set of events that take place when the client application browses course details:
The Basic University sample application contains the University server application, which deals with several fundamental WLE server application design issues. This section addresses the following topics:
This section also addresses the following two topics:
The Basic client application needs references to the following objects, which are managed by the University server application:
Design Considerations for Generating Object References
The following table shows how these references are generated and returned.
Note the following about how the University server application generates object references:
Each of the three objects in the Basic sample application has its own state management requirements. This section discusses the object state management requirements for each.
The RegistrarFactory
object does not need to be unique for any particular client request. It makes sense to keep this object in memory and avoid the expense of activating and deactivating this object for each client invocation on it. Therefore, the RegistrarFactory
object has the process
activation policy.
The Basic sample application is meant to be deployed in a small-scale environment. The Registrar
object has many qualities similar to the RegistrarFactory
object; namely, this object does not need to be unique for any particular client request. Also, it makes sense to avoid the expense of continually activating and deactivating this object for each invocation on it. Therefore, in the Basic sample application, the Registrar
object has the process
activation policy.
The fundamental design problem for the University server application is how to handle a list of course synopses that is potentially too big to be returned to the client application in a single response. Therefore, the solution centers on the following:
Design Considerations for Managing Object State
The RegistrarFactory Object
The Registrar Object
The CourseSynopsisEnumerator Object
The University server application has the CourseSynopsisEnumerator
object, which implements this solution. Although this object returns an initial batch of synopses when it is first invoked, this object retains an in-memory context so that the client application can get the remainder of the synopses in subsequent requests. To retain an in-memory context, the CourseSynopsisEnumerator
object must be stateful; that is, this object stays in memory between client invocations on it.
When the client is finished with the CourseSynopsisEnumerator
object, this object needs a way to be flushed from memory. Therefore, the appropriate state management decision for the CourseSynopsisEnumerator
object is to assign it the process
activation policy and to implement the WLE application-controlled deactivation feature.
Application-controlled deactivation is implemented in the destroy()
operation on that object.
The following code example shows the destroy()
operation on the CourseSynopsisEnumerator
object:
void CourseSynopsisEnumerator_i::destroy() The following code example shows the ICF file for the Basic sample application:
module POA_UniversityB Handling durable state information refers specifically to reading durable state information from disk at some point during or after the object activation, and writing it, if necessary, at some point before or during deactivation. The following two objects in the Basic sample application handle durable state information:
{
// when the client calls "destroy" on the enumerator,
// then this object needs to be "destructed".
// do this by telling the TP framework that we're
// done with this object.
TP::deactivateEnable();
} Basic University Sample Application ICF File
{
implementation CourseSynopsisEnumerator_i
{
activation_policy ( process );
transaction_policy ( optional );
implements ( UniversityB::CourseSynopsisEnumerator );
};
implementation Registrar_i
{
activation_policy ( process );
transaction_policy ( optional );
implements ( UniversityB::Registrar );
};
implementation RegistrarFactory_i
{
activation_policy ( process );
transaction_policy ( optional );
implements ( UniversityB::RegistrarFactory );
};
}; Design Considerations for Handling Durable State Information
The following two sections describe the design considerations for how these two objects handle durable state information.
One of the operations on the Registrar
object returns detailed course information to the client application. In a typical scenario, a student who has browsed dozens of course synopses may be interested in viewing detailed information on perhaps as few as two or three courses at one time.
To implement this usage scenario efficiently, the Registrar
object is defined to have the get_course_details()
operation. This operation accepts an input parameter that specifies a list of course numbers. This operation then retrieves full course details from the database and returns the details to the client application. Because the object in which this operation is implemented is process-bound, this operation should avoid keeping any state data in memory after an invocation on that operation is complete.
The Registrar
object does not keep any durable state in memory. When the client application invokes the get_course_details()
operation, this object simply fetches the relevant course information from the University database and sends it to the client. This object does not keep any course data in memory. No durable state handling is done via the activate_object()
or deactivate_object()
operations on this object.
The CourseSynopsisEnumerator
object handles course synopses, which this object retrieves from the University database. The design considerations, with regard to handling state, involve how to read state from disk. This object does not write any state to disk.
There are three important aspects of how the CourseSynopsisEnumerator
object works that influence the design choices for how this object reads its durable state:
The Registrar Object
The CourseSynopsisEnumerator Object
Given these three aspects, it makes sense for this object to:
Note: If you implement the Tobj_ServantBase::activate_object() or Tobj_ServantBase::deactivate_object() operations on an object, remember to edit the implementation header file (that is, the application _i.h file) and add the definitions for those operations to the class definition template for the object's interface.
Note the following about the way in which the University sample applications use the University database:
Note: The BEA TUXEDO Teller Application in the Wrapper and Production sample applications accesses the account information in the University database directly and does not use the samplesdb.h file.
For more information on the files you build into the Basic server application, see the Guide to the University Sample Applications.
The Basic sample application uses the following design patterns:
How the Basic Sample Application Applies Design Patterns
This section describes why these two patterns are appropriate for the Basic sample application and how this application implements them.
As mentioned in the section Process-Entity Design Pattern, this design pattern is appropriate in situations where you can have one process object that handles data entities needed by the client application. The data entities are encapsulated as CORBA struct
s that are manipulated by the process object and not by the client application.
Adapting the Process-Entity design pattern to the Basic sample application allows the application to avoid implementing fine-grained objects. For example, the Registrar
object is an efficient alternative to a similarly numerous set of course objects. The processing burden of managing a single, coarse-grained Registrar
object is small relative to the potential overhead of managing hundreds or thousands of fine-grained course objects.
For complete details about the Process-Entity design pattern, see the Design Patterns technical article.
This design pattern is appropriate in situations where an object has generated an internal list of data that is potentially too large to return to the client application in a single response. Therefore, the object must return an initial batch of data to the client application in one response, and have the ability to return the remainder of the data in subsequent responses.
A list-enumerator object must also simultaneously keep track of how much of the data has already been returned so that the object can return the correct subsequent batch. List-enumerator objects are always stateful (that is, they remain active and in memory between client invocations on them) and the server application has the ability to deactivate them when they are no longer needed.
The list-enumerator design pattern is an excellent choice for the CourseSynopsisEnumerator
object, and implementing this design pattern provides the following benefits:
Process-Entity Design Pattern
List-Enumerator Design Pattern
Therefore, all subsequent invocations go to the correct CourseSynopsisEnumerator object. This is critical in the situation where the server process has multiple active instances of the CourseSynopsisEnumerator class.
Because the get_courses_synopsis() operation returns a unique CourseSynopsisEnumerator object reference, client requests never collide; that is, a client request never mistakenly goes to the wrong CourseSynopsisEnumerator object.
The WLE system implements a performance efficiency in which data marshaling between two objects in the same server process is automatically disabled. This efficiency exists if the following circumstances exist:
Additional Performance Efficiencies Built into the WLE System
An example of this is when the Registrar
object creates an object reference to the CourseSynopsisEnumerator
object and causes that object to be instantiated. No data marshaling takes place in the requests and responses between those two objects.
WLE 4.2 provides a new feature that you can use to preactivate an object with state before a client application invokes that object. This feature can be particularly useful for creating iterator objects, such as the CourseSynopsisEnumerator
object in the University samples.
Preactivating an object with state centers around using the TP::create_active_object_reference()
operation. Typically, objects are not created in a WLE server application until a client issues an invocation on that object. However, by preactivating an object and using the TP::create_active_object_reference()
operation to pass a reference to that object back to the client, your client application can invoke an object that is already active and populated with state.
The process for using the preactivation feature of WLE is to write code in the server application that:
Preactivating an Object with State
How You Preactivate an Object with State
Thus, the preactivated object is created in such a way that the TP Framework invokes neither the Server::create_servant() nor the Tobj_ServantBase::activate_object() operations for that object.
Note the following when using the preactivation feature:
If a client application invokes on a transient object reference after the process in which the object reference was created is shut down, the TP Framework returns the following exception:
CORBA::OBJECT_NOT_EXIST
To prevent the situation in which a server has crashed, and a client application subsequently attempts to invoke the now-deleted object, add the TobjS::ActivateObjectFailed exception to the implementation of the Tobj_ServantBase::activate_object() operation to the object meant for preactivation. Then, if a client attempts to invoke such an object after a server crash, in which case the TP Framework invokes the Tobj_ServantBase::activate_object() operation on that object, the TP Framework returns the following exception to the client application:
CORBA::OBJECT_NOT_EXIST
|
|
|
