1. Setup Project and Connect to Database

Time to complete this step: 15 minutes

A Dynamic Web Project is an Eclipse Java project that contains the source code, web pages, images, resources, and configuration files for building a web application.

Create new web application project

1. Choose File > New > Project.
2. In the New Project dialog, select Examples > Java Persistence API (JPA) > Workshop JPA Tutorial from the list.



3. Click Next.

4. Verify that the value workshop-jpa-tutorial is in the project name field and click Next.



5. If a license dialog appears, review the license carefully and if you accept the terms, click I Agree.

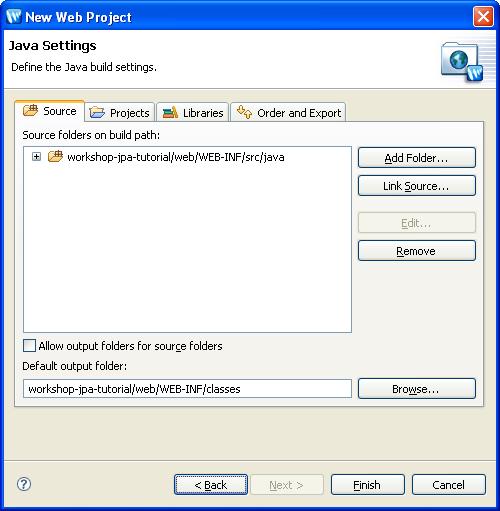

6. Review the Java build settings. By default, workshop-jpa-tutorial/web/WEB-INF/src/java is selected as the source folder and workshop-jpa-tutorial/web/WEB-INF/classes as the output folder.


7. Click Finish to create the new JPA Web Application project and click Yes to switch to Workshop perspective, if you are not already in Workshop perspective.

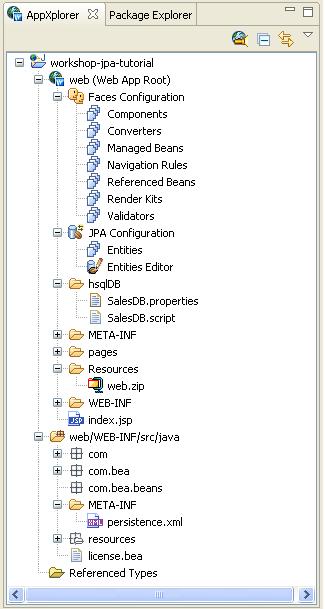

8. Below is a summary of different parts of the web application structure.

	Folder or file Overview workshop-jpa-tutorial Project folder with project name.   /web (Web App Root) Root folder for web application artifacts.     /Faces Configuration Lists JSF configuration elements.     /JPA Configuration Displays a list of JPA persistent entities.     /pages Folder for HTML and JSP presentation pages.     /hsqlDB Contains Hypersonic Database.     /Resources Supporting files in a zip format that are being used in the JPA application.     /WEB-INF Holds folders / files used as part of the runtime web application.       /classes Holds class files for the web application.       /config Holds JSF configuration files.       /lib Folder to hold third-party .jar files which are used at runtime, i.e., .jar files for logging, tag libraries, JDBC drivers etc.       /src/java Folder to hold Java source files.       /tld Folder to hold tag library definition files.       web.xml Deployment descriptor for the web application.   /web/WEB-INF/src/java Folder that maps to the src/java folder where you can place Java source files.     /resources Folder to place the resource files.     persistence.xml Persistence configurations file.       application.properties Application configuration resource file.   /Referenced Types Java classes referenced by web artifacts.

Connect and analyze database schema using DbXplorer

In this step, we will learn how to explore databases using the DbXplorer™. The BEA Workshop ORM Workbench allows you to connect to any database, analyze database schemas, tables, columns, and even populate the database with sample data.

The DbXplorer™ provides an intuitive interface for database access through the ORM Workbench. It allows to setup the database connection, review the database artifacts, query the data in an existing table or column, and generate object relational mappings.

Create a New Database Connection

1. Open the DbXplorer View, if it is not visible. To open the DbXplorer View, click Window > Show View > DbXplorer.
2. Right-click anywhere within the DbXplorer view and select New Connection.



3. In the Add Database Connection wizard, enter a database connection name. The database connection name can be arbitrary and does not have to match the actual name of the database server.



4. In the Add Database Connection dialog, click Add and select the Hypersonic JDBC driver file, <path to workspace>\workshop-jpa-tutorial\web\WEB-INF\lib\hsqldb.jar.



5. Click Next.
6. Click Browse and select org.hsqldb.jdbcDriver as the Hypersonic JDBC Driver class.
7. Workshop provides sample Database URL's for some standard databases, which can be accessed from the Populate from database defaults pull down menu. Select HypersonicSQL In-Memory.



8. For database URL jdbc:hsqldb:{db filename}, specify the Hypersonic database script file location for {db filename} <path to workspace>\workshop-jpa-tutorial\web\hsqlDB\SalesDB .
9. For User, enter sa.



10. Click the Test Connection button to verify the connection information.



11. Click Finish. The new database connection should now appear in DbXplorer.



Browse the database artifacts using DbXplorer

DbXplorer view allows you to browse the database components.

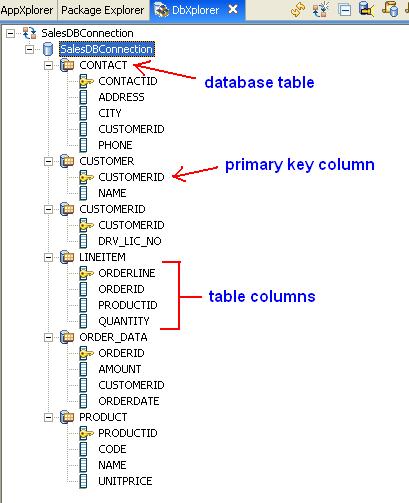

1. In the DbXplorer view, expand the nodes inside the SalesDBConnection node. You can view the individual tables and columns. Observe that the DbXplorer view denotes which columns have been designated as primary keys.

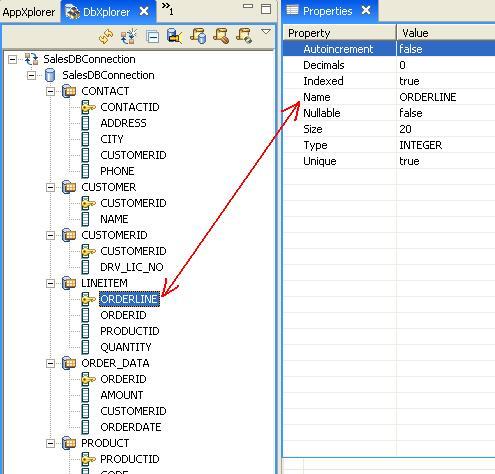

2. While browsing database artifacts, the Properties view displays the relevant properties of the component.





3. For large databases with many schemas, it might be necessary to hide the schemas not in use. Right-click a schema and select Hide Selected Schemas to remove it from the DbXplorer view (this step does not modify the database or the schemas). To display all of the schemas again, right click the database and select Show Hidden Schemas.
