1 Introducing Oracle COM Automation Feature

This chapter describes the Oracle COM Automation Feature Software Development Kit (SDK) and provides an overview of the product. Read this chapter before installing or using Oracle COM Automation Feature.

This chapter contains these topics:

Overview of Oracle COM Automation Feature

Oracle COM Automation Feature enables you to use Component Object Model (COM)-based components to customize and enhance the functionality of the Oracle database on Windows operating systems.

You can build your own custom components or use the thousands of prebuilt components that are available from third-party independent software vendors (ISVs).

Oracle COM Automation Feature Functionality

Oracle COM Automation Feature provides a mechanism to manipulate COM objects through either PL/SQL or Java.

  • Oracle COM Automation Feature acts as a generic wrapper around the IDispatch interface.

  • Oracle COM Automation Feature externalizes all methods supported by the IDispatch interface.

  • COM objects expose properties, data attributes, and methods (functions that perform an action) to the developer.

  • The IDispatch interface supports three basic operations for any COM object:

    • Gets the value of an exposed property

    • Sets the value of an exposed property

    • Invokes a method on an object

When an Oracle COM Automation Feature application programming interface (API) is invoked from PL/SQL or Java stored procedures, Oracle COM Automation Feature converts the parameters to the appropriate COM Automation data types and then invokes the corresponding IDispatch API with the converted parameters.

See Also:

Chapter 3, "Oracle COM Automation Feature Core Functionality" for descriptions of the data types and APIs

Oracle COM Automation Feature for PL/SQL

Oracle COM Automation Feature for PL/SQL provides a PL/SQL package and exposes a set of application programming interfaces (APIs) to instantiate COM objects. Developers can call these APIs from PL/SQL subprograms, stored procedures, stored functions, or triggers to manipulate COM objects.

There are no restrictions concerning where these COM objects reside. They can be local to the database or accessed remotely through the Distributed Component Object Model (DCOM).

Oracle COM Automation Feature for Java

Oracle COM Automation Feature for Java provides a set of Java APIs to instantiate COM objects. Developers can call these APIs from Java stored procedures, Java functions, or Java triggers to manipulate COM objects.

Oracle COM Automation Feature for Java does not allow in-process COM Automation servers. Developers can use dllhost to support in-process servers.

Benefits of Oracle COM Automation Feature

Oracle COM Automation Feature is a powerful and enabling infrastructure technology for Oracle developers on Windows. It has the following advantages:

Oracle COM Automation Feature Architecture

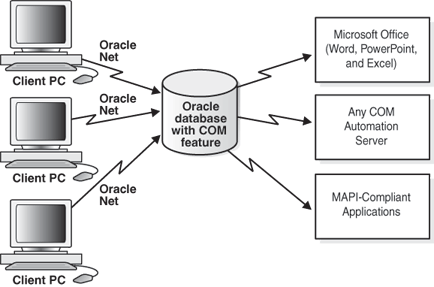

Figure 1-1 illustrates the interaction between an Oracle database with Oracle COM Automation Feature, client applications, and server applications.

Figure 1-1 Oracle COM Interaction

Description of Figure 1-1 follows
Description of "Figure 1-1 Oracle COM Interaction"

The architectural differences between Oracle COM Automation Feature for PL/SQL and for Java are described in the next two sections.

PL/SQL Architecture

Oracle COM Automation Feature for PL/SQL provides a package of PL/SQL APIs for manipulating COM objects. These APIs are implemented as external procedures in a dynamic-link library (DLL).

Oracle supports external procedures that enable developers to call third-generation language (3GL) functions from server-based object type methods and stored procedures. External procedures are invoked exactly like standard PL/SQL stored procedures. However, unlike standard PL/SQL procedures where the body of the procedure is written in PL/SQL and stored in the database, external procedures are functions in the C programming language that reside within a DLL. You can invoke Oracle COM Automation Feature APIs in the same manner in which you call a standard PL/SQL stored procedure or function.

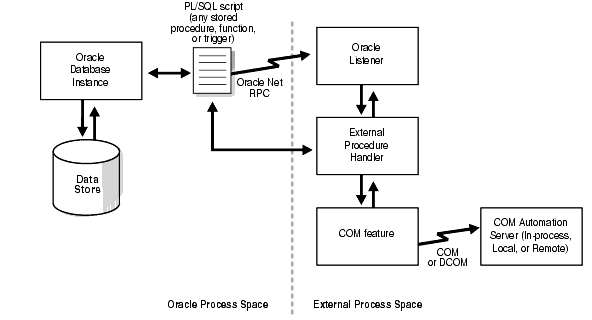

Figure 1-2 shows an Oracle database invoking COM Automation external procedure APIs.

Figure 1-2 COM Automation Feature Architecture for PL/SQL

Description of Figure 1-2 follows
Description of "Figure 1-2 COM Automation Feature Architecture for PL/SQL"

Invoking COM Automation External Procedure APIs

The database server invokes any of the COM Automation external procedure APIs as follows:

  1. The PL/SQL interpreter looks up the path name to the Oracle COM Automation Feature DLL (orawpcomVER.dll) where VER is the release version.

  2. The PL/SQL interpreter sends a message to the listener using Oracle Net to start extproc.exe, if it has not already been started for the current user session.

  3. The PL/SQL interpreter passes the procedure name, the parameters, and the path name of the DLL to extproc.exe.

  4. The extproc.exe file loads the DLL and executes the external procedure. Each of the COM Automation external procedure APIs in turn calls Win32 APIs that instantiate a COM object, set or get properties of a COM object, or invoke a method of a COM object.

  5. The extproc.exe file acts as an intermediary and handles any interaction between Oracle COM Automation Feature and the database server.

Architectural Impact on Availability Issues

The dependence on external procedures by Oracle COM Automation Feature for PL/SQL has implications for the availability of the database server.

You do not jeopardize the availability of the database server by using Oracle COM Automation Feature and custom or third-party COM objects in a production environment. Oracle COM Automation Feature operates outside of the Oracle kernel's address space. This safeguards the Oracle database from COM objects that stop abruptly.

Java Architecture

Oracle COM Automation Feature for Java is implemented by the Java Native Interface (JNI). The key components of this architecture are the Automation class and the Java COM Proxy DLL, orawcomVER.dll, where VER is the release version.

The interface is the Automation class, a Java proxy to the COM Automation server. The Automation class provides the methods necessary for developers to manipulate COM objects through the IDispatch interface.

The Java-specific COM proxy, orawcomVER.dll, enables Java functions to invoke their corresponding COM functions.

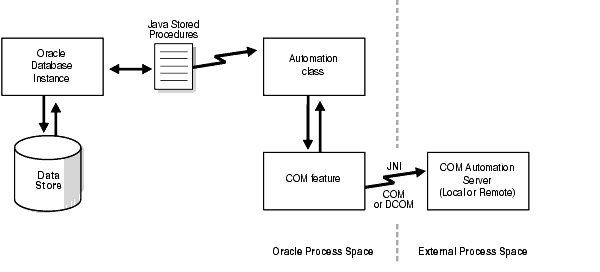

Figure 1-3 illustrates implementation of Oracle COM Automation Feature for Java.

Figure 1-3 COM Automation Feature Architecture for Java

Description of Figure 1-3 follows
Description of "Figure 1-3 COM Automation Feature Architecture for Java"

Reliability

Oracle COM Automation Feature for Java invokes COM components from the database server. However, these COM components are run outside of the Oracle database process. This design prevents unstable COM components from interfering with the database process.
