3 Flexible Oracle Streams Replication Configuration

This chapter describes flexible methods for configuring Oracle Streams replication between two or more databases. This chapter includes step-by-step instructions for configuring each Oracle Streams component to build a single-source or multiple-source replication environment.

One common type of single-source replication environment is a hub-and-spoke replication environment that does not allow changes to the replicated database objects in the spoke databases. The following are common types of multiple-source replication environments:

Oracle Database 2 Day + Data Replication and Integration Guide describes these common types of replication environments in detail.

If possible, consider using a simple method for configuring Oracle Streams replication described in Chapter 2, "Simple Oracle Streams Replication Configuration". You can either use the Oracle Streams tool in Enterprise Manager or a single procedure in the DBMS_STREAMS_ADM package configure all of the Oracle Streams components in a replication environment with two databases. Also, you can use a simple method and still meet custom requirements for your replication environment in one of the following ways:

However, if you require more flexibility in your Oracle Streams replication configuration than what is available with the simple methods, then you can follow the instructions in this chapter to configure the environment.

This chapter contains these topics:

Note:

See Also:

Oracle Streams Concepts and Administration for instructions on determining which database objects are not supported by Oracle Streams

Creating a New Oracle Streams Single-Source Environment

This section lists the general steps to perform when creating a new single-source Oracle Streams environment. A single-source environment is one in which there is only one source database for replicated data. There can be more than one source database in a single-source environment, but no two source databases capture any of the same data. A one-way replication environment with two databases is an example of a single-source environment.

Before starting capture processes, creating synchronous captures, and configuring propagations in a new Oracle Streams environment, ensure that any propagations or apply processes that will receive LCRs are configured to handle these LCRs. That is, the propagations or apply processes should exist, and each one should be associated with rule sets that handle the LCRs appropriately. If these propagations and apply processes are not configured properly to handle these LCRs, then LCRs can be lost.

This example assumes that the replicated database objects are read-only at the destination databases. If the replicated database objects are read/write at the destination databases, then the replication environment will not stay synchronized because Oracle Streams is not configured to replicate the changes made to the replicated objects at the destination databases.

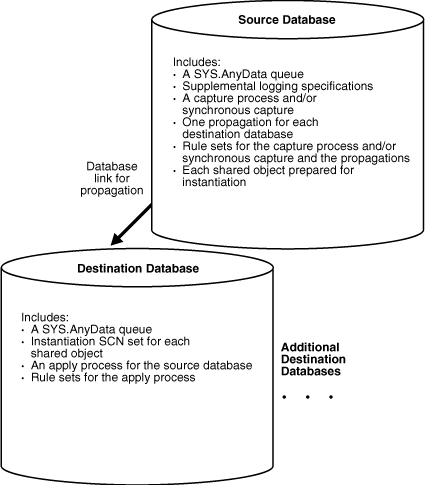

Figure 3-1 shows an example Oracle Streams single-source replication environment.

Figure 3-1 Example Oracle Streams Single-Source Environment

Description of Figure 3-1 follows
Description of "Figure 3-1 Example Oracle Streams Single-Source Environment"

You can create an Oracle Streams replication environment that is more complicated than the one shown in Figure 3-1. For example, a single-source Oracle Streams replication environment can use downstream capture and directed networks.

In general, if you are configuring a new Oracle Streams single-source environment in which changes to replicated database objects are captured at one database and then propagated and applied at remote databases, then you should configure the environment in the following order:

  1. Make the necessary decisions about configuring the replication environment. See "Decisions to Make Before Configuring Oracle Streams Replication".

  2. Complete the necessary tasks to prepare each database in your environment for Oracle Streams. See "Tasks to Complete Before Configuring Oracle Streams Replication".

    Some of these tasks might not be required at certain databases.

  3. Create any necessary ANYDATA queues that do not already exist. When you create a capture process, synchronous capture, or apply process, you associate the process with a specific ANYDATA queue. When you create a propagation, you associate it with a specific source queue and destination queue. See "Creating an ANYDATA Queue" for instructions.

  4. Specify supplemental logging at each source database for any replicated database object. See "Specifying Supplemental Logging" for instructions.

  5. At each database, create the required capture processes, synchronous captures, propagations, and apply processes for your environment. You can create capture processes, propagations, and apply processes in any order. If you create synchronous captures, then create them after you create the relevant propagations and apply processes.

    • Create one or more capture processes at each database that will capture changes with a capture process. Ensure that each capture process uses rule sets that are appropriate for capturing changes. Do not start the capture processes you create. Oracle recommends that you use only one capture process for each source database. See "Configuring a Capture Process" for instructions.

      When you use a procedure in the DBMS_STREAMS_ADM package to add the capture process rules, it automatically runs the PREPARE_TABLE_INSTANTIATION, PREPARE_SCHEMA_INSTANTIATION, or PREPARE_GLOBAL_INSTANTIATION procedure in the DBMS_CAPTURE_ADM package for the specified table, specified schema, or entire database, respectively, if the capture process is a local capture process or a downstream capture process with a database link to the source database.

      You must run the appropriate procedure to prepare for instantiation manually if any of the following conditions is true:

      • You use the DBMS_RULE_ADM package to add or modify rules.

      • You use an existing capture process and do not add capture process rules for any replicated object.

      • You use a downstream capture process with no database link to the source database.

      If you must prepare for instantiation manually, then see "Preparing Database Objects for Instantiation at a Source Database" for instructions.

    • Create all propagations that send the captured LCRs from a source queue to a destination queue. Ensure that each propagation uses rule sets that are appropriate for sending changes. See "Creating Oracle Streams Propagations Between ANYDATA Queues" for instructions.

    • Create one or more apply processes at each database that will apply changes. Ensure that each apply process uses rule sets that are appropriate for applying changes. Do not start the apply processes you create. See Chapter 7, "Configuring Implicit Apply" for instructions.

    • Create one or more synchronous captures at each database that will capture changes with a synchronous capture. Ensure that each synchronous capture use a rule set that is appropriate for capturing changes. Do not create the synchronous capture until you create all of the propagations and apply processes that will process its LCRs. See "Configuring Synchronous Capture" for instructions.

      When you use a procedure in the DBMS_STREAMS_ADM package to add the synchronous capture rules, it automatically runs the PREPARE_SYNC_INSTANTIATION function in the DBMS_CAPTURE_ADM package for the specified table.

  6. Either instantiate, or set the instantiation SCN for, each database object for which changes are applied by an apply process. If the database objects do not exist at a destination database, then instantiate them using export/import, transportable tablespaces, or RMAN. If the database objects already exist at a destination database, then set the instantiation SCNs for them manually.

    • To instantiate database objects using export/import, first export them at the source database. Next, import them at the destination database. See Chapter 8, "Instantiation and Oracle Streams Replication".

      Do not allow any changes to the database objects being exported during export at the source database. Do not allow changes to the database objects being imported during import at the destination database.

      You can specify a more stringent degree of consistency by using an export parameter such as FLASHBACK_SCN or FLASHBACK_TIME.

    • To set the instantiation SCN for a table, schema, or database manually, run the appropriate procedure or procedures in the DBMS_APPLY_ADM package at the destination database:

      • SET_TABLE_INSTANTIATION_SCN

      • SET_SCHEMA_INSTANTIATION_SCN

      • SET_GLOBAL_INSTANTIATION_SCN

      When you run one of these procedures, you must ensure that the replicated objects at the destination database are consistent with the source database as of the instantiation SCN.

      If you run SET_GLOBAL_INSTANTIATION_SCN at a destination database, then set the recursive parameter for this procedure to TRUE so that the instantiation SCN also is set for each schema at the destination database and for the tables owned by these schemas.

      If you run SET_SCHEMA_INSTANTIATION_SCN at a destination database, then set the recursive parameter for this procedure to TRUE so that the instantiation SCN also is set for each table in the schema.

      If you set the recursive parameter to TRUE in the SET_GLOBAL_INSTANTIATION_SCN procedure or the SET_SCHEMA_INSTANTIATION_SCN procedure, then a database link from the destination database to the source database is required. This database link must have the same name as the global name of the source database and must be accessible to the user who executes the procedure. See "Setting Instantiation SCNs Using the DBMS_APPLY_ADM Package" for instructions.

      Alternatively, you can perform a metadata export/import to set the instantiation SCNs for existing database objects. If you choose this option, then ensure that no rows are imported. Also, ensure that the replicated database objects at all of the destination databases are consistent with the source database that performed the export at the time of the export. If you are sharing DML changes only, then table level export/import is sufficient. If you are sharing DDL changes also, then additional considerations apply. See "Setting Instantiation SCNs Using Export/Import" for more information about performing a metadata export/import.

  7. Start each apply process you created in Step 5 using the START_APPLY procedure in the DBMS_APPLY_ADM package.

  8. Start each capture process you created in Step 5 using the START_CAPTURE procedure in the DBMS_CAPTURE_ADM package.

When you are configuring the environment, remember that capture processes and apply processes are stopped when they are created. However, synchronous captures start to capture changes immediately when they are created, and propagations are scheduled to send LCRs immediately when they are created. A capture process or synchronous capture must be created before the relevant objects are instantiated at a remote destination database. You must create the propagations and apply processes before starting the capture process or creating the synchronous capture, and you must instantiate the objects before running the whole stream.

See Also:

Creating a New Oracle Streams Multiple-Source Environment

This section lists the general steps to perform when creating a new multiple-source Oracle Streams environment. A multiple-source environment is one in which there is more than one source database for any of the replicated data. An n-way replication environment is an example of a multiple-source environment.

This example uses the following terms:

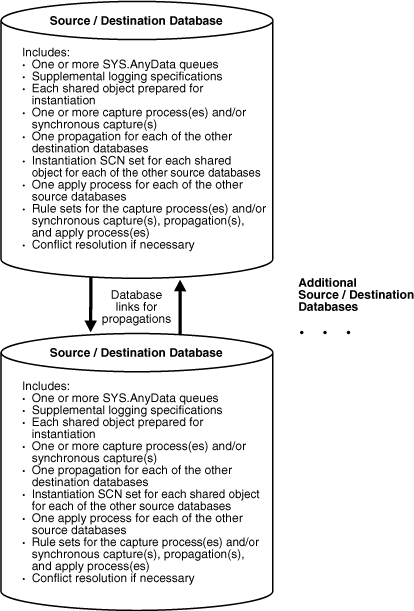

Figure 3-2 shows an example multiple-source Oracle Streams environment.

Figure 3-2 Example Oracle Streams Multiple-Source Environment

Description of Figure 3-2 follows
Description of "Figure 3-2 Example Oracle Streams Multiple-Source Environment"

You can create an Oracle Streams replication environment that is more complicated than the one shown in Figure 3-2. For example, a multiple-source Oracle Streams replication environment can use downstream capture and directed networks.

When there are multiple source databases in an Oracle Streams replication environment, change cycling is possible. Change cycling happens when a change is sent back to the database where it originated. Typically, you should avoid change cycling. Before you configure your replication environment, see Chapter 10, "Oracle Streams Tags", and ensure that you configure the replication environment to avoid change cycling.

Complete the following steps to create a multiple-source environment:

Note:

Ensure that no changes are made to the objects being shared at a database you are adding to the Oracle Streams environment until the instantiation at the database is complete.
  1. Make the necessary decisions about configuring the replication environment. See "Decisions to Make Before Configuring Oracle Streams Replication".

  2. Complete the necessary tasks to prepare each database in your environment for Oracle Streams. See "Tasks to Complete Before Configuring Oracle Streams Replication".

    Some of these tasks might not be required at certain databases.

  3. At each populated database, specify any necessary supplemental logging for the replicated database objects. See "Specifying Supplemental Logging" for instructions.

  4. Create any necessary ANYDATA queues that do not already exist. When you create a capture process, synchronous capture, or apply process, you associate the process with a specific ANYDATA queue. When you create a propagation, you associate it with a specific source queue and destination queue. See "Creating an ANYDATA Queue" for instructions.

  5. At each database, create the required capture processes, synchronous captures, propagations, and apply processes for your environment. You can create capture processes, propagations, and apply processes in any order. If you create synchronous captures, then create them after you create the relevant propagations and apply processes.

    • Create one or more capture processes at each database that will capture changes with a capture process. Ensure that each capture process uses rule sets that are appropriate for capturing changes. Do not start the capture processes you create. Oracle recommends that you use only one capture process for each source database. See "Configuring a Capture Process" for instructions.

      When you use a procedure in the DBMS_STREAMS_ADM package to add the capture process rules, it automatically runs the PREPARE_TABLE_INSTANTIATION, PREPARE_SCHEMA_INSTANTIATION, or PREPARE_GLOBAL_INSTANTIATION procedure in the DBMS_CAPTURE_ADM package for the specified table, specified schema, or entire database, respectively, if the capture process is a local capture process or a downstream capture process with a database link to the source database.

      You must run the appropriate procedure to prepare for instantiation manually if any of the following conditions is true:

      • You use the DBMS_RULE_ADM package to add or modify rules.

      • You use an existing capture process and do not add capture process rules for any replicated database object.

      • You use a downstream capture process with no database link to the source database.

      If you must prepare for instantiation manually, then see "Preparing Database Objects for Instantiation at a Source Database" for instructions.

    • Create all propagations that propagate the captured LCRs from a source queue to a destination queue. Ensure that each propagation uses rule sets that are appropriate for propagating changes. See "Creating Oracle Streams Propagations Between ANYDATA Queues" for instructions.

    • Create one or more apply processes at each database that will apply changes. Ensure that each apply process uses rule sets that are appropriate for applying changes. Do not start the apply processes you create. See Chapter 7, "Configuring Implicit Apply" for instructions.

    • Create one or more synchronous captures at each database that will capture changes with a synchronous capture. Ensure that each synchronous capture uses rule sets that are appropriate for capturing changes. Do not create the synchronous capture until you create all of the propagations and apply processes that will process its LCRs. See "Configuring Synchronous Capture" for instructions.

      When you use a procedure in the DBMS_STREAMS_ADM package to add the synchronous capture rules, it automatically runs the PREPARE_SYNC_INSTANTIATION function in the DBMS_CAPTURE_ADM package for the specified table.

After completing these steps, complete the steps in each of the following sections that apply to your environment. You might need to complete the steps in only one of these sections or in both of these sections:

Configuring Populated Databases When Creating a Multiple-Source Environment

After completing the steps in "Creating a New Oracle Streams Multiple-Source Environment", complete the following steps for the populated databases if your environment has more than one populated database:

  1. For each populated database, set the instantiation SCN at each of the other populated databases in the environment that will be a destination database of the populated source database. These instantiation SCNs must be set, and only the changes made at a particular populated database that are committed after the corresponding SCN for that database will be applied at another populated database.

    For each populated database, you can set these instantiation SCNs in one of the following ways:

    • Perform a metadata only export of the replicated database objects at the populated database and import the metadata at each of the other populated databases. Such an import sets the required instantiation SCNs for the populated database at the other populated databases. Ensure that no rows are imported. Also, ensure that the replicated database objects at each populated database performing a metadata import are consistent with the populated database that performed the metadata export at the time of the export.

      If you are replicating DML changes only, then table level export/import is sufficient. If you are replicating DDL changes also, then additional considerations apply. See "Setting Instantiation SCNs Using Export/Import" for more information about performing a metadata export/import.

    • Set the instantiation SCNs manually at each of the other populated databases. Do this for each of the replicated database objects. Ensure that the replicated database objects at each populated database are consistent with the instantiation SCNs you set at that database. See "Setting Instantiation SCNs Using the DBMS_APPLY_ADM Package" for instructions.

Adding Replicated Objects to Import Databases When Creating a New Environment

After completing the steps in "Creating a New Oracle Streams Multiple-Source Environment", complete the following steps for the import databases:

  1. Pick the populated database that you will use as the export database. Do not perform the instantiations yet.

  2. For each import database, set the instantiation SCNs at all of the other databases in the environment that will be a destination database of the import database. In this case, the import database will be the source database for these destination databases. The databases where you set the instantiation SCNs can include populated databases and other import databases.

    1. If one or more schemas will be created at an import database during instantiation or by a subsequent replicated DDL change, then run the SET_GLOBAL_INSTANTIATION_SCN procedure in the DBMS_APPLY_ADM package for this import database at all of the other databases in the environment.

    2. If a schema exists at an import database, and one or more tables will be created in the schema during instantiation or by a subsequent replicated DDL change, then run the SET_SCHEMA_INSTANTIATION_SCN procedure in the DBMS_APPLY_ADM package for the schema at all of the other databases in the environment for the import database. Do this for each such schema.

    See "Setting Instantiation SCNs Using the DBMS_APPLY_ADM Package" for instructions.

    Because you are running these procedures before any tables are instantiated at the import databases, and because the local capture processes or synchronous captures are configured already for these import databases, you will not need to run the SET_TABLE_INSTANTIATION_SCN procedure for each table created during the instantiation. Instantiation SCNs will be set automatically for these tables at all of the other databases in the environment that will be destination databases of the import database.

  3. At the export database you chose in Step 1, perform an export of the replicated database objects. Next, perform an import of the replicated database objects at each import database. See Chapter 8, "Instantiation and Oracle Streams Replication" and Oracle Database Utilities for information about using export/import.

    Do not allow any changes to the database objects being exported while exporting these database objects at the source database. Do not allow changes to the database objects being imported while importing these database objects at the destination database.

    You can specify a more stringent degree of consistency by using an export parameter such as FLASHBACK_SCN or FLASHBACK_TIME.

  4. For each populated database, except for the export database, set the instantiation SCNs at each import database that will be a destination database of the populated source database. These instantiation SCNs must be set, and only the changes made at a populated database that are committed after the corresponding SCN for that database will be applied at an import database.

    You can set these instantiation SCNs in one of the following ways:

    • Perform a metadata only export at each populated database and import the metadata at each import database. Each import sets the required instantiation SCNs for the populated database at the import database. In this case, ensure that the replicated database objects at the import database are consistent with the populated database at the time of the export.

      If you are sharing DML changes only, then table level export/import is sufficient. If you are sharing DDL changes also, then additional considerations apply. See "Setting Instantiation SCNs Using Export/Import" for more information about performing a metadata export/import.

    • For each populated database, set the instantiation SCN manually for each replicated database object at each import database. Ensure that the replicated database objects at each import database are consistent with the populated database as of the corresponding instantiation SCN. See "Setting Instantiation SCNs Using the DBMS_APPLY_ADM Package" for instructions.

Complete the Multiple-Source Environment Configuration

Before completing the steps in this section, you should have completed the following tasks:

When all of the previous configuration steps are finished, complete the following steps:

  1. At each database, configure conflict resolution if conflicts are possible. See Chapter 9, "Oracle Streams Conflict Resolution" for instructions.

  2. Start each apply process in the environment using the START_APPLY procedure in the DBMS_APPLY_ADM package.

  3. Start each capture process the environment using the START_CAPTURE procedure in the DBMS_CAPTURE_ADM package.

See Also:

Oracle Streams Extended Examples for a detailed example that creates a multiple-source environment
