11 Oracle ASM Configuration Assistant

Oracle ASM Configuration Assistant (ASMCA) supports installing and configuring Oracle ASM instances, disk groups, volumes, and Oracle Automatic Storage Management Cluster File System (Oracle ACFS). In addition, you can use the ASMCA command-line interface as a non-GUI utility.

This chapter discusses the following topics:

Oracle ASM Configuration Assistant GUI Tool

This section contains the following topics:

Starting Oracle ASM Configuration Assistant

To start ASMCA, enter asmca at a command prompt inside the Oracle Grid Infrastructure home. For example:

$ asmca

The GUI tool displays and attempts to connect to the Oracle ASM instance identified with the Oracle system identifier (SID) set to +ASM.

  • If ASMCA detects an Oracle ASM instance that is not running, then ASMCA prompts whether you want to start the instance.

  • If ASMCA detects an Oracle ASM instance from a previous release, then ASMCA prompts whether you want to upgrade the instance. Oracle recommends that you respond No this prompt.

    An Oracle ASM instance should be upgraded with Oracle Universal Installer (OUI). OUI automatically defaults to upgrade mode when it detects an Oracle ASM instance at a previous release level. See "Upgrading an Oracle ASM Instance with Oracle Universal Installer".

    To continue the upgrade process with ASMCA, see "Upgrading an Oracle ASM Instance with Oracle ASM Configuration Assistant". If you need help with upgrading an Oracle ASM instance, contact Oracle Support Services.

To start the command-line ASMCA, see "Oracle ASM Configuration Assistant Command-Line Interface".

Managing Oracle ASM Instances with Oracle ASM Configuration Assistant

Oracle ASM Configuration Assistant enables you to create an Oracle ASM instance if an Oracle ASM instance is not found on the host, as shown in Figure 11-1.

On the Create ASM page, you enter the SYS password for the administrator of the Oracle ASM instance and the password for the ASMSNMP user that can monitor this Oracle ASM instance. Note that ASMSNMP is a less privileged user that is primarily used by Oracle Enterprise Manager to monitor Oracle ASM instances.

See Also:

You can select the listener with which you want to register this Oracle ASM instance. Click ASM Parameters to update the initialization parameters for the Oracle ASM instance.

Figure 11-1 Oracle ASM Configuration Assistant Create ASM Page

Description of Figure 11-1 follows
Description of "Figure 11-1 Oracle ASM Configuration Assistant Create ASM Page"

When you can click ASM Parameters in the Create ASM page, you can update initialization parameters for an Oracle ASM instance on the Oracle ASM Configuration Assistant page, as shown in Figure 11-2.

For information about Oracle ASM instance initialization parameters, see "Configuring Initialization Parameters for Oracle ASM Instances".

Figure 11-2 Oracle ASM Configuration Assistant Create ASM Page

Description of Figure 11-2 follows
Description of "Figure 11-2 Oracle ASM Configuration Assistant Create ASM Page"

Upgrading an Oracle ASM Instance with Oracle ASM Configuration Assistant

Note:

  • For information about performing an Oracle ASM Rolling Upgrade from 11.1.0.6 to 11.2.0.1, refer to Oracle Database Readme.

  • For information about upgrading Oracle ASM from version 11.2.0.1 to 11.2.0.2, see "Out of Place Upgrades".

Oracle ASM Configuration Assistant also enables you to upgrade an existing Oracle ASM instance to the current software level. However, the recommended practice is to upgrade an Oracle ASM instance with Oracle Universal Installer (OUI). OUI automatically defaults to upgrade mode when it detects an Oracle ASM instance at a previous release level. See "Upgrading an Oracle ASM Instance with Oracle Universal Installer".

The following procedure describes how to upgrade an Oracle ASM instance from 11g Release 1 (11.1) to 11g Release 2 (11.2). In this scenario:

  • The Oracle ASM and Oracle Database instances 11g Release 1 (11.1) exist in separate homes.

  • The Oracle Grid Infrastructure software 11g Release 2 (11.2) is installed in a separate home.

  • The Oracle ASM instance 11g Release 2 (11.2) is set up as an Oracle Restart (single-instance) configuration.

  1. Shut down the Oracle Enterprise Manager agent, Oracle Database instance, and the listener in the older database home.

    • Run emctl stop dbconsole to stop the Oracle Enterprise Manager agent.

    • Connect to the database instance with SQL*Plus as a privileged user and run the SHUTDOWN command.

    • Run lsnrctl and enter the STOP command to stop the listener.

    See Also:

  2. Run Oracle Universal Installer (OUI) and select the Install Oracle Grid Infrastructure Software Only option.

  3. Complete the screens in the OUI installer and run the scripts as prompted by the OUI installer.

    For example, on Linux you must run the root.sh script as the root user.

    # GRID_HOME/grid/perl/bin/root.sh


    When you run the root.sh script on Linux, note the instructions in the output of that script. You must run different scripts as root to configure either a standalone (single-instance) or cluster configuration after OUI has completed.

    See Also:

    Oracle Grid Infrastructure Installation Guide for information about installing Oracle Grid Infrastructure
  4. After the OUI has completed, perform the procedures that are described in the output of the root.sh script that you ran during the installation.

    For example, for a standalone (single-instance) configuration on Linux, run the following script as root to upgrade the necessary services, including Oracle Cluster Synchronization Services (CSS).

    # GRID_HOME/grid/perl/bin/perl -I/GRID_HOME/perl/lib -I/GRID_HOME/crs/install
     GRID_HOME/crs/install/roothas.pl


    For an upgrade, you must update the node list by running OUI as the installation user in the Oracle Grid Infrastructure home.

    $ GRID_HOME/oui/bin/runInstaller -updateNodeList -silent -local CRS=false
      ORACLE_HOME=ASM_11G_R1_HOME

    $ GRID_HOME/oui/bin/runInstaller -updateNodeList -silent -local CRS=true
      ORACLE_HOME=GRID_HOME

  5. Ensure that the current Oracle Cluster Synchronization Services (CSS) are running in the home where the Oracle ASM instance is located. For example:

    On Linux run the crsctl check css command. If the CSS daemon is not running, run localconfig add as the root user.

    On Windows, you can use the crsctl and localconfig commands or the Windows Services GUI tool. To use Windows Services GUI tool, double-click the Services icon in the Windows Control Panel and locate the OracleCSService service. The status of OracleCSService should be Started and its startup type should be Automatic.

  6. Run the Network Configuration Assistant (NETCA) to configure the listener.

    Start Network Configuration Assistant (NETCA) in the Oracle Grid Infrastructure home with netca. Follow the prompts in the wizard to add and configure the listener in the Oracle Grid Infrastructure home.

  7. Run ASMCA from the Oracle Grid Infrastructure home to complete the upgrade.

    For information about starting ASMCA, see "Starting Oracle ASM Configuration Assistant". If the Oracle ASM instance has been shut down during the Oracle Grid Infrastructure configuration, start that instance when ASMCA prompts you to start that instance.

    When ASMCA detects an earlier version of Oracle ASM, the assistant automatically determines the location of that instance and the location of the Oracle Grid Infrastructure home, as shown in Figure 11-3.

    Enter a password for the ASMSNMP user. Note that ASMSNMP is a less privileged user that is primarily used by Oracle Enterprise Manager to monitor Oracle ASM instances.

    When you have completed the page, select Upgrade ASM to complete the upgrade. After the process has completed, you can exit from ASMCA.

    When upgrading an Oracle ASM instance to the current software level, ASMCA moves the Oracle ASM instance pre-11g Release 2 (11.2) to the Oracle Grid Infrastructure home and updates the appropriate environmental variables.

  8. Ensure that the Oracle Database instance and Oracle Enterprise Manager agent are running in the Oracle Database 11g Release 1 (11.1) home.

    Start the following services if necessary.

    • Connect to the Oracle Database instance with SQL*Plus as a privileged user and run the STARTUP command.

    • Restart the Oracle Enterprise Manager agent with emctl start dbconsole.

Note:

The procedure described in this section upgrades the Oracle ASM instance only. Oracle Database, and Oracle Enterprise Manager, will not have the latest features. To upgrade Oracle Database, see Oracle Database Upgrade Guide.

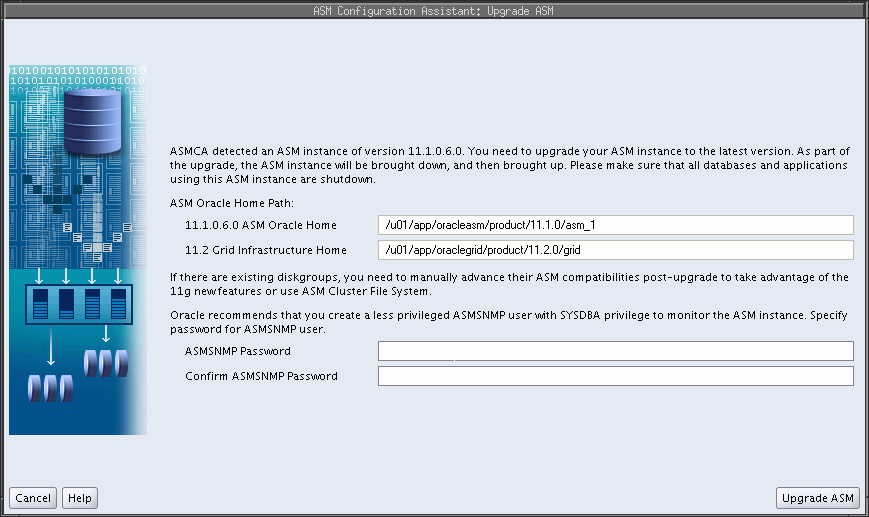

Figure 11-3 Oracle ASM Configuration Assistant Upgrade ASM Page

Description of Figure 11-3 follows
Description of "Figure 11-3 Oracle ASM Configuration Assistant Upgrade ASM Page"

After upgrading an Oracle ASM instance, you can copy or move an Oracle ASM instance. After copying or moving the SPFILE, you must restart the instance with the SPFILE in the new location to use that SPFILE. For information, see "Backing Up, Copying, and Moving an Oracle ASM Initialization Parameter File".

See Also:

Managing Disk Groups with Oracle ASM Configuration Assistant

Oracle ASM Configuration Assistant enables you to configure or create Oracle ASM disk groups with the Configure ASM Disk Groups tab, as shown in Figure 11-4. The disk group tab displays selected details about the disk group, such as name, size, free space, usable space, redundancy level, and state of the disk group.

See Also:

Oracle Database Reference for descriptions of disk group information displayed in the V$ASM_DISKGROUP view

You can right click a selected disk group in the screen to display the configuration options menu. The menu options enable you to:

  • Add disks to the disk group

  • Edit the disk group attributes

  • Manage templates for the disk group

  • Create an Oracle ACFS file system on the disk group for a database home

  • Dismount and mount the disk group

  • Drop the disk group

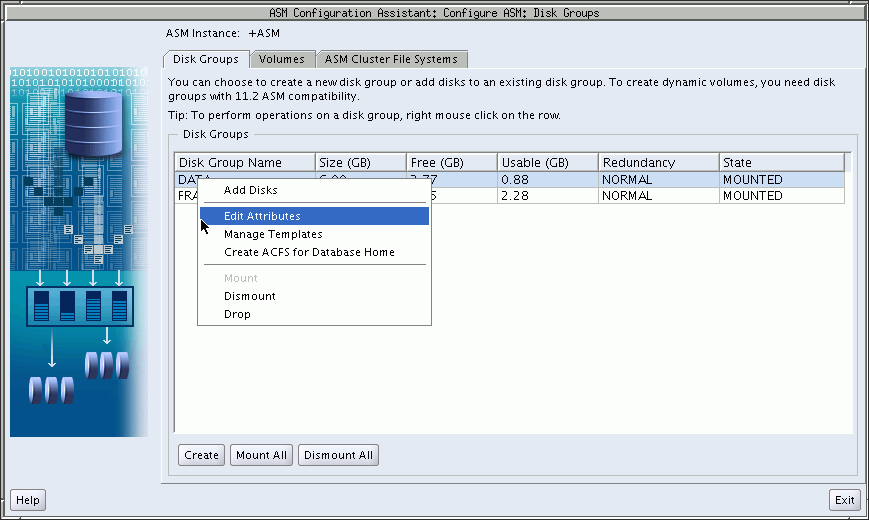

Figure 11-4 Oracle ASM Configuration Assistant Configure Disk Groups Page

Description of Figure 11-4 follows
Description of "Figure 11-4 Oracle ASM Configuration Assistant Configure Disk Groups Page"

There are additional options for creating a disk group, mounting all disk groups, and dismounting all disk groups.

Oracle ASM Configuration Assistant enables you to create an Oracle ASM disk group by clicking Create on the Oracle ASM Configuration Assistant disk group page. The page for creating a disk group is shown in Figure 11-5.

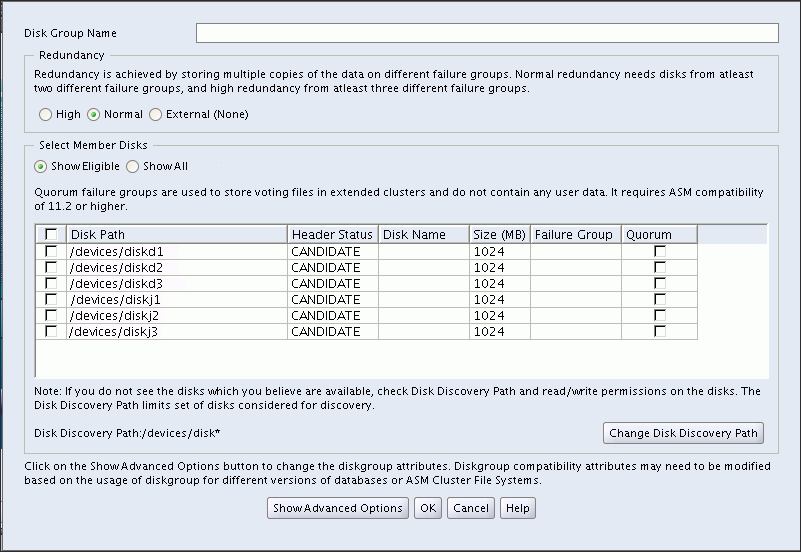

Figure 11-5 Oracle ASM Configuration Assistant Create Disk Groups Page

Description of Figure 11-5 follows
Description of "Figure 11-5 Oracle ASM Configuration Assistant Create Disk Groups Page"

On this page, you can enter a name for the disk group, select the redundancy level, change the disk discovery path to locate disks in a different directory, identify the disks that you want to be in the disk group, enter a name for a failure group, and specify if the failure group is a quorum type. A quorum failure group is a special type of failure group and disks in these failure groups do not contain user data and a quorum failure group is not considered when determining redundancy requirements with respect to user storage. However, a quorum failure group counts when mounting a disk group. For information about quorum failure groups, see "Oracle Cluster Registry and Voting Files in Oracle ASM Disk Groups".

The default disk group compatibility settings are 11.2 for Oracle ASM compatibility, 10.1 for database compatibility, and no value for Oracle ADVM compatibility. For information about disk group compatibility attributes, see "Disk Group Compatibility". For information about disk discovery, see "Oracle ASM Disk Discovery" and "ASM_DISKSTRING".

You can choose to show advanced options when creating a disk group, as shown in Figure 11-6. The advanced options page enables you to set additional options, such as disk group compatibility settings and allocation unit (AU) size. When you are finished with the create disk group specifications, click OK.

Note:

The disk group compatibility settings can only be advanced. You cannot revert to a lower compatibility setting after you advance the disk group compatibility settings. See "Overview of Disk Group Compatibility"

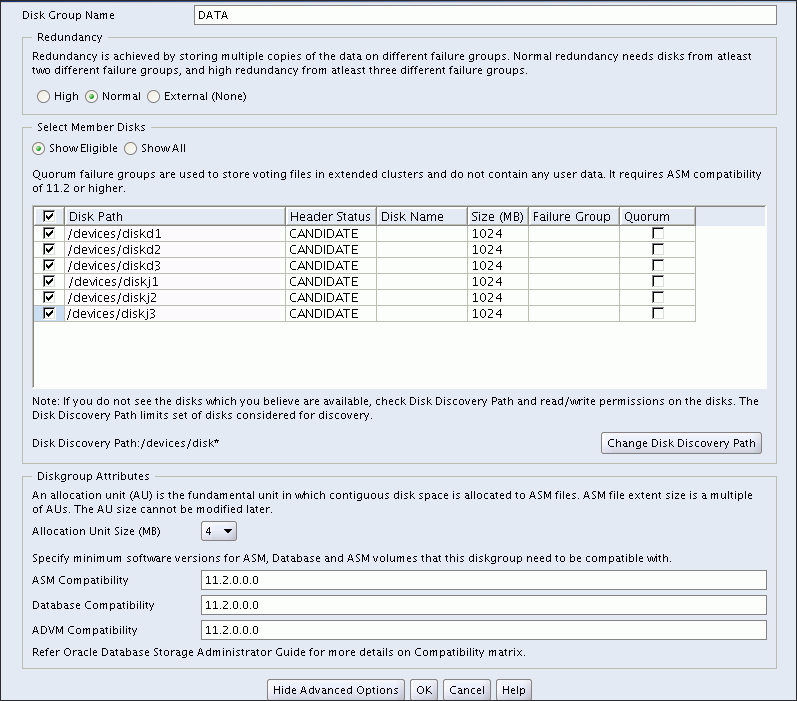

Figure 11-6 Oracle ASM Configuration Assistant Create Disk Groups Page - Advanced Options

Description of Figure 11-6 follows
Description of "Figure 11-6 Oracle ASM Configuration Assistant Create Disk Groups Page - Advanced Options"

For more information about managing disk groups, see Chapter 4, "Administering Oracle ASM Disk Groups".

Managing Oracle ADVM Volumes with Oracle ASM Configuration Assistant

Oracle ASM Configuration Assistant enables you to create or configure an Oracle ADVM volume, as shown in Figure 11-7.

Right click a selected volume in the Oracle ASM Configuration Assistant screen to display the configuration options menu. The menu options include:

  • Enable a disabled volume

  • Disable an enabled volume

  • Resize a volume that has not been mounted on an Oracle ACFS file system

  • Delete a volume

There are options for creating a volume, enabling all volumes, and disabling all volumes.

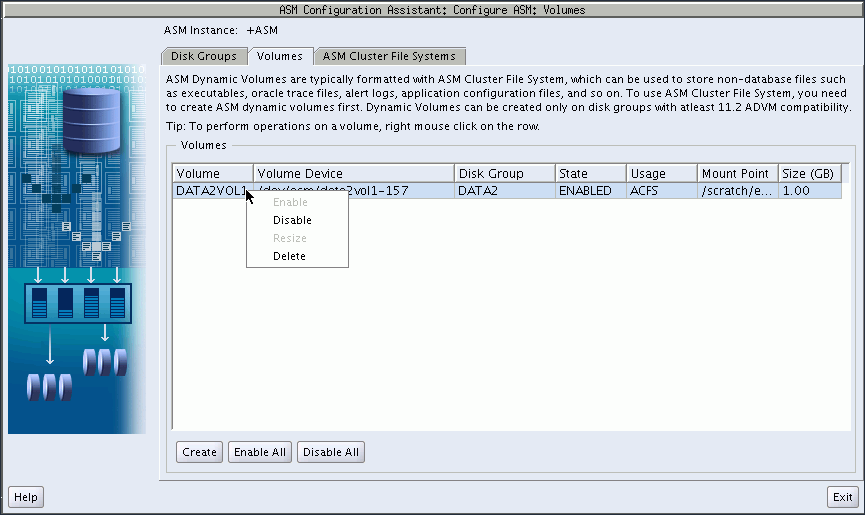

Figure 11-7 Oracle ASM Configuration Assistant Configure ASM Volumes Page

Description of Figure 11-7 follows
Description of "Figure 11-7 Oracle ASM Configuration Assistant Configure ASM Volumes Page"

Oracle ASM Configuration Assistant enables you to create Oracle ADVM volumes, as shown in Figure 11-7.

Click Create to create a volume. You must provide a unique volume name for the existing Oracle ASM disk group that you select from the list. The volume name can be a maximum of 11 alphanumeric characters; dashes are not allowed. The first character must be alphabetic.

Specify the size for the volume. You can optionally choose to display advanced options for creating a volume which enables you to specify the redundancy level and striping characteristics.

The compatibility parameters COMPATIBLE.ASM and COMPATIBLE.ADVM must be set to 11.2 or higher for the disk group to contain an Oracle ADVM volume. To use Oracle ACFS encryption, replication, security, or tagging, the disk group on which the volume is created for the file system must have compatibility attributes for ASM and ADVM set to 11.2.0.2 . See "Disk Group Compatibility Attributes".

Before creating an Oracle ADVM volume on AIX, ensure that the necessary user authorizations have been created. For information, refer to "Oracle ACFS Command-line Tools for the AIX Environment".

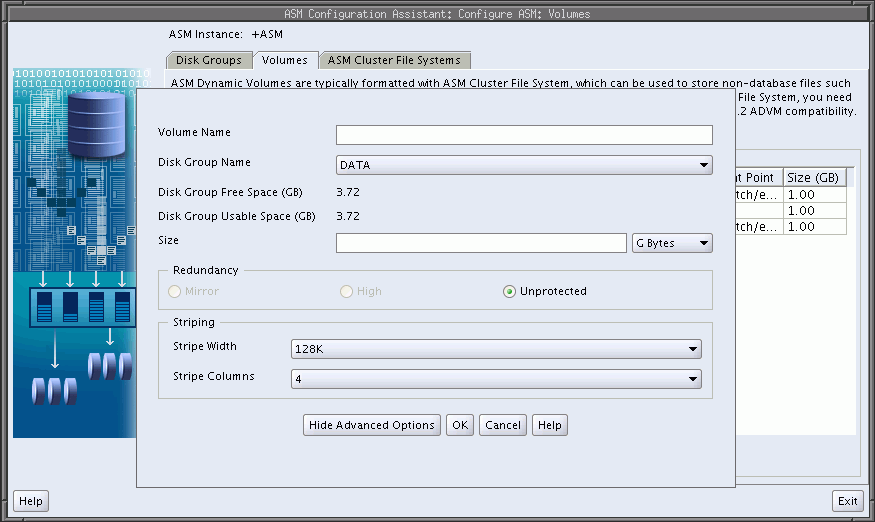

Figure 11-8 Oracle ASM Configuration Assistant Create an ASM Volume Page

Description of Figure 11-8 follows
Description of "Figure 11-8 Oracle ASM Configuration Assistant Create an ASM Volume Page"

For information about Oracle ACFS, see Chapter 5, "Introduction to Oracle ACFS".

Managing Oracle ACFS File Systems with Oracle ASM Configuration Assistant

Oracle ASM Configuration Assistant enables you to create or configure an Oracle ACFS file system, as shown in Figure 11-9.

To configure an existing file system, right click a selected file system in the Oracle ASM Configuration Assistant screen to display the configuration options menu.

The menu options include:

  • Show mount command for the file system

  • Show dismount command for the file system

  • Register mount point for the file system

  • Deregister mount point for the file system

  • Resize the file system

  • Delete the file system

Some commands require root privileges, such as mounting a file system. Oracle ASM Configuration Assistant generates the command for you to run manually as root or as a privileged user.

There are buttons for Create, Show Mount All, and Show Dismount All commands.

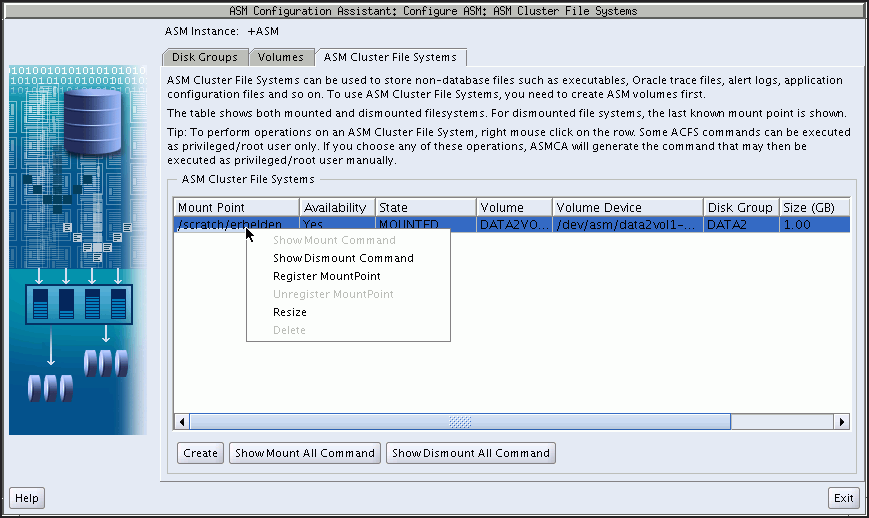

Figure 11-9 Oracle ASM Configuration Assistant Configure Oracle ACFS Page

Description of Figure 11-9 follows
Description of "Figure 11-9 Oracle ASM Configuration Assistant Configure Oracle ACFS Page"

Oracle ASM Configuration Assistant enables you to create an Oracle ACFS file system, as shown in Figure 11-9.

Select Create, then select an existing Oracle ADVM volume from the list and determine the mount point field, show in Figure 11-10. The mount point must be an existing directory. The file system must be mounted to make it available. The mount command must be manually run as root or the Windows Administrator at an operating system prompt. For information about mounting an Oracle ACFS file system, see "mount" for Linux or "acfsmountvol" for Windows.

You can also choose to create an Oracle ACFS file system for an Oracle Database. For more information about creating a file system for a database home, see "Creating an Oracle ACFS File System for a Database Home".

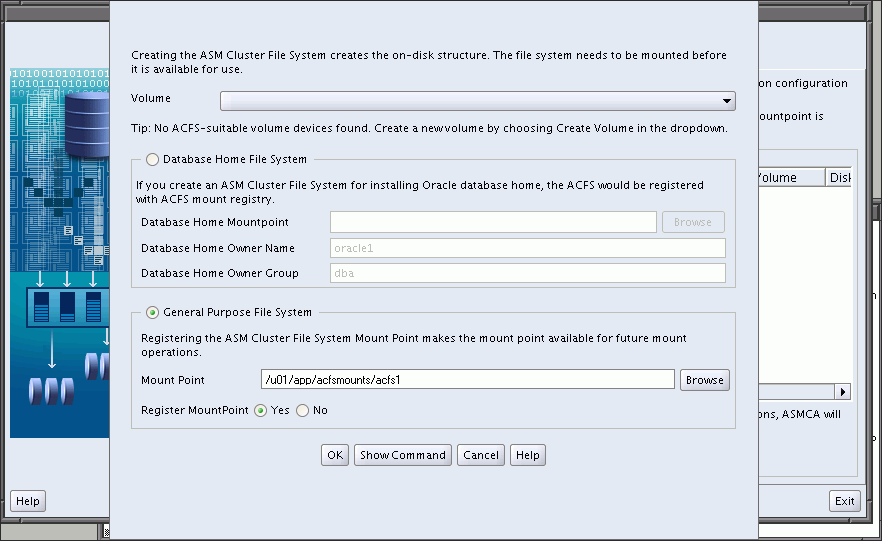

Figure 11-10 Oracle ASM Configuration Assistant Create Oracle ACFS Page

Description of Figure 11-10 follows
Description of "Figure 11-10 Oracle ASM Configuration Assistant Create Oracle ACFS Page"

For information about Oracle ACFS, see Chapter 5, "Introduction to Oracle ACFS". For a summary of the basic steps for creating an Oracle ACFS file system, see "Basic Steps to Manage an Oracle ACFS".

Managing Security and Encryption for Oracle ACFS File Systems with Oracle ASM Configuration Assistant

Oracle ASM Configuration Assistant enables you to configure security and encryption for an Oracle ACFS file system, as shown in Figure 11-11.

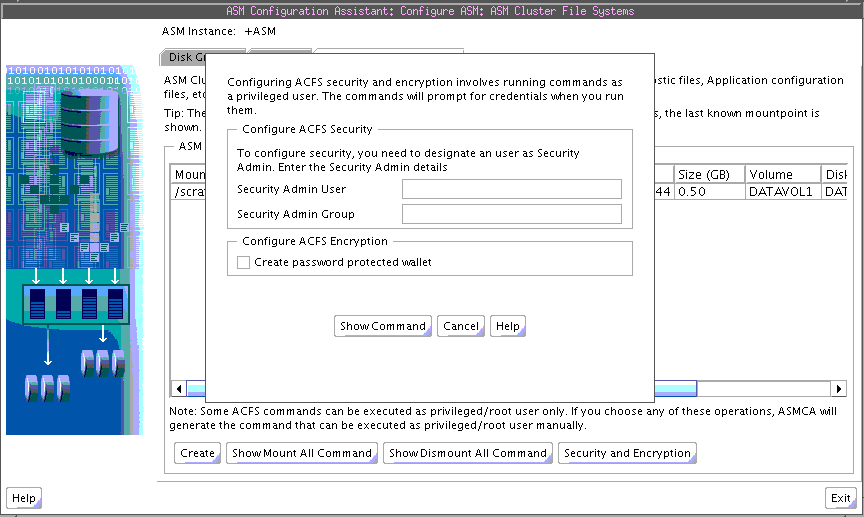

Figure 11-11 Oracle ASM Configuration Assistant Configure Oracle ACFS Security and Encryption Page

Description of Figure 11-11 follows
Description of "Figure 11-11 Oracle ASM Configuration Assistant Configure Oracle ACFS Security and Encryption Page"

You must initialize the security system as the first step in configuring security for an Oracle ACFS file system. You must also initialize the encryption system as the first step in encrypting an Oracle ACFS file system. You do not have to use both Oracle ACFS security and encryption on the same file system. If you decide to use both security and encryption, then encryption must be initialized and set before enabling encryption on a security realm.

After you complete the entry fields in the dialog shown in Figure 11-11, click Show Command to display the commands you must run as a root or Administrator user at an operating system prompt. For example:

# /sbin/acfsutil sec init -u grid -g asmadmin
# /sbin/acfsutil encr init

For information about the acfsutil sec init and acfsutil encr init commands, refer to "acfsutil sec init" and "acfsutil encr init".

After security has been initialized, you can use the menu options to manage security and encryption for an Oracle ACFS file system, as shown in Figure 11-12. These menu options include:

  • Enable Encryption

  • Set Encryption

  • Disable Encryption

  • Prepare and Enable Security

  • Disable Security

  • Enable Security

Figure 11-12 Oracle ASM Configuration Assistant Oracle ACFS Security Menu Options

Description of Figure 11-12 follows
Description of "Figure 11-12 Oracle ASM Configuration Assistant Oracle ACFS Security Menu Options"

For information about Oracle ACFS security, see "Oracle ACFS Security". For a summary of the basic steps for setting up security on an Oracle ACFS file system, see "Securing Oracle ACFS File Systems".

For information about Oracle ACFS encryption, see "Oracle ACFS Encryption". For a summary of the basic steps for setting up encryption on an Oracle ACFS file system, see "Encrypting Oracle ACFS File Systems".

For information about the acfsutil encr and acfsutil sec commands, see "Oracle ACFS Command-Line Utilities for Multiple Environments".

Creating an Oracle ACFS File System for a Database Home

To create an Oracle ACFS file system for a database home, you can select the Create ACFS for Database Home from the disk group configuration options menu, as shown in Figure 11-4. The Create ACFS Hosted Database Home dialog displays as shown in Figure 11-13.

In this dialog, you must enter:

  • Database Home Volume Name

    This is the name of the Oracle ADVM volume you want to create. For information about Oracle ADVM volumes, see "About Oracle ACFS".

  • Database Home Mount Point

    This the mount point for the file system where you want to install the database home. The file system that contains the database home should not be located under the Oracle Grid Infrastructure base (ORACLE_BASE for grid) directory. For information about mount points and database homes, see "About Oracle ACFS and Oracle Database Homes".

  • Database Home Size in gigabytes (GB)

    The default is 6 GB and the minimum size allowed.

  • Database Home Owner Name

    This is the operating system name of the user that installs the database and owns the software in the database home.

  • Database Home Owner Group

    This is the operating system group of the owner of the database home.

The mount point must be an existing directory. The file system must be mounted to make it available. The mount command must be manually run as root or the Windows Administrator at an operating system prompt. For information about mounting an Oracle ACFS file system, see "mount" for Linux or "acfsmountvol" for Windows.

For information on the mount registry, see "About the Oracle ACFS Mount Registry".

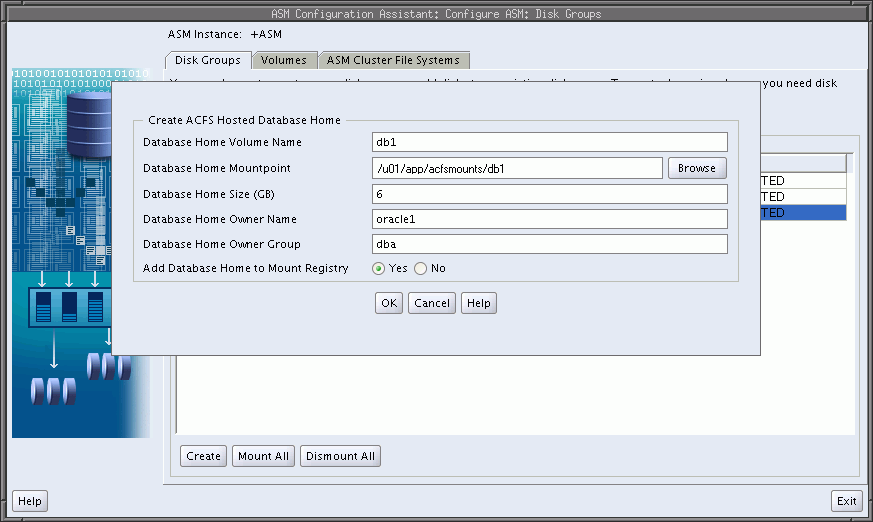

Figure 11-13 Oracle ASM Configuration Assistant Create Oracle ACFS Hosted Database Home Page

Description of Figure 11-13 follows
Description of "Figure 11-13 Oracle ASM Configuration Assistant Create Oracle ACFS Hosted Database Home Page"

Oracle ASM Configuration Assistant Command-Line Interface

The ASMCA command-line interface provides non-GUI support for configuring Oracle ASM disk groups, volumes, and Oracle ACFS.

Running ASMCA Command-Line

The syntax for running the ASMCA command-line tool is:


asmca -silent command_name [options]

Table 11-1 contains the options available with the asmca command-line tool.

Table 11-1 Options for the ASMCA command-line tool

Option Description

-silent

Specifies to run asmca in command-line mode.

command_name

Specifies the command to run. The command can be any of the following:

-configureASM
-upgradeASM
-configureParameter
-deleteASM
-createDiskGroup
-addDisk
-createVolume
-createACFS

See "ASMCA Commands".

options

Specifies the options to run for a command. The options vary by command. See the individual commands described in "ASMCA Commands" for the available options.

The following list describes the options that are common for multiple commands.

  • -help

    Displays help for running ASMCA in silent mode.

  • -asmsnmpPassword asmsnmp_password

    The Oracle ASM monitor user (ASMSNMP) password. This is optional and only required when creating and migrating an Oracle ASM instance.

  • -sysAsmPassword sysasm_password

    The SYSASM password for Oracle ASM instance. This option is required.


The following is an example of the -help option.

$ asmca -help
asmca [-silent] [-sysAsmPassword <SYS user password>] [-asmsnmpPassword <ASMSNMP password>] {<command> <options>}
Please refer to the manual for details.
You can enter one of the following commands:
...

ASMCA Commands

This section describes the commands that can be run with ASMCA command-line.

Configure an Oracle ASM Instance

-configureASM configures or creates an Oracle ASM instance.

Syntax


asmca -silent
     -configureASM
       [-sysAsmPassword sysasm_password ]
       [ -asmsnmpPassword asm_monitor_password ]
       [ { -param paramname=paramvalue , ... } ]
       [ { -diskString discovery_path
           -diskGroupName diskgroup
           -diskList disk_list
           [ -redundancy { HIGH | NORMAL | EXTERNAL } ] } ]

Table 11-2 contains the options available with the -configureASM command.

Table 11-2 Options for the -configureASM command

Option Description

-param paramname=paramvalue , ...

Specifies a list of initialization parameters with values for the Oracle ASM instance.

-diskString discovery_path

Specifies the Oracle ASM discovery string for locating disks.

-diskGroupName diskgroup

Specifies the name of the Oracle ASM disk group to create.

-diskList disk_list

Specifies a comma-delimited list of disk names to be added to the disk group.

-redundancy { HIGH | NORMAL | EXTERNAL }

Specifies the redundancy setting for the disk group.


For additional options that are common to multiple commands, see Table 11-1.

Examples

To configure an Oracle ASM instance:

Example 11-1 Using asmca -silent -configureASM

asmca -silent
        -configureASM
          -diskString= '/devices/disk*'
          –sysAsmPassword my_sysasm_password
          -asmsnmpPassword my_asmsnmp_passwd

Upgrade an Oracle ASM Instance

-upgradeASM upgrades an Oracle ASM instance from a previous release to the current software release.

Upgrading an Oracle ASM instance with ASMCA only updates the Oracle ASM instance software and does not configure Oracle Clusterware or the listener.

An Oracle ASM instance should be upgraded with Oracle Universal Installer (OUI). OUI automatically defaults to upgrade mode when it detects an Oracle ASM instance at a previous release level. See "Upgrading an Oracle ASM Instance with Oracle Universal Installer".

Syntax


asmca -silent
     -upgradeASM
       -local -lastnode
       [ -asmsnmpPassword asmsnmp_password ]

The options available with the -upgradeASMInstance command are common to multiple commands. For a description of those options, see Table 11-1.

Examples

To upgrade an Oracle ASM instance:

Example 11-2 Using asmca -silent -upgradeASM

asmca -silent
        -upgradeASM
          -asmsnmpPassword my_asmsnmp_passwd

Configure Parameters for an Oracle ASM Instance

-configureParameter modifies the parameters of an Oracle ASM instance.

Syntax


asmca -silent
       -configureParameter
         [ { -param paramname=paramvalue , ... } ]
         [-sysAsmPassword sysasm_password ]

Table 11-3 contains the options available with the -configureParameter command.

Table 11-3 Options for the -configureParameter command

Option Description

-param paramname=paramvalue , ...

Specifies a list of initialization parameters with values for the Oracle ASM instance.


For additional options that are common to multiple commands, see Table 11-1.

Examples

To configure parameters for an Oracle ASM instance:

Example 11-3 Using asmca -silent -configureParameter

asmca -silent
        -configureParameter
           (–param
            asm_power_limit=3,
            asm_disk_string='/devices/disk*')
        –sysAsmPassword my_sysasm_password

Delete an Oracle ASM Instance

-deleteASM deletes an Oracle ASM instance. The operation stops and an error is raised if there is a database using the Oracle ASM instance.

Syntax


asmca -silent
     -deleteASM
       [-sysAsmPassword sysasm_password ]
       [ -force ]
       [ -dropDiskGroups ]

Table 11-4 contains the options available with the -deleteASM command.

Table 11-4 Options for the -deleteASM command

Option Description

-force

Forces the deletion of an Oracle ASM instance.

-dropDiskGroups

Drops the disk groups on this instance.


For additional options that are common to multiple commands, see Table 11-1.

Examples

To delete an Oracle ASM instance:

Example 11-4 Using asmca -silent -deleteASM

asmca -silent
        -deleteASM
          –sysAsmPassword my_sysasm_password
          -force

Create a Disk Group

-createDiskGroup creates disk groups in an Oracle ASM instance.

Syntax


asmca -silent
     -createDiskGroup
       [ -diskString discovery_path ]
       { -diskGroupName diskgroup
         { -disk disk_path [-diskName disk] |
          -diskList disk_list
             [-diskSize disk_size_MB]
             [-failuregroup failure_group]
             [-force|-noforce]
             [-quorum|-noquorum] }
       [ -redundancy { HIGH | NORMAL | EXTERNAL } ] } ]
       [-au_size value]
       [-compatible.asm value ]
       [-compatible.rdbms value ]
       [-compatible.advm value ] }
       [-sysAsmPassword sysasm_password ]

Table 11-5 contains the options available with the -createDiskGroup command.

Table 11-5 Options for the -createDiskGroup command

Option Description

-diskString discovery_path

Specifies the Oracle ASM discovery string for locating disks.

-diskGroupName diskgroup

Specifies the name of the Oracle ASM disk group to create.

-disk disk_path

Specifies the full path of the disk device.

-diskName disk

Specifies a user-supplied disk name.

-diskList disk_list

Specifies a comma-delimited list of disk names to be added to the disk group.

-diskSize disk_size_MB

Specifies the size of the disk to use for Oracle ASM storage.

-failuregroup failure_group

Specifies the failure group name.

-force | -noforce

Specifies where to force the use of the disk.

-quorum | -noquorum

Specifies a quorum or standard failure group.

-redundancy { HIGH | NORMAL | EXTERNAL }

Specifies the redundancy setting for the Oracle ASM disk group.

-au_size

Specifies the allocation unit size (1,2,4,8,16,32,64)

-compatible.asm

Specifies the attribute setting.

-compatible.rdbms

Specifies the attribute setting.

-compatible.advm

Specifies the attribute setting.


For additional options that are common to multiple commands, see Table 11-1.

The default disk group compatibility settings are 11.2 for Oracle ASM compatibility, 10.1 for database compatibility, and no value for Oracle ADVM compatibility. For information about disk group compatibility attributes, see "Disk Group Compatibility".

Examples

To create disk groups in an Oracle ASM instance:

Example 11-5 Using asmca -silent -createDiskGroup

$ asmca -silent -createDiskGroup
       -diskGroupName mynewdg
           -disk '/devices/diske*'
           -disk '/devices/diskk*'
       -redundancy NORMAL
       -au_size 64
       -compatible.asm '11.2.0.0.0'
       -compatible.rdbms '11.2.0.0.0'
       -compatible.advm '11.2.0.0.0'

DiskGroup mynewdg created successfully.

Add a Disk to a Disk Group

-addDisk add disks to an existing disk group in an Oracle ASM instance.

Syntax


asmca -silent
       -addDisk
         [ -diskString discovery_path ]
           { -diskGroupName diskgroup
            { -disk disk_path [-diskName disk] |
             -diskList disk_list
               [-diskSize disk_size_MB]
               [-failuregroup failure_group]
               [-force|-noforce]
               [-quorum|-noquorum] }
         [-sysAsmPassword sysasm_password ]

Table 11-6 contains the options available with the -addDisk command.

Table 11-6 Options for the -addDisk command

Option Description

-diskString discovery_path

Specifies the Oracle ASM discovery string for locating disks.

-diskGroupName diskgroup

Specifies the name of the Oracle ASM disk group to update.

-diskList disk_list

Specifies a comma-delimited list of disk names to be added to the disk group.

-diskSize disk_size_MB

Specifies the size of the disk to use for Oracle ASM storage.

-failuregroup failure_group

Specifies the failure group name.

-force | -noforce

Specifies where to force the use of the disk.

-quorum | -noquorum

Specifies a quorum or standard failure group.


For additional options that are common to multiple commands, see Table 11-1.

Examples

To add disks to an existing disk group:

Example 11-6 Using asmca -silent -addDisk

asmca -silent
        -addDisk
          -diskGroupName mynewdg
             -disk '/devices/diskl1'
             -disk '/devices/diskl2'

Disks added successfully to diskgroup mynewdg.

Create a Volume

-createVolume creates Oracle ADVM volumes.

Syntax


asmca -silent
     -createVolume
       { -volumeName volume_name
       -volumeDiskGroupName diskgroup
       -volumeSizeGB size_GB
       [ -volumeRedundancy { INHERIT | HIGH | NORMAL | EXTERNAL } ] ... }
       [-sysAsmPassword sysasm_password ]

Table 11-7 contains the options available with the -createVolume command.

Table 11-7 Options for the -createVolume command

Option Description

-volumeName volume_name

Specifies the name of the volume to create.

-volumeDiskGroupName diskgroup

Specifies the name of the disk group where you want to create the volume.

-volumeSizeGB size_GB

Specifies the size of the volume in Gigabytes.

-volumeRedundancy { INHERIT | HIGH | NORMAL | EXTERNAL }

Specifies the redundancy setting for the volume.


For additional options that are common to multiple commands, see Table 11-1.

Examples

To create an Oracle ADVM volume:

Example 11-7 Using asmca -silent -createVolume

$ asmca -silent
        -createVolume
           -volumeName volume1
           -volumeDiskGroup mynewdg
           -volumeSizeGB 1

Volume volume1 created successfully.

Create an Oracle ACFS File System

-createACFS creates an Oracle Automatic Storage Management Cluster File System (Oracle ACFS).

This command does not mount the Oracle ACFS file system. For information about mounting an Oracle ACFS file system, see "mount" for Linux environments and "acfsmountvol" for Windows environments.

Syntax


asmca -silent
     -createACFS
       { -acfsVolumeDevice volume_device }
       [-sysAsmPassword sysasm_password ]

Table 11-8 contains the options available with the -createACFS command.

Table 11-8 Options for the -createACFS command

Option Description

-acfsVolumeDevice volume_device

Specifies the name of the Oracle ADVM volume device.


For additional options that are common to multiple commands, see Table 11-1.

Examples

To create an Oracle ACFS file system:

Example 11-8 Using asmca -silent -createACFS

$ asmca -silent
        -createACFS
           -acfsVolumeDevice /dev/asm/volume1-457

ACFS creation on /dev/asm/volume1-457 completed successfully.
The ACFS should be mounted for use.
