|Oracle® Database Concepts
11g Release 2 (11.2)
Part Number E16508-04
This chapter contains the following sections:
A database user has a password and various database privileges. Each user owns a single schema, which has the same name as the user. The schema contains the data for the user owning the schema. For example, the
hr user owns the
hr schema, which contains schema objects such as the
employees table. In a production database, the schema owner usually represents a database application rather than a person.
Within a schema, each schema object of a particular type has a unique name. For example,
hr.employees refers to the table
employees in the
hr schema. Figure 2-1 depicts a schema owner named
hr and schema objects within the
Figure 2-1 HR Schema
See Also:"Overview of Database Security" to learn more about users and privileges
The most important schema objects in a relational database are tables. A table stores data in rows.
Oracle SQL enables you to create and manipulate many other types of schema objects, including the following:
Indexes are schema objects that contains an entry for each indexed row of the table or table cluster and provide direct, fast access to rows. Oracle Database supports several types of index. An index-organized table is a table in which the data is stored in an index structure. See Chapter 3, "Indexes and Index-Organized Tables".
Partitions are pieces of large tables and indexes. Each partition has its own name and may optionally have its own storage characteristics. See "Overview of Partitions".
Views are customized presentations of data in one or more tables or other views. You can think of them as stored queries. Views do not actually contain data. See "Overview of Views".
A dimension defines a parent-child relationship between pairs of column sets, where all the columns of a column set must come from the same table. Dimensions are commonly used to categorize data such as customers, products, and time. See "Overview of Dimensions".
PL/SQL subprograms and packages
PL/SQL is the Oracle procedural extension of SQL. A PL/SQL subprogram is a named PL/SQL block that can be invoked with a set of parameters. A PL/SQL package groups logically related PL/SQL types, variables, and subprograms. See "PL/SQL Subprograms" and "PL/SQL Packages".
Other types of objects are also stored in the database and can be created and manipulated with SQL statements but are not contained in a schema. These objects include database users, roles, contexts, and directory objects.
Some schema objects store data in logical storage structures called segments. For example, a nonpartitioned heap-organized table or an index creates a segment. Other schema objects, such as views and sequences, consist of metadata only. This section describes only schema objects that have segments.
Oracle Database stores a schema object logically within a tablespace. There is no relationship between schemas and tablespaces: a tablespace can contain objects from different schemas, and the objects for a schema can be contained in different tablespaces. The data of each object is physically contained in one or more data files.
Figure 2-2 shows a possible configuration of table and index segments, tablespaces, and data files. The data segment for one table spans two data files, which are both part of the same tablespace. A segment cannot span multiple tablespaces.
Figure 2-2 Segments, Tablespaces, and Data Files
Some schema objects reference other objects, creating schema object dependencies. For example, a view contains a query that references tables or other views, while a PL/SQL subprogram invokes other subprograms. If the definition of object A references object B, then A is a dependent object with respect to B and B is a referenced object with respect to A.
Oracle Database provides an automatic mechanism to ensure that a dependent object is always up to date with respect to its referenced objects. When a dependent object is created, the database tracks dependencies between the dependent object and its referenced objects. When a referenced object changes in a way that might affect a dependent object, the dependent object is marked invalid. For example, if a user drops a table, no view based on the dropped table is usable.
An invalid dependent object must be recompiled against the new definition of a referenced object before the dependent object is usable. Recompilation occurs automatically when the invalid dependent object is referenced.
As an illustration of how schema objects can create dependencies, the following sample script creates a table
test_table and then a procedure that queries this table:
CREATE TABLE test_table ( col1 INTEGER, col2 INTEGER ); CREATE OR REPLACE PROCEDURE test_proc AS BEGIN FOR x IN ( SELECT col1, col2 FROM test_table ) LOOP -- process data NULL; END LOOP; END; /
The following query of the status of procedure
test_proc shows that it is valid:
SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC'; OBJECT_NAME STATUS ----------- ------- TEST_PROC VALID
After adding the
col3 column to
test_table, the procedure is still valid because the procedure has no dependencies on this column:
SQL> ALTER TABLE test_table ADD col3 NUMBER; Table altered. SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC'; OBJECT_NAME STATUS ----------- ------- TEST_PROC VALID
However, changing the data type of the
col1 column, which the
test_proc procedure depends on in, invalidates the procedure:
SQL> ALTER TABLE test_table MODIFY col1 VARCHAR2(20); Table altered. SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC'; OBJECT_NAME STATUS ----------- ------- TEST_PROC INVALID
Running or recompiling the procedure makes it valid again, as shown in the following example:
SQL> EXECUTE test_proc PL/SQL procedure successfully completed. SQL> SELECT OBJECT_NAME, STATUS FROM USER_OBJECTS WHERE OBJECT_NAME = 'TEST_PROC'; OBJECT_NAME STATUS ----------- ------- TEST_PROC VALID
See Also:Oracle Database Administrator's Guide and Oracle Database Advanced Application Developer's Guide to learn how to manage schema object dependencies
All Oracle databases include default administrative accounts. Administrative accounts are highly privileged and are intended only for DBAs authorized to perform tasks such as starting and stopping the database, managing memory and storage, creating and managing database users, and so on.
The administrative account
SYS is automatically created when a database is created. This account can perform all database administrative functions. The
SYS schema stores the base tables and views for the data dictionary. These base tables and views are critical for the operation of Oracle Database. Tables in the
SYS schema are manipulated only by the database and must never be modified by any user.
SYSTEM account is also automatically created when a database is created. The
SYSTEM schema stores additional tables and views that display administrative information, and internal tables and views used by various Oracle Database options and tools. Never use the
SYSTEM schema to store tables of interest to nonadministrative users.
An Oracle database may include sample schemas, which are a set of interlinked schemas that enable Oracle documentation and Oracle instructional materials to illustrate common database tasks. The
hr schema is a sample schema that contains information about employees, departments and locations, work histories, and so on.
Figure 2-3 is an entity-relationship diagram of the tables in the
hr schema. Most examples in this manual use objects from this schema.
Figure 2-3 HR Schema
See Also:Oracle Database Sample Schemas
A table is the basic unit of data organization in an Oracle database. A table describes an entity, which is something of significance about which information must be recorded. For example, an employee could be an entity.
Oracle Database tables fall into the following basic categories:
Relational tables have simple columns and are the most common table type. Example 2-1 shows a
CREATE TABLE statement for a relational table.
You can create a relational table with the following organizational characteristics:
A heap-organized table does not store rows in any particular order. The
CREATE TABLE statement creates a heap-organized table by default.
An index-organized table orders rows according to the primary key values. For some applications, index-organized tables enhance performance and use disk space more efficiently. See "Overview of Index-Organized Tables".
An external table is a read-only table whose metadata is stored in the database but whose data in stored outside the database. See "External Tables".
A table is either permanent or temporary. A permanent table definition and data persist across sessions. A temporary table definition persists in the same way as a permanent table definition, but the data exists only for the duration of a transaction or session. Temporary tables are useful in applications where a result set must be held temporarily, perhaps because the result is constructed by running multiple operations.
This section contains the following topics:
See Also:Oracle Database 2 Day DBA and Oracle Database Administrator's Guide to learn how to manage tables
A table definition includes a table name and set of columns. A column identifies an attribute of the entity described by the table. For example, the column
employee_id in the
employees table refers to the employee ID attribute of an employee entity.
In general, you give each column a column name, a data type, and a width when you create a table. For example, the data type for
NUMBER(6), indicating that this column can only contain numeric data up to 6 digits in width. The width can be predetermined by the data type, as with
A table can contain a virtual column, which unlike a nonvirtual column does not consume disk space. The database derives the values in a virtual column on demand by computing a set of user-specified expressions or functions. For example, the virtual column
income could be a function of the
After you create a table, you can insert, query, delete, and update rows using SQL. A row is a collection of column information corresponding to a record in a table. For example, a row in the
employees table describes the attributes of a specific employee.
See Also:Oracle Database Administrator's Guide to learn how to manage virtual columns
The Oracle SQL command to create a table is
CREATE TABLE. Example 2-1 shows the
CREATE TABLE statement for the
employees table in the
hr sample schema. The statement specifies columns such as
first_name, and so on, specifying a data type such as
DATE for each column.
Example 2-1 CREATE TABLE employees
CREATE TABLE employees ( employee_id NUMBER(6) , first_name VARCHAR2(20) , last_name VARCHAR2(25) CONSTRAINT emp_last_name_nn NOT NULL , email VARCHAR2(25) CONSTRAINT emp_email_nn NOT NULL , phone_number VARCHAR2(20) , hire_date DATE CONSTRAINT emp_hire_date_nn NOT NULL , job_id VARCHAR2(10) CONSTRAINT emp_job_nn NOT NULL , salary NUMBER(8,2) , commission_pct NUMBER(2,2) , manager_id NUMBER(6) , department_id NUMBER(4) , CONSTRAINT emp_salary_min CHECK (salary > 0) , CONSTRAINT emp_email_uk UNIQUE (email) ) ;
Example 2-2 shows an
ALTER TABLE statement that adds integrity constraints to the
employees table. Integrity constraints enforce business rules and prevent the entry of invalid information into tables.
Example 2-2 ALTER TABLE employees
ALTER TABLE employees ADD ( CONSTRAINT emp_emp_id_pk PRIMARY KEY (employee_id) , CONSTRAINT emp_dept_fk FOREIGN KEY (department_id) REFERENCES departments , CONSTRAINT emp_job_fk FOREIGN KEY (job_id) REFERENCES jobs (job_id) , CONSTRAINT emp_manager_fk FOREIGN KEY (manager_id) REFERENCES employees ) ;
Example 2-3 shows 8 rows and 6 columns of the
Example 2-3 Rows in the employees Table
EMPLOYEE_ID FIRST_NAME LAST_NAME SALARY COMMISSION_PCT DEPARTMENT_ID ----------- ----------- ------------- ------- -------------- ------------- 100 Steven King 24000 90 101 Neena Kochhar 17000 90 102 Lex De Haan 17000 90 103 Alexander Hunold 9000 60 107 Diana Lorentz 4200 60 149 Eleni Zlotkey 10500 .2 80 174 Ellen Abel 11000 .3 80 178 Kimberely Grant 7000 .15
The output in Example 2-3 illustrates some of the following important characteristics of tables, columns, and rows:
A row of the table describes the attributes of one employee: name, salary, department, and so on. For example, the first row in the output shows the record for the employee named Steven King.
A column describes an attribute of the employee. In the example, the
employee_id column is the primary key, which means that every employee is uniquely identified by employee ID. Any two employees are guaranteed not to have the same employee ID.
A non-key column can contain rows with identical values. In the example, the salary value for employees 101 and 102 is the same:
A foreign key column refers to a primary or unique key in the same table or a different table. In this example, the value of
department_id corresponds to the
department_id column of the
A field can lack a value. In this case, the field is said to contain a null value. The value of the
commission_pct column for employee 100 is null, whereas the value in the field for employee 149 is
.2. A column allows nulls unless a
NULL or primary key integrity constraint has been defined on this column, in which case no row can be inserted without a value for this column.
See Also:Oracle Database SQL Language Reference for
CREATE TABLEsyntax and semantics
Each column has a data type, which is associated with a specific storage format, constraints, and valid range of values. The data type of a value associates a fixed set of properties with the value. These properties cause Oracle Database to treat values of one data type differently from values of another. For example, you can multiply values of the
NUMBER data type, but not values of the
RAW data type.
When you create a table, you must specify a data type for each of its columns. Each value subsequently inserted in a column assumes the column data type.
Other important categories of built-in types include raw, large objects (LOBs), and collections. PL/SQL has data types for constants and variables, which include
BOOLEAN, reference types, composite types (records), and user-defined types.
Oracle Database SQL Language Reference to learn about built-in SQL data types
Oracle Database PL/SQL Language Reference to learn about PL/SQL data types
Oracle Database Advanced Application Developer's Guide for information about how to use the built-in data types
The byte values correspond to the character encoding scheme, generally called a character set or code page. The database character set is established at database creation. Examples of character sets are 7-bit ASCII, EBCDIC, and Unicode UTF-8.
The length semantics of character data types can be measured in bytes or characters. Byte semantics treat strings as a sequence of bytes. This is the default for character data types. Character semantics treat strings as a sequence of characters. A character is technically a code point of the database character set.
Oracle Database 2 Day Developer's Guide and Oracle Database Advanced Application Developer's Guide and to learn how to select a character data type
VARCHAR2 data type stores variable-length character literals. The terms literal and constant value are synonymous and refer to a fixed data value. For example,
'St. George Island', and
'101' are all character literals;
5001 is a numeric literal. Character literals are enclosed in single quotation marks so that the database can distinguish them from schema object names.
Note:This manual uses the terms text literal, character literal, and string interchangeably.
When you create a table with a
VARCHAR2 column, you specify a maximum string length. In Example 2-1, the
last_name column has a data type of
VARCHAR2(25), which means that any name stored in the column can have a maximum of 25 bytes.
For each row, Oracle Database stores each value in the column as a variable-length field unless a value exceeds the maximum length, in which case the database returns an error. For example, in a single-byte character set, if you enter 10 characters for the
last_name column value in a row, then the column in the row piece stores only 10 characters (10 bytes), not 25. Using
VARCHAR2 reduces space consumption.
In contrast to
CHAR stores fixed-length character strings. When you create a table with a
CHAR column, the column requires a string length. The default is 1 byte. The database uses blanks to pad the value to the specified length.
Oracle Database compares
VARCHAR2 values using nonpadded comparison semantics and compares
CHAR values using blank-padded comparison semantics.
See Also:Oracle Database SQL Language Reference for details about blank-padded and nonpadded comparison semantics
NVARCHAR2 data types store Unicode character data. Unicode is a universal encoded character set that can store information in any language using a single character set.
NCHAR stores fixed-length character strings that correspond to the national character set, whereas
NVARCHAR2 stores variable length character strings.
You specify a national character set when creating a database. The character set of
NVARCHAR2 data types must be either
UTF8. Both character sets use Unicode encoding.
When you create a table with an
NVARCHAR2 column, the maximum size is always in character length semantics. Character length semantics is the default and only length semantics for
See Also:Oracle Database Globalization Support Guide for information about Oracle's globalization support feature
The Oracle Database numeric data types store fixed and floating-point numbers, zero, and infinity. Some numeric types also store values that are the undefined result of an operation, which is known as "not a number" or NAN.
Oracle Database stores numeric data in variable-length format. Each value is stored in scientific notation, with 1 byte used to store the exponent. The database uses up to 20 bytes to store the mantissa, which is the part of a floating-point number that contains its significant digits. Oracle Database does not store leading and trailing zeros.
NUMBER data type stores fixed and floating-point numbers. The database can store numbers of virtually any magnitude. This data is guaranteed to be portable among different operating systems running Oracle Database. The
NUMBER data type is recommended for most cases in which you must store numeric data.
You specify a fixed-point number in the form
s refer to the following characteristics:
The precision specifies the total number of digits. If a precision is not specified, then the column stores the values exactly as provided by the application without any rounding.
The scale specifies the number of digits from the decimal point to the least significant digit. Positive scale counts digits to the right of the decimal point up to and including the least significant digit. Negative scale counts digits to the left of the decimal point up to but not including the least significant digit. If you specify a precision without a scale, as in
NUMBER(6), then the scale is 0.
In Example 2-1, the
salary column is type
NUMBER(8,2), so the precision is 8 and the scale is 2. Thus, the database stores a salary of 100,000 as
Oracle Database provides two numeric data types exclusively for floating-point numbers:
BINARY_DOUBLE. These types support all of the basic functionality provided by the
NUMBER data type. However, while
NUMBER uses decimal precision,
BINARY_DOUBLE use binary precision, which enables faster arithmetic calculations and usually reduces storage requirements.
BINARY_DOUBLE are approximate numeric data types. They store approximate representations of decimal values, rather than exact representations. For example, the value 0.1 cannot be exactly represented by either
BINARY_FLOAT. They are frequently used for scientific computations. Their behavior is similar to the data types
DOUBLE in Java and XMLSchema.
See Also:Oracle Database SQL Language Reference to learn about precision, scale, and other characteristics of numeric types
DATE data type stores date and time. Although datetimes can be represented in character or number data types,
DATE has special associated properties. The
hire_date column in Example 2-1 has a
DATE data type.
The database stores dates internally as numbers. Dates are stored in fixed-length fields of 7 bytes each, corresponding to century, year, month, day, hour, minute, and second.
Note:Dates fully support arithmetic operations, so you add to and subtract from dates just as you can with numbers. See Oracle Database Advanced Application Developer's Guide.
The database displays dates according to the specified format model. A format model is a character literal that describes the format of a datetime in a character string. The standard date format is
DD-MON-RR, which displays dates in the form
RR is similar to
YY (the last two digits of the year), but the century of the return value varies according to the specified two-digit year and the last two digits of the current year. Assume that in 1999 the database displays
01-JAN-09. If the date format uses
2009, whereas if the format uses
1909. You can change the default date format at both the instance and the session level.
Oracle Database stores time in 24-hour format—
HH:MI:SS. If no time portion is entered, then by default the time in a date field is
00:00:00 A.M. In a time-only entry, the date portion defaults to the first day of the current month.
Oracle Database Advanced Application Developer's Guide for more information about centuries and date format masks
Oracle Database SQL Language Reference for information about datetime format codes
TIMESTAMP data type is an extension of the
DATE data type. It stores fractional seconds in addition to the information stored in the
DATE data type. The
TIMESTAMP data type is useful for storing precise time values, such as in applications that must track event order.
DATETIME data types
TIMESTAMP WITH TIME ZONE and
TIMESTAMP WITH LOCAL TIME ZONE are time-zone aware. When a user selects the data, the value is adjusted to the time zone of the user session. This data type is useful for collecting and evaluating date information across geographic regions.
See Also:Oracle Database SQL Language Reference for details about the syntax of creating and entering data in time stamp columns
Every row stored in the database has an address. Oracle Database uses a
ROWID data type to store the address (rowid) of every row in the database. Rowids fall into the following categories:
Physical rowids store the addresses of rows in heap-organized tables, table clusters, and table and index partitions.
Logical rowids store the addresses of rows in index-organized tables.
Foreign rowids are identifiers in foreign tables, such as DB2 tables accessed through a gateway. They are not standard Oracle Database rowids.
Oracle Database uses rowids internally for the construction of indexes. A B-tree index, which is the most common type, contains an ordered list of keys divided into ranges. Each key is associated with a rowid that points to the associated row's address for fast access. End users and application developers can also use rowids for several important functions:
Rowids are the fastest means of accessing particular rows.
Rowids provide the ability to see how a table is organized.
Rowids are unique identifiers for rows in a given table.
You can also create tables with columns defined using the
ROWID data type. For example, you can define an exception table with a column of data type
ROWID to store the rowids of rows that violate integrity constraints. Columns defined using the
ROWID data type behave like other table columns: values can be updated, and so on.
Every table in an Oracle database has a pseudocolumn named
ROWID. A pseudocolumn behaves like a table column, but is not actually stored in the table. You can select from pseudocolumns, but you cannot insert, update, or delete their values. A pseudocolumn is also similar to a SQL function without arguments. Functions without arguments typically return the same value for every row in the result set, whereas pseudocolumns typically return a different value for each row.
Values of the
ROWID pseudocolumn are strings representing the address of each row. These strings have the data type
ROWID. This pseudocolumn is not evident when listing the structure of a table by executing
DESCRIBE, nor does the pseudocolumn consume space. However, the rowid of each row can be retrieved with a SQL query using the reserved word
ROWID as a column name.
Example 2-4 queries the
ROWID pseudocolumn to show the rowid of the row in the
employees table for employee 100.
Example 2-4 ROWID Pseudocolumn
SQL> SELECT ROWID FROM employees WHERE employee_id = 100; ROWID ------------------ AAAPecAAFAAAABSAAA
Oracle Database Advanced Application Developer's Guide to learn how to identify rows by address
Oracle Database SQL Language Reference to learn about rowid types
A format model is a character literal that describes the format of datetime or numeric data stored in a character string. A format model does not change the internal representation of the value in the database.
When you convert a character string into a date or number, a format model determines how the database interprets the string. In SQL, you can use a format model as an argument of the
TO_DATE functions to format a value to be returned from the database or to format a value to be stored in the database.
The following statement selects the salaries of the employees in Department 80 and uses the
TO_CHAR function to convert these salaries into character values with the format specified by the number format model
SQL> SELECT last_name employee, TO_CHAR(salary, '$99,990.99') 2 FROM employees 3 WHERE department_id = 80 AND last_name = 'Russell'; EMPLOYEE TO_CHAR(SAL ------------------------- ----------- Russell $14,000.00
The following example updates a hire date using the
TO_DATE function with the format mask
'YYYY MM DD' to convert the string
'1998 05 20' to a
SQL> UPDATE employees 2 SET hire_date = TO_DATE('1998 05 20','YYYY MM DD') 3 WHERE last_name = 'Hunold';
See Also:Oracle Database SQL Language Reference to learn more about format models
Integrity constraints are named rules that restrict the values for one or more columns in a table. These rules prevent invalid data entry into tables. Also, constraints can prevent the deletion of a table when certain dependencies exist.
If a constraint is enabled, then the database checks data as it is entered or updated. Data that does not conform to the constraint is prevented from being entered. If a constraint is disabled, then data that does not conform to the constraint can be allowed to enter the database.
In Example 2-1, the
CREATE TABLE statement specifies
NOT NULL constraints for the
job_id columns. The constraint clauses identify the columns and the conditions of the constraint. These constraints ensure that the specified columns contain no null values. For example, an attempt to insert a new employee without a job ID generates an error.
You can create a constraint when or after you create a table. Constraints can be temporarily disabled if needed. The database stores constraints in the data dictionary.
An Oracle object type is a user-defined type with a name, attributes, and methods. Object types make it possible to model real-world entities such as customers and purchase orders as objects in the database.
An object type defines a logical structure, but does not create storage. Example 2-5 creates an object type named
Example 2-5 Object Type
CREATE TYPE department_typ AS OBJECT ( d_name VARCHAR2(100), d_address VARCHAR2(200) ); /
An object table is a special kind of table in which each row represents an object. The
CREATE TABLE statement in Example 2-6 creates an object table named
departments_obj_t of the object type
department_typ. The attributes (columns) of this table are derived from the definition of the object type. The
INSERT statement inserts a row into this table.
Example 2-6 Object Table
CREATE TABLE departments_obj_t OF department_typ; INSERT INTO departments_obj_t VALUES ('hr', '10 Main St, Sometown, CA');
Like a relational column, an object table can contain rows of just one kind of thing, namely, object instances of the same declared type as the table. By default, every row object in an object table has an associated logical object identifier (OID) that uniquely identifies it in an object table. The OID column of an object table is a hidden column.
Oracle Database Object-Relational Developer's Guide to learn about object-relational features in Oracle Database
Oracle Database SQL Language Reference for
CREATE TYPE syntax and semantics
Oracle Database temporary tables hold data that exists only for the duration of a transaction or session. Data in a temporary table is private to the session, which means that each session can only see and modify its own data.
Temporary tables are useful in applications where a result set must be buffered. For example, a scheduling application enables college students to create optional semester course schedules. Each schedule is represented by a row in a temporary table. During the session, the schedule data is private. When the student decides on a schedule, the application moves the row for the chosen schedule to a permanent table. At the end of the session, the schedule data in the temporary data is automatically dropped.
Unlike temporary tables in some other relational databases, when you create a temporary table in an Oracle database, you create a static table definition. The temporary table is a persistent object described in the data dictionary, but appears empty until your session inserts data into the table. You create a temporary table for the database itself, not for every PL/SQL stored procedure.
Because temporary tables are statically defined, you can create indexes for them with the
CREATE INDEX statement. Indexes created on temporary tables are also temporary. The data in the index has the same session or transaction scope as the data in the temporary table. You can also create a view or trigger on a temporary table.
Like permanent tables, temporary tables are defined in the data dictionary. However, temporary tables and their indexes do not automatically allocate a segment when created. Instead, temporary segments are allocated when data is first inserted. Until data is loaded in a session the table appears empty. Temporary segments are deallocated at the end of the transaction for transaction-specific temporary tables and at the end of the session for session-specific temporary tables.
See Also:"Temporary Segments"
An external table accesses data in external sources as if this data were in a table in the database. You can use SQL, PL/SQL, and Java to query the external data.
External tables are useful for querying flat files. For example, a SQL-based application may need to access records in a text file. The records are in the following form:
100,Steven,King,SKING,515.123.4567,17-JUN-03,AD_PRES,31944,150,90 101,Neena,Kochhar,NKOCHHAR,515.123.4568,21-SEP-05,AD_VP,17000,100,90 102,Lex,De Haan,LDEHAAN,515.123.4569,13-JAN-01,AD_VP,17000,100,90
You could create an external table, copy the file to the location specified in the external table definition, and use SQL to query the records in the text file.
External tables are also valuable for performing ETL tasks common in data warehouse environments. For example, external tables enable the pipelining of the data loading phase with the transformation phase, eliminating the need to stage data inside the database in preparation for further processing inside the database. See "Overview of Data Warehousing and Business Intelligence".
Internally, creating an external table means creating metadata in the data dictionary. Unlike an ordinary table, an external table does not describe data stored in the database, nor does it describe how data is stored externally. Rather, external table metadata describes how the external table layer must present data to the database.
CREATE TABLE ... ORGANIZATION EXTERNAL statement has two parts. The external table definition describes the column types. This definition is like a view that enables SQL to query external data without loading it into the database. The second part of the statement maps the external data to the columns.
External tables are read-only unless created with
CREATE TABLE AS SELECT with the
ORACLE_DATAPUMP access driver. Restrictions for external tables include no support for indexed columns, virtual columns, and column objects.
An access driver is an API that interprets the external data for the database. The access driver runs inside the database, which uses the driver to read the data in the external table. The access driver and the external table layer are responsible for performing the transformations required on the data in the data file so that it matches the external table definition. Figure 2-4 represents how external data is accessed.
Figure 2-4 External Tables
Oracle provides the
ORACLE_LOADER (default) and
ORACLE_DATAPUMP access drivers for external tables. For both drivers, the external files are not Oracle data files.
ORACLE_LOADER enables read-only access to external files using SQL*Loader. You cannot create, update, or append to an external file using the
ORACLE_DATAPUMP driver enables you to unload external data. This operation involves reading data from the database and inserting the data into an external table, represented by one or more external files. After external files are created, the database cannot update or append data to them. The driver also enables you to load external data, which involves reading an external table and loading its data into a database.
The data segment for a table (or cluster data segment, when dealing with a table cluster) is located in either the default tablespace of the table owner or in a tablespace named in the
CREATE TABLE statement.
By default, a table is organized as a heap, which means that the database places rows where they fit best rather than in a user-specified order. Thus, a heap-organized table is an unordered collection of rows. As users add rows, the database places the rows in the first available free space in the data segment. Rows are not guaranteed to be retrieved in the order in which they were inserted.
Note:Index-organized tables use a different principle of organization. See "Overview of Index-Organized Tables".
hr.departments table is a heap-organized table. It has columns for department ID, name, manager ID, and location ID. As rows are inserted, the database stores them wherever they fit. A data block in the table segment might contain the unordered rows shown in Example 2-7.
Example 2-7 Rows in Departments Table
50,Shipping,121,1500 120,Treasury,,1700 70,Public Relations,204,2700 30,Purchasing,114,1700 130,Corporate Tax,,1700 10,Administration,200,1700 110,Accounting,205,1700
The column order is the same for all rows in a table. The database usually stores columns in the order in which they were listed in the
CREATE TABLE statement, but this order is not guaranteed. For example, if a table has a column of type
LONG, then Oracle Database always stores this column last in the row. Also, if you add a new column to a table, then the new column becomes the last column stored.
A table can contain a virtual column, which unlike normal columns does not consume space on disk. The database derives the values in a virtual column on demand by computing a set of user-specified expressions or functions. You can index virtual columns, collect statistics on them, and create integrity constraints. Thus, virtual columns are much like nonvirtual columns.
See Also:Oracle Database SQL Language Reference to learn about virtual columns
If possible, Oracle Database stores each row as one row piece. However, if all of the row data cannot be inserted into a single data block, or if an update to an existing row causes the row to outgrow its data block, then the database stores the row using multiple row pieces (see "Data Block Format").
A rowid is effectively a 10-byte physical address of a row. As explained in "Rowid Data Types", every row in a heap-organized table has a rowid unique to this table that corresponds to the physical address of a row piece. For table clusters, rows in different tables that are in the same data block can have the same rowid.
Oracle Database uses rowids internally for the construction of indexes. For example, each key in a B-tree index is associated with a rowid that points to the address of the associated row for fast access (see "B-Tree Indexes"). Physical rowids provide the fastest possible access to a table row, enabling the database to retrieve a row in as little as a single I/O.
See Also:"Rowid Format"
The database can use table compression to eliminate duplicate values in a data block. For tables with highly redundant data, compression saves disk space, reduces memory use in the database buffer cache, and in some cases speeds query execution. Table compression is transparent to database applications.
Dictionary-based table compression provides good compression ratios. Oracle Database supports the following types of table compression:
This type of compression compresses data inserted by direct path load only and supports limited data types and SQL operations.
This type of compression is intended for OLTP applications and compresses data manipulated by any SQL operation.
The database stores compressed rows in row-major format. All columns of one row are stored together, followed by all columns of the next row, and so on (see Figure 12-7). Duplicate values are replaced with a short reference to a symbol table stored at the beginning of the block. Thus, information needed to re-create the uncompressed data is stored in the data block itself.
Compressed data blocks look much like normal data blocks. Most database features and functions that work on regular data blocks also work on compressed blocks.
See Also:"SQL*Loader" to learn about using SQL*Loader for direct path loads
You can declare compression at the tablespace, table, partition, or subpartition level. If specified at the tablespace level, then all tables created in this tablespace are compressed by default.
The following statement applies OLTP compression to the
ALTER TABLE oe.orders COMPRESS FOR OLTP;
The following example of a partial
CREATE TABLE statement specifies OLTP compression for one partition and basic compression for the other partition:
CREATE TABLE sales ( prod_id NUMBER NOT NULL, cust_id NUMBER NOT NULL, ... ) PCTFREE 5 NOLOGGING NOCOMPRESS PARTITION BY RANGE (time_id) ( partition sales_2008 VALUES LESS THAN(TO_DATE(...)) COMPRESS BASIC, partition sales_2009 VALUES LESS THAN (MAXVALUE) COMPRESS FOR OLTP );
Nulls are stored in the database if they fall between columns with data values. In these cases, they require 1 byte to store the length of the column (zero). Trailing nulls in a row require no storage because a new row header signals that the remaining columns in the previous row are null. For example, if the last three columns of a table are null, then no data is stored for these columns.
See Also:Oracle Database SQL Language Reference to learn more about null values
A table cluster is a group of tables that share common columns and store related data in the same blocks. When tables are clustered, a single data block can contain rows from multiple tables. For example, a block can store rows from both the
departments tables rather than from only a single table.
The cluster key is the column or columns that the clustered tables have in common. For example, the
departments tables share the
department_id column. You specify the cluster key when creating the table cluster and when creating every table added to the table cluster.
The cluster key value is the value of the cluster key columns for a particular set of rows. All data that contains the same cluster key value, such as
department_id=20, is physically stored together. Each cluster key value is stored only once in the cluster and the cluster index, no matter how many rows of different tables contain the value.
For an analogy, suppose an HR manager has two book cases: one with boxes of employees folders and the other with boxes of departments folders. Users often ask for the folders for all employees in a particular department. To make retrieval easier, the manager rearranges all the boxes in a single book case. She divides the boxes by department ID. Thus, all folders for employees in department 20 and the folder for department 20 itself are in one box; the folders for employees in department 100 and the folder for department 100 are in a different box, and so on.
You can consider clustering tables when they are primarily queried (but not modified) and records from the tables are frequently queried together or joined. Because table clusters store related rows of different tables in the same data blocks, properly used table clusters offer the following benefits over nonclustered tables:
Disk I/O is reduced for joins of clustered tables.
Access time improves for joins of clustered tables.
Less storage is required to store related table and index data because the cluster key value is not stored repeatedly for each row.
Typically, clustering tables is not appropriate in the following situations:
The tables are frequently updated.
The tables frequently require a full table scan.
The tables require truncating.
See Also:Oracle Database Performance Tuning Guide for guidelines on when to use table clusters
An indexed cluster is a table cluster that uses an index to locate data. The cluster index is a B-tree index on the cluster key. A cluster index must be created before any rows can be inserted into clustered tables.
Assume that you create the cluster
employees_departments_cluster with the cluster key
department_id, as shown in Example 2-8. Because the
HASHKEYS clause is not specified, this cluster is an indexed cluster. Afterward, you create an index named
idx_emp_dept_cluster on this cluster key.
Example 2-8 Indexed Cluster
CREATE CLUSTER employees_departments_cluster (department_id NUMBER(4)) SIZE 512; CREATE INDEX idx_emp_dept_cluster ON CLUSTER employees_departments_cluster;
You then create the
departments tables in the cluster, specifying the
department_id column as the cluster key, as follows (the ellipses mark the place where the column specification goes):
CREATE TABLE employees ( ... ) CLUSTER employees_departments_cluster (department_id); CREATE TABLE departments ( ... ) CLUSTER employees_departments_cluster (department_id);
Finally, you add rows to the
departments tables. The database physically stores all rows for each department from the
departments tables in the same data blocks. The database stores the rows in a heap and locates them with the index.
Figure 2-5 shows the
employees_departments_cluster table cluster, which contains
departments. The database stores rows for employees in department 20 together, department 110 together, and so on. If the tables are not clustered, then the database does not ensure that the related rows are stored together.
Figure 2-5 Clustered Table Data
The B-tree cluster index associates the cluster key value with the database block address (DBA) of the block containing the data. For example, the index entry for key 20 shows the address of the block that contains data for employees in department 20:
The cluster index is separately managed, just like an index on a nonclustered table, and can exist in a separate tablespace from the table cluster.
A hash cluster is like an indexed cluster, except the index key is replaced with a hash function. No separate cluster index exists. In a hash cluster, the data is the index.
With an indexed table or indexed cluster, Oracle Database locates table rows using key values stored in a separate index. To find or store a row in an indexed table or table cluster, the database must perform at least two I/Os:
One or more I/Os to find or store the key value in the index
Another I/O to read or write the row in the table or table cluster
To find or store a row in a hash cluster, Oracle Database applies the hash function to the cluster key value of the row. The resulting hash value corresponds to a data block in the cluster, which the database reads or writes on behalf of the issued statement.
Hashing is an optional way of storing table data to improve the performance of data retrieval. Hash clusters may be beneficial when the following conditions are met:
A table is queried much more often than modified.
The hash key column is queried frequently with equality conditions, for example,
WHERE department_id=20. For such queries, the cluster key value is hashed. The hash key value points directly to the disk area that stores the rows.
You can reasonably guess the number of hash keys and the size of the data stored with each key value.
The cluster key, like the key of an indexed cluster, is a single column or composite key shared by the tables in the cluster. The hash key values are actual or possible values inserted into the cluster key column. For example, if the cluster key is
department_id, then hash key values could be 10, 20, 30, and so on.
Oracle Database uses a hash function that accepts an infinite number of hash key values as input and sorts them into a finite number of buckets. Each bucket has a unique numeric ID known as a hash value. Each hash value maps to the database block address for the block that stores the rows corresponding to the hash key value (department 10, 20, 30, and so on).
To create a hash cluster, you use the same
CREATE CLUSTER statement as for an indexed cluster, with the addition of a hash key. The number of hash values for the cluster depends on the hash key. In Example 2-9, the number of departments that are likely to exist is 100, so
HASHKEYS is set to
Example 2-9 Hash Cluster
CREATE CLUSTER employees_departments_cluster (department_id NUMBER(4)) SIZE 8192 HASHKEYS 100;
After you create
employees_departments_cluster, you can create the
departments tables in the cluster. You can then load data into the hash cluster just as in the indexed cluster described in Example 2-8.
See Also:Oracle Database Administrator's Guide to learn how to create and manage hash clusters
The database, not the user, determines how to hash the key values input by the user. For example, assume that users frequently execute queries such as the following, entering different department ID numbers for
SELECT * FROM employees WHERE department_id = :p_id; SELECT * FROM departments WHERE department_id = :p_id; SELECT * FROM employees e, departments d WHERE e.department_id = d.department_id AND d.department_id = :p_id;
If a user queries employees in
=20, then the database might hash this value to bucket 77. If a user queries employees in
10, then the database might hash this value to bucket 15. The database uses the internally generated hash value to locate the block that contains the employee rows for the requested department.

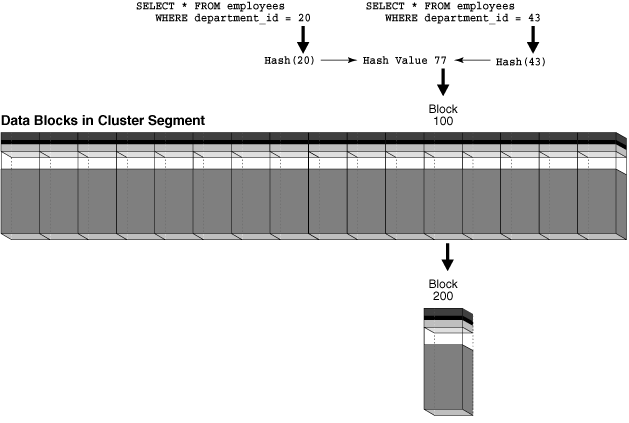

Figure 2-6 depicts a hash cluster segment as a horizontal row of blocks. As shown in the graphic, a query can retrieve data in a single I/O.
Figure 2-6 Retrieving Data from a Hash Cluster
A limitation of hash clusters is the unavailability of range scans on nonindexed cluster keys (see "Index Range Scan"). Assume that no separate index exists for the hash cluster created in Example 2-9. A query for departments with IDs between 20 and 100 cannot use the hashing algorithm because it cannot hash every possible value between 20 and 100. Because no index exists, the database must perform a full scan.
A single-table hash cluster is an optimized version of a hash cluster that supports only one table at a time. A one-to-one mapping exists between hash keys and rows. A single-table hash cluster can be beneficial when users require rapid access to a table by primary key. For example, users often look up an employee record in the
employees table by
A sorted hash cluster stores the rows corresponding to each value of the hash function in such a way that the database can efficiently return them in sorted order. The database performs the optimized sort internally. For applications that always consume data in sorted order, this technique can mean faster retrieval of data. For example, an application might always sort on the
order_date column of the
See Also:Oracle Database Administrator's Guide to learn how to create single-table and sorted hash clusters
Oracle Database allocates space for a hash cluster differently from an indexed cluster. In Example 2-9,
HASHKEYS specifies the number of departments likely to exist, whereas
SIZE specifies the size of the data associated with each department. The database computes a storage space value based on the following formula:
HASHKEYS * SIZE / database_block_size
Thus, if the block size is 4096 bytes in Example 2-9, then the database allocates at least 200 blocks to the hash cluster.
Oracle Database does not limit the number of hash key values that you can insert into the cluster. For example, even though
100, nothing prevents you from inserting 200 unique departments in the
departments table. However, the efficiency of the hash cluster retrieval diminishes when the number of hash values exceeds the number of hash keys.
To illustrate the retrieval issues, assume that block 100 in Figure 2-6 is completely full with rows for department 20. A user inserts a new department with
department_id 43 into the
departments table. The number of departments exceeds the
HASHKEYS value, so the database hashes
department_id 43 to hash value 77, which is the same hash value used for
department_id 20. Hashing multiple input values to the same output value is called a hash collision.
When users insert rows into the cluster for department 43, the database cannot store these rows in block 100, which is full. The database links block 100 to a new overflow block, say block 200, and stores the inserted rows in the new block. Both block 100 and 200 are now eligible to store data for either department. As shown in Figure 2-7, a query of either department 20 or 43 now requires two I/Os to retrieve the data: block 100 and its associated block 200. You can solve this problem by re-creating the cluster with a different
Figure 2-7 Retrieving Data from a Hash Cluster When a Hash Collision Occurs
See Also:Oracle Database Administrator's Guide to learn how to manage space in hash clusters
