TimesTen and IMDB Cache have a cost-based query optimizer that ensures efficient data access by automatically searching for the best way to answer queries. Optimization is performed in the third stage of the compilation process. The stages of compilation are shown in Figure 5-1.
Figure 5-1 Compilation stages
The role of the optimizer is to determine the lowest cost plan for executing queries. By "lowest cost plan" we mean an access path to the data that will take the least amount of time. The optimizer determines the cost of a plan based on:
Table and column statistics
Metadata information (such as referential integrity, primary key)
Index choices (including automatic creation of temporary indexes)
Scan methods (full table scan, rowid lookup, range index scan, bitmap index lookup, hash index lookup)
Join algorithm choice (nested loop joins, nested loop joins with indexes, or merge join)
This chapter includes the following topics:
The optimizer is designed to generate the best possible plan within reasonable time and memory constraints. No optimizer always chooses the optimal plan for every query. Instead, the goal of the optimizer is to choose the best plan from among a set of plans generated by using strategies for finding the most promising areas within the search-space of plans. Because optimization usually happens only once for each query while the query itself may be executed many times, the optimizer is designed to give precedence to execution time over optimization time.
The plans generated by the optimizer emphasize performance over memory usage. The optimizer may designate the use of significant amounts of temporary memory space in order to speed up execution time. In memory-constrained environments, applications can use the optimizer hints described in "Optimizer hints" to disable the use of temporary indexes and tables in order to create plans that trade maximum performance for reduced memory usage.
When determining the execution path for a query, the optimizer examines statistics about the data referenced by the query, such as the number of rows in the tables, the minimum and maximum values and the number of unique values in interval statistics of columns used in predicates, the existence of primary keys within a table, the size and configuration of any existing indexes. These statistics are stored in the SYS.TBL_STATS and SYS.COL_STATS tables, which are populated when an applications calls the
ttOptUpdateStats built-in procedure.
The optimizer uses the statistics for each table to calculate the selectivity of predicates, such as
t1.a=4, or a combination of predicates, such as
t1.a=4 AND t1.b<10. Selectivity is an estimate of the number of rows in a table. If a predicate selects a small percentage of rows, it is said to have high selectivity, while a predicate that selects a large percentage of rows has low selectivity.
The optimizer allows applications to provide hints to adjust the way that plans are generated. For example, applications can use the
ttOptSetFlag built-in procedure to provide the optimizer with hints about how to best optimize a particular query. This takes the form of directives that restrict the use of particular join algorithms, use of temporary indexes and types of index, use of locks, whether to optimize for all the rows or only the first n number of rows in a table and whether to materialize intermediate results. You can view the existing hints set for a database by using the
ttOptGetFlag built-in procedure.
Applications can also use the
ttOptSetOrder built-in procedure to specify the order in which tables are to be joined by the optimizer, as well as the
ttOptUseIndex built-in procedure to specify which indexes should be considered for each correlation in a query.
The query optimizer uses indexes to speed up the execution of a query. The optimizer uses existing indexes or creates temporary indexes to generate an execution plan when preparing a SELECT, INSERT SELECT, UPDATE, or DELETE statement. An index is a map of keys to row locations in a table. Strategic use of indexes is essential to obtain maximum performance from a TimesTen system.
TimesTen uses these types of indexes:
Range index: Range indexes are useful for finding rows with column values within a range specified as an equality or inequality. Range indexes can be created over one or more columns of a table. They can be designated as unique or not unique. Multiple NULL values are permitted in a unique range index. When sorting data values, TimesTen considers NULL values to be larger than all non-NULL values. When you create an index using the CREATE INDEX SQL statement and do not specify the index type, TimesTen creates a range index.
Bitmap index: Bitmap indexes encode information about a unique value in a row in a bitmap. Each bit in the bitmap corresponds to a row in the table. Use a bitmap index for columns that do not have many unique values. An example of such a column is a column that records gender as one of two values. Bitmap indexes are widely used in data warehousing environments. The environments typically have large amounts of data and ad hoc queries, but a low level of concurrent DML transactions. Bitmap indexes are compressed and have smaller storage requirements than other indexing techniques.
Hash index: Hash indexes are created for tables with a primary key when you specify the UNIQUE HASH INDEX clause in the CREATE TABLE statement. There can be only one hash index for each table. In general, hash indexes are faster than range indexes for exact match lookups and equijoins. However, hash indexes cannot be used for lookups involving ranges or the prefix of a key and can require more space than range indexes and bitmap indexes.
Full table scan
Range index scan (on either a permanent or temporary index)
Hash index lookup (on either a permanent or temporary index)
Bitmap index lookup (on a permanent index)
TimesTen and IMDB Cache perform fast exact matches through hash indexes, bitmap indexes and rowid lookups. They perform range matches through range indexes. The
ttOptSetFlag built-in procedure can be used to allow or disallow the optimizer from considering certain scan methods when choosing a query plan.
A full table scan examines every row in a table. Because it is the least efficient way to evaluate a query predicate, a full scan is only used when no other method is available.
TimesTen assigns a unique ID, called a rowid, to each row stored in a table. A rowid lookup is applicable if, for example, an application has previously selected a rowid and then uses a
WHERE ROWID= clause to fetch that same row. Rowid lookups are faster than index lookups.
A hash index lookup uses a hash index to find rows based on their primary keys. Such lookups are applicable if the table has a primary key that has a hash index and the predicate specifies an exact match over the primary key columns.
A bitmap index lookup uses a bitmap index to find rows that satisfy an equality predicate such as
customer.gender='male'. Bitmap indexes are appropriate for columns with few unique values. They are particularly useful in evaluating several predicates each of which can use a bitmap index lookup because the combined predicates can be efficiently evaluated through bit operations on the indexes themselves. For example, if table
customer has a bitmap index on the column
gender and if table
sweater has a bitmap index on the column
color, the predicates
sweater.color ='pink' could rapidly find all male customers who purchased pink sweaters by performing a logical AND operation on the two bitmap indexes.
A range index scan uses a range index to access a table. Such a scan is applicable to exact match predicates such as
t1.a=2 or to range predicates such as
t1.a<10 as long as the column used in the predicate has a range index defined over it. If a range index is defined over multiple columns, it can be used for multiple column predicates. For example, the predicates
t1.c>'ABC' result in a range index scan if a range index is defined over columns
t1.c. The index can be used if it is defined over more columns. For example, if a range index is defined over
t1.d, the optimizer uses the index prefix over columns
c and returns all the values for column
d that match the stated predicate over columns
The optimizer can select from multiple join methods. When the rows from two tables are joined, one table is designated the outer table and the other the inner table. During a join, the optimizer scans the rows in the outer and inner tables to locate the rows that match the join condition.
The optimizer analyzes the statistics for each table and, for example, might identify the smallest table or the table with the best selectivity for the query as outer table. If indexes exist for one or more of the tables to be joined, the optimizer takes them into account when selecting the outer and inner tables.
If more than two tables are to be joined, the optimizer analyzes the various combinations of joins on table pairs to determine which pair to join first, which table to join with the result of the join, and so on for the optimum sequence of joins.
The cost of a join is largely influenced by the method in which the inner and outer tables are accessed to locate the rows that match the join condition. The optimizer can select from two join methods:
In a nested loop join with no indexes, a row in the outer table is selected one at a time and matched against every row in the inner table. All of the rows in the inner table are scanned as many times as the number of rows in the outer table. If the inner table has an index on the join column, that index is used to select the rows that meet the join condition. The rows from each table that satisfy the join condition are returned. Indexes may be created on the fly for inner tables in nested loops, and the results from inner scans may be materialized before the join.
Figure 5-2 shows an example of a nested loop join. The join condition is:
t1 is the outer table and
t2 is the inner table. Values in column
a in table
t1 that match values in column
a in table
t2 are 1 and 7. The join results concatenate the rows from
t2. For example, the first join result is the following row:
7 50 43.54 21 13.69
It concatenates a row from
7 50 43.54
with the first row from
t2 in which the values in column
7 21 13.69
Figure 5-2 Nested loop join
A merge join is used only when the join columns are sorted by range indexes. In a merge join, a cursor advances through each index one row at a time. Because the rows are already sorted on the join columns in each index, a simple formula is applied to efficiently advance the cursors through each row in a single scan. The formula looks something like:
If Inner.JoinColumn < Outer.JoinColumn, then advance inner cursor
If Inner.JoinColumn = Outer.JoinColumn, then read match
If Inner.JoinColumn > Outer.JoinColumn, then advance outer cursor
Unlike a nested loop join, there is no need to scan the entire inner table for each row in the outer table. A merge join can be used when range indexes have been created for the tables before preparing the query. If no range indexes exist for the tables being joined before preparing the query, the optimizer may in some situations create temporary range indexes in order to use a merge join.

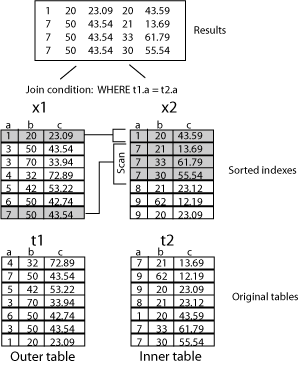

Figure 5-3 shows an example of a merge join. The join condition is:
x1 is the index on table
t1, sorting on column
x2 is the index on table
t2, sorting on column
a. The merge join results concatenate the rows in
x1 with rows in
x2 in which the values in column
a match. For example, the first merge join result is:
1 20 23.09 20 43.59
It concatenates a row in
1 20 23.09
with the first row in
x2 in which the values in column
1 20 43.59
Figure 5-3 Merge join
Like most database optimizers, the query optimizer stores the details on how to most efficiently perform SQL operations in an execution plan, which can be examined and customized by application developers and administrators.
The execution plan data is stored in the TimesTen SYS.PLAN table and includes information about which tables are to be accessed and in what order, which tables are to be joined, and which indexes are to be used. Users can direct the query optimizer to enable or disable the creation of an execution plan in the SYS.PLAN table by setting the
GenPlan optimizer flag in the
ttOptSetFlag built-in procedure.
The execution plan designates a separate step for each database operation to be performed to execute the query. The steps in the plan are organized into levels that designate which steps must be completed to generate the results required by the step or steps at the next level.
Consider this query:
SELECT COUNT(*) FROM t1, t2, t3 WHERE t3.b/t1.b > 1 AND t2.b <> 0 AND t1.a = -t2.a AND t2.a = t3.a;

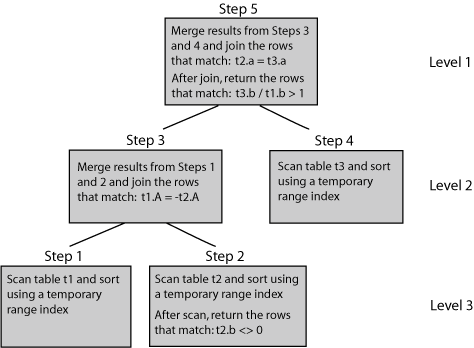

In this example, the optimizer breaks down the query into its individual operations and generates a 5-step execution plan to be performed at three levels, as shown in Figure 5-4.
Figure 5-4 Example execution plan
For more information about the query optimizer, see "The TimesTen Query Optimizer" in Oracle TimesTen In-Memory Database Operations Guide.
For more information about indexing, see "Understanding indexes" in Oracle TimesTen In-Memory Database Operations Guide.
