A P P E N D I X  A

Illustrated Parts Breakdown

This appendix contains a sequence of illustrations that show how the various pieces of the server fit together. Use the accompanying tables as a reference for ordering field-replaceable units (FRUs).

Consult the Sun Service Handbook or your authorized Sun sales representative or service provider for part numbers prior to ordering a replacement part.



Note - Illustrations might contain optional components that are not available on all standard configurations of the Netra 240 server.



This illustrated parts breakdown is divided into the following sections:


Front Panel Components

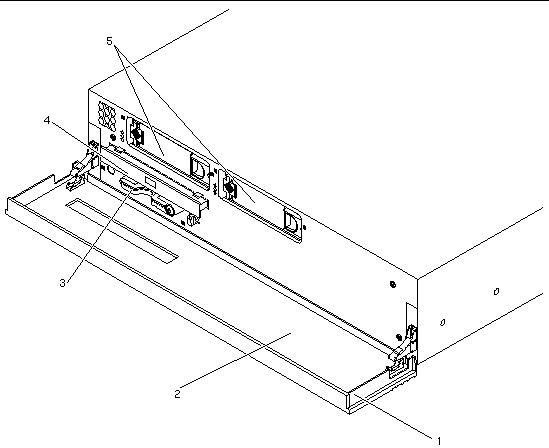

FIGURE A-1 Illustrated Parts Breakdown, Front Panel Components

This figure shows the number and location of the front panel components. Match the components with their part numbers in the table that follows.



This figure shows the number and location of the front panel components. Match the components with their part numbers in the table that follows.


This figure shows the number and location of the front panel components. Match the components with their part numbers in the table that follows.


TABLE A-1 Front Panel Components

Reference Number

Part

1

Bezel assembly

2

Air filter pack containing 10 foam filters

3

System configuration card

4

DVD drive--internal slim DVD-RW drive

4

DVD drive--internal slim DVD-ROM drive

5

Hard drive



Rotating Service Module, Internal and Rear Panel Components


FIGURE A-2 Rotating Service Module, Internal and Rear Panel Components

This figure shows the number and location of the rotating service module, internal and rear panel components. Match the components with their part numbers in the table that follows.



This figure shows the number and location of the rotating service module, internal and rear panel components. Match the components with their part numbers in the table that follows.


This figure shows the number and location of the rotating service module, internal and rear panel components. Match the components with their part numbers in the table that follows.


TABLE A-2 Rotating Service Module, Internal and Rear Panel Components

Reference Number

Part

1

Power distribution board (PDB)

2

Alarm board (behind front panel)

3

Front fan assembly

4

System configuration card reader cluster

5

SCSI interface board

6

PCI card (optional)

7

Air duct and rear fan assembly

8

Power supply units (DC)

8

Power supply units (AC)



Miscellaneous Internal Components


FIGURE A-3 Illustrated Parts Breakdown, Miscellaneous Internal Components

This figure shows the number and location of miscellaneous internal components. Match the components with their part numbers in the table that follows.





TABLE A-3 Miscellaneous Internal Components

Reference Number

Part

1

System board assembly: 1 x 1.28 GHz, 0 MB

1

System board assembly: 2 x 1.28 GHz, 0 MB

2

Hardware cryptographic module

3

Memory expansion SPD 0.0 DIMM: 2 x 256 MB

3

Memory expansion SPD 0.0 DIMM: 2 x 512 MB

3

Memory expansion SPD 0.0 DIMM: 2 x 1 GB

3

Memory expansion SPD 1.0 DIMM: 2 x 256 MB

3

Memory expansion SPD 1.0 DIMM: 2 x 512 MB

3

Memory expansion SPD 1.0 DIMM: 2 x 1 GB

3

Memory expansion 512MB DDR1 PC2100 (2x256MB), DDR 333

3

Memory expansion 1GB DDR1 PC2100 (2x512MB), DDR 333

3

Memory expansion 2GB DDR1 PC2100 (2x1GB), DDR 333
