Introduction

This supplement contains information specific to the products listed on the title page. For general ILOM descriptions, refer to Integrated Lights Out Manager (ILOM) Administration Guide.

This document provides information about the following topics:



Note - The information in this book applies to all products listed on the title page, except where otherwise noted.



How to Reset the Service Processor and BIOS Passwords

You can reset the administration password, and clear the BIOS password, using jumper procedure described in the Sun Fire X4100 and Sun Fire X4200 Server Service Manual, 819-1157.


Service Processor Lost Password Recovery Procedure (6881237)

In ILOM 3.0, the root account--which was used for administrative tasks in ILOM 2.0--has been removed and the default user account is used for initial login, creation of user accounts, and server configuration. After those tasks are performed, the default user account’s access is limited to the CLI on the SP console. Therefore, all subsequent user account changes (creations and modifications) and configuration changes should be done using specific user accounts. This requirement enables accountability to be traced to individual users who have access to specific accounts.

As mentioned, once you login to the default user account, subsequent access to this account is restricted to the CLI on the SP console, which connects through the serial management port. Additionally, by default, the SP requires that a “physical presence” switch be pressed on the server before the SP console can be used for this purpose. This requirement is there for security reasons as it prevents access to the default user account from a remote location, that is, you must have physical access to the server to use this account.

One of the uses of the default user account is lost password recovery. It is meant to be used when you cannot access the account for which the password was lost by using a different user account. User accounts assigned the user (u) role can be used to change and reset passwords on other user accounts. If there are no user accounts that have the ability to reset passwords, you can use the CLI on the SP console to log in to the default user account.


procedure icon  To Recover a Lost Password Using the default User Account

1. Connect a serial cable from the RJ-45 SER MGT port on the server’s back panel to a terminal device.

For instructions, refer to the Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Installation Guide (820-1155).

2. Ensure that the server is powered on.

The localhost login prompt appears.

3. Log in to the default user account. Type:

localhost login: default

4. Press the Locator button once.

This Locator button is on the front of the server.

5. Press the Enter key on the terminal device.

The SP displays the Password prompt.

6. Enter the password for the default user account.

The default user account password is the product serial number and it cannot be changed. The product serial number is printed on the server hardware or on the product purchase documentation.

Once you have successfully logged in, the SP displays its default CLI command prompt: ->

7. You can now use the default user account to reset the passwords for user accounts for which passwords have been lost.

For instructions on how to use the CLI to reset user passwords, see the Sun Integrated Lights Out Manager 3.0 User’s Guide (820-4597).


Hardware Information

This section provides information about the system hardware.

Server Locator Indicator

This is a pair of small lights that you turn on to help you identify a specific server among many in a data center. One light is positioned on the front of the server in the upper-left corner, and the other light is on the back of the server in the upper-center section.

Hardware Port Locations

The ILOM communicates through the server’s serial management port and through a dedicated Ethernet port.

FIGURE 1 shows the location of the serial port and the service processor Ethernet port on Sun Fire X4100/Sun Fire X4100 M2 servers.

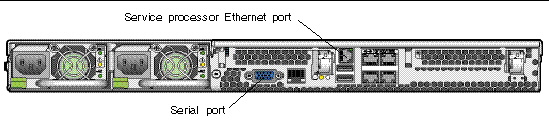

FIGURE 1 Sun Fire X4100/X4100 M2 Rear Panel with Service Processor Port Locations


Graphic showing Sun Fire x4100 rear panel, including port locations.

FIGURE 2 shows the location of the serial port and the service processor Ethernet port on Sun Fire X4200/X4200 M2 servers.

FIGURE 2 Sun Fire X4200/X4200 M2 Rear Panel with Service Processor Port Locations


Graphic showing Sun Fire x4200 rear panel, including port locations.

Serial Port (Left) and shows enlarged diagrams of the serial port and the service processor Ethernet port.

FIGURE 3 Service Processor Ethernet Port (Right)


Graphic showing service processor GUI Ethernet management port.


Sensors

These servers include a number of sensors that generate entries in the system event log (SEL) when the sensor crosses a threshold. Many of these readings are used to adjust the fan speeds and perform other actions, such as illuminating LEDs and powering off the chassis.

These sensors can also be configured to generate IPMI PET traps, as described in the Administration Guide.



caution icon Caution - Do not use any interface other than the ILOM CLI or WebGUI to alter the state or configuration of any sensor or LED. Doing so could void your warranty.


This section describes the sensors and provides details about their operation.

Temperature, Voltage, and Fan Sensor Readings

The system monitors six temperature sensors. They all generate IPMI events that are logged in to the system event log (SEL) when an upper threshold is exceeded. Three of these sensor readings are used to adjust the fan speeds and perform other actions, such as illuminating LEDs and powering off the chassis; these are described in Tables Front Panel Ambient Temperature (fp.t_amb) and CPU Die Temperatures (p0.t_core and p1.t_core) follows:


TABLE 1 Front Panel Ambient Temperature (fp.t_amb)

Temperature (degrees C)



Sun Fire X4100/X4200

Sun Fire X4100/X4200 M2

Upper noncritical

30

30

Upper critical

35

35

Upper nonrecoverable

40

45



TABLE 2 CPU Die Temperatures (p0.t_core and p1.t_core)

Temperature (degrees C)



Sun Fire X4100/X4200

Sun Fire X4100/X4200 M2

Upper noncritical

55

62

Upper critical

65

67

Upper nonrecoverable

75

75


There are three other temperature sensors:

List of Sensors

TABLE 3 lists the sensors. TABLE 4 provides more detailed information about individual sensors.


TABLE 3 List of Sensors

Sensor Name

Data

Status

sys.id

0x10

OK

sys.intsw

0x00

OK

sys.psfail

0x01

OK

sys.tempfail

0x01

OK

sys.fanfail

0x01

OK

mb.t_amb

25 degrees C

OK

mb.v_bat

2.72 Volts

OK

mb.v_+3v3stby

3.10 Volts

OK

mb.v_+3v3

3.34 Volts

OK

mb.v_+5v

4.99 Volts

OK

mb.v_+12v

11.84 Volts

OK

mb.v_-12v

-12.28 Volts

OK

mb.v_+1v2core

1.22 Volts

OK

bp.power

0x02

OK

bp.locate

0x02

OK

bp.locate.btn

0x01

OK

bp.alert

0x01

OK

fp.prsnt

0x02

OK

fp.t_amb

23 degrees C

OK

fp.usbfail

0x01

OK

fp.power

0x02

OK

fp.locate

0x01

OK

fp.locate.btn

0x01

OK

fp.alert

0x01

OK

fp.ledbd.prsnt

0x02

OK

pdb.t_amb

24 degrees C

OK

ps0.prsnt

0x02

OK

ps0.pwrok

0x02

OK

ps0.vinok

0x02

OK

ps1.prsnt

0x01

OK

ps1.pwrok

Not Readable

ns

ps1.vinok

Not Readable

ns

io.t_amb

22 degrees C

OK

io.id0.prsnt

0x01

OK

io.id1.prsnt

0x02

OK

io.f0.prsnt

0x02

OK

io.f0.speed

4000 RPM

OK

io.f0.fail

0x01

OK

io.hdd0.fail

0x01

OK

io.hdd1.fail

0x01

OK

io.hdd2.fail

0x01

OK

io.hdd3.fail

0x01

OK

p0.t_core

40 degrees C

OK

p0.v_vdd

1.44 Volts

OK

p0.v_vddio

2.63 Volts

OK

p0.v_vtt

1.31 Volts

OK

p0.fail

0x02

OK

p0.d0.fail

0x01

OK

p0.d1.fail

0x01

OK

p0.d2.fail

0x01

OK

p0.d3.fail

0x01

OK

p1.t_core

44 degrees C

OK

p1.v_vdd

1.45 Volts

OK

p1.v_vddio

2.63 Volts

OK

p1.v_vtt

1.31 Volts

OK

p1.fail

0x02

OK

p1.d0.fail

0x01

OK

p1.d1.fail

0x01

OK

p1.d2.fail

0x01

OK

p1.d3.fail

0x01

OK

ft0.fm0.fail

0x01

OK

ft0.fm1.fail

0x01

OK

ft0.fm2.fail

0x01

OK

ft1.fm0.fail

0x01

OK

ft1.fm1.fail

0x01

OK

ft1.fm2.fail

0x01

OK

ft0.fm0.prsnt

0x02

OK

ft0.fm1.prsnt

0x02

OK

ft0.fm2.prsnt

0x02

OK

ft1.fm0.prsnt

0x02

OK

ft1.fm1.prsnt

0x02

OK

ft1.fm2.prsnt

0x02

OK

ft0.fm0.f0.speed

11000 RPM

OK

ft0.fm1.f0.speed

11000 RPM

OK

ft0.fm2.f0.speed

12000 RPM

OK

ft1.fm0.f0.speed

12000 RPM

OK

ft1.fm1.f0.speed

11000 RPM

OK

ft1.fm2.f0.speed

12000 RPM

OK




TABLE 4 provides detailed information about individual sensors.


TABLE 4 Sensor Details

Sensor

Data

Sensor ID

sys.id (0x0)

Entity ID

23.0 (System Chassis)

Sensor Type (Discrete)

Chassis

States Asserted

Digital State



[State Deasserted]

Sensor ID

sys.intsw (0x1)

Entity ID

23.0 (System Chassis)

Sensor Type (Discrete)

Physical Security

Assertions Enabled

Physical Security



[General Chassis intrusion]

Sensor ID

sys.psfail (0x2)

Entity ID

23.0 (System Chassis)

Sensor Type (Discrete)

Power Supply

States Asserted

Digital State



[Predictive Failure Deasserted]

Sensor ID

sys.tempfail (0x3)

Entity ID

23.0 (System Chassis)

Sensor Type (Discrete)

Temperature

States Asserted

Digital State



[Predictive Failure Deasserted]

Sensor ID

sys.fanfail (0x4)

Entity ID

23.0 (System Chassis)

Sensor Type (Discrete)

Fan

States Asserted

Digital State



[Predictive Failure Deasserted]

Sensor ID

mb.t_amb (0x5)

Type

Temperature

Class

Threshold Sensor

Value

19.000 degree C

Upper_nonrecov_threshold

80.000 degree C

Upper_critical_threshold

75.000 degree C

Upper_noncritical_threshold

70.000 degree C

Lower_noncritical_threshold

N/A

Lower_critical_threshold

N/A

Lower_nonrecov_threshold

N/A

Sensor ID

mb.v_bat (0x6)

Type

Voltage

Class

Threshold Sensor

Value

2.855 Volts

Upper_nonrecov_threshold

3.697 Volts

Upper_critical_threshold

3.510 Volts

Upper_noncritical_threshold

3.307 Volts

Lower_noncritical_threshold

2.621 Volts

Lower_critical_threshold

2.527 Volts

Lower_nonrecov_threshold

2.340 Volts

Sensor ID

mb.v_+3v3stby (0x7)

Entity ID

7.0 (System Board)

Sensor Type (Analog)

Voltage

Sensor Reading

3.114 (+/- 0) Volts

Status

OK

Upper nonrecoverable

3.996

Upper critical

3.789

Upper noncritical

3.598

Lower nonrecoverable

2.595

Lower critical

2.785

Lower noncritical

2.993

Positive Hysteresis

0.087

Negative Hysteresis

0.087

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

mb.v_+3v3 (0x8)

Entity ID

7.0 (System Board)

Sensor Type (Analog)

Voltage

Sensor Reading

3.339 (+/- 0) Volts

Status

OK

Upper nonrecoverable

3.996

Upper critical

3.789

Upper noncritical

3.598

Lower nonrecoverable

2.595

Lower critical

2.785

Lower noncritical

2.993

Positive Hysteresis

0.087

Negative Hysteresis

0.087

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

mb.v_+5v (0x9)

Entity ID

7.0 (System Board)

Sensor Type (Analog)

Voltage

Sensor Reading

4.992 (+/- 0) Volts

Status

OK

Upper nonrecoverable

6.500

Upper critical

5.980

Upper noncritical

5.486

Lower nonrecoverable

3.484

Lower critical

3.978

Lower noncritical

4.498

Positive Hysteresis

0.078

Negative Hysteresis

0.078

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

mb.v_+12v (0xa)

Entity ID

7.0 (System Board)

Sensor Type (Analog)

Voltage

Sensor Reading

11.844 (+/- 0) Volts

Status

OK

Upper nonrecoverable

14.994

Upper critical

13.986

Upper noncritical

12.978

Lower nonrecoverable

8.946

Lower critical

9.954

Lower noncritical

10.962

Positive Hysteresis

0.063

Negative Hysteresis

0.063

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

mb.v_-12v (0xb)

Entity ID

7.0 (System Board)

Sensor Type (Analog)

Voltage

Sensor Reading

-12.277 (+/- -16.000) Volts

Status

OK

Upper nonrecoverable

-9.065

Upper critical

-10.014

Upper noncritical

-11.036

Lower nonrecoverable

-15.051

Lower critical

-14.029

Lower noncritical

-13.007

Positive Hysteresis

0.133

Negative Hysteresis

0.133

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

mb.v_+1v2core (0xe)

Entity ID

7.0 (System Board)

Sensor Type (Analog)

Voltage

Sensor Reading

1.220 (+/- 0) Volts

Status

OK

Upper nonrecoverable

1.900

Upper critical

1.700

Upper noncritical

1.500

Lower nonrecoverable

0.600

Lower critical

0.800

Lower noncritical

1.000

Positive Hysteresis

0.100

Negative Hysteresis

0.100

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

bp.power (0xf)

Entity ID

13.1 (Back Panel Board)

Sensor Type (Discrete)

Power Supply

States Asserted

Digital State



[State Asserted]

Sensor ID

bp.locate (0x10)

Entity ID

13.2 (Back Panel Board)

Sensor Type (Discrete)

Button

States Asserted

Digital State



[State Asserted]

Sensor ID

bp.locate.btn (0x11)

Entity ID

13.2 (Back Panel Board)

Sensor Type (Discrete)

Button

States Asserted

Digital State



[State Deasserted]

Assertions Enabled

Digital State



[State Asserted]

Sensor ID

bp.alert (0x12)

Entity ID

13.3 (Back Panel Board)

Sensor Type (Discrete)

Platform Alert

States Asserted

Digital State



[State Deasserted]

Sensor ID

fp.prsnt (0x13)

Entity ID

12.0 (Front Panel Board)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

fp.t_amb (0x14)

Entity ID

12.0 (Front Panel Board)

Sensor Type (Analog)

Temperature

Sensor Reading

23 (+/- 0) degrees C

Status

OK

Upper nonrecoverable

43.000

Upper critical

35.000

Upper noncritical

30.000

Positive Hysteresis

Unspecified

Negative Hysteresis

Unspecified

Minimum sensor range

-127.000

Maximum sensor range

127.000

Event Message Control

Per-threshold

Readable Thresholds

unc ucr unr

Settable Thresholds

unc ucr unr

Threshold Read Mask

unc ucr unr

Assertions Enabled

ucr+ unr+

Deassertions Enabled

ucr+ unr+

Sensor ID

fp.usbfail (0x15)

Entity ID

12.0 (Front Panel Board)

Sensor Type (Discrete)

Slot / Connector

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

fp.power (0x16)

Entity ID

12.1 (Front Panel Board)

Sensor Type (Discrete)

Power Supply

States Asserted

Digital State



[State Asserted]

Sensor ID

fp.locate (0x17)

Entity ID

12.2 (Front Panel Board)

Sensor Type (Discrete)

Button

States Asserted

Digital State



[State Deasserted]

Sensor ID

fp.locate.btn (0x18)

Entity ID

12.2 (Front Panel Board)

Sensor Type (Discrete)

Button

States Asserted

Digital State



[State Deasserted]

Assertions Enabled

Digital State



[State Asserted]

Sensor ID

fp.alert (0x19)

Entity ID

12.3 (Front Panel Board)

Sensor Type (Discrete)

Platform Alert

States Asserted

Digital State



[State Deasserted]

Sensor ID

fp.ledbd.prsnt (0x1a)

Entity ID

12.0 (Front Panel Board)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

pdb.t_amb (0x1b)

Type

Temperature

Class

Threshold Sensor

Value

15.000 degree C

Upper_nonrecov_threshold

80.000 degree C

Upper_critical_threshold

75.000 degree C

Upper_noncritical_threshold

70.000 degree C

Lower_noncritical_threshold

N/A

Lower_critical_threshold

N/A

Lower_nonrecov_threshold

N/A

Sensor ID

ps0.prsnt (0x1c)

Entity ID

10.0 (Power Supply)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ps0.pwrok (0x1d)

Entity ID

10.0 (Power Supply)

Sensor Type (Discrete)

Power Supply

States Asserted

Digital State



[State Asserted]

Assertions Enabled

Digital State



[State Deasserted]



[State Asserted]

Sensor ID

ps0.vinok (0x1e)

Entity ID

10.0 (Power Supply)

Sensor Type (Discrete)

Power Supply

States Asserted

Digital State



[State Asserted]

Assertions Enabled

Digital State



[State Deasserted]



[State Asserted]

Sensor ID

ps1.prsnt (0x1f)

Entity ID

10.1 (Power Supply)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Absent]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ps1.pwrok (0x20)

Entity ID

10.1 (Power Supply)

Sensor Type (Discrete)

Power Supply

Assertions Enabled

Digital State



[State Deasserted]



[State Asserted]

Sensor ID

ps1.vinok (0x21)

Entity ID

10.1 (Power Supply)

Sensor Type (Discrete)

Power Supply

Assertions Enabled

Digital State



[State Deasserted]



[State Asserted]

Sensor ID

io.t_amb (0x22)

Upper nonrecoverable

80.000

Upper critical

75.000

Upper noncritical

70.000

Sensor ID

io.id0.prsnt (0x23)

Entity ID

15.0 (Drive Backplane)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Absent]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

io.id1.prsnt (0x24)

Entity ID

15.0 (Drive Backplane)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

io.f0.prsnt (0x25)

Entity ID

15.0 (Drive Backplane)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

io.f0.speed (0x26)

Upper nonrecoverable

8000.000

Lower nonrecoverable

3000.000

Sensor ID

io.hdd0.fail (0x28)

Entity ID

4.0 (Disk or Disk Bay)

Sensor Type (Discrete)

Drive Slot / Bay

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Deasserted]



[Predictive Failure Asserted]

Sensor ID

io.hdd1.fail (0x29)

Entity ID

4.1 (Disk or Disk Bay)

Sensor Type (Discrete)

Drive Slot / Bay

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Deasserted]



[Predictive Failure Asserted]

Sensor ID

io.hdd2.fail (0x2a)

Entity ID

4.2 (Disk or Disk Bay)

Sensor Type (Discrete)

Drive Slot / Bay

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Deasserted]



[Predictive Failure Asserted]

Sensor ID

io.hdd3.fail (0x2b)

Entity ID

4.3 (Disk or Disk Bay)

Sensor Type (Discrete)

Drive Slot / Bay

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Deasserted]



[Predictive Failure Asserted]

Sensor ID

p0.t_core (0x2c)

Type

Temperature

Class

Threshold Sensor

Value

Not Readable

Upper_nonrecov_threshold

75.000 degree C

Upper_critical_threshold

67.000 degree C

Upper_noncritical_threshold

62.000 degree C

Lower_noncritical_threshold

N/A

Lower_critical_threshold

N/A

Lower_nonrecov_threshold

N/A

Sensor ID

p0.v_vdd (0x2d)

Type

Voltage

Class

Threshold Sensor

Value

Not Readable

Nonrecov_threshold

0.792 Volts

Upper_nonrecov_threshold

1.800 Volts

Upper_critical_threshold

1.692 Volts

Upper_noncritical_threshold

1.596 Volts

Lower_noncritical_threshold

0.996 Volts

Lower_critical_threshold

0.900 Volts

Lower_nonrecov_threshold

0.792 Volts

Sensor ID

p0.v_vddio (0x2e) and p1.v_vddio (0x37)

/SYS/MB/P0/V_VDDIO

Type

Voltage

Class

Threshold Sensor

Value

Not Readable

Upper_nonrecov_threshold

2.196 Volts

Upper_critical_threshold

2.100 Volts

Upper_noncritical_threshold

1.992 Volts

Lower_noncritical_threshold

1.596 Volts

Lower_critical_threshold

1.500 Volts

Lower_nonrecov_threshold

1.392 Volts

Sensor ID

p0.v_vtt (0x2f)

Sensor Type (Analog)

Voltage

Class

Threshold Sensor

Value

Not Readable

Upper nonrecoverable threshold

1.200 Volts

Upper critical threshold

1.092 Volts

Upper noncritical threshold

0.996 Volts

Lower noncritical threshold

0.792 Volts

Lower critical threshold

0.696 Volts

Lower nonrecoverable threshold

0.600 Volts

Sensor ID

p0.fail (0x30)

Entity ID

3.0 (Processor)

Sensor Type (Discrete)

Processor

States Asserted

Digital State



[Predictive Failure Asserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p0.d0.fail (0x31)

Entity ID

32.0 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p0.d1.fail (0x32)

Entity ID

32.1 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p0.d2.fail (0x33)

Entity ID

32.2 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p0.d3.fail (0x34)

Entity ID

32.3 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p1.t_core (0x35)

Entity ID

3.1 (Processor)

Sensor Type (Analog)

Temperature

Sensor Reading

44 (+/- 0) degrees C

Status

OK

Upper nonrecoverable

75.000

Upper critical

65.000

Upper noncritical

60.000

Positive Hysteresis

2.000

Negative Hysteresis

2.000

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

unc ucr unr

Settable Thresholds

unc ucr unr

Threshold Read Mask

unc ucr unr

Assertions Enabled

ucr+ unr+

Deassertions Enabled

ucr+ unr+

Sensor ID

p1.v_vdd (0x36)

Entity ID

3.1 (Processor)

Sensor Type (Analog)

Voltage

Sensor Reading

1.452 (+/- 0) Volts

Status

OK

Upper nonrecoverable

1.8

Upper critical

1.7

Upper noncritical

1.6

Lower nonrecoverable

0.8

Lower critical

0.9

Lower noncritical

1.0

Positive Hysteresis

0.096

Negative Hysteresis

0.096

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

p1.v_vtt (0x38)

Type

Voltage

Class

Threshold sensor

Value

Not readable

Upper non-reoverable threshold

1.200 volts

Upper critical threshold

1.092 volts

Upper noncritical threshold

0.996 volts

Lower noncritical threshold

0.792 volts

Lower critical threshold

0.696 volts

Lower nonrecoverable threshold

0.600 volts

Minimum sensor range

Unspecified

Maximum sensor range

Unspecified

Event Message Control

Per-threshold

Readable Thresholds

lnr lcr lnc unc ucr unr

Settable Thresholds

lnr lcr lnc unc ucr unr

Threshold Read Mask

lnr lcr lnc unc ucr unr

Assertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Deassertions Enabled

lnc- lcr- lnr- unc+ ucr+ unr+

Sensor ID

p1.fail (0x39)

Entity ID

3.1 (Processor)

Sensor Type (Discrete)

Processor

States Asserted

Digital State



[Predictive Failure Asserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p1.d0.fail (0x3a)

Entity ID

32.4 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p1.d1.fail (0x3b)

Entity ID

32.5 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p1.d2.fail (0x3c)

Entity ID

32.6 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

p1.d3.fail (0x3d)

Entity ID

32.7 (Memory Device)

Sensor Type (Discrete)

Memory

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

ft0.fm0.fail (0x3e)

Entity ID

29.0 (Fan Device)

Sensor Type (Discrete)

Fan

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

ft0.fm1.fail (0x3f)

Entity ID

29.1 (Fan Device)

Sensor Type (Discrete)

Fan

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

ft0.fm2.fail (0x40)

Entity ID

29.2 (Fan Device)

Sensor Type (Discrete)

Fan

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

ft1.fm0.fail (0x41)

Entity ID

29.3 (Fan Device)

Sensor Type (Discrete)

Fan

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

ft1.fm1.fail (0x42)

Entity ID

29.4 (Fan Device)

Sensor Type (Discrete)

Fan

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

ft1.fm2.fail (0x43)

Entity ID

29.5 (Fan Device)

Sensor Type (Discrete)

Fan

States Asserted

Digital State



[Predictive Failure Deasserted]

Assertions Enabled

Digital State



[Predictive Failure Asserted]

Sensor ID

ft0.fm0.prsnt (0x44)

Entity ID

29.0 (Fan Device)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ft0.fm1.prsnt (0x45)

Entity ID

29.1 (Fan Device)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ft0.fm2.prsnt (0x46)

Entity ID

29.2 (Fan Device)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ft1.fm0.prsnt (0x47)

Entity ID

29.3 (Fan Device)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ft1.fm1.prsnt (0x48)

Entity ID

29.4 (Fan Device)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ft1.fm2.prsnt (0x49)

Entity ID

29.5 (Fan Device)

Sensor Type (Discrete)

Entity Presence

States Asserted

Availability State



[Device Present]

Assertions Enabled

Availability State



[Device Absent]



[Device Present]

Sensor ID

ft0.fm0.f0.speed (0x4a),

ft0.fm1.f0.speed (0x4b),

ft0.fm2.f0.speed (0x4c),

ft1.fm0.f0.speed (0x4d),

ft1.fm1.f0.speed (0x4e),

ft1.fm2.f0.speed (0x4f)

Type

Fan

Class

Threshold Sensor

Value

Not Readable

Upper_nonrecov_threshold

22000.000 RPM

Upper_critical_threshold

N/A

Upper_noncritical_threshold

N/A

Lower_noncritical_threshold

N/A

Lower_critical_threshold

N/A

Lower_nonrecov_threshold

3000.000 RPM
