Front Features and Components

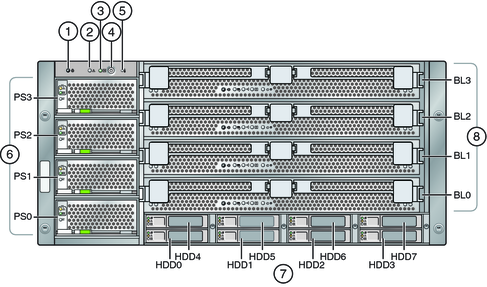

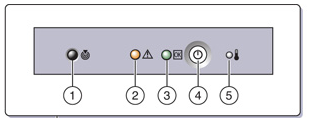

image:Front Features and Componentsimage:Blowup of front panel LEDs

Note - To find the chassis serial number, see How to Find the Server's Serial Number.


Figure Legend
1
Locate button/LED (white)
5
Over Temperature LED (amber)
2
Service Action Required LED (amber)
6
Power supplies (PS0 through PS3)
3
Power/OK LED (green)
7
Hard drives (HDD0 through HDD7)
4
Power button
8
CPU modules (BL0 through BL3)

For back panel features and components, see Back Features and Components.
