|A P P E N D I X A|
This appendix describes how to properly insert a disk drive into a controller or expansion tray.
The correct way to insert a disk drive into the tray is as follows:
1. Push the disk drive into the chassis by slowly pushing against the drive housing until the drive handle engages with the chassis.
2. When the handle starts to move itself downwards, push the disk drive handle down. This will crank the disk drive the rest of the way into the chassis.
FIGURE A-1 shows a drive being inserted into the chassis the correct way.

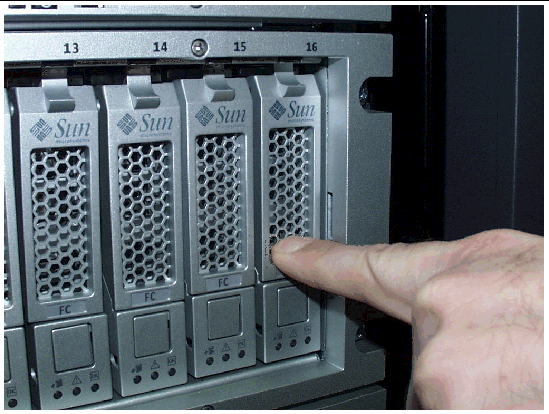

FIGURE A-1 Inserting a Disk Drive.
When the drive is completely installed, the drive and handle will be flush with the others, as shown in FIGURE A-2.
FIGURE A-2 Successfully Inserted Disk Drive

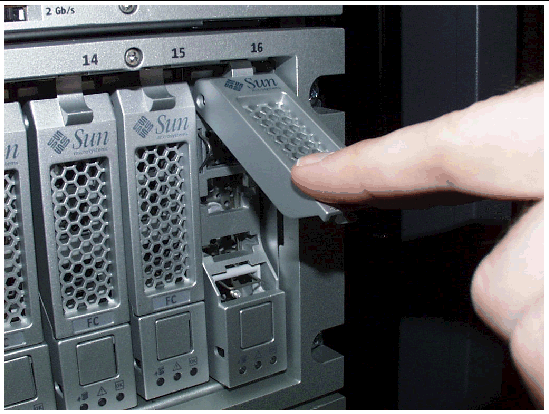

FIGURE A-3 shows the wrong way to insert the drive.
FIGURE A-3 Incorrect Method of Inserting a Hard Drive
