This chapter describes how to use iPlanet Web Proxy Server as a reverse proxy. Reverse proxy is the name for certain alternate uses of a proxy server. It can be used outside the firewall to represent a secure content server to outside clients, preventing direct, unmonitored access to your server's data from outside your company. It can also be used for replication; that is, multiple proxies can be attached in front of a heavily used server for load balancing. This chapter describes the alternate ways that iPlanet Web Proxy Server can be used inside or outside a firewall.
How Reverse Proxying Works
There are two models for reverse proxying. One model takes advantage of iPlanet Web Proxy Server's security features to handle transactions, and the other makes use of its caching features to provide load balancing on a heavily used server. Both of these models differ from the conventional proxy usage in that they don't operate strictly on a firewall.
Proxy as a Stand-in for a Server
If you have a content server that has sensitive information that must remain secure, such as a database of credit card numbers, you can set up a proxy outside the firewall as a stand-in for your content server. When outside clients try to access the content server, they are sent to the proxy server instead. The real content resides on your content server, safely inside the firewall. The proxy server resides outside the firewall, and appears to the client to be the content server.
When a client makes a request to your site, the request goes to the proxy server. The proxy server then sends the client's request through a specific passage in the firewall to the content server. The content server passes the result through the passage back to the proxy. The proxy sends the retrieved information to the client, as if the proxy were the actual content server (see Figure 7-1). If the content server returns an error message, the proxy server can intercept the message and change any URLs listed in the headers before sending the message to the client. This prevents external clients from getting redirection URLs to the internal content server.
In this way, the proxy provides an additional barrier between the secure database and the possibility of malicious attack. In the unlikely event of a successful attack, the perpetrator is more likely to be restricted to only the information involved in a single transaction, as opposed to having access to the entire database. The unauthorized user can't get to the real content server because the firewall passage allows only the proxy server to have access.
Figure 7-1 A reverse proxy appears to be the real content server
.You can configure the firewall router to allow a specific server on a specific port (in this case, the proxy on its assigned port) to have access through the firewall without allowing any other machines in or out.
Secure Reverse Proxying
Secure reverse proxying occurs when one or more of the connections between the proxy server and another machine uses the Secure Sockets Layer (SSL) protocol to encrypt data. For more information about SSL and encryption, see Chapter 14 "Understanding Encryption and SSL
Secure reverse proxying has many uses:
- It can provide an encrypted connection from a proxy server outside a firewall to a secure content server inside the firewall.
- It can allow clients to connect securely to the proxy server, facilitating the secure transmission of information (such as credit card numbers).
Secure reverse proxying causes each secure connection to be slower due to the overhead involved in encrypting your data. However, because SSL provides a caching mechanism, two connecting parties can reuse previously negotiated security parameters, dramatically reducing the overhead on subsequent connections.
There are three ways to configure a secure reverse proxy:
- Secure client to proxy. This scenario is effective if there is little or no chance that the information being exchanged between your proxy and content server can be accessed by unauthorized users (see Figure 7-2).

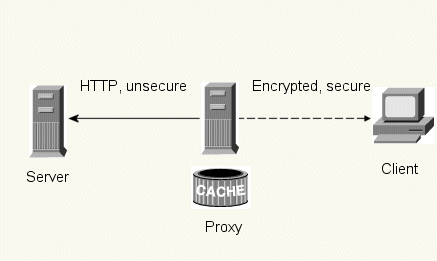

Figure 7-2 Secure client connection to proxy
- Secure proxy to content server. This scenario is effective if you have clients inside the firewall and a content server that is outside the firewall. In this scenario, your proxy server can act as a secure channel between sites (see Figure 7-3).
Figure 7-3 Secure proxy connection to content server
- Secure client to proxy and secure proxy to content server. This scenario is effective if the information exchanged between the server, proxy and client needs to be secure. In this scenario, your proxy server can act like a secure channel between sites with the additional security of client authentication (see Figure 7-4).
Figure 7-4 Secure client connection to proxy and secure proxy connection to content server
For information on how to set up each of these configurations, see Setting up a Reverse Proxy.
In addition to SSL, the proxy can use client authentication, which requires that a computer making a request to the proxy provides a certificate (or form of identification) to verify its identity. For more information on client authentication, see the section entitled What is Client Authentication?.
Proxying for Load Balancing
You can use multiple proxy servers within an organization to balance the network load among web servers. This model lets you take advantage of the caching features of the proxy server to create a server pool for load balancing. In this case, the proxy servers can be on either side of the firewall. If you have a web server that receives a high number of requests per day, you could use proxy servers to take the load off the web server and make the network access more efficient.
The proxy servers act as go-betweens for client requests to the real server. The proxy servers cache the requested documents. If there is more than one proxy server, DNS can route the requests randomly using a "round-robin" selection of their IP addresses. The client uses the same URL each time, but the route the request takes might go through a different proxy each time.
The advantage of using multiple proxies to handle requests to one heavily used content server is that the server can handle a heavier load, and more efficiently than it could alone. After an initial start-up period in which the proxies retrieve documents from the content server for the first time, the number of requests to the content server can drop dramatically.
Only CGI requests and occasional new requests must go all the way to the content server. The rest can be handled by a proxy. Here's an example. Suppose that 90% of the requests to your server are not CGI requests (which means they can be cached), and that your content server receives 2 million hits per day. In this situation, if you connect three reverse proxies, and each of them handles 2 million hits per day, about 6 million hits per day would then be possible. The 10% of requests that reach the content server could add up to about 200,000 hits from each proxy per day, or only 600,000 total, which is far more efficient. The number of hits could increase from around 2 million to 6 million, and the load on the content server could decrease correspondingly from 2 million to 600,000. Your actual results would depend upon your situation.
Figure 7-5 Proxy used for load balancing
Setting up a Reverse Proxy
To set up a reverse proxy, you need two mappings: a regular and a reverse mapping.
- The regular mapping redirects requests to the content server. When a client requests a document from the proxy server, the proxy server needs a regular mapping to tell it where to get the actual document.
Caution
You shouldn't use a reverse proxy with a proxy that serves autoconfiguration files. This is because the proxy could return the wrong result. See Chapter 11 "Using the Client Autoconfiguration File for more information on using autoconfiguration files with a reverse proxy.
- The reverse mapping makes the proxy server trap for redirects from the content server. The proxy intercepts the redirect and then changes the redirected URL to map to the proxy server. For example, if the client requests a document that was moved or not found, the content server will return a message to the client explaining that it can't find the document at the requested URL. In that returned message, the content server adds an HTTP header that lists a URL to use to get the moved file. In order to maintain the privacy of the internal content server, the proxy can redirect the URL using a reverse mapping.
Suppose you have a web server called http://http.site.com/ and you want to set up a reverse proxy server for it. You could call the reverse proxy http://proxy.site.com/.
You would create a regular mapping and a reverse mapping as follows:
- In the Server Manager, choose URLs|Create Mappings.
In the form that appears, enter information for a single mapping. For example:
Regular mapping:
Source prefix: http://proxy.site.com
Source destination: http://http.site.com/
- Click OK. Return to the form and create the second mapping:
Reverse mapping:
Source prefix: http://http.site.com/
Source destination: http://proxy.site.com/
- To make the change, click the OK button.
Once you click the OK button, the proxy server adds one or more additional mappings. To see the mappings, click the link called View/Edit Mappings. Additional mappings would be in the following format:
from: /
to: http://http.site.com/
These additional automatic mappings are for users who connect to the reverse proxy as a normal server. The first mapping is to catch users connecting to the reverse proxy as a regular proxy. Depending on the setup, usually the second is the only one required, but it doesn't cause problems in the proxy to have them both.
CGI applications still run on the origin server; the proxy server never runs CGI applications on its own. However, if the CGI script indicates that the result can be cached (by implying a non-zero time-to-live by issuing a Last-modified or Expires header), the proxy will cache the result.
Setting up a Secure Reverse Proxy
Before setting up secure reverse proxying, you should be familiar with digital certificates, Certificate Authorities, and authentication. For more information on these subjects, see Chapter 14 "Understanding Encryption and SSL."
Setting up a secure reverse proxy is almost the same as setting up an unsecure reverse proxy. The only difference is that you need to specify HTTPS as the protocol for the files to be encrypted. For more information on proxying HTTPS, see Enabling HTTPS Proxying. For more information on setting up a reverse proxy, see "Setting up a Reverse Proxy".
The following instructions explain how to set up your secure reverse proxy according to the configuration scenario you choose. To demonstrate how to set up mappings, the instructions suppose that you have a web server called http.site.com and that you want to set up a secure reverse proxy server called proxy.site.com. When following the steps, substitute the name of your web server and proxy for the example names used in the directions.
Secure Client to Proxy
- In the Server Manager, choose URLs|Create Mappings. In the form that appears, set up regular and reverse mappings in the following manner:
Regular mapping:
Source prefix: https://proxy.mysite.com
Source destination: http://http.mysite.com/
Reverse mapping:
Source prefix: http://http.mysite.com/
Source destination: https://proxy.mysite.com/
- Save and Apply your changes.
To see the mappings you just created, click the link called View/Edit Mappings.
Secure Proxy to Content Server
- In the Server Manager, choose URLs|Create Mappings.
In the form that appears, set up regular and reverse mappings in the following manner:
Regular mapping:
Source prefix: http://proxy.mysite.com
Source destination: https://http.mysite.com/
Reverse mapping:
Source prefix: https://http.mysite.com/
Source destination: http://proxy.mysite.com/
- Save and Apply your changes. To see the mappings you just created, click the link called View/Edit Mappings.
Note This configuration will only work if your content server is running in secure mode.
Secure Client to Proxy and Secure Proxy to Content Server
- In the Server Manager, choose URLs|Create Mappings.
In the form that appears, set up regular and reverse mappings in the following manner:
Regular mapping:
Source prefix: https://proxy.mysite.com
Source destination: https://http.mysite.com/
Reverse mapping:
Source prefix: https://http.mysite.com/
Source destination: https://proxy.mysite.com/
- Save and Apply your changes. To see the mappings you just created, click the link called View/Edit Mappings.
Virtual Multihosting in Reverse Proxy
Virtual multihosting is a feature which allows an origin server, or in our case, a reverse proxy server, to respond to multiple DNS aliases as if there was a different server installed in each of those addresses. As an example, you could have the DNS hostnames:
- www
- specs
- phones
Each of them could be mapped to the same IP address (the IP address of the reverse proxy). You could then have the reverse proxy act differently based on which DNS name was used to access it.
Virtual Multihosting allows you to host multiple different *domains* in a single reverse proxy server as well. For example:
- www.domain-1.com
- www.domain-2.com
- www.domain-3.com
Note that you can have a combination of multiple local hostnames as well as multiple domains, all in a single proxy server:
- www
- specs
- phones
- www.domain-1.com
- www.domain-2.com
- www.domain-3.com
Functional Details of Virtual Multihosting
The virtual multihosting feature works by specifying the DNS host and domain names (or aliases), and then giving a target URL prefix where requests sent to that hostname should be directed. As an example, you can have two mappings:
- engr.domain.com -> http://int-engr.domain.com
- mktg.domain.com -> http://int-mktg.domain.com
Mappings do not have to go root-to-root; you may specify an additional URL path prefix in the target URL:
- engr.domain.com -> http://internal.domain.com/engr
- mktg.domain.com -> http://internal.domain.com/mktg
Same applies to virtual domain mappings. For example, you could use:
- www.domain-1.com -> http://int-engr.domain.com
- www.domain-2.com -> http://int-mktg.domain.com
The system will look at the HTTP "Host:" header, and based on that header, it will choose the matching Virtual Multihosting mapping. If none of the multihosting mappings match, the server will continue looking at other mappings in the order that they appear in the configuration file, or perform no mappings if no matches are found. If there are no matches, the proxy will typically respond with the "Proxy denies fulfilling the request" response.
Configuring Virtual Multihosting
To configure Virtual Multihosting:
- From the Server Manager, choose URLs | Virtual Multihosting.
- In the "Source hostname (alias)" field, specify the local hostname (or DNS alias) that this mapping should apply to.
- In the "Source domain name" field, enter the local domain name that this mapping should apply to. Typically, this is your own network's domain name, unless you want to multi-host multiple different DNS domains.
- In the "Destination URL prefix" field, enter the target URL prefix where the request will be directed if the host and domain names match the above specifications.
- If you are using templates, choose the template name from the "Use this template" dropdown, or leave the value at "NONE" if you don't want to apply a template.
- Click OK, and save and apply your changes.
- Repeat the above steps for each virtual multihosting mapping you want to establish.
All virtual multihosting mappings appear on the bottom of the Virtual Multihosting configuration page. Note that the "Source hostname (alias)" and "Source domain name" fields are merged, together with the proxy's port number, into a single regular expression that is used to match the "Host:" header.
For example, if you have hostname "www", domain "netscape.com", and port number "8080", it will display the regular expression:
www(|.netscape.com)(|:8080)
This will guarantee a match with all of the following possible combinations that the user may have typed, or the client may have sent (the port number may be omitted by some client software even when it's non-80, as it is obvious to the server which port number it was listening on):
- www
- www:8080
- www.netscape.com
- www.netscape.com:8080
Important Notes on Virtual Multihosting
You will need to disable the "Client autoconfiguration" feature before you can configure reverse proxy mappings. Doing so will not cause any problems because the "Client autoconfiguration" feature is for the forward proxy operation, not reverse proxy.
The Virtual Multihosting feature establishes "automatic reverse mappings." In other words, do not create reverse mappings (Create Mappings | Mapping type: reverse) for mappings that you enter using the Virtual Multihosting page.
Virtual mappings are specified with "virt-map" function in obj.conf.
Virtual mappings are matched in the order specified in the obj.conf configuration file. If there are regular, reverse, regular expression, or client autoconfiguration mappings before the virtual mappings, they will be applied first. Similarly, if no matches are found in virtual mappings, translation will continue to the next mapping after the virtual mapping section in obj.conf.
If the port number of the proxy server is changed, you will need to recreate the Virtual Multihosting mappings, as they now have the wrong port number.
