Install the Paddle Card
- Lower the paddle card into the chassis.

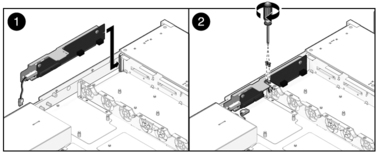

Figure 118 Installing a Paddle Card (Illustrating Installation Into a Sun SPARC Enterprise T5140 Server)
- Slide the paddle card forward to plug it into the hard drive backplane.
- Secure the paddle card with two No. 1 Phillips screws.
- Install the fan power boards.
See Install the Fan Power Board.
- Install the power distribution board.
See Install the Power Supply Backplane.
- Install the motherboard assembly.
See Install a Memory Mezzanine Assembly.
