8 Integrating with Oracle Map Viewer

Oracle Communications Marketing and Advertising can be set up to query map information from an Oracle Map Viewer mapping service to use enhanced visual mapping features used in Location Based Marketing.

Overview

The Location Based Marketing features in Marketing and Advertising can acquire map presentation data for use in campaign configuration.

Visual map data is sourced from an optional integration with the Oracle Fusion Middleware Map Viewer. The Oracle Fusion Middleware Map Viewer product is separately licensable and may have other dependent software products from Oracle (e.g. Oracle Spatial) as well as third-party providers (e.g. map data vendor).

For more information about Oracle Fusion Middleware Map Viewer consult the product information page at:

http://www.oracle.com/technetwork/middleware/mapviewer/overview/index.html

For more information about Oracle Spatial consult the product information page at:

http://www.oracle.com/technetwork/database/options/spatial/index.html

Additional details about Oracle products and licensing can also be obtained from your Oracle license representative.

The following steps are required in order to use the visual map features in Oracle Communications Marketing and Advertising

  1. Determine the Oracle Fusion Middleware Map Viewer Service URL

  2. Add the Web Service URL in the System Owner GUI Interface

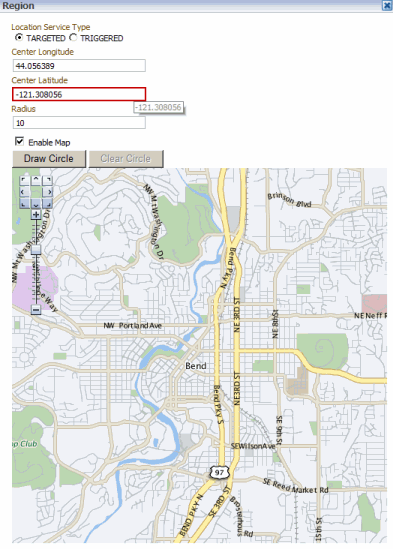

Visual map data is used in Marketing and Advertising to allow advertisers to graphically target subscribers in a geographical area when configuring campaigns. The following image depicts the visual map data displayed in Marketing and Advertising that is sourced from Oracle Fusion Middleware Map Viewer.

Description of mmitglocationsamplel.gif follows
Description of the illustration mmitglocationsamplel.gif

Determine the Oracle Fusion Middleware Map Viewer Service URL

Consult the system administrator for your licensed Oracle Fusion Middleware Map Viewer installation and obtain the mapping service URL for your instance. The URL should be in the following format:

http://Map Viewer Server Address:Port/mapviewer

The URL will be used in the Marketing and Advertising web client by a system owner user to designate the mapviewer Web service URL.

For testing purposes, Oracle provides the following demonstration mapping service URL for use with Oracle Fusion Middleware Mapviewer:

http://elocation.oracle.com/mapviewer

Add the Web Service URL in the System Owner GUI Interface

Marketing and Advertising is configured to use the mapviewer service URL by a system owner user. To add the mapviewer service URL to your instance of Marketing and Advertising:

  1. Access the Marketing and Advertising web interface at:

    http://Marketing Server Address:WebLogic Access Port/ocma

  2. Login to the Marketing and Advertising web interface as a system owner user

  3. Under the System Owner menu in the left panel select the System Configuration hyperlink

  4. In the Terminal Location tab enter the mapviewer service URL in the MapViewer Url field as shown in the following screenshot.

    Description of mmitgmapviewerUrl.gif follows
    Description of the illustration mmitgmapviewerUrl.gif

  5. Click Save.
