4 Administering System Properties

The system configuration service enables you to manage system properties used by Oracle Identity Manager. This service allows you to create, modify, delete, or search existing system properties depending on their roles.

System properties define the characteristics that control the behavior of Oracle Identity Manager. You can define the functionality of consoles such as the Oracle Identity Administration and Oracle Identity Manager Self Service by using system properties. For example, you can define the number of consecutive attempts the user can make to login to Oracle Identity Manager unsuccessfully before Oracle Identity Manager locks the user account. In other words, a system property is an entity by which you can control the configuration of Oracle Identity Manager.

This chapter discusses the following topics:

4.1 System Properties in Oracle Identity Manager

Table 4-1 lists and describes the default system properties in Oracle Identity Manager.

Table 4-1 Default System Properties in Oracle Identity Manager

Property Name Description Keyword Default Value

Access Policy Revoke If No Longer Applies Enhancement

Determines if the Revoke if no longer applies flag in access policy is applicable.

If the value is true, then this flag is applicable to child table data (entitlements) along with parent data. The user can determine if child data must be removed or retained when access policy no longer applies to user based on this flag.

If the value if false, then child table data (entitlements) are always removed after access policy is no longer applied.

XL.AccessPolicyRevokeIfNoLongerAppliesEnhancement

FALSE

Allows access policy based provisioning of multiple instances of a resource

Determines if multiple instances of a resource can be provisioned to multiple target resources.

When the value is false, provisioning multiple instances of resource object via access policy is not allowed.

When the value is true, provisioning multiple instances of resource object via access policy is allowed.

XL.AllowAPBasedMultipleAccountProvisioning

false

Are challenge questions disabled in OIM

Determines if challenge questions are enabled or disabled when a user logs in to Oracle Identity Manager for the first time.

When value is False, challenge questions are enabled.

When value is True, challenge questions are disabled.

This property is primarily used in the context of Oracle Adaptive Access Manager (OAAM) configuration. When the value is TRUE, the challenge questions are handled by OAAM.

OIM.DisableChallengeQuestions

FALSE

Compiler Path for Connectors

Specifies the Java home depending on the application server.

Note: If the path of the JDK directory is not included in the System Path variable, then you must set the path of the JDK directory in the XL.CompilerPath system property. If this is not done, then an error is encountered during the adapter compilation stage of the process performed when you import an XML file by using the Deployment Manager.

XL.CompilerPath

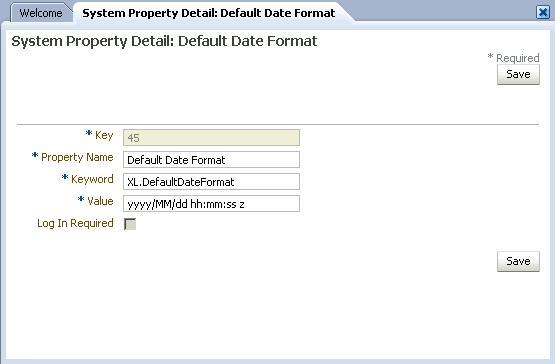

Default Date Format

When creating reconciliation events by calling the APIs and date format is not passed as one of the arguments to the API, Oracle Identity Manager assumes that all the date field values are specified in Default Date Format.

XL.DefaultDateFormat

yyyy/mm/dd hh:mm:ss z

Default Policy for common name generation

Determines the common name generation policy to be picked while generation of common name.

XL.DefaultCommonNamePolicyImpl

oracle.iam.identity.usermgmt.impl.plugins.FirstNameLastNamePolicy

Default policy for username generation

Determines the username policy to use when generating a username.

XL.DefaultUserNamePolicyImpl

oracle.iam.identity.usermgmt.impl.plugins.DefaultComboPolicy

Default user name domain

This property is used by the DefaultComboPolicy to generate a user name in e-mail format.

XL.UserNameDomain

oracle.com

Direct Provisioning vs. Request for Access Policy Conflicts

By default, the value of this property is TRUE. If a user has multiple access policies and these policies provision a particular resource multiple times, and at least one policy specifies that the resource can be provisioned directly, then the resource is provisioned without creating a request.

Setting this property to FALSE specifies that conflicts are resolved by creating a request for the resource, which are not provisioned directly. If there are no conflicts, then resources are provisioned based on what is defined in the access policy.

XL.DirectProvision

TRUE

Does user have to provide challenge information during registration

If the value is TRUE, then users will have to provide challenge information during registration.

PCQ.PROVIDE_DURING_SELFREG

TRUE

Duplicate challenge responses allowed

This property is used to indicate whether or not duplicate challenge responses are allowed.

XL.IsDupResponsesAllowed

FALSE

Email Server

Name of the e-mail server.

Note: After modifying the Email Server system property value, you must restart the server for the change to take effect.

XL.MailServer

Email Server

Enable exception reports

This property is used to enable the exception reporting feature. Exception reporting is enabled only if the value is set to TRUE.

XL.EnableExceptionReports

FALSE

Enable disabled resource instances when a user is enabled

If the value is TRUE, then the disabled resource instances are enabled when a user is enabled.

XL.EnableDisabledResources

TRUE

Force Password Change at First Login

This system property is not used in Oracle Identity Manager 11g Release 1 (11.1.1). Setting this property has no effect.

XL.ForcePasswordChangeAtFirstLogin

TRUE or FALSE

The default value for this property is FALSE if the user is created by self registration and TRUE if the user is created by any other method.

Force to set questions at startup

When the user logs into the Administrative and User Console for the first time, the user must set the default questions for resetting the password.

PCQ.FORCE_SET_QUES

False

Indicates if referential integrity is enabled in target LDAP directory

The value of this property is TRUE if referential integrity in target LDAP directory is turned on.

The value of this property is FALSE if referential integrity in target LDAP directory is turned off.

XL.IsReferentialIntegrityEnabledInLDAP

FALSE

Is Self-Registration Allowed

If the value is TRUE, then the users are allowed to self-register.

XL.SelfRegistrationAllowed

TRUE

LDAP Reservation Plugin

This property determines the LDAP reservation plugin implementation to be picked up for reservation of user attributes.

XL.LDAPReservationPluginImpl

oracle.iam.identity.usermgmt.impl.plugins.reservation.ReservationInOID

Maximum Number of Login Attempts

Determines how many consecutive times the user can attempt to login to Oracle Identity Manager unsuccessfully before Oracle Identity Manager locks the user account.

Note: If the user account is locked, then it can be unlocked by any one of the following ways:

  • Resetting the password by using Forgot Password

  • Unlocking the user by the delegated administrator

  • Automatic unlocking after the expiry of the lock period, which is done using the Automatically Unlock User scheduled task that runs daily

XL.MaxLoginAttempts

10

Maximum Number of Password Reset Attempts

Determines how many consecutive times the user can attempt to reset the password unsuccessfully before Oracle Identity Manager locks the user account.

Important: When the user account is locked, the user cannot unlock it. If this occurs, then contact the system administrator.

XL.MaxPasswordResetAttempts

3

Minimum length of challenge response

This property is used to set the minimum length of answers to challenge questions.

XL.ResponseMinLength

0

Number of Correct Answers

This value represents how many questions the user must answer correctly to reset user password.

PCQ.NO_OF_CORRECT_ANSWERS

3

Number of Questions

Sets the number of questions that must be completed by a user who is using the Web Application to reset the user's password.

PCQ.NO_OF_QUES

3

Note: The value set for PCQ.NO_OF_QUES must not be less than the value set for PCQ.NO_OF_CORRECT_ANSWERS.

Organization Delete/Disable Action

If this property is set to TRUE, then users can disable/delete the organization even if the organization contains users and suborganizations.

If this property is FALSE, then users cannot disable/delete the organization if the organization contains users and suborganizations.

The default value is FALSE.

ORG.DisableDeleteActionEnabled

FALSE

Organization Process Inheritance

If a resource is added to an organization as permitted resource, then by setting this property to TRUE, the same resource is automatically added as the permitted resource for suborganizations.

XL.OrganizationProcessInherit

TRUE

Organization Process Restriction

This property is for internal use by Oracle Identity Manager. You must not use this property.

XL.OrganizationProcessRestrict

FALSE

Organization Self-Serviceable

Determines whether the default value for a process is self-serviceable and if it is set or not.

This is used to determine which resources can be self requested. This is same as selecting the option from Oracle Identity Manager Design Console. The only difference is that by using this system property, it is allowed for a particular organization.

ORG.SELF_SERVICEABLE_DEFAULT

FALSE

Pending Cancelled Tasks

If this property is set to TRUE and tasks are configured to allow cancellation while they are pending, then these tasks are moved to Pending Cancelled (PX) status if the corresponding process instance is cancelled. If the property is set to FALSE, then tasks are moved to Cancelled (X) status when corresponding process instance is cancelled. Note that process instances are called by Oracle Identity Manager when the corresponding resource instances are revoked.

XL.PendingCancelled

true

Period to Delay User Delete

This property is used to specify the time period before deleting a user. When this property is set and a user is deleted, the user's state is changed to disabled and "automatically delete on date" is set to current date plus the delay period.

XL.UserDeleteDelayPeriod

0

Property dictates whether database name will be displayed

If the value is TRUE, then the database name is displayed on the Design Console.

XL.TOOLBAR_DBNAME_DISPLAY

TRUE

Property to indicate day limit set for pending approvals

Used prior to implementation of the Separation of active/non-active task feature to specify the duration for which the pending approval tasks would be fetched. Used at the API level to get the Pending approval related counters.

Note: Do not use this property. It is retained in this release for internal use only. It will be removed in a future release of Oracle Identity Manager.

XL.OpenTask.DayLimit

30

Property to indicate the duration in months of open tasks and pending approvals

Note: Do not use this property. It is retained in this release for internal use only. It will be removed in a future release of Oracle Identity Manager.

XL.OpenTasksPendingApprovalsDuration

3

Property to indicate whether the auditing engine should send a JMS message

When the value of this property is set to True and the XL.UserProfileAuditDataCollection property is set to an audit data collection level, then the account reconciliation performs the matching in the database layer at a batch-level and performs the event action by using the provisioning APIs. This in turn triggers the audit event handlers for account reconciliation. For information about account reconciliation, see "Account Reconciliation" in the Oracle Fusion Middleware User's Guide for Oracle Identity Manager.

Note: This property is for internal use by Oracle Identity Manager. You must not use this property.

XL.SendAuditJMSMessage

false

Proxy User Email Notification

The corresponding PTY_VALUE is the e-mail definition name that is sent when a proxy user is created. User gets a notification e-mail when the user is made the proxy for some other user.

XL.ProxyNotificationTemplate

Notify Proxy User

Recon Batch Size

This property is used to specify the batch size for reconciliation. You can specify 0 as the value for this to indicate that the reconciliation will not be performed in batches.

Note: You must restart Oracle Identity Manager after setting this property.

OIM.ReconBatchSize

500

Record Read Limit

Sets the maximum number of records that can be displayed in a query result set in the Administrative and User Console.

XL.READ_LIMIT

500

Request Notification Level

This property indicates whether or not notification is sent to the requester and beneficiary when a request is created or the request status is changed.

When the value of this property is 0, then the notification feature is disabled. When the value is 1, then the notification feature is enabled.

RequestNotificationLevel

0

Reset with generated password

If a user's password is to be reset, then this property determines how the password is to be reset by the delegated administrator.

If this property is set to true, then the password is always automatically generated. If set to false, then an additional option of setting the password manually is provided.

XL.ResetWithGeneratedPwd

TRUE

Search Stop Count

This property determines the maximum number of records that are displayed in the advanced search result. If the search criteria specified returns more number of records than that value of this property, then the number of records displayed is limited to this value. In addition, a warning is displayed stating that the results exceed maximum counts and you must refine your search with additional attributes.

XL.IDADMIN_STOP_COUNT

300

Shows tasks assigned to group users with least load only

If the value is TRUE, then the tasks are assigned to group users with least load only when the assignment type is Group User With Least Load.

XL.ShowTaskAssignedToGroupUserOnly

FALSE

Specifies the LDAP container mapper plug-in to be used

When Oracle Identity Manager is installed with LDAP synchronization enabled, this plug-in determines in which container users and roles are to be created. Value of this system property indicates the default Oracle Identity Manager plug-in name used for computing the container values. If the default plug-in does not meet the requirement, then you can define your own plug-in to determine the container and specify the name of the plug-in in this system property.

Note: For information about this plug-in, see "Developing LDAP Container Rules" in the Oracle Fusion Middleware Developer's Guide for Oracle Identity Manager.

LDAPContainerMapperPlugin

oracle.iam.ldapsync.impl.DefaultLDAPContainerMapper

URL for challenge questions modification

When a user is locked, an automatic unlock occurs after a prescribed time period. This property defines that time period in seconds. Therefore, for example, if a user account is locked and the value of this property is 86400 seconds (one day), then the account is automatically unlocked after one day.

The value of this property is the URL within OAAM that handles the challenge questions. For example:

http://OAAM_HOST:OAAM_PORT/OAAM_SERVER/userPreferences.do?showView=registerQuestions

OIM.ChallengeQuestionsModificationURL

NONE

URL for change password

This property is used in combination with the property OIM.DisableChallengeQuestions. The value of this property is the URL within OAAM that handles the change password functionality. For example:

http://OAAM_HOST:OAAM_PORT/OAAM_SERVER/userPreferences.do?showView=changePassword

OIM.ChangePasswordURL

NONE

URL for forgot password

This property is used in combination with the property OIM.DisableChallengeQuestions. The value of this property is the URL within OAAM that handles the forgot password functionality. For example:

http://OAAM_HOST:OAAM_PORT/OAAM_SERVER/forgotPassword.do

OIM.ForgtoPasswordURL

NONE

Unlock Account Automatically After Time Period

This property is used to automatically unlock user accounts after the specified time period.

XL.UnlockAfter

86400 seconds, which is 1 day

Use Row Restriction

Note: This property is for internal use by Oracle Identity Manager. You must not use this property.

XL.UseRowRestriction

FALSE

Use of Default Questions

For customers who have customized their UI to allow end-users to set their own challenge questions, this property determines whether the user must select challenge questions from a predefined list in the Web Application, or if users are required to provide their own questions.

Note: Functionality that allows end-users to set their own challenge questions is not supported in the standard out-of-the-box user interface.

PCQ.USE_DEF_QUES

TRUE

Use semicolon as delimiter in API parameters

This property is used to specify whether or not semicolon should be used as a delimiter to the API input parameter values. Some APIs accepted string input values that are separated by semicolon. This has been changed to use a vertical bar "|" instead. To keep backward compatibility, this new property can be used to go back to using semicolons. The default value is FALSE signifying the usage of "|". When set to TRUE, the input for those APIs are accepted with semicolon as separator.

XL.UseSemiColonAsDelimiter

FALSE

User Attribute Reservation Enabled

This property is used to enable user attribute reservation.

XL.IsUsrAttribReservEnabled

TRUE

User Id reuse property

Determines whether a deleted user account can be reused. To reuse a deleted user account, assign this property a value of TRUE and drop the unique index for the USR_LOGIN column in the USR table and create a nonunique index. To prevent a user account from being reused, assign this property a value of FALSE.

XL.UserIDReuse

FALSE

User Language

The user.language value is configured during installation for Locale handling at server side.

user.language

en

User Region

The user.region value is configured during installation for Locale handling at server side.

user.region

US

User Variant

The user.variant value is configured during installation for locale handling at server side.

user.variant



User profile audit data collection level

This property controls the user profile data that is collected for audit purpose when an operation is performed on the user, such as creation, modification, or deletion of a user, role grants or revokes, and resource provisioning or deprovisioning. Depending upon the property value, such as Resource Form or None, the data is populated in the UPA table.

The audit levels are specified as values of this property. The supported levels are:

  • Process Task: Audits the entire user profile snapshot together with the resource lifecycle process.

  • Resource Form: Audits user record, role membership, resource provisioned, and any form data associated to the resource.

  • Resource: Audits the user record, role membership, and resource provisioning.

  • Membership: Only audits the user record and role membership.

  • Core: Only audits the user record.

  • None: No audit is stored.

XL.UserProfileAuditDataCollection

Resource Form

XL.SoDCheckRequired

This property indicates whether or not Segregation of Duties (SoD) check is required.

XL.SoDCheckRequired

FALSE

Xellerate User resource provision mode

This property determines whether provisioning of the Xellerate User resource to the user's organization occurs in the database layer through stored procedure, or in the Java layer via Event Handlers.

Note: See Oracle Fusion Middleware Developer's Guide for Oracle Identity Manager for information about Event Handlers.

This property has the following allowed values:

  • DB: Provisioning of the Xellerate User resource to the user's organization occurs in the database layer through stored procedure. This in turn does not trigger any further process. Therefore, custom tasks associated with the Xellerate User provisioning process that is associated with the Xellerate User resource does take place.

  • Java: Provisioning of the Xellerate User resource to the user's organization occurs in the database layer via Event Handlers. Custom tasks associated with the Xellerate User provisioning process that is associated with the Xellerate User resource takes place. This is applicable to the upgrade scenario, where you have your own tasks associated with provisioning processes in earlier releases of Oracle Identity Manager, and you want them to run even after 11g upgrade. In such scenario, set the value of this property value to JAVA.

XL.UserResource.ProvisionMode

DB

Role Grants Trigger Requests

If this property is present and the value is true, then it means that role grants go through requests, which are subject to approval. It does not enable or disable SOD checks.

If the value of this property is false, then role grants are performed without going through requests.

Note: After modifying the Role Grants Trigger Requests system property value, you must restart Oracle Identity Manager for the change to take effect.

XL.RM_REQUEST_ENABLED

false

Role Assignment Template Name

If the RM_REQUEST_ENABLED property is not present or its value is false, then RM_ROLE_ASSIGN_TEMPLATE has no effect.

If the value of RM_REQUEST_ENABLED is true and RM_ROLE_ASSIGN_TEMPLATE is not present, or has no legal template name as a value, then an error message is displayed and no role grant takes place. There is no default request template.

If the value of RM_REQUEST_ENABLED is true and a legal request template name is specified as the value of RM_ROLE_ASSIGN_TEMPLATE, then that request template is used for the role grant.

XL.RM_ROLE_ASSIGN_TEMPLATE



Evaluate LDAP Container Rules for Entity Modification

If the property value is TRUE, then the LDAP container rules defined in LDAPContainerRules.xml are evaluated for entity modification. However, if none of the rules match, then the default container is not returned. The original parent container of the entity is returned, which means that there is no change in the entity DN. For more information, see "Configuring LDAP Container Rules" in Oracle Fusion Middleware Developer's Guide for Oracle Identity Manager.

If the property value is FALSE, then the LDAP container rules defined in LDAPContainerRules.xml are not evaluated. The entity DN does not change.

Note: This property only applies to a modification scenario and not to the entity creation scenario.

LDAPEvaluateContainerRulesForModify

FALSE

Send Notification for Reconciliation

Determines if notification is sent to the user when the user login and password are generated in postprocess event handler for user creation via trusted source reconciliation.

If the value is set to true, then notification is sent when user login and password are generated in postprocess event handler for user creation via trusted source reconciliation.

If the value is set to false, then notification is not sent when user login and password are generated in postprocess event handler for user creation via trusted source reconciliation.

Recon.SEND_NOTIFICATION

true

Whether or not email should be validated for uniqueness

This property is available in an Oracle Identity Manager 11g Release 1 (11.1.1) deployment that has been upgraded from an earlier release of Oracle Identity Manager.

If the value of this property is FALSE, then Email Uniqueness check is not performed by Oracle Identity Manager.

If the value if TRUE, then Email Uniqueness check is performed by Oracle Identity Manager.

Note: If this property is not present, then Email Uniqueness check is performed by Oracle Identity Manager.

OIM.EmailUniqueCheck

TRUE

Enable 9.x permission checking when searching organizations

This property controls the display of organizations in the organization search performed by the user. When XL.EnableOrgPermissionCheck = false, all the organizations are displayed when the user searches for organizations. When XL.EnableOrgPermissionCheck = true or the property is removed, only the organizations assigned to the user performing the search are displayed.

XL.EnableOrgPermissionCheck

TRUE


Oracle Identity Manager provides a set of system properties that are not present in the PTY table by default. You can add these system properties to the PTY table by using the Administrative and User Console, and then use the properties to change some of the default settings in Oracle Identity Manager. For example, if you want to save the Deployment Manager XML file that is generated at the time of Generic Technology Connector (GTC) creation, then you can configure the GTC Auto Import system property to do so.

Table 4-2 lists the system properties you can add to the PTY table:

Table 4-2 Nondefault System Properties

Property Name Description Keyword Sample Value

OIM Database Query Retry Attempts

Number of times SQL queries to be retried for handling Oracle RAC failures.

In the absence of this property in the PTY table, SQL queries for handling Oracle RAC failures are retried three times by default.

OIM.DBQueryRetryAttempts

5

OIM Database Query Retry Interval

Time in seconds after which each SQL retry takes place for Oracle RAC failures.

In the absence of the property in the PTY table, SQL query occurs after every 7 seconds by default.

OIM.DBQueryRetryInterval

10 seconds

JDBC Connection Retry Attempts

Number of times Oracle Identity Manager retries to get a connection when the JDBC connection fails.

In the absence of this property in the PTY table, the JDBC connection is retried three times by default.

OIM.JDBCConnectionRetryAttempts

5

When the value is 0, it means no retry.

JDBC Connection Retry Interval

Time in seconds between each JDBC connection retry.

In the absence of this property in the PTY table, each JDBC connection retry occurs at an interval of 7 seconds.

OIM.JDBCConnectionRetryInterval

10 seconds

GTC Auto Import

Based on the value of this property, the DM xml that is generated while GTC creation can be saved to a directory.

The default value of this property is true.

When the value of this property is set to "False", then while creating GTC, the DM xml (the xml that GTC creates and imports using Deployment Manager internally while GTC creation) created by the GTC framework is stored in the following directory:

OIM_HOME/GTC/XMLOutput

The naming convention followed for the DM xml is:

GTCNAME_CURRENTDATE_ TIMESTAMP created using date format "yyyy-MM-dd-HH-mm-ss".xml

For example:

TRUSTEDCSV_2009-02-05-22-41-11.xml

XL.GTCAutoImport

False

FA cookie-http-only flag turned on

This property is seeded using the RoleCategorySeedMXBeanImplMBean by FA provisioning system.

By default, the value of this property is true. If you want to run Oracle Identity Manager in non-HTTP cookie-only environment, then set the value of this property to false.

FA.CookieHTTPOnly

true


4.2 Creating and Managing System Properties

This section discusses the following topics:

4.2.1 Creating System Properties

Oracle Identity Manager provides you with the capability of creating your own system properties. You can create system properties according to your requirements if you choose not to use any of the predefined system properties listed in "System Properties in Oracle Identity Manager".

You can create a system property by using the Create System Property page in Oracle Identity Manager Administration. You can open this page only if you are authorized to create system properties.

While creating a system property, you specify values for the Property Name, Keyword, and Value fields. These values are saved in the PTY table of the Oracle Identity Manager database.

To create a system property:

  1. Click the System Management tab, and then click System Configuration.

  2. On the left pane, from the Actions menu, select Create. Alternatively, you can click the create icon on the toolbar. The Create System Property page is displayed, as shown in Figure 4-1:

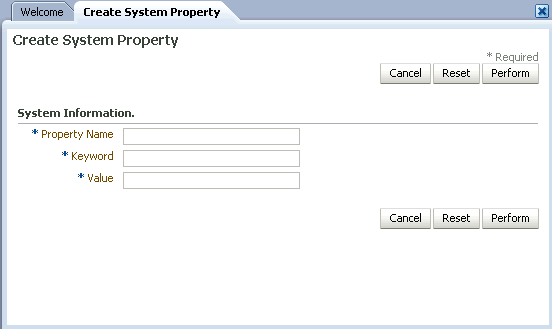

    Figure 4-1 Create System Property Page

    Description of Figure 4-1 follows
    Description of "Figure 4-1 Create System Property Page"

  3. On the Create System Property form, enter details of the system property. Table 4-3 describes the fields of this form.

    Table 4-3 Fields of the Create System Property Form

    Field Description

    Property Name

    Enter a name of the system property.

    Keyword

    Enter a unique ID for the system property. You can enter the keyword in any format.

    Note: The property name can be translated to various locales, but the keyword cannot be translated.

    Value

    Enter a value for the system property, for example, 4.


    Note:

    Any special character (.) is not allowed in the beginning or end of Keyword fields while creating or updating a system property. In case of Value fields, special characters are allowed in the beginning or in the end.

  4. Click Perform to create the system property. A message confirming that the system property has been created is displayed. For the new system property that is created, by default, the data level is set to 2 and login_required is set to true.

    After the system property is created, you can use SQL to set the values for the following system property fields that are automatically added to the system property recorded in the PTY table of the database:

    • Data Level: Every system property has a data level associated with it. The data level field determines the kind of operations that can be performed on a system property. Data levels are a means of specifying the operations that can be performed on a system property. For example, a data level value of 1 for a system property indicates that the system property can neither be modified nor deleted. The default value of this field is 2.

      The data level field cannot be modified by using the UI. It can only be modified by using a SQL script. Table 4-3 lists and describes the various data levels associated with a system property.

      Table 4-4 Data Levels Associated with a System Property

      Data Level Description

      0

      Indicates that the system property can be modified or deleted

      1

      Indicates that the system property cannot be modified or deleted

      2

      Indicates that the system property can only be modified

      3

      Indicates that a system property can only be deleted


    • Log In Required: This field specifies whether or not a login is required to access the system property. The default value of this field is 1, which means that a login is required to access the system property. You can change the value of this field to 0 by using a SQL script.

    • LKU_KEY: This field determines the set of values that can be specified in the Value field of a system property. The default value of this field for a newly created system property is null.

      Oracle Identity Manager represents sets using two tables, the LKU and LKV tables. The LKU table holds keys that identify each set. The LKV table defines the members of each set, in which each row in the LKV table uses one column to identify the set (a LKU_KEY column in the LKU table), and another column to declare a value that will be a member of that set.

      LKU_KEY is a column in the LKU table of the Oracle Identity Manager database. For a system property with non-null value in the LKU_KEY column, you can insert the values in this column from a predefined set of values that are in the LKV table. This is done by using a SQL script to include any valid LKU_KEY column value from the LKU table to associate multiple values with the system property. See step 7 for more details.

  5. If you want to modify the data level of the system property, then run the following SQL statement:

    UPDATE PTY SET PTY_DATA_LEVEL=DATA_LEVEL_VALUE WHERE PTY_KEYWORD = SYSTEM_PROPERTY_KEYWORD;

    In this SQL statement:

    • DATA_LEVEL_VALUE is any value listed in the Data level column of Table 4-4.

    • SYSTEM_PROPERTY_KEYWORD is the unique ID for the system property that you entered in the Keyword field in Step 3.

    Note:

    Any special character (.) is not allowed in the beginning or end of Keyword fields while creating or updating a system property. In case of Value fields, special characters are allowed in the beginning or in the end.

  6. If you want to modify the value of the Log In Required field, then run the following command:

    UPDATE PTY SET PTY_LOGINREQUIRED=LOGIN_REQUIRED_VALUE WHERE PTY_KEYWORD = SYSTEM_PROPERTY_KEYWORD;

    In this command:

    • LOGIN_REQUIRED _VALUE can take a value of either 0 or 1.

      If a login is required for accessing the system property, then enter 1. Otherwise, enter 0.

    • SYSTEM_PROPERTY_KEYWORD is the unique ID for the system property that you entered in the Keyword field in Step 3.

  7. If you want to define the set of values that can be specified in the Value field of a system property, then run the following commands:

    1. Run the following command to insert a row into the LKU table:

      INSERT INTO LKU (LKU_KEY, LKU_LOOKUP_KEY, LKU_TYPE, LKU_GROUP, LKU_REQUIRED, LKU_TYPE_STRING_KEY, LKU_FIELD, LKU_DATA_LEVEL, LKU_CREATE, LKU_CREATEBY, LKU_UPDATE, LKU_UPDATEBY, LKU_NOTE, LKU_ROWVER) VALUEs (LKU_KEY_VALUE, LKU_LOOKUP_KEY_VALUE,...);


      For example, if you want to update a set of values for the Title field, then run the following INSERT statement:

      INSERT INTO LKU (LKU_KEY, LKU_LOOKUP_KEY, LKU_TYPE, LKU_GROUP, LKU_REQUIRED, LKU_TYPE_STRING_KEY, LKU_FIELD, LKU_DATA_LEVEL, LKU_CREATE, LKU_CREATEBY, LKU_UPDATE, LKU_UPDATEBY, LKU_NOTE, LKU_ROWVER) VALUES (201, Title, ...);


      Here, LKU_KEY_VALUE is 201 that uniquely identifies the record in the LKU table, and LKU_LOOKUP_KEY_VALUE is Title.

      Note:

      You must insert a record in the LKU table before inserting any record in the LKV table because the value of LKU_KEY is used in the LKV insert statement.

    2. Run the following command to insert a row into the LKV table:

      INSERT INTO LKV (LKV_KEY, LKU_KEY, LKV_ENCODED, LKV_DECODED, LKV_LANGUAGE, LKV_COUNTRY, LKV_VARIANT, LKV_DISABLED, LKV_DATA_LEVEL, LKV_CREATE, LKV_CREATEBY, LKV_UPDATE, LKV_UPDATEBY, LKV_NOTE, LKV_ROWVER) VALUES (LKV_KEY_VALUE, LKU_KEY_VALUE, LKV_ENCODED_VALUE, LKV_DECODED_VALUE, ...);


      For example, to define the set of values for the Title field as Mr, Ms, and Dr, run the following INSERT statements:

      INSERT INTO LKV (LKV_KEY, LKU_KEY, LKV_ENCODED, LKV_DECODED, LKV_LANGUAGE, LKV_COUNTRY, LKV_VARIANT, LKV_DISABLED, LKV_DATA_LEVEL, LKV_CREATE, LKV_CREATEBY, LKV_UPDATE, LKV_UPDATEBY, LKV_NOTE, LKV_ROWVER) VALUES (1001, 201, 'Ms', 'Miss', ...);

      INSERT INTO LKV (LKV_KEY, LKU_KEY, LKV_ENCODED, LKV_DECODED, LKV_LANGUAGE, LKV_COUNTRY, LKV_VARIANT, LKV_DISABLED, LKV_DATA_LEVEL, LKV_CREATE, LKV_CREATEBY, LKV_UPDATE, LKV_UPDATEBY, LKV_NOTE, LKV_ROWVER) VALUES (1002, 201, 'Mr', 'Mister', ...);

      INSERT INTO LKV (LKV_KEY, LKU_KEY, LKV_ENCODED, LKV_DECODED, LKV_LANGUAGE, LKV_COUNTRY, LKV_VARIANT, LKV_DISABLED, LKV_DATA_LEVEL, LKV_CREATE, LKV_CREATEBY, LKV_UPDATE, LKV_UPDATEBY, LKV_NOTE, LKV_ROWVER) VALUES (1003, 201, 'Dr', 'Doctor', ...);


      In this example:

      • LKV_KEY_VALUE is 1001, 1002, and 1003 respectively that uniquely identifies the records in the LKV table

      • LKV_ENCODED_VALUE is Ms, Mr, and Dr respectively

      • LKV_DECODED_VALUE is Miss, Mister, and Doctor respectively

      See Also:

      Chapter 13, "Configuring User Attributes" for more information about the LKU and LKV tables

    3. Run the following command to update the value of the LKU_KEY column in the PTY table:

      UPDATE PTY SET LKU_KEY=LKU_KEY_COLUMN_IN_THE_LKV_TABLE WHERE PTY_KEYWORD = SYSTEM_PROPERTY_KEYWORD;

      In this command:

      • LKU_KEY_COLUMN_IN_THE_LKV_TABLE is the value of the LKU_KEY column in the LKV table.

      • SYSTEM_PROPERTY_KEYWORD is the unique ID for the system property that you entered in the Keyword field in Step 3.

        Note:

        If you want to view the changes in Oracle Identity Manager Advanced Administration, then you must run purge cache immediately after modifying a system property by using Microsoft SQL.

4.2.2 Purging Cache

Whenever you make any change to a system property by using any method other than from the Advanced Administration, you must run purge cache to get the changes reflected in Oracle Identity Manager:

To clear the server cache:

Note:

Before running the PurgeCache utility, you must run the DOMAIN_HOME/bin/setDomainEnv.sh script.

  1. Depending on the operating system being used, navigate to the following directory:

    • For Microsoft Windows:

      OIM_HOME\server\bin\

    • For UNIX:

      OIM_HOME/server/bin/

  2. Run one of the following commands:

    • For Microsoft Windows:

      PurgeCache.bat CATEGORY_NAME

    • For UNIX:

      PurgeCache.sh CATEGORY_NAME

    The CATEGORY_NAME name argument represents the Oracle Identity Manager category name that is to be purged, for example, FormDefinition. To purge all the categories, pass a value of "All" to the PurgeCache utility. It is recommended to clear all the categories.

4.2.3 Searching for System Properties

Oracle Identity Manager Advanced Administration allows you to perform the following types of search operations for system properties:

4.2.3.1 Performing a Simple Search

To perform a simple search for system properties:

  1. In the Welcome page of Oracle Identity Manager Administration, under System Management, click System Configuration. Alternatively, you can click the System Management tab, and then click System Configuration.

  2. In the left pane, enter a search criterion in the Search field for the system property that you want to search. You can include wildcard characters (*) in your search criterion.

    If you enter * in the Search field, then all the system properties are displayed. You can filter your search by combining characters with the wildcard characters. For example, to search all system properties starting with p, you can enter p* in the Search field.

  3. Click the icon next to the Search field. A list of all system properties that meet the search criterion is displayed, as shown in Figure 4-2.

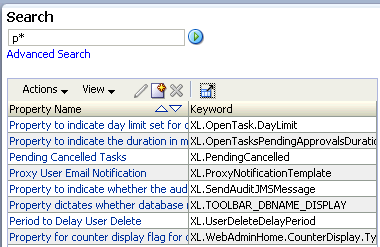

    Figure 4-2 List of System Properties

    Surrounding text describes Figure 4-2 .

    The search results table displays the system property names and keywords. You can click a property name to open the details for the system property.

4.2.3.2 Performing an Advanced Search

To perform an advanced search for system properties:

  1. In the left pane of the System Configuration section, click Advanced Search. The Properties: Advanced Search page is displayed.

  2. In the list adjacent to the Property Name field, select a search condition.

  3. In the Property Name field, enter a search criterion for the system property that you want to search. You can include wildcard characters (*) in your search criterion. Select the search conditions in the list adjacent to the fields. The search conditions include Not Contains, Not Begins With, Not Equals, Equals, Ends With, Not Ends With, Contains, and Begins With.

  4. Click Search. The system properties that match the search criterion are displayed in the search results table, as shown in Figure 4-3:

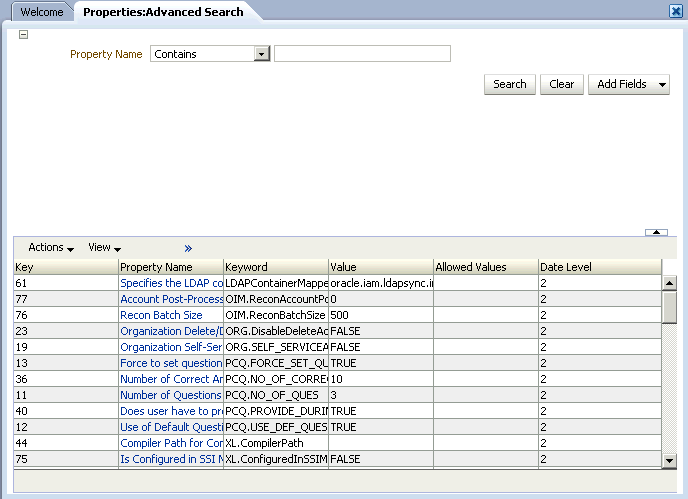

    Figure 4-3 Advanced Search Result

    Description of Figure 4-3 follows
    Description of "Figure 4-3 Advanced Search Result"

    The search result displays key, property name, keyword, value, allowed value, and date level for each system property.

4.2.4 Modifying System Properties

A modify operation lets you modify an existing system property by using the System Property Detail page. If any system property is tagged with a set of allowed values, then you must specify a value from that set only.

Note:

While modifying a system property that has multiple values attached to it, a message is displayed if the modified value is not part of the values defined in the LKU and LKV tables. For information about associating multiple values to a system property, see step 7 of "Creating System Properties".

To modify a system property:

  1. Search for the system property that you want to modify.

  2. In the Property Name column of the search results table, click the system property that you want to modify.

    The System Property Details page is displayed, as shown in Table 4-4.

    Figure 4-4 System Property Detail Page

    Description of Figure 4-4 follows
    Description of "Figure 4-4 System Property Detail Page"

  3. If you want to modify the Property Name, keyword, and the Value fields, then perform Step 3 of "Creating System Properties".

  4. If you want to modify the Log In Required field, then perform Step 6 of "Creating System Properties".

  5. If you want to modify the Allowed Values column, then perform Step 7 of "Creating System Properties".

  6. If you want to modify the data level associated with a system property, then perform Step 5 of "Creating System Properties".

  7. Click Save to save the changes made.

    A message confirming that the system property has been modified is displayed.

4.2.5 Deleting System Properties

To delete a system property:

Note:

You can delete a system property only if the data level of that system property is set to either 0 or 3. While deleting a system property, a message is displayed if the data level associated with the system property is not appropriate. For a description of the data levels, see Table 4-4, "Data Levels Associated with a System Property".

  1. Click the System Management tab and then click System Configuration.

  2. On the left pane, search for the system property that you want to delete.

  3. In the Property Name column of the search results table, select the system property that you want to delete.

  4. From the Actions menu, select Delete. A message is displayed asking for confirmation. Click OK.

  5. A message is displayed confirming that the system property has been deleted. Click OK.
