The following sections describe the types of resources that you can secure using policies:
Policies for administrative resources determine who can complete such tasks as uploading files (used during deployment), viewing the domain and server logs, and unlocking users who have been locked out of their accounts.
For the most security-sensitive of these tasks, users must first be authorized by additional policies on a JMX resource (see Figure 3-1). For information about JMX resources and how to design roles and policies for activities that are protected by multiple resources, see JMX Resources.

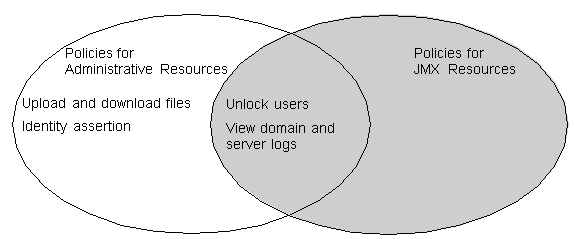

Figure 3-1 Some Policies Overlap
Table 3-1 describes the administrative activities that administrative resources protect and which of these activities are also protected by additional JMX resources. For activities that are protected by multiple resources, the default policy in the JMX resource duplicates the protections in the Administrative resource.
Table 3-1 Activities And Default Policies For Administrative Resources
|Administrative Activities||Default Policy Allows These Roles||Also Protected By a JMX Resource?|
Upload files for deployment.
Control access to these methods in the file download servlet:
Note: The file download servlet is used internally by WebLogic Server. Oracle recommends that you do not modify the default policies for any of its methods. They are listed here only for completeness.
Enable applications to use identity assertion.
The default policy for this activity specifies that an application must supply credentials for a user who is in the
View domain and server logs through the Administration Console.
Unlock users who have been locked out of their accounts.
An application resource is an enterprise application, Web application, or other Java EE module that you deploy as a stand-alone application (for example, you can deploy Web Services and JDBC modules as stand-alone applications). You secure an application resource when you want to protect all resources that constitute the application. For example, securing an enterprise application protects access to all WebLogic resources within that application (see Figure 3-2).

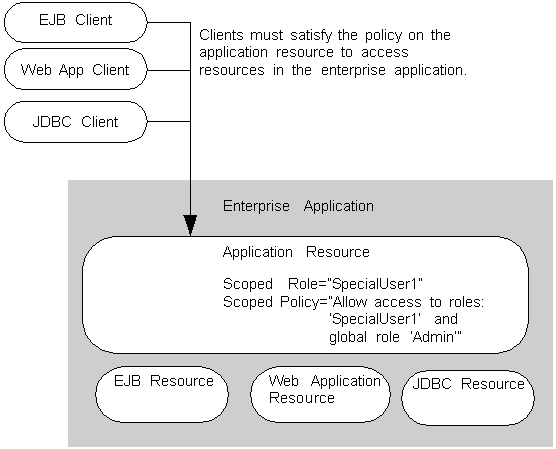

Figure 3-2 Application Resource Protects All Resources
A COM resource represents a package that contains one or more jCOM classes. jCOM is a software bridge that allows bidirectional access between Java/Java EE objects deployed in WebLogic Server and Microsoft ActiveX components available within the Microsoft Office family of products, Visual Basic and C++ objects, and other Component Object Model/Distributed Component Object Model (COM/DCOM) environments.
A policy on a COM resource protects access to all jCOM objects in a package.
For related information, see "Configuring Access Control" in Programming JCOM for Oracle WebLogic Server.
An EJB (Enterprise JavaBean) resource is an EJB deployment module (JAR), individual EJB, or individual method in an EJB. EJB resources exist within a hierarchy of resources, and at the top of the hierarchy is an application resource. See Protecting a Hierarchy of Resources.
Because the Java EE platform standardizes EJB security in deployment descriptors, WebLogic Server integrates this standard mechanism with its Security Service to give you a choice of techniques for securing EJB resources. For more information, see Chapter 4, "Options for Securing Web Application and EJB Resources."
An EIS resource is a system-level software driver used by an application server, such as WebLogic Server, to connect to an Enterprise Information System. Oracle supports resource adapters developed by EIS vendors and third-party application developers. Resource adapters. can be deployed in any application server supporting the applicable Sun Microsystems Java EE Platform Specification. Resource Adapters contain the Java code, and if necessary, the native components required to interact with the EIS.
To secure access to an EIS, create security policies and security roles for all resource adapters as a group, or for individual adapters. These resources exist within a hierarchy of resources, and at the top of the hierarchy is an application resource. See Protecting a Hierarchy of Resources.
For related information, see "Security" in Programming Resource Adapters for Oracle WebLogic Server.
A Java DataBase Connectivity (JDBC) resource is a JDBC system resource, JDBC module that is part of an application, JDBC data source, or a specific method within a data source. If you deploy a JDBC module as a stand-alone application, the application is represented by an application resource (see Application Resources).
JDBC resources exist within a hierarchy of resources, and at the top of the hierarchy is an application resource. See Protecting a Hierarchy of Resources.
When you secure an individual data source, you can choose whether to protect
JDBC operations using one or more of the following administrator methods:
admin—The following methods on the
JDBCDataSourceRuntimeMBean are invoked as
reserve—Applications reserve a connection in the data source by looking up the data source and then calling
Note:Giving a user the
reservepermission enables them to execute vendor-specific operations. Depending on the database vendor, some of these operations may have database security implications.
shrink—Shrinks the number of connections in the data source to the maximum of the currently reserved connections or to the initial size.
reset—Resets the data source connections by shutting down and re-establishing all physical database connections. This also clears the statement cache for each connection. You can only reset data source connections that are running normally.
All—An individual data source is protected by the union of the
reset administrator methods.
Notes:Be aware of the following:
If a security policy controls access to connections in a multi data source, access checks are performed at both levels of the JDBC resource hierarchy (once at the multi data source level, and again at the individual data source level). As with all types of WebLogic resources, this double-checking ensures that the most specific security policy controls access.
If you use an Oracle database, you can also control access to JDBC resources using an Oracle Virtual Private Database (VPD). For more information, see "Programming with Oracle Virtual Private Databases" in Programming JDBC for Oracle WebLogic Server.
A Java Messaging Service (JMS) resource is a JMS system resource, JMS module that is part of an application, JMS destination, or an operation within a destination. You can create security policies and roles for all destinations (JMS queues and JMS topics) as a group, or an individual destination (JMS queue or JMS topic) on a JMS server.
These resources exist within a hierarchy of resources, and at the top of the hierarchy is an application resource. See Protecting a Hierarchy of Resources.
When you secure a specific destination on a JMS server, you can protect operations on the destination. By default, destinations are not protected. This means that any valid user for a WebLogic server instance can send, receive, and browse messages on a destination. Only users defined by the policy condition can access control of the destination. Valid protection operations are:
send—Required to send a message to a queue or a topic. This includes calls to the
TopicPublisher.publish() methods, as well as the Messaging Bridge.
receive—Required to create a consumer on a queue or a topic. This includes calls to the
TopicConnection.createDurableConnectionConsumer() methods, as well as the Messaging Bridge and message-driven beans.
browse—Required to view the messages on a queue using the
browse methods on a destination.
A Java Naming and Directory Interface (JNDI) resource is a node in a server's JNDI tree. A policy on a JNDI resource determines who can access WebLogic Server entities and actions through JNDI. You can create a policy on the root node of the JNDI tree or on individual nodes.
For each JNDI node, you can create a policy for all operations or for one of the following operations:
modify—Whenever an application modifies the JNDI tree in any way (that is, adding, removing, changing) the current user must have permission to make the modification. This includes the
lookup—Whenever an application looks up an object in the JNDI tree, the current user must have permission to perform the lookup. This includes the
list—Whenever an application lists the contents of a context in JNDI, the current user must have permission to perform the listing operation. This includes the
A JMX resource is an MBean attribute or MBean operation. A policy on a JMX resource controls who can read or write MBean attributes or invoke operations.
WebLogic Server uses managed beans (MBeans) in the implementation of its management system. Almost all administrative activities require you to invoke an MBean operation or modify an MBean attribute using a Java Management Extensions (JMX) client. For example, the Administration Console is a JMX client. If you use it to change the value of a server's listen port, the Administration Console changes the value of an MBean attribute. The WebLogic Scripting Tool is also a JMX client. For more information, see "Understanding WebLogic Server MBeans" in Developing Custom Management Utilities With JMX for Oracle WebLogic Server.
Oracle provides a default set of JMX resources to protect WebLogic Server MBeans. (See "Default Security Policies for MBeans" in the Oracle WebLogic Server MBean Reference.) For MBean attributes and operations that represent particularly sensitive data or actions, WebLogic Server uses additional types of resources to secure access. For example, the
shutdown() operation is protected by a JMX resource and a Server resource.
When a JMX client attempts to invoke an operation or change an attribute that is secured by a JMX resource and some other resource type, the client must satisfy the policies defined in both resources (see Figure 3-3).

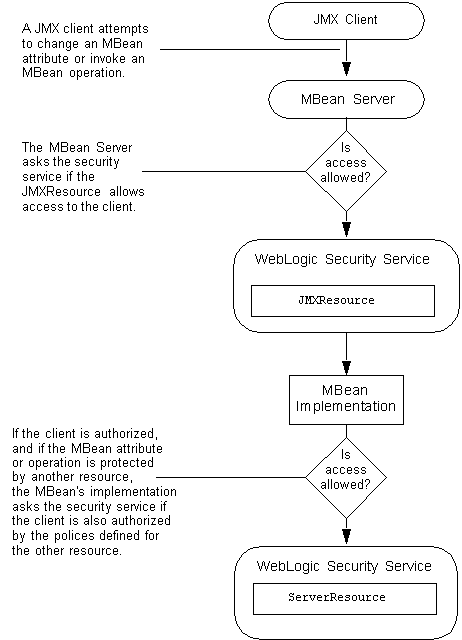

Figure 3-3 MBean Server Checks with Both Resources
The default configuration of groups, global roles, and security policies on all resources that are used to protect an entity or action create a consistent security scheme. You can, however, make modifications to that limit access in ways that you do not intend. Make sure that any modifications you make to the default security settings do not prevent a user from being authorized by both the JMX resource and other resource type. When you create or modify a security policy, consider taking the following action:
Always include the
Operator global roles in policies for Server resources.
Failure to use the
Operator global role or a security role nested within this default global role may result in inconsistent behavior by the WebLogic Security Service.
For a security policy on a deployable resource (such as an Web application or EJB module, Connector module, or startup/shutdown class), use the
Deployer global role.
Policies for a server resource determine who can control the state of a WebLogic Server server instance.
When users start server instances by directly invoking the
weblogic.Server class in a Java command, the policy on the Server resource is the only security check that occurs. All other tasks that change the state of a WebLogic Server instance require the use of the Administration Console, WebLogic Scripting Tool, Node Manager, or some other JMX client, and therefore require users to be authorized first by an additional JMX resource. See JMX Resources.
You can create security policies that apply to all WebLogic Server instances in a domain or to individual servers. If you define a policy for an individual server, you can protect all of its life cycle operations or define individual policies for each of the following operations:
boot—A user who tries to start a WebLogic Server instance, either an Administration Server or Managed Server, must have permission to do so. This action is typically initiated through a call to the
java weblogic.Server command on the command line, by a configured start script (which in turn calls the
java weblogic.Server command), or through the Node Manager capabilities that allow for remote start of WebLogic Server
shutdown—A user who tries to shut down a running WebLogic Server instance, either an Administration Server or Managed Server, must have permission to do so. This action is typically initiated through the WebLogic Server Administration Console or the
WLST SHUTDOWN or
suspend—A user who tries to prohibit additional logins (logins other than for privileged administrative actions) to a running WebLogic Server instance, either an Administration Server or Managed Server, must have permission to do so. This action is typically initiated through the Administration Console.
resume—A user who tries to re-enable non-privileged logins to a running WebLogic Server instance, either an Administration Server or Managed Server, must have permission to do so. This action is typically initiated through the Administration Console.
All server resources inherit a default security policy that gives permission to the
Operator global security roles.
Note:If you enable the domain-wide administration port, then only the
Adminrole (and not
Operator) can control the state of a WebLogic Server server instance. See "Configure the domain-wide administration port" in Oracle WebLogic Server Administration Console Help.
Caution:Do not remove roles from the default security policies. Eliminating some of the existing security roles might negatively affect the functioning of WebLogic Server. However, if you like, you can make the default security policies more inclusive (for example, by adding new security roles). See Maintaining a Consistent Security Scheme.
WebLogic Server provides two ways to start and shut down WebLogic Server instances (servers): the
weblogic.Server command and the Node Manager. Because the underlying components for the
weblogic.Server command and the Node Manager are different, the two commands use different authorization methods.
weblogic.Server command, which you can use to start both Administration and Managed Servers, calls methods that are protected by a security policy on the Server resource. To use this command, you must satisfy the requirements of the security policy on the Server resource.
weblogic.Server arguments set attributes for MBeans. However, because these arguments modify an MBean before the server is in the
RUNNING state, the security policy on the Server resource, not the protection on the MBean, is the authorizer. For example, a user in the
Operator global role can use the
-Dweblogic.ListenPort argument to change a server's default listen port, but once the WebLogic Server instance is running, this user cannot change the listen port value.
For more information about
weblogic.Server, see "weblogic.Server Command-Line Reference" in the Command Reference for Oracle WebLogic Server.
The Node Manager uses both MBeans and the security policy on the Server resource to start a remote server.
If you configure a Node Manager on the host machine of a remote WebLogic Server instance, by default a user in the
Operator global role can use the Node Manager to start the remote server.
For more information, see "Node Manager Overview" in Node Manager Administrator's Guide for Oracle WebLogic Server.
Shutting down a WebLogic Server instance involves both MBeans and the security policy on the Server resource. When a user issues a shutdown command, the server first determines whether that user is granted the
Operator global role (per the MBean security layer). Then, after the MBean operations run, the server determines whether the security policy on the Server resource authorizes the user to shut down the server.
For more information about shutting down a WebLogic Server instance, see "Starting and Stopping Servers: Quick Reference" in Managing Server Startup and Shutdown for Oracle WebLogic Server.
A URL resource is a specific URL or URL pattern in a Web application. You can create a policy for a URL resource that protects all HTTP methods for a specified URL or URL pattern, or that protects only specific HTTP methods. These resources exist within a hierarchy of resources, and at the top of the hierarchy is an application resource. See Protecting a Hierarchy of Resources.
Because the Java EE platform standardizes Web application security in deployment descriptors, WebLogic Server integrates this standard mechanism with its Security Service to give you a choice of techniques for securing Web application resources. For more information, see Chapter 4, "Options for Securing Web Application and EJB Resources."
A Web Service resource is a Web Service module (WAR or JAR) or an operation within a Web Service module. Web Services are protected by the following hierarchy of resources:
The application resource for the parent application.
The Web Service resource for the Web Service module (WAR or JAR).
Individual Web Service resources for each Web Service operation.
If you implement the Web Service with standard Java objects, any of the above resources protect the Java objects.
If you implement the Web Service with an EJB any of the above or any of the following resources protect the EJB implementation:
The EJB resource for the EJB.
Individual EJB resources for each EJB method.
If you use an EJB to implement your Web Service, Oracle recommends that you create a policy at the application level. Policies on the Web Service module and individual Web Service operations apply only to Web Service clients. EJB clients can use RMI or JNDI to bypass the Web Service module and directly invoke EJB operations (see Figure 3-4).

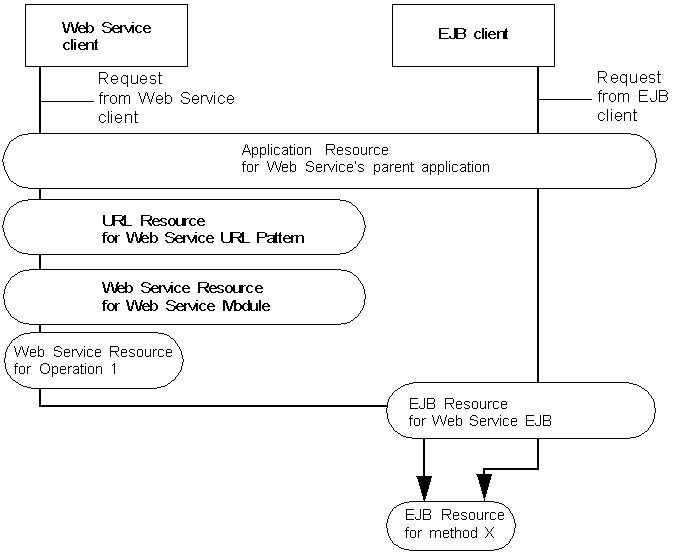

Figure 3-4 Hierarchy of Resources for Web Service with EJB Implementation
For information on using Java annotations to secure Web Services, see "Configuring Message-Level Security" in Securing WebLogic Web Services for Oracle WebLogic Server.
Work Contexts enable Java EE developers to define and pass properties without including them in a remote call. A Work Context resource represents the operations that create, delete, read, or modify a property. You can use one Work Context resource for all operations of a given property, or you can create individual resources for each operation.
For more information, see "Best Practices for Application Design" in Programming RMI for Oracle WebLogic Server.
