HBA Expansion pt.2

Expanding from 3 to 4 HBAs

The figures below show steps to migrate a cluster from three to four HBAs.

NOTE: Diagrams below are not representative of proper slot location for HBAs.

Cabling Diagrams

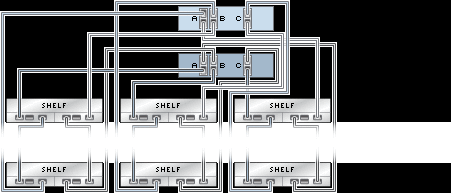

fig.1 Cluster with three HBAs and chains of disk shelves

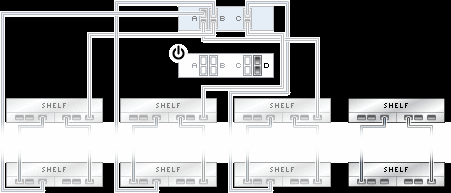

fig.2 Power down and remove all cabling from the first controller. Add and cable together the new chain of disk shelves, then power on shelves.

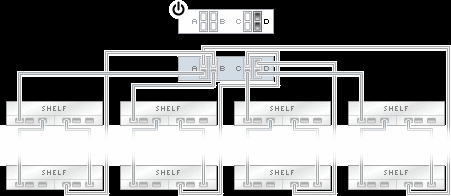

fig.3 Install new HBA according to the instructions on installing PCI cards, and connect the controller to the third and fourth chain as shown.

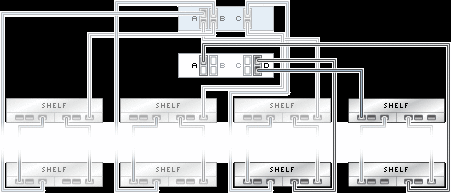

fig.4 Reconnect the three original HBAs as before to the first three chains. Power on the controller and wait for it to regain control of connected storage.

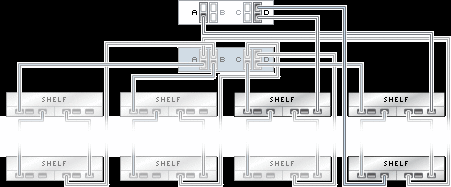

fig.5 Power down and remove all cabling from the second controller.

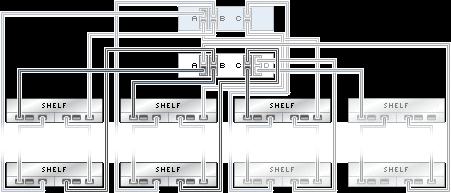

fig.6 Install new HBA according to the instructions on installing PCI cards, and connect the controller to the third and fourth chain as shown.

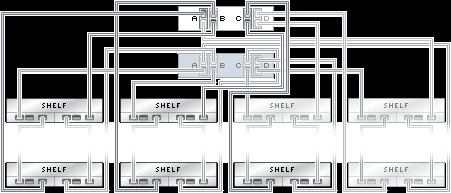

fig.7 Reconnect the three original HBAs as before to the first three chains. Power on the controller and wait for it to regain control of connected storage.

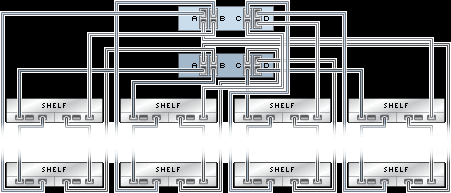

fig.8 Cluster with four HBAs
