SAS2

Sun Disk Shelf Overview

The Sun Disk Shelf SAS-2 is a high-availability serial attached SCSI (SAS) device in a 4U, 24-disk chassis.

Refer to Disk Shelf Tasks for procedural information about replacing disk shelf components.

The main components are hot-swappable, including the SAS Interface Module (SIM) boards and drives, and the dual load-sharing power supplies and fans. This provides a fault-tolerant environment with no single point of failure. System faults are indicated by an amber colored light on the front panel.

Following is the list of replaceable components of the Sun Disk Shelf SAS-2. The SAS-2 (Serial Attached SCSI 2.0) storage fabric supports greater number of targets, greater bandwidth, higher reliability and bigger scale. The scale and reliability improvements are achieved with 2 TB SAS disks you can daisy-chain to a total of 12 shelves (288 total disks). In addition,the new, high-performance SAS-2 HBA is designed for the Sun Storage 7000 series with a standard chip set to support a high-density of target devices, capable of attachment to 1024 targets.

With this new fabric, you are encouraged to apply entire shelves to pools, so you can get the benefits of No Single Point of Failure (NSPF) configurations and striping across the maximum possible number of devices.

Part Number
Description
FRU/CRU
F542-0194-01
SAS Interface Module (SIM) Assembly
CRU
F300-2276-01
764W AC Input Power Supply and Fan Assembly
CRU
F540-7980-01
Z-box with Backplane (J4410 4U chassis)
FRU
F542-0274-01
2TB - 7.2K SAS HDD Assembly
CRU
F542-0286-01
SAS 100GB SSD Logzilla
CRU
SAS2 Sun Disk Shelf Overview
Power Supply Exterior

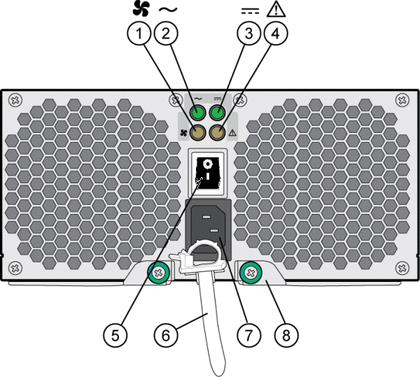

Power supplies and fans, SIMs, and disks are hot-pluggable on the storage shelf. The following figure shows the exterior of the power supply. Power supply 0 is on the left and power supply 1 is on the right.

Figure Legend
1 Cooling fan status indicator
5 Power on/off switch
2 AC power status indicator
6 Power cord tie wrap
3 DC power status indicator
7 Universal power input connector
4 Power supply status indicator
8 Right ejection arm and captive screw latch
Drive Locations

The following table shows the shelf drive locations.

Drive Locations
SSD20
SSD21
SSD22
SSD23
HDD16
HDD17
HDD18
HDD19
HDD12
HDD13
HDD14
HDD15
HDD8
HDD9
HDD10
HDD11
HDD4
HDD5
HDD6
HDD7
HDD0
HDD1
HDD2
HDD3

The following figure shows the Sun Disk Shelf front panel.

Figure Legend
1 Locate button and indicator
4 Disk ready to be removed inidicator
7 Over temperature warning indicator
2 System fault indicator
5 Disk fault indicator
8 SIM board fault indicator
3 System power indicator
6 Disk activity indicator
9 Power supply fault indicator
Sun Disk Shelf Logzilla SSD Locations
Up to four Logzilla SSDs are supported per disk shelf.
Logzilla SSDs should be populated in order of slots 20, 21, 22, and 23.
Drive Assembly Exterior

The following figure shows the drive assembly exterior for the Sun Disk Shelf.

Figure Legend
1 Locate (blue)
2 Fault indicator (amber)
3 Activity indicator (green)
SIM Board Exterior

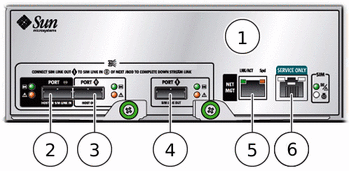

The following figure shows the SIM board exterior of the Sun Disk Shelf SAS-2 and is described in the Legend. SIMs are hot-pluggable on the shelf. SIM 0 is on the left, and SIM 1 is on the right.

Figure Legend
1 SIM board 1
3 SIM board 0
5 Network management port
2 Host or SIM Link In
4 SIM link out
6 For Sun service only

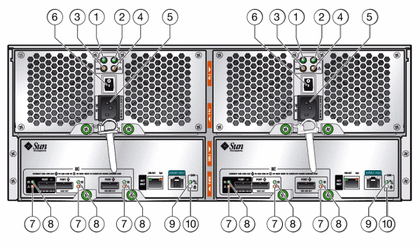

The following figure shows the SIM board and Power Supply exterior indicator LEDs.

Figure Legend
1 AC power indicator
6 Power switch
2 DC power indicator
7 Port fault indicator
3 Fan fault indicator
8 Port OK indicator
4 Power supply fault indicator
9 SIM board OK indicator (green)/<br/>SIM board fault indicator (amber)
5 Universal power connector
10 SIM locator indicator
Disk Shelf Configurations

The following tables describe and provide part numbers for the supported expansion storage shelves.

Sun Disk Shelf
Mktg Part Number
MPSR Short Description
Mfg Part Number
DS2-0BASE
Sun Disk Shelf 24x3.5" SAS-2
597-0764-02
DS2-HD2T
Sun Disk Shelf 2TB 7.2Krpm, SAS-2, 3.5", 20xHDD
597-0625-01
DS2X-HD2T
Sun Disk Shelf 2TB 7.2Krpm, SAS-2, 3.5", 24xHDD
594-6670-01
DS2-LOGZ
Sun Disk Shelf 24x3.5" SAS-2
597-0626-01
DS2-FILLER
Sun Disk Shelf 24x3.5", Filler
597-0614-01
DS2X-LOGZ
Sun Disk Shelf 100GB Logzilla SSD
594-6629-01
