19 Pattern Recognition With MATCH_RECOGNIZE

This chapter provides reference and usage information about the MATCH_RECOGNIZE clause in Oracle Continuous Query Language (Oracle CQL). This clause and its sub-clauses perform pattern recognition in Oracle CQL queries.

19.1 Understanding Pattern Recognition With MATCH_RECOGNIZE

The MATCH_RECOGNIZE clause performs pattern recognition in an Oracle CQL query as Example 19-1 shows. This query will export (make available for inclusion in the SELECT) the MEASURES clause values for events (tuples) that satisfy the PATTERN clause regular expression over the DEFINE clause conditions.

Example 19-1 Pattern Matching With MATCH_RECOGNIZE

<query id="detectPerish"><![CDATA[
  select its.badItemId
  from tkrfid_ItemTempStream
  MATCH_RECOGNIZE (
      PARTITION BY itemId
      MEASURES A.itemId as badItemId
      PATTERN (A B* C)
      DEFINE
          A  AS  (A.temp >= 25),
          B  AS  ((B.temp >= 25) and (to_timestamp(B.element_time) - to_timestamp(A.element_time) < INTERVAL "0 00:00:05.00" DAY TO SECOND)),
          C  AS  (to_timestamp(C.element_time) - to_timestamp(A.element_time) >= INTERVAL "0 00:00:05.00" DAY TO SECOND)
  ) as its
]]></query>

pattern_recognition_clause::=

Surrounding text describes pattern_recognition_clause.png.

(pattern_partition_clause::=, pattern_measures_clause::=, pattern_def_dur_clause::=)

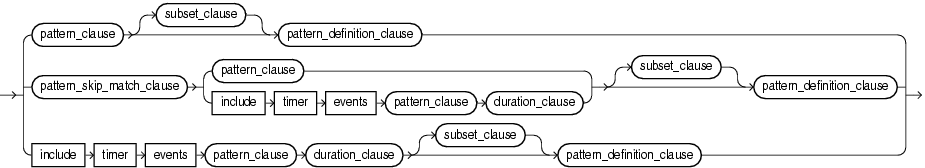

pattern_def_dur_clause::=

Surrounding text describes pattern_def_dur_clause.png.

(pattern_clause::=, pattern_skip_match_clause::=, pattern_definition_clause::=, duration_clause::=, subset_clause::=)

Using MATCH_RECOGNIZE, you define conditions on the attributes of incoming events and identify these conditions by using identifiers called correlation variables. Example 19-1 defines correlation variables A, B, and C. A sequence of consecutive events in the input stream satisfying these conditions constitutes a pattern.

The output of a MATCH_RECOGNIZE query is always a stream.

The principle MATCH_RECOGNIZE sub-clauses are:

To refine pattern recognition, you may use the optional MATCH_RECOGNIZE sub-clauses, including:

For more information, see:

19.1.1 MATCH_RECOGNIZE and the WHERE Clause

In Oracle CQL (as in SQL), the FROM clause is evaluated before the WHERE clause.

Consider the following Oracle CQL query:

SELECT ... FROM S MATCH_RECOGNIZE ( .... ) as T WHERE ...

In this query, the S MATCH_RECOGNIZE ( .... ) as T is like a subquery in the FROM clause and is evaluated first, before the WHERE clause.

Consequently, you rarely use both a MATCH_RECOGNIZE clause and a WHERE clause in the same Oracle CQL query. Instead, you typically use a view to apply the required WHERE clause to a stream and then select from the view in a query that applies the MATCH_RECOGNIZE clause.

Example 19-2 shows two views, e1p1 and e2p2, each applying a WHERE clause to stream S to pre-filter the stream for the required events. The query q then selects from these two views and applies the MATCH_RECOGNIZE on this filtered stream of events.

Example 19-2 MATCH_RECOGNIZE and the WHERE Clause

<view id="e1p1">
    SELECT * FROM S WHERE eventName = 'E1' and path = 'P1' and statName = 'countValue'
</view>
<view id="e2p2">
    SELECT * FROM S WHERE eventName = 'E2' and path = 'P2' and statName = 'countValue'
</view>

<query id="q">
    SELECT
        T.e1p1Stat as e1p1Stat, T.e2p2Stat as e2p2Stat
    FROM
        e1p1, e2p2
    MATCH_RECOGNIZE(
        ALL MATCHES
        PATTERN(A+)
        DURATION 60 MINUTES
        DEFINE
            A as (A.e1p1Stat < 1000 and A.e2p2Stat > 2000 and count(A) > 3)
        ) as T
</query>

For more information, see opt_where_clause::=

19.1.2 Referencing Singleton and Group Matches

The MATCH_RECOGNIZE clause identifies the following types of matches:

  • singleton: a correlation variable is a singleton if it occurs exactly once in a pattern, is not defined by a SUBSET, is not in the scope of an alternation, and is not quantified by a pattern quantifier.

    References to such a correlation variable refer to this single event.

  • group: a correlation variable is a group if it occurs in more than one pattern, is defined by a SUBSET, is in the scope of an alternation, or is quantified by a pattern quantifier.

    References to such a correlation variable refer to this group of events.

When you reference singleton and group correlation variables in the MEASURES and DEFINE clauses, observe the following rules:

  • For singleton correlation variables, you may reference individual event attributes only, not aggregates.

  • For group correlation variables:

    • If you reference an individual event attribute, then the value of the last event to match the correlation variable is returned.

      If the correlation variable is not yet matched, NULL is returned. In the case of count(A.*), if the correlation variable A is not yet matched, 0 is returned.

      If the correlation variable is being referenced in a definition of the same variable (such as DEFINE A as A.balance > 1000), then the value of the current event is returned.

    • If you reference an aggregate, then the aggregate is performed over all events that have matched the correlation variable so far.

For more information, see:

19.1.3 Referencing Aggregates

You can use any built-in, Colt, or user-defined aggregate function in the MEASURES and DEFINE clause of a MATCH_RECOGNIZE query.

When using aggregate functions, consider the following:

For more information, see:

19.1.3.1 Running Aggregates and Final Aggregates

In the DEFINE clause, any aggregate function on a correlation variable X is a running aggregate: that is, the aggregate includes all preceding matches of X up to and including the current match. If the correlation variable X has been completely matched so far, then the aggregate is final, otherwise it is running.

In the MEASURES clause, because it is evaluated after the match has been found, all aggregates are final because they are computed over the final match.

When using a SUBSET clause, be aware of the fact that you may inadvertently imply a running aggregate as Example 19-3 shows.

Example 19-3 Implied Running Aggregate

...
PATTERN (X+ Y+)
SUBSET Z = (X, Y)
DEFINE
    X AS X.price > 100,
    Y AS sum(Z.price) < 1000
...

Because correlation variable Z involves Y, the definition of Y involves a running aggregate on Y.

For more information, see:

19.1.3.2 Operating on the Same Correlation Variable

In both the MEASURES and DEFINE clause, you may only apply an aggregate function to attributes of the same correlation variable.

For example: the use of aggregate function correlation in Example 19-4 is invalid.

Example 19-4 Invalid Use of Aggregate Function

...
MEASURES xycorr AS correlation(X.price, Y.price)
PATTERN (X+ Y+)
DEFINE
    X AS X.price <= 10,
    Y AS Y.price > 10
...

The correlation aggregate function may not operate on more than one correlation variable.

19.1.3.3 Referencing Variables That Have not Been Matched Yet

In the DEFINE clause, you may reference a correlation variable that has not been matched yet. However, you should use caution when doing so. Consider Example 19-5.

Example 19-5 Referencing a Variable That has not Been Matched Yet: Invalid

PATTERN (X+ Y+)
DEFINE
    X AS count(Y.*) >= 3
    Y AS Y.price > 10,

Although this syntax is legal, note that in this particular example, the pattern will never match because at the time X is matched, Y has not yet been matched, and count(Y.*) is 0.

To implement the desired behavior ("Match when the price of Y has been greater than 10, 3 or more times in a row"), implement this pattern as Example 19-6 shows.

Example 19-6 Referencing a Variable That has not Been Matched Yet: Valid

PATTERN (Y+ X+)
DEFINE
    Y AS Y.price > 10,
    X AS count(Y.*) >= 3

For more information, see Section 19.1.3.5, "Using count With *, identifier.*, and identifier.attr".

19.1.3.4 Referencing Attributes not Qualified by Correlation Variable

In the DEFINE clause, if you apply an aggregate function to an event attribute not qualified by correlation variable, the aggregate is a running aggregate as Example 19-7 shows.

Example 19-7 Referencing Attributes not Qualified by Correlation Variable

PATTERN ((RISE FALL)+)
DEFINE
    RISE AS count(RISE.*) = 1 or RISE.price > FALL.price,
    FALL AS FALL.price < RISE.price and count(*) > 1000

This query detects a pattern in which a price alternately goes up and down, for as long as possible, but for at least more than 1000 matches.

For more information, see:

19.1.3.5 Using count With *, identifier.*, and identifier.attr

The built-in aggregate function count has syntax:

Surrounding text describes count.png.

(arith_expr::=, attr::=, identifier::=)

The return value of count depends on the argument as Table 19-1 shows.

Table 19-1 Return Values for count Aggregate Function

Input Argument Return Value

arith_expr

The number of tuples where arith_expr is not NULL.

*

The number of all tuples, including duplicates and nulls.

identifier.*

The number of all tuples that match the correlation variable identifier, including duplicates and nulls.

Note the following:

  • count(A.*) = 1 is true for the first event that matches A.

  • count(A.*) = 0 is true while A has not been matched yet.

identifier.attr

The number of tuples that match correlation variable identifier, where attr is not NULL.


Consider Example 19-8. Assume that the schema of S includes attributes account and balance. This query returns an event for each account that has not received 3 or more events in 60 minutes.

Example 19-8 MATCH_RECOGNIZE Query Using count(A.*)

select
    T.account,
    T.Atime
FROM S
    MATCH_RECOGNIZE(
        PARTITION BY account
        MEASURES
            A.account has account
            A.ELEMENT_TIME as Atime
        ALL MATCHES
        INCLUDE TIMER EVENTS
        PATTERN (A+)
        DURATION 60 MINUTES
        DEFINE
            A AS count(A.*) < 3
    ) as T

The PATTERN (A+) specifies the pattern "Match A one or more times".

The DEFINE clause specifies the condition:

A AS count(A.*) < 3

This condition for A places no restrictions on input tuples (such as A.balance > 1000). The only restrictions are imposed by the PARTITION BY account and DURATION 60 MINUTES clauses. In the DEFINE clause, the A.* means, "Match all input tuples for the group A+". This group includes the one or more input tuples with a particular account received in the 60 minutes starting with the first input tuple. The count(A.*) is a running aggregate that returns the total number of events in this group.

If the DEFINE clause specifies the condition:

A AS A.balance > 1000 and count(A.*) < 3

Then A.* still means "Match all input tuples for the group A+". In this case, this group includes the one or more input tuples with a particular account received in the 60 minutes starting with the first input tuple and with balance > 1000.

In contrast:

  • count(*) means "The number of all tuples, including duplicates and nulls". That is, the number of all tuples received on S, whether they satisfy the MATCH_RECOGNIZE clause or not.

  • count(A.balance) means "The number of all tuples that match the correlation variable A where the balance is not NULL".

For more information, see:

19.1.3.6 Using first and last

Use the first and last built-in aggregate functions to access event attributes of the first or last event match, respectively:

first returns the value of the first match of a group in the order defined by the ORDER BY clause or the default order.

last returns the value of the last match of a group in the order defined by the ORDER BY clause or the default order.

The first and last functions accept an optional non-negative, constant integer argument (N) that indicates the offset following the first and the offset preceding the last match of the variable, respectively. If you specify this offset, the first function returns the N-th matching event following the first match and the last function returns the N-th matching event preceding the last match. If the offset does not fall within the match of the variable, the first and last functions return NULL.

For more information, see:

19.1.4 Using prev

Use the prev built-in single-row function to access event attributes of a previous event match. If there is no previous event match, the prev function returns NULL.

The prev function accepts an optional non-negative, constant integer argument (N) that indicates the offset to a previous match. If you specify this offset, the prev function returns the N-th matching event preceding the current match. If there is no such previous match, the prev functions returns NULL.

When you use the prev function in the DEFINE clause, this function may only access the currently defined correlation variable.

For example: the correlation variable definition in Example 19-9 is valid:

Example 19-9 Use of the prev Function: Valid

Y AS Y.price < prev(Y.price, 2)

However, the correlation variable definition in Example 19-10 is invalid because while defining correlation variable Y, it references correlation variable X inside the prev function.

Example 19-10 Use of the prev Function: Invalid

Y AS Y.price < prev(X.price, 2)

For more information, see:

19.2 MEASURES Clause

The MEASURES clause exports (makes available for inclusion in the SELECT) attribute values of events that successfully match the pattern you specify.

You may specify expressions over correlation variables that reference partition attributes, order by attributes, singleton variables and aggregates on group variables, and aggregates on the attributes of the stream that is the source of the MATCH_RECOGNIZE clause.

You qualify attribute values by correlation variable to export the value of the attribute for the event that matches the correlation variable's condition. For example, within the MEASURES clause, A.c1 refers to the value of event attribute c1:

You may include in the SELECT statement only attributes you specify in the MEASURES clause.

pattern_measures_clause::=

Surrounding text describes pattern_measures_clause.png.

(non_mt_measure_list::=)

non_mt_measure_list::=

Surrounding text describes non_mt_measure_list.png.

(measure_column::=)

measure_column::=

Surrounding text describes measure_column.png.

(arith_expr::=, identifier::=)

In Example 19-1, the pattern_measures_clause is:

MEASURES
    A.itemId as itemId

This section describes:

For more information, see:

19.2.1 Functions Over Correlation Variables in the MEASURES Clause

In the MEASURES clause, you may apply any single-row or aggregate function to the attributes of events that match a condition.

Example 19-11 applies the last function over correlation variable Z.c1 in the MEASURES clause.

Example 19-11 Using Functions Over Correlation Variables

<query id="tkpattern_q41"><![CDATA[
    select
        T.firstW, T.lastZ
    from
        tkpattern_S11
    MATCH_RECOGNIZE (
        MEASURES A.c1 as firstW, last(Z.c1) as lastZ
        ALL MATCHES
        PATTERN(A W+ X+ Y+ Z+)
        DEFINE
            W as W.c2 < prev(W.c2),
            X as X.c2 > prev(X.c2),
            Y as Y.c2 < prev(Y.c2),
            Z as Z.c2 > prev(Z.c2)
    ) as T
]]></query>

Note the following in the MEASURES clause in Example 19-11:

  • A.c1 will export the value of c1 in the first and only the first event that the query processes because:

    • A is not specified in the DEFINE clause, therefor it is always true.

    • A has no pattern quantifiers, therefor it will match exactly once.

  • The built-in aggregate function last will export the value of c1 in the last event that matched Z at the time the PATTERN clause was satisfied.

For more information, see:

19.3 PATTERN Clause

The PATTERN clause specifies the pattern to be matched as a regular expression over one ore more correlation variables.

Incoming events must match these conditions in the order given (from left to right).

The regular expression may contain correlation variables that are:

pattern_clause::=

Surrounding text describes pattern_clause.png.

(regexp::=, within_clause::=)

This section describes:

For more information, see:

19.3.1 Pattern Quantifiers and Regular Expressions

You express the pattern as a regular expression composed of correlation variables and pattern quantifiers.

regexp::=

Surrounding text describes regexp.png.

(correlation_name::=, pattern_quantifier::=)

correlation_name::=

Surrounding text describes correlation_name.png.

(const_string::=)

pattern_quantifier::=

Surrounding text describes pattern_quantifier.png.

Table 19-2 lists the pattern quantifiers (pattern_quantifier::=) Oracle CQL supports.

Table 19-2 MATCH_RECOGNIZE Pattern Quantifiers

Maximal Minimal Description

*

*?

0 or more times

+

+?

1 or more times.

?

??

0 or 1 time.

None

None

An unquantified pattern, such as A, is assumed to have a quantifier that requires exactly 1 match.


Use the pattern quantifiers to specify the pattern as a regular expression, such as A* or A+?.

The one-character pattern quantifiers are maximal or "greedy"; they will attempt to match as many instances of the regular expression on which they are applied as possible.

The two-character pattern quantifiers are minimal or "reluctant"; they will attempt to match as few instances of the regular expression on which they are applied as possible.

Consider the following pattern_clause:

PATTERN (A B* C)

This pattern clause means a pattern match will be recognized when the following conditions are met by consecutive incoming input tuples:

  1. Exactly one tuple matches the condition that defines correlation variable A, followed by

  2. Zero or more tuples that match the correlation variable B, followed by

  3. Exactly one tuple that matches correlation variable C.

While in state 2, if a tuple arrives that matches both the correlation variables B and C (since it satisfies the defining conditions of both of them) then as the quantifier * for B is greedy that tuple will be considered to have matched B instead of C. Thus due to the greedy property B gets preference over C and we match a greater number of B. Had the pattern expression be A B*? C, one that uses a lazy or reluctant quantifier over B, then a tuple matching both B and C will be treated as matching C only. Thus C would get preference over B and we will match fewer B.

For more information, see:

19.3.2 Grouping and Alternation in the PATTERN Clause

As shown in the regexp_grp_alt syntax, you can use:

  • open and close round brackets (( and )) to group correlation variables

  • alternation operators (|) to match either one correlation variable (or group of correlation variables) or another

regexp_grp_alt::=

Surrounding text describes regexp_grp_alt.png.

(correlation_name::=, pattern_quantifier::=, regexp::=)

Consider the following pattern_clause:

PATTERN (A+ B+)

This means "A one or more times followed by B one or more times".

You can group correlation variables. For example:

PATTERN (A+ (C+ B+)*)

This means "A one or more times followed by zero or more occurrences of C one or more times and B one or more times".

Using the PATTERN clause alternation operator (|), you can refine the sense of the pattern_clause. For example:

PATTERN (A+ | B+)

This means "A one or more times or B one or more times, whichever comes first".

Similarly, you can both group correlation variables and use the alternation operator. For example:

PATTERN (A+ (C+ | B+))

This means "A one or more times followed by either C one or more times or B one or more times, whichever comes first".

To match every permutation you can use:

PATTERN ((A B) | (B A))

This means "A followed by B or B followed by A, which ever comes first".

For more information, see:

19.4 DEFINE Clause

The DEFINE clause specifies the boolean condition for each correlation variable.

You may specify any logical or arithmetic expression and apply any single-row or aggregate function to the attributes of events that match a condition.

On receiving a new tuple from the base stream, the conditions of the correlation variables that are relevant at that point in time are evaluated. A tuple is said to have matched a correlation variable if it satisfies its defining condition. A particular input can match zero, one, or more correlation variables. The relevant conditions to be evaluated on receiving an input are determined by logic governed by the PATTERN clause regular expression and the state in pattern recognition process that we have reached after processing the earlier inputs.

The condition can refer to any of the attributes of the schema of the stream or view that evaluates to a stream on which the MATCH_RECOGNIZE clause is being applied.

A correlation variable in the PATTERN clause need not be specified in the DEFINE clause: the default for such a correlation variable is a predicate that is always true. Such a correlation variable matches every event. It is an error to specify a correlation variable in the DEFINE clause which is not used in a PATTERN clause

No correlation variable defined by a SUBSET clause may be defined in the DEFINE clause.

pattern_definition_clause::=

Surrounding text describes pattern_definition_clause.png.

(non_mt_corrname_definition_list::=)

non_mt_corrname_definition_list::=

Surrounding text describes non_mt_corrname_def_list.png.

(correlation_name_definition::=)

correlation_name_definition::=

Surrounding text describes correlation_name_definition.png.

(correlation_name::=, non_mt_cond_list::=)

This section describes:

For more information, see:

19.4.1 Functions Over Correlation Variables in the DEFINE Clause

You can use functions over the correlation variables while defining them.

Example 19-12 applies the to_timestamp function to correlation variables.

Example 19-12 Using Functions Over Correlation Variables: to_timestamp

...
      PATTERN (A B* C)
      DEFINE
          A  AS  (A.temp >= 25),
          B  AS  ((B.temp >= 25) and (to_timestamp(B.element_time) - to_timestamp(A.element_time) < INTERVAL "0 00:00:05.00" DAY TO SECOND)),
          C  AS  (to_timestamp(C.element_time) - to_timestamp(A.element_time) >= INTERVAL "0 00:00:05.00" DAY TO SECOND)
...

Example 19-13 applies the count function to correlation variable B to count the number of times its definition was satisfied. A match is recognized when totalCountValue is less than 1000 two or more times in 30 minutes.

Example 19-13 Using Functions Over Correlation Variables: count

...
    MATCH_RECOGNIZE(
        ...
        PATTERN(B*)
        DURATION 30 MINUTES
        DEFINE
            B as (B.totalCountValue < 1000 and count(B.*) >= 2)
...

For more information, see:

19.4.2 Referencing Attributes in the DEFINE Clause

You can refer to the attributes of a base stream:

  • Without a correlation variable: c1 < 20.

  • With a correlation variable: A.c1 < 20.

When you refer to the attributes without a correlation variable, a tuple that last matched any of the correlation variables is consulted for evaluation.

Consider the following definitions:

  • DEFINE A as c1 < 20

  • DEFINE A as A.c1 < 20

Both refer to c1 in the same tuple which is the latest input tuple. This is because on receiving an input we evaluate the condition of a correlation variable assuming that the latest input matches that correlation variable.

If you specify a correlation name that is not defined in the DEFINE clause, it is considered to be true for every input.

In Example 19-14, correlation variable A appears in the PATTERN clause but is not specified in the DEFINE clause. This means the correlation name A is true for every input. It is an error to define a correlation name which is not used in a PATTERN clause.

Example 19-14 Undefined Correlation Name

<query id="q"><![CDATA[
    SELECT
        T.firstW,
        T.lastZ
    FROM
        S2
    MATCH_RECOGNIZE (
        MEASURES
            A.c1 as firstW,
            last(Z) as lastZ
        PATTERN(A W+ X+ Y+ Z+)
        DEFINE
            W as W.c2 < prev(W.c2),
            X as X.c2 > prev(X.c2),
            Y as Y.c2 < prev(Y.c2),
            Z as Z.c2 > prev(Z.c2)
    ) as T
]]></query>

For more information, see:

19.4.3 Referencing One Correlation Variable From Another in the DEFINE Clause

A definition of one correlation variable can refer to another correlation variable. Consider the query that Example 19-15 shows:

Example 19-15 Referencing One Correlation Variable From Another

...
Select
    a_firsttime, d_lasttime, b_avgprice, d_avgprice
FROM
    S
MATCH_RECOGNIZE (
    PARTITION BY symbol
    MEASURES
        first(a.time) as a_firsttime,
        last(d.time) as d_lasttime,
        avg(b.price) as b_avgprice,
        avg(d.price) as d_avgprice
    PATTERN (A B+ C+ D)
    DEFINE
        A as A.price > 100,
        B as B.price > A.price,
        C as C.price < avg(B.price),
        D as D.price > prev(D.price)
)
...

Note the following:

  • Because correlation variable A defines a single attribute, B can refer to this single attribute.

  • Because B defines more than one attribute, C cannot reference a single attribute of B. In this case, C may only reference an aggregate of B.

  • D is defined in terms of itself: in this case, you may refer to a single attribute or an aggregate. In this example, the prev function is used to access the match of D prior to the current match.

For more information, see:

19.5 PARTITION BY Clause

Use this optional clause to specify the stream attributes by which a MATCH_RECOGNIZE clause should partition its results.

Without a PARTITION BY clause, all stream attributes belong to the same partition.

pattern_partition_clause::=

Surrounding text describes pattern_partition_clause.png.

(non_mt_attr_list::=)

In Example 19-1, the pattern_partition_clause is:

PARTITION BY
    itemId

The partition by clause in pattern means the input stream is logically divided based on the attributes mentioned in the partition list and pattern matching is done within a partition.

Consider a stream S with schema (c1 integer, c2 integer) with the input data that Example 19-16 shows.

Example 19-16 Input Stream S1

c1  c2
1000 10, 1
2000 10, 2
3000 20, 2
4000 20, 1

Consider the MATCH_RECOGNIZE query that Example 19-17 shows.

Example 19-17 MATCH_RECOGNIZE Query Using Input Stream S1

select T.p1, T.p2, T.p3 from S MATCH_RECOGNIZE(
    MEASURES
        A.ELEMENT_TIME as p1,
        B.ELEMENT_TIME as p2
        B.c2 as p3
    PATTERN (A B)
    DEFINE
        A as A.c1 = 10,
        B as B.c1 = 20
) as T

This query would output the following:

3000:+ 2000, 3000, 2

If we add PARTITION BY c2 to the query that Example 19-17 shows, then the output would change to:

3000:+ 2000, 3000, 2
4000:+ 1000, 4000, 1

This is because by adding the PARTITION BY clause, matches are done within partition only. Tuples at 1000 and 4000 belong to one partition and tuples at 2000 and 3000 belong to another partition owing to the value of c2 attribute in them. In the first partition A matches tuple at 1000 and B matches tuple at 4000. Even though a tuple at 3000 matches the B definition, it is not presented as a match for the first partition since that tuple belongs to different partition.

When you partition by more than one attribute, you can control the order of partitions using the ORDER BY clause. For more information, see Section 19.6, "ORDER BY Clause".

19.6 ORDER BY Clause

Use this optional clause to specify the stream attributes by which a MATCH_RECOGNIZE clause should order partitions when using a PARTITION BY clause.

Without an ORDER BY clause, the results of MATCH_RECOGNIZE are nondeterministic.

pattern_order_by_top_clause::=

Surrounding text describes pattern_order_by_top_clause.png.

You may only use the ORDER BY clause with a PARTITION BY clause.

For more information, see Section 19.5, "PARTITION BY Clause,"pattern_partition_clause::=, and order_by_list::=.

19.7 ALL MATCHES Clause

Use this optional clause to configure Oracle CEP to match overlapping patterns.

With the ALL MATCHES clause, Oracle CEP finds all possible matches. Matches may overlap and may start at the same event. In this case, there is no distinction between greedy and reluctant pattern quantifiers. For example, the following pattern:

ALL MATCHES
PATTERN (A* B)

produces the same result as:

ALL MATCHES
PATTERN (A*? B)

Without the ALL MATCHES clause, overlapping matches are not returned, and quantifiers such as the asterisk determine which among a set of candidate (and overlapping) matches is the preferred one for output. The rest of the overlapping matches are discarded.

pattern_skip_match_clause::=

Surrounding text describes pattern_skip_match_clause.png.

Consider the query tkpattern_q41 in Example 19-18 that uses ALL MATCHES and the data stream tkpattern_S11 in Example 19-19. Stream tkpattern_S11 has schema (c1 integer, c2 integer). The query returns the stream in Example 19-20.

The query tkpattern_q41 in Example 19-18 will report a match when the input stream values, when plotted, form the shape of the English letter W. The relation in Example 19-20 shows an example of overlapping instances of this W-pattern match.

There are two types of overlapping pattern instances:

Example 19-18 ALL MATCHES Clause Query

<query id="tkpattern_q41"><![CDATA[
    select
        T.firstW, T.lastZ
    from
        tkpattern_S11
    MATCH_RECOGNIZE (
        MEASURES A.c1 as firstW, last(Z.c1) as lastZ
        ALL MATCHES
        PATTERN(A W+ X+ Y+ Z+)
        DEFINE
            W as W.c2 < prev(W.c2),
            X as X.c2 > prev(X.c2),
            Y as Y.c2 < prev(Y.c2),
            Z as Z.c2 > prev(Z.c2)
    ) as T
]]></query>

Example 19-19 ALL MATCHES Clause Stream Input

Timestamp   Tuple
 1000         1,8
 2000         2,8
 3000         3,8
 4000         4,6
 5000         5,3
 6000         6,7
 7000         7,6
 8000         8,2
 9000         9,6
10000        10,2
11000        11,9
12000        12,9
13000        13,8
14000        14,5
15000        15,0
16000        16,9
17000        17,2
18000        18,0
19000        19,2
20000        20,3
21000        21,8
22000        22,5
23000        23,9
24000        24,9
25000        25,4
26000        26,7
27000        27,2
28000        28,8
29000        29,0
30000        30,4
31000        31,4
32000        32,7
33000        33,8
34000        34,6
35000        35,4
36000        36,5
37000        37,1
38000        38,7
39000        39,5
40000        40,8
41000        41,6
42000        42,6
43000        43,0
44000        44,6
45000        45,8
46000        46,4
47000        47,3
48000        48,8
49000        49,2
50000        50,5
51000        51,3
52000        52,3
53000        53,9
54000        54,8
55000        55,5
56000        56,5
57000        57,9
58000        58,7
59000        59,3
60000        60,3

Example 19-20 ALL MATCHES Clause Stream Output

Timestamp   Tuple Kind  Tuple
 9000:      +      3,9
 9000:      +      4,9
11000:      +      6,11
11000:      +      7,11
19000:      +     12,19
19000:      +     13,19
19000:      +     14,19
20000:      +     12,20
20000:      +     13,20
20000:      +     14,20
21000:      +     12,21
21000:      +     13,21
21000:      +     14,21
23000:      +     16,23
23000:      +     17,23
28000:      +     24,28
30000:      +     26,30
38000:      +     33,38
38000:      +     34,38
40000:      +     36,40
48000:      +     42,48
50000:      +     45,50
50000:      +     46,50

As Example 19-20 shows, the ALL MATCHES clause reports all the matched pattern instances on receiving a particular input. For example, at time 20000, all of the tuples {12,20}, {13,20}, and {14,20} are output.

For more information, see Section 19.3.1, "Pattern Quantifiers and Regular Expressions".

19.8 WITHIN Clause

The WITHIN clause is an optional clause that outputs a pattern_clause match if and only if the match occurs within the specified time duration.

within_clause::=

Surrounding text describes within_clause.png.

(time_spec::=)

That is, if and only if:

TL - TF < WD

Where:

The WITHIN INCLUSIVE clause tries to match events at the boundary case as well. That is, it outputs a match if and only if:

TL - TF <= WD

If the match completes within the specified time duration, then the event is output as soon as it happens. That is, if the match can be output, it is output with the timestamp at which it completes. The WITHIN clause does not wait for the time duration to expire as the DURATION clause does.

When the WITHIN clause duration expires, it discards any potential candidate matches which are incomplete.

For more information, see Section 19.12.4, "Pattern Detection With the WITHIN Clause".

Note:

You cannot use a WITHIN clause with a DURATION clause. For more information, see Section 19.9, "DURATION Clause".

19.9 DURATION Clause

The DURATION clause is an optional clause that you should use only when writing a query involving non-event detection. Non-event detection is the detection of a situation when a certain event which should have occurred in a particular time limit does not occur in that time frame.

duration_clause::=

Surrounding text describes duration_clause_fixed.png.

(time_unit::=)

Using this clause, a match is reported only when the regular expression in the PATTERN clause is matched completely and no other event or input arrives until the duration specified in the DURATION clause expires. The duration is measured from the time of arrival of the first event in the pattern match.

You must use the INCLUDE TIMER EVENTS clause when using the DURATION clause. For more information, see Section 19.10, "INCLUDE TIMER EVENTS Clause".

This section describes:

Note:

You cannot use a DURATION clause with a WITHIN clause. For more information, see Section 19.8, "WITHIN Clause".

19.9.1 Fixed Duration Non-Event Detection

The duration can be specified as a constant value, such as 10. Optionally, you may specify a time unit such as seconds or minutes (see time_unit::=); the default time unit is seconds.

Consider the query tkpattern_q59 in Example 19-21 that uses DURATION 10 to specify a delay of 10 s (10000 ms) and the data stream tkpattern_S19 in Example 19-22. Stream tkpattern_S19 has schema (c1 integer). The query returns the stream in Example 19-23.

Example 19-21 MATCH_RECOGNIZE with Fixed Duration DURATION Clause Query

<query id="BBAQuery"><![CDATA[
    select
        T.p1, T.p2
    from
        tkpattern_S19
    MATCH_RECOGNIZE (
        MEASURES A.c1 as p1, B.c1 as p2
        include timer events
        PATTERN(A B*)
        duration 10
        DEFINE A as A.c1 = 10, B as B.c1 != A.c1
    ) as T
]]></query>

Example 19-22 MATCH_RECOGNIZE with Fixed Duration DURATION Clause Stream Input

Timestamp   Tuple
 1000        10
 4000        22
 6000       444
 7000        83
 9000        88
11000        12
11000        22
11000        15
12000        13
15000        10
27000        11
28000        10
30000        18
40000        10
44000        19
52000        10
h 100000

Example 19-23 MATCH_RECOGNIZE with Fixed DURATION Clause Stream Output

Timestamp   Tuple Kind  Tuple
11000:      +           10,88
25000:      +           10,
38000:      +           10,18
50000:      +           10,19
62000:      +           10,

The tuple at time 1000 matches A.

Since the duration is 10 we output a match as soon as input at time 1000+10000=11000 is received (the one with the value 12). Since the sequence of tuples from 1000 through 9000 match the pattern AB* and nothing else a match is reported as soon as input at time 11000 is received.

The next match starts at 15000 with the tuple at that time matching A. The next tuple that arrives is at 27000. So here also we have tuples satisfying pattern AB* and nothing else and hence a match is reported at time 15000+10000=25000. Further output is generated by following similar logic.

For more information, see "Fixed Duration Non-Event Detection".

19.9.2 Recurring Non-Event Detection

When you specify a MULTIPLES OF clause, it indicates recurring non-event detection. In this case an output is sent at the multiples of duration value as long as there is no event after the pattern matches completely.

Consider the query tkpattern_q75 in Example 19-24 that uses DURATION MULTIPLES OF 10 to specify a delay of 10 s (10000 ms) and the data stream tkpattern_S23 in Example 19-25. Stream tkpattern_S23 has schema (c1 integer). The query returns the stream in Example 19-26.

Example 19-24 MATCH_RECOGNIZE with Variable Duration DURATION MULTIPLES OF Clause Query

<query id="tkpattern_q75"><![CDATA[
    select
        T.p1, T.p2, T.p3
    from
        tkpattern_S23
    MATCH_RECOGNIZE (
        MEASURES A.c1 as p1, B.c1 as p2, sum(B.c1) as p3
        ALL MATCHES
        include timer events
        PATTERN(A B*)
        duration multiples of 10
        DEFINE A as A.c1 = 10, B as B.c1 != A.c1
    ) as T
]]></query>

Example 19-25 MATCH_RECOGNIZE with Variable Duration DURATION MULTIPLES OF Clause Stream Input

Timestamp   Tuple
 1000        10
 4000        22
 6000       444
 7000        83
 9000        88
11000        12
11000        22
11000        15
12000        13
15000        10
27000        11
28000        10
30000        18
44000        19
62000        20
72000        10
h 120000

Example 19-26 MATCH_RECOGNIZE with Variable Duration DURATION MULTIPLES OF Clause Stream Output

Timestamp   Tuple Kind  Tuple
 11000:     +           10,88,637
 25000:     +           10,,
 38000:     +           10,18,18
 48000:     +           10,19,37
 58000:     +           10,19,37
 68000:     +           10,20,57
 82000:     +           10,,
 92000:     +           10,,
102000:     +           10,,
112000:     +           10,,

The execution here follows similar logic to that of the example above for just the DURATION clause (see "Fixed Duration Non-Event Detection"). The difference comes for the later outputs. The tuple at 72000 matches A and then there is nothing else after that. So the pattern AB* is matched and we get output at 82000. Since we have the MULTIPLES OF clause and duration 10 we see outputs at time 92000, 102000, and so on.

19.10 INCLUDE TIMER EVENTS Clause

Use this clause in conjunction with the DURATION clause for non-event detection queries.

Typically, in most pattern match queries, a pattern match output is always triggered by an input event on the input stream over which pattern is being matched. The only exception is non-event detection queries where there could be an output triggered by a timer expiry event (as opposed to an explicit input event on the input stream).

pattern_inc_timer_evs_clause::=

Surrounding text describes pattern_inc_tim_evs_cl.png.

(pattern_clause::=, pattern_skip_match_clause::=, pattern_definition_clause::=, duration_clause::=, subset_clause::=)

For more information, see Section 19.9, "DURATION Clause".

19.11 SUBSET Clause

Using this clause, you can group together one or more correlation variables that are defined in the DEFINE clause. You can use this named subset in the MEASURES and DEFINE clauses just like any other correlation variable.

For example:

SUBSET S1 = (Z,X)

The right-hand side of the subset ((Z,X)) is a comma-separated list of one or more correlation variables as defined in the PATTERN clause.

The left-hand side of the subset (S1) is the union of the correlation variables on the right-hand side.

You cannot include a subset variable in the right-hand side of a subset.

subset_clause::=

Surrounding text describes subset_clause.png.

(non_mt_subset_definition_list::=)

non_mt_subset_definition_list::=

Surrounding text describes non_mt_subset_def_list.png.

(subset_definition::=)

subset_definition::=

Surrounding text describes subset_definition.png.

(subset_name::=, non_mt_corr_list::=)

subset_name::=

Surrounding text describes subset_name.png.

(const_string::=)

non_mt_corr_list::=

Surrounding text describes non_mt_corr_list.png.

(correlation_name::=)

Consider the query q55 in Example 19-27 and the data stream S11 in Example 19-28. Stream S11 has schema (c1 integer, c2 integer). This example defines subsets S1 through S6. This query outputs a match if the c2 attribute values in the input stream form the shape of the English letter W. Now suppose we want to know the sum of the values of c2 for those tuples which form the incrementing arms of this W shape. The correlation variable X represents tuples that are part of the first incrementing arm and Z represent the tuples that are part of the second incrementing arm. So we need some way to group the tuples that match both. Such a requirement can be captured by defining a SUBSET clause as the example shows.

Subset S4 is defined as (X,Z). It refers to the tuples in the input stream that match either X or Z. This subset is used in the MEASURES clause statement sum(S4.c2) as sumIncrArm. This computes the sum of the value of c2 attribute in the tuples that match either X or Z. A reference to S4.c2 in a DEFINE clause like S4.c2 = 10 will refer to the value of c2 in the latest among the last tuple that matched X and the last tuple that matched Z.

Subset S6 is defined as (Y). It refers to all the tuples that match correlation variable Y.

The query returns the stream in Example 19-29.

Example 19-27 MATCH_RECOGNIZE with SUBSET Clause Query

<query id="q55"><![CDATA[
    select
        T.firstW,
        T.lastZ,
        T.sumDecrArm,
        T.sumIncrArm,
        T.overallAvg
    from
        S11
    MATCH_RECOGNIZE (
        MEASURES
            S2.c1 as firstW,
            last(S1.c1) as lastZ,
            sum(S3.c2) as sumDecrArm,
            sum(S4.c2) as sumIncrArm,
            avg(S5.c2) as overallAvg
        PATTERN(A W+ X+ Y+ Z+)
        SUBSET S1 = (Z) S2 = (A) S3 = (A,W,Y) S4 = (X,Z) S5 = (A,W,X,Y,Z) S6 = (Y)
        DEFINE
            W as W.c2 < prev(W.c2),
            X as X.c2 > prev(X.c2),
            Y as S6.c2 < prev(Y.c2),
            Z as Z.c2 > prev(Z.c2)
    ) as T
]]></query>

Example 19-28 MATCH_RECOGNIZE with SUBSET Clause Stream Input

Timestamp   Tuple
 1000        1,8
 2000        2,8
 3000        3,8
 4000        4,6
 5000        5,3
 6000        6,7
 7000        7,6
 8000        8,2
 9000        9,6
10000       10,2
11000       11,9
12000       12,9
13000       13,8
14000       14,5
15000       15,0
16000       16,9
17000       17,2
18000       18,0
19000       19,2
20000       20,3
21000       21,8
22000       22,5
23000       23,9
24000       24,9
25000       25,4
26000       26,7
27000       27,2
28000       28,8
29000       29,0
30000       30,4
31000       31,4
32000       32,7
33000       33,8
34000       34,6
35000       35,4
36000       36,5
37000       37,1
38000       38,7
39000       39,5
40000       40,8
41000       41,6
42000       42,6
43000       43,0
44000       44,6
45000       45,8
46000       46,4
47000       47,3
48000       48,8
49000       49,2
50000       50,5
51000       51,3
52000       52,3
53000       53,9
54000       54,8
55000       55,5
56000       56,5
57000       57,9
58000       58,7
59000       59,3
60000       60,3

Example 19-29 MATCH_RECOGNIZE with SUBSET Clause Stream Output

Timestamp   Tuple Kind  Tuple
 9000:      +           3,9,25,13,5.428571
21000:      +           12,21,24,22,4.6
28000:      +           24,28,15,15,6.0
38000:      +           33,38,19,12,5.1666665
48000:      +           42,48,13,22,5.0

For more information, see:

19.12 MATCH_RECOGNIZE Examples

The following examples illustrate basic MATCH_RECOGNIZE practices:

For more examples, see Oracle Fusion Middleware Getting Started Guide for Oracle Complex Event Processing.

19.12.1 Pattern Detection

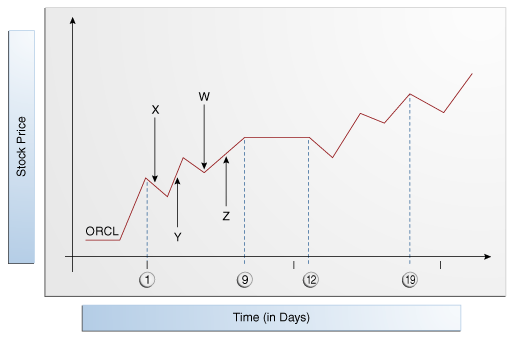

Consider the stock fluctuations that Figure 19-1 shows. This data can be represented as a stream of stock ticks (index number or time) and stock price. Figure 19-1 shows a common trading behavior known as a double bottom pattern between days 1 and 9 and between days 12 and 19. This pattern can be visualized as a W-shaped change in stock price: a fall (X), a rise (Y), a fall (W), and another rise (Z).

Figure 19-1 Pattern Detection: Double Bottom Stock Fluctuations

Description of Figure 19-1 follows
Description of "Figure 19-1 Pattern Detection: Double Bottom Stock Fluctuations"

Example 19-30 shows a query q on stream S2 of stock price events with schema symbol, stockTick, and price. This query detects double bottom patterns on the incoming stock trades using the PATTERN clause (A W+ X+ Y+ Z+). The correlation names in this clause are:

  • A: corresponds to the start point of the double bottom pattern.

    Because correlation name A is true for every input, it is not defined in the DEFINE clause. If you specify a correlation name that is not defined in the DEFINE clause, it is considered to be true for every input.

  • W+: corresponds to the first decreasing arm of the double bottom pattern.

    It is defined by W.price < prev(W.price). This definition implies that the current price is less than the previous one.

  • X+: corresponds to the first increasing arm of the double bottom pattern.

  • Y+: corresponds to the second decreasing arm of the double bottom pattern.

  • Z+: corresponds to the second increasing arm of the double bottom pattern.

Example 19-30 Simple Pattern Detection: Query

<query id="q"><![CDATA[
    SELECT
        T.firstW,
        T.lastZ
    FROM
        S2
    MATCH_RECOGNIZE (
        MEASURES
            A.stockTick as firstW,
            last(Z) as lastZ
        PATTERN(A W+ X+ Y+ Z+)
        DEFINE
            W as W.price < prev(W.price),
            X as X.price > prev(X.price),
            Y as Y.price < prev(Y.price),
            Z as Z.price > prev(Z.price)
    ) as T
    WHERE
        S2.symbol = "oracle"
]]></query>

19.12.2 Pattern Detection With PARTITION BY

Consider the stock fluctuations that Figure 19-2 shows. This data can be represented as a stream of stock ticks (index number or time) and stock price. In this case, the stream contains data for more than one stock ticker symbol. Figure 19-2 shows a common trading behavior known as a double bottom pattern between days 1 and 9 and between days 12 and 19 for stock BOFA. This pattern can be visualized as a W-shaped change in stock price: a fall (X), a rise (Y), a fall (W), and another rise (Z).

Figure 19-2 Pattern Detection With Partition By: Stock Fluctuations

Description of Figure 19-2 follows
Description of "Figure 19-2 Pattern Detection With Partition By: Stock Fluctuations"

Example 19-31 shows a query q on stream S2 of stock price events with schema symbol, stockTick, and price. This query detects double bottom patterns on the incoming stock trades using the PATTERN clause (A W+ X+ Y+ Z+). The correlation names in this clause are:

  • A: corresponds to the start point of the double bottom pattern.

  • W+: corresponds to the first decreasing arm of the double bottom pattern as defined by W.price < prev(W.price), which implies that the current price is less than the previous one.

  • X+: corresponds to the first increasing arm of the double bottom pattern.

  • Y+: corresponds to the second decreasing arm of the double bottom pattern.

  • Z+: corresponds to the second increasing arm of the double bottom pattern.

The query partitions the input stream by stock ticker symbol using the PARTITION BY clause and applies this PATTERN clause to each logical stream.

Example 19-31 Pattern Detection With PARTITION BY: Query

<query id="q"><![CDATA[
    SELECT
        T.firstW,
        T.lastZ
    FROM
        S2
    MATCH_RECOGNIZE (
        PARTITION BY
            A.symbol
        MEASURES
            A.stockTick as firstW,
            last(Z) as lastZ
        PATTERN(A W+ X+ Y+ Z+)
        DEFINE
            W as W.price < prev(W.price),
            X as X.price > prev(X.price),
            Y as Y.price < prev(Y.price),
            Z as Z.price > prev(Z.price)
    ) as T
]]></query>

19.12.3 Pattern Detection With Aggregates

Consider the query q1 in Example 19-32 and the data stream S in Example 19-33. Stream S has schema (c1 integer). The query returns the stream in Example 19-34.

Example 19-32 Pattern Detection With Aggregates: Query

<query id="q1"><![CDATA[
    SELECT
        T.sumB
    FROM
        S
    MATCH_RECOGNIZE (
        MEASURES
            sum(B.c1) as sumB
        PATTERN(A B* C)
        DEFINE
            A as ((A.c1 < 50) AND (A.c1 > 35)),
            B as B.c1 > avg(A.c1),
            C as C.c1 > prev(C.c1)
    ) as T
]]></query>

Example 19-33 Pattern Detection With Aggregates: Stream Input

Timestamp   Tuple
 1000       40
 2000       52
 3000       60
 4000       58
 5000       57
 6000       56
 7000       55
 8000       59
 9000       30
10000       40
11000       52
12000       60
13000       58
14000       57
15000       56
16000       55
17000       30
18000       10
19000       20
20000       30
21000       10
22000       25
23000       25
24000       25
25000       25

Example 19-34 Pattern Detection With Aggregates: Stream Output

Timestamp   Tuple
8000        338
12000       52

19.12.4 Pattern Detection With the WITHIN Clause

Consider the queries in Example 19-35 and Example 19-36 and the data stream S in Example 19-37. Stream S has schema (c1 integer, c2 integer). Table 19-3 compares the output of these queries.

Example 19-35 PATTERN Clause and WITHIN Clause

<query id="queryWithin"><![CDATA[
    SELECT T.Ac2, T.Bc2, T.Cc2
    FROM S
    MATCH_RECOGNIZE(
        MEASURES A.c2 as Ac2, B.c2 as Bc2, C.c2 as Cc2
        PATTERN (A (B+ | C)) within 3000 milliseconds
        DEFINE
            A as A.c1=10 or A.c1=25,
            B as B.c1=20 or B.c1=15 or B.c1=25,
            C as C.c1=15
    ) as T
]]></query>

Example 19-36 PATTERN Clause and WITHIN INCLUSIVE Clause

<query id="queryWithinInclusive"><![CDATA[
    SELECT T.Ac2, T.Bc2, T.Cc2
    FROM S
    MATCH_RECOGNIZE(
        MEASURES A.c2 as Ac2, B.c2 as Bc2, C.c2 as Cc2
        PATTERN (A (B+ | C)) within inclusive 3000 milliseconds
        DEFINE
            A as A.c1=10 or A.c1=25,
            B as B.c1=20 or B.c1=15 or B.c1=25,
            C as C.c1=15
    ) as T
]]></query>

Example 19-37 Pattern Detection With the WITHIN Clause: Stream Input

Timestamp   Tuple
  1000       10,100
h 2000
  3000       15,200
  3000       20,300
  4000       25,400
  5000       20,500
  6000       20,600
  7000       35,700
  8000       10,800
  9000       15,900
h 11000
 11000       20,1000
 11000       50,1100

Table 19-3 WITHIN and WITHIN INCLUSIVE Query Output

Query queryWithin Query queryWithinInclusive
Timestamp   Tuple Kind  Tuple
3000:      +           100,300,
6000:      +           400,600,
9000:      +           800,900,
Timestamp   Tuple Kind  Tuple
 4000:      +           100,400,
11000:      +           800,1000,

As Table 19-3 shows for the queryWithin query, the candidate match starts with the event at TimeStamp=1000 and since the WITHIN clause duration is 3 seconds, the query will output the match only if it completes before the event at TimeStamp=4000. When the query receives the event at TimeStampe=4000, the longest match up to that point (since we are not using ALL MATCHES) is output. Note that although the event at TimeStamp=4000 matches B, it is not included in the match. The next match starts with the event at TimeStamp=4000 since that event also matches A and the previous match ends at TimeStamp=3000.

As Table 19-3 shows for the queryWithinInclusive query, the candidate match starts with the event at TimeStamp=1000. When the query receives the event at TimeStamp=4000, that event is included in the match because the query uses WITHIN INCLUSIVE and the event matches B. Note that although the event at TimeStamp=5000 matches B, the pattern is not grown further since it exceeds the duration (3 seconds) measured from the start of the match (TimeStamp=1000). Since this match ends at TimeStamp=4000 and we are not using ALL MATCHES, the next match does not start at TimeStamp=4000, even though it matches A.

For more information, see:

19.12.5 Fixed Duration Non-Event Detection

Consider an object that moves among five different rooms. Each time it starts from room 1, it must reach room 5 within 5 minutes. Figure 19-3 shows the object's performance. This data can be represented as a stream of time and room number. Note that when the object started from room 1 at time 1, it reached room 5 at time 5, as expected. However, when the object started from room 1 at time 6, it failed to reach room 5 at time 11; it reached room 5 at time 12. When the object started from room 1 at time 15, it was in room 5 at time 20, as expected. However, when the object started from room 1 at time 23, it failed to reach room 5 at time 28; it reached room 5 at time 30. The successes at times 5 and 20 are considered events: the arrival of the object in room 5 at the appropriate time. The failures at time 11 and 28 are considered non-events: the expected arrival event did not occur. Using Oracle CQL, you can query for such non-events.

Figure 19-3 Fixed Duration Non-Event Detection

Description of Figure 19-3 follows
Description of "Figure 19-3 Fixed Duration Non-Event Detection"

Example 19-38 shows query q on stream S (with schema c1 integer representing room number) that detects these non-events. Each time the object fails to reach room 5 within 5 minutes of leaving room 1, the query returns the time of departure from room 1.

Example 19-38 Fixed Duration Non-Event Detection: Query

<query id="q"><![CDATA[
select T.Atime FROM S
    MATCH_RECOGNIZE(
        MEASURES
            A.ELEMENT_TIME as Atime
       INCLUDE TIMER EVENTS
       PATTERN (A B*)
       DURATION 5 MINUTES
       DEFINE
           A as A.c1 = 1,
           B as B.c1 != 5
    ) as T
]]></query>

For more information, see Section 19.9, "DURATION Clause".
