6 Oracle CEP IDE for Eclipse and the Event Processing Network

This chapter describes how to use the Oracle Complex Event Processing (Oracle CEP) IDE for Eclipse to develop event processing networks (EPNs), where application components are wired together. The EPN Editor provides a graphical view of the EPN and offers visualization and navigation features to help you build Oracle CEP applications.

This section describes how to use the editor and the information it displays, including:

6.1 Opening the EPN Editor

You can open the EPN Editor from either the project folder or a context or configuration file of an Oracle CEP application.

6.1.1 How to Open the EPN Editor from a Project Folder

You can open the EPN Editor from the Eclipse project folder of an Oracle CEP application. Alternatively, you can open the EPN Editor from a context or configuration file (see Section 6.1.2, "How to Open the EPN Editor from a Context or Configuration File").

To open the EPN Editor from a project:

  1. Launch the Oracle CEP IDE for Eclipse.

  2. Open your Oracle CEP project in the Project Explorer.

  3. Right-click the project folder and select Open EPN Editor as Figure 6-1 shows.

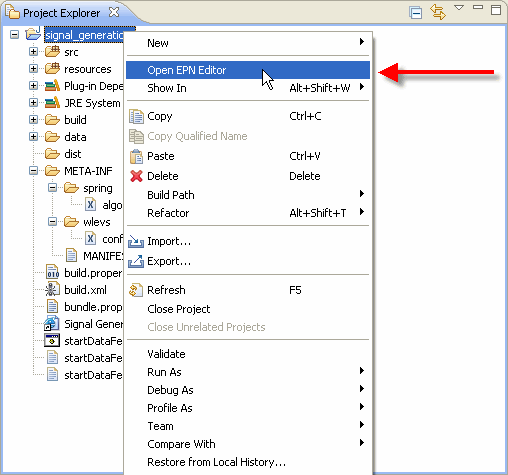

    Figure 6-1 Opening the EPN Editor from a Project

    Description of Figure 6-1 follows
    Description of "Figure 6-1 Opening the EPN Editor from a Project"

    The EPN Editor opens in a tab named EPN:PROJECT-NAME, where PROJECT-NAME is the name of your Oracle CEP project, as Figure 6-2 shows.

6.1.2 How to Open the EPN Editor from a Context or Configuration File

You can open the EPN Editor from a Spring context file or an Oracle CEP server configuration file in an Oracle CEP application. Alternatively, you can open the EPN Editor from a context or configuration file (see Section 6.1.1, "How to Open the EPN Editor from a Project Folder")

To open the EPN Editor from a context or configuration file:

  1. Launch the Oracle CEP IDE for Eclipse.

  2. Open your Oracle CEP project in the Project Explorer.

  3. Right-click a context or configuration file and select Open in EPN Editor as Figure 6-3 shows.

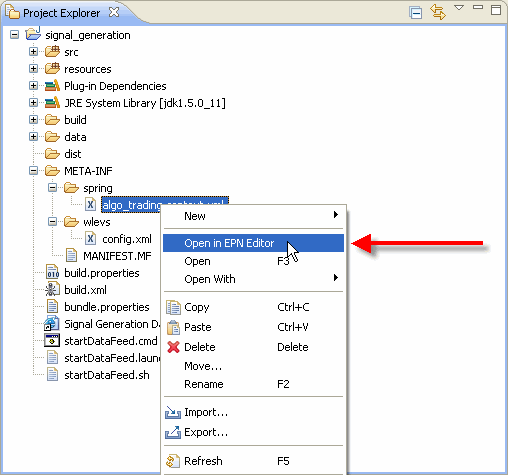

    Figure 6-3 Opening the EPN Editor from a Context or Configuration File

    Description of Figure 6-3 follows
    Description of "Figure 6-3 Opening the EPN Editor from a Context or Configuration File"

    The EPN Editor opens in a tab named EPN:PROJECT-NAME, where PROJECT-NAME is the name of your Oracle CEP project, as Figure 6-4 shows.

6.2 EPN Editor Overview

This section describes the main controls you use to manage the EPN view and how the EPN Editor displays Oracle CEP application information, including:

6.2.1 Flow Representation

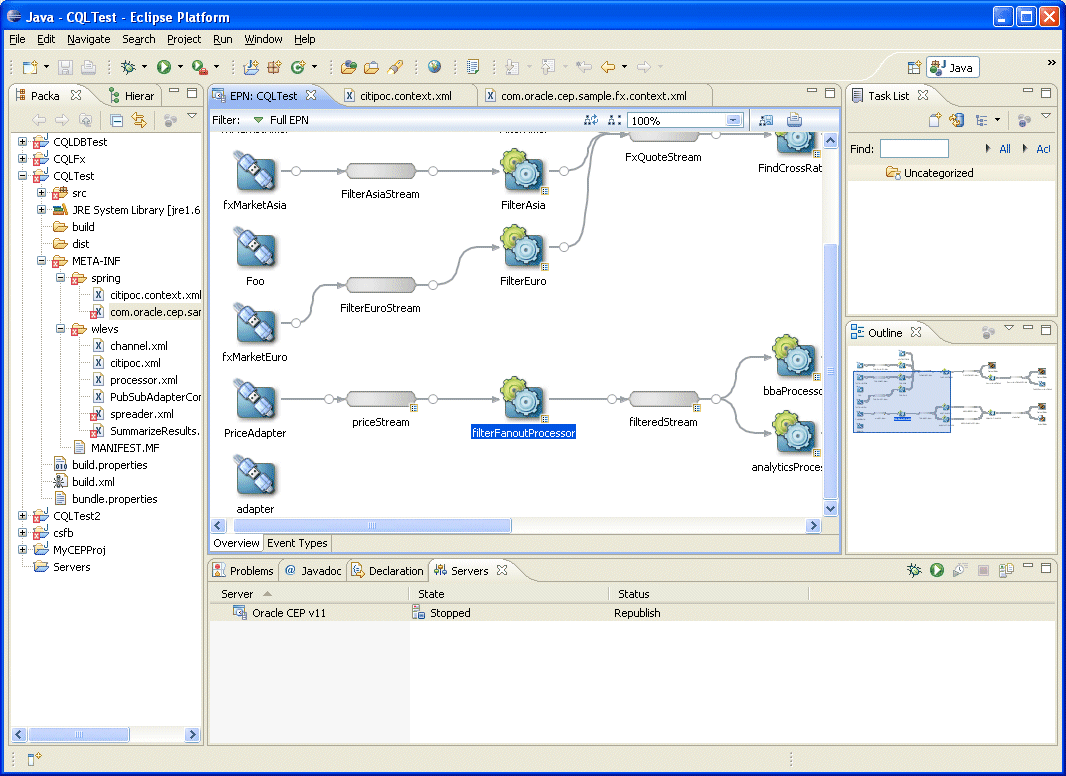

The primary display in the editor is of the flow inside the application as Figure 6-5 shows.

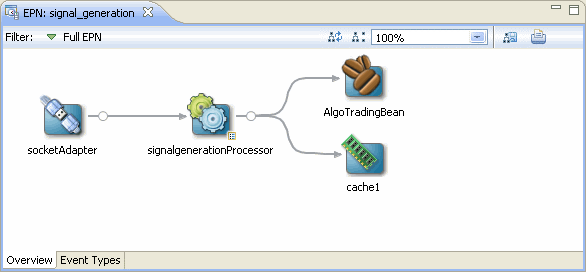

Figure 6-5 EPN Flow Representation

Description of Figure 6-5 follows
Description of "Figure 6-5 EPN Flow Representation"

The EPN is composed of nodes connected by links and streams. Nodes are of various types including adapter, processor, database table, bean, and cache. For more information on the graphic notation the EPN Editor uses on nodes, links, and streams, see:

6.2.2 Filtering

Although you often specify your EPN in a single assembly file, you may specify an EPN across multiple assembly files.

By default the EPN Editor shows the EPN for a single Oracle CEP application bundle with the information combined from all files.

To see the network for a single assembly file simply select that file from the Filter pull-down menu as Figure 6-6 shows.

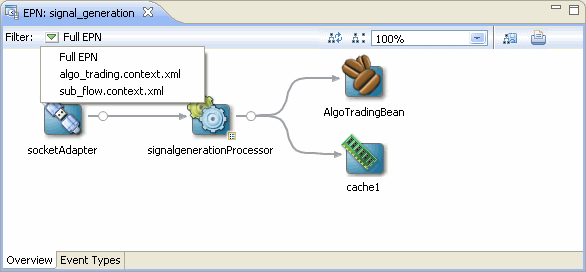

Figure 6-6 Filtering the EPN by Assembly File

Description of Figure 6-6 follows
Description of "Figure 6-6 Filtering the EPN by Assembly File"

When editing an EPN, the assembly file shown in the EPN Editor filter is the assembly file to which new nodes will be added. If the EPN Editor filter is set to Full EPN then the first assembly file in the filter list will be the file to which new nodes will be added. Existing nodes will be edited in or deleted from the assembly file in which they are defined.

If the assembly file the EPN Editor edits is open in an Eclipse source editor, then the edits will be made to the editor for that open file. In this case, you will need to save changes to the open editor before the changes appear in the file on disk.

If the assembly file the EPN Editor edits is not open in an Eclipse source editor, then the edits are immediately applied to the file on disk.

For more information, see Section 4.3, "Creating EPN Assembly Files".

6.2.3 Zooming

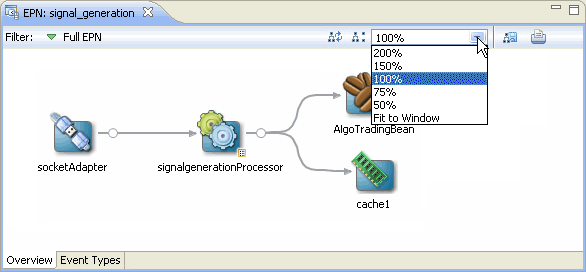

You can change the zoom level of the EPN Editor by entering a percent value into the zoom field or selecting a value from the zoom field pull-down menu as Figure 6-7 shows. To fit the EPN into the current EPN Editor window, select Fit to Window.

6.2.4 Layout

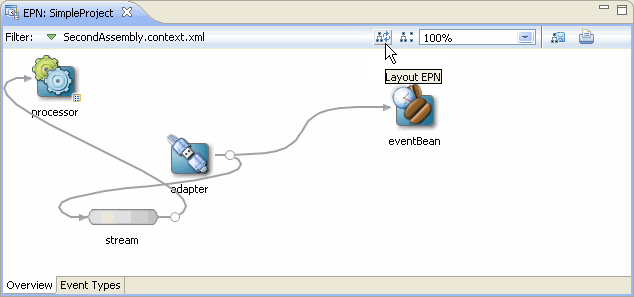

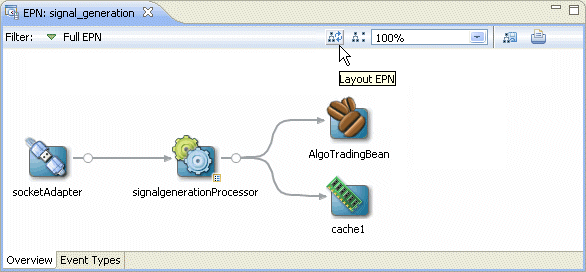

You can optimize and simplify the EPN layout by clicking Layout EPN as Figure 6-8 shows.

Figure 6-8 Optimize Layout

Description of Figure 6-8 follows
Description of "Figure 6-8 Optimize Layout"

6.2.5 Showing and Hiding Unconnected Beans

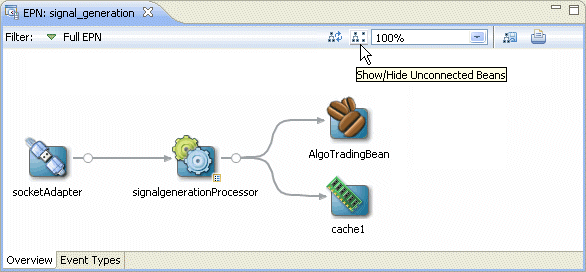

You can also filter out <bean> elements with no references in the EPN. Clicking Show/Hide Unconnected Beans will toggle the visibility of such beans as Figure 6-9 shows. For more information, see Section 6.4.3, "Laying Out Nodes".

Figure 6-9 Show/Hide Unconnected Beans

Description of Figure 6-9 follows
Description of "Figure 6-9 Show/Hide Unconnected Beans"

6.2.6 Printing and Exporting to an Image

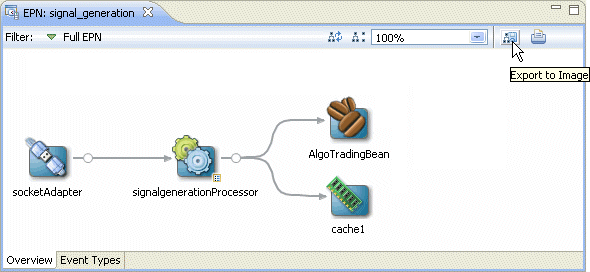

You can export the EPN Editor view to an image file by clicking Export to Image as Figure 6-10 shows. You can export the image as a .bmp, .gif, .jpg, or .png file.

Figure 6-10 Exporting the EPN as an Image File

Description of Figure 6-10 follows
Description of "Figure 6-10 Exporting the EPN as an Image File"

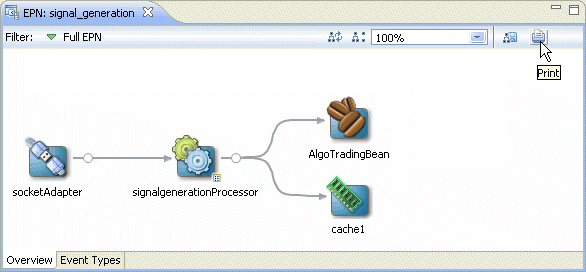

You can print the EPN Editor view by clicking Print as Figure 6-11 shows.

Figure 6-11 Printing the EPN

Description of Figure 6-11 follows
Description of "Figure 6-11 Printing the EPN"

6.2.7 Configuration Badging

Nodes that have configuration information in one of the configuration files in the META-INF/wlevs directories are badged with an indicator on the bottom right as Figure 6-12 shows.

Figure 6-12 Configuration Badging

Description of Figure 6-12 follows
Description of "Figure 6-12 Configuration Badging"

Nodes with this badge will also have the Go To Configuration Source context menu item.

6.2.8 Link Specification Location Indicator

When working with streams, you can specify a link in the assembly file as a:

  • source element in the downstream node.

  • listener element in the upstream node

A circle on the line indicates where a particular link is specified in the assembly file.

Figure 6-13 shows an example in which the link is specified as a source element on the downstream node outStream so the circle is next to the outStream node. Figure 6-14 shows the corresponding assembly file.

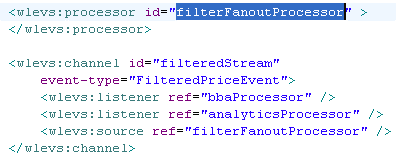

Figure 6-14 Link Source Assembly File

Description of Figure 6-14 follows
Description of "Figure 6-14 Link Source Assembly File"

Figure 6-15 shows an example in which the link is specified as a listener element in the upstream node algoTradingProcessor so the circle is next to the algoTradingProcessor node. Figure 6-16 shows the corresponding assembly file.

Figure 6-15 Link Listener

Description of Figure 6-15 follows
Description of "Figure 6-15 Link Listener"

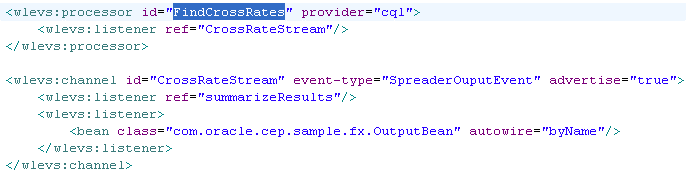

Figure 6-16 Link Listener Assembly File

Description of Figure 6-16 follows
Description of "Figure 6-16 Link Listener Assembly File"

6.2.9 Nested Stages

When you define a child node within a parent node, the child node is said to be nested. Only the parent node can specify the child node as a listener. You can drag references from a nested element, but not to them. For more information, see Section 6.4.2, "Connecting Nodes".

Consider the EPN that Figure 6-17 shows. Example 6-1 shows the EPN assembly source for this EPN. Note that the HelloWorldBean is nested within the helloworldOutputChannel. As a result, it appears within a box in the EPN diagram. Only the parent helloworldOutputChannel may specify the nested bean as a listener.

Figure 6-17 EPN With Nested Bean

Description of Figure 6-17 follows
Description of "Figure 6-17 EPN With Nested Bean"

Example 6-1 Assembly Source for EPN With Nested Bean

<wlevs:adapter id="helloworldAdapter"
 class="com.bea.wlevs.adapter.example.helloworld.HelloWorldAdapter" >
    <wlevs:instance-property name="message" value="HelloWorld - the current time is:"/>
</wlevs:adapter>

<wlevs:channel id="helloworldInputChannel" event-type="HelloWorldEvent" >
    <wlevs:listener ref="helloworldProcessor"/>
    <wlevs:source ref="helloworldAdapter"/>
</wlevs:channel>

<wlevs:processor id="helloworldProcessor" />

<wlevs:channel id="helloworldOutputChannel" event-type="HelloWorldEvent" advertise="true">
    <wlevs:listener>
        <bean class="com.bea.wlevs.example.helloworld.HelloWorldBean"/>
    </wlevs:listener>
    <wlevs:source ref="helloworldProcessor"/>
</wlevs:channel>

Alternatively, you can define this EPN so that all nodes are nested as Figure 6-18 shows. Example 6-2 shows the EPN assembly source for this EPN. Note that all the nodes are nested and as a result, all nodes appear within a box in the EPN diagram. The helloworldAdapter is the outermost parent node and does not appear within a box in the EPN diagram.

Figure 6-18 EPN With all Nodes Nested

Description of Figure 6-18 follows
Description of "Figure 6-18 EPN With all Nodes Nested"

Example 6-2 Assembly Source for EPN With all Nodes Nested

<wlevs:adapter id="helloworldAdapter" class="com.bea.wlevs.adapter.example.helloworld.HelloWorldAdapter" >
    <wlevs:instance-property name="message" value="HelloWorld - the current time is:"/>
    <wlevs:listener>
        <wlevs:channel id="helloworldInputChannel" event-type="HelloWorldEvent" >
            <wlevs:listener>
                <wlevs:processor id="helloworldProcessor">
                    <wlevs:listener>
                        <wlevs:channel id="helloworldOutputChannel" event-type="HelloWorldEvent">
                            <wlevs:listener>
                                <bean class="com.bea.wlevs.example.helloworld.HelloWorldBean"/>
                            </wlevs:listener>
                        </wlevs:channel>
                    </wlevs:listener>
                </wlevs:processor>
            </wlevs:listener>
        </wlevs:channel>
    </wlevs:listener>
</wlevs:adapter>

6.2.10 Event Type Repository Editor

You can create and edit JavaBean and tuple event types using the event type repository editor.

To open the event type repository editor, click on the Event Types tab in the EPN editor as Figure 6-19 shows.

Figure 6-19 Event Type Repository Editor

Description of Figure 6-19 follows
Description of "Figure 6-19 Event Type Repository Editor"

For more information, see:

For information on the other types of events you can create, see Section 1.1.2, "Oracle CEP Event Types".

6.3 Navigating the EPN Editor

Because the EPN Editor has a view of the whole project it is a natural place from which to navigate to the various artifacts that make up an Oracle CEP application. Oracle CEP IDE for Eclipse offers the following features to help navigate the EPN Editor:

6.3.1 Moving the Canvas

To move the EPN canvas without using the horizontal and vertical scroll bars, you can use any of the following options:

  • Position the cursor on the canvas, hold down the middle mouse button, and drag.

  • Hold down the space bar and click and drag the canvas.

  • In the Overview view, click in the highlight box and drag.

6.3.2 Shortcuts to Component Configuration and EPN Assembly Files

If a node has a configuration object associated with it, then double-clicking that node will open the component configuration file where that node's behavior is defined.

Otherwise, double-clicking that node will open the EPN assembly file (the Spring context file) where that node is defined.

A configuration badge will be shown on nodes with associated configuration objects as shown in Figure 6-20.

Figure 6-20 Node with Configuration Badge

Description of Figure 6-20 follows
Description of "Figure 6-20 Node with Configuration Badge"

For more information, see:

6.3.3 Hyperlinking

When editing a component configuration file, EPN assembly file, or Oracle CQL statement, hold down the Ctrl key to turn on hyperlinking. Using hyperlinking, you can easily move between assembly and configuration files and follow reference IDs to jump to bean implementation classes.

This section describes:

6.3.3.1 Hyperlinking in Component Configuration and EPN Assembly Files

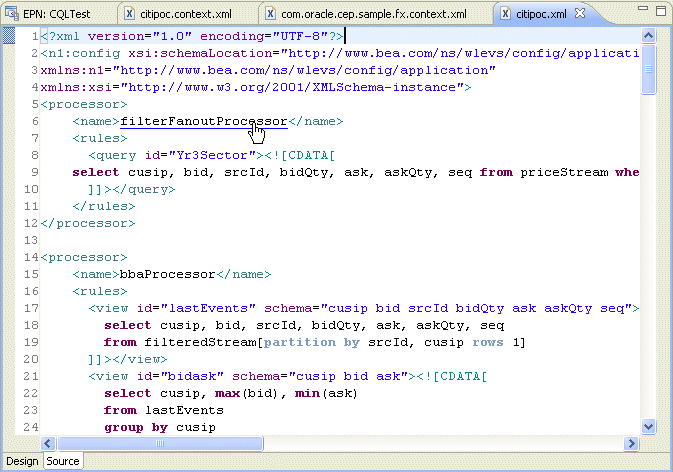

Figure 6-21 shows a component configuration file with the cursor over the value of a processor element name child element while holding down the Ctrl key. The name value has an underline to indicate it is a hyperlink. Click this link to jump to the corresponding element in the EPN assembly file as Figure 6-22 shows.

Figure 6-21 Component Configuration File: Hyperlinking to EPN Assembly File

Description of Figure 6-21 follows
Description of "Figure 6-21 Component Configuration File: Hyperlinking to EPN Assembly File"

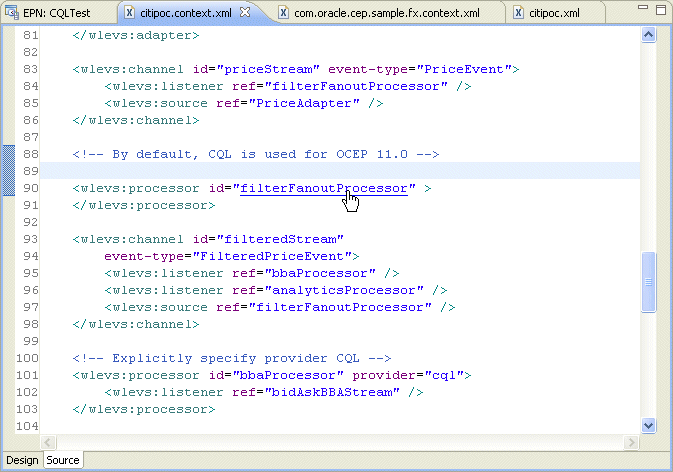

Similarly, hovering over the wlevs:processor element id child element value filterFanoutProcessor while holding down the Ctrl key allows you to hyperlink back to the component configuration file.

Figure 6-22 EPN Assembly File: Hyperlinking to Component Configuration File

Description of Figure 6-22 follows
Description of "Figure 6-22 EPN Assembly File: Hyperlinking to Component Configuration File "

6.3.3.2 Hyperlinking in Oracle CQL Statements

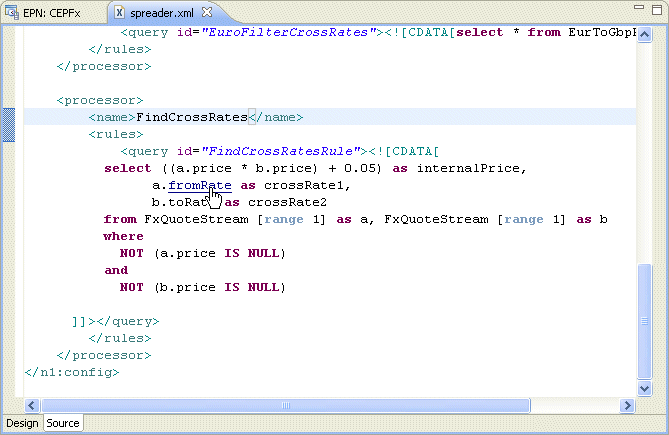

Figure 6-23 shows a component configuration file with the cursor over an event attribute while holding down the Ctrl key. The fromRate attribute has an underline to indicate it is a hyperlink. Click this link to jump to the corresponding event definition in the EPN assembly file as Figure 6-24 shows.

Note:

Hyperlinking in Oracle SQL statements is designed for simple use cases and may not work as expected in more complex implementations.

Figure 6-23 Oracle CQL Statement: Event Schema

Description of Figure 6-23 follows
Description of "Figure 6-23 Oracle CQL Statement: Event Schema"

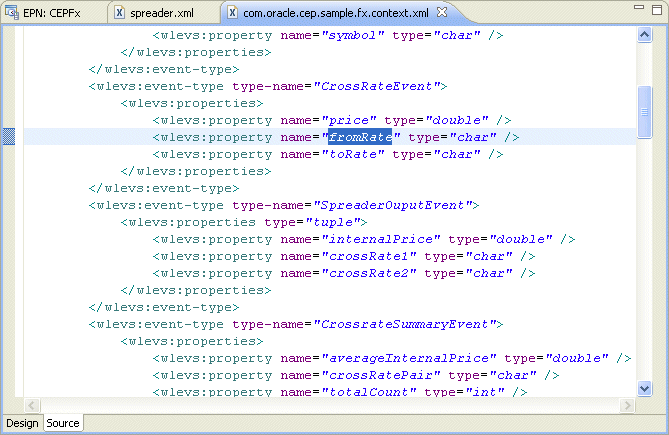

Figure 6-24 Corresponding Event Definition in EPN Assembly File

Description of Figure 6-24 follows
Description of "Figure 6-24 Corresponding Event Definition in EPN Assembly File"

Similarly, you can Ctrl-click the FxQuoteStream channel in the Oracle CQL statement that Figure 6-23 shows to jump to the channel's definition. This is applicable wherever references to external objects are present in a Oracle CQL statement.

6.3.4 Context Menus

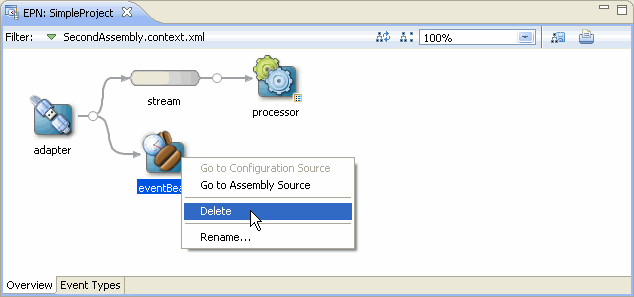

Each node on the EPN Editor has a group of context menu items that provide convenient access to various node-specific functions. Right-click the node to display its context menu.

Depending on the node type, you can use the EPN Editor context menu to select from the following options:

  • Go to Configuration Source: opens the corresponding component configuration file and positions the cursor in the appropriate element. You can use hyperlinking to quickly move from this file to the corresponding EPN assembly file. For more information, see Section 6.3.3, "Hyperlinking".

  • Go to Assembly Source: opens the corresponding EPN assembly file and positions the cursor in the appropriate element. You can use hyperlinking to quickly move from this file to the corresponding component configuration file. For more information, see Section 6.3.3, "Hyperlinking"

  • Go to Java Source: opens the corresponding Java source file for this component.

  • Delete: deletes the component from both the EPN assembly file and component configuration file (if applicable).

  • Rename: allows you to change the name of the component. The name is updated in both the EPN assembly file and component configuration file (if applicable).

  • Help: displays context sensitive help for the component.

Note that these navigation options will become disabled when a corresponding source artifact cannot be found. For example, if an adapter does not have a corresponding entry in a configuration XML file, its Go to Configuration Source menu item will be greyed out.

6.3.5 Browsing Oracle CEP Types

A typical Oracle CEP project contains many instances of Oracle CEP types such as adapters, channels, processors, event beans. In a large, complex Oracle CEP project, it can be a challenge to locate a particular instance. The Oracle CEP IDE for Eclipse provides an Oracle CEP type browser that you can use to quickly locate instances of any Oracle CEP type.

6.3.5.1 How to Browse Oracle CEP Types

You can open the Oracle CEP type browser using the keyboard short cut Ctrl-Alt-T.

To browse Oracle CEP types:

  1. Open an Oracle CEP project.

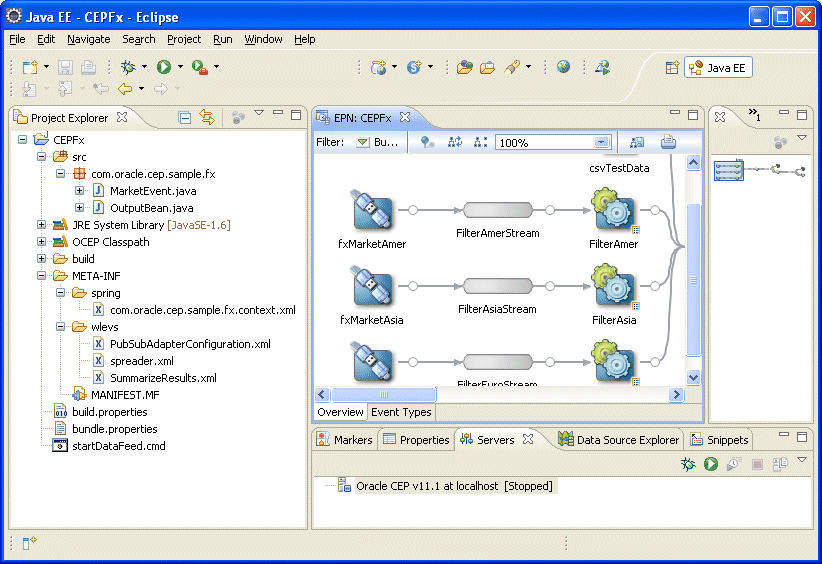

    In the following procedure, consider the Oracle CEP project that Figure 6-25 shows. This is based on the Oracle CEP foreign exchange example. For more information on this example, see "Foreign Exchange (FX) Example" in the Oracle Fusion Middleware Getting Started Guide for Oracle Complex Event Processing.

    Figure 6-25 Example Oracle CEP EPN

    Description of Figure 6-25 follows
    Description of "Figure 6-25 Example Oracle CEP EPN"

  2. Type the keyboard short cut Ctrl-Alt-T.

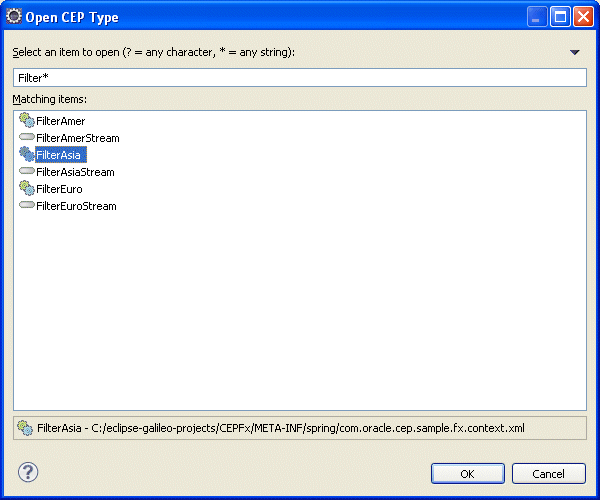

    The Oracle CEP type browser appears as Figure 6-26 shows.

    Figure 6-26 Oracle CEP Type Browser

    Description of Figure 6-26 follows
    Description of "Figure 6-26 Oracle CEP Type Browser"

  3. Configure the Oracle CEP Type dialog as shown in Table 6-1.

    Table 6-1 Oracle CEP Type Dialog

    Attribute Description

    Select an item to open

    Specify a filter to match the names of the items you wan to find.

    Use the ? wildcard for any single character and the * wildcard for any string of two or more characters.

    Matching items

    The list of Oracle CEP type instances whose name matches the filter you specified.


    By default, the status line below the Matching items list shows the fully qualified path to the selected item in the Select an item to open list. To toggle status line display, click on the pull-down menu in the right hand corner and select Show Status Line.

  4. Select a type in the Matching Items list and click OK.

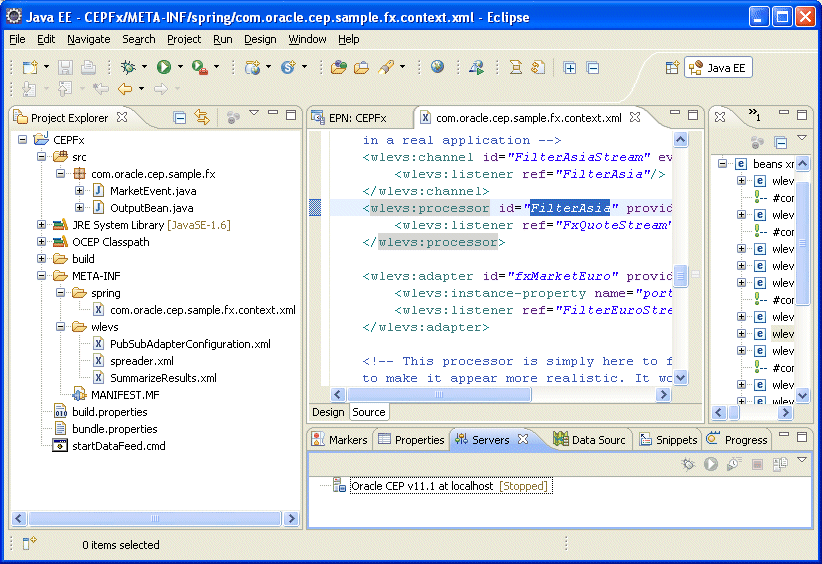

    The type is opened in the source file in which it is defined. For example, selecting FilterAsia from the Matching Items list and clicking OK opens the com.oracle.cep.sample.fx.content.xml EPN assembly file in which this processor is defined as Figure 6-27 shows.

    Figure 6-27 Opening the FilterAsia EPN Assembly File

    Description of Figure 6-27 follows
    Description of "Figure 6-27 Opening the FilterAsia EPN Assembly File"

    To navigate to the corresponding component configuration file as Figure 6-28 shows, Ctrl-click the FilterAsia id attribute value.

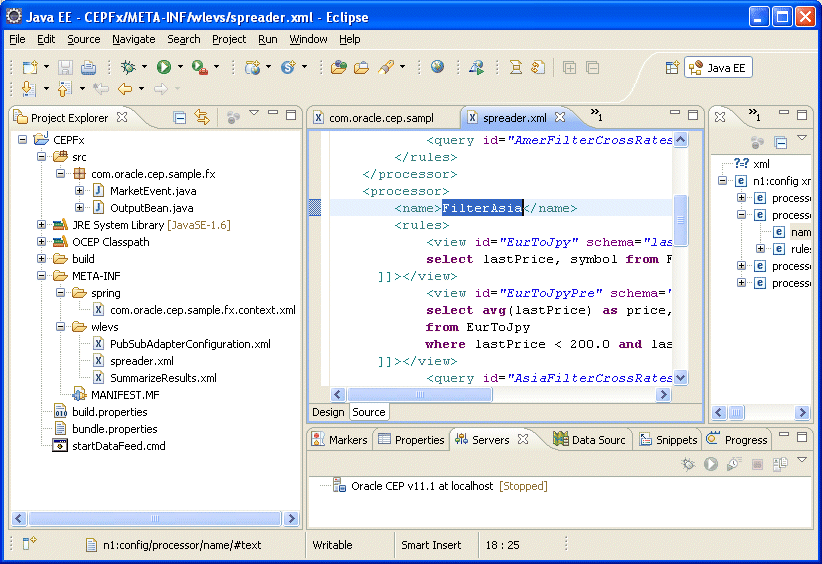

    Figure 6-28 Opening the FilterAsia Component Configuration File

    Description of Figure 6-28 follows
    Description of "Figure 6-28 Opening the FilterAsia Component Configuration File"

    For more information on hyperlinking, see Section 6.3.3, "Hyperlinking".

6.4 Using the EPN Editor

The EPN Editor allows you to create and edit an application's EPN using actions on the editor surface. Most actions in the EPN Editor result in edits to an assembly file in that application. You can use a single EPN assembly file or multiple EPN assembly files (for more information, see Section 6.2.2, "Filtering").

The following sections describe EPN Editor editing tasks, including:

For more information, see:

6.4.1 Creating Nodes

When adding new nodes to an EPN using the EPN editor, a new node will appear at the location of the mouse click that was used to show the EPN Editor context menu. You can create any of the nodes that Table 6-2 lists.

Table 6-2 EPN Editor Icons

Node Description
Adapter icon

Adapter: a node that interfaces an event data source with the EPN or interfaces the EPN with an event data sink.

For more information, see:

Channel icon

Channel: a node that conveys events between an event data source and an event data sink.

For more information, see:

Processor icon

Processor: a node that executes Oracle CQL or EPL rules on the event data offered to it by one or more channels.

For more information, see:

Event Bean icon

Event Bean: a node similar to a standard Spring bean except that it can be managed by the Oracle CEP management framework and can actively use the capabilities of the Oracle CEP server container.

For more information, see:

Bean icon

Spring Bean: a Plain Old Java Object (POJO) node that consumes events. A Spring bean is managed by the Spring framework.

For more information, see:

Cache icon

Cache: a node that provides a temporary storage area for events, created exclusively to improve the overall performance of your Oracle CEP application.

For more information, see:

Table icon

Table: a node that connects a relational database table to the EPN as an event data source.

For more information, see:


The user may not reposition the nodes on the EPN Editor. To refresh the layout of the nodes on the EPN Editor, click the Layout EPN button on the EPN Editor toolbar. For more information, see Section 6.4.3, "Laying Out Nodes".

When a child node is nested within a parent node, its icon appears within a box. For more information, see Section 6.2.9, "Nested Stages".

6.4.1.1 How to Create a Basic Node

Basic nodes include beans, caches, channels, event beans, and tables.

For information on how to create other nodes, see Section 6.4.1, "Creating Nodes".

To create a basic node:

  1. Open the EPN Editor (see Section 6.1, "Opening the EPN Editor").

  2. Right-click on an empty portion of the EPN Editor surface and select New from the context menu as Figure 6-29 shows.

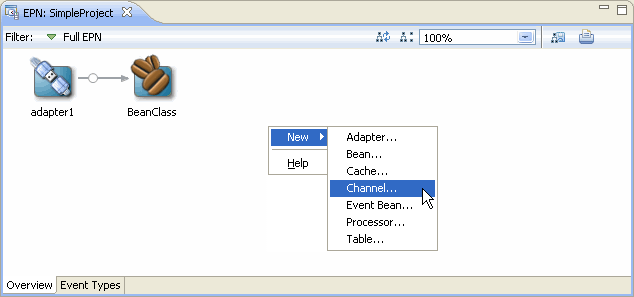

    Figure 6-29 Creating a Basic Node

    Description of Figure 6-29 follows
    Description of "Figure 6-29 Creating a Basic Node"

  3. Select the type of node you want to create.

    The EPN Editor edits the source file indicated in the EPN Editor filter and the EPN Editor displays the new EPN node. For most nodes, a default ID is chosen and the new node is immediately opened for rename as Figure 6-30 shows.

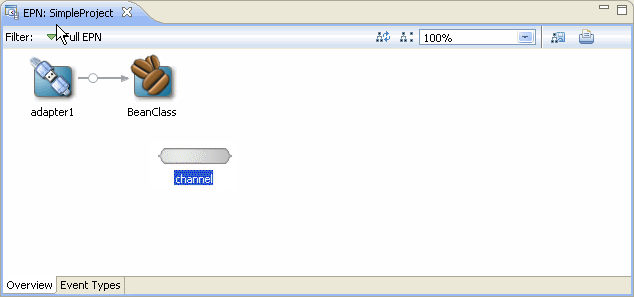

    Figure 6-30 New Basic Node

    Description of Figure 6-30 follows
    Description of "Figure 6-30 New Basic Node"

    To rename the node, see Section 6.4.4, "Renaming Nodes".

    To reposition the node and update the EPN Editor layout, see Section 6.4.3, "Laying Out Nodes".

  4. Optionally, configure additional node options.

    See:

6.4.1.2 How to Create an Adapter Node

This section describes how to create an adapter using the EPN Editor, including:

  • JMS adapters (in-bound or out-bound)

  • HTTP publish-subscribe server adapters (publishing or subscribing)

For information on how to create other nodes, see Section 6.4.1, "Creating Nodes".

To create an adapter node:

  1. Open the EPN Editor (see Section 6.1, "Opening the EPN Editor").

  2. Right-click on an empty portion of the EPN Editor surface and select New from the context menu as Figure 6-31 shows.

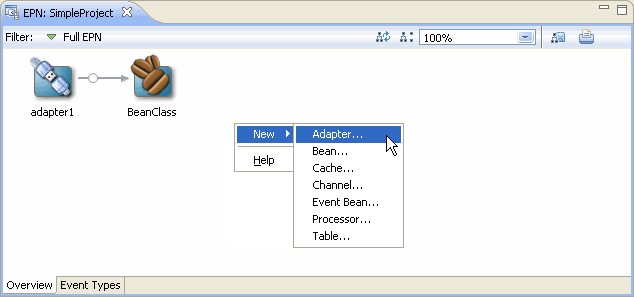

    Figure 6-31 Creating an Adapter Node

    Description of Figure 6-31 follows
    Description of "Figure 6-31 Creating an Adapter Node"

  3. Select node type Adapter.

    The New Adapter wizard appears as shown in Figure 6-32.

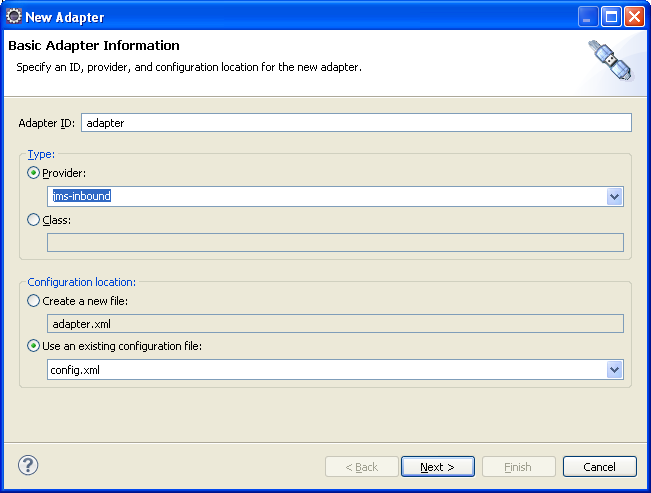

    Figure 6-32 New Adapter Wizard

    Description of Figure 6-32 follows
    Description of "Figure 6-32 New Adapter Wizard"

  4. Configure the New Adapter Wizard - Page 1 as shown in Table 6-3.

    Table 6-3 New Adapter Wizard - Page 1

    Attribute Description

    Adapter ID

    Specifies the ID of the adapter EPN element and the name of the associated adapter configuration element.

    Provider

    Select the adapter provider type from the pull-down menu for an adapter already defined in the Oracle CEP component configuration schema.

    Select one of:

    • jms-inbound: JMS in-bound adapter.

    • jms-outbound: JMS out-bound adapter.

    • httppub: HTTP publish-subscribe adapter for publishing.

    • httpsub: HTTP publish-subscribe adapter for subscribing.

    Class

    Specify the fully qualified Java class name of a custom adapter.

    NOTE: If you are using a custom adapter factory, you must add the wlevs:factory element manually. For more information, see Chapter 14, "Configuring Custom Adapters".

    Create a new file

    Creates the adapter component configuration in a new file.

    The new file is created in the application's META-INF/wlevs directory with the same name as the adapter ID.

    Use an existing configuration file

    Creates the adapter component configuration in an existing configuration file.

    The new adapter configuration element is appended to the configurations in the selected file.


  5. Proceed depending on how you configured the adapter implementation:

    1. If you selected Class, Proceed to step 8.

    2. If you selected Provider, proceed to step 6.

  6. Click Next.

    The provider-specific New Adapter Wizard page appears.

  7. Configure the provider-specific New Adapter Wizard page as the following figures show:

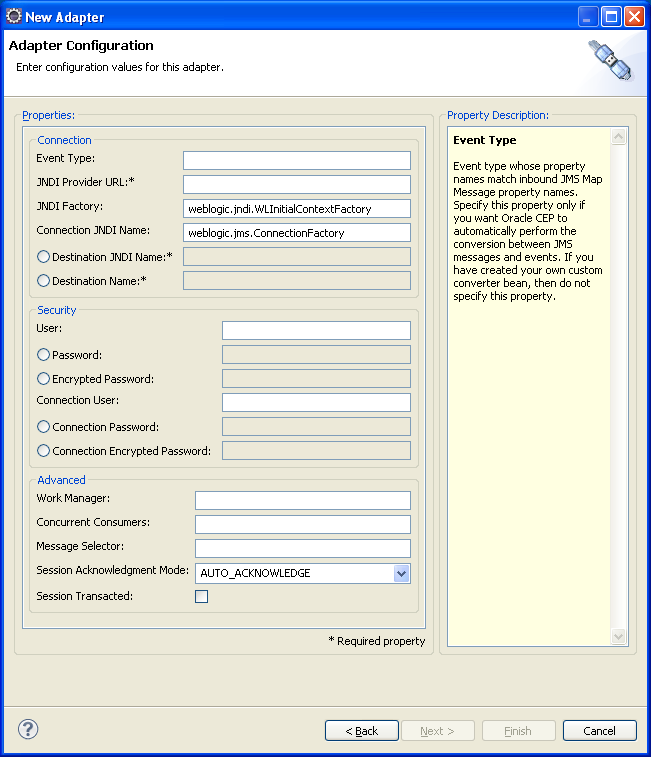

    Figure 6-33 New Adapter Wizard - jms-inbound

    Description of Figure 6-33 follows
    Description of "Figure 6-33 New Adapter Wizard - jms-inbound"

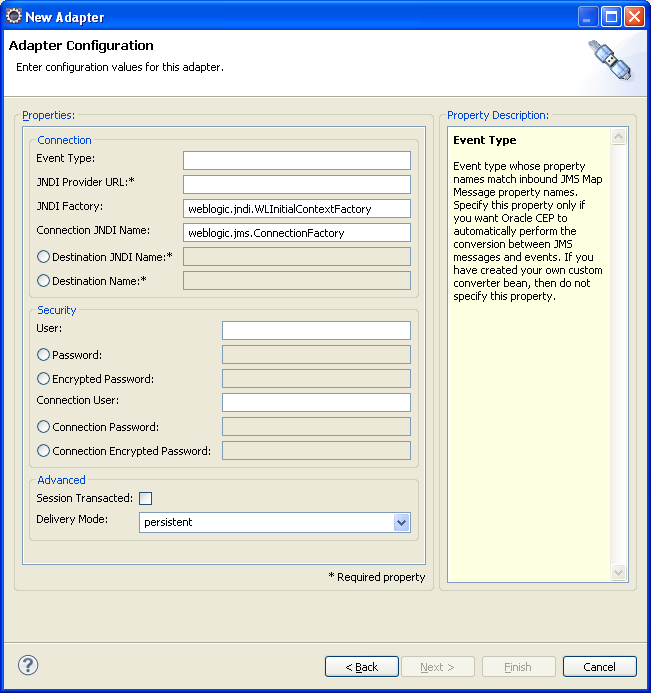

    Figure 6-34 New Adapter Wizard - jms-outbound

    Description of Figure 6-34 follows
    Description of "Figure 6-34 New Adapter Wizard - jms-outbound"

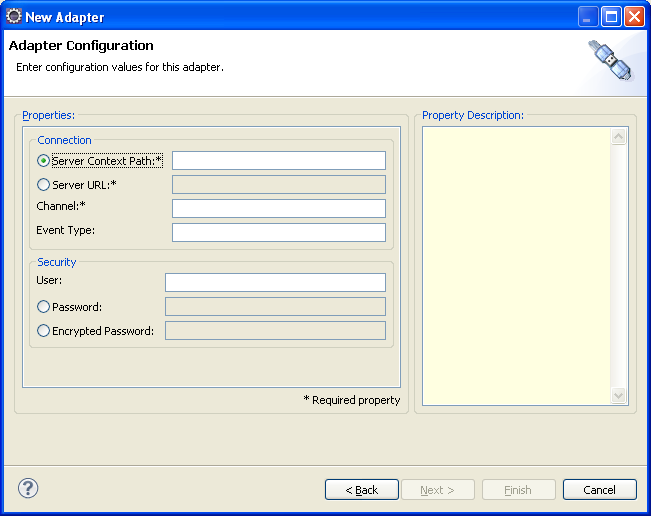

    Figure 6-35 New Adapter Wizard - httppub

    Description of Figure 6-35 follows
    Description of "Figure 6-35 New Adapter Wizard - httppub"

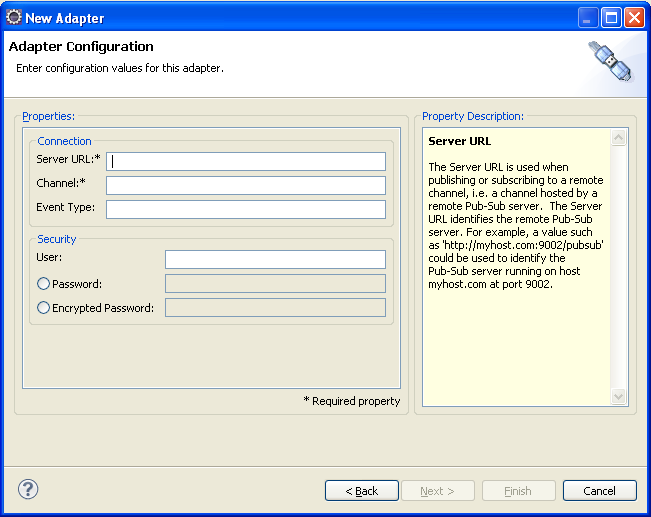

    Figure 6-36 New Adapter Wizard - httpsub

    Description of Figure 6-36 follows
    Description of "Figure 6-36 New Adapter Wizard - httpsub"

  8. Click Finish.

  9. Use the new adapter node on the EPN.

    The EPN Editor creates the adapter configuration in the file you specified in the New Adapter wizard, edits the source file indicated in the EPN Editor filter, and displays the new EPN node as Figure 6-37 shows.

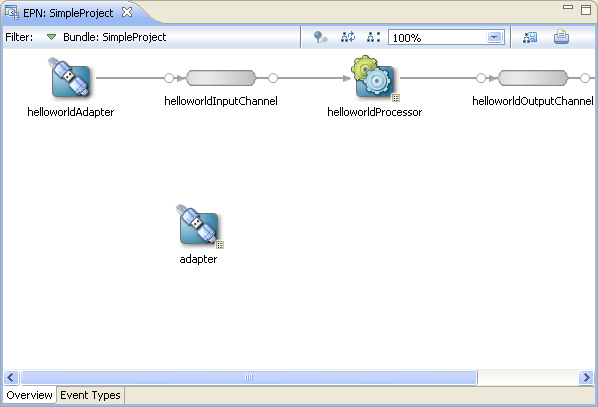

    Figure 6-37 New Adapter Node

    Description of Figure 6-37 follows
    Description of "Figure 6-37 New Adapter Node"

    To rename the node, see Section 6.4.4, "Renaming Nodes".

    To reposition the node and update the EPN Editor layout, see Section 6.4.3, "Laying Out Nodes".

  10. Optionally, configure additional node options.

    For more information, see:

6.4.1.3 How to Create a Processor Node

This section describes how to create a processor node using the EPN Editor. For information on creating other node types, see Section 6.4.1.1, "How to Create a Basic Node".

When deploying an Oracle CEP application with a wlevs:processor node, other nodes in an EPN may reference that processor only if a processor configuration exists for that processor. Processor configurations are defined in Oracle CEP application configuration files. See Section 1.1.5, "Component Configuration Files" for more information about CEP configuration files.

To create a processor node:

  1. Open the EPN Editor (see Section 6.1, "Opening the EPN Editor").

  2. Right-click on an empty portion of the EPN Editor surface and select New from the context menu as Figure 6-38 shows.

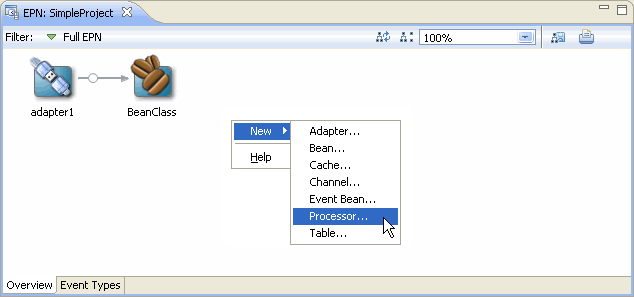

    Figure 6-38 Creating a Processor Node

    Description of Figure 6-38 follows
    Description of "Figure 6-38 Creating a Processor Node"

  3. Select node type Processor.

    The New Processor dialog appears as shown in Figure 6-39.

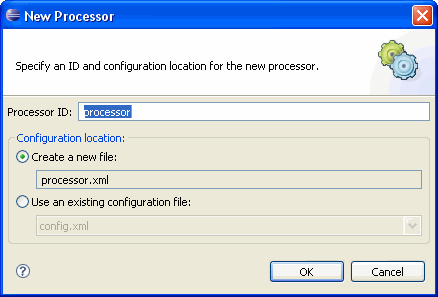

    Figure 6-39 New Processor Dialog

    Description of Figure 6-39 follows
    Description of "Figure 6-39 New Processor Dialog"

  4. Configure the New Processor dialog as shown in Table 6-4.

    Table 6-4 New Processor Dialog

    Attribute Description

    Processor ID

    Specifies the ID of the processor EPN element and the name of the associated processor configuration element

    Create a new file

    Creates the processor configuration in a new file.

    The new file is created in the application's META-INF/wlevs directory with the same name as the processor ID.

    Use an existing configuration file

    Creates the processor configuration in an existing configuration file.

    The new processor configuration element is appended to the configurations in the selected file.


  5. Click OK.

    The EPN Editor creates the processor configuration in the file you specified in the New Processor dialog, edits the source file indicated in the EPN Editor filter, and displays the new EPN node as Figure 6-40 shows.

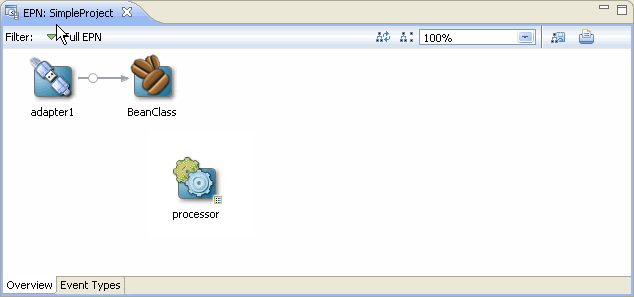

    Figure 6-40 New Processor Node

    Description of Figure 6-40 follows
    Description of "Figure 6-40 New Processor Node"

    To rename the node, see Section 6.4.4, "Renaming Nodes".

    To reposition the node and update the EPN Editor layout, see Section 6.4.3, "Laying Out Nodes".

    Note:

    In Oracle CEP, you must use a channel to connect a push event source to an Oracle CQL processor and to connect an Oracle CQL processor to an event sink. For more information, see Section 9.1.2, "Channels Representing Streams and Relations".

  6. Optionally, configure additional processor options.

    See:

6.4.2 Connecting Nodes

The nodes in the EPN represent the flow of events through an Event Processing Network of an Oracle CEP application. When a node may forward events to another node in the EPN, the EPN Editor allows you to connect that node visually by dragging a line from the source node to the destination node.

6.4.2.1 How to Connect Nodes

This section describes how to connect nodes in the EPN Editor.

To connect nodes:

  1. Open the EPN Editor (see Section 6.1, "Opening the EPN Editor").

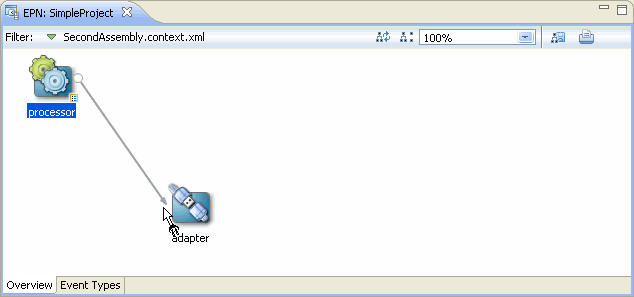

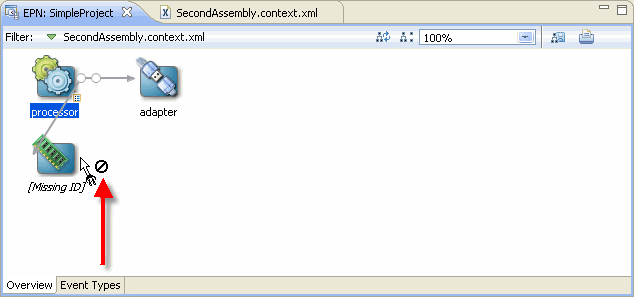

  2. Select the source of events and drag to the target of the event flow.

  3. Release the mouse button to complete the connection.

    When the connection is made, the EPN Editor updates the EPN assembly file. For example:

    • When you connect an adapter to a channel or a channel to a processor or event bean, the EPN Editor adds a wlevs:listener element to the source node with a reference to the target node by ID.

    • When you connect a table to a processor, the EPN Editor adds a wlevs:table-source element to the target processor node that references the source table.

    For example, suppose you connect the adapter to the channel, and the channel to the processor shown in Figure 6-43.

    Figure 6-43 Valid Connections

    Description of Figure 6-43 follows
    Description of "Figure 6-43 Valid Connections"

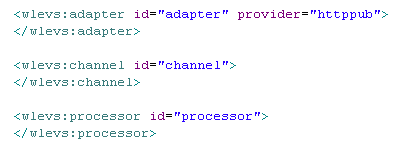

    Figure 6-44 shows the EPN assembly file before connection.

    Figure 6-44 EPN Assembly File: Before Connection

    Description of Figure 6-44 follows
    Description of "Figure 6-44 EPN Assembly File: Before Connection"

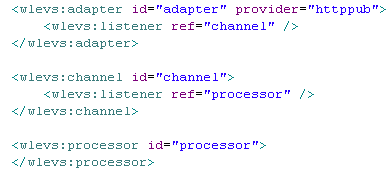

    Figure 6-45 shows the EPN assembly file after connection.

    Figure 6-45 EPN Assembly File: After Connection

    Description of Figure 6-45 follows
    Description of "Figure 6-45 EPN Assembly File: After Connection"

6.4.3 Laying Out Nodes

Certain EPN Editor actions will use the location of the action as the location of the rendered result. For example, when adding new nodes to an EPN using the EPN editor, a new node will appear at the location of the mouse click that was used to show the EPN Editor context menu. The user may not reposition the nodes on the EPN Editor. To refresh the layout of the nodes on the EPN Editor, click the Layout EPN button on the EPN Editor toolbar as Figure 6-46 shows.

Figure 6-46 Laying Out Nodes

Description of Figure 6-46 follows
Description of "Figure 6-46 Laying Out Nodes"

For more information, see Section 6.2.4, "Layout".

6.4.4 Renaming Nodes

Most node types support a rename operation that will change all references to the node across both assembly and configuration XML files. You can select Rename from the node's context menu as Figure 6-47 shows.

Figure 6-47 Renaming Nodes

Description of Figure 6-47 follows
Description of "Figure 6-47 Renaming Nodes"

6.4.5 Deleting Nodes

You may delete most nodes and connections visible on the EPN Editor using the node's context menu or the Delete key:

  • Using the keyboard, select the object you want to delete and then click the Delete key.

  • Using the context menu, right-click on the object to show the context menu, then select Delete as Figure 6-48 shows.

    Figure 6-48 Deleting Nodes

    Description of Figure 6-48 follows
    Description of "Figure 6-48 Deleting Nodes"

When deleting a node, the incoming and outgoing connections are also deleted. For example, Figure 6-49 shows the EPN and Figure 6-51 shows the assembly file before deleting the channel node named stream.

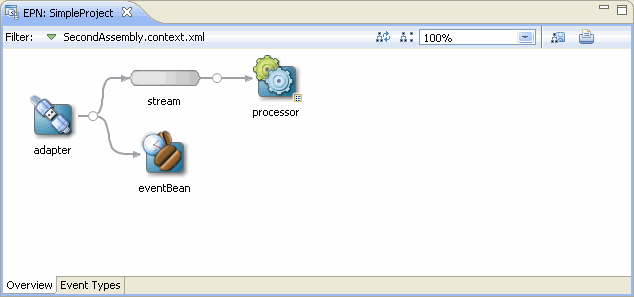

Figure 6-49 EPN Before Deleting a Channel Node

Description of Figure 6-49 follows
Description of "Figure 6-49 EPN Before Deleting a Channel Node"

Figure 6-50 Assembly File Before Deleting a Channel Node

Description of Figure 6-50 follows
Description of "Figure 6-50 Assembly File Before Deleting a Channel Node"

Figure 6-51 shows the EPN and Figure 6-52 shows the assembly file after deleting this channel node.

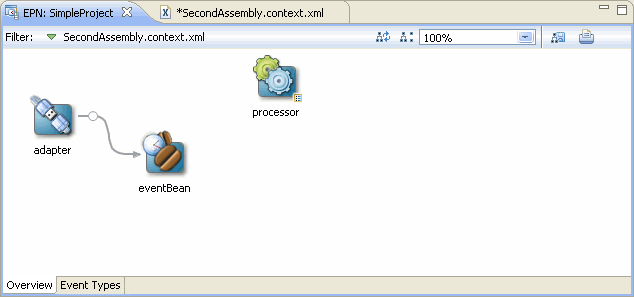

Figure 6-51 EPN After Deleting a Channel Node

Description of Figure 6-51 follows
Description of "Figure 6-51 EPN After Deleting a Channel Node"

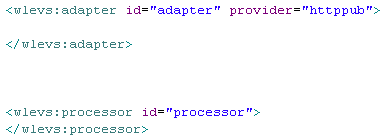

Figure 6-52 Assembly File After Deleting a Channel Node

Description of Figure 6-52 follows
Description of "Figure 6-52 Assembly File After Deleting a Channel Node"

Note:

If a bean or other anonymous element is deleted, then the object containing that object is deleted too. For example, given a bean within a wlevs:listener element, then deleting the bean will delete the listener element too.
