A cluster provides an optional method of storing table data. A cluster is made up of a group of tables that share the same data blocks. The tables are grouped together because they share common columns and are often used together. For example, the
dept table share the
deptno column. When you cluster the

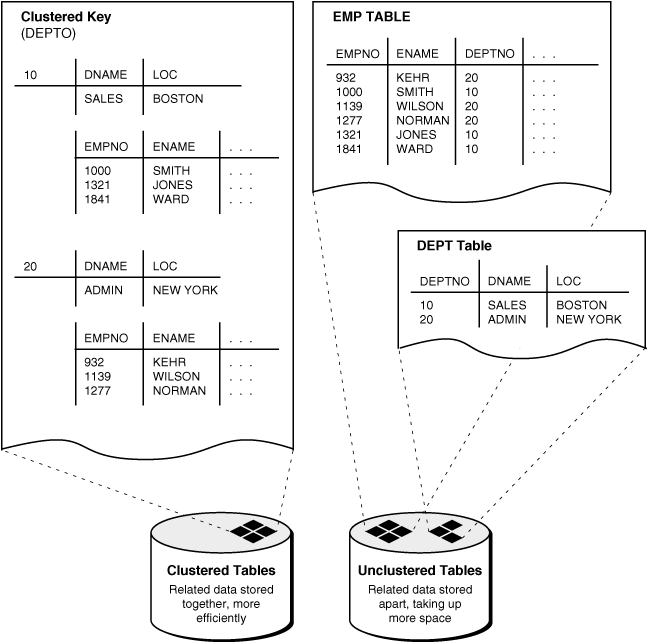

dept tables (see Figure 22-1), Oracle Database physically stores all rows for each department from both the
dept tables in the same data blocks.
Because clusters store related rows of different tables together in the same data blocks, properly used clusters offer two primary benefits:
Disk I/O is reduced and access time improves for joins of clustered tables.
The cluster key is the column, or group of columns, that the clustered tables have in common. You specify the columns of the cluster key when creating the cluster. You subsequently specify the same columns when creating every table added to the cluster. Each cluster key value is stored only once each in the cluster and the cluster index, no matter how many rows of different tables contain the value.
Therefore, less storage might be required to store related table and index data in a cluster than is necessary in non-clustered table format. For example, in Figure 22-1, notice how each cluster key (each
deptno) is stored just once for many rows that contain the same value in both the
After creating a cluster, you can create tables in the cluster. However, before any rows can be inserted into the clustered tables, a cluster index must be created. Using clusters does not affect the creation of additional indexes on the clustered tables; they can be created and dropped as usual.
You should not use clusters for tables that are frequently accessed individually.
