This chapter describes how to configure and manage the WebCenter Personalization services for WebCenter Portal applications.
This chapter includes the following sections:
Section 19.1, "What You Should Know About WebCenter Personalization"
Section 19.3, "Configuring the WebCenter OPSS Trust Service"
Audience
The content of this chapter is intended for Fusion Middleware administrators (users granted the Admin or Operator role through the Oracle WebLogic Server Administration Console). See also, Section 1.8, "Understanding Administrative Operations, Roles, and Tools."
WebCenter Personalization provides a dynamically derived user experience for your WebCenter Portal application. WebCenter Personalization evaluates defined sources of input data, generates a decision based on that evaluation, and applies this information to a declaratively defined personalization scenario. WebCenter Personalization, for example, can return content or change application flow based on information about a user in a Human Resources database, targeting the application experience for that specific user.
WebCenter Personalization is installed as an application in the wc_domain on the WC_Utilities server. Client applications access WebCenter Personalization remotely over HTTP using RESTful services. To make access easy, Java applications can use a set of provided POJO client libraries. Design-time JDeveloper tools are used to create Property Service and Conductor artifacts to be executed remotely using REST calls.WebCenter Personalization is also available in the JDeveloper integrated domain for projects that include the Personalization technology libraries when you first create your application. For evaluation purposes and iterative development, this domain offers the quickest and easiest way to explore WebCenter Personalization. For more information about WebCenter Personalization architecture and services, see "Personalizing WebCenter Applications" in Oracle Fusion Middleware Developer's Guide for Oracle WebCenter.
This section describes the system requirements and dependencies for WebCenter Personalization in the following sections:
Section 19.2.1, "WebCenter Personalization Installation Requirements"
Section 19.2.2, "WebCenter Personalization Configuration Requirements"
Section 19.2.5, "WebCenter Personalization Configuration Options"
If you are using the CMIS or Activity Graph data providers, or the People Connection locator within a Personalization Conductor scenario, then WebCenter Spaces must be installed. For High Availability environments only, Coherence is also required.
If you are using the CMIS provider, Activity Graph provider, PeopleConnections locator, or custom providers you must configure them as shown in Section 19.4, "Configuring Providers."
If you are using Content Presenter to present content in WebCenter Spaces or in your WebCenter Portal application, then you must also configure Content Presenter to display the results of your scenarios as described in Section 19.6, "Configuring Content Presenter."
WebCenter Personalization relies on WebCenter Trust Services to provide single sign-on (SSO) between different managed servers within the WebCenter domain. Trust Services must be configured using the WLST scripts configureTrustWCPS.py and configureConnectionsWCPS.py provided in the user_projects/applications/wc_domain directory. For JDeveloper's integrated domain, only a single script (configureWCPS.py) located in the DefaultDomain/scrpts-wcps directory is used. For more information about configuring the WebCenter Trust Services and single sign-on using this script see Section 19.7, "Configuring Single Sign-on."
WebCenter Personalization is compatible with whatever source of user authentication services are configured within the WLS security realm. That is, it can use the default identity store and policy and credential store for the domain.
If you are using the People Connections locator or Activity Graph data providers, users must also be configured as WebCenter Spaces users.
WebCenter Personalization REST services are accessed though a pre-configured WebCenter Personalization Web application that requires authenticated access for all resources (all URIs), with the exception of the resourceIndex. You can modify these constraints to provide either less security to execute scenarios (where anonymous access is needed), or more security to prevent the ability to create new scenarios. For information about modifying the default security settings, see Section 19.8, "Overriding the Default Security Settings."
WebCenter Trust Services provides single sign-on for Personalization REST calls. This requires that the WLS TrustServicesIdentityAsserter is configured (it is not pre-configured). You can do this manually using the WLS Console or with the provided WLST scripts configureTrustWCPS.py and configureConnectionsWCPS.py located in the user_projects/applications/wc_domain directory. For JDeveloper's integrated domain, a single script (configureWCPS.py) located in the DefaultDomain/scrpts-wcps directory is used.
You can also optionally secure your WebCenter Portal application's connection to the Personalization server and Personalization providers with single sign-on. For more information about configuring single sign-on, see section Section 19.7, "Configuring Single Sign-on." Access to Property Service data can also be limited by an application using a filter (IPropertyPermission) to pre-authorize access to property data .
Scenarios can use an out-of-the-box function library supporting basic Role evaluation and testing to authorize access to scenarios.
By default, WebCenter Personalization uses a managed server-scoped cache, meaning any changes made to cached data outside the managed server will not be seen by additional installations of WebCenter Personalization.For clustered (multiple) deployments of WebCenter Personalization, Coherence may be configured for a cluster-aware cache.
This section describes the out-of-the-box providers and other optional extensions to WebCenter Personalization, and the configuration required to integrate them into your WebCenter Personalization project.
The out-of-the-box WebCenter Personalization data providers allow you to write scenarios and access profile data based on existing WebCenter services. These WebCenter services expose their data via RESTful web services. The Personalization data providers act as REST clients of these web services and make it easy to author scenarios within JDeveloper based on these external data sources. You can also provide your own data provider and property locator implementations to integrate your own sources of external data.
CMIS Provider
The CMIS provider is an out-of-the-box provider that you can optionally use as a data source in your Personalization project. WebCenter content services are exposed using the CMIS (Content Management Interoperability Services) standard. The CMIS REST web service runs on the WC_Spaces server and provides access (based on separate configuration choices) to the Oracle Content Server.
If a WebCenter Personalization user is also a WebCenter Spaces user, access to user content stored through the Spaces application is possible from a scenario. For more information about the Oracle Content Server, see Chapter 11, "Managing Content Repositories." For more information about configuring the CMIS provider, see Section 19.4.2, "Configuring the CMIS Provider."
Activity Graph Data Provider
The Activity Graph data provider is an out-of-the-box provider that you can optionally use as a data source in your Personalization project. WebCenter activity stream information is exposed through the Activity Graph web service. The Activity Graph REST web service runs on the WC_Spaces server and provides access to activity stream based recommendations as formed by the activity graph.
If a WebCenter Personalization user is also a WebCenter Spaces user, access to activity related recommendations (for Spaces content-types) is possible from a scenario. For more information about the Activity Graph service, see Chapter 12, "Managing the Activity Graph Service." For more information about configuring the Activity Graph provider, see Section 19.4.3, "Configuring the Activity Graph Provider."
Oracle People Connections Locator
The People Connections locator is a locator that you can optionally use as a data source in your Personalization project. WebCenter People Connections information is exposed via the People web service. The PC REST web service runs on the WC_Spaces server and provides access to social profile data as created in the context of WebCenter Spaces. If a WebCenter Personalization user is also a WebCenter Spaces user, access to People profile data is possible from a scenario. For more information about the People Connections service, see the chapter on "Integrating the People Connections Service" in the Oracle Fusion Middleware Developer's Guide for Oracle WebCenter.Unlike the other out-of-the-box data providers, the People Connection web service is accessed through the general purpose Property Service data provider using the IPropertyLocator extension interface. For more information about configuring the People Connections provider, see Section 19.4.4, "Configuring the Oracle People Connections Locator."
WebCenter Personalization leverages a new feature from OPSS (Oracle Platform Security Services) for single-sign-on. Enabling this feature by following the configuration steps described here, is required in all but the simplest Personalization use cases.
The OPSS Trust Service does not need to be configured when:
Directly interacting with the Conductor and Property service from a REST client
The Conductor and Property Service are being used by WebCenter Personalization client libraries from a custom JEE Web application deployed in the same domain as WebCenter Personalization, if JSessionId has been configured for both Web applications (note that there will be many exceptions logged making debugging difficult)
The OPSS Trust Service must be configured when:
Any production deployment of WebCenter Personalization
Any Personalization scenarios require the out-of-the-box data providers (Activity Graph, CMIS, and People Connections Locator)
The Conductor and Property Service are being used by WebCenter Personalization client libraries from a custom JEE Web application deployed in the same domain as WebCenter Personalization
Cross-domain trust (i.e., integrated domain connection configured to use the WC_domain CMIS provider) is required
This section contains the following subsections:
Section 19.3.1, "Configuring the Trust Service in the WebCenter Domain"
Section 19.3.2, "Configuring the Trust Service in the Integrated WLS Domain"
The default WebCenter installation includes the WebCenter Personalization domain extension template, which installs two WLST python scripts (configureTrustWCPS.py and configureConnectionsWCPS.py), in the domain home:
oracle/user_projects/applications/wc_domain/scripts
These scripts and associated configureWCPS.properties file contain usage instructions. Note that these are sample scripts, and that before running the scripts, you must edit the properties file and, at a minimum, specify the ocs.server name (typically the Oracle Content Server), the spaces.server.host name, and the fmwconfig.location. These values are unique to each WebCenter installation and must be edited. Other values may also need to be changed according to the local environment (the machine port numbers, for example, may be different).
The configureConnectionsWCPS.py script sets up the default WebCenter Personalization connection information for you (i.e., connection information for Activity Graph, CMIS, and People Connections). The script relies on the WCPS.py library, which is only installed on the WebCenter domain (and not in the integrated WLS domain). You can, however, run configureConnectionsWCPS.py in the WebCenter domain and point it (using a t3 URL) to an integrated WLS domain.
Caution:
the Trust Service configuration set up by
configureTrustWCPS.py should not be applied remotely. The script should only be run from the WebCenter (wc_domain).You must use the oracle/as11gr1wc/common/bin/wlst.sh command file that sets up environment variables correctly (for as11gr1wc scripts).
After running the scripts, restart all servers in the domain.
Testing the Configuration
To see Trust Service single sign-on in operation, you must be calling the Conductor or Property Service from a custom JEE Web application (using the WebCenter Personalization client libraries), or be executing a scenario that uses a WebCenter Personalization connection (such as the Activity Graph or CMIS data providers), or accessing a People Connections property using the People Connections locator.
When doing any of the above, you should see the following default log entry in WC_Utilities-diagnostic.log:
[2010-11-10T07:30:40.362-08:00] [WC_Utilities] [NOTIFICATION] [] [oracle.jps.trust] [tid: [ACTIVE].ExecuteThread: '3' for queue: 'weblogic.kernel.Default (self-tuning)'] [ecid: 0000IkqQG4NBh49LJeCCyf1CqfXw000008,0] [APP: wcps-services#11.1.1.4.0] Token issue operation
You should also see the following default log entry in the WC_Spaces-diagnostic.log (if accessing services there):
[2010-11-10T07:30:40.236-08:00] [WC_Spaces] [NOTIFICATION] [] [oracle.jps.trust] [tid: [ACTIVE].ExecuteThread: '1' for queue: 'weblogic.kernel.Default (self-tuning)'] [ecid: d461d36d4a552b90:-1fe62a5d:12c365bb19b:-8000-000000000000002c,0] [APP: webcenter#11.1.1.4.0] Token validate operation.
A separate python script is shipped with the JDeveloper installer to configure the integrated WLS domain located in the following directory:
DefaultDomain\scrpts-wcps\
This script can be run manually or using JDeveloper's Run External Script function.
Edit the properties file if you are using a non-default user or password. After creating and starting the integrated WLS domain, run the script from the scrpts-wcps directory:
Oracle\MiddlewareRC8\oracle_common\common\bin\wlst.cmd configureWCPS.py configureWCPS.properties
Restart the integrated WLS domain.
Testing the Configuration
Default logging levels are not enough to confirm token-issue and token-validate operations. Use the Configure Oracle Diagnostic Logging feature in JDeveloper and navigate to the oracle.jps.trust logger and set the level to Finest. Now run a scenario involving a custom JEE Web application calling the Conductor or Property Services.
The Trust Service supports cross-domain trust, meaning if keystores have been created in different WLS domains, a client may allocate a token in domain 'A', issue an HTTP request with the token to domain 'B', and have the identity asserter validate and authenticate the user/request in domain 'B' through single sign-on. Note that a key assumption is that the user in domain 'A' exists in, and is the same user in domain 'B'.
By default, when running the configureWCPS.py script in the integrated WLS domain a certificate named extDomain.cer is generated. To enable cross-domain trust between the integrated WLS domain and WebCenter domain:
Copy extDomain.cer to your WebCenter (wc_domain) installation and import it there. Copy the extDomain.cer file to the scripts location:
oracle/user_projects/applications/wc_domain/scripts
Type in the following command to import the certificate:
keytool -importcert -alias orakey1 -file extDomain.cer -keystore ../../../../wlserver_10.3/wc_domain/config/fmwconfig/default-keystore.jks -storepass weblogic
Restart the servers in the WebCenter domain.
Testing the Configuration
The simplest way to validate cross domain trust is to create a People Connections WebCenter Personalization connection in the integrated WLS domain that points to the WebCenter domain's WC_Spaces server. Then, create and deploy a simple scenario to the integrated WLS domain that fetches a People Connections property value. Finally, confirm that the 'Token Validate Operation' message described above is logged on the WC_Spaces server.
WebCenter Personalization provides out-of-the-box providers for Activity Graph and the Oracle Content Server, and a locator for People Connections. For scenarios using any of these providers, you must configure them using the configureWCPY.py WLST script as described in the following sections. If you are using custom providers or locators, then you must also configure them as described in the section on configuring custom providers. You do not need to configure providers or locators if they are not being used in your scenarios.
You can develop scenarios without the out-of-the-box providers, or exclusively with custom providers or downloaded from OTN. Also, if you are developing exclusively within the JDeveloper integrated domain, you do not ordinarily have access to these WC_Spaces-based services (since WebCenter Spaces does not run in the integrated domain). With advanced configurations (also supported by configureWCPS.py) you can access the WebCenter Spaces services in the WC_Spaces domain from the integrated domain's WebCenter Personalization server. This uses cross-domain trust and does require the provider connections to be configured.The configureTrustWCPS.py and configureConnectionsWCPS.py scripts (located in the WC_Spaces domain), or configureWCPS.py for JDeveloper's integrated WLS domain (located in the DefaultDomain/scrpts-wcps domain directory) are used to configure the corresponding domains by pointing to the appropriate WLS Administration server.
Section 19.4.1, "Creating or Modifying Provider Connection Settings"
Section 19.4.4, "Configuring the Oracle People Connections Locator"
This section describes how to use WLST, JConsole, Fusion Middleware Control to create or change the connection information stored in wcps-connections.xml. It also describes how you can write a custom configuration class to configure a custom provider.
This section contains the following subsections:
Section 19.4.1.1, "Understanding WebCenter Personalization Connection Information"
Section 19.4.1.5, "Configuring Connections Using Fusion Middleware Control"
WebCenter Personalization connection information is maintained in wcps-connections.xml, which can be found in the domain directory at the following location:
<domain directory>/config/fmwconfig/wcps-connections.xml
Although editing this file directly is not recommended, there are several ways in which you can modify connection information:
WLST - you can write a script with WLST commands to access the system MBeans representing the connection configuration. For more information on using WLST commands to configure connection settings, see Section 19.4.1.3, "Configuring Connections Using WLST."
JConsole - you can use JConsole to view or edit connection configuration by creating or editing connection JMX MBeans. For more information on using JConsole to configure connection settings, see Section 19.4.1.4, "Configuring Connections Using JConsole."
Fusion Middleware Control - you can use Fusion Middleware Control to view or edit the JMX MBeans deployed with WebCenter Personalization. For more information on using Fusion Middleware Control to configure connection settings, see Section 19.4.1.5, "Configuring Connections Using Fusion Middleware Control."
The following shows the connection properties and attributes (maintained in wcps-connections.xml) that can be modified using WLST, JConsole, or Fusion Middleware Control. Note that each connection property is specific to the provider or locator that the connection is for. For example, the CMIS provider will have different connection properties than the Activity Graph provider.
<connection-name> - unique name for this connection. Connections can be retrieved by name.
<connection-type> - unique type for this connection. Connections can be retrieved by type. Note that connection-type only needs to be specified for custom connections. For the out-of-the-box data providers this field is set internally.
<namespace> - generally, this must match the namespace the accessing scenario is deployed within. The namespace is how the Conductor determines how to locate the appropriate <connection> for a given scenario. You can use a wildcard '*' to make this connection element available in all namespaces. If left unspecified in the WLST script, namespace will default to '*'.
<name>isDefault</name> - marks this connection as the default connection (if multiple are defined). Note that multiple connections can have the "isDefault" flag set to true. If this is the case, it is up to the individual provider to return the default connection.
A set of WebCenter Personalization WLST commands is provided to allow easy configuration of your provider connections. You can combine these commands into a script, an example of which that can be customized or used directly is provided. The sample script sets up provider connections and also initializes the Trust Services.
The Personalization WLST commands are installed at oracle/as11gr1wc/common/wlst/WCPS.py and are invoked using the oracle/as11gr1wc/common/bin/wlst.sh(cmd) script.
Each out-of-the-box data provider is supported with specific WLST commands (described in sections below). For custom data providers, use the generic WLST commands to configure a connection. For example:
createWCPSCustomConnection('customConnectionName', 'connectionType', properties={ 'name1': 'value1', 'name2': 'value2' })
For a complete list of WebCenter Personalization WLST connection and other commands, see the section "Personalization" in the Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.
JConsole (located in $JAVA_HOME/jdk6/bin/jconsole), can be used to create, view or edit the JMX MBeans (the connection configuration MBeans for Activity Graph, CMIS, and People Connections) deployed with WebCenter Personalization. These tasks are described in the following subsections:
Section 19.4.1.4.1, "Creating a New Connection Using JConsole"
Section 19.4.1.4.2, "Editing Connection Settings Using JConsole"
To create a connection:
Invoke JConsole as shown below:
jconsole -J-Djava.class.path=$JAVA_HOME/lib/jconsole.jar:$JAVA_HOME/lib/tools.jar:$ORACLE_HOME/oracle/wlserver_10.3/server/lib/wljmxclient.jar -J-Djmx.remote.protocol.provider.pkgs=weblogic.management.remote
Open the JConsole Remote Connection:
service:jmx:iiop://example.com:7001/jndi/weblogic.management.mbeanservers.domainruntime Username: weblogic Password: welcome1
In the tree under oracle.wcps.connections, navigate to ConnectionConfiguration and select Operations.
Click addConnection and enter the Namespace, Type, and Name.
Note that these connections are predefined for the out-of-the-box providers by using the configureConnectionsWCPS.py script.
To view or edit connection settings:
Invoke JConsole as shown below:
jconsole -J-Djava.class.path=$JAVA_HOME/lib/jconsole.jar:$JAVA_HOME/lib/tools.jar:$ORACLE_HOME/oracle/wlserver_10.3/server/lib/wljmxclient.jar -J-Djmx.remote.protocol.provider.pkgs=weblogic.management.remote
Open the JConsole Remote Connection:
service:jmx:iiop://example.com:7001/jndi/weblogic.management.mbeanservers.domainruntime Username: weblogic Password: welcome1
Change the connection property for the provider. For example, to change the Activity Graph host name:
Expand the tree:
oracle.wcps.connections->ConnectionConfiguration.Namespace.Connection->default->activity.provider.connection->ConnectionConfiguration->wcps-services->ActivityGraphConfigConnection->Attributes
Click on Properties.
In the right panel, double click the value in the first row.
You can now scroll through current values using Composite Navigation.
To change the host value, click on Properties in the navigation tree, supply a name and new value, and then click setProperty.
You can use Fusion Middleware Control to view or edit the JMX MBeans (the connection configuration MBeans for Activity Graph, Oracle Content Server, and People Connections deployed with WebCenter Personalization.
To view or edit connection configuration MBeans:
Open Fusion Middleware Control Navigate to Personalization Services.
Click WCPS-Services.
From the Application Development drop-down menu, select System MBean Browser.
In the MBean browser under 'Application Defined MBeans', select oracle.wcps.connections and continue to drill down to the connection information you wish to modify.
On the Attributes tab, select Properties to view current values of connection attributes.
On the Operations tab, select setProperty and click Invoke to modify the name/value pairs.
Custom configuration classes (classes annotated with @ConnectionConfiguration) are implemented by customers writing their own data providers. This allows custom data providers to use the Personalization connection framework to retrieve connection information configured using the Personalization WLST scripts.
Custom configuration classes for data providers are more fully described in the section on "Custom Data Providers" in the Oracle Fusion Middleware Developer's Guide for Oracle WebCenter.
If you are working outside of the Integrated WLS domain (i.e., in the WC_Spaces domain), before you can use the CMIS provider in your scenario, you must first configure connection settings for it.
Connection settings for the CMIS provider are maintained in wcps-connections.xml in the wc_domain conductor extensions directory (domain scoped). Although it is not recommended that you edit this file directly, there are several other ways in which you can modify connection settings. Use one of the methods described in Section 19.4.1, "Creating or Modifying Provider Connection Settings." to configure the connection settings for the CMIS provider.
Connection Element and Property Descriptions
<connection-name> - unique name for this connection. Connections can be retrieved by name.
<namespace> - generally, this must match the namespace the accessing scenario is deployed within. The namespace is how the Conductor determines how to locate the appropriate <connection> for a given scenario. Using a wildcard '*', you can make this connection element available in all namespaces.
<name>isDefault</name> - marks this connection as the default connection (if multiple connections are defined)
<name>repositoryId</name> - this property must be changed to match the Content Repository in your environment.
<name>path</name> - this property must be changed to match the Content Repositor in your environment. Defaults to /api/cmis/repository/repositoryId if not specified
<name>scheme</name> - protocol to access the CMIS REST service (HTTP or HTTPS for SSL). Defaults to HTTP if not explicitly specified.
<name>host</name> - machine name hosting the CMIS REST service. This is the machine name of the WC_Spaces managed server.
<name>port</name> - machine port number hosting the CMIS REST service. This is the machine port number of the WC_Spaces managed server.
<name>pathTrim</name> - Default is no trim if not explicitly specified
<name>rewriteUrls</name> - can be set to None, Consumer, or Producer. See the REST Proxy page for details. If you want the direct URLs (from the CMIS server for document links), set this to None. Default is no rewrite (None).
<name>username</name> - (Optional) the username to use when connecting to the CMIS REST service. Can be used to force a connection to a fixed username.
<name>password</name> - (Optional) the password to use when connecting to the CMIS REST service. Used in conjunction with username, can be used to force a connection to a fixed username/password. Not recommended for use outside of development environment since password access is not secured.
<name>timeoutInMillisecs</name> - Time in milliseconds before the CMIS query read response times out
<name>propagateTimeoutExceptions</name> - If true, propagate the timeout exceptions. Otherwise, log the exception and return null for the CMIS query response.
If you are working outside of the Integrated WLS domain (i.e., in the WC_Spaces domain), before you can use scenarios that rely on the Activity Graph provider, you must configure connection information for your local environment.
Connection settings for Activity Graph are maintained in wcps-connections.xml in the wc_domain conductor extensions directory (domain scoped). Although it is not recommended that you edit this file directly, there are several other ways in which you can modify connection settings. Use one of the methods described in Section 19.4.1, "Creating or Modifying Provider Connection Settings." to configure the connection settings for the Activity Graph provider.
Connection Element and Property Descriptions
<connection-name> - unique name for this connection. Connections can be retrieved by name.
<namespace> - generally, this must match the namespace the accessing scenario is deployed within. The namespace is how the Conductor determines how to locate the appropriate <connection> for a given scenario. Using a wildcard '*', you can make this connection element available in all namespaces.
<name>isDefault</name> - marks this connection as the default connection (if multiple connections are defined)
<name>scheme</name> - protocol to access the CMIS REST service (HTTP or HTTPS for SSL). Defaults to HTTP if not explicitly specified.
<name>host</name> - machine name hosting the Activity Graph REST service. This is the machine name of the WC_Spaces managed server.
<name>port</name> - machine port number hosting the Activity Graph REST service. This is the machine port number of the WC_Spaces managed server.
<name>rewriteUrls</name> - can be set to None, Consumer, or Producer. See the REST Proxy page for details. If you want the direct URLs (from the CMIS server for document links), set this to None. Default is no rewrite (None).
<name>user</name> - (Optional) the username to use when connecting to the Activity Graph REST service.
<name>password</name> - (Optional) the password to use when connecting to the Activity Graph REST service. Used in conjunction with username, can be used to force a connection to a fixed username/password. Not recommended for use outside of development environment since password access is not secured.
<name>restResourceIndex</name> - the URI suffix to append to the host/port for the REST resource index (for example: '/rest/api/resourceIndex')
If you are working outside of the Integrated WLS domain (i.e., in the WC_Spaces domain), before you can use scenarios that rely on the People Connections locator, you must configure connection information for your local environment.
The Property Service uses an IPropertyLocator (the People Connections ILocator) to interface with the WebCenter People Connections service. The Property Provider that interfaces with the WebCenter People Connections service uses this ILocator to make PC REST calls for a given user (or self) and return the 'Person' object represented by that REST service call. The Person attributes represent values for that WebCenter profile.
Connection settings for the People Connections ILocator are maintained in wcps-connections.xml in the wc_domain conductor extensions directory (domain scoped). Although it is not recommended that you edit this file directly, there are several other ways in which you can modify connection settings. Use one of the methods described in Section 19.4.1, "Creating or Modifying Provider Connection Settings." to configure the connection settings for the People Connections ILocator.
Connection Element and Property Descriptions
<connection-name> - unique name for this connection. Connections can be retrieved by name.
<namespace> - generally, this must match the namespace the accessing scenario is deployed within. The namespace is how the Conductor determines how to locate the appropriate <connection> for a given scenario. Use a wildcard '*' to make this connection element available in all namespaces.
<name>isDefault</name> - marks this connection as the default connection (if multiple are defined)
<name>scheme</name> - protocol to access the CMIS REST service (HTTP or HTTPS for SSL). Defaults to HTTP if not explicitly specified.
<name>host</name> - machine name hosting the PC REST service. This is the machine name of the WC_Spaces managed server.
<name>port</name> - machine port number hosting the PC REST service. This is the machine port number of the WC_Spaces managed server.
<name>user</name> - (Optional) the username to use when connecting to the People Connection REST service. Can be used to force a connection to a fixed username.
<name>password</name> - (Optional) the password to use when connecting to the People Connections REST service. Used in conjunction with username, can be used to force a connection to a fixed username/password. Not recommended for use outside of development environment since password access is not secured.
<name>restResourceIndex</name> - appended to the PC REST service host/port, pointing to the location of the resourceIndex (available REST services) page (for example: '/rest/api/resourceIndex')
Bootstrapping the Person class to the Properties Provider
In order for the Property Service to know about and use the results of the People Connections REST calls, it needs to know about a 'Person'. This means creating a 'Person' property set definition, along with its individual attributes set as property definitions, before a 'Person' can be instantiated and its properties set.
The People Connection ILocator code does this by bootstrapping that process in a servlet listener, configured in its web.xml file as shown in the example below:
<?xml version="1.0" encoding="UTF-8" ?>
<web-app xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"
version="2.4">
<!-- Allows connection config classes to be loaded from the connections.xml file -->
<listener>
<listener-class>oracle.wcps.connection.lifecycle.VersatileModuleLifecycleCallback</listener-class>
</listener>
<listener>
<listener-class>oracle.wcps.people.util.BootstrapPropertiesListener</listener-class>
</listener>
</web-app>
Accessing the PC REST connection configuration information
Because the People Connections ILocator is not an actual 'provider', you cannot access its connection information in provider code, as for example Activity Graph. Instead, internal code uses the VersatileModuleLifecycleCallback class to make that configuration information available, and consequently makes this is a required listener to be configured in web.xml. Once that listener has been activated, the code can make calls to access connection information and parameterize the ILocator code to point to the PC REST server.
Tying the PC ILocator to the Properties Service Provider
The Properties Service Provider (PSP) knows about the People Connections ILocator through the namespaces. In the bootstrapping process above, the PropertySetDefinition (and its definitions) are namespaced with "people.connections.person" and a locator class "oracle.wcps.people.property.PeoplePropertyLocator". In using the PSP, the namespace and PropertySetDefinition are passed to the PSP. The PSP uses the locator class defined in the PropertySetDefinition to instantiate and delegate to property values (Person values from the People Connections REST service).
The locator and namespaces are critical in this process. They are defined as constants in the internal PropertyDefConstants class. Note that these do not need to be configured.
Connection settings for Activity Graph are maintained in wcps-connections.xml in the wc_domain conductor extensions directory (domain scoped). Although it is not recommended that you edit this file directly, there are several other ways in which you can modify connection settings. Use one of the methods described in Section 19.4.1, "Creating or Modifying Provider Connection Settings." to configure the connection settings for your custom provider. Refer to Section 19.4.1.2, "Connection Configuration Attributes" for information about the configuration file elements and property descriptions.
If your installation is using Coherence for caching (a requirement for HA environments), four separate caches must be set up: one each for Namespaces, Property Definitions, Property Set Definitions, and Property Sets.
The sample wcps-cache-config.xml configuration file below shows how to configure simple Coherence local caches. For more advanced cache types, refer to the Coherence documentation. Note that Coherence classes must be accessible via the same class loader as WebCenter Personalization. The Coherence wcps-cache-config.xml file must also be accessible by that same class loader. For more information, see the oracle.wcps.cache.CacheFactory class in the JavaDoc for WebCenter in the Oracle Fusion Middleware Java API Reference for Oracle WebCenter.
<?xml version="1.0" encoding="UTF-8" ?>
<cache-config>
<caching-scheme-mapping>
<cache-mapping>
<cache-name>com.oracle.p13n.service.property.namespaces</cache-name>
<scheme-name>ns-local-side</scheme-name>
</cache-mapping>
<cache-mapping>
<cache-name>com.oracle.p13n.service.property.propertydefinitions_*</cache-name>
<scheme-name>pd-local-side</scheme-name>
</cache-mapping>
<cache-mapping>
<cache-name>com.oracle.p13n.service.property.propertysetdefinitions_*</cache-name>
<scheme-name>psd-local-side</scheme-name>
</cache-mapping>
<cache-mapping>
<cache-name>com.oracle.p13n.service.property.propertysets_*</cache-name>
<scheme-name>ps-local-side</scheme-name>
</cache-mapping>
<cache-mapping>
<cache-name>*</cache-name>
<scheme-name>properties-default-local</scheme-name>
</cache-mapping>
</caching-scheme-mapping>
<caching-schemes>
<!--
The following schemes are all local. For a clustered deployment,
a distributed, replcated, or other clustered scheme is recommended.
See Coherence documentation for more information.
-->
<local-scheme>
<scheme-name>ns-local-side</scheme-name>
<service-name>NamespaceCache</service-name>
<eviction-policy>HYBRID</eviction-policy>
<high-units>{back-size-limit 0}</high-units>
<unit-calculator>FIXED</unit-calculator>
<expiry-delay>{back-expiry 1h}</expiry-delay>
<flush-delay>1m</flush-delay>
<cachestore-scheme/>
</local-scheme>
<local-scheme>
<scheme-name>pd-local-side</scheme-name>
<service-name>PropertyDefinitionCache</service-name>
<eviction-policy>HYBRID</eviction-policy>
<high-units>{back-size-limit 0}</high-units>
<unit-calculator>FIXED</unit-calculator>
<expiry-delay>{back-expiry 1h}</expiry-delay>
<flush-delay>1m</flush-delay>
<cachestore-scheme/>
</local-scheme>
<local-scheme>
<scheme-name>psd-local-side</scheme-name>
<service-name>PropertySetDefinitionCache</service-name>
<eviction-policy>HYBRID</eviction-policy>
<high-units>{back-size-limit 0}</high-units>
<unit-calculator>FIXED</unit-calculator>
<expiry-delay>{back-expiry 1h}</expiry-delay>
<flush-delay>1m</flush-delay>
<cachestore-scheme/>
</local-scheme>
<local-scheme>
<scheme-name>ps-local-side</scheme-name>
<service-name>PropertySetCache</service-name>
<eviction-policy>HYBRID</eviction-policy>
<high-units>{back-size-limit 0}</high-units>
<unit-calculator>FIXED</unit-calculator>
<expiry-delay>{back-expiry 1h}</expiry-delay>
<flush-delay>1m</flush-delay>
<cachestore-scheme/>
</local-scheme>
<local-scheme>
<scheme-name>properties-default-local</scheme-name>
<service-name>DefaultCache</service-name>
<eviction-policy>HYBRID</eviction-policy>
<high-units>{back-size-limit 0}</high-units>
<unit-calculator>FIXED</unit-calculator>
<expiry-delay>{back-expiry 1h}</expiry-delay>
<flush-delay>1m</flush-delay>
<cachestore-scheme/>
</local-scheme>
</caching-schemes>
</cache-config>
Before you can run WebCenter Personalization scenarios using Content Presenter, you need to configure the connections file (connections.xml) so that Content Presenter can see your Conductor server and the tagged scenarios. For more information about Content Presenter, see "Publishing Content Using Content Presenter" in Oracle Fusion Middleware User's Guide for Oracle WebCenter.
The connections.xml file holds the connection information for the application that you're working with on the WebCenter side. Content Presenter gets a list of all URL connections that are registered within this file and for any that begin with "Conductor", Content Presenter will assume this is a URL pointing to a Conductor server. For more information about connections.xml, see Appendix A, "Files for WebCenter Portal Applications" in Oracle Fusion Middleware Developer's Guide for Oracle WebCenter.
You can configure the Content Presenter task flow either at runtime, or from JDeveloper when adding the Content Presenter task flow to a page. These two configuration options for Content Presenter, as well as configuration requirements on the Conductor side are described in the following subsections:
Section 19.6.1, "Configuring the WebCenter Application's Content Server Connection"
Section 19.6.2, "Configuring the Content Presenter Task Flow Parameters"
For a WebCenter Portal application, use JDeveloper to set up the URL connection, or set the Content Presenter task flow parameters as described in Section 19.6.2, "Configuring the Content Presenter Task Flow Parameters." For WebCenter Spaces, you can use either WLST commands or Fusion Middleware Control to configure the connection.
This section contains the following subsections:
Section 19.6.1.1, "Configuring WebCenter Spaces Connections Using WLST"
Section 19.6.1.2, "Configuring WebCenter Spaces Connections Using Fusion Middleware Control"
For WebCenter Spaces, you can use the adf_createHttpURLConnection WLST command to manage URL connections as shown in the following example:
adf_createHttpURLConnection('webcenter','Conductor','http://example.com:8891/wcps/api/conductor?namespace=CP_namespace&
For more information about the adf_createHttpURLConnection command, see the section "adf_createHttpURLConnection" in the Oracle Fusion Middleware WebLogic Scripting Tool Command Reference.
For WebCenter Spaces, you can use Fusion Middleware Control to configure connections.
To configure connections using Fusion Middleware Control:
Open Fusion Middleware Control and log in to the WebCenter domain.
For information on logging in to Fusion Middleware Control, see Chapter 6, "Starting Enterprise Manager Fusion Middleware Control."
In the Navigation pane, expand the WebCenter domain node (wc_domain by default), expand the WebCenter node, expand the WebCenter Spaces node, and click webcenter(11.1.1.4.0)(WC_Spaces).
From the WebCenter menu, select ADF -> Configure ADF Connections.

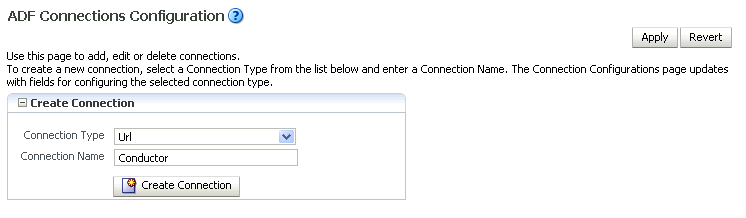

The ADF Connections Configuration page displays (see Figure 19-1).
Figure 19-1 ADF Connections Configuration Page
Set the Connection Type to Url, enter the Connection Name as Conductor, and click Create Connection.

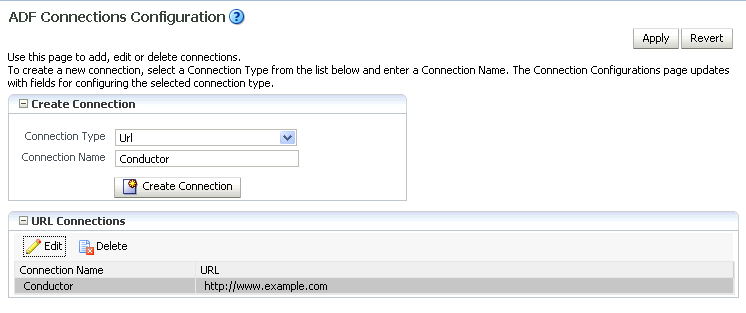

The URL Connections section displays (see Figure 19-2).
Figure 19-2 ADF Connections Configuration Page (URL Connections)
Click the Edit (Pencil) icon.

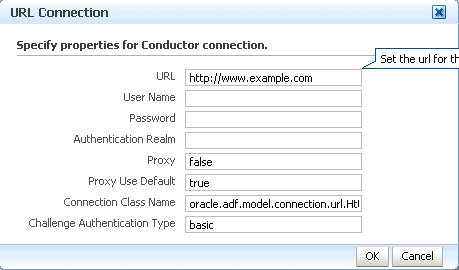

The URL Connection dialog displays (see Figure 19-3).
Edit the URL so that it points to the Content Server instance used by WebCenter Spaces. For example:
http://example.com:8891/wcps/api/conductor?namespace=CP_namespace&repoId=myhost-ucm11g
Update any other fields as required for your local connection and click OK.
You can configure a Content Presenter instance through its task flow parameters. These can either be set at runtime in the Content Presenter Configuration dialog, or from JDeveloper as you add the Content Presenter task flow. To do this manually, you need to set two parameters: the Data Source Type parameter must be set to dsTypeScenarioResults, and the Data Source parameter should be set to something like:
conductor-connection-name=ConductorConnectionName,namespace=ScenarioNamespace,scenario-name=ScenarioName,inputparam1=value1,inputparam2=value2
Note that the conductor-connection-name value must match with a URL connection that points to a valid Conductor server. Also, the namespace used should be the name of the namespace to which the specified scenario belongs. Finally, any input parameters that the scenario may be expecting can appended (as shown above), with a comma separating the name/value pairs.
For more information about configuring Content Presenter for WebCenter Personalization, see:
On the Conductor side, your Scenarios must have the correct tag in order for Content Presenter to see them. Content Presenter uses the tag ContentPresenterScenario, so any scenarios you want Content Presenter to pick up must have this tag associated with them.
Once you have everything set up on both the Conductor and WebCenter application side, everything else is fairly simple. When you open the Content Presenter Configuration dialog at runtime, the Content Source selection list displays Results of a Scenario. Selecting this displays a table of all of the scenarios that have been tagged for Content Presenter consumption. The first Scenario is always selected, and if it has any Input Parameters defined, they will be displayed below the table with input fields.
As you select scenarios in the table, the Input Parameters below will be updated. After selecting a scenario and specifying any input parameters, you can either preview or save Content Presenter to get the results. The results will be displayed much like any other multi-valued content source and will ultimately depend on the template selected for display purposes.
Note:
Any results that are returned from a scenario for use within Content Presenter must return a valid CMIS query as Content Presenter takes the return value and runs it (as a CMIS query) against the repository specified within the Conductor URL.Single sign-on is configured as part of running the configureTrustWCPS.py and configureConnectionsWCPS.py scripts for configuring the WebCenter domain, or the configureWCPS.py script for configuring JDeveloper's integrated WLS domain. When you run these scripts they also set up Trust Services single sign-on, which allows single sign-on for REST HTTP requests between client JEE Web applications, the WebCenter Personalization Web application, and the WC_Spaces Web application REST services used by the out-of-the-box data providers. All these WebCenter applications are also configured to support OAM/OSSO-provided single sign-on tokens, as well, without any additional Personalization-specific configuration. For more information, see Section 19.3.3, "Configuring Cross-Domain Trust."
By default, all access to WebCenter Personalization REST resources (other than the resourceIndex) requires authentication. In most cases this will be sufficient for development. However, for production environments, you may want to modify the default security constraints. The following sections describe how to set up less security to execute scenarios (where anonymous access is needed), and more security to prevent the ability to create new scenarios.
This section contains the following subsections:
Section 19.8.2, "Disabling Scenario Creation by Anonymous Users"
Section 19.8.3, "Disabling Scenario Creation by Authenticated Users"
Adding the following security constraint to the domain's conductor-extensions-library\WEB-INF\web.xml, file will honor default descriptor (authentication required) security, plus allow anonymous GET/POST on scenarios created or deployed from an anonymous application or namespace:
<security-constraint>
<web-resource-collection>
<web-resource-name>ConductorJerseyWebApplication</web-resource-name>
<url-pattern>/api/conductor/namespaces/anonymous/scenarios/*</url-pattern>
<http-method>GET</http-method>
<http-method>POST</http-method>
</web-resource-collection>
<!-- Allow anonymous user access in this namespace -->
<!--auth-constraint>
<role-name>Users</role-name>
</auth-constraint-->
</security-constraint>
You can disable scenario creation for any anonymous user using a simple filter that you add to the domain's conductor-extensions-library\WEB-INF\web.xml file. An example filter (AnonymousScenarioFilter) is shown below:
<filter>
<filter-name>AnonymousScenarioFilter</filter-name>
<filter-class>oracle.wcps.samples.AnonymousScenarioFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>AnonymousScenarioFilter</filter-name>
<url-pattern>/api/conductor/namespaces/PublicPersonalization/scenarios</url-pattern>
</filter-mapping>
<security-constraint>
<web-resource-collection>
<web-resource-name>ConductorJerseyWebApplication</web-resource-name>
<url-pattern>/api/conductor/namespaces/PublicPersonalization/scenarios/*</url-pattern>
<http-method>GET</http-method>
<http-method>POST</http-method>
</web-resource-collection>
<!--
Commented out to allow anonymous user access in this namespace
<auth-constraint>
<role-name>Users</role-name>
</auth-constraint>
-->
</security-constraint>
The filter explicitly checks for an anonymous user (httpRequest.getUserPrincipal() == null) and an HTTP POST operation on the /api/conductor/namespaces/PublicPersonalization/scenarios URL, which is the REST resource for creating a scenario.
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException
{
if (request instanceof HttpServletRequest)
{
HttpServletRequest httpRequest = (HttpServletRequest)request;
String method = httpRequest.getMethod();
if ("POST".equalsIgnoreCase(method) && httpRequest.getUserPrincipal() == null)
{
throw new ServletException("Anonymous users cannot create scenarios.");
}
}
chain.doFilter(request, response);
}
A simple change to the filter described in Section 19.8.2, "Disabling Scenario Creation by Anonymous Users" (removing the httpRequest.getUserPrincipal() check) would disable scenario creation for all users. Although the HTTP POST operation is also used to request execution of scenarios, the URI in that case is different (and protected in the <security-constraint> not the filter <url-pattern>).
|
 Copyright © 2009, 2011, Oracle and/or its affiliates. All rights reserved. Legal Notices |
|
