B Oracle Identity Manager Configuration Screens

This appendix describes the screens of the Oracle Identity Manager 11g Configuration Wizard that enables you to configure Oracle Identity Manager Server, Oracle Identity Manager Design Console, and Oracle Identity Manager Remote Manager.

This appendix contains the following topics:

• Welcome

• Components to Configure

• Database

• WebLogic Admin Server

• OIM Server

• BI Publisher

• LDAP Server

• LDAP Server Continued

• Configuration Summary

B.1 Welcome

The Welcome screen is displayed each time you start the Oracle Identity Manager Configuration Wizard.

Figure B-1 Welcome Screen

Description of "Figure B-1 Welcome Screen"

You can use the Oracle Identity Manager Configuration Wizard only once during initial setup for configuring Oracle Identity Manager Server. After configuring Oracle Identity Manager Server using this wizard, you cannot re-run this wizard to modify the configuration of Oracle Identity Manager. You must use Oracle Enterprise Manager Fusion Middleware Control to make such modifications. However, you can run this wizard on other machines, where Design Console or Remote Manager is configured, as and when needed.

Ensure that you have configured Oracle Identity Manager in a new or existing WebLogic domain before launching the Oracle Identity Manager Configuration Wizard to configure Oracle Identity Manager Server, Design Console on Windows, and Remote Manager.

If you are configuring Server, you must run this wizard on the machine where the WebLogic Administration Server is running (the Administration Server for the domain in which Oracle Identity Manager is deployed). Ensure that the Administration Server is up and running before you start configuring Oracle Identity Manager Server.

If you are configuring only Design Console, you must run this wizard on the Windows machine where Design Console should be configured. If you are configuring only Remote Manager, you must run this wizard on the machine where Remote Manager is being configured. Note that the Oracle Identity Manager Server should be configured before you can configure Design Console or Remote Manager.

Click Next to continue.

B.2 Components to Configure

Use this screen to select the Oracle Identity Manager components that you want to configure. Oracle Identity Manager components include Server, Design Console, and Remote Manager.

Before configuring Oracle Identity Manager Server, Design Console or Remote Manager, ensure that you have configured Oracle Identity Manager in a new or existing WebLogic domain using the Oracle Fusion Middleware Configuration Wizard.

Figure B-2 Components to Configure Screen

Description of "Figure B-2 Components to Configure Screen"

Table B-1 describes the Oracle Identity Manager components that you can choose.

Table B-1 Oracle Identity Manager Configuration Choices

Option	Description
Configure all components on this screen	To configure Oracle Identity Manager Server, Design Console, and Remote Manager simultaneously on the same machine, select the Oracle Identity Manager option.
Configure only Oracle Identity Manager Server	To configure only Oracle Identity Manager Server, select the OIM Server option. This option is selected, by default. Note that WebLogic Administration Server for the domain (the domain in which Oracle Identity Manager is deployed) should be up and running.
Configure only Oracle Identity Manager Design Console	To configure only Oracle Identity Manager Design Console, select the OIM Design Console option. However, note that Oracle Identity Manager Server must be configured either on the local machine or on a remote machine before you can run Design Console on development machines. Design Console is supported on Windows operating systems only.
Configure only Oracle Identity Manager Remote Manager	To configure only Oracle Identity Manager Remote Manager, select the OIM Remote Manager option. However, note that Oracle Identity Manager Server must be configured either on the local machine or on a remote machine before you can run Remote Manager.

Note:

You can also select any combination of two of the three Oracle Identity Manager components.

B.3 Database

In this screen, you specify the database and schema information. Note that you should have created and loaded Oracle Identity Manager schemas using the Oracle Fusion Middleware Repository Creation Utility (RCU) before configuring Oracle Identity Manager Server. For information about creating and loading Oracle Identity Manager schemas, see Section 3.2.3, "Creating Database Schema Using the Oracle Fusion Middleware Repository Creation Utility (RCU)".

Figure B-3 Database Screen

Description of "Figure B-3 Database Screen"

You can use the same database or different databases for creating the Oracle Identity Manager schema and the Metadata Services schema.

Table B-2 describes the database connection information that you must specify.

Table B-2 Fields in the Database Screen

Field	Description
Connect String	Enter the full path, listen port, and service name for your Oracle database. For a single host instance, the format of connect string is hostname:port:servicename. For example, if the hostname is aaa.bbb.com, port is 1234, and the service name is xxx.bbb.com, then you must enter the connect string for a single host instance as follows: aaa.bbb.com:1234:xxx.bbb.com If you are using a Real Application Cluster database, the format of the database connect string is as follows: hostname1:port1:instancename1^host2:port2:instancename2@servicename
OIM Schema User Name	Enter the name of the schema user that you created for Oracle Identity Manager using the Oracle Fusion Middleware Repository Creation Utility. If you upgraded your existing Oracle Identity Manager schema to 11g Release 1 (11.1.1), enter the user name for your existing schema.
OIM Schema Password	Enter the password for the Oracle Identity Manager schema user that you set while creating the schema using the Oracle Fusion Middleware Repository Creation Utility (RCU). If you upgraded your existing Oracle Identity Manager schema to 11g Release 1 (11.1.1), enter the password for your existing schema.
Select different database for MDS schema	Select this check box if you want to use a different database for the Metadata Services (MDS) schema.
MDS Connect String	If you are using a different database for the Metadata Services (MDS) schema, enter the full path, listen port, and service name for the database associated with the MDS schema. The format of the connect string is similar to that of the standard Connect String.
MDS Schema User Name	Enter the name of the schema user that you created for AS Common Services - Metadata Services by using the Oracle Fusion Middleware Repository Creation Utility (RCU). If you upgraded your existing Metadata Services schema to 11g Release 1 (11.1.1), enter the user name for your existing schema.
MDS Schema Password	Enter the password for the AS Common Services - Metadata Services schema user that you set while creating the schema by using the Oracle Fusion Middleware Repository Creation Utility (RCU). If you upgraded your existing Oracle Identity Manager schema to 11g Release 1 (11.1.1), enter the password for your existing schema.

After entering information in the fields, click Next to continue.

B.4 WebLogic Admin Server

In this screen, you specify the t3 URL, user name and password for the WebLogic administration domain in which the Oracle Identity Manager application is deployed. Ensure that the Administration Server is up and running.

Figure B-4 WebLogic Admin Server Screen

Description of "Figure B-4 WebLogic Admin Server Screen"

In the WebLogic Admin Server URL text box, enter the t3 URL of the Administration Server for the WebLogic domain in the following format:

t3://hostname:port

In the UserName text box, enter the WebLogic Administrator user name.

In the Password text box, enter the WebLogic Administrator password.

After entering information in the fields, click Next to continue.

B.5 OIM Server

Use this screen to set a password for the for the system administrator (xelsysadm).

Figure B-5 OIM Server Screen

Description of "Figure B-5 OIM Server Screen"

Table B-3 describes the Oracle Identity Manager Server parameters that you can configure.

Table B-3 Oracle Identity Manager Server Configuration Parameters

Field Name	Description
OIM Administrator Password	Enter a new password for the administrator. A valid password contains at least six characters, begins with an alphabetic character, and includes at least one number, one uppercase letter and one lowercase letter. The password cannot contain first name, last name, or login name of Oracle Identity Manager. Note that you are not prompted to enter this password in upgrade scenarios. You must set a password only if you are performing a new 11g installation.
Confirm Password	Enter the new password again to confirm.
OIM HTTP URL	Enter the http URL that front-ends the Oracle Identity Manager application. For example, http://localhost:7002. By default, this field contains the URL of the Oracle Identity Manager Managed Server.
KeyStore Password	Enter new password for the keystore. A valid password can contain 6 to 30 characters, begin with an alphabetic character, and use only alphanumeric characters and special characters like Underscore (_), Dollar ($), Pound (#). The password must contain at least one number.
Confirm KeyStore Password	Enter the new password again to confirm.

After entering information in the fields, click Next to continue.

B.6 BI Publisher

In this screen, you can perform the following optional tasks:

• Enable synchronization of Oracle Identity Manager roles, users, and their hierarchy to an LDAP directory

• Configure Oracle Identity Manager to use Oracle BI Publisher by specifying the BI publisher URL

Figure B-6 BI Publisher Screen

Description of "Figure B-6 BI Publisher Screen"

Enabling OIM-LDAP Synchronization

If you want to enable LDAP sync, you must first set up LDAP Sync for Oracle Identity Manager (OIM) before selecting the Enable LDAP Sync option on this screen. For information about setting up OIM-LDAP Sync, see Completing the Prerequisites for Enabling LDAP Synchronization. After completing the prerequisites for enabling LDAP Synchronization, select the Enable LDAP Sync option.

If you do not want to perform the other optional tasks, click Next to continue.

Configuring Oracle Identity Manager to Use Oracle BI Publisher

Ensure that Oracle BI Publisher is installed on your local or remote machine.

To configure Oracle Identity Manager to use Oracle BI Publisher, select the Configure BI Publisher option, and enter the BI Publisher URL in the BI Publisher URL text box.

The URL is of the format: http://hostname:port/xmlpserver, where hostname and port are the host name and the port on which the Oracle BI Publisher server is running.

After entering information in the fields, click Next to continue.

B.7 LDAP Server

This screen is displayed only if you select the Enable LDAP Sync option on the BI Publisher screen. In the LDAP Server screen, you should specify the authentication information for the Directory Server, as you want to synchronize Oracle Identity Manager roles, users, and their hierarchy to an LDAP directory.

Figure B-7 LDAP Server Screen

Description of "Figure B-7 LDAP Server Screen"

Table B-4 describes the parameters that you must specify.

Table B-4 LDAP Server Information

Field Name	Description
Directory Server Type	Select the desired Directory Server from the dropdown list.
Directory Server ID	Enter the Directory Server ID.
Server URL	Enter the LDAP URL in the format: ldap://oid_host:oid_port
Server User	Enter the user name for the Directory Server administrator. For example: cn=oimAdminUser,cn=Users,dc=us,dc=oracle,dc
Server Password	Enter the OIM admin password
Server SearchDN	Enter the Distinguished Names (DN). For example, dc=acme, dc=com This is the top-level container for users and roles in LDAP that is used for Oracle Identity Manager for reconciliation purposes.

After entering information in the fields, click Next to continue.

B.8 LDAP Server Continued

This screen is a continuation of the LDAP Server screen.

Figure B-8 LDAP Server Continued Screen

Description of "Figure B-8 LDAP Server Continued Screen"

Table B-5 describes the LDAP parameters that you must specify.

Table B-5 LDAP Server Continued Information

Field Name	Description
LDAP RoleContainer	Enter a name for the container that will be used as a default container of roles in the LDAP directory.
LDAP RoleContainer Description	Type a description for the role container.
LDAP UserContainer	Enter a name for the container that will be used as a default container of users in the LDAP directory.
LDAP UserContainer Description	Type a description for the user container.
User Reservation Container	Enter a name for the container that will be used for reserving user names in the LDAP directory while their creation is being approved in Oracle Identity Manager. When the user names are approved, they are moved from the reservation container to the user container in the LDAP directory.

After entering information in the fields, click Next to continue.

B.9 Configuration Summary

This screen displays a list of the applications or components you have selected for configuration. It includes the following information:

• Location of your installation

• Disk space that will be used for the installation

• Applications or components you have selected for configuration

• Configuration choices you made on different screens in the Oracle Identity Manager Configuration Wizard

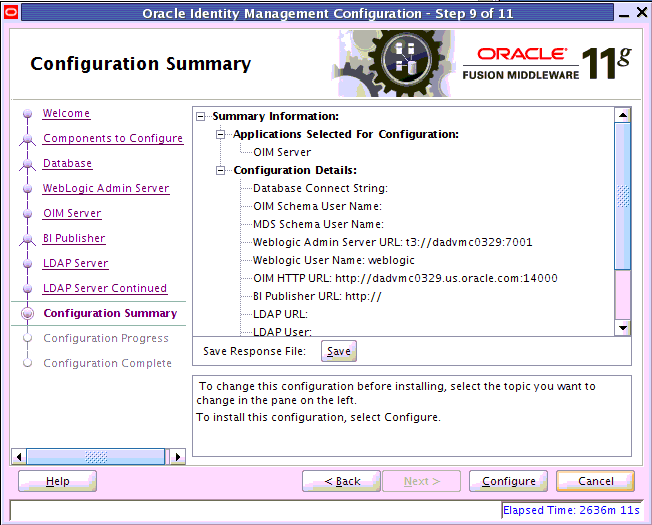

Figure B-9 Configuration Summary Screen

Description of "Figure B-9 Configuration Summary Screen"

Review this summary screen.

Additionally, you can select to create a response file from your installation selections by clicking on the Save button in the Save Response File field. A response file can be used for silent or non-interactive installations of software requiring no or very little user input.

Click Configure to start configuring the selected Oracle Identity Manager components.
