2 Getting Started with Oracle B2B

This chapter describes the Web-based interface provided by Oracle B2B for creating B2B transactions. It also discusses the process flow of creating an Oracle B2B transaction and how to use Oracle B2B in the Oracle JDeveloper environment.

This chapter contains the following topics:

2.1 What You Need to Get Started with Oracle B2B

In addition to installing Oracle SOA Suite, which includes Oracle B2B, you will need to install:

Use the standards-based templates of Oracle Document Editor to create guideline files. Then, using Oracle B2B, you create and deploy the transaction as part of a B2B agreement. To include the B2B transaction in a SOA composite application, use Oracle JDeveloper, as shown in Figure 2-1.

Figure 2-1 Oracle JDeveloper: A SOA Composite Application with a B2B Binding Component

Description of Figure 2-1 follows
Description of "Figure 2-1 Oracle JDeveloper: A SOA Composite Application with a B2B Binding Component"

See the following for more information:

2.2 Logging in to Oracle B2B

These instructions assume that you have installed Oracle SOA Suite, which includes Oracle B2B. See Oracle Fusion Middleware Installation Guide for Oracle SOA Suite for more information.

Use a supported Web browser:

To log in to Oracle B2B:

  1. Open a supported Web browser and go to:

    http://host_name:port_number/b2bconsole


    where:

    • host_name is the name of the host on which Oracle SOA Suite is installed. (In a cluster environment, the host_name can be the front end load balancer)

    • port_number is the port number used by the Managed Server to listen for regular HTTP (non-SSL) connections. (In a cluster environment, the port_number can be the router port.)

      See Section 2.2.1, "Finding Port Information," for more information.

    • /b2bconsole (or /b2b) accesses the B2B interface (/b2b is redirected to /b2bconsole).

      See Section 2.2.2, "Accessing Oracle B2B Through Single Sign-On (SSO)," for information on protecting the Oracle B2B user interface page by adding /b2bconsole and /b2b settings to the mod_wl_ohs.conf file in Oracle HTTP Server.

      Note:

      To access Oracle B2B when SAML is enabled or in Windows Native Authentication Environments, use either of the following protected servlet URLs for automatic authentication:

      http://host_name:port_number/b2b/ssologin
      http://host_name:port_number/b2bconsole/ssologin

  2. On the log-in page, enter the following:

    For This Field... Do...

    Username

    Enter the default administrator user name.

    Password

    Use the administrator password from your Oracle Fusion Middleware 11g installation.


  3. Click Login.

2.2.1 Finding Port Information

You can find port number information in the following ways:

  • From Oracle WebLogic Server Administration Console

    1. Log in to the console.

    2. In the Domain Structure pane, shown in Figure 2-2, expand Environment and click Servers.

      Figure 2-2 Domain Structure Nodes in Oracle WebLogic Server Administration Console

      Weblogic Console
      Description of "Figure 2-2 Domain Structure Nodes in Oracle WebLogic Server Administration Console"

    3. Note the Listen Port column for your server.

  • Or from MW_HOME/user_projects/domains/your_domain_name/config/config.xml

    <server>
        <name>soa_server1</name>
        <ssl>
          <name>soa_server1</name>
          <listen-port>8002</listen-port>
        </ssl>
        <machine>LocalMachine</machine>
        <listen-port>8001</listen-port>
        <listen-address/>
      </server>


2.2.2 Accessing Oracle B2B Through Single Sign-On (SSO)

To log in, log out, and relog in to Oracle B2B using SSO in Oracle Identity Management, the /b2bconsole location must be added to the mod_wl_ohs.conf file in Oracle HTTP Server as follows:

<Location /b2bconsole>
   SetHandler weblogic-handler
#     PathTrim /weblogic
   ErrorPage  http:/WEBLOGIC_HOME:WEBLOGIC_PORT/
</Location>

This is in addition to the setting required for the /b2b location:

<Location /b2b>
   SetHandler weblogic-handler
#     PathTrim /weblogic
   ErrorPage  http:/WEBLOGIC_HOME:WEBLOGIC_PORT/
</Location>

2.2.3 Enabling the weblogic User for Logging in to Oracle B2B

For the weblogic user in Oracle Internet Directory (OID) to log in to Oracle B2B as an administrator and search for users, the OID Authenticator must have an Administrators group, and the weblogic user must be a member of that group.

To enable the weblogic user:

  1. Create a weblogic user in OID using the LDAP browser. The users.ldif file is imported to OID as follows:

    dn: cn=weblogic,cn=Users,dc=us,dc=oracle,dc=com
    objectclass: inetorgperson
    objectclass: organizationalPerson
    objectclass: person
    objectclass: orcluser
    objectclass: orcluserV2
    objectclass: top
    sn: weblogic
    userpassword: welcome1
    uid: weblogic

  2. Create an Administrators group in OID and assign the weblogic user to it. The groups.ldif file is imported to OID as follows:

    dn: cn=Administrators,cn=Groups,dc=us,dc=oracle,dc=com
    objectclass: groupOfUniqueNames
    objectclass: orclGroup
    objectclass: top
    owner: cn=orcladmin,cn=Users,dc=us,dc=oracle,dc=com
    uniquemember: cn=weblogic,cn=Users,dc=us,dc=oracle,dc=com


2.3 Using the Oracle B2B Interface

B2B activities are grouped as follows:

2.3.1 Administration

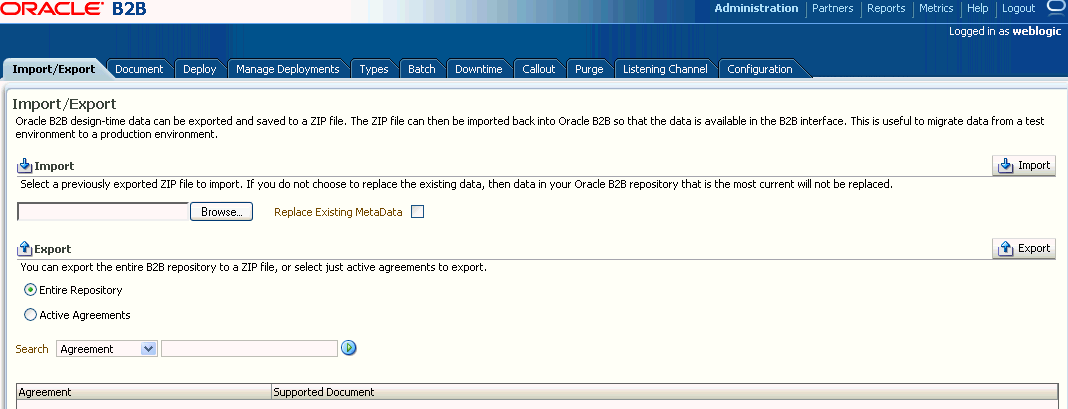

Use the tabs of the Administration page, shown in Figure 2-3, to manage importing and exporting, document protocols, deployments, types, batching, callouts, purging, listening channels, and B2B configuration.

Figure 2-3 Administration Activities

Administration tab shows the admin activities
Description of "Figure 2-3 Administration Activities"

See Part III, "Oracle B2B Administration" for more information.

2.3.2 Partners

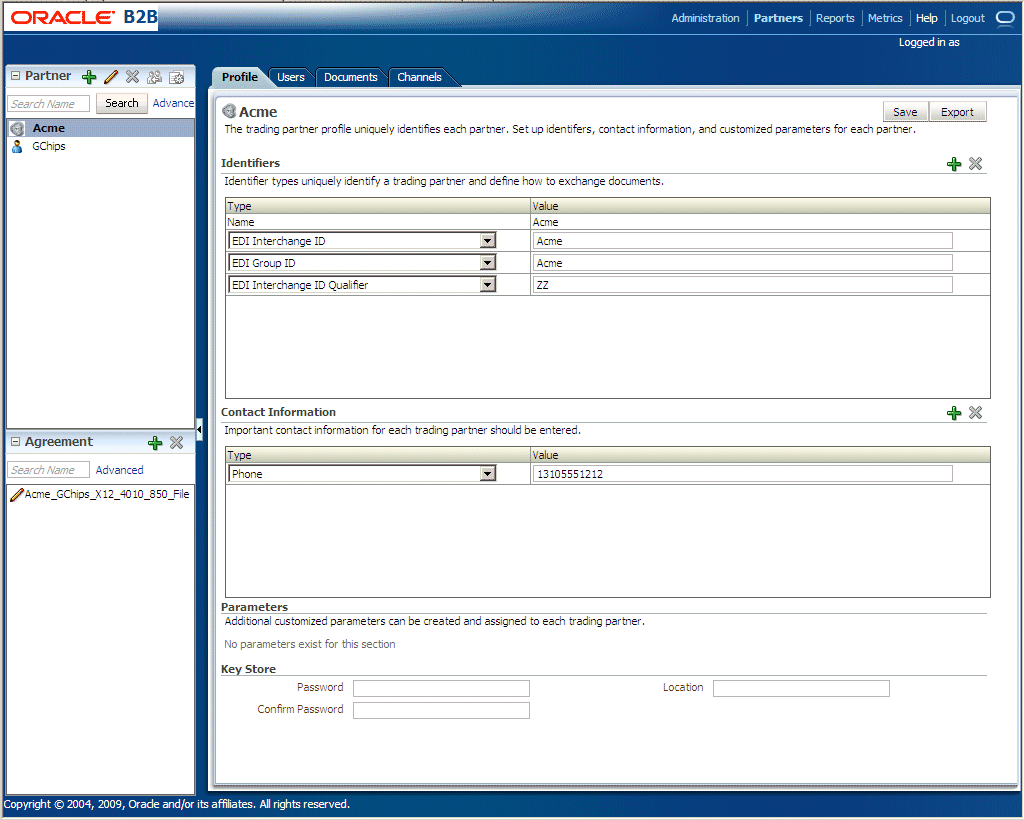

Use the tabs of the Partners page, shown in Figure 2-4, to create and update trading partner information, create and update agreement information, add user information, associate documents with trading partners, set up channels, and configure the key store.

Figure 2-4 Partner Activities

Design tab shows B2B process flow activities
Description of "Figure 2-4 Partner Activities"

See Part II, "Oracle B2B Process Flow" for more information.

2.3.3 Reports

Use the tabs of the Reports page, shown in Figure 2-5, to create and view reports about the instance (runtime) data.

See Chapter 18, "Creating Reports," for more information.

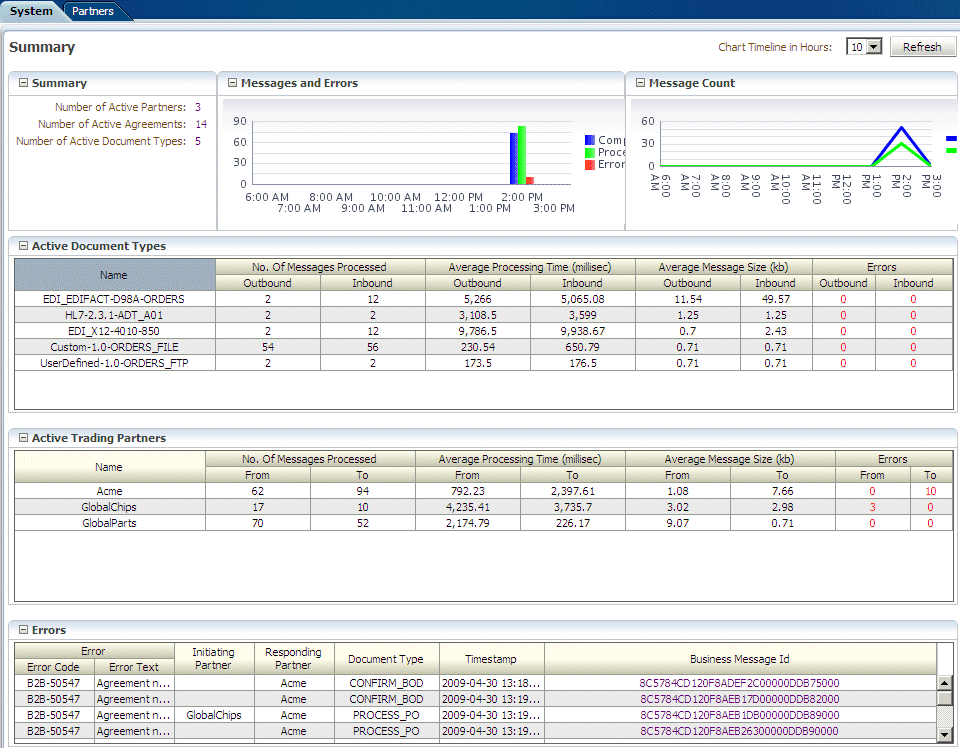

2.3.4 Metrics

Use the tabs of the Metrics page, shown in Figure 2-6, to see information about deployed agreements, such as lists of the active document types and trading partners, and runtime status, such as error messages and message counts.

See Chapter 19, "Using B2B Metrics," for more information.

2.4 Creating a B2B Transaction: An Overview of the Process Flow

Figure 2-7 shows the B2B process flow, which starts with creating B2B guideline files in Oracle Document Editor and continues with using the Oracle B2B interface to create document definitions, configure trading partners, and create and deploy agreements.

Figure 2-7 Oracle B2B Process Flow

Process flow
Description of "Figure 2-7 Oracle B2B Process Flow"

Step 1: Create guideline files (ECS and optional XSD files) in Oracle Document Editor

Using Oracle B2B Document Editor, shown in Figure 2-8, create transaction documents based on templates for hundreds of industry-standard protocols. The Oracle Document Editor is required only when translation is needed. For XML documents, the editor is not used.

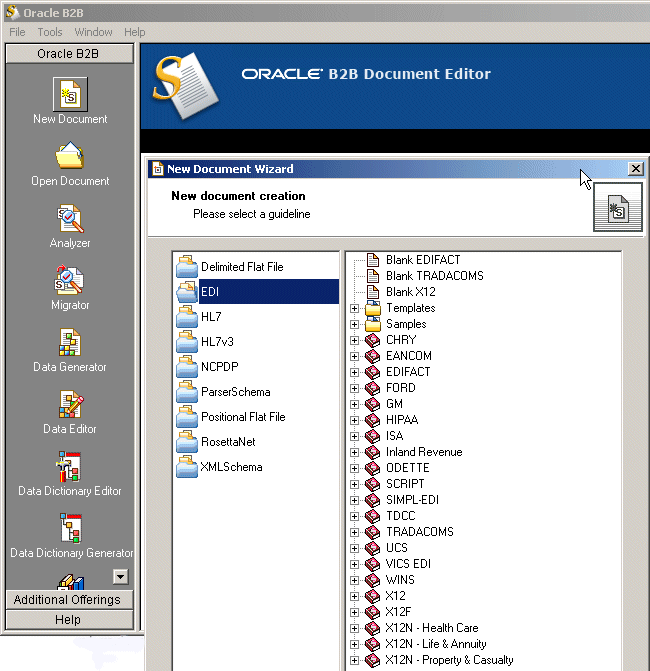

Figure 2-8 Creating a Document in Oracle B2B Document Editor

Document editor
Description of "Figure 2-8 Creating a Document in Oracle B2B Document Editor"

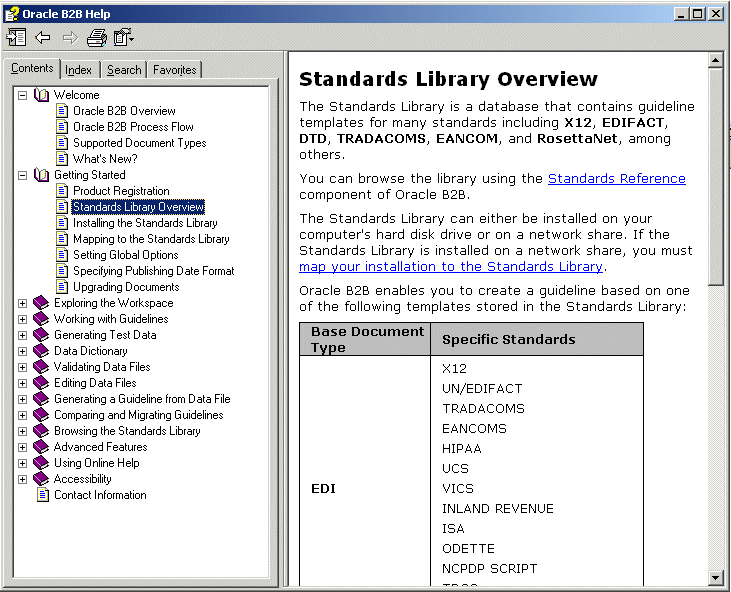

For information on Oracle Document Editor, see the following:

Step 2: Create document definitions

Using the Administration > Document tab of Oracle B2B, shown in Figure 2-10, select from a list of document protocols, and then provide a document protocol version name, a document type name, and a document definition name. (For a Custom document, rather than selecting from the list of document protocols, you add a custom protocol name to the list in the Document Protocols folder.)

Figure 2-10 Creating a Document Definition

Document definitions
Description of "Figure 2-10 Creating a Document Definition"

After selecting the ECS and optional XSD files you created in Step 1, you have created the document definition.

For more information, see Chapter 4, "Creating Document Definitions."

Step 3: Configure trading partners

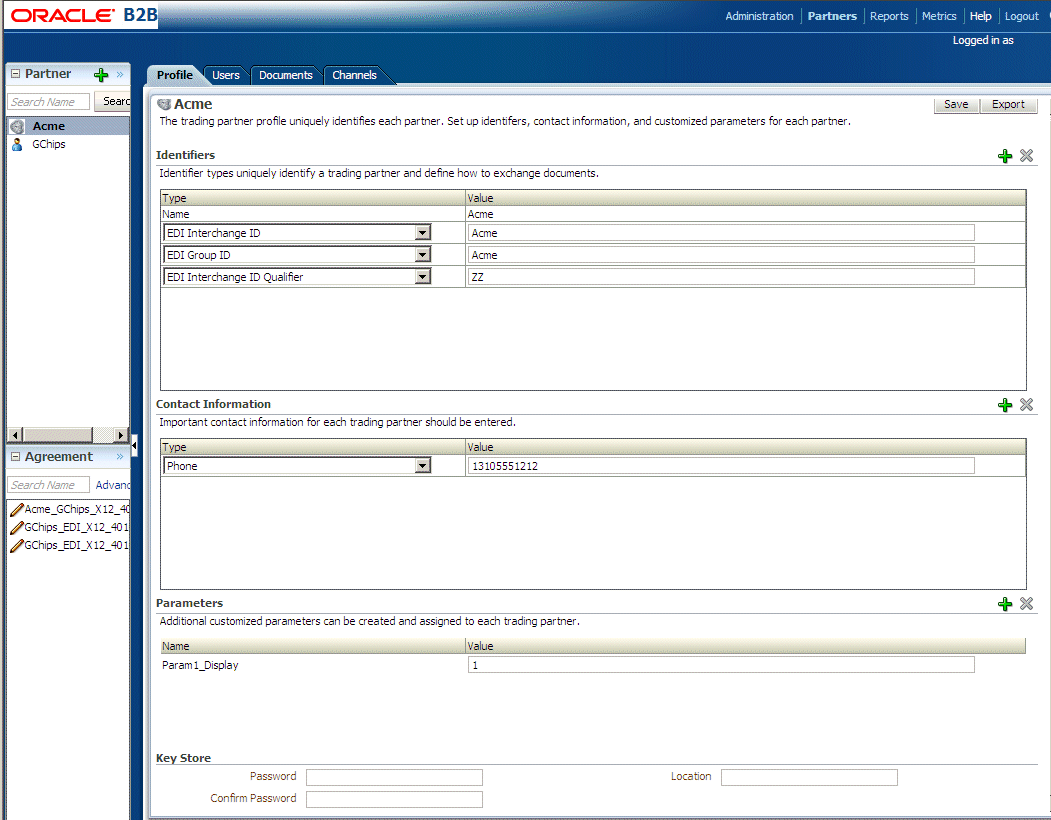

Using the tabs of the Partners page of Oracle B2B, shown in Figure 2-11, add or update trading partner names, add identifiers and optional contact information, view parameters, add documents and delivery channels, and add key store information.

Figure 2-11 Configuring Trading Partners

Trading partner identifiers
Description of "Figure 2-11 Configuring Trading Partners"

For more information, see Chapter 5, "Configuring Trading Partners."

Step 4: Create agreements

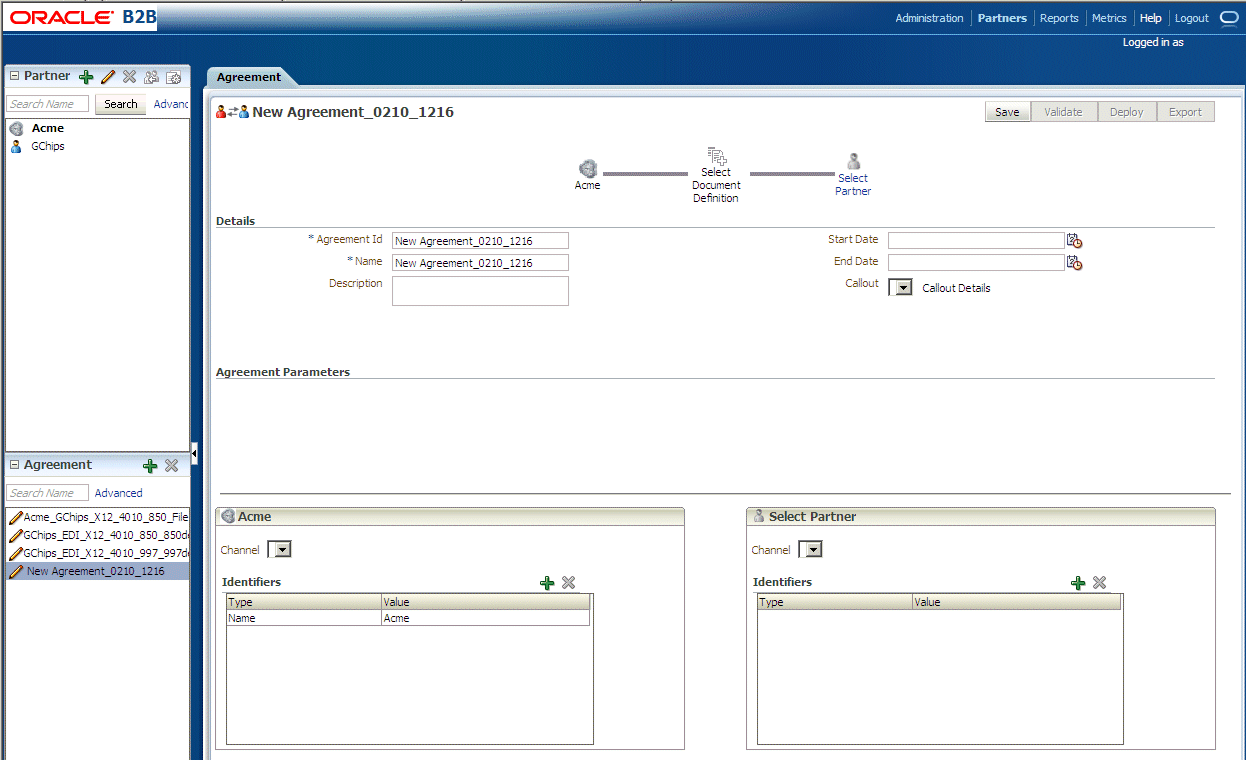

Using the Partners > Agreement tab of Oracle B2B, shown in Figure 2-12, create an agreement that specifies the trading partners involved and associates the document definitions, channels, and identifiers with the agreement.

Figure 2-12 Creating a Trading Partner Agreement

Partner agreements
Description of "Figure 2-12 Creating a Trading Partner Agreement"

For more information, see Chapter 6, "Creating and Deploying Trading Partner Agreements."

Step 5: Deploy agreements

Using the Administration > Deploy tab of Oracle B2B, shown in Figure 2-13, search for and deploy agreements.

Figure 2-13 Searching for and Deploying Agreements

Description of Figure 2-13 follows
Description of "Figure 2-13 Searching for and Deploying Agreements"

2.5 Using Oracle B2B in the Oracle JDeveloper Environment

By using an Oracle B2B binding component in a SOA composite application, you can create an end-to-end business process, such as sending a purchase order generated by a back-end application to a trading partner. Binding components establish the connection between a SOA composite application and the external world.

The B2B Configuration Wizard in Oracle JDeveloper enables you to add B2B binding components to a SOA composite application as follows:

As you follow the steps in the B2B Configuration Wizard, you are prompted to select a document definition created in Oracle B2B. Or, you can launch Oracle B2B from the wizard to create a document definition. This is the payload, or message, that you are receiving from trading partners or sending to trading partners.

Note:

In the B2B Configuration Wizard, if SSL is enabled in the middleware (the B2B Web service), then the SSL port is detected by the wizard and the document definitions are retrieved using the SSL connection.

2.5.1 How To Use B2B Binding Components in a SOA Composite Application

To create a SOA composite application with a B2B binding component, do the following:

See the following in Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite for more information on creating SOA composite applications:

Task 1   Create a SOA Application and Project
  1. Start Oracle JDeveloper Studio Edition Version 11.1.1.2.0.

  2. If Oracle JDeveloper is running for the first time, specify the location for the Java JDK.

  3. Create a new SOA composite application, as described in Table 2-1.

    Table 2-1 SOA Composite Application Creation

    If Oracle JDeveloper... Then...

    Has no applications

    For example, you are opening Oracle JDeveloper for the first time.

    In the Application Navigator in the upper left, click New Application.

    Has existing applications

    From the File main menu or the Application menu:

    1. Select New > Applications.

      The New Gallery opens, where you can select different application components to create.

    2. In the Categories tree, under the General node, select Applications. In the Items pane, select SOA Application and click OK.


    The Create SOA Application wizard starts.

  4. On the Name your application page, you can optionally change the name and location for your web project. If this is your first application, from Application Template, select SOA Application. Accept the defaults for the package prefix, and click Next.

    Notes:

    • Do not create an application name with spaces.

    • Do not create applications and projects in directory paths that have spaces (for example, c:\Program Files).

    • In a UNIX operating system, it is highly recommended to enable Unicode support by setting the LANG and LC_All environment variables to a locale with the UTF-8 character set. This action enables the operating system to process any character in Unicode. SOA technologies are based on Unicode. If the operating system is configured to use non-UTF-8 encoding, SOA components may function in an unexpected way. For example, a non-ASCII file name can make the file inaccessible and cause an error. Oracle does not support problems caused by operating system constraints.

      In a design-time environment, if you are using Oracle JDeveloper, select Tools > Preferences > Environment > Encoding > UTF-8 to enable Unicode support. This setting is also applicable for runtime environments.

  5. On the Name your project page, you can optionally change the name and location for your SOA project. By default, Oracle JDeveloper adds the SOA project technology, the composite.xml that generates, and the necessary libraries to your model project. Click Next.

    Note:

    Composite and component names cannot exceed 500 characters.

    A project deployed to the same infrastructure must have a unique name across SOA composite applications. The uniqueness of a composite is determined by its project name. For example, do not perform the actions described in Table 2-2. During deployment, the second deployed project (composite) overwrites the first deployed project (composite).

    Table 2-2 Restrictions on Naming a SOA Project—Caution: Doing This Overwrites the First Deployed Project

    Create an Application Named... With a SOA Project Named...

    Application1

    Project1

    Application2

    Project1


    The Project SOA Settings page of the Create SOA Application wizard appears.

  6. In the Configure SOA Settings page, click Empty Composite, and click Finish.

  7. Select Save All from the File main menu.

See Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite for more information about creating a SOA application and project.

Task 2   Add Service Components

Service components implement the business logic or processing rules of your application.

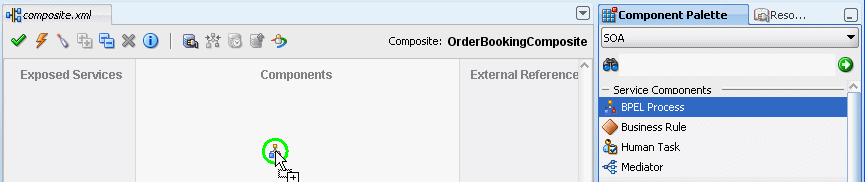

  1. From the Component Palette, select SOA.

  2. From the Service Components list, drag a component into the designer.

    Figure 2-14 shows a BPEL process being added to the designer.

    Figure 2-14 Adding BPEL Process to Composite

    Description of Figure 2-14 follows
    Description of "Figure 2-14 Adding BPEL Process to Composite"

    A specific dialog for the selected service components is displayed. Table 2-3 describes the available editors.

    Table 2-3 Starting Service Component Editors

    Dragging This Service Component... Invokes The...

    BPEL Process

    Create BPEL Process dialog to create a BPEL process that integrates a series of business activities and services into an end-to-end process flow.

    Business Rule

    Create Business Rules dialog to create a business decision based on rules.

    Human Task

    Create Human Task dialog to create a workflow that describes the tasks for users or groups to perform as part of an end-to-end business process flow.

    Mediator

    Create Mediator dialog to define services that perform message and event routing, filtering, and transformations.


  3. Configure the settings for a service component. For help with a service component dialog, click Help or press F1. Click Finish.

  4. Click OK.

  5. Select Save All from the File main menu.

See Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite for more information about adding service components.

Task 3   Add a B2B Binding Component

Add a service or a reference binding component.

  1. From the Component Palette, select SOA.

  2. Drag B2B to the Exposed Services or the External References swim lane.

    • Select Exposed Services for receiving inbound messages.

    • Select External References for sending outbound messages.

  3. On the B2B Configuration Wizard Welcome page, click Next.

  4. On the Service Name page, provide a name for the B2B service and click Next.

  5. On the B2B Integration Type page, select an integration type, as described in Table 2-4.

    Table 2-4 Selecting an Integration Type

    Type Description

    Default

    A B2B WSDL is generated for the SOA composite to communicate with Oracle B2B directly.

    AQ

    An AQ Adapter WSDL and JCA file are generated for the SOA composite to communicate with Oracle B2B through AQ queues.

    JMS

    A JMS Adapter WSDL and JCA file are generated for the SOA composite to communicate with Oracle B2B through JMS queues.


    • If you select Default, complete steps 6 through 10.

    • If you select AQ, complete steps 6 through 9 and 11 through 14

    • If you select JMS, complete steps 6 through 9 and 15 through 18

  6. On the Application Server Connection page, do one of the following:

    • From the AppServer Connection list, select an application server connection and click Next.

    • Or, click New to create an application server connection. Follow the Create Application Server Connection Wizard.

    When the application server connection is established, the following information is displayed: the user name created for the application server connection, the host name for the server instance, and the SOA Server name. The SOA servers configured and running in Weblogic are displayed when you select an application server connection. After you select a SOA server, the SSL or HTTP port is retrieved and the B2B web service URL is generated for retrieving document definitions.

    You can also click Test B2B to verify that you can connect to your Oracle B2B installation.

  7. On the Operation page, select Send or Receive, as described in Table 2-5.

    Table 2-5 Selecting a Send or Receive Operation

    Operation Description

    Send

    For outbound messages

    Receive

    For inbound messages


  8. On the Document Definition Handling page, select the option on the Basic tab or one of the options on the Advanced tab, as described in Table 2-6.

    Table 2-6 Selecting Document Definition Handling Options

    Option Description

    Basic Tab

    -

    Import Schema from B2B

    Imports the schema from Oracle B2B (the same option as on the Advanced tab)

    Advanced Tab

    -

    Import Schema from B2B

    Imports the schema from Oracle B2B (the same option as on the Basic tab)

    Refer to Schema in B2B Repository

    Selects a metadata service (MDS) connection. Or use this option to create a new one. If you create a new MDS connection, use the MDS Connection Wizard to create a connection. This connection is needed to access the B2B repository. When you select a document definition, a URL is generated to link to the MDS.

    The selected application server connection refers to a specific B2B instance. The MDS connection used by the specific B2B instance must match the selected MDS connection to avoid inconsistent document definitions.

    When referring to schema in a B2B Repository, an MDS connection is required only for referring to a schema in a remote MDS, but not if the schema is referred to within the local shared MDS repository.

    For referring to B2B schemas b2bException and b2bAck in the local shared MDS, you do not need to select an MDS connection. You can select the MDS option and click Next to navigate to the Document Definition page where you can select b2bException or b2bAck, or other B2B schemas that exist in the local shared MDS.

    Browse Resource Schema

    Browse for a schema using the SOA Resource Browser. Selecting this option opens the Type Chooser. Select a type and return to the Document Definition Handling page.

    Opaque

    Handles any type of data (for example, positional flat file) when the content is passed through in base-64 encoding. No schema is specified.

    anyType

    Handles any type of XML data. No schema is specified. This is valid and available only for the 'Default' integration type and not for AQ and JMS.


    You can also select Attachment Support for the Default integration type so that the B2B WSDL file includes a message part for the attachment.

  9. On the Document Definition page, expand the tree to select a document definition. If you select a document definition with multiple root elements, then select a root element to use and click OK.

    Table 2-7 describes other options on the page.

    Table 2-7 Document Definition Page Options

    Option Description

    Search

    Enter a definition name. Partial strings are matched if you type the beginning of the definition name. Partial strings with wildcards cannot be used.

    Refresh

    Retrieves the document definition list from the B2B server. Refresh after a search to see all document definitions.

    B2B Configuration

    Opens a browser to Oracle B2B, using the connection specified on the Application Server Connection page. In Oracle B2B, you can create a document definition, include it in an agreement, and deploy the agreement. Then return to this dialog, click Refresh, and select the new document definition.

    Use Routing ID

    Selects all document definitions that use a document routing ID. See Section 8.10, "Using Document Routing IDs," for more information.


    If you selected the

    • Default integration type, go to Step 10.

    • AQ integration type, go to Step 11.

    • JMS integration type, go to Step 15.

  10. On the Finish page, click Finish.

  11. On the Service Connection page, do one of the following:

    • From the Connection list, select a database connection and click Next.

    • Or, click New to create an application server connection. Follow the Create Application Server Connection Wizard.

    Table 2-8 describes the information displayed when the database connection is established.

    Table 2-8 Service Connection

    Parameter Description

    User Name

    The user name created for the database connection.

    Driver

    The JDBC driver is provided.

    Connect String

    The JDBC connection string is provided.

    JNDI Name

    Use the default Java Naming and Directory Interface (JNDI) name or specify a custom name. This connection enables you to configure the adapter during design time and to connect to the database server during runtime.

    Data Source

    Enter the JNDI name that is used to look up the data source in data-sources.xml. If you are using data-sources.xml to get the connection, then this name is required.

    XA Data Source

    Select this option if the data source name is an XA data source. An XA data source can participate in an XA global transaction that can span multiple resources. In this transaction, the application server acts as the coordinating transaction manager with multiple databases (or other resources such as JMS), each of which is involved in a single transaction. If selected, the adapter becomes part of the XA transaction. Otherwise, it is a local transaction.


  12. On the Queue Name page, select a database schema and a queue name.

    Only queues for B2B of the type IP_MESSAGE_TYPE are available.

  13. On the Queue Parameters page, do the following:

    • For an enqueue operation, enter a recipient name or a list of recipients separated by commas. If you do not enter a recipient, then the message is sent to all subscribers of the queue. This field can be overridden on a per message basis by setting the RecipientList field in the outbound header. The default value is b2buser.

    • For a dequeue operation, enter the following:

      • Consumer: The name of the agent subscribing to the queue. This field is required and is limited to 30 characters. The default value is b2buser.

      • Message Selector Rule: Optional filtering logic for messages to dequeue based on the message properties or message content (for example, priority < 5 or tab.user_data.amount > 10000). If a rule is supplied, then an agent using the consumer name and the message selector rule are created in the queue. The consumer name must be a new agent name, because the adapter does not change the message selector rule of a previously created agent. No validation is performed on the logic you enter.

      • Dequeue Condition: A Boolean expression similar to the WHERE clause of a SQL query. This expression can include conditions on message properties, user data properties (object payloads only), and PL/SQL or SQL functions. If more than one message satisfies the dequeue condition, then the order of dequeuing is indeterminate, and the sort order of the queue is not honored.

  14. Click Finish.

  15. On the JMS Provider page, select one of the following:

    • Oracle Enterprise Messaging Service (OEMS): Oracle WebLogic JMS or Oracle Advanced Queuing

      OEMS is built on JMS and the J2EE Connector Architecture (JCA), which enables you to develop and integrate distributed applications in a service-oriented architecture environment. This messaging platform provides service for message persistence and recovery.

    • third-party: Persists messages in a third-party JMS provider, such as Tibco JMS or IBM WebSphere MQ JMS.

  16. If you selected Oracle WebLogic JMS or Oracle Advanced Queuing, then the Service Connection page appears. On the Service Connection page, do one of the following:

    • From the AppServer Connection list, select an exising application server connection and click Next.

    • Or, click New to create an application server connection. Follow the Create Application Server Connection Wizard.

    If you selected third-party, then the JMS Connection page appears. On the JMS Connection page, provide the JMS Connection JNDI Name and click Next.

  17. If you selected Send in Step 7, then the Produce Operation Parameters page appears. If you selected Receive in Step 7, then the Consume Operation Parameters page appears.

    On the Produce Operation Parameters page, provide the following information and click Next:

    • Destination Name: Enter the JNDI name of the queue or topic to produce the message or click Browse to select a name. The value of this field is typically the JNDI name.

    • Message Body Type: Select the message body (payload) type.

      • Text Message: Use this option when the payload is a string.

      • Bytes Message: Use this option when the payload is an array of primitive bytes.

    • Delivery Mode: Select a message delivery mode (only if WebLogic JMS was selected).

      • Persistent: Use this option for messages that are persisted to a file system or database.

      • Non-Persistent: Use this option for messages that are not persisted and are typically held in process memory only.

    • Priority: Select a priority value, with 9 representing the highest priority and 0 representing the lowest priority.

    • Time To Live: Enter a value that indicates the life span of the message. If no subscribers consume the message in the given time, then the message is not delivered. There is no limit. A value of 0 indicates that there is no expiration time.

    • JNDI Name: Displays the JNDI name based on your selection in the Destination Name field (only if WebLogic JMS or Advanced Queuing is selected).

    On the Consume Operation Parameters page, provide the following information and click Next:

    • Destination Name: Enter the JNDI name of the queue or topic to consume the message or click Browse to select a name.

    • Message Body Type: Select the message body (payload) type.

      • Text Message: Use this option when the payload is a string.

      • Bytes Message: Use this option when the payload is an array of primitive bytes.

    • Message Selector: Specify filtering logic that enables you to receive messages that match certain criteria. Enter an expression between 1 and 255 characters in length. Use SQL92 syntax in this field. The JMS server uses these criteria to filter messages received by this consumer. This works with variables defined in standard JMS headers and user-defined properties. You cannot use variables or elements that are in the payload of the message.

    • Use MessageListener: This option is set to false by default if you selected Oracle Weblogic JMS on the JMS Provider page. It is not editable. Select true or false if you selected Oracle Advanced Queueing on the JMS Provider page (only if Oracle Advanced Queuing or third-party is selected).

    • Durable Subscriber ID: Enter an ID for receiving messages from a JMS topic. If you do not specify an ID, then you must have an active subscription session to receive messages. If you specify an ID for topics, then you receive messages even if you do not currently have an active subscription session. When a durable subscriber is disconnected from the JMS server, the server stores messages. When the durable subscriber reconnects, the server sends the unexpired messages that accumulated (only if third-party is selected).

    • JNDI Name: Displays the JNDI name based on your selection in the Destination Name field (only if WebLogic JMS or Advanced Queuing is selected).

    • Enable Streaming: When you enable this feature, the payload is streamed to a database. Use this feature for large payloads. When you enable streaming, a corresponding Boolean property, StreamPayload, is appended to the ActivationSpec properties defined in the respective .jca file. If the StreamPayload property does not exist, then the default value false is assumed. The property is applicable when processing Raw messages, XMLType messages, and ADT type messages for which a payload is specified though an ADT attribute.

  18. Click Finish.

See the following in Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite for more information on binding components:

2.5.2 About Using the JMS Integration Type in the B2B Configuration Wizard

If you select the JMS integration type, then you must use JMS properties prefixed with jca.jms.JMSProperty, as in jca.jms.JMSProperty.property_name. (In contrast, when you select the Default or AQ integration types in the B2B Configuration Wizard, message properties such as MSG_ID, INREPLYTO_MSG_ID, FROM_PARTY, TO_PARTY, ACTION_NAME, MSG_TYPE, DOCTYPE_NAME, and DOCTYPE_REVISION can be used in the SOA composite application without any changes.)

Table 2-9 lists the JMS properties to use with the Oracle JCA Adapter for JMS.

Table 2-9 JMS Adapter Properties

Property Name Property Name When Used with the Oracle JCA Adapter for JMS
MSG_ID
jca.jms.JMSProperty.MSG_ID
INREPLYTO_MSG_ID
jca.jms.JMSProperty.INREPLYTO_MSG_ID
FROM_PARTY
jca.jms.JMSProperty.FROM_PARTY
TO_PARTY
jca.jms.JMSProperty.TO_PARTY
ACTION_NAME
jca.jms.JMSProperty.ACTION_NAME
MSG_TYPE
jca.jms.JMSProperty.MSG_TYPE
DOCTYPE_NAME
jca.jms.JMSProperty.DOCTYPE_NAME
DOCTYPE_REVISION
jca.jms.JMSProperty.DOCTYPE_REVISION
ATTACHMENT
jca.jms.JMSProperty.ATTACHMENT
A2A
jca.jms.JMSProperty.A2A

For JMS message correlation, set the property A2A=true. If MSG_ID is provided from the back-end application, then MSG_ID is set as JMS Correlation ID in the B2B output, otherwise the JMS Message ID is set to JMS Correlation ID in the B2B output.

For example, these sender properties and values are added in the Assign Values dialog of the Mediator component for an outbound composite, as shown in Figure 2-15.

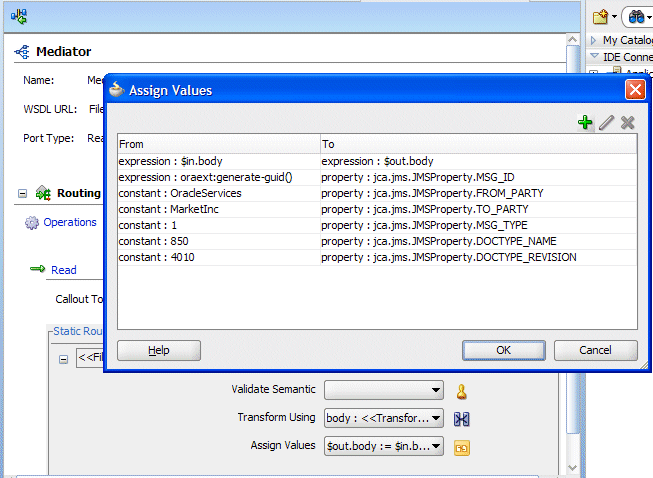

Figure 2-15 Adding JCA JMS Properties in the Assign Values Dialog

Description of Figure 2-15 follows
Description of "Figure 2-15 Adding JCA JMS Properties in the Assign Values Dialog"

2.5.3 The B2BX12OrderGateway Composite in the Fusion Order Demo

The SOA sample application, Fusion Order Demo, includes a B2B composite, B2BX12OrderGateway. In this demo, a trading partner sends an EDI purchase order request (850) to B2B. The trading partner does this by dropping a file into a directory on which B2B is listening through a listening channel. B2B takes the standard EDI 850 and transforms it into a canonical form, which is a common representation of the data to invoke the Store Front Service—the composite that provides access to the storefront data transaction support to update data for customers, orders, and products.

If the purchase order amount is greater than $2,000 (as determined by a business rule), then the purchase order is routed to a Human Workflow for manual approval. For orders under $2,000, approval is not required. After the order is approved, a purchase order response (855) is generated and sent back to the trading partner.

Figure 2-16 shows the B2BX12OrderGateway composite in Oracle JDeveloper.

Figure 2-16 B2B Composite in the Fusion Order Demo

Description of Figure 2-16 follows
Description of "Figure 2-16 B2B Composite in the Fusion Order Demo"

Download the Fusion Order Demo application ZIP file (FusionOrderDemo_R1PS3.zip). from:

http://www.oracle.com/technetwork/developer-tools/jdev/index-095536.html

See Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite for a description of the SOA sample application.

2.6 What You May Need To Know About Using Oracle B2B

This section contains topics to help with troubleshooting.

2.6.1 Enabling Debug Mode at runtime

Use Oracle Enterprise Manager Fusion Middleware Control to enable logging (SOA Infrastructure > Logs > Log Configuration). See Oracle Fusion Middleware Administrator's Guide for Oracle SOA Suite and Oracle Business Process Management Suite for more information.

An alternative is to edit the logging.xml file at

DOMAIN_HOME/config/fmwconfig/server/managed_server

2.6.2 Logging Out: SSO Logout Configuration for Oracle Access Manager

In web.xml, the success_url parameter of oracle.adf.share.security.authentication.AuthenticationServlet must contain an SSO logout URL, such as ../access/oblix/lang/en-us/logout.html, to ensure that the URL is accessible and does not result in a 404 error.

See Oracle Fusion Middleware Security Guide for information about Oracle Single Sign-On and Oracle Access Manager.
