StorageTek Tape Analytics Configuration Guide, Version 1.0.2
E28378-04
Table of Contents Previous Next Index


Configuring Email Notifications : Email Tasks

Email Tasks

To configure email notifications, do the following:
•
“Define SMTP Server Details”.
•
“Add an Email Address”.
•
“Test your SMTP and Email Address Setup”.

To modify or delete an email address, do the following:

•
“Edit an Email Address”.
•
“Delete an Email Address”.

▼

Define SMTP Server Details
1.
Point your browser to the STA GUI login screen.

http://yourHostName:7021/STA/

or

https://yourHostName:7022/STA/

Note – Use the HTTP or HTTPS port number you selected during STA installation.

2.
Log in using the STA GUI Login username and password you defined during STA installation.
3.

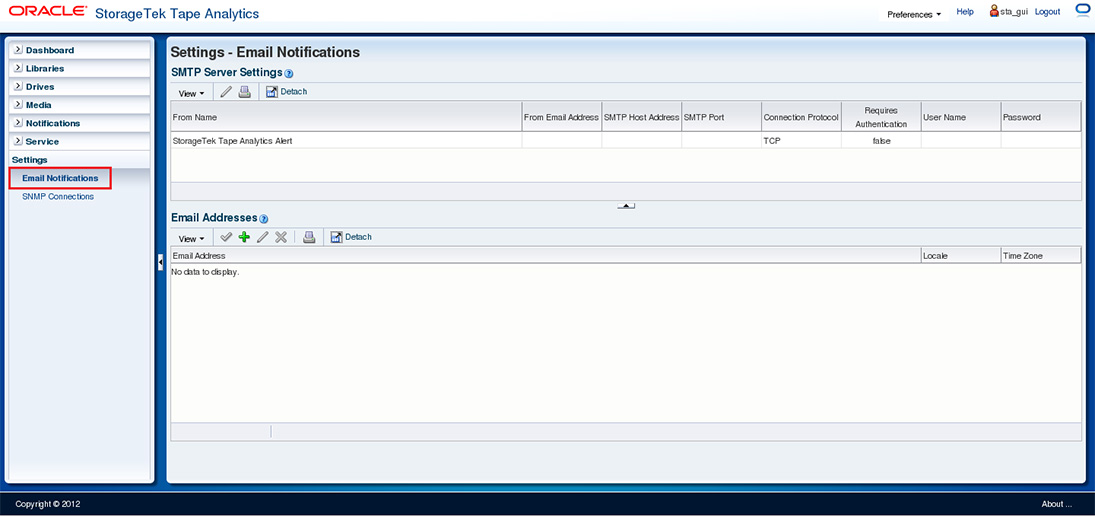

From the STA accordion, click Settings -> Email Notifications.

4.

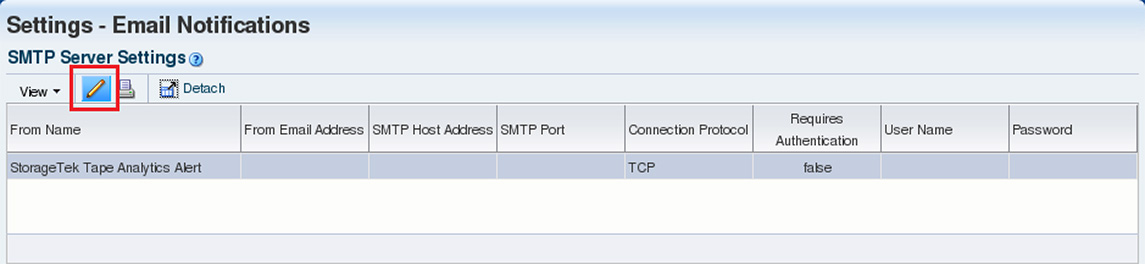

In the SMTP Server Settings table, select StorageTek Tape Analytics Alert, then click the Edit Selected SMTP Server icon located in the toolbar.

5.
In the Define SMTP Server Details window, enter the IP address of your SMTP email server.

Note – If the email server does not require authentication, you may need to specify localhost for the SMTP Host Address.

6.
Enter the SMTP port number for outgoing mail transport.

Typically, this is port 25, but check with your IT administrator to verify that this is the port used at your site (sites can use other ports for SMTP).

7.
Enter the name you want the From line in your email to display.

Text that identifies the server on which STA is installed is recommended, so you know the source of the message when it arrives in your email.

8.
Enter the email address from which the email is being sent.

Since you cannot reply to this address (the server does not receive emails), you may want to enter an address that indicates this. For example:

DoNotReply@YourCompany.com
9.
Select the Use Secure Connection Protocol check box to select the appropriate secure connection protocol (TLS or SSL).

See your IT administrator to determine which connection is right for you.

10.
Select the Requires Authentication check box if the SMTP server requires authentication.
a.
Enter a user name supported by the SMTP server.
b.
Enter and verify the correct password for that email user.
11.
Click Save.
