Enable SNMP on the Library

▼	Enable SNMP on the Library

Use this procedure to enable SNMP on the library public port.

Note – For SL500 libraries, you can choose to perform this procedure with either the CLI or the SL Console. For SL3000 and SL8500 libraries, you must use the CLI. For SL150 libraries, you use the library’s browser-based user interface.

▼	With the CLI

1.	Ensure that SNMP is enabled on the public port.

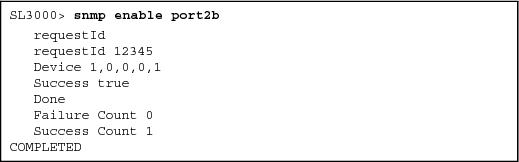

•	For SL3000 and SL8500 libraries, you must enable SNMP on Port 2B.

Note – If the library includes the Dual TCP/IP feature, this command enables SNMP on both the 2B and the 2A port; you do not need to issue a separate command for the 2A port.

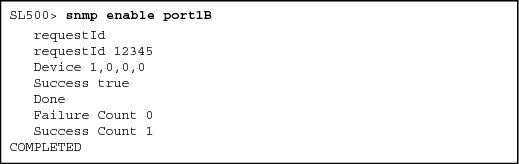

•	For SL500 libraries, you must enable SNMP on Port 1B.

2.	Proceed to “Ensure an SNMP v2c User”.

▼	With the SL Console (SL500 only)

1.	Select System Detail > Library > SNMP >Port Control.

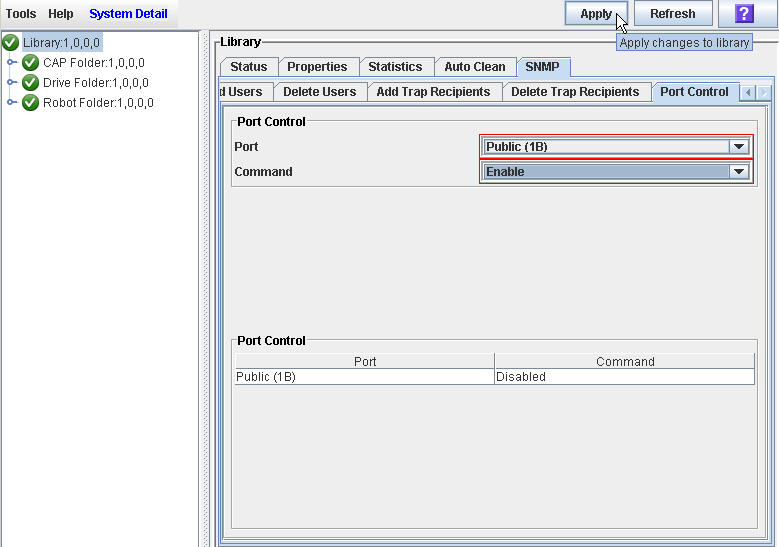

2.	Complete the Port Control tab as follows:

•	Port – Select Public 1B in the menu.

•	Command – Select Enable in the menu.

3.	Click Apply.

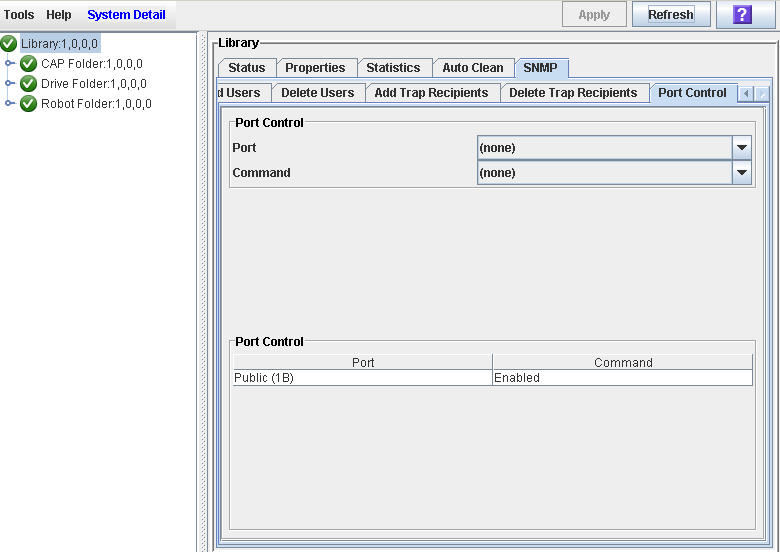

SNMP is enabled on the port, and the status is updated.

4.	Proceed to “Ensure an SNMP v2c User”.

▼	With the SL150 User Interface

By default, the SL150 library ships with SNMP disabled. To enable SNMP, perform the following.

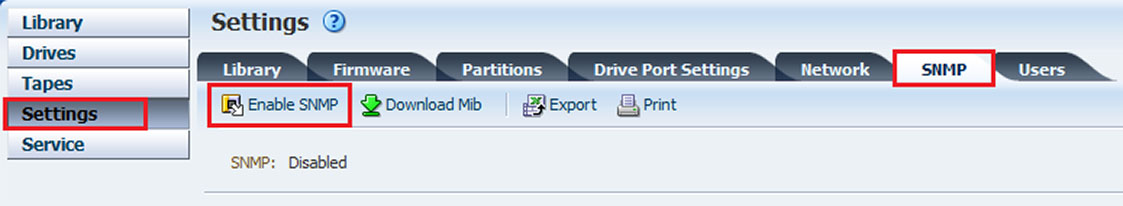

1.	Select Settings from the navigation bar on the left side of the interface.

2.	Select the SNMP tab.

3.	Select Enable SNMP.

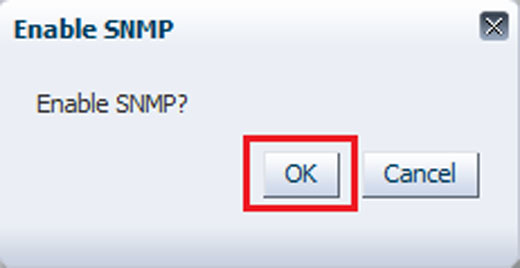

4.	In the confirmation window, click OK.

5.	Proceed to “Ensure an SNMP v2c User”.

▼
