StorageTek Tape Analytics Configuration Guide, Version 1.0.2
E28378-04
Table of Contents Previous Next Index


Configuring SNMP in the STA Application : Configuration Process : ▼ Log In to the STA User Interface

▼

Log In to the STA User Interface

Use this procedure to start an STA session. Before using this procedure, you must verify that your computer and browser are configured correctly. For details, refer to the “Getting Started” chapter of the StorageTek Tape Analytics User Interface Guide.

1.
Start a supported Web browser on your computer.
2.
In the Location Bar or Address field, enter the URL of the STA server.

The URL uses one of the following formats:

•
http://local_host_name:port_number/STA
•
https://local_host_name:port_number/STA

Where:

•
local_host_name is the IP address or fully qualified DNS alias of the STA server.
•
port_number is the port ID of the STA application.

Note – The host name and port number were established during STA installation. For details, see the “Installing STA” chapter within the StorageTek Tape Analytics Planning and Installation Guide.

Following are examples of each format.

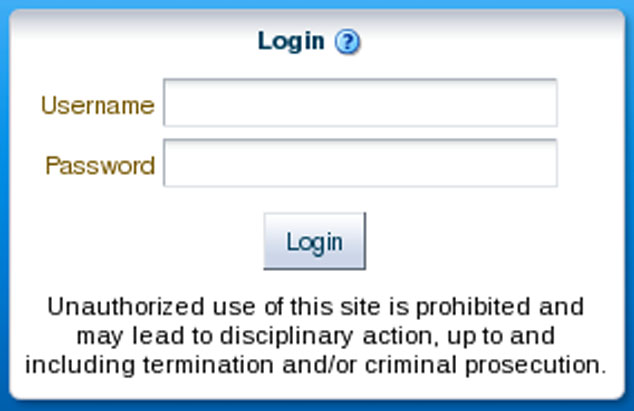

The Login screen appears.

3.
Enter your username and password.

Note – The local WebLogic STA user name and password were established during STA installation. For details, see the “Installing STA” chapter within the StorageTek Tape Analytics Planning and Installation Guide.

4.
Click Login.

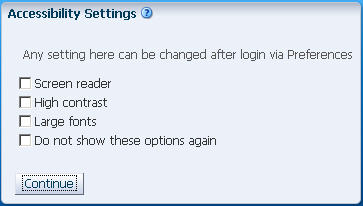

Depending on the preference settings for your username, the Accessibility Settings dialog box may appear.

5.
Complete the Accessibility Settings dialog box, if applicable. See “Modify Accessibility Preferences” in the STA User Interface Guide for details on completing this dialog box.
6.
Click Continue.

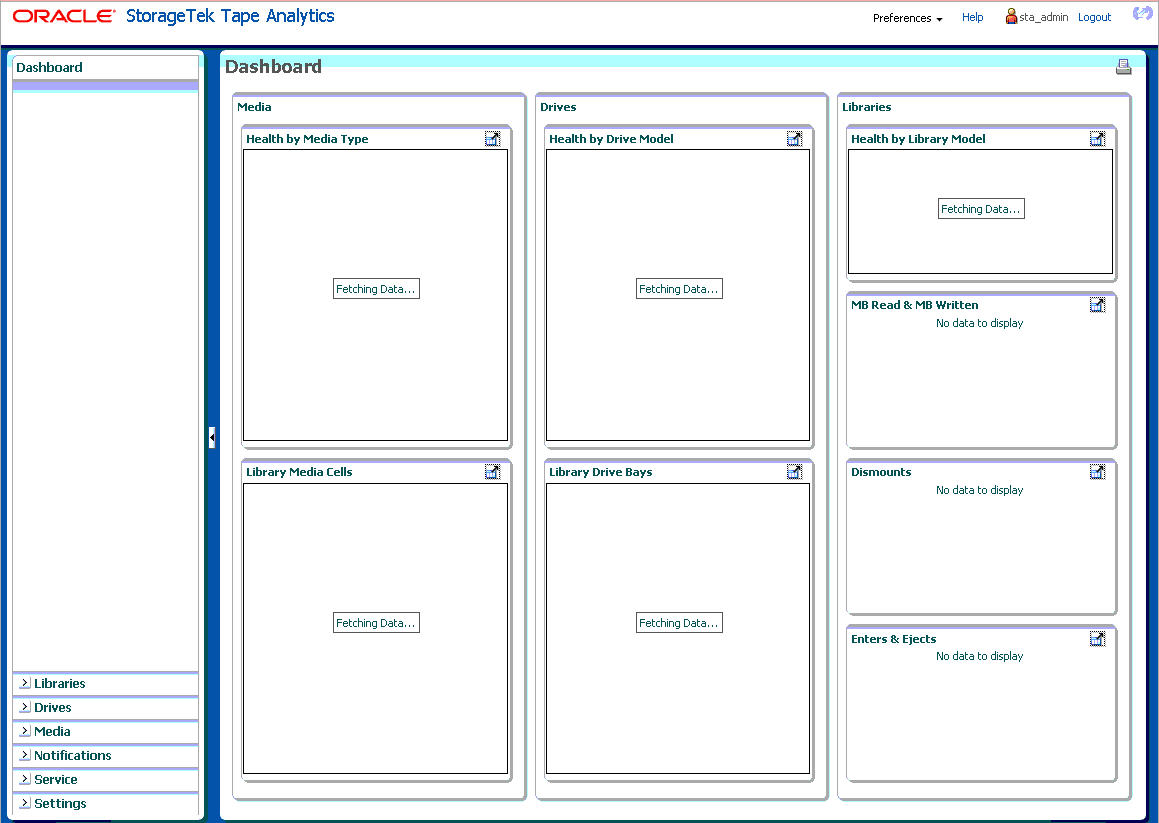

The Dashboard appears.
