Create Element-Level Links

Create element-level links to define a master-detail or parent-child relationship between two datasets.

Defining an element-level link enables you to establish the binding between the elements of the master and detail datasets.

  1. Open the element action menu and click Create Link.
  2. In the Create Link dialog, choose the element, and click OK to create the link.

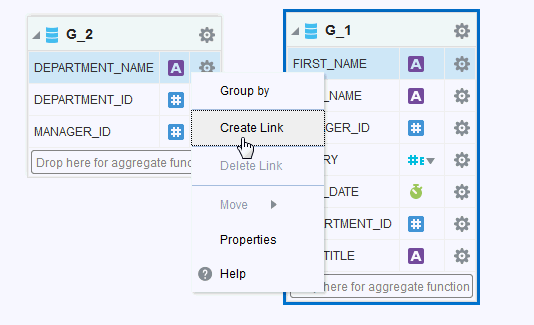

    The Create Link dialog is shown below.

Delete Element-Level Links

You can delete both group-level and element-level links between datasets.

  • Do one of the following:.
    • Open the element action menu for either element and click Delete Link
    • Select the element connector to display the linked element names and click the delete button.

Delete Group-Level Links

You can delete both group-level and element-level links between datasets.

  1. In the parent group, click Menu.
  2. Click Delete Group Link.
  3. In the Delete Group Link dialog, select the Child Group from the list and click OK.
