Two Ways to Create a Queue Browser for Oracle Object Type (ADT) Messages Queues

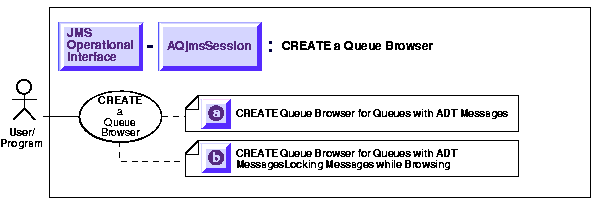

Figure 14-14 Use Case Diagram: Two Ways to Create a Queue Browser for Queues of Oracle Object Type (ADT) Messages

To refer to the table of all basic operations having to do with the Operational Interface see: "Use Case Model: Operational Interface -- Basic Operations"

This section explains two ways to create browser for oracle object type (ADT) messages queues:

1. Create a Queue Browser for Queues of Oracle Object Type (ADT) Messages

2. Create a Queue Browser for Queues of Oracle Object Type (ADT) Messages, Locking Messages While Browsing
