This chapter describes how to use C, C++, and Java to implement the methods of a data cartridge. Methods are procedures and functions that define the operations permitted on data defined using the data cartridge. The focus is on issues related to developing and debugging external procedures.
This chapter contains these topics:
PL/SQL is a powerful language for database programming. However, some methods are too complex to code such a method optimally using PL/SQL. For example, a routine to perform numerical integration will probably run faster if it is implemented in C than if it is implemented in PL/SQL.
To support such special-purpose processing, PL/SQL provides an interface for calling routines written in other languages. This makes the strengths and capabilities of 3GLs like C available through calls from a database server. Such a 3GL routine, called an external procedure, is stored in a shared library, registered with PL/SQL, and called from PL/SQL at runtime to perform special-purpose processing. Details on external procedures and their use can be found in the PL/SQL User's Guide and Reference.
External procedures are an important tool for data cartridge developers. They can be used not only to write fast, efficient, computation-intensive routines for cartridge types, but also to integrate existing code with the database as data cartridges. Shared libraries already written and available in other languages, such as a Windows NT DLL with C routines to perform format conversions for audio files, can be called directly from a method in a type implemented by an audio cartridge. Similarly, you can use external procedures to process signals, drive devices, analyze data streams, render graphics, or process numerical data.
A shared library is an operating system file, such as a Windows DLL or a Solaris shared object, that stores the coded implementation of external procedures. Access to the shared library from Oracle occurs by using an alias library, which is a schema object that represents the library within PL/SQL. For security, creation of an alias library requires DBA privileges. To create the alias library (such as DS_Lib in the following example), you must decide on the operating system location for the library, log in as a DBA or as a user with the CREATE
LIBRARY
PRIVILEGE
, and then enter a statement such as the following:
CREATE OR REPLACE LIBRARY DS_Lib AS '/data_cartridge_dir/libdatastream.so';
This example creates the alias library schema object in the database. After the alias library is created, you can refer to the shared library by the name DS_Lib from PL/SQL.
The example just given specifies an absolute path for the library. If you have copies of the library on multiple systems, to support distributed execution of external procedures by designated (or "dedicated") agents, you can use an environment variable to specify the location of the libraries more generally. For example:
CREATE OR REPLACE LIBRARY DS_Lib AS '${DS_LIB_HOME}/libdatastream.so' AGENT 'agent_link';
This statement uses the environment variable ${DS_LIB_HOME}
to specify a common point of reference or root directory from which the library can be found on all systems. The string following the AGENT
keyword specifies the agent (actually, a database link) that will be used to run any external procedure declared to be in library DS_Lib
. For more information on using dedicated external procedure agents to run an external procedure, see PL/SQL User's Guide and Reference
To call an external procedure, you must not only tell PL/SQL the alias library in which to find the external procedure, but also how to call the procedure and what arguments to pass to it.
Earlier, the type DataStream
was defined, and certain methods of type DataStream
were defined by calling functions from a package DS_Package
. Also, this package was specified. The following statement defines the body of this package.
CREATE OR REPLACE PACKAGE BODY DS_Package AS FUNCTION DS_Findmin(data CLOB) RETURN PLS_INTEGER IS EXTERNAL NAME "c_findmin" LIBRARY DS_Lib LANGUAGE C WITH CONTEXT; FUNCTION DS_Findmax(data CLOB) RETURN PLS_INTEGER IS EXTERNAL NAME "c_findmax" LIBRARY DS_Lib LANGUAGE C WITH CONTEXT; END;
In the PACKAGE
BODY
declaration clause of this example, the package functions are tied to external procedures in a shared library. The EXTERNAL
clause in the function declaration registers information about the external procedure, such as its name (found after the NAME
keyword), its location (which must be an alias library, following the LIBRARY
keyword), the language in which the external procedure is written (following the LANGUAGE
keyword), and so on. For a description of the parameters that can accompany an EXTERNAL
clause, see the PL/SQL User's Guide and Reference. For information on how to format the call specification when passing an object type to a C routine, see Oracle Database Application Developer's Guide - Fundamentals.
The final part of the EXTERNAL
clause in the example is the WITH
CONTEXT
specification. This means that a context pointer is passed to the external procedure. The context pointer is opaque to the external procedure, but is available so that the external procedure can call back to the Oracle server, to potentially access more data in the same transaction context. The WITH
CONTEXT
clause is discussed in "Using the WITH CONTEXT Clause".
Although the example describes external procedure calls from object type methods, a data cartridge can use external procedures from a variety of other places in PL/SQL. External procedure calls can appear in:
Anonymous blocks
Standalone and packaged subprograms
Methods of an object type
Database triggers
SQL statements (calls to packaged functions only)
To call an external procedure, PL/SQL must know the DLL or shared library in which the procedure resides. PL/SQL looks up the alias library in the EXTERNAL
clause of the subprogram that registered the external procedure. The data dictionary is used to determine the actual path to the operating system shared library or DLL.
PL/SQL alerts a Listener process, which in turn spawns (launches) a session-specific agent. Unless some other particular agent has been designated, either in the CREATE LIBRARY
statement for the procedure's specified library or in the agent argument of the CREATE PROCEDURE
statement, the default agent extproc
is launched. The Listener hands over the connection to the agent. PL/SQL passes the agent the name of the DLL, the name of the external procedure, and any parameters passed in by the caller.
The rest of this account assumes that the agent launched is the default agent extproc
. For more information on using dedicated external procedure agents to run an external procedure, see PL/SQL User's Guide and Reference.
After receiving the name of the DLL and the external procedure, extproc
loads the DLL and runs the external procedure. Also, extproc
handles service calls (such as raising an exception) and callbacks to the Oracle server. Finally, extproc
passes to PL/SQL any values returned by the external procedure. Figure 5-1 shows the flow of control.

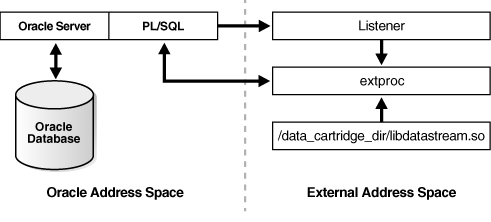

Figure 5-1 How an External Procedure is Called
Note:
The Listener must startextproc
on the system that runs the Oracle server. Starting extproc
on a different system is not supported.After the external procedure completes, extproc
remains active throughout your Oracle session. (When you log off, extproc
is killed.) Thus, you incur the cost of spawning extproc
only once, no matter how many calls you make. Still, you should call an external procedure only when the computational benefits outweigh the cost. For information about administering extproc
and external procedure calls, see the Oracle Database Administrator's Guide.
The configuration files listener.ora
and tnsnames.ora
must have appropriate entries so that the Listener
can dispatch the external procedures.
The Listener
configuration file listener.ora
must have a SID_DESC
entry for the external procedure. For example:
# Listener configuration file # This file is generated by stkconf.tsc INBOUND_CONNECT_TIMEOUT_LISTENER = 0 LISTENER = (ADDRESS_LIST= (ADDRESS=(PROTOCOL=ipc)(KEY=o8)) (ADDRESS=(PROTOCOL=tcp)(HOST=unix123)(PORT=1521)) ) SID_LIST_LISTENER = (SID_LIST= (SID_DESC=(SID_NAME=o8)(ORACLE_HOME=/rdbms/u01/app/oracle/product/8.0 .3)) (SID_DESC=(SID_NAME=extproc)(ORACLE_HOME=/rdbms/u01/app/oracle/product/ 8.0.3)(PROGRAM=extproc)) )
This listener.ora
example assumes the following:
The Oracle instance is called o8
.
The system or node on which the Oracle server runs is named unix123
.
The installation directory for the Oracle server is /rdbms/u01
.
The port number for Oracle TCP/IP communication is the default Listener
port 1521
.
The tnsnames.ora
file (network substrate configuration file) must also be updated to refer to the external procedure. For example:
o8 = (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=unix123)(PORT=1521))(CONNECT_DATA=(SID=o8))) extproc_connection_data = (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=o8))(CONNECT_DATA=(SID=extproc)))
This tnsnames.ora
example assumes that IPC mechanisms are used to communicate with the external procedure. You can also use, for example, TCP/IP for communication, in which case the PROTOCOL
parameter must be set to tcp.
For more information about configuring the listener.ora
and tnsnames.ora
files, see the Oracle Database Administrator's Guide.
Passing parameters to an external procedure is complicated by several circumstances:
The set of PL/SQL datatypes does not correspond one-to-one with the set of C datatypes.
PL/SQL parameters can be null, whereas C parameters cannot. (Unlike C, PL/SQL includes the RDBMS concept of nullity.)
The external procedure might need the current length or maximum length of CHAR
, LONG
RAW
, RAW
, and VARCHAR2
parameters.
The external procedure might need character set information about CHAR
, VARCHAR2
, and CLOB
parameters.
PL/SQL might need the current length, maximum length, or null status of values returned by the external procedure.
In the following sections, you learn how to specify a parameter list that deals with these circumstances.
An example of parameter passing is shown in "Doing Callbacks", where the package function DS_Findmin(data CLOB)
calls the C routine c_findmin
and the CLOB
argument is passed to the C routine as an OCILobLocator()
.
You do not pass parameters to an external procedure directly. Instead, you pass them to the PL/SQL subprogram that registered the external procedure. So, you must specify PL/SQL datatypes for the parameters. For guidance, see Table 5-1. Each PL/SQL datatype maps to a default external datatype. (In turn, each external datatype maps to a C datatype.)
Table 5-1 Parameter Datatype Mappings
PL/SQL Type | Supported External Types | Default External Type |
---|---|---|
BINARY_INTEGER, BOOLEAN, PLS_INTEGER |
CHAR, UNSIGNED CHAR, SHORT, UNSIGNED SHORT, INT, UNSIGNED INT, LONG, UNSIGNED LONG,SB1, UB1, SB2, UB2, SB4, UB4, SIZE_T |
INT |
NATURAL, NATURALN, POSITIVE, POSITIVEN, SIGNTYPE |
CHAR, UNSIGNED CHAR, SHORT, UNSIGNED SHORT, INT, UNSIGNED INT, LONG, UNSIGNED LONG, SB1, UB1, SB2, UB2, SB4, UB4, SIZE_T |
UNSIGNED INT |
FLOAT, REAL |
FLOAT |
FLOAT |
DOUBLE PRECISION |
DOUBLE |
DOUBLE |
CHAR, CHARACTER, LONG, ROWID, VARCHAR, VARCHAR2 |
STRING |
STRING |
LONG RAW, RAW |
RAW |
RAW |
BFILE, BLOB, CLOB |
OCILOBLOCATOR |
OCILOBLOCATOR |
In some cases, you can use the PARAMETERS
clause to override the default datatype mappings. For example, you can re-map the PL/SQL datatype BOOLEAN
from external datatype INT
to external datatype CHAR
.
To avoid errors when declaring C prototype parameters, refer to Table 5-2, which shows the C datatype to specify for a given external datatype and PL/SQL parameter mode. For example, if the external datatype of an OUT
parameter is CHAR
, specify the datatype char * in your C prototype.
Table 5-2 External Datatype Mappings
External Datatype | IN,RETURN | IN by Reference, RETURN by Reference | IN OUT, OUT |
---|---|---|---|
CHAR |
char |
char * |
char * |
UNSIGNED CHAR |
unsigned char |
unsigned char * |
unsigned char * |
SHORT |
short |
short * |
short * |
UNSIGNED SHORT |
unsigned short |
unsigned short * |
unsigned short * |
INT |
int |
int * |
int * |
UNSIGNED INT |
unsigned int |
unsigned int * |
unsigned int * |
LONG |
long |
long * |
long * |
UNSIGNED LONG |
unsigned long |
unsigned long * |
unsigned long * |
SIZE_T |
size_t |
size_t * |
size_t * |
SB1 |
sb1 |
sb1 * |
sb1 * |
UB1 |
ub1 |
ub1 * |
ub1 * |
SB2 |
sb2 |
sb2 * |
sb2 * |
UB2 |
ub2 |
ub2 * |
ub2 * |
SB4 |
sb4 |
sb4 * |
sb4 * |
UB4 |
ub4 |
ub4 * |
ub4 * |
FLOAT |
float |
float * |
float * |
DOUBLE |
double |
double * |
double * |
STRING |
char * |
char * |
char * |
RAW |
unsigned char * |
unsigned char * |
unsigned char * |
OCILOBLOCATOR |
OCILobLocator * |
OCILobLocator * |
OCILobLocator ** |
You can optionally use the PARAMETERS
clause to pass additional information about PL/SQL formal parameters and function return values to an external procedure. You can also use this clause to reposition parameters. See the PL/SQL User's Guide and Reference.
Once launched, an external procedure may need to access the database. For example, DS_Findmin
does not copy the entire CLOB
data over to c_findmin
, because doing so would vastly increase the amount of stack that the C routine needs. Instead, the PL/SQL function just passes a LOB
locator to the C routine, with the intent that the database will be re-accessed from C to read the actual LOB
data.
When the C routine reads the data, it can use the OCI buffering and streaming interfaces associated with LOBs (see the Oracle Call Interface Programmer's Guide for details), so that only incremental amounts of stack are needed. Such re-access of the database from an external procedure is known as a callback.
To be able to call back to a database, you need to use the WITH
CONTEXT
clause to give the external procedure access to the database environment, service, and error handles. When an external procedure is called using WITH
CONTEXT
, the corresponding C routine automatically gets as its first parameter an argument of type OCIExtProcContext
*. (The order of the parameters can be changed using the PARAMETERS
clause.) You can use this context pointer to fetch the handles using the OCIExtProcGetEnv
call, and then call back to the database. This procedure is shown in "Doing Callbacks" .
An external procedure executing on the Oracle server can call the access function OCIExtProcGetEnv
to obtain OCI environment and service handles. With the OCI, you can use callbacks to execute SQL statements and PL/SQL subprograms, fetch data, and manipulate LOBs. Moreover, callbacks and external procedures operate in the same user session and transaction context, so they have the same user privileges.
The following example is a version of c_findmin
that is simplified to illustrate callbacks. The complete listing is available on the disk that is included with this kit.
Static OCIEnv *envhp; Static OCISvcCtx *svchp; Static OCIError *errhp; Int c_findmin (OCIExtProcContext *ctx, OCILobLocator *lobl) { sword retval; retval = OCIExtProcGetEnv (ctx, &envhp, &svchp, &errhp); if ((retval != OCI_SUCCESS) && (retval != OCI_SUCCESS_WITH_INFO)) exit(-1); /* Use lobl to read the CLOB, compute the minimum, and store the value in retval. */ return retval; }
With callbacks, the following SQL statements and OCI routines are not supported:
Transaction control statements such as COMMIT
Data definition statements such as CREATE
Object-oriented OCI routines such as OCIRefClear
Polling-mode OCI routines such as OCIGetPieceInfo
All these OCI routines:
OCIEnvInit OCIInitialize OCIPasswordChange OCIServerAttach OCIServerDetach OCISessionBegin OCISessionEnd OCISvcCtxToLda OCITransCommit OCITransDetach OCITransRollback OCITransStart
Also, with OCI routine OCIHandleAlloc
, the following handle types are not supported:
OCI_HTYPE_SERVER OCI_HTYPE_SESSION OCI_HTYPE_SVCCTX OCI_HTYPE_TRANS
This section presents several kinds of errors you might make in running external procedures.
The following error will occur if you specify the wrong path or wrong name for the DLL file, or if you try to use a DLL on a network mounted drive (a remote drive).
Can't Find DLL ORA-06520: PL/SQL: Error loading external library ORA-06522: Unable to load DLL ORA-06512: at "<name>", line <number> ORA-06512: at "<name>", line <number> ORA-06512: at line <number>
The following error will occur after you exit a debugger while debugging a shared library or DLL. Simply disconnect your client and reconnect to the database.
ORA-28576: lost RPC connection to external procedure agent ORA-06512: at "<name>", line <number> ORA-06512: at "<name>", line <number> ORA-06512: at line <number>
Usually, when an external procedure fails, its C prototype is faulty. That is, the prototype does not match the one generated internally by PL/SQL. This can happen if you specify an incompatible C datatype. For example, to pass an OUT
parameter of type REAL
, you must specify float *
. Specifying float
, double *
, or any other C datatype will result in a mismatch.
In such cases, you might get a lost RPC connection to external procedure agent error, which means that agent extproc
terminated abnormally because the external procedure caused a core dump. To avoid errors when declaring C prototype parameters, refer to Table 5-2.
To help you debug external procedures, PL/SQL provides the utility package DEBUG_EXTPROC
. To install the package, run the script dbgextp
.sql
, which you can find in the PL/SQL demo directory.
To use the package, follow the instructions in dbgextp.sql
. Your Oracle account must have EXECUTE
privileges on the package and CREATE
LIBRARY
privileges.
Note:
DEBUG_EXTPROC
works only on platforms with debuggers that can attach to a running process.If you are developing on a Windows NT system, you may perform the following additional actions to debug external procedures:
Invoke the Windows NT Task Manager (press Ctrl+Alt+Del.and select Task Manager).
In the Processes display, select ExtProc.exe.
Right click, and select Debug.
Select OK in the message box.
At this point, if you have built your DLL in a debug fashion with Microsoft Visual C++, Visual C++ is activated.
In the Visual C++ window, select Edit > Breakpoints.
Use the breakpoint identified in dbgextp.sql
in the PL/SQL demo directory.
Make sure to write thread-safe external procedures. In particular, avoid using static variables, which can be shared by routines running in separate threads. Otherwise, you might get unexpected results. See the Oracle Database Heterogeneous Connectivity Administrator's Guide.
For help in creating a dynamic link library, look in the RDBMS subdirectory /public, where a template makefile can be found.
When calling external procedures, never write to IN
parameters or overflow the capacity of OUT
parameters. (PL/SQL does no runtime checks for these error conditions.) Likewise, never read an OUT
parameter or a function result. Also, always assign a value to IN
OUT
and OUT
parameters and to function results. Otherwise, your external procedure will not return successfully.
If you include the WITH
CONTEXT
and PARAMETERS
clauses, you must specify the parameter CONTEXT
, which shows the position of the context pointer in the parameter list. If you omit the PARAMETERS
clause, the context pointer is the first parameter passed to the external procedure.
If you include the PARAMETERS
clause and the external procedure is a function, you must specify the parameter RETURN
(not RETURN property
) in the last position.
For every formal parameter, there must be a corresponding parameter in the PARAMETERS
clause. Also, make sure that the datatypes of parameters in the PARAMETERS
clause are compatible with those in the C prototype because no implicit conversions are done.
A parameter for which you specify INDICATOR
or LENGTH
has the same parameter mode as the corresponding formal parameter. However, a parameter for which you specify MAXLEN
, CHARSETID
, or CHARSETFORM
is always treated like an IN
parameter, even if you also specify BY REFERENCE
.
With a parameter of type CHAR
, LONG
RAW
, RAW
, or VARCHAR2
, you must use the property LENGTH
. Also, if that parameter is IN
OUT
or OUT
and null, you must set the length of the corresponding C parameter to zero.
