This chapter explains how Enterprise Manager simplifies the monitoring and management of the deployments in your enterprise, and contains the following section and subsections:
Collected Configurations
Viewing Configurations
Comparing Configurations
The Enterprise Configuration
Client Configurations
Accessing Configuration Pages in Grid Control
You can use Grid Control to view, save, track, compare, and search the configuration information stored in the Management Repository for individual hosts, databases, application servers, clients, and non-Oracle systems in the entire enterprise.
Enterprise Manager collects configuration information for all hosts and the managed targets on those hosts that have a running Management Agent. The agent periodically sends the configuration information to the Management Repository over HTTP or HTTPS, allowing you to view up-to-date configuration information for your entire enterprise through Grid Control.
Table 4-1 Collected Configurations for Various Targets
Target Type | Collected Configuration Information |
---|---|
HostFoot 1 |
|
DatabaseFoot 2 |
|
Application Server |
|
ClientFoot 3 |
|
Non-Oracle Systems |
|
EnterpriseFoot 4 |
Summary views for hardware, operating systems, Oracle Databases, Oracle Application Servers, and Oracle Collaboration Suite. Table 4-3 contains details on these summary views. |
Footnote 1 The default collection period for host configuration information is 24 hours.
Footnote 2 The default collection period for database configuration information is 12 hours.
Footnote 3 Refer to "Client Configurations" in this chapter for more information.
Footnote 4 Refer to "The Enterprise Configuration" in this chapter for more information.
Using Grid Control, you can perform the following actions for targets such as hosts, databases, application servers, and clients:
View the last collected and saved configuration
Save configurations to a configuration file or to the Management Repository
Search collected configuration data
View the history of configuration changes
Compare configurations (refer to "Comparing Configurations" in this chapter for more detailed information)
See Also:
Grid Control online help for the pages described in Table 4-2Table 4-2 Viewing Configurations for Various Targets
Target Type | Instructions for Viewing Configuration |
---|---|
Host |

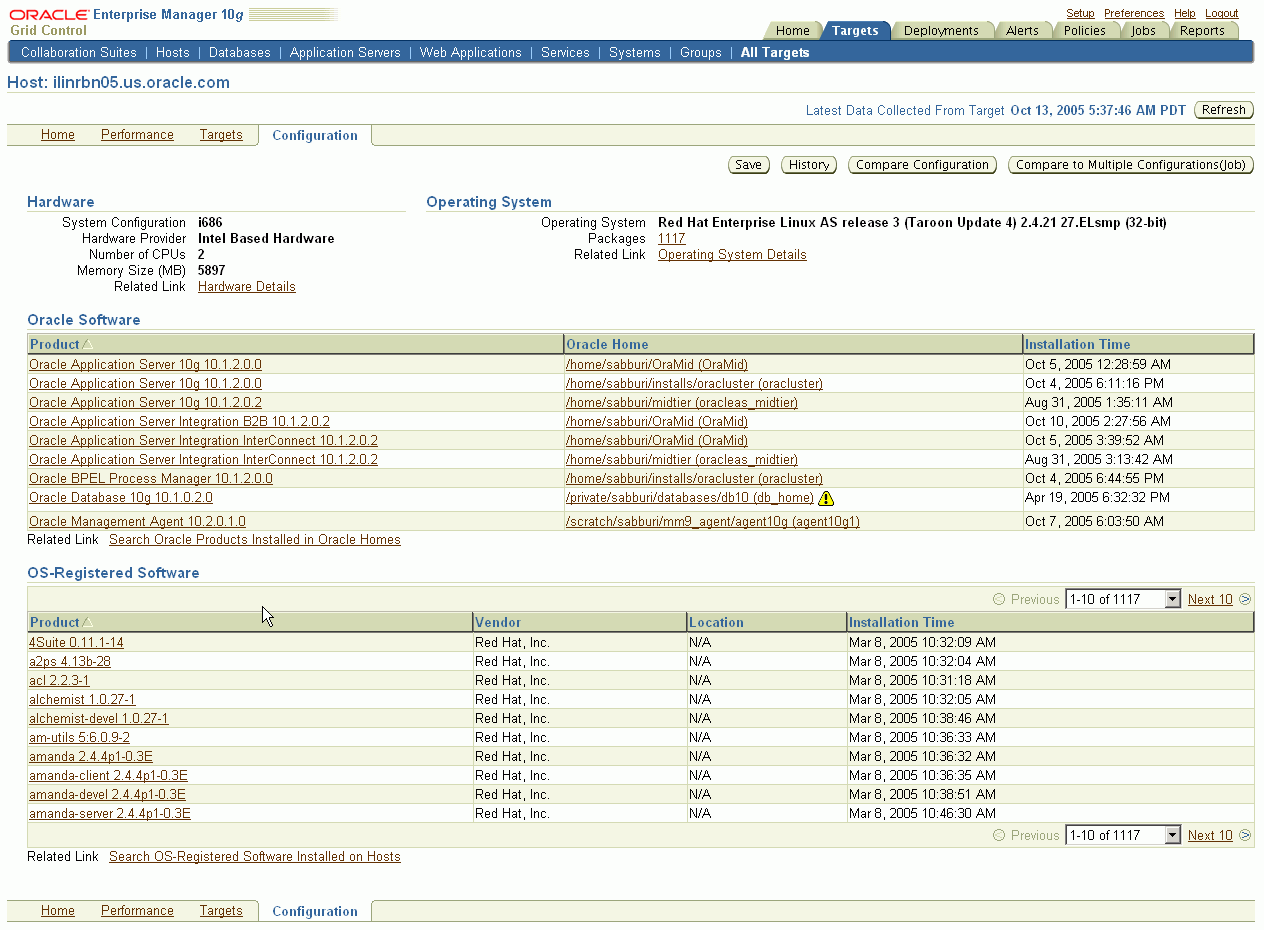

From the Home page for that host, click the Configuration subtab. |
Database |
From the Database Home page, click the Maintenance subtab, then click the Last Collected Configuration link under Software Deployments, Configuration. |
Application Server |
From the Application Server Home page, click the Administration subtab, then click the Last Collected Configuration link under Configuration. |
Client |
From the Deployments tab, click the Client Configurations link. |
Enterprise |
From the Deployments tab, select a summary view from the View list under Deployment Summary. Summary views are provided in Table 4-3. |
Grid Control gives you the tools to perform comparisons between configurations of the same target type. These comparisons are useful for quickly finding similarities and differences between two or more configurations.
You can compare:
Two configurations in the Management Repository
Two saved configuration files
One configuration to multiple configurations
A configuration in the Management Repository to a saved configuration file
When two target configurations are compared, all categories of collected configuration information are included. Grid Control presents the summary results of the comparison in a tabular format. More detailed information is available by drilling down from those summary results.
Comparisons between multiple configurations must be performed using the Enterprise Manager Job System.
See Also:
"About Comparisons" in the Grid Control online helpGrid Control offers several summary views of your enterprise that you can use to monitor the state of your host and target configurations. "Enterprise" refers to the complete set of hosts and targets for which configuration information is stored in the Management Repository.You can also search enterprise configuration information using predefined or custom searches.
Table 4-3 lists the available enterprise configuration summary views.
Table 4-3 Enterprise Configuration Summary Views
See Also:
"Viewing the Enterprise Configuration" in the Grid Control online helpIn some cases, you may want to search your enterprise configuration to get answers to specific questions about your enterprise, such as:
Which hosts have not had operating system patch 105181-05 installed?
Which hosts have an Oracle version 9.0.1.0.0 database installed, and in what Oracle home directories are those databases installed?
Enterprise configuration searches query the enterprise configuration views in the Management Repository to find configuration information that satisfies the specified search criteria.
Enterprise Manager provides two types of enterprise configuration searches:
Although these searches are predefined, you can modify the search criteria for each search, allowing you the flexibility to create specific search queries. Based on your search criteria, Grid Control creates the SQL query that searches the enterprise configuration views in the Management Repository.
Enterprise Manager provides the following predefined enterprise configuration searches:
Search Oracle products, patch sets, and interim patches installed in Oracle homes
Search software registered with the host operating system
Search initialization parameter settings and setting changes
Search tablespaces, datafiles, and recommended database settings
Search database feature usage
Search host operating system components, patches, property settings, and property changes
Search host operating system and hardware summaries
Search host file systems and network interface card configurations
Search policy library
With a user-defined search, you specify the SQL query that searches the enterprise configuration views in the Management Repository. If you do not want to create the entire SQL query yourself, you can choose one of the predefined searches, make changes to the search criteria, then click Search Using SQL to display the SQL query that is executed. You can execute the query, view the results, then modify it and execute it again until it returns the desired results.
See Also:
"Searching the Enterprise Configuration" in the Grid Control online helpEnterprise Manager collects configuration information for a target and stores it in the Oracle Management Repository. Tracking historical changes to configurations is useful as it can help you diagnose problems.Targets interact with each other and changes in one target may affect the behavior of other related targets. Tracking historical changes can be very important when trying to diagnose a problem as it provides clues as to which changes might have affected it. Hence, it is important to be able to see historical changes for a number of related targets.The Enterprise Configuration History option allows you to see a merged history of a number of related targets for a specific period. For example, if the current value of a property seems to affect the value of another, the historical data helps you see when the value was last changed and what other values changed at that time.
A "client" represents an end-user or customer system—a system that is not part of your own IT infrastructure. A "client configuration" represents the configuration data collected about the end-user's system. These configurations differ from the internal deployments that you manage using Grid Control.
The Client System Analyzer (CSA) application allows Web server administrators to collect and analyze data from end-user systems. The client data is collected by an applet, diagnosed, and sent back to the CSA application. You can either use the CSA application that comes pre-installed with Grid Control, or you can deploy CSA independently to your Web server.
Using the pre-installed application allows you to collect client data without having to set up a separate Web server. The Management Agents collect, analyze, and upload the client data to the Management Repository. End users do not need login credentials to access Grid Control. Example usage scenarios include:
End-users who call the Help Desk may be asked to navigate to the Out-Of-Box CSA page so that their system information is uploaded. The Technical Support Representative can then review the system information and offer solutions.
The client's application can be changed to provide an "Upload my system information" link to the Client System Analyzer in the Grid Control application. The link can specify certain configuration parameters, such as the URL to return to after the Client System Analyzer runs.
The client's application can be modified to redirect its users to the Client System Analyzer in the Grid Control page during login or at other points in the application. Collected information can then be used from within Grid Control to obtain various bits of information about the client systems. Examples include most popular browser versions, or systems that do not have a necessary Operating System patch applied or do not have enough RAM.
CSA can be deployed independently to any J2EE-capable Web server. This deployment strategy is appropriate when:
Clients accessing CSA cannot reach or have limited access to a Grid Control deployment; for example, due to a firewall.
Further customization to the CSA application is required, such as:
Custom rules can be supplied to the CSA application so that the end users have immediate feedback as to whether their systems satisfy certain constraints.
The behavior of the applet can be changed to collect additional information or to present end users with additional or different user interfaces.
The load on the Management Service Web servers needs to be reduced.
Both pre-installed and standalone types of deployments assign a configurable identifier called a Client Configuration Collection Tag to every client configuration collection. After the client configuration data has been collected by the client configuration collection applet and written to the Web server directory specified by the CSA application, you must configure Grid Control to collect the client configuration data and upload it to the Management Repository.
See Also:
"Viewing a Client Configuration" in the Grid Control online help"Configuring Enterprise Manager to Collect Client Configurations" in the Grid Control online help
To access the configuration pages in Grid Control, click the Deployments tab, then click the links found under the Configuration section:
Search
Compare Configurations
Compare to Multiple Configurations (Job)
View Saved Configurations
Import Configuration
Host Configuration Collection Problems
Refresh Host Configuration
Configuration History
These links take you to pages where you can search, view, and compare configurations for your various targets.
