This chapter contains the commands and instructions necessary to operate the pg4tcpmap tool. This tool allows relevant parameters to map to a gateway using TCP/IP support for IMS Connect. The tool will be used to populate the PGA_TCP_IMSC table.
This chapter contains the following sections:
If your gateway is using TCP/IP support for IMS Connect, then you must use the pg4tcpmap tool to prompt PGAINIT to provide the required TCP/IP parameters as input.
The pg4tcpmap tool must be run before executing any PL/SQL gateway statements in order to populate the PGA_TCP_IMSC table, which utilizes the corresponding TIPs.
Note that you do not need to rerun the pg4tcpmap tool for additional IMS transactions if they share the same IMS Connect attributes.
The PGA_TCP_IMSC table was created when you executed the %ORACLE_HOME%\pg4appc\admin\pgaimsc.sql script during your gateway configuration. If you need further information about creating the PGA_TCP_IMSC table, then refer to Chapter 10 of the Oracle Procedural Gateway for APPC Installation and Configuration Guide.
In a PGAINIT procedure call, the user must specify a Side Profile Name and TP Name. The values of these parameters will be inserted into a table named PGA_TCP_IMSC.
Configure userid and password before running gateway mapping tool
Before executing the pg4tcpmap tool, you must configure a valid userid and password and TNSNAMES alias for the Oracle Integrating Server where the PGA_TCP_IMSC table resides. You must specify the userid, password, and database in the PGA_TCP_USER, PGA_TCP_PASS, and PGA_TCP_DB parameters, respectively, located in the gateway initialization file %ORACLE_HOME%\pg4appc\admin\initsid.ora.
Table 6-1 describes the parameter information contained in the column names, types and contents column found in the PGA_TCP_IMSC table.
Table 6-1 PGA_TCP_IMSC Table Columns
Column Name | Type | Content |
---|---|---|
SideProfileName |
varchar2(8) |
This parameter has no SNA implication. It is simply a name that is defined in the .ctl file for the PGAU utility. It represents a group of IMS transactions with similar IMS Connect attributes, such as time delay, socket type and IMS subsystem ID. Unique index. |
HostName |
varchar2(169) NOT NULL |
The OLTP TCP/IP address or the hostname. |
PortNumber |
varchar2(17) NOT NULL |
The OLTP port number. |
ANDRS |
char(1) NOT NULL |
ANDRS specifies whether the client is sending: A = ACK: Positive Acknowledgement; N = NAK: Negative Acknowledgement; D = DEALLOCATE: Deallocate Connection; R = RESUME: Resume TPIPE; S = SENDONLY: Send only Acknowledgment or Deallocate. blank: no request for Acknowledgement or Deallocate. The default is "blank". |
TIMER |
char(1) NOT NULL |
Time delay for the receive to the datastore after an ACK or RESUME TPIPE: D = default value X'00' .25 second; S = short wait X'01' through X'19': 01 to .25 second N = No Wait occurs I = Receive waits indefinitely. The default is "D". |
SOCK |
char(1) NOT NULL |
Socket Connection Type T = Transaction Socket: P = Persistent Socket N = Non-persistent Socket The default is "T". |
CLIENTID |
char(8) NOT NULL |
Specifies the name of the client ID that is used by IMS Connect. The default is 'null'. |
COMMITMODE |
char(1) NOT NULL |
It specifies the commit mode: 0 = the commit mode is 0; 1 = the commit mode is 1 The default is "1". |
IMSDESTID |
char(8) NOT NULL |
Specifies the datastore names (IMS subsystem ID) 8 bytes. This parameter must be specified. |
LTERM |
char(8) NOT NULL |
Specifies the IMS LTERM override. The default is "blank". |
RACFGRPNAM |
char(8) NOT NULL |
Specifies the RACF group name. The default is "blank". You need to specify the RACF group name if you have set PGA_SECURITY_TYPE to PROGRAM. Refer to "PGA_SECURITY_TYPE" in Table B-1 "PGA Parameters on Gateway Using TCP/IP for IMS Connect" in the Oracle Procedural Gateway for APPC Installation and Configuration Guide. Refer to "TCP/IP Security Option SECURITY=PROGRAM" in Chapter 11 of the Oracle Procedural Gateway for APPC Installation and Configuration Guide to learn more about how to set the RACF userid and RACF password. |
Follow these steps to prepare for running the pg4tcpmap tool before you run the gateway.
Set the ORACLE_HOME and ORACLE_SID for the Oracle Integrating Server.
Make certain that the user, PGAADMIN, has been created in the Oracle Integrating Server and you can talk to the database. Issue
%ORACLE_HOME%\pg4appc\admin\pgacr8au.sql
The initsid.ora file must contain appropriate parameters. Set the following parameters:
PGA_TCP_USER
PGA_TCP_PASS
PGA_TCP_DB
If you intend to enable the tracing, you will also need to set the following parameters:
TRACE_LEVEL=255
LOG_DESTINATION=<valid directory>
Refer to Chapter 8, "Problem Determination" for information about tracing.
Make certain that the PGA_TCP_IMSC table has been created. Issue:
%ORACLE_HOME%\pg4appc\admin\pgaimsc.sql
Refer to Chapter 10, "Gateway Configuration Using the TCP/IP Communication Protocol" in the Oracle Procedural Gateway for APPC Installation and Configuration Guide for more information on the PGA_TCP_IMSC table and on creating the user PGAADMIN.

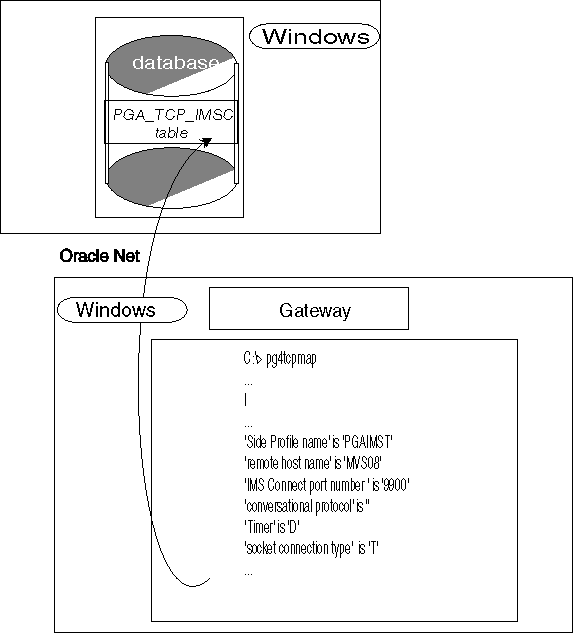

Figure 6-1 illustrates the relationship between the gateway, the database and the pg4tcpmap tool in mapping the Side Profile Name to TCP/IP and IMS Connect attributes in the PGA_TCP_IMSC table.
Figure 6-1 Mapping SNA Parameters to TCP/IP Using the pg4tcpmap Tool
A copy of the screen output file for the pg4tcpmap tool is located in Appendix B of the Oracle Procedural Gateway for APPC Installation and Configuration Guide.
An example of a trace file from a sample pg4tcpmap execution can be found in Chapter 8, "Problem Determination".
There are two commands for the pg4tcpmap tool:
one command inserts a row into the PGA_TCP_IMSC table;
the other command deletes a row from the table, and the user must specify the predicate as "Side Profile Name".
Issue the following command from the gateway Oracle home %ORACLE_HOME%\bin directory:
C:\> pg4tcpmap
The following text appears:
PG4TCPMAP: Release 10.2.0.1.0 - Production on Wed Nov 19 17:43:15 2003 Copyright (c) 1982, 2003, Oracle. All rights reserved. This tool takes the IMS Connect TCP/IP information, such as host name and port number, and maps them to your TIPs. You may use this tool to insert or delete IMS Connect TCP/IP information. If you want to insert a row, Type "I" If you want to delete a row, type "D"
Enter <i>
, and after that, you need only enter the required parameters.
Issue the following command from the gateway Oracle home %ORACLE_HOME%\bin directory:
C:\> pg4tcpmap
The following text appears:
PG4TCPMAP: Release 10.2.0.1.0 - Production on Wed Nov 19 17:43:15 2003 Copyright (c) 1982, 2003, Oracle. All rights reserved. This tool takes the IMS Connect TCP/IP information, such as host name and port number, and maps them to your TIPs. You may use this tool to insert or delete IMS Connect TCP/IP information. If you want to insert a row, Type "I" If you want to delete a row, type "D"
Enter <d>
, and the pg4tcpmap tool will ask you what Side Profile Name you want to delete.
If the row does not exist, you will receive an ORA-1403 error message.
Note:
Do not use SQL*Plus to update the PGA_TCP_IMSC table. If you have problems or incorrect data in the table, use %ORACLE_HOME%\pg4appc\admin\pgaimsc.sql to re-create the table and its index.Use the regular SQL*Plus select statement to query the table. For example:
C:\> sqlplus userid/password@databasename SQL> column hostname format A22 SQL> column portnumber format A6 SQL> select sideprofilename, hostname,portnumber,imsdestid,commitmode from pga_tcp_imsc; SIDEPROF HOSTNAME PORTNU IMSDESTI C --------------- ---------------------- ------ -------- - IMSPGA MVS08.US.ORACLE.COM 9900 IMSE 1
