In the client-server model, a client application accesses a database server to satisfy database operations that are initiated by an application. The Oracle Access Manager for AS/400 is based upon the client-server model. All application processing, such as the user interface and data presentation, occurs at the client workstation on an AS/400. All Oracle database processing occurs at the Oracle server, which (when using Oracle Access Manager for AS/400) is not on an AS/400 computer.
Interaction between the client and server is achieved through a common dialogue or messaging system that is designed for the SQL language. With Oracle Net, databases and their applications can reside on different computers and communicate as peer applications in a Transparent Networking Substrate (TNS) network.
Read this chapter to learn how to configure and use Oracle Net with Oracle Access Manager for AS/400. It includes the following sections:
Oracle Database Net Services Administrator's Guide and Oracle Database Net Services Reference refer to configuration, trace, and log files:
basename.extension
where:
basename
is the base portion of the name
extension
is the extension portion of the name.
An example of this form is tnsnames.ora.
On the AS/400, the Oracle Net parameter files are installed in the Access Manager library by using the following file name mapping:
The base portion of the file name is mapped to a member in an AS/400 file.
The extension portion of the file name is mapped to an AS/400 file.
For example, the tnsnames.ora parameter file is mapped to member TNSNAMES
in the ORA
file that is located in the Access Manager library.
Member names are referred to as:
file(member_name)
When an AS/400 application communicates with a remote IBM database server, it uses the IBM DRDA connection that is defined through the AS/400 ADDRDBDIRE
command. RDBDIRE
means Remote DataBase Directory Entry.
When an Oracle SQL application communicates with a remote Oracle server, it uses an Oracle Net connection that is defined in the tnsnames.ora file.
Connecting through Access Manager involves combining the IBM DRDA connection with the Oracle Net connection.
In Figure 5-3, the remote database name is used as the key for both the RDBDIRE
lookup and the TNSNAMES
lookup.
To connect to an Oracle server through Oracle Net, you must define an Oracle Net TNSNAMES
entry with a name that matches your AS/400 RDBDIRE

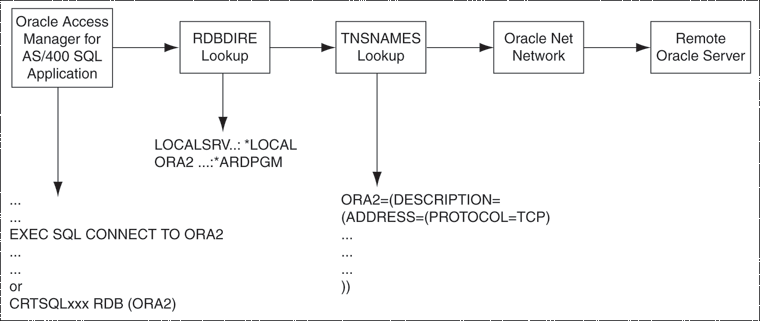

entry. This section provides a general description of these definitions. To create these definitions, refer to "Oracle Net for TCP/IP AS/400 Configuration" for specific instructions. Figure 5-4 shows how these matching entries interact:
Figure 5-4 Defining the Oracle Server to Access Manager
The AS/400 ADDRDBDIRE
command is used to define remote database directory entries. The name you use on the ADDRDBDIRE
command must be identical with the name of a description entry in your ORA(TNSNAMES)
file. And that name is the same as the name used as a connection identifier in your CONNECT
command either in your program or in STRSQL.
To connect to the target Oracle server through Oracle Net, you must add an entry to the ORA(TNSNAMES)
file in the Access Manager installation library. The entry name must match the name used in the RDB parameter when using the ADDRDBDIRE
command. That is, the name must match the name of the RDB entry in the AS/400 RDB directory which is maintained by the ADDRDBDIRE
command.
The following examples show the relationship between the AS/400 TCP/IP configuration and Access Manager. The ORA2
entries (in bold font) are the matching entry names.
ORA(TNSNAMES)
ORA2 = (DESCRIPTION=
(ADDRESS=
(PROTOCOL=TCP)
(PORT=1521)
(HOST=UNIX9)
)
(CONNECT_DATA=(SERVICE_NAME=Oracle92)
)
)
AS/400 Relational Database Directory Entry (DSPRDBDIRE
)
Relational database . . . . . . . : ORA2
Remote location:
Remote location . . . . . . . . : *ARDPGM
Application requester driver:
Program . . . . . . . . . . . . : ORAARD
Library . . . . . . . . . . . : ORAAM400
Interface level . . . . . . . . : 1
Text. . . . . . . . . . . . . . . :
The TNSNAMES
entry may be in any case, but it will be mapped to uppercase by Access Manager.
Perform the following steps to configure the client connection between the AS/400 and the Oracle server. These configuration steps are presented here with the assumption that TCP/IP is already installed and configured on the AS/400 with basic connectivity (ping, for example) established between the AS/400 and the server that is hosting the Oracle Database server.
Using the AS/400 ADDRDBDIRE
command, define a relational database directory entry (Panel 1, Example 5-1). Enter the name of the entry on the line titled Relational database.
Enter *ARDPGM
on the line titled "Name or address".
Do not change the data on the line titled Type.
You may change the Text
parameter to whatever you choose. Press Enter. The screen will change to add a section entitled Application Requester Driver
(Panel 2, Example 5-2).
Example 5-1 ADDRDBDIRE Panel 1
_______________________________________________________________________________________ Add RDB Directory Entry (ADDRDBDIRE) Type Choices, press Enter. Relational database ........... ORACLETCP___________________ Remote location: Name or address ............. *ARDPGM_____________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ __________________________________ Type ........................ *SNA *SNA, *IP Text .......................... 'TCP/IP connection to oracle'_____________________ ______ Bottom F3=Exit F4=Prompt F5=Refresh F12=Cancel F13=How to use this desplay F24=More keys _______________________________________________________________________________________
In Panel 2 (Example 5-2), enter ORAARD
on the line entitled "Program",
and enter the name of the install library for the Access Manager on the line entitled "Library".
Example 5-2 ADDRDBDIRE Panel 2
_______________________________________________________________________________________ Add RDB Directory Entry (ADDRDBDIRE) Type Choices, press Enter. Relational database ........... > ORACLETCP__________________ Remote location: Name or address ............. > *ARDPGM___________________________________________ ____________________________________________________________________________________ __________________________________________________ Type ........................ ____ *SNA, *IP Text .......................... > 'TCP/IP connection to oracle'_____________________ ______ Application requester driver: Program ..................... ORAARD____ Name, *DRDA Library ................... ORAAM400__ Name, *LIBL, *CURLIB Bottom F3=Exit F4=Prompt F5=Refresh F12=Cancel F13=How to use this desplay F24=More keys _______________________________________________________________________________________
The following parameters must be entered:
Relational database
is the name that you are assigning to the Oracle server relative to the AS/400. This must match the entry name of the ORA(TNSNAMES)
entry.
Remote location
must be *ARDPGM
for the ARD interface.
Program
must be ORAARD
, the name of the Access Manager executable program.
Library
must be the name of the Access Manager installation library.
You can also change the text
parameter to whatever you choose.
Edit member TNSNAMES
in the ORA
file in the Access Manager installation library using the following command:
WRKMBRPDM library_name/ORA
where library_name
is the name of your Access Manager installation library. Enter "2"
on the line for TNSNAMES
to edit the TNSNAMES
member. If you do not have the Program Development Manager, then you can use the EDTF
command to edit the member.
The TNSNAMES
entry name must match the name of the AS/400 RDB directory entry that was defined in the previous step using the ADDRDBDIRE
command.
server_name = (DESCRIPTION= (ADDRESS= (PROTOCOL=TCP) (PORT=port_number) (HOST=host_name) ) (CONNECT_DATA=(SERVICE_NAME=service_name) ) )
where:
server_name
is the name of a connection to an Oracle server that matches an entry in the RDB directory. An entry in the RDB directory can be added using the ADDRDBDIRE
command.
TCP
is the TCP protocol used for TCP/IP connections.
port_number
is the port number of the Oracle Net listener. This is usually port number 1521.
host_name
is the name that defines the system where the target Oracle server resides. This name must be in the local host definition on the AS/400 or in a name server on your network. Use option 10 of the CFGTCP
command to edit the host table entries for your system. The host name can also be entered as an IP address, for example, 161.14.10.12.
service_name
is the service name of the Oracle server.
Compare the instructions just provided with the following example:
ORA2 = (DESCRIPTION= (ADDRESS= (PROTOCOL=TCP) (PORT=1521) (HOST=UNIX9) ) (CONNECT_DATA=(SERVICE_NAME=ORA2) ) )
