Oracle Database runs standard Java applications. However, the Java-integrated Oracle Database environment is different from a typical Java development environment. This chapter describes the basic differences for writing, installing, and deploying Java applications within Oracle Database. This chapter contains the following sections:
In the Java-integrated Oracle Database, your Java applications exist within the context of a database session. Oracle Java virtual machine (JVM) sessions are entirely analogous to traditional Oracle sessions. Each Oracle JVM session maintains the state of the Java applications accessed by the client across calls within the session.

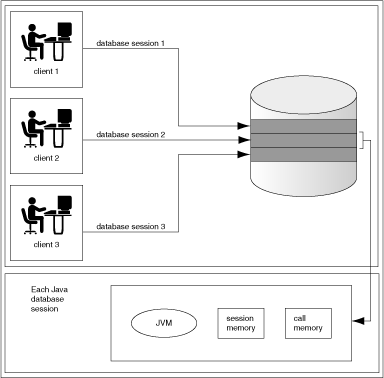

Figure 2-1 illustrates how each Java client starts a database session as the environment for running Java applications within the database. Each Java database session has a separate garbage collector, session memory, and call memory.
Figure 2-1 Java Environment Within Each Database Session
Within the context of a session, the client performs the following:
Connects to the database and opens a session.
Runs Java within the database. This is referred to as a call.
Continues to work within the session, performing as many calls as required.
Ends the session.
Within a session, the client has its own Java environment. It appears to the client as if a separate, individual JVM was started for each session, although the implementation is more efficient than this seems to imply. Within a session, the Oracle JVM manages the scalability of applications. Every call from a single client is managed within its own session, and calls from each client is handled separately. The Oracle JVM maximizes sharing read-only data between clients and emphasizes a minimum amount of per-session incremental footprint, to maximize performance for multiple clients.
The underlying server environment hides the details associated with session, network, state, and other shared resource management issues from the Java code. Variables defined as static
are local to the client. No client can access the static
variables of other clients, because the memory is not available across session boundaries. Because each client runs the Java application calls within its own session, activities of each client are separate from any other client. During a call, you can store objects in static
fields of different classes, which will be available in the next session. The entire state of your Java program is private and exists for your entire session.
The Oracle JVM manages the following within the session:
In the Java2 Platform, Standard Edition (J2SE) environment, you develop Java applications with a main()
method, which is called by the interpreter when the class is run. The main()
method is called when you enter the following command on the command-line:
java classname
This command starts the Java interpreter and passes the desired class, that is, the class specified by classname
, to the Java interpreter. The interpreter loads the class and starts running the application by calling main()
. However, Java applications within the database do not start by a call to the main()
method.
After loading your Java application within the database, you can run it by calling any static
method within the loaded class. The class or methods must be published before you can run them. In Oracle Database, the entry point for Java applications is not assumed to be main()
. Instead, when you run your Java application, you specify a method name within the loaded class as your entry point.
For example, in a normal Java environment, you would start the Java object on the server by running the following command:
java myprogram
where, myprogram
is the name of a class that contains the main()
method. In myprogram
, main()
immediately calls mymethod()
for processing incoming information.
In Oracle Database, you load the myprogram.class
file into the database and publish mymethod()
as an entry-point. Then, the client or trigger can invoke mymethod()
explicitly.
In the standard Java development environment, Java source code, binaries, and resources are stored as files in a file system, as follows:
Source code files are saved as .java
files.
Compiled Java binary files are saved as .class
files.
Resources are any data files, such as .properties
or .ser
files, that are stored in the file system hierarchy and are loaded and used at run time.
In addition, when you run a Java application, you specify the CLASSPATH
, which is a file or directory path in the file system that contains your .class
files. Java also provides a way to group these files into a single archive form, a ZIP or Java Archive (JAR) file.
Both these concepts are different in an Oracle Database environment. Table 2-1 describes how Oracle Database handles Java classes and locates dependent classes:
Table 2-1 Description of Java Code and Classes
Java Classes Loaded in the Database
To make Java files available to the Oracle JVM, you must load them into the database as schema objects. As Figure 2-2 illustrates, the loadjava
utility can call the Java compiler of the Oracle JVM, which compiles source files into standard class files.
Figure 2-2 shows that loadjava
can set the values of options stored in a system database table. Among other things, these options affect the processing of Java source files.
Figure 2-2 Loading Java into Oracle Database
Each Java class is stored as a schema object. The name of the object is derived from the fully qualified name of the class, which includes the names of containing packages. For example, the full name of the class Handle
is:
oracle.aurora.rdbms.Handle
In the Java schema object name, slashes replace periods, so the full name of the class becomes:
oracle/aurora/rdbms/Handle
Oracle Database accepts Java names up to 4000 characters long. However, the names of Java schema objects cannot be longer than 31 characters. Therefore, if a schema object name is longer than 31 characters, then the system generates a short name, or alias, for the schema object. Otherwise, the fully qualified name, also called full name, is used. You can specify the full name in any context that requires it. When needed, name mapping is handled by Oracle Database.
See Also:
"Shortened Class Names"To ensure that your Java methods run, you must do the following:
Decide when the Java source code is going to be compiled.
Decide if you are going to use the default resolver or another resolver for locating supporting Java classes within the database.
Load the classes into the database. If you do not wish to use the default resolver for your classes, then you should specify a separate resolver with the load command.
Publish your class or method.
This sections covers the following topics:
Compilation of the Java source code can be done in one of the following ways:
You can compile the source explicitly on a client system before loading it into the database, through a Java compiler, such as javac
.
You can ask the database to compile the source during the loading process, which is managed by the loadjava
utility.
You can force the compilation to occur dynamically at run time.
Note:
If you decide to compile throughloadjava
, then you can specify the compiler options. Refer to "Specifying Compiler Options" for more information.This section includes the following topics:
You can compile Java source code with a conventional Java compiler, such as javac
. After compilation, you load the compiled binary into the database, rather than the source itself. This is a better option, because it is normally easier to debug the Java code on your own system, rather than debugging it on the database.
When you specify the -resolve
option with loadjava
for a source file, the following occurs:
The source file is loaded as a source schema object.
The source file is compiled.
Class schema objects are created for each class defined in the compiled .java
file.
The compiled code is stored in the class schema objects.
Oracle Database writes all compilation errors to the log file of the loadjava
utility as well as the USER_ERRORS
view.
When you load the Java source into the database without the -resolve
option, Oracle Database compiles the source automatically when the class is needed during run time. The source file is loaded into a source schema object.
Oracle Database writes all compilation errors to the log file of the loadjava
utility as well as the USER_ERRORS
view.
You can specify the compiler options in the following ways:
Specify compiler options on the command line with loadjava
. You can also specify the encoding option with loadjava
.
Specify persistent compiler options in the JAVA$OPTIONS
table. The JAVA$OPTIONS
table exists for each schema. Every time you compile, the compiler uses these options. However, any compiler options specified with the loadjava
command override the options defined in this table. You must create this table yourself if you wish to specify compiler options in this manner.
When compiling a source schema object for which neither a JAVA$OPTIONS
entry exists nor a command-line value for any option is specified, the compiler assumes a default value as follows:
This option applies only to Java sources that contain SQLJ constructs.
This option is equivalent to:
javac -g
Compiler Options on the Command Line
The encoding
compiler option specified with loadjava
identifies the encoding of the .java
file. This option overrides any matching value in the JAVA$OPTIONS
table. The values are identical to:
javac -encoding
This option is relevant only when loading a source file.
Compiler Options Specified in a Database Table
Each JAVA$OPTIONS
entry contains the names of source schema objects to which an option setting applies. You can use multiple rows to set the options differently for different source schema objects.
You can set JAVA$OPTIONS
entries by using the following procedures and functions, which are defined in the database package DBMS_JAVA
:
PROCEDURE set_compiler_option(name VARCHAR2, option VARCHAR2, value VARCHAR2); FUNCTION get_compiler_option(name VARCHAR2, option VARCHAR2) RETURNS VARCHAR2; PROCEDURE reset_compiler_option(name VARCHAR2, option VARCHAR2);
The parameters for these methods are described in the following table:
Table 2-2 Definitions for the Name and Option Parameters
Parameter | Description |
---|---|
name |
This is a Java package name, a fully qualified class name, or an empty string. When the compiler searches the |
option |
The |
Initially, a schema does not have a JAVA$OPTIONS
table. To create a JAVA$OPTIONS
table, use the java.set_compiler_option
procedure from the DBMS_JAVA
package to set a value. The procedure will create the table, if it does not exist. Specify parameters in single quotes. For example:
SQL> execute dbms_java.set_compiler_option('x.y', 'online', 'false');
Table 2-3 represents a hypothetical JAVA$OPTIONS
database table. The pattern match rule is to match as much of the schema name against the table entry as possible. The schema name with a higher resolution for the pattern match is the entry that applies. Because the table has no entry for the encoding
option, the compiler uses the default or the value specified on the command line. The online
option shown in the table matches schema object names as follows:
The name a.b.c.d
matches class and package names beginning with a.b.c.d
. The packages and classes are compiled with online=true
.
The name a.b
matches class and package names beginning with a.b
. The name a.b
does not match a.b.c.d
. The packages and classes are compiled with online=false
.
All other packages and classes match the empty string entry and are compiled with online=true
.
Table 2-3 Example JAVA$OPTIONS Table
Name | Option | Value | Match Examples |
---|---|---|---|
a.b.c.d |
|
|
|
a.b |
|
|
|
Empty string |
|
|
|
Oracle Database provides a dependency management and automatic build facility that transparently recompiles source programs when you make changes to the source or binary programs upon which they depend. Consider the following example:
public class A { B b; public void assignB() { b = new B() } } public class B { C c; public void assignC() { c = new C() } } public class C { A a; public void assignA() { a = new A() } }
The system tracks dependencies at a class level of granularity. In the preceding example, you can see that classes A
, B
, and C
depend on one another, because A
holds an instance of B
, B
holds an instance of C
, and C
holds an instance of A
. If you change the definition of class A
by adding a new field to it, then the dependency mechanism in Oracle Database flags classes B
and C
as invalid. Before you use any of these classes again, Oracle Database attempts to resolve them and recompile, if necessary. Note that classes can be recompiled only if the source file is present on the server.
The dependency system enables you to rely on Oracle Database to manage dependencies between classes, to recompile, and to resolve automatically. You must force compilation and resolution yourself only if you are developing and you want to find problems early. The loadjava
utility also provides the facilities for forcing compilation and resolution if you do not want the dependency management facilities to perform this for you.
Many Java classes contain references to other classes, which is the essence of reusing code. A conventional JVM searches for .class
, .zip
, and .jar
files within the directories specified in CLASSPATH
. In contrast, the Oracle JVM searches database schemas for class objects. In Oracle Database, because you load all Java classes into the database, you may need to specify where to find the dependent classes for your Java class within the database.
All classes loaded within the database are referred to as class schema objects and are loaded within certain schemas. All predefined Java application programming interfaces (APIs), such as java.lang.*
, are loaded within the PUBLIC
schema. If your classes depend on other classes you have defined, then you will probably load them all within your own schema. For example, if your schema is SCOTT
, the database resolver searches the SCOTT
schema before searching the PUBLIC
schema. The listing of schemas to search is known as a resolver specification. Resolver specifications are defined for each class. This is in contrast to a classic JVM, where CLASSPATH
is global to all classes.
When locating and resolving the interclass dependencies for classes, the resolver marks each class as valid or invalid, depending on whether all interdependent classes are located. If the class that you load contains a reference to a class that is not found within the appropriate schemas, then the class is listed as invalid. Unsuccessful resolution at run time produces a ClassNotFound
exception. Also, run-time resolution can fail for lack of database resources, if the tree of classes is very large.
Note:
As with the Java compiler,loadjava
resolves references to classes, but not to resources. Ensure that you correctly load the resource files that your classes require.For each interclass reference in a class, the resolver searches the schemas specified by the resolver specification for a valid class schema object that satisfies the reference. If all references are resolved, then the resolver marks the class valid. A class that has never been resolved, or has been resolved unsuccessfully, is marked invalid. A class that depends on a schema object that becomes invalid is also marked invalid.
To make searching for dependent classes easier, Oracle Database provides a default resolver and resolver specification that searches the definer's schema first and then searches the PUBLIC
schema. This covers most of the classes loaded within the database. However, if you are accessing classes within a schema other than your own or PUBLIC
, you must define your own resolver specification.
Classes can be resolved in the following ways:
Loading using the default resolver, which searches the definer's schema and PUBLIC
:
loadjava -resolve
Loading using your own resolver specification definition:
loadjava-resolve -resolver "((* SCOTT)(* OTHER)(* PUBLIC))"
In the preceding example, the resolver specification definition includes the SCOTT
schema, OTHER
schema, and PUBLIC
.
The -resolver
option specifies the objects to search within the schemas defined. In the preceding example, all class schema objects are searched within SCOTT
, OTHER
, and PUBLIC
. However, if you want to search for only a certain class or group of classes within the schema, then you could narrow the scope for the search. For example, to search only for the my/gui/*
classes within the OTHER
schema, you would define the resolver specification as follows:
loadjava -resolve -resolver '((* SCOTT) ("my/gui/*" OTHER) (* PUBLIC))'
The first parameter within the resolver specification is for the class schema object, and the second parameter defines the schema within which to search for these class schema objects.
Allowing References to Nonexistent Classes
You can specify a special option within a resolver specification that allows an unresolved reference to a nonexistent class. Sometimes, internal classes are never used within a product. In a normal Java environment, this is not a problem, because as long as the methods are not called, the JVM ignores them. However, the Oracle Database resolver tries to resolve all classes referenced within the JAR file, including the unused classes. If the reference cannot be validated, then the classes within the JAR file are marked as invalid.
To ignore references, you can specify the wildcard, minus sign (-
), within the resolver specification. The following example specifies that any references to classes within my/gui
are to be allowed, even if it is not present within the resolver specification schema list.
loadjava -resolve -resolver '((* SCOTT) (* PUBLIC) ("my/gui/*" -))'
Without the wildcard, if a dependent class is not found within one of the schemas, your class is listed as invalid and cannot be run.
In addition, you can define that all classes not found are to be ignored. However, this is dangerous, because a class that has a dependent class will be marked as valid, even if the dependent class does not exist. However, the class can never run without the dependent class. In this case, you will receive an exception at run time.
To ignore all classes not found within SCOTT
or PUBLIC
, specify the following resolver specification:
loadjava -resolve -resolver "((* SCOTT) (* PUBLIC) (* -))"
If you later intend to load the nonexistent classes that required you to use such a resolver, then you should not use a resolver containing the minus sign (-) wildcard. Instead, include all referenced classes in the schema before resolving.
Note:
An alternative mechanism for dealing with nonexistent classes is using the-gemissing
option of loadjava
. This option causes loadjava
to create and load definitions of classes that are referenced, but not defined.According to the JVM specification, .class
files are subject to verification before the class they define is available in a JVM. In Oracle JVM, the verification process occurs at class resolution. The resolver may find one of the following problems and issue the appropriate Oracle error code:
Error Code | Description |
---|---|
ORA-29545 |
If the resolver determines that the class is malformed, then the resolver does not mark it valid. When the resolver rejects a class, it issues an ORA-29545 error. The |
ORA-29552 |
In some situations, the resolver allows a class to be marked valid, but will replace bytecodes in the class to throw an exception at run time. In these cases, the resolver issues an ORA-29552 warning that |
A resolver with the minus sign (-
) wildcard marks your class valid, regardless of whether classes referenced by your class are present. Because of inheritance and interfaces, you may want to write valid Java methods that use an instance of a class as if it were an instance of a superclass or of a specific interface. When the method being verified uses a reference to class A
as if it were a reference to class B
, the resolver must check that A
either extends or implements B
. For example, consider the following potentially valid method, whose signature implies a return of an instance of B
, but whose body returns an instance of A
:
B myMethod(A a) { return a; }
The method is valid only if A
extends B
or A
implements the interface B
. If A
or B
have been resolved using the minus sign (-) wildcard, then the resolver does not know that this method is safe. In this case, the resolver replaces the bytecodes of myMethod
with bytecodes that throw an exception if myMethod
is called.
A resolver without the minus sign (-)
wildcard ensures that the class definitions of A
and B
are found and resolved properly if they are present in the schemas they specifically identify. The only time you may consider using the alternative resolver is if you must load an existing JAR file containing classes that reference other nonsystem classes, which are not included in the JAR file.
See Also:
Chapter 11, "Schema Objects and Oracle JVM Utilities" for more information on class resolution and loading your classes within the database.This section gives an overview of loading your classes into the database using the loadjava
utility. You can also run loadjava
from within SQL commands.
Unlike a conventional JVM, which compiles and loads from files, the Oracle JVM compiles and loads from database schema objects.
Table 2-5 Description of Java Files
Java File Types | Description |
---|---|
|
You must load all classes or resources into the database to be used by other classes within the database. In addition, at load time, you define who can run your classes within the database.
The loadjava
utility performs the following for each type of file:
Table 2-6 loadjava Operations on Schema Objects
The dropjava
utility performs the reverse of loadjava
. It deletes schema objects that correspond to Java files. Always use dropjava
to delete a Java schema object created with loadjava
. Dropping with SQL data definition language (DDL) commands will not update the auxiliary data maintained by loadjava
and dropjava
. You can also run dropjava from within SQL commands.
After loading the classes and resources, you can access the USER_OBJECTS
view in your database schema to verify whether your classes and resources have been loaded properly.
You cannot have two different definitions for the same class. This rule affects you in two ways:
You can load either a particular Java .class
file or its .java
file, but not both.
Oracle Database tracks whether you loaded a class file or a source file. If you want to update the class, then you must load the same type of file that you originally loaded. If you want to update the other type, then you must drop the first before loading the second. For example, if you loaded x.java
as the source for class y
, then to load x.class
, you must first drop x.java
.
You cannot define the same class within two different schema objects in the same schema. For example, suppose x.java
defines class y
and you want to move the definition of y
to z.java
. If x.java
has already been loaded, then loadjava
rejects any attempt to load z.java
, which also defines y
. Instead, do either of the following:
Drop x.java
, load z.java
, which defines y
, and then load the new x.java
, which does not define y
.
Load the new x.java
, which does not define y
, and then load z.java
, which defines y
.
Designating Database Privileges and JVM Permissions
You must have the following SQL database privileges to load classes:
CREATE PROCEDURE
and CREATE TABLE
privileges to load into your schema.
CREATE ANY PROCEDURE
and CREATE ANY TABLE
privileges to load into another schema.
oracle.aurora.security.JServerPermission.loadLibraryInClass.
classname
.
See Also:
"Permission for Loading Classes"The loadjava
utility accepts .class
, .java
, .properties
, .sqlj
, .ser
, .jar
, or .zip
files. The JAR or ZIP files can contain source, class, and data files. When you pass a JAR or ZIP file to loadjava
, it opens the archive and loads the members of the archive individually. There is no JAR or ZIP schema object. If the JAR or ZIP content has not changed since the last time it was loaded, then it is not reloaded. Therefore, there is little performance penalty for loading JAR or ZIP files. In fact, loading JAR or ZIP files is the simplest way to use loadjava
.
If you load all classes within your own schema and do not reference any class outside your schema, then you already have rights to run the classes. You have the privileges necessary for your objects to call other objects loaded in the same schema. That is, the ability for class A
to call class B
. Class A
must be given the right to call class B
.
The classes that define a Java application are stored within Oracle Database under the SQL schema of their owner. By default, classes that reside in one user's schema cannot be run by other users, because of security concerns. You can provide other users the right to run your class through the loadjava -grant
option. You can grant rights to run your classes to a certain user or schema, but you cannot grant rights to a role, which includes the superuser DBA
role. The setting of rights to run classes is the same as used to grant or revoke privileges in SQL DDL statements.
See Also:
Chapter 9, "Oracle Database Java Application Performance" for information on JVM security permissionsWhen running Java or PL/SQL code, there is always a current user. Initially, this is the user who creates the session.
Invoker's and definer's rights is a SQL concept that is used dynamically when running SQL, PL/SQL, or Java Database Connectivity (JDBC). The current user controls the interpretation of SQL and determines privileges. For example, if a table is referenced by a simple name, then it is assumed that the table belongs to the user's schema. In addition, the privileges that are checked when resources are requested are based on the privileges granted to the current user.
In addition, for Java stored procedures, the call specifications use a PL/SQL wrapper. Therefore, you can specify definer's rights on either the call specification or on the Java class itself. If either is redefined to definer's rights, then the called method runs under the user that deployed the Java class.
By default, Java stored procedures run without changing the current user, that is, with the privileges of their invoker, and not their definer. Invoker-rights procedures are not bound to a particular schema. Their unqualified references to schema objects, such as database tables, are resolved in the schema of the current user, and not the definer.
On the other hand, definer-rights procedures are bound to the schema in which they reside. They run with the privileges of their definer, and their unqualified references to schema objects are resolved in the schema of the definer.
Invoker-rights procedures let you reuse code and centralize application logic. They are especially useful in applications that store data in different schemas. In such cases, multiple users can manage their own data using a single code base.
Consider a company that uses a definer-rights procedure to analyze sales. To provide local sales statistics, the procedure analyze
must access sales
tables that reside at each regional site. To do this, the procedure must also reside at each regional site. This causes a maintenance problem.

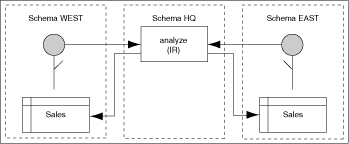

To solve the problem, the company installs an invoker-rights version of the procedure analyze
at headquarters. Now, as Figure 2-4 shows, all regional sites can use the same procedure to query their own sales
tables.

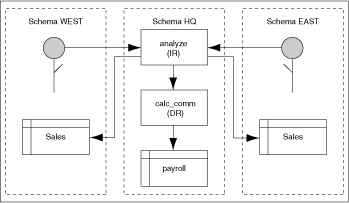

Occasionally, you may want to override the default invoker-rights behavior. Suppose headquarters wants the analyze
procedure to calculate sales commissions and update a central payroll
table. This presents a problem, because invokers of analyze
should not have direct access to the payroll
table, which stores employee salaries and other sensitive data. As shown in Figure 2-5, the solution is to have the analyze
procedure call the definer-rights procedure, calcComm
, which in turn updates the payroll
table.
To override the default invoker-rights behavior, specify the loadjava
option -definer
. This option is similar to the setuid
UNIX facility, except that -definer
applies to individual classes, not whole programs. Alternatively, you can run the SQL DDL statement that changes the AUTHID
of the current user.
Different definers can have different privileges, and applications can consist of many classes. Therefore, use the -definer
option carefully ensuring that classes have only the required privileges.
You can query the USER_OBJECTS
database view to obtain information about schema objects that you own, including Java sources, classes, and resources. This enables you, for example, to verify whether sources, classes, or resources that you load are properly stored in schema objects.
Table 2-7 lists the key columns in USER_OBJECTS
and their description.
Table 2-7 Key USER_OBJECT Columns
Name | Description |
---|---|
|
Name of the object |
|
Type of the object, such as |
|
Status of the object. The values can be either |
An OBJECT_NAME
in USER_OBJECTS
is the alias. The fully qualified name is stored as an alias if it exceeds 31 characters.
See Also:
"Shortened Class Names" for information on fully qualified names and aliases.If the server uses an alias for a schema object, then you can use the LONGNAME()
function of the DBMS_JAVA
package to receive it from a query as a fully qualified name, without having to know the alias or the conversion rules.
SQL> SELECT dbms_java.longname(object_name) FROM user_objects WHERE object_type='JAVA SOURCE';
This statement displays the fully qualified name of the Java source schema objects. Where no alias is used, no conversion occurs.
Note:
SQL and PL/SQL are not case-sensitive.You can use the SHORTNAME()
function of the DBMS_JAVA
package to use a fully qualified name as a query criterion, without having to know whether it was converted to an alias in the database.
SQL*Plus> SELECT object_type FROM user_objects WHERE object_name=dbms_java.shortname('known_fullname ');
This statement displays the OBJECT_TYPE
of the schema object with the specified fully qualified name. This presumes that the fully qualified name is representable in the database character set.
SQL> select * from javasnm; SHORT LONGNAME ---------------------------------------------------------------------- /78e6d350_BinaryExceptionHandl sun/tools/java/BinaryExceptionHandler /b6c774bb_ClassDeclaration sun/tools/java/ClassDeclaration /af5a8ef3_JarVerifierStream1 sun/tools/jar/JarVerifierStream$1
STATUS
is a character string that indicates the validity of a Java schema object. A Java source schema object is VALID
if it compiled successfully, and a Java class schema object is VALID
if it was resolved successfully. A Java resource schema object is always VALID
, because resources are not resolved.
Example: Accessing USER_OBJECTS
The following SQL*Plus script accesses the USER_OBJECTS
view to display information about uploaded Java sources, classes, and resources:
COL object_name format a30 COL object_type format a15 SELECT object_name, object_type, status FROM user_objects WHERE object_type IN ('JAVA SOURCE', 'JAVA CLASS', 'JAVA RESOURCE') ORDER BY object_type, object_name;
You can optionally use wildcards in querying USER_OBJECTS
, as in the following example:
SELECT object_name, object_type, status FROM user_objects WHERE object_name LIKE '%Alerter';
The preceding statement finds any OBJECT_NAME
entries that end with the characters Alerter
.
Oracle Database enables clients and SQL to call Java methods that are loaded in the database after they are published. You publish either the object itself or individual methods. If you write a Java stored procedure that you intend to call with a trigger, directly or indirectly in SQL data manipulation language (DML) or in PL/SQL, then you must publish individual methods in the class. Using a call specification, specify how to access the method. Java programs consist of many methods in many classes. However, only a few static
methods are typically exposed with call specifications.
In releases prior to Oracle Database 10g release 2 (10.2), Java classes in the database cannot be audited directly. However, you can audit the PL/SQL wrapper. Typically, all Java stored procedures are started from some wrappers. Therefore, all Java stored procedures can be audited, though not directly.
In Oracle Database 10g release 2 (10.2), you can audit DDL statements for creating, altering, or dropping Java source, class, and resource schema objects, as with any other DDL statement. Oracle Database 10g release 2 (10.2) provides auditing options for auditing Java activities easily and directly. You can also audit any modification of Java sources, classes, and resources.
You can audit database activities related to Java schema objects at two different levels, statement level and object level. At the statement level you can audit all activities related to a special pattern of statements. Table 2-8 lists the statement auditing options and the corresponding SQL statements related to Java schema objects.
Table 2-8 Statement Auditing Options Related to Java Schema Objects
Statement Option | SQL Statements |
---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For example, if you want to audit the ALTER JAVA SOURCE
DDL statement, then enter the following statement at the SQL prompt:
AUDIT ALTER JAVA SOURCE
Object level auditing provides finer granularity. It enables you to identify specific problems by zooming into specific objects. Table 2-9 lists the object auditing options for each Java schema object. The entry X in a cell indicates that the corresponding SQL command can be audited for that Java schema object. The entry NA indicates that the corresponding SQL command is not applicable for that Java schema object.
Oracle Database furnishes all core Java class libraries on the server, including those associated with presentation of the user interfaces. However, it is inappropriate for code running on the server to attempt to materialize or display a user interface on the server. Users running applications in the Oracle JVM environment should not be expected nor allowed to interact with or depend on the display and input hardware of the server where Oracle Database is running.
To address compatibility issues on platforms that do not support display, keyboard, or mouse, Java 1.4 outlines Headless Abstract Window Toolkit (AWT) support. The Headless AWT API introduces a new public
run-time exception class, java.awt.HeadlessException
. The constructors of the Applet
class, all heavy-weight components, and many of the methods in the Toolkit
and GraphicsEnvironment
classes, which rely on the native display devices, are changed to throw HeadlessException
if the platform does not support a display. In Oracle Database, user interfaces are supported only on client applications. Accordingly, the Oracle JVM is a Headless Platform and throws HeadlessException
if these methods are called.
Most AWT computation that does not involve accessing the underlying native display or input devices is allowed in Headless AWT. In fact, Headless AWT is quite powerful as it provides programmers access to fonts, imaging, printing, and color and ICC manipulation. For example, applications running in the Oracle JVM can parse, manipulate, and write out images as long as they do not try to physically display it on the server. The Sun Microsystems reference JVM implementation can be started in the Headless mode, by supplying the -Djava.awt.headless=true
property, and run with the same Headless AWT restrictions as the Oracle JVM does. The Oracle JVM fully complies with the Java Compatibility Kit (JCK) with respect to Headless AWT.
The Oracle JVM takes a similar approach for sound support. Applications in the Oracle JVM are not allowed to access the underlying sound system for purposes of sound playback or recording. Instead, the system sound resources appear to be unavailable in a manner consistent with the sound API specification of the methods that are trying to access the resources. For example, methods in javax.sound.midi.MidiSystem
that attempt to access the underlying system sound resources throw the MidiUnavailableException
checked exception to signal that the system is unavailable. However, similar to the Headless AWT support, Oracle Database supports the APIs that allow sound file manipulation, free of the native sound devices. The Oracle JVM also fully complies with the JCK, when it implements the sound API.
Each Java source, class, and resource is stored in its own schema object in the server. The name of the schema object is derived from the fully qualified name, which includes relevant path or package information. Dots are replaced by slashes.
Schema object names, however, have a maximum of only 31 characters, and all characters must be legal and convertible to characters in the database character set. If any fully qualified name is longer than 31 characters or contains illegal or nonconvertible characters, then Oracle Database converts it to a short name, or alias, to use as the name of the schema object. Oracle Database keeps track of both the names and how to convert between them. If the fully qualified name is 31 characters or less and has no illegal or inconvertible characters, then it is used as the schema object name.
Because Java classes and methods can have names exceeding the maximum SQL identifier length, Oracle Database uses abbreviated names internally for SQL access. Oracle Database provides the LONGNAME()
function within the DBMS_JAVA
package for retrieving the original Java class name for any truncated name.
FUNCTION longname (shortname VARCHAR2) RETURN VARCHAR2
This function returns the fully qualified name of the Java schema object, which is specified using its alias. The following is an example of a statement used to print the fully qualified name of classes that are invalid:
SELECT dbms_java.longname (object_name) FROM user_objects WHERE object_type = 'JAVA CLASS' and status = 'INVALID';
You can also specify a full name to the database by using the SHORTNAME()
function of the DBMS_JAVA
package. The function takes a full name as input and returns the corresponding short name. This function is useful for verifying whether the classes are loaded successfully, by querying the USER_OBJECTS
view.
FUNCTION shortname (longname VARCHAR2) RETURN VARCHAR2
The JLS provides the following description of Class.forName()
:
Given the fully qualified name of a class, this method attempts to locate, load, and link the class. If it succeeds, then a reference to the Class
object for the class is returned. If it fails, then an instance of ClassNotFoundException
is thrown.
Class lookup is always on behalf of a referencing class and is done through an instance of ClassLoader
. The difference between the Java Development Kit (JDK) implementation and the Oracle JVM implementation is the method in which the class is found:
The JDK uses one instance of ClassLoader
that searches the set of directory tree roots specified by the CLASSPATH
environment variable.
Oracle JVM defines several resolvers that specify how to locate classes. Every class has a resolver associated with it, and each class can, potentially, have a different resolver. When you run a method that calls Class.forName()
, the resolver of the currently running class, which is this
, is used to locate the class.
See Also:
"Resolving Class Dependencies"You can receive unexpected results if you try to locate a class with an incorrect resolver. For example, if a class X
in schema X
requests a class Y
in schema Y
to look up class Z
, you will experience an error if you expected the resolver of class X
to be used. Because class Y
is performing the lookup, the resolver associated with class Y
is used to locate class Z
. In summary, if the class exists in another schema and you specified different resolvers for different classes, as would happen by default if they are in different schemas, you may not find the class.
You can solve this resolver problem as follows:
Avoid any class name lookup by passing the Class
object itself.
Supply the ClassLoader
instance in the Class.forName()
method.
Supply the class and the schema it resides in to the classForNameAndSchema()
method.
Supply the schema and class name to ClassForName.lookupClass()
.
Serialize your objects with the schema name and the class name.
Note:
Another unexpected behavior can occur if system classes invokeClass.forName()
. The desired class is found only if it resides in SYS
or in PUBLIC
. If your class does not exist in either SYS
or PUBLIC
, then you can declare a PUBLIC
synonym for the class.This section covers the following topics:
Oracle Database uses resolvers for locating classes within schemas. Every class has a specified resolver associated with it, and each class can have a different resolver associated with it. As a result, the locating of classes is dependent on the definition of the associated resolver. The ClassLoader
instance knows which resolver to use, based on the class that is specified. When you supply a ClassLoader
instance to Class.forName()
, your class is looked up in the schemas defined in the resolver of the class. The syntax of this variant of Class.forName()
is as follows:
Class forName (String name, boolean initialize, ClassLoader loader);
The following examples show how to supply the class loader of either the current class instance or the calling class instance.
Example 2-1 Retrieve Resolver from Current Class
You can retrieve the class loader of any instance by using the Class.getClassLoader()
method. The following example retrieves the class loader of the class represented by instance x
:
Class c1 = Class.forName (x.whatClass(), true, x.getClass().getClassLoader());
Example 2-2 Retrieve Resolver from Calling Class
You can retrieve the class of the instance that called the running method by using the oracle.aurora.vm.OracleRuntime.getCallerClass()
method. After you retrieve the class, call the Class.getClassLoader()
method on the returned class. The following example retrieves the class of the instance that called the workForCaller()
method. Then, its class loader is retrieved and supplied to the Class.forName()
method. As a result, the resolver used for looking up the class is the resolver of the calling class.
void workForCaller() { ClassLoader c1=oracle.aurora.vm.OracleRuntime.getCallerClass().getClassLoader(); ... Class c=Class.forName(name, true, c1); ... }
You can resolve the problem of where to find the class by supplying the resolver, which can identify the schemas to be searched. Alternatively, you can supply the schema in which the class is loaded. If you know in which schema the class is loaded, then you can use the classForNameAndSchema()
method, which is in the DbmsJava
class provided by Oracle Database. This method takes both the name of the class and the schema in which the class resides and locates the class within the designated schema.
Example 2-3 Providing Schema and Class Names
The following example shows how you can save the schema and class names using the save()
method. Both names are retrieved, and the class is located using the DbmsJava.classForNameAndSchema()
method.
import oracle.aurora.rdbms.ClassHandle; import oracle.aurora.rdbms.Schema; import oracle.aurora.rdbms.DbmsJava; void save (Class c1) { ClassHandle handle = ClassHandle.lookup(c1); Schema schema = handle.schema(); writeName (schema.getName()); writeName (c1.getName()); } Class restore() { String schemaName = readName(); String className = readName(); return DbmsJava.classForNameAndSchema (schemaName, className); }
You can supply a String
value containing both the schema and class names to the oracle.aurora.util.ClassForName.lookupClass()
method. When called, this method locates the class in the specified schema. The string must be in the following format:
"<schema>:<class>"
For example, to locate com.package.myclass
in the SCOTT
schema, use the following:
oracle.aurora.util.ClassForName.lookupClass("SCOTT:com.package.myclass");
Note:
Use uppercase characters for the schema name. In this case, the schema name is case-sensitive.When you deserialize a class, part of the operation is to lookup a class based on a name. To ensure that the lookup is successful, the serialized object must contain both the class and schema names.
Oracle Database provides the following classes for serializing and deserializing objects:
oracle.aurora.rdbms.DbmsObjectOutputStream
This class extends java.io.ObjectOutputStream
and adds schema names in the appropriate places.
oracle.aurora.rdbms.DbmsObjectInputStream
This class extends java.io.ObjectInputStream
and reads streams written by DbmsObjectOutputStream
. You can use this class in any environment. If used within Oracle Database, then the schema names are read out and used when performing the class lookup. If used on a client, then the schema names are ignored.
The following example shows several methods for looking up a class:
import oracle.aurora.vm.OracleRuntime; import oracle.aurora.rdbms.Schema; import oracle.aurora.rdbms.DbmsJava; public class ForName { private Class from; /* Supply an explicit class to the constructor */ public ForName(Class from) { this.from = from; } /* Use the class of the code containing the "new ForName()" */ public ForName() { from = OracleRuntime.getCallerClass(); } /* lookup relative to Class supplied to constructor */ public Class lookupWithClassLoader(String name) throws ClassNotFoundException { /* A ClassLoader uses the resolver associated with the class*/ return Class.forName(name, true, from.getClassLoader()); } /* In case the schema containing the class is known */ static Class lookupWithSchema(String name, String schema) { Schema s = Schema.lookup(schema); return DbmsJava.classForNameAndSchema(name, s); } }
The preceding example uses the following methods for locating a class:
To use the resolver of the class of an instance, call lookupWithClassLoader()
. This method supplies a class loader to the Class.forName()
method in the from
variable. The class loader specified in the from
variable defaults to this class.
To use the resolver from a specific class, call ForName()
with the designated class name, followed by lookupWithClassLoader()
. The ForName()
method sets the from
variable to the specified class. The lookupWithClassLoader()
method uses the class loader from the specified class.
To use the resolver from the calling class, first call the ForName()
method without any parameters. It sets the from
variable to the calling class. Then, call the lookupWithClassLoader()
method to locate the class using the resolver of the calling class.
To lookup a class in a specified schema, call the lookupWithSchema()
method. This provides the class and schema name to the classForNameAndSchema()
method.
Operating system resources are a limited commodity on any computer. Because Java is targeted at providing a computing platform as well as a programming language, it contains platform-independent classes and frameworks for accessing platform-specific resources. The Java class methods access operating system resources through the JVM. Java has potential problems with this model, because programmers rely on the garbage collector to manage all resources, when all that the garbage collector manages is Java objects and not the operating system resources that the Java objects hold on to.
In addition, when you use shared servers, your operating system resources, which are contained within Java objects, can be invalidated if they are maintained across calls within a session.
The following sections discuss these potential problems:
In general, your operating system resources contain the following:
Operating System Resources | Description |
---|---|
memory | Oracle Database manages memory internally, allocating memory as you create objects and freeing objects as you no longer need them. The language and class libraries do not support a direct means to allocate and free memory.
See Also: "Automated Storage Management With Garbage Collection". |
files and sockets | Java contains classes that represent file or socket resources. Instances of these classes hold on to the file or socket constructs, such as file handles, of the operating system. |
threads | Threads are discouraged within the Oracle JVM because of scalability issues. However, you can have a multithreaded application within the database.
See Also: "Threading in Oracle Database". |
Operating System Resource Access
By default, a Java user does not have direct access to most operating system resources. A system administrator can give permissions to a user to access these resources by modifying the JVM security restrictions. The JVM security enforced upon system resources conforms to Java2 security.
See Also:
"Java2 Security"Operating System Resource Lifetime
You can access operating system resources using the standard core Java classes and methods. Once you access a resource, the time that it remains active varies according to the type of resource. Memory is garbage collected. Files, threads, and sockets persist across calls when you use a dedicated mode server. In shared server mode, files, threads, and sockets terminate when the call ends.
Imagine that memory is divided into two realms: Java object memory and operating system constructs. The Java object memory realm contains all objects and variables. Operating system constructs include resources that the operating system allocates to the object when it asks. These resources include files, sockets, and so on.
Basic programming rules dictate that you close all memory, both Java objects and operating system constructs. Java programmers incorrectly assume that memory is freed by the garbage collector. The garbage collector was created to collect all unused Java object memory. However, it does not close operating system constructs. All operating system constructs must be closed by the program before the Java object is garbage collected.
For example, whenever an object opens a file, the operating system creates the file and gives the object a file handle. If the file is not closed, then the operating system holds the file handle construct open until the call ends or JVM exits. This may cause you to run out of these constructs earlier than necessary. There are a finite number of handles within each operating system. To guarantee that you do not run out of handles, close your resources before exiting the method. This includes closing the streams attached to your sockets before closing the socket.
For performance reasons, the garbage collector cannot examine each object to see if it contains a handle. As a result, the garbage collector collects Java objects and variables, but does not issue the appropriate operating system methods for freeing any handles.
Example 2-4 shows how to close the operating system constructs.
Example 2-4 Closing Your Operating System Resources
public static void addFile(String[] newFile) { File inFile = new File(newFile); FileReader in = new FileReader(inFile); int i; while ((i = in.read()) != -1) out.write(i); /*closing the file, which frees up the operating system file handle*/ in.close(); }
If you do not close inFile
, then eventually the File
object will be garbage collected. Even after the File
object is garbage collected, the operating system treats the file as if it were in use, because it was not closed.
Note:
You may want to use Java finalizers to close resources. However, finalizers are not guaranteed to run in a timely manner. Instead, finalizers are put on a queue to run when the garbage collector has time. If you close your resources within your finalizer, then it might not be freed until the JVM exits. The best approach is to close your resources within the method.The Oracle JVM implements a nonpreemptive threading model. With this model, the JVM runs all Java threads on a single operating system thread. It schedules them in a round-robin fashion and switches between them only when they block. Blocking occurs when you, for example, call the Thread.yield()
method or wait on a network socket by calling mySocket.read()
.
The following table lists the advantages and disadvantages of the Oracle Database threading model:
Advantages | Disadvantages |
---|---|
|
|
Oracle chose this model because any Java application written on a single-processor system works identical to an application written on a multiprocessor system. Also, the lack of concurrency among Java threads is not an issue, because the Oracle JVM is embedded in the database, which provides a higher degree of concurrency than any conventional JVM.
There is no need to use threads within the application logic, because the Oracle server preemptively schedules the session JVMs. If you need to support hundreds or thousands of simultaneous transactions, then start each one in its own JVM. This is exactly what happens when you create a session in the Oracle JVM. The normal transactional capabilities of Oracle Database accomplish coordination and data transfer between the JVMs. This is not a scalability issue, because in contrast to the 6 MB to 8 MB memory footprint of a typical JVM, Oracle Database can create thousands of JVMs, with each one taking less than 40 KB of memory.
Threading is managed within the Oracle JVM by servicing a single thread until it completes or blocks. If the thread blocks, by yielding or waiting on a network socket, then the JVM services another thread. However, if the thread never blocks, then it is serviced until completed.
The Oracle JVM has added the following features for better performance and thread management:
System calls are at a minimum. Oracle JVM has exchanged some of the normal system calls with nonsystem solutions. For example, entering a monitor-synchronized block or method does not require a system call.
Deadlocks are detected.
The Oracle JVM monitors for deadlocks between threads. If a deadlock occurs, then the Oracle JVM terminates one of the threads and throws the oracle.aurora.vm.DeadlockError
exception.
Single-threaded applications cannot suspend. If the application has only a single thread and you try to suspend it, then the oracle.aurora.vm.LimboError
exception is thrown.
In a single-threaded application, a call ends when one of the following events occurs:
The thread returns to its caller.
An exception is thrown and is not caught in Java code.
The System.exit()
or oracle.aurora.vm.OracleRuntime.exitCall()
method is called.
If the initial thread creates and starts other Java threads, then the call ends in one of the following ways:
The main thread returns to its caller or an exception is thrown and not caught in this thread and in either case all other non-daemon threads are processed. Non-daemon threads complete either by returning from their initial method or because an exception is thrown and not caught in the thread.
Any thread calls the System.exit()
or oracle.aurora.vm.OracleRuntime.exitCall()
method.
In the shared server mode, when a call ends because of a return or uncaught exceptions, the Oracle JVM throws an instance of ThreadDeathException
in all daemon threads. ThreadDeathException
essentially forces threads to stop running.
In both the dedicated and shared server modes, when a call ends because of a call to System.exit()
or oracle.aurora.vm.OracleRuntime.exitCall()
, the Oracle JVM ends the call abruptly and terminates all threads, but does not throw ThreadDeathException
.
During a call, a Java program can recursively cause more Java code to be run. For example, your program can issue a SQL query using JDBC or SQLJ that, in turn, calls a trigger written in Java. All the preceding remarks regarding call lifetime apply to the top-most call to Java code, not to the recursive call. For example, a call to System.exit()
from within a recursive call will exit the entire top-most call to Java, not just the recursive call.
System.exit(), OracleRuntime.exitSession(), and OracleRuntime.exitCall()
The System.exit()
method terminates the JVM, preserving no Java state. It does not cause the database session to terminate or the client to disconnect. However, the database session may, and often does, terminate itself immediately afterward. OracleRuntime.exitSession()
also terminates the JVM, preserving no Java state. However, it also terminates the database session and disconnects the client.
The behavior of OracleRuntime.exitCall()
varies depending on OracleRuntime.threadTerminationPolicy()
. This method returns a boolean
value. If it is true
, then any active thread should be terminated, rather than left quiescent, at the end of a database call. In a shared server process, threadTerminationPolicy()
is always true
. In a shadow (dedicated) process, the default value is false
. You can change the value by calling OracleRuntime.setThreadTerminationPolicy()
.
In addition, there is another method, OracleRuntime.callExitPolicy()
. This method determines when a call is exited if none of the OracleRuntime.exitSession()
, OracleRuntime.exitCall()
, or System.exit()
methods are ever called. The call exit policy can be set to one of the following, using OracleRuntime.setCallExitPolicy()
:
OracleRuntime.EXIT_CALL_WHEN_MAIN_THREAD_TERMINATES
If set to this value, then as soon as the main thread returns or an uncaught exception occurs on the main thread, all remaining threads, both daemon and non-daemon, are either killed or left quiescent until the next call depending on the value of threadTerminationPolicy()
.
OracleRuntime.EXIT_CALL_WHEN_ALL_NON_DAEMON_THREADS_TERMINATE
This is the default value. If this value is set and if none of the various exit methods are called, then the call ends when only daemon threads are left running. At this point, either the daemon threads are killed, if threadTerminationPolicy()
is true
, or they are left quiescent until the next call, which is the case by default for shadow processes.
OracleRuntime.EXIT_CALL_WHEN_ALL_THREADS_TERMINATE
If set to this value, then the call does not end until all threads have returned or ended due to an uncaught exception. At this point, the call ends regardless of the value of threadTerminationPolicy()
.
In Oracle9i Database, the JVM behaves as if the callExitPolicy()
were OracleRuntime.EXIT_CALL_WHEN_ALL_NON_DAEMON_THREADS_TERMINATE
and the threadTerminationPolicy()
were true
for both shared and dedicated server processes. This means kill the daemon threads at this point. Also, if exitCall()
were executed, then all threads are killed before the call is ended, in both shared and dedicated server processes.
In all releases, both System.exit()
and OracleRuntime.exitSesssion()
terminate the JVM abruptly, without running finally
blocks on any thread. Also, OracleRuntime.exitCall()
attempts to end each thread by throwing a ThreadDeath
exception on each thread, which causes any finally
blocks on active thread stacks to be run.
For sessions that use shared servers, certain limitations exist across calls. The reason is that a session that uses a shared server is not guaranteed to connect to the same process on a subsequent database call, and hence the session-specific memory and objects that need to live across calls are saved in the SGA. This means that process-specific resources, such as threads, open files, and sockets, must be cleaned up at the end of each call, and therefore, will not be available for the next call.
This section covers the following topics:
In the shared server mode, Oracle Database preserves the state of your Java program between calls by migrating all objects that are reachable from static
variables to session space at the end of the call. Session space exists within the session of the client to store static
variables and objects that exist between calls. Oracle JVM automatically performs this migration operation at the end of every call.
This migration operation is a memory and performance consideration. Hence, you should be aware of what you designate to exist between calls and keep the static
variables and objects to a minimum. If you store objects in static
variables needlessly, then you impose an unnecessary burden on the memory manager to perform the migration and consume per-session resources. By limiting your static
variables to only what is necessary, you help the memory manager and improve the performance of your server.
To maximize the number of users who can run your Java program at the same time, it is important to minimize the footprint of a session. In particular, to achieve maximum scalability, an inactive session should take up as little memory space as possible. A simple technique to minimize footprint is to release large data structures at the end of every call. You can lazily re-create many data structures when you need them again in another call. For this reason, the Oracle JVM has a mechanism for calling a specified Java method when a session is about to become inactive, such as at the end of a call.
This mechanism is the EndOfCallRegistry
notification. It enables you to clear static
variables at the end of the call and reinitialize the variables using a lazy initialization technique when the next call comes in. You should run this only if you are concerned about the amount of storage you require the memory manager to store in between calls. It becomes a concern only for complex stateful server applications that you implement in Java.
The decision of whether to null-out data structures at the end of the call and then re-create them for each new call is a typical time and space trade-off. There is some extra time spent in re-creating the structure, but you can save significant space by not holding on to the structure between calls. In addition, there is a time consideration, because objects, especially large objects, are more expensive to access after they have been migrated to session space. The penalty results from the differences in representation of session, as opposed to objects based on call-space.
Examples of data structures that are candidates for this type of optimization include:
Buffers or caches.
Static fields, such as arrays, which once initialized can remain unchanged during the course of the program.
Any dynamically built data structure that can have a space-efficient representation between calls and a more speed-efficient representation for the duration of a call. This can be tricky and may complicate your code, making it hard to maintain. Therefore, you should consider doing this only after demonstrating that the space saved is worth the effort.
You can register the static
variables that you want cleared at the end of the call when the buffer, field, or data structure is created. Within the oracle.aurora.memoryManager.EndOfCallRegistry
class, the registerCallback()
method takes an object that implements a Callback
object. The registerCallback()
method stores this object until the end of the call. At the end of the call, the Oracle JVM calls the act()
method within all registered Callback
objects. The act()
method within the Callback
object is implemented to clear the user-defined buffer, field, or data structure. Once cleared, the Callback
object is removed from the registry.
Note:
If the end of the call is also the end of the session, then callbacks are not started, because the session space will be cleared anyway.A weak table holds the registry of end-of-call callbacks. If either the Callback
object or value are not reachable from the Java program, then both the object and the value will be dropped from the table. The use of a weak table to hold callbacks also means that registering a callback will not prevent the garbage collector from reclaiming that object. Therefore, you must hold on to the callback yourself if you need it, and you cannot rely on the table holding it back.
The way you use EndOfCallRegistry
depends on whether you are dealing with objects held in static
fields or instance fields.
Use EndOfCallRegistry
to clear state associated with an entire class. In this case, the Callback
object should be held in a private
static
field. Any code that requires access to the cached data that was dropped between calls must call a method that lazily creates, or re-creates, the cached data.
Consider the following example:
import oracle.aurora.memoryManager.Callback; import oracle.aurora.memoryManager.EndOfCallRegistry; class Example { static Object cachedField = null; private static Callback thunk = null; static void clearCachedField() { // clear out both the cached field, and the thunk so they don't // take up session space between calls cachedField = null; thunk = null; } private static Object getCachedField() { if (cachedField == null) { // save thunk in static field so it doesn't get reclaimed // by garbage collector thunk = new Callback () { public void act(Object obj) { Example.clearCachedField(); } }; // register thunk to clear cachedField at end-of-call. EndOfCallRegistry.registerCallback(thunk); // finally, set cached field cachedField = createCachedField(); } return cachedField; } private static Object createCachedField() { ... } }
The preceding example does the following:
Creates a Callback
object within a static
field, thunk
.
Registers this Callback
object for end-of-call migration.
Implements the Callback.act()
method to free up all static
variables, including the Callback
object itself.
Provides a method, createCachedField()
, for lazily re-creating the cache.
When the user creates the cache, the Callback
object is automatically registered within the getCachedField()
method. At end-of-call, the Oracle JVM calls the registered Callback.act()
method, which frees the static memory.
Use EndOfCallRegistry
to clear state in data structures held in instance fields. For example, when a state is associated with each instance of a class, each instance has a field that holds the cached state for the instance and fills in the cached field as necessary. You can access the cached field with a method that ensures the state is cached.
Consider the following example:
import oracle.aurora.memoryManager.Callback; import oracle.aurora.memoryManager.EndOfCallRegistry; class Example2 implements Callback { private Object cachedField = null; public voidact (Object obj) { // clear cached field cachedField = null; obj = null; } // our accessor method private static Object getCachedField() { if (cachedField == null) { // if cachedField is not filled in then we need to // register self, and fill it in. EndOfCallRegistry.registerCallback(self); cachedField = createCachedField(); } return cachedField; } private Object createCachedField() { ... } }
The preceding example does the following:
Implements the instance as a Callback
object.
Implements the Callback.act()
method to free up the instance fields.
When the user requests a cache, the Callback
object registers itself for the end-of-call migration.
Provides a method, createCachedField()
, for lazily re-creating the cache.
When the user creates the cache, the Callback
object is automatically registered within the getCachedField()
method. At end-of-call, the Oracle JVM calls the registered Callback.act()
method, which frees the cache.
This approach ensures that the lifetime of the Callback
object is identical to the lifetime of the instance, because they are the same object.
The registerCallback()
method installs a Callback
object within a registry. At the end of the call, the Oracle JVM calls the act()
method of all registered Callback
objects.
You can register your Callback
object by itself or with an Object
instance. If you need additional information stored within an object to be passed into act()
, then you can register this object with the value
parameter, which is an instance of Object
.
The following are the valid signatures of the registerCallback()
method:
public static void registerCallback(Callback thunk, Object value); public static void registerCallback(Callback thunk);
The following table lists the parameters of registerCallback
and their description:
Parameter | Description |
---|---|
thunk |
The Callback object to be called at the end-of-call migration. |
value |
If you need additional information stored within an object to be passed into act() , then you can register this object with the value parameter. In some cases, the value parameter is necessary to hold the state that the callback needs. However, most users do not need to specify a value for this parameter. |
The signature of the runCallbacks()
method is as follows:
static void runCallbacks()
The JVM calls this method at end-of-call and calls act()
for every Callback
object registered using registerCallback()
. It is called at end-of-call, before object migration and before the last finalization step.
Note:
Do not call this method in your code.The interface is declared as follows:
Interface oracle.aurora.memoryManager.Callback
Any object you want to register using EndOfCallRegistry.registerCallback()
must implement the Callback
interface. This interface can be useful in your application, where you require notification at end-of-call.
The signature of the act()
method is as follows:
public void act(Object value)
You can implement any activity that you require to occur at the end of the call. Normally, this method contains procedures for clearing any memory that would be saved to session space.
In the shared server mode, the Oracle JVM closes any open operating system resources at the end of a database call, as shown in the following table:
Resource | Lifetime |
---|---|
Files | The system closes all files left open when a database call ends. |
Threads | All threads are terminated when a call ends. |
Sockets |
|
Objects that depend on operating system resources | Regardless of the usable lifetime of the object, the Java object can be valid for the duration of the session. This can occur, for example, if the Java object is stored in a static class variable, or a class variable references it directly or indirectly. If you attempt to use one of these Java objects after its usable lifetime is over, then Oracle Database will throw an exception. This is true for the following examples:
|
You should close resources that are local to a single call when the call ends. However, for static
objects that hold on to operating system resources, you must be aware of how these resources are affected after the call ends.
In the shared server mode, the Oracle JVM automatically closes open operating system constructs when the call ends. This can affect any operating system resources within your Java object. If you have a file opened within a static
variable, then the file handle is closed at the end of the call for you. Therefore, if you hold on to the File
object across calls, then the next usage of the file handle throws an exception.
In Example 2-5, the Concat
class enables multiple files to be written into a single file, outFile
. On the first call, outFile
is created. The first input file is opened, read, written to outFile
, and the call ends. Because outFile
is defined as a static
variable, it is moved into session space between call invocations. However, the file handle is closed at the end of the call. The next time you call addFile()
, you will get an exception.
Example 2-5 Compromising Your Operating System Resources
public class Concat { static File outFile = new File("outme.txt"); FileWriter out = new FileWriter(outFile); public static void addFile(String[] newFile) { File inFile = new File(newFile); FileReader in = new FileReader(inFile); int i; while ((i = in.read()) != -1) out.write(i); in.close(); } }
There are workarounds. To ensure that your handles stay valid, close your files, buffers, and so on, at the end of every call, and reopen the resource at the beginning of the next call. Another option is to use the database rather than using operating system resources. For example, try to use database tables rather than a file. Alternatively, do not store operating system resources within static
objects that are expected to live across calls. Instead, use operating system resources only within objects local to the call.
Example 2-6 shows how you can perform concatenation, as in Example 2-5, without compromising your operating system resources. The addFile()
method opens the outme.txt
file within each call, ensuring that anything written into the file is appended to the end. At the end of each call, the file is closed. Two things occur:
The File
object no longer exists outside a call.
The operating system resource, the outme.txt
file, is reopened for each call. If you had made the File
object a static
variable, then the closing of outme.txt
within each call would ensure that the operating system resource is not compromised.
Example 2-6 Correctly Managing Your Operating System Resources
public class Concat { public static void addFile(String[] newFile) { /*open the output file each call; make sure the input*/ /*file is written out to the end by making it "append=true"*/ FileWriter out = new FileWriter("outme.txt", TRUE); File inFile = new File(newFile); FileReader in = new FileReader(inFile); int i; while ((i = in.read()) != -1) out.write(i); in.close(); /*close the output file between calls*/ out.close(); } }
Sockets are used in setting up a connection between a client and a server. For each database connection, sockets are used at either end of the connection. Your application does not set up the connection. The connection is set up by the underlying networking protocol, TTC or IIOP of Oracle Net.
See Also:
"Configuring Oracle JVM" for information on how to configure your connection.You may also want to set up another connection, for example, connecting to a specified URL from within one of the classes stored within the database. To do so, instantiate sockets for servicing the client and server sides of the connection using the following:
The java.net.Socket()
constructor creates a client socket.
The java.net.ServerSocket()
constructor creates a server socket.
A socket exists at each end of the connection. The server side of the connection that listens for incoming calls is serviced by a ServerSocket
instance. The client side of the connection that sends requests is serviced through a Socket
instance. You can use sockets as defined within the JVM with the restriction that a ServerSocket
instance within a shared server cannot exist across calls.
The following table lists the socket types and their description:
Socket Type | Description |
---|---|
Socket | Because the client side of the connection is outbound, the Socket instance can be serviced across calls within a shared server. |
ServerSocket | The server side of the connection is a listener. The ServerSocket instance is closed at the end of a call within a shared server. The shared servers move on to another client at the end of every call. You will receive an I/O exception stating that the socket was closed, if you try to use the ServerSocket instance outside of the call it was created in. |
In the shared server mode, when a call ends because of a return or uncaught exceptions, the Oracle JVM throws ThreadDeathException
in all daemon threads. ThreadDeathException
essentially forces threads to stop running. Code that depends on threads living across calls does not behave as expected in the shared server mode. For example, the value of a static
variable that tracks initialization of a thread may become incorrect in subsequent calls because all threads are killed at the end of a database call.
As a specific example, the RMI Server, which Sun Microsystems supplies, functions in the shared server mode. However, it is useful only within the context of a single call. This is because the RMI Server forks daemon threads, which in the shared server mode are killed at the end of call, that is, when all non-daemon threads return. If the RMI server session is reentered in a subsequent call, then these daemon threads are not restarted and the RMI server fails to function properly.
