This chapter discusses the fundamental concepts of data labels and user labels, and introduces the terminology that will help you understand Oracle Label Security.
The chapter includes:
Label-based security provides a flexible way of controlling access to sensitive data. Oracle Label Security controls data access based on the identity and label of the user, and the sensitivity and label of the data. Label security adds protections beyond the discretionary access controls that determine the operations users can perform upon data in an object, such as a table or view.
An Oracle Label Security policy controls access to data in three dimensions:
Data Dimension | Explanation |
---|---|
Data Labels | A data row label indicates the level and nature of the row's sensitivity and specifies the additional criteria that a user must meet to gain access to that row. |
User Labels | A user label specifies that user's sensitivity level plus any compartments and groups that constrain the user's access to labeled data. Each user is assigned a range of levels, compartments, and groups, and each session can operate within that authorized range to access labeled data within that range. |
Policy Privileges | Users can be given specific rights (privileges) to perform special operations or to access data beyond their label authorizations. |
Note that the discussion here concerns access to data. The particular type of access, such as reading or writing the data, is covered in Chapter 3, "Understanding Access Controls and Privileges". Policy privileges are covered in Chapter 7, "Administering User Labels and Privileges"
When an Oracle Label Security policy is applied to a database table, a column is added to the table to contain each row's label. The administrator can choose to display or hide this column.
This section describes the elements defined for use in labels.
A sensitivity label is a single attribute with multiple components. All data labels must contain a level component, but the compartment and group components are optional. An administrator must define the label components before creating labels.
Table 2-1 Sensitivity Label Components
Component | Description | Examples |
---|---|---|
Level |
A single specification of the labeled data's sensitivity within the ordered ranks established |
CONFIDENTIAL (1), SENSITIVE (2), HIGHLY_SENSITIVE (3) |
Compartments |
Zero or more categories associated with the labeled data |
FINANCIAL, STRATEGIC, NUCLEAR |
Groups |
Zero or more identifiers for organizations owning or accessing the data |
EASTERN_REGION, WESTERN_REGION |
Valid characters for specifying all label components include alphanumeric characters, underscores, and spaces. (Leading and trailing spaces are ignored.)

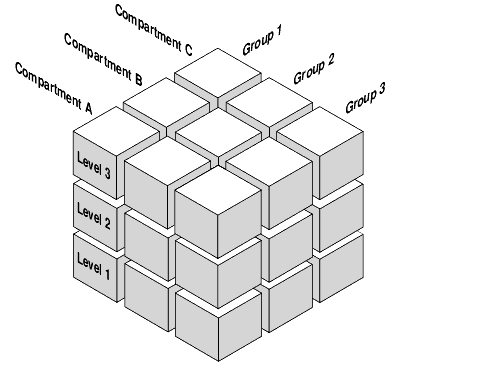

The following figure illustrates the three dimensions in which data can be logically classified, using levels, compartments, and groups.
Figure 2-1 Data Categorization with Levels, Compartments and Groups
A level is a ranking that denotes the sensitivity of the information it labels. The more sensitive the information, the higher its level. The less sensitive the information, the lower its level.
Every label must include one level. Oracle Label Security permits defining up to 10,000 levels in a policy. For each level, the Oracle Label Security administrator defines a numeric form and character forms.
For example, you can define a set of levels such as the following:
Numeric Form | Long Form | Short Form |
---|---|---|
40 |
HIGHLY_SENSITIVE |
HS |
30 |
SENSITIVE |
S |
20 |
CONFIDENTIAL |
C |
10 |
PUBLIC |
P |
Table 2-3 Forms of Specifying Levels
Form | Explanation |
---|---|
Numeric form, also called "tag" |
The numeric form of the level can range from 0 to 9999. Sensitivity is ranked by this numeric value, so you must assign higher numbers to levels that are more sensitive, and lower numbers to levels that are less sensitive. In Table 2-2, 40 (HIGHLY_SENSITIVE) is a higher level than 30, 20, and 10. Administrators should avoid using sequential numbers for the numeric form of levels. A good strategy is to use even increments (such as 50 or 100) between levels. You can then insert additional levels between two preexisting levels, at a later date. |
Long form |
The long form of the level name can contain up to 80 characters. |
Short form |
The short form can contain up to 30 characters. |
Although the administrator defines both long and short names for the level (and for each of the other label components), only the short form of the name is displayed upon retrieval. When users manipulate the labels, they use only the short form of the component names.
Other sets of labels that users commonly define include TOP_SECRET, SECRET, CONFIDENTIAL, and UNCLASSIFIED or TRADE_SECRET, PROPRIETARY, COMPANY_CONFIDENTIAL, PUBLIC_DOMAIN.
If only levels are used, a level 40 user (in this example) can access or alter any data row whose level is 40 or less.
Note:
All labels (including "TOP_SECRET," "SECRET," "CONFIDENTIAL," and so on) in this guide, are used as illustrations only.Compartments identify areas that describe the sensitivity of the labeled data, providing a finer level of granularity within a level.
Compartments associate the data with one or more security areas. All data related to a particular project can be labeled with the same compartment. For example, you can define a set of compartments like the following:
Numeric Form | Long Form | Short Form |
---|---|---|
85 |
FINANCIAL |
FINCL |
65 |
CHEMICAL |
CHEM |
45 |
OPERATIONAL |
OP |
Table 2-5 Forms of Specifying Compartments
Form | Explanation |
---|---|
Numeric form |
The numeric form can range from 0 to 9999. It is unrelated to the numbers used for the levels. The numeric form of the compartment does not indicate greater or less sensitivity. Instead, it controls the display order of the short form compartment name in the label character string. For example, assume a label is created that has all three compartments listed in Table 2-4, and a level of SENSITIVE. When this label is displayed in string format, it looks like this: S:OP,CHEM,FINCL The display order follows the order of the numbers assigned to the compartments: 45 is lower than 65, and 65 is lower than 85. By contrast, if the number assigned to the FINCL compartment were 5, the character string format of the label would look like this: S:FINCL,OP,CHEM |
Long form |
The long form of the compartment name scan have up to 80 characters. |
Short form |
The short form can contain up to 30 characters. |
Compartments are optional. A label can contain zero or more compartments. Oracle Label Security permits defining up to 10,000 compartments.
Not all labels need to have compartments. For example, you can specify HIGHLY_SENSITIVE and CONFIDENTIAL levels with no compartments, and a SENSITIVE level that does contain compartments.

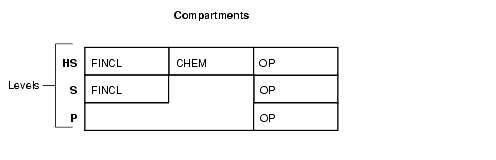

When you analyze the sensitivity of data, you may find that some compartments are only useful at specific levels. Figure 2-2, "Label Matrix" shows how compartments can be used to categorize data.
Here, compartments FINCL, CHEM, and OP are used with the level HIGHLY_SENSITIVE (40). The label HIGHLY_SENSITIVE:FINCL, CHEM indicates a level of 40 with the two named compartments. Compartment FINCL is not more sensitive than CHEM, nor is CHEM more sensitive than FINCL. Note also that some data in the protected table may not belong to any compartment.
If compartments are specified, then a user whose level would normally permit access to a row's data will nevertheless be prevented from such access unless the user's label also contains all the compartments appearing in that row's label.
Groups identify organizations owning or accessing the data, such as EASTERN_REGION, WESTERN_REGION, WR_SALES. All data pertaining to a certain department can have that department's group in the label. Groups are useful for the controlled dissemination of data and for timely reaction to organizational change. When a company reorganizes, data access can change right along with the reorganization.

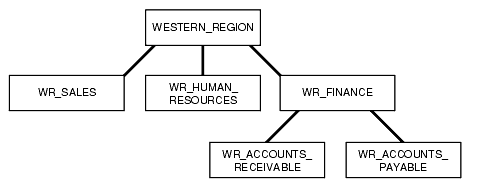

Groups are hierarchical. You can label data based upon your organizational infrastructure. A group can thus be associated with a parent group. For example, you can define a set of groups corresponding to the following organizational hierarchy:
The WESTERN_REGION group includes three subgroups: WR_SALES, WR_HUMAN_RESOURCES, and WR_FINANCE. The WR_FINANCE subgroup is subdivided into WR_ACCOUNTS_RECEIVABLE and WR_ACCOUNTS_PAYABLE.
Table 2-6 shows how the organizational structure in this example can be expressed in the form of Oracle Label Security groups. Notice that the numeric form assigned to the groups affects display order only. The administrator specifies the hierarchy (that is, the parent/child relationships) separately.
Numeric Form | Long Form | Short Form | Parent Group |
---|---|---|---|
1000 |
WESTERN_REGION |
WR |
|
1100 |
WR_SALES |
WR_SAL |
WR |
1200 |
WR_HUMAN_RESOURCES |
WR_HR |
WR |
1300 |
WR_FINANCE |
WR_FIN |
WR |
1310 |
WR_ACCOUNTS_PAYABLE |
WR_AP |
WR_FIN |
1320 |
WR_ACCOUNTS_RECEIVABLE |
WR_AR |
WR_FIN |
Table 2-7 Forms of Specifying Groups
Form | Explanation |
---|---|
Numeric form |
The numeric form of the group can range from 0 to 9999, and it must be unique for each policy. The numeric form does not indicate any kind of ranking. It does not indicate a parent-child relationship, or greater or less sensitivity. It only controls the display order of the short form group name in the label character string. For example, assume that a label is created that has the level SENSITIVE, the compartment CHEMICAL, and the groups WESTERN_REGION and WR_HUMAN_RESOURCES as listed in . When displayed in string format, the label looks like this: S:CHEM:WR,WR_HR WR is displayed before WR_HR because 1000 comes before 1200. |
Long form |
The long form of the group name can contain up to 80 characters. |
Short form |
The short form can contain up to 30 characters. |
Groups are optional; a label can contain zero or more groups. Oracle Label Security permits defining up to 10,000 groups.
All labels need not have groups. When you analyze the sensitivity of data, you may find that some groups are only used at specific levels. For example, you can specify HIGHLY_SENSITIVE and CONFIDENTIAL labels with no groups, and a SENSITIVE label that does contain groups.
Table 2-8 illustrates the flexibility of Oracle Label Security levels, compartments, and groups, by listing typical ways in which they can be implemented in various industries.
Table 2-8 Typical Levels, Compartments, and Groups, by Industry
Industry | Levels | Compartments | Groups |
---|---|---|---|
Defense |
TOP_SECRET SECRET CONFIDENTIAL UNCLASSIFIED |
ALPHA DELTA SIGMA |
UK NATO SPAIN |
Financial Services |
ACQUISITIONS CORPORATE CLIENT OPERATIONS |
INSURANCE EQUITIES TRUSTS COMMERCIAL_LOANS CONSUMER_LOANS |
CLIENT TRUSTEE BENEFICIARY MANAGEMENT STAFF |
Judicial |
NATIONAL_SECURITY SENSITIVE PUBLIC |
CIVIL CRIMINAL |
ADMINISTRATION DEFENSE PROSECUTION COURT |
Health Care |
PRIMARY_PHYSICIAN PATIENT_CONFIDENTIAL PATIENT_RELEASE |
PHARMACEUTICAL INFECTIOUS_DISEASES |
CDC RESEARCH NURSING_STAFF HOSPITAL_STAFF |
Business to Business |
TRADE_SECRET PROPRIETARY COMPANY_CONFIDENTIAL PUBLIC |
MARKETING FINANCIAL SALES PERSONNEL |
AJAX_CORP BILTWELL_CO ACME_INC ERSATZ_LTD |
After defining the label components, the administrator creates data labels by combining particular sets of level, compartments, and groups. Out of all the possible permutations of label components, the administrator specifies those combinations that will actually be used as valid data labels in the database.
This can be done by using the Oracle Policy Manager graphical user interface or by using a command line procedure. Character string representations of labels use the following syntax:
LEVEL:COMPARTMENT1,...,COMPARTMENTn:GROUP1,...,GROUPn
The text string specifying the label can have a maximum of 4,000 characters, including alphanumeric characters, spaces, and underscores. The labels are case-insensitive. You can enter them in uppercase, lowercase, or mixed case, but the string is stored in the data dictionary and displayed in uppercase. A colon is used as the delimiter between components. It is not necessary to enter trailing delimiters in this syntax.
For example, the administrator might create valid labels such as these:
SENSITIVE:FINANCIAL,CHEMICAL:EASTERN_REGION,WESTERN_REGION CONFIDENTIAL:FINANCIAL:VP_GRP SENSITIVE HIGHLY_SENSITIVE:FINANCIAL SENSITIVE::WESTERN_REGION
When a valid data label is created, two additional things occur:
The label is automatically designated as a valid data label. This functionality limits the labels that can be assigned to data. Oracle Label Security can also create valid data labels dynamically at run time, from those that are predefined in Oracle Internet Directory. Most users, however, prefer to create the labels manually in order to limit data label proliferation.
A numeric label tag is associated with the text string representing the label. It is this label tag, rather than the text string, that is stored in the policy label column of the protected table.
Note:
For Oracle Label Security installations that are not using Oracle Internet Directory, dynamic creation of valid data labels uses the TO_DATA_LABEL function. Its usage should be tightly controlled. Refer to "Inserting Labels Using TO_DATA_LABEL".See Also:
Chapter 6, "Creating an Oracle Label Security Policy" for instructions on creating label components and labels
A user can access data only within the range of his or her own label authorizations. A user has:
Maximum and minimum levels
A set of authorized compartments
A set of authorized groups (and, implicitly, authorization for any subgroups)
For example, if a user is assigned a maximum level of SENSITIVE, then the user potentially has access to SENSITIVE, CONFIDENTIAL, and UNCLASSIFIED data. The user has no access to HIGHLY_SENSITIVE data.

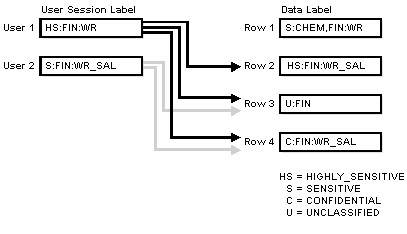

Figure 2-4, "Example: Data Labels and User Labels" shows how data labels and user labels work together to provide access control in Oracle Label Security. While data labels are discrete, user labels are inclusive. Depending upon authorized compartments and groups, a user can potentially access data corresponding to all levels within his or her range.
As shown in the figure, User 1 can access the rows 2, 3, and 4 because her maximum level is HS. She has access to the FIN compartment, and her access to group WR hierarchically includes group WR_SAL. She cannot access row 1 because she does not have the CHEM compartment. (A user must have authorization for all compartments in a row's data label to be able to access that row.)
User 2 can access rows 3 and 4. His maximum level is S, which is less than HS in row 2. Although he has access to the FIN compartment, he only has authorization for group WR_SAL. So, he cannot access row 1.

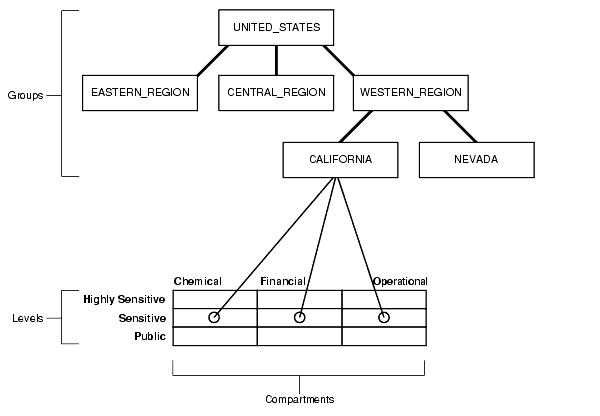

Figure 2-5, "How Label Components Interrelate" shows how data pertaining to an organizational hierarchy fits in to data levels and compartments.
Figure 2-5 How Label Components Interrelate
For example, the UNITED_STATES group includes three subgroups: EASTERN_REGION, CENTRAL_REGION, and WESTERN_REGION. The WESTERN_REGION subgroup is further subdivided into CALIFORNIA and NEVADA. For each group and subgroup, there may be data belonging to some of the valid compartments and levels within the database. So, there may be SENSITIVE data that is FINANCIAL, within the CALIFORNIA subgroup.
Note that data is generally labeled with a single group whereas users' labels form a hierarchy. If users have a particular group, then that group may implicitly include child groups. This way a user associated with the WESTERN_REGION group has access to all data, but a user associated with CALIFORNIA would have access to data pertaining to only that subgroup.
Oracle Label Security provides administrative interfaces to define and manage the labels used in a database. You define labels in Oracle Database using Oracle Label Security packages or by using Oracle Policy Manager. Initially, an administrator must define the levels, compartments, and groups that compose the labels, and then, the user can define the set of valid data labels for the contents of the database.
The administrator can apply a policy to individual tables in the database or to entire application schemas. Finally, the administrator assigns to each database user the label components (and privileges, if needed) required for the user's job function.
See Also:
Chapter 9, "Applying Policies to Tables and Schemas" for information about the Oracle Label Security interfaces used to manage label components
