This chapter contains an overview of Oracle HTTP Server security features, and provides configuration information for setting up a secure Web site.
Topics discussed are:
Security can be organized into the three categories of authentication, authorization, and confidentiality. Oracle HTTP Server provides support for all three of these categories. It is based on the Apache Web server, and its security infrastructure is primarily provided by the Apache modules, mod_auth and mod_access, and the Oracle module, mod_ossl. mod_auth
provides authentication based on user name and password pairs, mod_access
controls access to the server based on the characteristics of a request, such as hostname or IP address, mod_ossl
provides confidentiality and authentication with X.509 client certificates over SSL.
Based on the Apache model, Oracle HTTP Server provides access control, authentication, and authorization methods that can be configured with access control directives in the httpd.conf
file. When URL requests arrive at Oracle HTTP Server, they are processed in a sequence of steps determined by server defaults and configuration parameters. The steps for handling URL requests are implemented through a module or plug-in architecture that is common to many Web listeners.

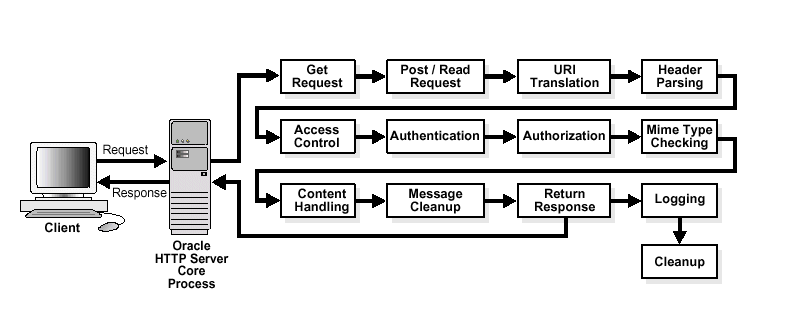

Figure 8-1 shows how URL requests are handled by the server. Each step in this process is handled by a server module depending on how the server is configured. For example, if basic authentication is used, then the steps labeled "Authentication" and "Authorization" in Figure 8-1 represent the processing of the mod_auth
module.
Figure 8-1 Steps for Handling URL Requests in Oracle HTTP Server
Oracle HTTP Server authorizes and authenticates users before allowing them to access, or modify resources on the server. The following are three classes of users that access the server using Oracle HTTP Server, and their privileges:
Users that access the server without providing any authentication. They have access to unprotected resources only.
Users that have been authenticated and potentially authorized by modules within Oracle HTTP Server. This includes users authenticated by mod_auth
and mod_ossl
. Such users have access to URLs defined in http.conf
file.
Oracle HTTP Server is configured to protect resources such as:
Static content such as static HTML pages, graphics interchange format, .gif
, files, and other static files that Oracle HTTP Server provides directly.
CGI/FastCGI scripts, simple scripts or programs that Oracle HTTP Server invokes directly.
Content generated by modules within Oracle HTTP Server. Modules such as mod_perl, mod_dms generate responses that are returned to the client.
Oracle HTTP Server provides user authentication and authorization at two stages:
Host-based Access Control (stage one): This is based on the details of the incoming HTTP request and its headers, such as IP addresses or host names.
User Authentication and Authorization (stage two): This is based on different criteria depending on the HTTP server configuration. The server can be configured to authenticate users with user name and password pairs that are checked against a list of known users and passwords.
Early in the request processing cycle, access control is applied, which can inhibit further processing based on the host name, IP address, or other characteristics such as browser type. You use the deny
, allow
, and order
directives to set this type of access control. These restrictions are configured with Oracle HTTP Server configuration directives and can be based on particular files, directories, or URL formats using the <Files>, <Directory>, and <Location> container directives as shown in the Example 8-1:
Example 8-1 Host-based Access Control
<Directory /internalonly/> order deny, allow deny from all allow from 192.168.1.* us.oracle.com </Directory>
In Example 8-1, the order
directive determines the order in which Oracle HTTP Server reads the conditions of the deny
and allow
directives. The deny
directive ensures that all requests are denied access. Then, using the allow
directive, requests originating from any IP address in the 192.168.1.* range, or with the domain name us.oracle.com
are allowed access to files in the directory /internalonly/
. It is common practice to specify both allow
and deny
in host-based authentication to make the access policy explicit.
If you want to match objects at the file system level, then you must use <Directory
> or <Files
>. If you want to match objects at the URL level, then you must use <Location
>.
Note: Allowing or restricting access based on a host name for Internet access is not considered a good method of providing security because host names are easy to spoof. While the same is true of IP addresses, sabotage is more difficult. However, setting access control with intranet IP address ranges is reasonable because the same risks do not apply. This assumes that your firewalls have been properly configured. |
To set up access control for virtual hosts, place the AccessConfig
directive inside a virtual host container in the server configuration file, httpd.conf
. When used in a virtual host container, the AccessConfig
directive specifies an access control policy contained in a file. Example 8-2 shows an excerpt from an httpd.conf
file which provides the syntax for using AccessConfig
this way:
Using host-based access control schemes, you can control access to restricted areas based on where HTTP requests originate. Oracle HTTP Server uses mod_access and mod_setenvif to perform host-based access control. mod_access
provides access control based on client hostname, IP address, or other characteristics of the client request, and mod_setenvif
provides the ability to set environment variables based upon attributes of the request. When you enter configuration directives into the httpd.conf
file that use these modules, the server fulfills or denies requests based on the address or name of the host, or based on the HTTP request header contents.
You can use host-based access control to protect static HTML pages, applications, or components.
Oracle HTTP Server supports four host-based access control schemes:
All of these allow you to specify the machines from which access to protected areas is granted or denied. Your decision to choose one or more of the host-based access control schemes is determined by which scheme most efficiently protects your restricted content and applications, or which scheme is easiest to maintain.
Controlling access with IP addresses is a preferred method of host-based access control. It does not require DNS lookups that consume time, system resources, and make your server vulnerable to DNS spoofing attacks.
Example 8-3 Controlling Access by IP Address
<Directory /secure_only/> order deny,allow deny from all allow from 207.175.42.* </Directory>
In Example 8-3, requests originating from all IP addresses except 207.175.42.* range are denied access to the /secure_only/
directory.
Domain name-based access control can be used with IP address-based access control to solve the problem of IP addresses changing without warning. When you combine these methods, if an IP address changes, then the secure areas of your site are still protected because the domain names you want to keep out will still be denied access.
To combine domain name-based with IP address-based access control, use the syntax shown in Example 8-4:
Example 8-4 controlling Access by Domain Name
<Directory /co_backgr/> order allow,deny allow from all # 141.217.24.* is the IP for malicious.cracker.com deny from malicious.cracker.com 141.217.24.* </Directory>
In Example 8-4, all requests for directory /co_backgr/
are accepted except those that originate from the domain name malicious.cracker.com
or the IP address 141.217.24.* range. Although this is not a fool proof precaution against domain name or IP address spoofing, it protects your site from malicious.cracker.com
even if they change their IP address.
You can control access based on subsets of networks, specified by IP address. The syntax is shown in Example 8-5:
Example 8-5 Controlling Access by Network or Netmask
<Directory /payroll/> order deny,allow deny from all allow from 10.1.0.0/255.255.0.0 </Directory>
In Example 8-5, access is allowed from a network/netmask pair. A netmask shows how an IP address is to be divided into network, subnet, and host identifiers. Netmasks enable you to refer to only the host ID portion of an IP address.
The netmask in Example 8-5, 255.255.0.0, is the default netmask setting for a Class B address. The binary ones (decimal 255) mask the network ID and the binary zeroes (decimal 0) retain the host ID of a given IP address.
You can use arbitrary environment variables for access control, instead of using IP addresses or domain names. Use BrowserMatch
and SetEnvIf
directives for this type of access control.
Use BrowserMatch
when you want to base access on the type of browser used to send a request. For instance, if you want to allow access only to requests that come from a Netscape browser, then use the syntax shown in Example 8-6:
Example 8-6 Controlling Access with Environment Variables
BrowserMatch ^Mozilla netscape_browser <Directory /mozilla-area/> order deny,allow deny from all allow from env=netscape_browser </Directory>
Use SetEnvIf
when you want to base access on header information contained in the HTTP request. For instance, if you want to deny access from any browsers using HTTP version 1.0 or earlier, then use the syntax shown in Example 8-7:
Example 8-7 Controlling Access with SetEnv
SetEnvIf Request_Protocol ^HTTP/1.1 http_11_ok <Directory /http1.1only/> order deny,allow deny from all allow from env=http_11_ok </Directory>
Basic authentication prompts for a user name and password before serving an HTTP request. When a browser requests a page from a protected area, Oracle HTTP Server responds with an unauthorized message (status code 401) containing a WWW-Authenticate:
header and the name of the realm configured by the configuration directive, AuthName
. When the browser receives this response, it prompts for a user name and password. After the user enters a user name and password combination, the browser sends this information back to the server in an Authorization header. In the authorization header message, the user name and password are encoded as a base 64 encoded string.
User authorization involves checking the authenticated user against an access control list that is associated with a specific server resource such as a file or directory. To configure user authorization, place the require
directive in the httpd.conf
file, usually within a virtual host container. User authorization is commonly used in combination with user authentication. After the server has authenticated a user's user name and password, then the server compares the user to an access control list associated with the requested server resource. If Oracle HTTP Server finds the user or the user's group on the list, then the resource is made available to that user.
User authentication is based on user names and passwords that are checked against a list of known users and passwords. These user name and password pairs may be stored in a variety of forms, such as a text file, database, or directory service. Then configuration directives are used in httpd.conf
to configure this type of user authentication on the server. mod_auth
uses the AuthUserFile
directive to set up basic authentication. It supports only files.
Any authentication scheme that you devise requires that you use a combination of the configuration directives listed in Table 8-1.
Table 8-1 Directives Descriptions
mod_ossl
is a plug-in to Oracle HTTP Server that enables the server to use SSL. mod_ossl
replaces mod_ssl
in the Oracle HTTP Server distribution. Oracle no longer supports mod_ssl
.
mod_ossl provides standard support for HTTPS protocol connections to Oracle Database. It enables secure connections between Oracle HTTP Server and a browser client by using an Oracle-provided encryption mechanism over SSL. It may also be used for authentication over the Internet through the use of digital certificate technology. It supports SSL v. 3.0, and provides:
Encrypted communication between client and server using or RSA or DES encryption standards
Integrity checking of client-server communication using MD5 or SHA checksum algorithms
Certificate management with Oracle wallets
identifies the differences between mod_ossl, and mod_ssl.
Table 8-2 mod_ossl and mod_ssl Differences
Feature | mod_ossl | mod_ssl |
---|---|---|
SSL versions supported | 3.0 | 2.0, 3.0, TLS 1.0 |
Certificate management | Oracle Wallet | Text file |
Note: Oracle Wallet Manager is a tool that manages certificates formod_ossl . It supports obfuscated passwords. |
The following mod_ssl
directives listed are not supported by mod_ossl
.
SSLRandomSeed
SSLCertificateFile
SSLCertificateKeyFile
SSLCertificateChainFile
SSLCACertificateFile
SSLCACertificatePath
SSLVerifyDepth
Caution: The server will not start if these directives are used. |
To configure SSL for your Oracle HTTP Server, enter the mod_ossl directives you want to use in the httpd.conf file.
The following directive are described in subsequent sections:
Specifies if SSL accelerator is used. Currently only nFast card is supported.
Category | Value |
---|---|
Valid Values | yes/no |
Syntax | SSLAccelerator yes/no |
Default | SSLAccelerator no |
Context | server configuration |
Specifies the file where you can assemble the Certificate Revocation Lists (CLRs) from Certificate Authorities (CAs) that you accept certificates from. These are used for client authentication. Such a file is the concatenation of various PEM-encoded CRL files in order of preference. This directive can be used alternatively or additionally to SSLCARevocationPath.
Category | Value |
---|---|
Syntax | SSLCARevocationFile file_name |
Example | SSLCARevocationFile /ORACLE_HOME /Apache/conf/ssl.crl/ca_bundle.crl |
Default | None |
Context | server configuration, virtual host |
Specifies the directory where PEM-encoded Certificate Revocation Lists (CRLs) are stored. These CRLs come from the CAs (Certificate Authorities) that you accept certificates from. If a client attempts to authenticate itself with a certificate that is on one of these CRLs, then the certificate is revoked and the client cannot authenticate itself with your server.
Category | Value |
---|---|
Syntax | SSLCARevocationPath path/to/CRL_directory |
Example | SSLCARevocationPath /ORACLE_HOME /Apache/conf/ssl.crl |
Default | None |
Context | server configuration, virtual host |
Specifies the SSL cipher suite that the client can use during the SSL handshake. This directive uses a colon-separated cipher specification string to identify the cipher suite. Table 8-3 shows the tags you can use in the string to describe the cipher suite you want.
Category | Value |
---|---|
Valid Values | none: Adds the cipher to the list
+: Adds the cipher to the list and places it in the correct location in the list. -: Removes the cipher from the list (can be added later). !: Remove the cipher from the list permanently. |
Example | SSLCipherSuite ALL: !LOW: !DH
In this example, all ciphers are specified except low strength ciphers and those using Diffie-Hellman key negociation algorithm. |
Syntax | SSLCipheSuite cipher-spec |
Default | None |
Context | server configuration, virtual host, directory |
Table 8-3 SSLCipher Suite Tags
Function | Tag | Meaning |
---|---|---|
Key exchange | kRSA | RSA key exchange |
Key exchange | kDHr | Diffie-Hellman key exchange with RSA key |
Authentication | aNull | No authentication |
Authentication | aRSA | RSA authentication |
Authentication | aDH | Diffie-Hellman authentication |
Encryption | eNull | No encryption |
Encryption | DES | DES encoding |
Encryption | 3DES | Triple DES encoding |
Encryption | RC4 | RC4 encoding |
Data Integrity | MD5 | MD5 hash function |
Data Integrity | SHA | SHA hash function |
Aliases | SSLv3 | All SSL version 3.0 ciphers |
Aliases | EXP | All export ciphers |
Aliases | EXP40 | All 40-bit export ciphers only |
Aliases | EXP56 | All 56-bit export ciphers only |
Aliases | Low | All low strength ciphers (export and single DES) |
Aliases | Medium | All ciphers with 128-bit encryption |
Aliases | High | All ciphers using triple DES |
Aliases | RSA | All ciphers using RSA key exchange |
Aliases | DH | All ciphers using Diffie-Hellman key exchange |
Note: There are restrictions if export versions of browsers are used. Oracle module,mod_ossl , supports RC4-40 encryption only when the server uses 512 bit key size wallets. |
Table 8-4 Cipher Suites Supported in Oracle Database
Cipher Suite | Authentication | Encryption | Data Integrity |
---|---|---|---|
SSL_RSA_WITH_3DES_EDE_CBC_SHA | RSA | 3DES EDE CBC | SHA |
SSL_RSA_WITH_RC4_128_SHA | RSA | RC4 128 | SHA |
SSL_RSA_WITH_RC4_128_MD5 | RSA | RC4 128 | MD5 |
SSL_RSA_WITH_DES_CBC_SHA | RSA | DES CBC | SHA |
SSL_DH_anon_WITH_3DES_EDE_CBC_SHA | DH anon | 3DES EDE CBC | SHA |
SSL_DH_anon_WITH_RC4_128_MD5 | DH anon | RC4 128 | MD5 |
SSL_RSA_WITH_3DES_EDE_CBC_SHA | RSA | 3DES EDE CBC | SHA |
SSL_DH_anon_WITH_DES_CBC_SHA | DH anon | DES CBC | SHA |
SSL_RSA_EXPORT_WITH_RC4_40_MD5 | RSA | RC4 40 | MD5 |
SSL_RSA_EXPORT_WITH_DES40_CBC_SHA | RSA | DES40 CBC | SHA |
SSL_DH_anon_EXPORT_WITH_RC4_40_MD5 | DH anon | RC4 40 | MD5 |
SSL_DH_anon_EXPORT_WITH_DES40_CBC_SHA | DH anon | DES40 CBC | SHA |
oggles the usage of the SSL Protocol Engine. This is usually used inside a <VirtualHost
> section to enable SSL for a particular virtual host. By default, the SSL Protocol Engine is disabled for both the main server and all configured virtual hosts.
Category | Value |
---|---|
Syntax | SSLEngine on/off |
Default | SSLEngine off |
Context | server configuration, virtual host |
Specifies where the SSL engine log file will be written. (Error messages will also be duplicated to the standard Oracle HTTP Server log file specified by the ErrorLog directive.)
Place this file at a location where only root can write, so that it cannot be used for symlink attacks. If the filename does not begin with a slash (/), it is assumed to be relative to the ServerRoot. If the filename begins with a bar (|), then the string following the bar is expected to be a path to an executable program to which a reliable pipe can be established.
This directive should occur only once for each virtual server configuration.
Category | Value |
---|---|
Syntax | SSLVerifyClient path/to/filename |
Default | None |
Context | server configuration, virtual host |
Specifies the verbosity degree of the SSL engine log file.
Category | Value |
---|---|
Valid Values | The levels are (in ascending order, where each level is included in the levels preceding it):
|
Syntax | SSLLogLevel level |
Default | None |
Context | server configuration, virtual host |
Type of semaphore (lock) for SSL engine's mutual exclusion of operations that have to be synchronized between Oracle HTTP Server processes.
Category | Value |
---|---|
Valid Values |
|
Example | SSLMutex file: /usr/local/apache/logs/ssl_mutex |
Syntax | SSLMutex type |
Default | SSLMutex none |
Context | server configuration |
Controls various runtime options on a per-directory basis. In general, if multiple options apply to a directory, the most comprehensive option is applied (options are not merged). However, if all of the options in an SSLOptions
directive are preceded by a plus ('+') or minus ('-') symbol, then the options are merged. Options preceded by a plus are added to the options currently in force, and options preceded by a minus are removed from the options currently in force.
Category | Value |
---|---|
Valid Values |
|
Syntax | SSLOptions [+-] option |
Default | None |
Context | server configuration, virtual host, directory |
Type of pass phrase dialog for wallet access. mod_ossl
asks the administrator for a pass phrase in order to access the wallet.
Category | Value |
---|---|
Valid Values |
|
Syntax | SSLPassPhraseDialog type |
Example | SSLPassPhraseDialog exec: /usr/local/apache/sbin/pfilter |
Default | SSLPassPhraseDialog builtin |
Context | server configuration |
Specifies SSL protocol(s) for mod_ossl
to use when establishing the server environment. Clients can only connect with one of the specified protocols.
Category | Value |
---|---|
Valid Values | SSLv3
SSL Version 3.0 |
Example | To specify only SSL version 3.0, set this directive to the following:
SSLProtocol +SSLv3 |
Syntax | SSLProtocol [+-] protocol |
Default | SSLProtocol +SSLv3 |
Context | server configuration, virtual host |
Denies access unless an arbitrarily complex boolean expression is true. The expression must match the following syntax (given as a BNF grammar notation):
Category | Value |
---|---|
expr ::= "true" | "false" "!" expr expr "&&" expr expr "||" expr "(" expr ")" |
|
comp ::=word "==" word | word "eq" word word "!=" word |word "ne" word word "<" word |word "lt" word word "<=" word |word "le" word word ">" word |word "gt" word word ">=" word |word "ge" word word "=~" regex word "!~" regex wordlist ::= word wordlist "," word |
|
word ::= digit cstring variable function |
|
digit ::= [0-9]+ | |
cstring ::= "..." |
|
variable ::= "%{varname}"Table 8-5 and Table 8-6 list standard and SSL variables. These are valid values for varname. |
|
function ::= funcname "(" funcargs ")"For funcname, the following function is available: file(filename) The file function takes one string argument, the filename, and expands to the contents of the file. This is useful for evaluating the file's contents against a regular expression. |
|
Syntax | SSLRequire expression |
Default | None |
Context | directory |
Table 8-5 lists the standard variables for SSLRequire varname.
Table 8-5 Standard Variables for SSLRequire Varname
Standard Variables | Standard Variables | Standard Variables |
---|---|---|
HTTP_USER_AGENT | PATH_INFO | AUTH_TYPE |
HTTP_REFERER | QUERY_STRING | SERVER_SOFTWARE |
HTTP_COOKIE | REMOTE_HOST | API_VERSION |
HTTP_FORWARDED | REMOTE_IDENT | TIME_YEAR |
HTTP_HOST | IS_SUBREQ | TIME_MON |
HTTP_PROXY_CONNECTION | DOCUMENT_ROOT | TIME_DAY |
HTTP_ACCEPT | SERVER_ADMIN | TIME_HOUR |
HTTP:headername |
SERVER_NAME | TIME_MIN |
THE_REQUEST | SERVER_PORT | TIME_SEC |
REQUEST_METHOD | SERVER_PROTOCOL | TIME_WDAY |
REQUEST_SCHEME | REMOTE_ADDR | TIME |
REQUEST_URI | REMOTE_USER | ENV:variablename |
REQUEST_FILENAME |
Table 8-6 lists the SSL variables for SSLRequire varname.
Table 8-6 SSL Variables for SSLRequire Varname.
SSL Varibles | SSL Variables | SSL Variables |
---|---|---|
HTTPS | SSL_PROTOCOL | SSL_CIPHER_ALGKEYSIZE |
SSL_CIPHER | SSL_CIPHER_EXPORT | SSL_VERSION_INTERFACE |
SSL_CIPHER_USEKEYSIZE | SSL_VERSION_LIBRARY | SSL_SESSION_ID |
SSL_CLIENT_V_END | SSL_CLIENT_M_SERIAL | SSL_CLIENT_V_START |
SSL_CLIENT_S_DN_ST | SSL_CLIENT_S_DN | SSL_CLIENT_S_DN_C |
SSL_CLIENT_S_DN_CN | SSL_CLIENT_S_DN_O | SSL_CLIENT_S_DN_OU |
SSL_CLIENT_S_DN_G | SSL_CLIENT_S_DN_T | SSL_CLIENT_S_DN_I |
SSL_CLIENT_S_DN_UID | SSL_CLIENT_S_DN_S | SSL_CLIENT_S_DN_D |
SSL_CLIENT_I_DN_C | SSL_CLIENT_S_DN_Email | SSL_CLIENT_I_DN |
SSL_CLIENT_I_DN_O | SSL_CLIENT_I_DN_ST | SSL_CLIENT_I_DN_L |
SSL_CLIENT_I_DN_T | SSL_CLIENT_I_DN_OU | SSL_CLIENT_I_DN_CN |
SSL_CLIENT_I_DN_S | SSL_CLIENT_I_DN_I | SSL_CLIENT_I_DN_G |
SSL_CLIENT_I_DN_Email | SSL_CLIENT_CERT_CHAIN_n | SSL_CLIENT_I_DN_UID |
SSL_CLIENT_CERT | SSL_CLIENT_M_VERSION | SSL_CLIENT_ROOT_CERT |
SSL_CLIENT_VERIFY | SSL_SERVER_V_END | SSL_SERVER_M_VERSION |
SSL_SERVER_V_START | SSL_SERVERT_S_DN_ST | SSL_SERVER_M_SERIAL |
SSL_SERVER_S_DN_C | SSL_SERVER_S_DN_CN | SSL_SERVER_S_DN |
SSL_SERVER_S_DN_OU | SSL_SERVER_S_DN_G | SSL_SERVER_S_DN_O |
SSL_SERVER_S_DN_I | SSL_SERVER_S_DN_UID | SSL_SERVER_S_DN_T |
SSL_SERVER_S_DN_D | SSL_SERVER_I_DN_C | SSL_SERVER_S_DN_S |
SSL_SERVER_I_DN | SSL_SERVER_I_DN_O | SSL_SERVER_S_DN_Email |
SSL_SERVER_I_DN_L | SSL_SERVER_I_DN_T | SSL_SERVER_I_DN_ST |
SSL_SERVER_I_DN_CN | SSL_SERVER_I_DN_I | SSL_SERVER_I_DN_OU |
SSL_SERVER_I_DN_G | SSL_CLIENT_I_DN_D |
enies access to clients not using SSL. This is a useful directive for absolute protection of a SSL-enabled virtual host or directories in which configuration errors could create security vulnerabilities.
Category | Value |
---|---|
Syntax | SSLRequireSSL |
Default | None |
Context | directory |
Specifies the global/interprocess session cache storage type. The cache provides an optional way to speed up parallel request processing.
Category | Value |
---|---|
Valid Values |
|
Syntax | SSLSessionCache type |
Examples |
SSLSessionCache shmht: /ORACLE_HOME/Apache/Apache/logs/ssl_scache(512000) SSLSessionCache shmcb: /ORACLE_HOME/Apache/Apache/logs/ssl_scache(512000 |
Default | SSLSessionCache none |
Specifies the number of seconds before a SSL session in the session cache expires.
Category | Value |
---|---|
Syntax | SSLSessionCacheTimeout seconds |
Default | 300 |
Context | server configuration |
Specifies whether or not a client must present a certificate when connecting.
Category | Value |
---|---|
Valid Values |
|
Syntax | SSLVerifyClient level |
Default | None |
Context | server configuration, virtual host |
Note: he leveloptional_no_ca included with mod_ssl (in which the client can present a valid certificate, but it need not be verifiable) is not supported in mod_ossl . |
Specifies the location of the wallet with its WRL.
Category | Value |
---|---|
Syntax | SSLWallet wrl
The format of wrl is: |
Example | SSLWallet file:/etc/ORACLE/WALLETS/server
Other values of wrl may be used as permitted by the Oracle SSL product. |
Default | None |
Context | server configuration, virtual host |
This section provides instructions on how you can use the directives mentioned earlier to set up configurations that enable you to use client certificates for authenticating clients. Following are some scenarios:
Authenticating clients based on certificates when all clients are known.
The server wallet has imported the CA certificate which signed all the client certificates.
For example, specify the following directives in the httpd.conf
file:
SSLVerifyClient require
Authenticating for a particular URL based on certificates, while allowing arbitrary clients to access the rest of the server
To enable this, use the per-directory reconfiguration feature of mod_ossl
. Session re-negotiation enables an SSL session to be re-negotiated with a client after the initial request and URL have been read. This is only supported for requests that do not contain body data, such as GET
requests.
For example, specify the following directives in the httpd.conf
file:
<Location /secure/area> SSLVerifyClient require </Location>
The iasobf utility enables you to generate an obfuscated wallet password from a cleartext password.
If you are using an Oracle Wallet that has been created with Auto Login enabled (an SSO wallet), then you do not need to use this utility. However, if you must use a regular wallet with a password, then Oracle recommends that you use the password obfuscation tool iasobf
, which is located in ORACLE_HOME
/Apache/Apache/bin
, to generate an obfuscated wallet password from a cleartext password.
To generate an obfuscated wallet password, the command syntax is:
iasobf -p password
The corresponding tool for Windows environments is called osslpassword, which can be used in the same way as iasobf.
