This chapter covers tuning in a parallel execution environment and discusses:
Parallel execution dramatically reduces response time for data-intensive operations on large databases typically associated with decision support systems (DSS) and data warehouses. You can also implement parallel execution on certain types of online transaction processing (OLTP) and hybrid systems. Parallel execution is sometimes called parallelism. Simply expressed, parallelism is the idea of breaking down a task so that, instead of one process doing all of the work in a query, many processes do part of the work at the same time. An example of this is when four processes handle four different quarters in a year instead of one process handling all four quarters by itself. The improvement in performance can be quite high. In this case, each quarter will be a partition, a smaller and more manageable unit of an index or table. Parallel execution improves processing for:
Queries requiring large table scans, joins, or partitioned index scans
Creation of large indexes
Creation of large tables (including materialized views)
Bulk inserts, updates, merges, and deletes
You can also use parallel execution to access object types within an Oracle database. For example, you can use parallel execution to access large objects (LOBs).
Parallel execution benefits systems with all of the following characteristics:
Symmetric multiprocessors (SMPs), clusters, or massively parallel systems
Underutilized or intermittently used CPUs (for example, systems where CPU usage is typically less than 30%)
Sufficient memory to support additional memory-intensive processes, such as sorts, hashing, and I/O buffers
If your system lacks any of these characteristics, parallel execution might not significantly improve performance. In fact, parallel execution may reduce system performance on overutilized systems or systems with small I/O bandwidth.
The benefits of parallel execution can be seen in DSS and data warehousing environments. OLTP systems can also benefit from parallel execution during batch processing and during schema maintenance operations such as creation of indexes. The average simple DML or SELECT
statements that characterize OLTP applications would not see any benefit from being executed in parallel.
Parallel execution is not normally useful for:
Environments in which the typical query or transaction is very short (a few seconds or less). This includes most online transaction systems. Parallel execution is not useful in these environments because there is a cost associated with coordinating the parallel execution servers; for short transactions, the cost of this coordination may outweigh the benefits of parallelism.
Environments in which the CPU, memory, or I/O resources are already heavily utilized. Parallel execution is designed to exploit additional available hardware resources; if no such resources are available, then parallel execution will not yield any benefits and indeed may be detrimental to performance.
You can use parallel execution for any of the following:
Access methods
Some examples are table scans, index full scans, and partitioned index range scans.
Join methods
Some examples are nested loop, sort merge, hash, and star transformation.
DDL statements
Some examples are CREATE
TABLE
AS
SELECT
, CREATE
INDEX
, REBUILD
INDEX
, REBUILD
INDEX
PARTITION
, and MOVE
/SPLIT
/COALESCE
PARTITION
.
You can normally use parallel DDL where you use regular DDL. There are, however, some additional details to consider when designing your database. One important restriction is that parallel DDL cannot be used on tables with object or LOB
columns.
All of these DDL operations can be performed in NOLOGGING
mode for either parallel or serial execution.
The CREATE
TABLE
statement for an index-organized table can be parallelized either with or without an AS
SELECT
clause.
Different parallelism is used for different operations. Parallel create (partitioned) table as select and parallel create (partitioned) index run with a degree of parallelism equal to the number of partitions.
Parallel operations require accurate statistics to perform optimally.
DML statements
Some examples are INSERT
AS
SELECT
, updates, deletes, and MERGE
operations.
Parallel DML (parallel insert, update, merge, and delete) uses parallel execution mechanisms to speed up or scale up large DML operations against large database tables and indexes. You can also use INSERT
... SELECT
statements to insert rows into multiple tables as part of a single DML statement. You can normally use parallel DML where you use regular DML.
Although data manipulation language (DML) normally includes queries, the term parallel DML refers only to inserts, updates, upserts and deletes done in parallel.
Miscellaneous SQL operations
Some examples are GROUP
BY
, NOT
IN
, SELECT
DISTINCT
, UNION
, UNION
ALL
, CUBE
, and ROLLUP
, as well as aggregate and table functions.
Parallel query
You can parallelize queries and subqueries in SELECT
statements, as well as the query portions of DDL statements and DML statements (INSERT
, UPDATE
, DELETE
, and MERGE
).
SQL*Loader
You can parallelize the use of SQL*Loader, where large amounts of data are routinely encountered. To speed up your loads, you can use a parallel direct-path load as in the following example:
sqlldr USERID=SCOTT/TIGER CONTROL=LOAD1.CTL DIRECT=TRUE PARALLEL=TRUE sqlldr USERID=SCOTT/TIGER CONTROL=LOAD2.CTL DIRECT=TRUE PARALLEL=TRUE sqlldr USERID=SCOTT/TIGER CONTROL=LOAD3.CTL DIRECT=TRUE PARALLEL=TRUE
You can also use a parameter file to achieve the same thing.
An important point to remember is that indexes are not maintained during a parallel load.
Parallel execution divides the task of executing a SQL statement into multiple small units, each of which is executed by a separate process. Also the incoming data (tables, indexes, partitions) can be divided into parts called granules. The user shadow process that wants to execute a query in parallel takes on the role as parallel execution coordinator or query coordinator. The query coordinator does the following:
Parses the query and determines the degree of parallelism
Allocates one or two set of slaves (threads or processes)
Controls the query and sends instructions to the PQ slaves
Determines which tables or indexes need to be scanned by the PQ slaves
Produces the final output to the user
The parallel execution coordinator may enlist two or more of the instance's parallel execution servers to process a SQL statement. The number of parallel execution servers associated with a single operation is known as the degree of parallelism.
A single operation is a part of a SQL statement such as an order by, a full table scan to perform a join on a nonindexed column table.
Note that the degree of parallelism applies directly only to intra-operation parallelism. If inter-operation parallelism is possible, the total number of parallel execution servers for a statement can be twice the specified degree of parallelism. No more than two sets of parallel execution servers can run simultaneously. Each set of parallel execution servers may process multiple operations. Only two sets of parallel execution servers need to be active to guarantee optimal inter-operation parallelism.
Parallel execution is designed to effectively use multiple CPUs and disks to answer queries quickly. When multiple users use parallel execution at the same time, it is easy to quickly exhaust available CPU, memory, and disk resources.
Oracle Database provides several ways to manage resource utilization in conjunction with parallel execution environments, including:
The adaptive multiuser algorithm, which is enabled by default, reduces the degree of parallelism as the load on the system increases.
User resource limits and profiles, which allow you to set limits on the amount of various system resources available to each user as part of a user's security domain.
The Database Resource Manager, which lets you allocate resources to different groups of users.
When an instance starts up, Oracle creates a pool of parallel execution servers which are available for any parallel operation. The initialization parameter PARALLEL_MIN_SERVERS
specifies the number of parallel execution servers that Oracle Database creates at instance startup.
When executing a parallel operation, the parallel execution coordinator obtains parallel execution servers from the pool and assigns them to the operation. If necessary, Oracle can create additional parallel execution servers for the operation. These parallel execution servers remain with the operation throughout job execution, then become available for other operations. After the statement has been processed completely, the parallel execution servers return to the pool.
Note that the parallel execution coordinator and the parallel execution servers can only service one statement at a time. A parallel execution coordinator cannot coordinate, for example, a parallel query and a parallel DML statement at the same time.
When a user issues a SQL statement, the optimizer decides whether to execute the operations in parallel and determines the degree of parallelism (DOP) for each operation. You can specify the number of parallel execution servers required for an operation in various ways.
If the optimizer targets the statement for parallel processing, the following sequence of events takes place:
The SQL statement's foreground process becomes a parallel execution coordinator.
The parallel execution coordinator obtains as many parallel execution servers as needed (determined by the DOP) from the server pool or creates new parallel execution servers as needed.
Oracle executes the statement as a sequence of operations. Each operation is performed in parallel, if possible.
When statement processing is completed, the coordinator returns any resulting data to the user process that issued the statement and returns the parallel execution servers to the server pool.
The parallel execution coordinator calls upon the parallel execution servers during the execution of the SQL statement, not during the parsing of the statement. Therefore, when parallel execution is used with the shared server, the server process that processes the EXECUTE
call of a user's statement becomes the parallel execution coordinator for the statement. See "Setting the Degree of Parallelism for Parallel Execution" for more information.
If the number of parallel operations processed concurrently by an instance changes significantly, Oracle automatically changes the number of parallel execution servers in the pool.
If the number of parallel operations increases, Oracle creates additional parallel execution servers to handle incoming requests. However, Oracle never creates more parallel execution servers for an instance than the value specified by the initialization parameter PARALLEL_MAX_SERVERS
.
If the number of parallel operations decreases, Oracle terminates any parallel execution servers that have been idle for a threshold period of time. Oracle does not reduce the size of the pool less than the value of PARALLEL_MIN_SERVERS
, no matter how long the parallel execution servers have been idle.
Oracle can process a parallel operation with fewer than the requested number of processes.
If all parallel execution servers in the pool are occupied and the maximum number of parallel execution servers has been started, the parallel execution coordinator switches to serial processing.
See "Minimum Number of Parallel Execution Servers" for information about using the initialization parameter PARALLEL_MIN_PERCENT
and "Tuning General Parameters for Parallel Execution" for information about the PARALLEL_MIN_PERCENT
and PARALLEL_MAX_SERVERS
initialization parameters.
To execute a query in parallel, Oracle generally creates a producer queue server and a consumer server. The producer queue server retrieves rows from tables and the consumer server performs operations such as join, sort, DML, and DDL on these rows. Each server in the producer execution process set has a connection to each server in the consumer set. This means that the number of virtual connections between parallel execution servers increases as the square of the DOP.
Each communication channel has at least one, and sometimes up to four memory buffers. Multiple memory buffers facilitate asynchronous communication among the parallel execution servers.
A single-instance environment uses at most three buffers for each communication channel. An Oracle Real Application Clusters environment uses at most four buffers for each channel. Figure 25-1 illustrates message buffers and how producer parallel execution servers connect to consumer parallel execution servers.

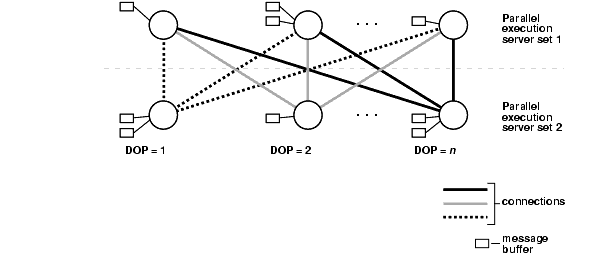

Figure 25-1 Parallel Execution Server Connections and Buffers
When a connection is between two processes on the same instance, the servers communicate by passing the buffers back and forth. When the connection is between processes in different instances, the messages are sent using external high-speed network protocols. In Figure 25-1, the DOP is equal to the number of parallel execution servers, which in this case is n. Figure 25-1 does not show the parallel execution coordinator. Each parallel execution server actually has an additional connection to the parallel execution coordinator.
Each SQL statement undergoes an optimization and parallelization process when it is parsed. When the data changes, if a more optimal execution or parallelization plan becomes available, Oracle can automatically adapt to the new situation.
After the optimizer determines the execution plan of a statement, the parallel execution coordinator determines the parallelization method for each operation in the plan. For example, the parallelization method might be to parallelize a full table scan by block range or parallelize an index range scan by partition. The coordinator must decide whether an operation can be performed in parallel and, if so, how many parallel execution servers to enlist. The number of parallel execution servers in one set is the DOP. See "Setting the Degree of Parallelism for Parallel Execution" for more information.
The parallel execution coordinator examines the redistribution requirements of each operation. An operation's redistribution requirement is the way in which the rows operated on by the operation must be divided or redistributed among the parallel execution servers.
After determining the redistribution requirement for each operation in the execution plan, the optimizer determines the order in which the operations must be performed. With this information, the optimizer determines the data flow of the statement.
As an example of parallel query with intra- and inter-operation parallelism, consider the following, more complex query:
SELECT /*+ PARALLEL(employees 4) PARALLEL(departments 4) USE_HASH(employees) ORDERED */ MAX(salary), AVG(salary) FROM employees, departments WHERE employees.department_id = departments.department_id GROUP BY employees.department_id;
Note that hints have been used in the query to force the join order and join method, and to specify the DOP of the tables employees
and departments
. In general, you should let the optimizer determine the order and method.
Figure 25-2 illustrates the data flow graph or query plan for this query.

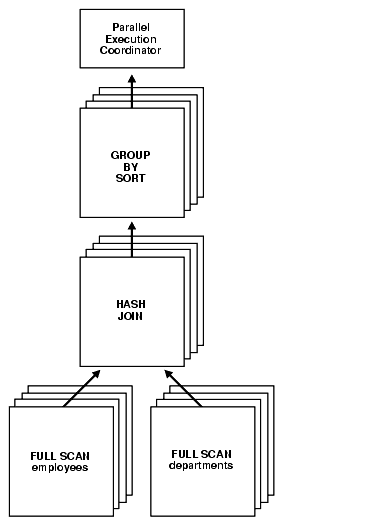

Figure 25-2 Data Flow Diagram for Joining Tables
Given two sets of parallel execution servers SS1 and SS2 for the query plan illustrated in Figure 25-2, the execution will proceed as follows: each server set (SS1 and SS2) will have four execution processes because of the PARALLEL
hint in the query that specifies the DOP. In other words, the DOP will be four because each set of parallel execution servers will have four processes.
Slave set SS1 first scans the table employees
while SS2 will fetch rows from SS1 and build a hash table on the rows. In other words, the parent servers in SS2 and the child servers in SS2 work concurrently: one in scanning employees
in parallel, the other in consuming rows sent to it from SS1 and building the hash table for the hash join in parallel. This is an example of inter-operation parallelism.
After SS1 has finished scanning the entire table employees
(that is, all granules or task units for employees
are exhausted), it scans the table departments
in parallel. It sends its rows to servers in SS2, which then perform the probes to finish the hash-join in parallel. After SS1 is done scanning the table departments
in parallel and sending the rows to SS2, it switches to performing the GROUP
BY
in parallel. This is how two server sets run concurrently to achieve inter-operation parallelism across various operators in the query tree while achieving intra-operation parallelism in executing each operation in parallel.
Another important aspect of parallel execution is the re-partitioning of rows while they are sent from servers in one server set to another. For the query plan in Figure 25-2, after a server process in SS1 scans a row of employees
, which server process of SS2 should it send it to? The partitioning of rows flowing up the query tree is decided by the operator into which the rows are flowing into. In this case, the partitioning of rows flowing up from SS1 performing the parallel scan of employees
into SS2 performing the parallel hash-join is done by hash partitioning on the join column value. That is, a server process scanning employees
computes a hash function of the value of the column employees.employee_id
to decide the number of the server process in SS2 to send it to. The partitioning method used in parallel queries is explicitly shown in the EXPLAIN
PLAN
of the query. Note that the partitioning of rows being sent between sets of execution servers should not be confused with Oracle's partitioning feature whereby tables can be partitioned using hash, range, and other methods.
Operations that require the output of other operations are known as consumer operations. In Figure 25-2, the GROUP
BY
SORT
operation is the producer of the HASH
JOIN
operation because GROUP
BY
SORT
requires the HASH
JOIN
output.
Producer operations can begin consuming rows as soon as the producer operations have produced rows. In the previous example, while the parallel execution servers are producing rows in the FULL
SCAN
departments
operation, another set of parallel execution servers can begin to perform the HASH
JOIN
operation to consume the rows.
Each of the two operations performed concurrently is given its own set of parallel execution servers. Therefore, both query operations and the data flow tree itself have parallelism. The parallelism of an individual operation is called intraoperation parallelism and the parallelism between operations in a data flow tree is called interoperation parallelism. Due to the producer-consumer nature of the Oracle server's operations, only two operations in a given tree need to be performed simultaneously to minimize execution time. To illustrate intraoperation and interoperation parallelism, consider the following statement:
SELECT * FROM employees ORDER BY last_name;
The execution plan implements a full scan of the employees
table. This operation is followed by a sorting of the retrieved rows, based on the value of the last_name
column. For the sake of this example, assume the last_name
column is not indexed. Also assume that the DOP for the query is set to 4, which means that four parallel execution servers can be active for any given operation.
Figure 25-3 illustrates the parallel execution of the example query.

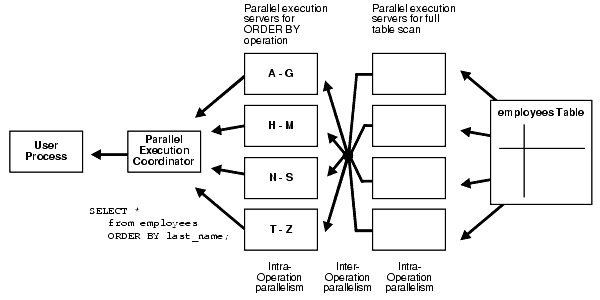

Figure 25-3 Interoperation Parallelism and Dynamic Partitioning
As you can see from Figure 25-3, there are actually eight parallel execution servers involved in the query even though the DOP is 4. This is because a parent and child operator can be performed at the same time (interoperation parallelism).
Also note that all of the parallel execution servers involved in the scan operation send rows to the appropriate parallel execution server performing the SORT
operation. If a row scanned by a parallel execution server contains a value for the last_name
column between A
and G
, that row gets sent to the first ORDER
BY
parallel execution server. When the scan operation is complete, the sorting processes can return the sorted results to the coordinator, which, in turn, returns the complete query results to the user.
Different parallel operations use different types of parallelism. The optimal physical database layout depends on the parallel operations that are most prevalent in your application or even of the necessity of using partitions.
The basic unit of work in parallelism is a called a granule. Oracle Database divides the operation being parallelized (for example, a table scan, table update, or index creation) into granules. Parallel execution processes execute the operation one granule at a time. The number of granules and their size correlates with the degree of parallelism (DOP). It also affects how well the work is balanced across query server processes. There is no way you can enforce a specific granule strategy as Oracle Database makes this decision internally.
Block range granules are the basic unit of most parallel operations, even on partitioned tables. Therefore, from an Oracle Database perspective, the degree of parallelism is not related to the number of partitions.
Block range granules are ranges of physical blocks from a table. The number and the size of the granules are computed during runtime by Oracle Database to optimize and balance the work distribution for all affected parallel execution servers. The number and size of granules are dependent upon the size of the object and the DOP. Block range granules do not depend on static preallocation of tables or indexes. During the computation of the granules, Oracle Database takes the DOP into account and tries to assign granules from different datafiles to each of the parallel execution servers to avoid contention whenever possible. Additionally, Oracle Database considers the disk affinity of the granules on MPP systems to take advantage of the physical proximity between parallel execution servers and disks.
When block range granules are used predominantly for parallel access to a table or index, administrative considerations (such as recovery or using partitions for deleting portions of data) might influence partition layout more than performance considerations.
When partition granules are used, a query server process works on an entire partition or subpartition of a table or index. Because partition granules are statically determined by the structure of the table or index when a table or index is created, partition granules do not give you the flexibility in parallelizing an operation that block granules do. The maximum allowable DOP is the number of partitions. This might limit the utilization of the system and the load balancing across parallel execution servers.
When partition granules are used for parallel access to a table or index, you should use a relatively large number of partitions (ideally, three times the DOP), so that Oracle can effectively balance work across the query server processes.
Partition granules are the basic unit of parallel index range scans, joins between two equipartitioned tables where the query optimizer has chosen to use partition-wise joins, and of parallel operations that modify multiple partitions of a partitioned index such as parallel creation of partitioned indexes. These operations include parallel creation of partitioned indexes, and parallel creation of partitioned tables.
The following types of parallelism are discussed in this section:
You can parallelize queries and subqueries in SELECT
statements. You can also parallelize the query portions of DDL statements and DML statements (INSERT
, UPDATE
, and DELETE
). You can also query external tables in parallel.
See Also:
"Operations That Can Be Parallelized" for information on the query operations that Oracle can parallelize
"Parallelizing SQL Statements" for an explanation of how the processes perform parallel queries
"Distributed Transaction Restrictions" for examples of queries that reference a remote object
"Rules for Parallelizing Queries" for information on the conditions for parallelizing a query and the factors that determine the DOP
The following parallel scan methods are supported on index-organized tables:
Parallel fast full scan of a nonpartitioned index-organized table
Parallel fast full scan of a partitioned index-organized table
Parallel index range scan of a partitioned index-organized table
These scan methods can be used for index-organized tables with overflow areas and for index-organized tables that contain LOBs.
Parallel query on a nonpartitioned index-organized table uses parallel fast full scan. The DOP is determined, in decreasing order of priority, by:
A PARALLEL
hint (if present)
An ALTER
SESSION
FORCE
PARALLEL
QUERY
statement
The parallel degree associated with the table, if the parallel degree is specified in the CREATE
TABLE
or ALTER
TABLE
statement
The allocation of work is done by dividing the index segment into a sufficiently large number of block ranges and then assigning the block ranges to parallel execution servers in a demand-driven manner. The overflow blocks corresponding to any row are accessed in a demand-driven manner only by the process which owns that row.
Both index range scan and fast full scan can be performed in parallel. For parallel fast full scan, parallelization is exactly the same as for nonpartitioned index-organized tables. For parallel index range scan on partitioned index-organized tables, the DOP is the minimum of the degree picked up from the previous priority list (like in parallel fast full scan) and the number of partitions in the index-organized table. Depending on the DOP, each parallel execution server gets one or more partitions (assigned in a demand-driven manner), each of which contains the primary key index segment and the associated overflow segment, if any.
Parallel queries can be performed on object type tables and tables containing object type columns. Parallel query for object types supports all of the features that are available for sequential queries on object types, including:
Methods on object types
Attribute access of object types
Constructors to create object type instances
Object views
PL/SQL and OCI queries for object types
There are no limitations on the size of the object types for parallel queries.
The following restrictions apply to using parallel query for object types.
A MAP
function is needed to parallelize queries involving joins and sorts (through ORDER
BY
, GROUP
BY
, or set operations). In the absence of a MAP
function, the query will automatically be executed serially.
Parallel DML and parallel DDL are not supported with object types. DML and DDL statements are always performed serially.
In all cases where the query cannot execute in parallel because of any of these restrictions, the whole query executes serially without giving an error message.
This section includes the following topics on parallelism for DDL statements:
You can parallelize DDL statements for tables and indexes that are nonpartitioned or partitioned. Table 25-3 summarizes the operations that can be parallelized in DDL statements.
The parallel DDL statements for nonpartitioned tables and indexes are:
CREATE
INDEX
CREATE
TABLE
... AS
SELECT
ALTER
INDEX
... REBUILD
The parallel DDL statements for partitioned tables and indexes are:
CREATE
INDEX
CREATE
TABLE
... AS
SELECT
ALTER
TABLE
... [MOVE|SPLIT|COALESCE]
PARTITION
ALTER
INDEX
... [REBUILD|SPLIT
] PARTITION
This statement can be executed in parallel only if the (global) index partition being split is usable.
All of these DDL operations can be performed in no-logging mode for either parallel or serial execution.
CREATE
TABLE
for an index-organized table can be parallelized either with or without an AS
SELECT
clause.
Different parallelism is used for different operations (see Table 25-3). Parallel CREATE
TABLE
... AS
SELECT
statements on partitioned tables and parallel CREATE
INDEX
statements on partitioned indexes execute with a DOP equal to the number of partitions.
Partition parallel analyze table is made less necessary by the ANALYZE
{TABLE, INDEX}
PARTITION
statements, since parallel analyze of an entire partitioned table can be constructed with multiple user sessions.
Parallel DDL cannot occur on tables with object columns. Parallel DDL cannot occur on non-partitioned tables with LOB
columns.
For performance reasons, decision support applications often require large amounts of data to be summarized or rolled up into smaller tables for use with ad hoc, decision support queries. Rollup occurs regularly (such as nightly or weekly) during a short period of system inactively.
Parallel execution lets you parallelize the query and create operations of creating a table as a subquery from another table or set of tables.
Clustered tables cannot be created and populated in parallel.

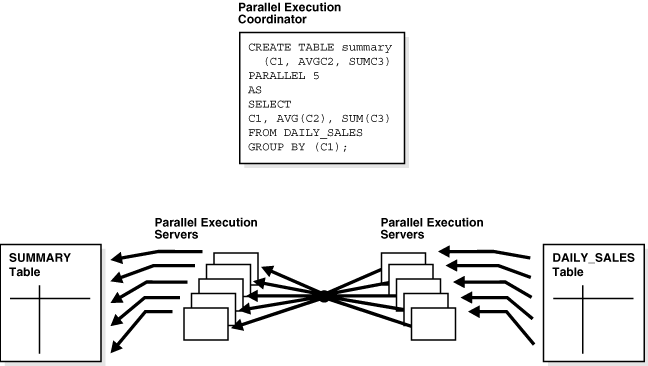

Figure 25-4 illustrates creating a table from a subquery in parallel.
Figure 25-4 Creating a Summary Table in Parallel
When summary table data is derived from other tables' data, recoverability from media failure for the smaller summary table may not be important and can be turned off during creation of the summary table.
If you disable logging during parallel table creation (or any other parallel DDL operation), you should back up the tablespace containing the table once the table is created to avoid loss of the table due to media failure.
Use the NOLOGGING
clause of the CREATE
TABLE
, CREATE
INDEX
, ALTER
TABLE
, and ALTER
INDEX
statements to disable undo and redo log generation.
Creating a table or index in parallel has space management implications that affect both the storage space required during a parallel operation and the free space available after a table or index has been created.
When creating a table or index in parallel, each parallel execution server uses the values in the STORAGE
clause of the CREATE
statement to create temporary segments to store the rows. Therefore, a table created with a NEXT
setting of 5 MB and a PARALLEL
DEGREE
of 12 consumes at least 60 megabytes (MB) of storage during table creation because each process starts with an extent of 5 MB. When the parallel execution coordinator combines the segments, some of the segments may be trimmed, and the resulting table may be smaller than the requested 60 MB.
When you create indexes and tables in parallel, each parallel execution server allocates a new extent and fills the extent with the table or index data. Thus, if you create an index with a DOP of 3, the index will have at least three extents initially. Allocation of extents is the same for rebuilding indexes in parallel and for moving, splitting, or rebuilding partitions in parallel.
Serial operations require the schema object to have at least one extent. Parallel creations require that tables or indexes have at least as many extents as there are parallel execution servers creating the schema object.
When you create a table or index in parallel, it is possible to create pockets of free space—either external or internal fragmentation. This occurs when the temporary segments used by the parallel execution servers are larger than what is needed to store the rows.
If the unused space in each temporary segment is larger than the value of the MINIMUM
EXTENT
parameter set at the tablespace level, then Oracle trims the unused space when merging rows from all of the temporary segments into the table or index. The unused space is returned to the system free space and can be allocated for new extents, but it cannot be coalesced into a larger segment because it is not contiguous space (external fragmentation).
If the unused space in each temporary segment is smaller than the value of the MINIMUM
EXTENT
parameter, then unused space cannot be trimmed when the rows in the temporary segments are merged. This unused space is not returned to the system free space; it becomes part of the table or index (internal fragmentation) and is available only for subsequent inserts or for updates that require additional space.
For example, if you specify a DOP of 3 for a CREATE
TABLE
... AS
SELECT
statement, but there is only one datafile in the tablespace, then internal fragmentation may occur, as shown in Figure 25-5. The pockets of free space within the internal table extents of a datafile cannot be coalesced with other free space and cannot be allocated as extents.
See Oracle Database Performance Tuning Guide for more information about creating tables and indexes in parallel.

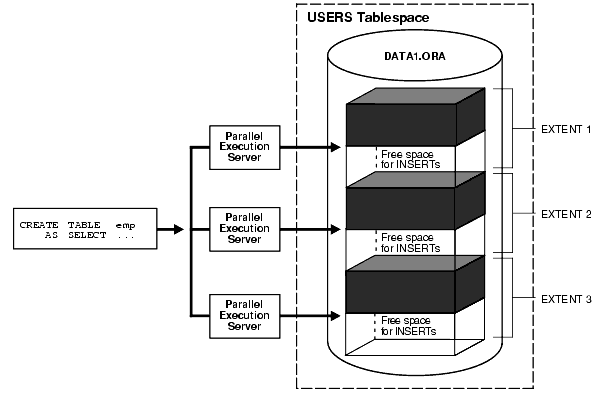

Figure 25-5 Unusable Free Space (Internal Fragmentation)
Parallel DML (PARALLEL
INSERT
, UPDATE
, DELETE
, and MERGE
) uses parallel execution mechanisms to speed up or scale up large DML operations against large database tables and indexes.
Note:
Although DML generally includes queries, in this chapter the term DML refers only to inserts, updates, merges, and deletes.This section discusses the following parallel DML topics:
You can parallelize DML operations manually by issuing multiple DML statements simultaneously against different sets of data. For example, you can parallelize manually by:
Issuing multiple INSERT
statements to multiple instances of an Oracle Real Application Clusters to make use of free space from multiple free list blocks.
Issuing multiple UPDATE
and DELETE
statements with different key value ranges or rowid ranges.
However, manual parallelism has the following disadvantages:
It is difficult to use. You have to open multiple sessions (possibly on different instances) and issue multiple statements.
There is a lack of transactional properties. The DML statements are issued at different times; and, as a result, the changes are done with inconsistent snapshots of the database. To get atomicity, the commit or rollback of the various statements must be coordinated manually (maybe across instances).
The work division is complex. You may have to query the table in order to find out the rowid or key value ranges to correctly divide the work.
The calculation is complex. The calculation of the degree of parallelism can be complex.
There is a lack of affinity and resource information. You need to know affinity information to issue the right DML statement at the right instance when running an Oracle Real Application Clusters. You also have to find out about current resource usage to balance workload across instances.
Parallel DML removes these disadvantages by performing inserts, updates, and deletes in parallel automatically.
Parallel DML operations are mainly used to speed up large DML operations against large database objects. Parallel DML is useful in a DSS environment where the performance and scalability of accessing large objects are important. Parallel DML complements parallel query in providing you with both querying and updating capabilities for your DSS databases.
The overhead of setting up parallelism makes parallel DML operations infeasible for short OLTP transactions. However, parallel DML operations can speed up batch jobs running in an OLTP database.
Some of the scenarios where parallel DML is used include:
In a data warehouse system, large tables need to be refreshed (updated) periodically with new or modified data from the production system. You can do this efficiently by using parallel DML combined with updatable join views. You can also use the MERGE
statement.
The data that needs to be refreshed is generally loaded into a temporary table before starting the refresh process. This table contains either new rows or rows that have been updated since the last refresh of the data warehouse. You can use an updatable join view with parallel UPDATE
to refresh the updated rows, and you can use an anti-hash join with parallel INSERT
to refresh the new rows.
In a DSS environment, many applications require complex computations that involve constructing and manipulating many large intermediate summary tables. These summary tables are often temporary and frequently do not need to be logged. Parallel DML can speed up the operations against these large intermediate tables. One benefit is that you can put incremental results in the intermediate tables and perform parallel update.
In addition, the summary tables may contain cumulative or comparison information which has to persist beyond application sessions; thus, temporary tables are not feasible. Parallel DML operations can speed up the changes to these large summary tables.
Many DSS applications score customers periodically based on a set of criteria. The scores are usually stored in large DSS tables. The score information is then used in making a decision, for example, inclusion in a mailing list.
This scoring activity queries and updates a large number of rows in the large table. Parallel DML can speed up the operations against these large tables.
Historical tables describe the business transactions of an enterprise over a recent time interval. Periodically, the DBA deletes the set of oldest rows and inserts a set of new rows into the table. Parallel INSERT
... SELECT
and parallel DELETE
operations can speed up this rollover task.
Although you can also use parallel direct loader (SQL*Loader) to insert bulk data from an external source, parallel INSERT
... SELECT
is faster for inserting data that already exists in another table in the database.
Dropping a partition can also be used to delete old rows. However, to do this, the table has to be partitioned by date and with the appropriate time interval.
Batch jobs executed in an OLTP database during off hours have a fixed time window in which the jobs must complete. A good way to ensure timely job completion is to parallelize their operations. As the work load increases, more machine resources can be added; the scaleup property of parallel operations ensures that the time constraint can be met.
A DML statement can be parallelized only if you have explicitly enabled parallel DML in the session with the ENABLE
PARALLEL
DML
clause of the ALTER
SESSION
statement. This mode is required because parallel DML and serial DML have different locking, transaction, and disk space requirements.
The default mode of a session is DISABLE
PARALLEL
DML
. When parallel DML is disabled, no DML will be executed in parallel even if the PARALLEL
hint is used.
When parallel DML is enabled in a session, all DML statements in this session will be considered for parallel execution. However, even if parallel DML is enabled, the DML operation may still execute serially if there are no parallel hints or no tables with a parallel attribute or if restrictions on parallel operations are violated.
The session's PARALLEL
DML
mode does not influence the parallelism of SELECT
statements, DDL statements, and the query portions of DML statements. Thus, if this mode is not set, the DML operation is not parallelized, but scans or join operations within the DML statement may still be parallelized.
To execute a DML operation in parallel, the parallel execution coordinator acquires or spawns parallel execution servers, and each parallel execution server executes a portion of the work under its own parallel process transaction.
Each parallel execution server creates a different parallel process transaction.
If you use rollback segments instead of Automatic Undo Management, you may want to reduce contention on the rollback segments. To do this, only a few parallel process transactions should reside in the same rollback segment. See Oracle Database SQL Reference for more information.
The coordinator also has its own coordinator transaction, which can have its own rollback segment. In order to ensure user-level transactional atomicity, the coordinator uses a two-phase commit protocol to commit the changes performed by the parallel process transactions.
A session that is enabled for parallel DML may put transactions in the session in a special mode: If any DML statement in a transaction modifies a table in parallel, no subsequent serial or parallel query or DML statement can access the same table again in that transaction. This means that the results of parallel modifications cannot be seen during the transaction.
Serial or parallel statements that attempt to access a table that has already been modified in parallel within the same transaction are rejected with an error message.
If a PL/SQL procedure or block is executed in a parallel DML enabled session, then this rule applies to statements in the procedure or block.
If you use rollback segments instead of Automatic Undo Management, there are some restrictions when using parallel DML. See Oracle Database SQL Reference for information about restrictions for parallel DML and rollback segments.
The time required to roll back a parallel DML operation is roughly equal to the time it takes to perform the forward operation.
Oracle supports parallel rollback after transaction and process failures, and after instance and system failures. Oracle can parallelize both the rolling forward stage and the rolling back stage of transaction recovery.
See Oracle Database Backup and Recovery Basics for details about parallel rollback.
A user-issued rollback in a transaction failure due to statement error is performed in parallel by the parallel execution coordinator and the parallel execution servers. The rollback takes approximately the same amount of time as the forward transaction.
Recovery from the failure of a parallel execution coordinator or parallel execution server is performed by the PMON process. If a parallel execution server or a parallel execution coordinator fails, PMON rolls back the work from that process and all other processes in the transaction roll back their changes.
Recovery from a system failure requires a new startup. Recovery is performed by the SMON process and any recovery server processes spawned by SMON. Parallel DML statements may be recovered using parallel rollback. If the initialization parameter COMPATIBLE
is set to 8.1.3 or greater, Fast-Start On-Demand Rollback enables terminated transactions to be recovered, on demand one block at a time.
Parallel UPDATE
uses the space in the existing object, while direct-path INSERT
gets new segments for the data.
Space usage characteristics may be different in parallel than sequential execution because multiple concurrent child transactions modify the object.
A parallel DML operation's lock and enqueue resource requirements are very different from the serial DML requirements. Parallel DML holds many more locks, so you should increase the starting value of the ENQUEUE_RESOURCES
and DML_LOCKS
parameters. See "DML_LOCKS" for more information.
The following restrictions apply to parallel DML (including direct-path INSERT
):
Intra-partition parallelism for UPDATE
, MERGE
, and DELETE
operations require that the COMPATIBLE
initialization parameter be set to 9.2 or greater.
The INSERT
VALUES
statement is never parallelized.
A transaction can contain multiple parallel DML statements that modify different tables, but after a parallel DML statement modifies a table, no subsequent serial or parallel statement (DML or query) can access the same table again in that transaction.
This restriction also exists after a serial direct-path INSERT
statement: no subsequent SQL statement (DML or query) can access the modified table during that transaction.
Queries that access the same table are allowed before a parallel DML or direct-path INSERT
statement, but not after.
Any serial or parallel statements attempting to access a table that has already been modified by a parallel UPDATE
, DELETE
, or MERGE
, or a direct-path INSERT
during the same transaction are rejected with an error message.
Parallel DML operations cannot be done on tables with triggers.
Replication functionality is not supported for parallel DML.
Parallel DML cannot occur in the presence of certain constraints: self-referential integrity, delete cascade, and deferred integrity. In addition, for direct-path INSERT
, there is no support for any referential integrity.
Parallel DML can be done on tables with object columns provided you are not touching the object columns.
Parallel DML can be done on tables with LOB
columns provided the table is partitioned. However, intra-partition parallelism is not supported.
A transaction involved in a parallel DML operation cannot be or become a distributed transaction.
Clustered tables are not supported.
Violations of these restrictions cause the statement to execute serially without warnings or error messages (except for the restriction on statements accessing the same table in a transaction, which can cause error messages). For example, an update is serialized if it is on a nonpartitioned table.
You can only update the partitioning key of a partitioned table to a new value if the update does not cause the row to move to a new partition. The update is possible if the table is defined with the row movement clause enabled.
The function restrictions for parallel DML are the same as those for parallel DDL and parallel query. See "Parallel Execution of Functions" for more information.
This section describes the interactions of integrity constraints and parallel DML statements.
These types of integrity constraints are allowed. They are not a problem for parallel DML because they are enforced on the column and row level, respectively.
Restrictions for referential integrity occur whenever a DML operation on one table could cause a recursive DML operation on another table. These restrictions also apply when, in order to perform an integrity check, it is necessary to see simultaneously all changes made to the object being modified.
Table 25-1 lists all of the operations that are possible on tables that are involved in referential integrity constraints.
Table 25-1 Referential Integrity Restrictions
DML Statement | Issued on Parent | Issued on Child | Self-Referential |
---|---|---|---|
|
(Not applicable) |
Not parallelized |
Not parallelized |
|
(Not applicable) |
Not parallelized |
Not parallelized |
|
Supported |
Supported |
Not parallelized |
|
Supported |
Supported |
Not parallelized |
|
Not parallelized |
(Not applicable) |
Not parallelized |
Delete on tables having a foreign key with delete cascade is not parallelized because parallel execution servers will try to delete rows from multiple partitions (parent and child tables).
A DML operation will not be parallelized if the affected tables contain enabled triggers that may get fired as a result of the statement. This implies that DML statements on tables that are being replicated will not be parallelized.
Relevant triggers must be disabled in order to parallelize DML on the table. Note that, if you enable or disable triggers, the dependent shared cursors are invalidated.
A DML operation cannot be parallelized if it is in a distributed transaction or if the DML or the query operation is against a remote object.
This section contains several examples of distributed transaction processing.
Example 25-1 Distributed Transaction Parallelization
In this example, the DML statement queries a remote object:
INSERT /* APPEND PARALLEL (t3,2) */ INTO t3 SELECT * FROM t4@dblink;
The query operation is executed serially without notification because it references a remote object.
Example 25-2 Distributed Transaction Parallelization
In this example, the DML operation is applied to a remote object:
DELETE /*+ PARALLEL (t1, 2) */ FROM t1@dblink;
The DELETE
operation is not parallelized because it references a remote object.
Example 25-3 Distributed Transaction Parallelization
In this example, the DML operation is in a distributed transaction:
SELECT * FROM t1@dblink; DELETE /*+ PARALLEL (t2,2) */ FROM t2; COMMIT;
The DELETE
operation is not parallelized because it occurs in a distributed transaction (which is started by the SELECT
statement).
SQL statements can contain user-defined functions written in PL/SQL, in Java, or as external procedures in C that can appear as part of the SELECT
list, SET
clause, or WHERE
clause. When the SQL statement is parallelized, these functions are executed on a per-row basis by the parallel execution server. Any PL/SQL package variables or Java static attributes used by the function are entirely private to each individual parallel execution process and are newly initialized when each row is processed, rather than being copied from the original session. Because of this, not all functions will generate correct results if executed in parallel.
User-written table functions can appear in the statement's FROM
list. These functions act like source tables in that they output rows. Table functions are initialized once during the statement at the start of each parallel execution process. All variables are entirely private to the parallel execution process.
In a SELECT
statement or a subquery in a DML or DDL statement, a user-written function may be executed in parallel if it has been declared with the PARALLEL_ENABLE
keyword, if it is declared in a package or type and has a PRAGMA
RESTRICT_REFERENCES
that indicates all of WNDS
, RNPS
, and WNPS
, or if it is declared with CREATE
FUNCTION
and the system can analyze the body of the PL/SQL code and determine that the code neither writes to the database nor reads or modifies package variables.
Other parts of a query or subquery can sometimes execute in parallel even if a given function execution must remain serial.
See Oracle Database Application Developer's Guide - Fundamentals for information about the PRAGMA
RESTRICT_REFERENCES
and Oracle Database SQL Reference for information about CREATE
FUNCTION
.
In a parallel DML or DDL statement, as in a parallel query, a user-written function may be executed in parallel if it has been declared with the PARALLEL_ENABLE
keyword, if it is declared in a package or type and has a PRAGMA
RESTRICT_REFERENCES
that indicates all of RNDS
, WNDS
, RNPS
, and WNPS
, or if it is declared with CREATE
FUNCTION
and the system can analyze the body of the PL/SQL code and determine that the code neither reads nor writes to the database or reads nor modifies package variables.
For a parallel DML statement, any function call that cannot be executed in parallel causes the entire DML statement to be executed serially.
For an INSERT
... SELECT
or CREATE
TABLE
... AS
SELECT
statement, function calls in the query portion are parallelized according to the parallel query rules in the prior paragraph. The query may be parallelized even if the remainder of the statement must execute serially, or vice versa.
In addition to parallel SQL execution, Oracle can use parallelism for the following types of operations:
Parallel recovery
Parallel propagation (replication)
Parallel load (the SQL*Loader utility)
Like parallel SQL, parallel recovery and propagation are performed by a parallel execution coordinator and multiple parallel execution servers. Parallel load, however, uses a different mechanism.
The behavior of the parallel execution coordinator and parallel execution servers may differ, depending on what kind of operation they perform (SQL, recovery, or propagation). For example, if all parallel execution servers in the pool are occupied and the maximum number of parallel execution servers has been started:
In parallel SQL, the parallel execution coordinator switches to serial processing.
In parallel propagation, the parallel execution coordinator returns an error.
For a given session, the parallel execution coordinator coordinates only one kind of operation. A parallel execution coordinator cannot coordinate, for example, parallel SQL and parallel recovery or propagation at the same time.
See Also:
Oracle Database Utilities for information about parallel load and SQL*Loader
Oracle Database Backup and Recovery Basics for information about parallel media recovery
Oracle Database Performance Tuning Guide for information about parallel instance recovery
Oracle Database Advanced Replication for information about parallel propagation
Parallel execution is enabled by default. The initial computed values of the parallel execution parameters should be acceptable for the majority of installations. These parameters affect memory usage and the degree of parallelism used for parallel operations.
Oracle Database computes defaults for these parameters based on the value at database startup of CPU_COUNT
and PARALLEL_THREADS_PER_CPU
. The parameters can also be manually tuned, increasing or decreasing their values to suit specific system configurations or performance goals. For example:
On systems where parallel execution will never be used, PARALLEL_MAX_SERVERS
can be set to zero.
On large systems with abundant SGA memory, PARALLEL_EXECUTION_MESSAGE_SIZE
can be increased to improve throughput.
You can also manually tune parallel execution parameters; however, Oracle recommends using default settings for parallel execution. Manual tuning of parallel execution is more complex than using default settings for two reasons: manual parallel execution tuning requires more attentive administration than automated tuning, and manual tuning is prone to user-load and system-resource miscalculations.
Initializing and tuning parallel execution involves the following steps:
How Oracle Determines the Degree of Parallelism for Operations
Degree of Parallelism and Adaptive Multiuser: How They Interact
By default, Oracle automatically sets parallel execution parameters, as shown in Table 25-2. For most systems, you do not need to make further adjustments to have an adequately tuned parallel execution environment.
Table 25-2 Parameters and Their Defaults
Parameter | Default | Comments |
---|---|---|
|
|
Causes parallel execution SQL to throttle DOP requests to prevent system overload. |
|
|
Specifies the maximum number of parallel execution processes and parallel recovery processes for an instance. As demand increases, Oracle increases the number of processes from the number created at instance startup up to this value. If you set this parameter too low, some queries may not have a parallel execution process available to them during query processing. If you set it too high, memory resource shortages may occur during peak periods, which can degrade performance. |
|
2 KB (port specific) |
Increase to 4k or 8k to improve parallel execution performance if sufficient SGA memory exists. |
Note that you can set some parameters in such a way that Oracle will be constrained. For example, if you set PROCESSES
to 20, you will not be able to get 25 slaves.
The parallel execution coordinator may enlist two or more of the instance's parallel execution servers to process a SQL statement. The number of parallel execution servers associated with a single operation is known as the degree of parallelism.
The DOP is specified in the following ways:
At the statement level with hints and with the PARALLEL
clause
At the session level by issuing the ALTER
SESSION
FORCE
PARALLEL
statement
At the table level in the table's definition
At the index level in the index's definition
The following example shows a statement that sets the DOP to 4 on a table:
ALTER TABLE orders PARALLEL 4;
This next example sets the DOP on an index to 4:
ALTER INDEX iorders PARALLEL 4;
This last example sets a hint to 4 on a query:
SELECT /*+ PARALLEL(orders, 4) */ COUNT(*) FROM orders;
Note that the DOP applies directly only to intraoperation parallelism. If interoperation parallelism is possible, the total number of parallel execution servers for a statement can be twice the specified DOP. No more than two operations can be performed simultaneously.
Parallel execution is designed to effectively use multiple CPUs and disks to answer queries quickly. When multiple users employ parallel execution at the same time, available CPU, memory, and disk resources may be quickly exhausted. Oracle provides several ways to deal with resource utilization in conjunction with parallel execution, including:
The adaptive multiuser algorithm, which reduces the DOP as the load on the system increases. By default, the adaptive multiuser algorithm is enabled, which optimizes the performance of systems with concurrent parallel SQL execution operations.
User resource limits and profiles, which allow you to set limits on the amount of various system resources available to each user as part of a user's security domain.
The Database Resource Manager, which enables you to allocate resources to different groups of users.
The parallel execution coordinator determines the DOP by considering several specifications. The coordinator:
Checks for hints or a PARALLEL
clause specified in the SQL statement itself.
Checks for a session value set by the ALTER
SESSION
FORCE
PARALLEL
statement.
Looks at the table's or index's definition.
After a DOP is found in one of these specifications, it becomes the DOP for the operation.
Hints, PARALLEL
clauses, table or index definitions, and default values only determine the number of parallel execution servers that the coordinator requests for a given operation. The actual number of parallel execution servers used depends upon how many processes are available in the parallel execution server pool and whether interoperation parallelism is possible.
See Also:
You can specify hints in a SQL statement to set the DOP for a table or index and for the caching behavior of the operation.
The PARALLEL
hint is used only for operations on tables. You can use it to parallelize queries and DML statements (INSERT
, UPDATE
, MERGE
, and DELETE
).
The PARALLEL_INDEX
hint parallelizes an index range scan of a partitioned index. (In an index operation, the PARALLEL
hint is not valid and is ignored.)
See Oracle Database Performance Tuning Guide for information about using hints in SQL statements and the specific syntax for the PARALLEL
, NO_PARALLEL
, PARALLEL_INDEX
, CACHE
, and NOCACHE
hints.
You can specify the DOP within a table or index definition by using one of the following statements: CREATE
TABLE
, ALTER
TABLE
, CREATE
INDEX
, or ALTER
INDEX
.
The default DOP is used when you ask to parallelize an operation but you do not specify a DOP in a hint or within the definition of a table or index. The default DOP is appropriate for most applications.
The default DOP for a SQL statement is determined by the following factors:
The value of the parameter CPU_COUNT
, which is, by default, the number of CPUs on the system, the number of RAC instances, and the value of the parameter PARALLEL_THREADS_PER_CPU
.
For parallelizing by partition, the number of partitions that will be accessed, based on partition pruning.
For parallel DML operations with global index maintenance, the minimum number of transaction free lists among all the global indexes to be updated. The minimum number of transaction free lists for a partitioned global index is the minimum number across all index partitions. This is a requirement to prevent self-deadlock.
These factors determine the default number of parallel execution servers to use. However, the actual number of processes used is limited by their availability on the requested instances during run time. The initialization parameter PARALLEL_MAX_SERVERS
sets an upper limit on the total number of parallel execution servers that an instance can have.
If a minimum fraction of the desired parallel execution servers is not available (specified by the initialization parameter PARALLEL_MIN_PERCENT
), a user error is produced. You can retry the query when the system is less busy.
With the adaptive multiuser algorithm, the parallel execution coordinator varies the DOP according to the system load. Oracle determines the load by calculating the number of active Oracle Server processes. If the number of server processes currently allocated is larger than the optimal number of server processes, given the number of available CPUs, the algorithm reduces the DOP. This reduction improves total system throughput by avoiding overallocation of resources.
Oracle can perform an operation in parallel as long as at least two parallel execution servers are available. If too few parallel execution servers are available, your SQL statement may execute slower than expected. You can specify the minimum percentage of requested parallel execution servers that must be available in order for the operation to execute. This strategy ensures that your SQL statement executes with a minimum acceptable parallel performance. If the minimum percentage of requested parallel execution servers is not available, the SQL statement does not execute and returns an error ora 12827.
The initialization parameter PARALLEL_MIN_PERCENT
specifies the desired minimum percentage of requested parallel execution servers. This parameter affects DML and DDL operations as well as queries.
For example, if you specify 50 for this parameter, then at least 50 percent of the parallel execution servers requested for any parallel operation must be available in order for the operation to succeed. If 20 parallel execution servers are requested, then at least 10 must be available or an error is returned to the user. If PARALLEL_MIN_PERCENT
is set to null, then all parallel operations will proceed as long as at least two parallel execution servers are available for processing.
In Oracle Real Application Clusters, instance groups can be used to limit the number of instances that participate in a parallel operation. You can create any number of instance groups, each consisting of one or more instances. You can then specify which instance group is to be used for any or all parallel operations. Parallel execution servers will only be used on instances which are members of the specified instance group. See Oracle Database Oracle Clusterware and Oracle Real Application Clusters Administration and Deployment Guide for more information about instance groups.
To optimize performance, all parallel execution servers should have equal workloads. For SQL statements parallelized by block range or by parallel execution servers, the workload is dynamically divided among the parallel execution servers. This minimizes workload skewing, which occurs when some parallel execution servers perform significantly more work than the other processes.
For the relatively few SQL statements parallelized by partitions, if the workload is evenly distributed among the partitions, you can optimize performance by matching the number of parallel execution servers to the number of partitions or by choosing a DOP in which the number of partitions is a multiple of the number of processes. This applies to partition-wise joins and PDML on tables created before Oracle9i Database. See "Limitation on the Degree of Parallelism" for details regarding this topic.
For example, suppose a table has 10 partition, and a parallel operation divides the work evenly among them. You can use 10 parallel execution servers (DOP equals 10) to do the work in approximately one-tenth the time that one process would take. You might also use five processes to do the work in one-fifth the time, or two processes to do the work in one-half the time.
If, however, you use nine processes to work on 10 partitions, the first process to finish its work on one partition then begins work on the 10th partition; and as the other processes finish their work, they become idle. This configuration does not provide good performance when the work is evenly divided among partitions. When the work is unevenly divided, the performance varies depending on whether the partition that is left for last has more or less work than the other partitions.
Similarly, suppose you use four processes to work on 10 partitions and the work is evenly divided. In this case, each process works on a second partition after finishing its first partition, but only two of the processes work on a third partition while the other two remain idle.
In general, you cannot assume that the time taken to perform a parallel operation on a given number of partitions (N) with a given number of parallel execution servers (P) will be N/P. This formula does not take into account the possibility that some processes might have to wait while others finish working on the last partitions. By choosing an appropriate DOP, however, you can minimize the workload skew and optimize performance.
A SQL statement can be parallelized if it includes a parallel hint or if the table or index being operated on has been declared PARALLEL
with a CREATE
or ALTER
statement. In addition, a DDL statement can be parallelized by using the PARALLEL
clause. However, not all of these methods apply to all types of SQL statements.
Parallelization has two components: the decision to parallelize and the DOP. These components are determined differently for queries, DDL operations, and DML operations.
To determine the DOP, Oracle looks at the reference objects:
Parallel query looks at each table and index, in the portion of the query being parallelized, to determine which is the reference table. The basic rule is to pick the table or index with the largest DOP.
For parallel DML (INSERT
, UPDATE
, MERGE
, and DELETE
), the reference object that determines the DOP is the table being modified by an insert, update, or delete operation. Parallel DML also adds some limits to the DOP to prevent deadlock. If the parallel DML statement includes a subquery, the subquery's DOP is the same as the DML operation.
For parallel DDL, the reference object that determines the DOP is the table, index, or partition being created, rebuilt, split, or moved. If the parallel DDL statement includes a subquery, the subquery's DOP is the same as the DDL operation.
This section discusses some rules for parallelizing queries.
A SELECT
statement can be parallelized only if the following conditions are satisfied:
The query includes a parallel hint specification (PARALLEL
or PARALLEL_INDEX
) or the schema objects referred to in the query have a PARALLEL
declaration associated with them.
At least one of the tables specified in the query requires one of the following:
A full table scan
An index range scan spanning multiple partitions
No scalar subqueries are in the SELECT
list.
The DOP for a query is determined by the following rules:
The query uses the maximum DOP taken from all of the table declarations involved in the query and all of the potential indexes that are candidates to satisfy the query (the reference objects). That is, the table or index that has the greatest DOP determines the query's DOP (maximum query directive).
If a table has both a parallel hint specification in the query and a parallel declaration in its table specification, the hint specification takes precedence over parallel declaration specification. See Table 25-3 for precedence rules.
UPDATE
, MERGE
, and DELETE
operations are parallelized by partition or subpartition. Update, merge, and delete parallelism are not possible within a partition, nor on a nonpartitioned table. See "Limitation on the Degree of Parallelism" for a possible restriction.
You have two ways to specify parallel directives for UPDATE
, MERGE
, and DELETE
operations (assuming that PARALLEL
DML
mode is enabled):
Use a parallel clause in the definition of the table being updated or deleted (the reference object).
Use an update, merge, or delete parallel hint in the statement.
Parallel hints are placed immediately after the UPDATE
, MERGE
, or DELETE
keywords in UPDATE
, MERGE
, and DELETE
statements. The hint also applies to the underlying scan of the table being changed.
You can use the ALTER
SESSION
FORCE
PARALLEL
DML
statement to override parallel clauses for subsequent UPDATE
, MERGE
, and DELETE
statements in a session. Parallel hints in UPDATE
, MERGE
, and DELETE
statements override the ALTER
SESSION
FORCE
PARALLEL
DML
statement.
The following rule determines whether the UPDATE
, MERGE
, or DELETE
operation should be parallelized:
The UPDATE
or DELETE
operation will be parallelized if and only if at least one of the following is true:
The table being updated or deleted has a PARALLEL
specification.
The PARALLEL
hint is specified in the DML statement.
An ALTER
SESSION
FORCE
PARALLEL
DML
statement has been issued previously during the session.
If the statement contains subqueries or updatable views, then they may have their own separate parallel hints or clauses. However, these parallel directives do not affect the decision to parallelize the UPDATE
, MERGE
, or DELETE
.
The parallel hint or clause on the tables is used by both the query and the UPDATE
, MERGE
, DELETE
portions to determine parallelism, the decision to parallelize the UPDATE
, MERGE
, or DELETE
portion is made independently of the query portion, and vice versa.
The DOP is determined by the same rules as for the queries. Note that in the case of UPDATE
and DELETE
operations, only the target table to be modified (the only reference object) is involved. Thus, the UPDATE
or DELETE
parallel hint specification takes precedence over the parallel declaration specification of the target table. In other words, the precedence order is: MERGE
, UPDATE
, DELETE
hint > Session > Parallel declaration specification of target table. See Table 25-3 for precedence rules.
A parallel execution server can update or merge into, or delete from multiple partitions, but each partition can only be updated or deleted by one parallel execution server.
If the DOP is less than the number of partitions, then the first process to finish work on one partition continues working on another partition, and so on until the work is finished on all partitions. If the DOP is greater than the number of partitions involved in the operation, then the excess parallel execution servers will have no work to do.
Example 25-4 Parallelization: Example 1
UPDATE tbl_1 SET c1=c1+1 WHERE c1>100;
If tbl_1
is a partitioned table and its table definition has a parallel clause, then the update operation is parallelized even if the scan on the table is serial (such as an index scan), assuming that the table has more than one partition with c1
greater than 100.
An INSERT
... SELECT
statement parallelizes its INSERT
and SELECT
operations independently, except for the DOP.
You can specify a parallel hint after the INSERT
keyword in an INSERT
... SELECT
statement. Because the tables being queried are usually not the same as the table being inserted into, the hint enables you to specify parallel directives specifically for the insert operation.
You have the following ways to specify parallel directives for an INSERT
... SELECT
statement (assuming that PARALLEL
DML
mode is enabled):
SELECT
parallel hints specified at the statement
Parallel clauses specified in the definition of tables being selected
INSERT
parallel hint specified at the statement
Parallel clause specified in the definition of tables being inserted into
You can use the ALTER
SESSION
FORCE
PARALLEL
DML
statement to override parallel clauses for subsequent INSERT
operations in a session. Parallel hints in insert operations override the ALTER
SESSION
FORCE
PARALLEL
DML
statement.
The following rule determines whether the INSERT
operation should be parallelized in an INSERT
... SELECT
statement:
The INSERT
operation will be parallelized if and only if at least one of the following is true:
The PARALLEL
hint is specified after the INSERT
in the DML statement.
The table being inserted into (the reference object) has a PARALLEL
declaration specification.
An ALTER
SESSION
FORCE
PARALLEL
DML
statement has been issued previously during the session.
The decision to parallelize the INSERT
operation is made independently of the SELECT
operation, and vice versa.
Once the decision to parallelize the SELECT
or INSERT
operation is made, one parallel directive is picked for deciding the DOP of the whole statement, using the following precedence rule Insert hint directive > Session> Parallel declaration specification of the inserting table > Maximum query directive.
In this context, maximum query directive means that among multiple tables and indexes, the table or index that has the maximum DOP determines the parallelism for the query operation.
The chosen parallel directive is applied to both the SELECT
and INSERT
operations.
You need to keep the following in mind when parallelizing DDL statements.
DDL operations can be parallelized if a PARALLEL
clause (declaration) is specified in the syntax. In the case of CREATE
INDEX
and ALTER
INDEX
... REBUILD
or ALTER
INDEX
... REBUILD
PARTITION
, the parallel declaration is stored in the data dictionary.
You can use the ALTER
SESSION
FORCE
PARALLEL
DDL
statement to override the parallel clauses of subsequent DDL statements in a session.
The DOP is determined by the specification in the PARALLEL
clause, unless it is overridden by an ALTER
SESSION
FORCE
PARALLEL
DDL
statement. A rebuild of a partitioned index is never parallelized.
Parallel clauses in CREATE
TABLE
and ALTER
TABLE
statements specify table parallelism. If a parallel clause exists in a table definition, it determines the parallelism of DDL statements as well as queries. If the DDL statement contains explicit parallel hints for a table, however, those hints override the effect of parallel clauses for that table. You can use the ALTER
SESSION
FORCE
PARALLEL
DDL
statement to override parallel clauses.
The following rules apply:
The CREATE
INDEX
and ALTER
INDEX
... REBUILD
statements can be parallelized only by a PARALLEL
clause or an ALTER
SESSION
FORCE
PARALLEL
DDL
statement.
ALTER
INDEX
... REBUILD
can be parallelized only for a nonpartitioned index, but ALTER
INDEX
... REBUILD
PARTITION
can be parallelized by a PARALLEL
clause or an ALTER
SESSION
FORCE
PARALLEL
DDL
statement.
The scan operation for ALTER
INDEX
... REBUILD
(nonpartitioned), ALTER
INDEX
... REBUILD
PARTITION
, and CREATE
INDEX
has the same parallelism as the REBUILD
or CREATE
operation and uses the same DOP. If the DOP is not specified for REBUILD
or CREATE
, the default is the number of CPUs.
The ALTER
INDEX
... MOVE
PARTITION
and ALTER
IN
DEX
...SPLIT
PARTITION
statements can be parallelized only by a PARALLEL
clause or an ALTER
SESSION
FORCE
PARALLEL
DDL
statement. Their scan operations have the same parallelism as the corresponding MOVE
or SPLIT
operations. If the DOP is not specified, the default is the number of CPUs.
The CREATE
TABLE
... AS
SELECT
statement contains two parts: a CREATE
part (DDL) and a SELECT
part (query). Oracle can parallelize both parts of the statement. The CREATE
part follows the same rules as other DDL operations.
The query part of a CREATE
TABLE
... AS
SELECT
statement can be parallelized only if the following conditions are satisfied:
The query includes a parallel hint specification (PARALLEL
or PARALLEL_INDEX
) or the CREATE
part of the statement has a PARALLEL
clause specification or the schema objects referred to in the query have a PARALLEL
declaration associated with them.
At least one of the tables specified in the query requires one of the following: a full table scan or an index range scan spanning multiple partitions.
The DOP for the query part of a CREATE
TABLE
... AS
SELECT
statement is determined by one of the following rules:
The query part uses the values specified in the PARALLEL
clause of the CREATE
part.
If the PARALLEL
clause is not specified, the default DOP is the number of CPUs.
If the CREATE
is serial, then the DOP is determined by the query.
Note that any values specified in a hint for parallelism are ignored.
The CREATE
operation of CREATE
TABLE
... AS
SELECT
can be parallelized only by a PARALLEL
clause or an ALTER
SESSION
FORCE
PARALLEL
DDL
statement.
When the CREATE
operation of CREATE
TABLE
... AS
SELECT
is parallelized, Oracle also parallelizes the scan operation if possible. The scan operation cannot be parallelized if, for example:
The SELECT
clause has a NO_PARALLEL
hint
The operation scans an index of a nonpartitioned table
When the CREATE
operation is not parallelized, the SELECT
can be parallelized if it has a PARALLEL
hint or if the selected table (or partitioned index) has a parallel declaration.
The DOP for the CREATE
operation, and for the SELECT
operation if it is parallelized, is specified by the PARALLEL
clause of the CREATE
statement, unless it is overridden by an ALTER
SESSION
FORCE
PARALLEL
DDL
statement. If the PARALLEL
clause does not specify the DOP, the default is the number of CPUs.
Table 25-3 shows how various types of SQL statements can be parallelized and indicates which methods of specifying parallelism take precedence.
The priority (1) specification overrides priority (2) and priority (3).
The priority (2) specification overrides priority (3).
Table 25-3 Parallelization Priority Order: By Clause, Hint, or Underlying Table/Index Declaration
Parallel Operation | PARALLEL Hint | PARALLEL Clause | ALTER SESSION | Parallel Declaration |
---|---|---|---|---|
Parallel query table scan (partitioned or nonpartitioned table) |
1) |
2) |
3) of table |
|
Parallel query index range scan (partitioned index) |
1) |
2) |
2) of index |
|
Parallel |
1) |
3) of table being updated or deleted from |
||
|
1) |
3) of table being inserted into |
||
|
Takes degree from |
Takes degree from |
Takes degree from |
Takes degree from |
|
1) |
2) of table being selected from |
||
|
Note: Hint in the |
2) |
||
|
Takes degree from |
Takes degree from |
Takes degree from |
Takes degree from |
|
1) |
2) of querying tables or partitioned indexes |
||
Parallel |
2) |
|||
Parallel |
2) |
1) |
||
|
||||
Parallel |
2) |
1) |
||
Parallel |
2) |
The DOP of tables involved in parallel operations affect the DOP for operations on those tables. Therefore, after setting parallel tuning parameters, you must also enable parallel execution for each table you want parallelized, using the PARALLEL
clause of the CREATE
TABLE
or ALTER
TABLE
statements. You can also use the PARALLEL
hint with SQL statements to enable parallelism for that operation only, or use the FORCE
option of the ALTER
SESSION
statement to enable parallelism for all subsequent operations in the session.
When you parallelize tables, you can also specify the DOP or allow Oracle to use a default DOP. The value of the default DOP is derived automatically, based on the value of PARALLEL_THREADS_PER_CPU
and the number of CPUs available to Oracle.
ALTER TABLE employees PARALLEL; -- uses default DOP ALTER TABLE employees PARALLEL 4; -- users DOP of 4
The DOP specifies the number of available processes, or threads, used in parallel operations. Each parallel thread can use one or two query processes, depending on the query's complexity.
The adaptive multiuser feature adjusts the DOP based on user load. For example, you might have a table with a DOP of 5. This DOP might be acceptable with 10 users. However, if 10 more users enter the system and you enable the PARALLEL_ADAPTIVE_MULTI_USER
feature, Oracle reduces the DOP to spread resources more evenly according to the perceived Oracle load.
Once Oracle determines the DOP for a query, the DOP does not change for the duration of the query.
It is best to use the parallel adaptive multiuser feature when users process simultaneous parallel execution operations. By default, PARALLEL_ADAPTIVE_MULTI_USER
is set to TRUE
, which optimizes the performance of systems with concurrent parallel SQL execution operations. If PARALLEL_ADAPTIVE_MULTI_USER
is set to FALSE
, each parallel SQL execution operation receives the requested number of parallel execution server processes regardless of the impact to the performance of the system as long as sufficient resources have been configured.
The adaptive multiuser algorithm has several inputs. The algorithm first considers the number of active Oracle Server processes as calculated by Oracle. The algorithm then considers the default settings for parallelism as set in the initialization parameter file, as well as parallelism options used in CREATE
TABLE
and ALTER
TABLE
statements and SQL hints.
When a system is overloaded and the input DOP is larger than the default DOP, the algorithm uses the default degree as input. The system then calculates a reduction factor that it applies to the input DOP. For example, using a 16-CPU system, when the first user enters the system and it is idle, it will be granted a DOP of 32. The next user will be give a DOP of eight, the next four, and so on. If the system settles into a steady state of eight users issuing queries, all the users will eventually be given a DOP of 4, thus dividing the system evenly among all the parallel users.
If you are sure you want to execute in parallel and want to avoid setting the DOP for a table or modifying the queries involved, you can force parallelism with the following statement:
ALTER SESSION FORCE PARALLEL QUERY;
All subsequent queries will be executed in parallel provided no restrictions are violated. You can also force DML and DDL statements. This clause overrides any parallel clause specified in subsequent statements in the session, but is overridden by a parallel hint.
In typical OLTP environments, for example, the tables are not set parallel, but nightly batch scripts may want to collect data from these tables in parallel. By setting the DOP in the session, the user avoids altering each table in parallel and then altering it back to serial when finished.
The initialization parameter PARALLEL_THREADS_PER_CPU
affects algorithms controlling both the DOP and the adaptive multiuser feature. Oracle multiplies the value of PARALLEL_THREADS_PER_CPU
by the number of CPUs for each instance to derive the number of threads to use in parallel operations.
The adaptive multiuser feature also uses the default DOP to compute the target number of query server processes that should exist in a system. When a system is running more processes than the target number, the adaptive algorithm reduces the DOP of new queries as required. Therefore, you can also use PARALLEL_THREADS_PER_CPU
to control the adaptive algorithm.
PARALLEL_THREADS_PER_CPU
enables you to adjust for hardware configurations with I/O subsystems that are slow relative to the CPU speed and for application workloads that perform few computations relative to the amount of data involved. If the system is neither CPU-bound nor I/O-bound, then the PARALLEL_THREADS_PER_CPU
value should be increased. This increases the default DOP and allow better utilization of hardware resources. The default for PARALLEL_THREADS_PER_CPU
on most platforms is two. However, the default for machines with relatively slow I/O subsystems can be as high as eight.
This section discusses the following topics:
The parameters that establish resource limits are:
The PARALLEL_MAX_SEVERS
parameter sets a resource limit on the maximum number of processes available for parallel execution. Most parallel operations need at most twice the number of query server processes as the maximum DOP attributed to any table in the operation.
Oracle sets PARALLEL_MAX_SERVERS
to a default value that is sufficient for most systems. The default value for PARALLEL_MAX_SERVERS
is as follows:
(CPU_COUNT x PARALLEL_THREADS_PER_CPU x (2 if PGA_AGGREGATE_TARGET > 0; otherwise 1) x 5)
This might not be enough for parallel queries on tables with higher DOP attributes. We recommend users who expects to run queries of higher DOP to set PARALLEL_MAX_SERVERS
as follows:
2 x DOP x NUMBER_OF_CONCURRENT_USERS
For example, setting PARALLEL_MAX_SERVERS
to 64 will allow you to run four parallel queries simultaneously, assuming that each query is using two slave sets with a DOP of eight for each set.
If the hardware system is neither CPU bound nor I/O bound, then you can increase the number of concurrent parallel execution users on the system by adding more query server processes. When the system becomes CPU- or I/O-bound, however, adding more concurrent users becomes detrimental to the overall performance. Careful setting of PARALLEL_MAX_SERVERS
is an effective method of restricting the number of concurrent parallel operations.
If users initiate too many concurrent operations, Oracle might not have enough query server processes. In this case, Oracle executes the operations sequentially or displays an error if PARALLEL_MIN_PERCENT
is set to a value other than the default value of 0 (zero).
This condition can be verified through the GV$SYSSTAT
view by comparing the statistics for parallel operations not downgraded and parallel operations downgraded to serial. For example:
SELECT * FROM GV$SYSSTAT WHERE name LIKE 'Parallel operation%';
When concurrent users have too many query server processes, memory contention (paging), I/O contention, or excessive context switching can occur. This contention can reduce system throughput to a level lower than if parallel execution were not used. Increase the PARALLEL_MAX_SERVERS
value only if the system has sufficient memory and I/O bandwidth for the resulting load.
You can use operating system performance monitoring tools to determine how much memory, swap space and I/O bandwidth are free. Look at the runq lengths for both your CPUs and disks, as well as the service time for I/Os on the system. Verify that the machine has sufficient swap space exists on the machine to add more processes. Limiting the total number of query server processes might restrict the number of concurrent users who can execute parallel operations, but system throughput tends to remain stable.
To increase the number of concurrent users, you must restrict the resource usage of each individual user. You can achieve this by using the parallel adaptive multiuser feature or by using resource consumer groups. See Oracle Database Administrator's Guide and Oracle Database Concepts for more information about resource consumer groups and the Database Resource Manager.
You can limit the amount of parallelism available to a given user by establishing a resource consumer group for the user. Do this to limit the number of sessions, concurrent logons, and the number of parallel processes that any one user or group of users can have.
Each query server process working on a parallel execution statement is logged on with a session ID. Each process counts against the user's limit of concurrent sessions. For example, to limit a user to 10 parallel execution processes, set the user's limit to 11. One process is for the parallel coordinator and the other 10 consist of two sets of query server servers. This would allow one session for the parallel coordinator and 10 sessions for the parallel execution processes.
See Oracle Database Administrator's Guide for more information about managing resources with user profiles and Oracle Database Oracle Clusterware and Oracle Real Application Clusters Administration and Deployment Guide for more information on querying GV$
views.
The recommended value for the PARALLEL_MIN_SERVERS
parameter is 0 (zero), which is the default.
This parameter lets you specify in a single instance the number of processes to be started and reserved for parallel operations. The syntax is:
PARALLEL_MIN_SERVERS=n
The n variable is the number of processes you want to start and reserve for parallel operations.
Setting PARALLEL_MIN_SERVERS
balances the startup cost against memory usage. Processes started using PARALLEL_MIN_SERVERS
do not exit until the database is shut down. This way, when a query is issued the processes are likely to be available. It is desirable, however, to recycle query server processes periodically since the memory these processes use can become fragmented and cause the high water mark to slowly increase. When you do not set PARALLEL_MIN_SERVERS
, processes exit after they are idle for five minutes.
Parallel execution requires memory resources in addition to those required by serial SQL execution. Additional memory is used for communication and passing data between query server processes and the query coordinator.
Oracle Database allocates memory for query server processes from the shared pool. Tune the shared pool as follows:
Allow for other clients of the shared pool, such as shared cursors and stored procedures.
Remember that larger values improve performance in multiuser systems, but smaller values use less memory.
You must also take into account that using parallel execution generates more cursors. Look at statistics in the V$SQLAREA
view to determine how often Oracle recompiles cursors. If the cursor hit ratio is poor, increase the size of the pool. This happens only when you have a large number of distinct queries.
You can then monitor the number of buffers used by parallel execution and compare the shared
pool
PX
msg
pool
to the current high water mark reported in output from the view V$PX_PROCESS_SYSSTAT
.
Note:
If you do not have enough memory available, error message 12853 occurs (insufficient memory for PX buffers: current stringK, max needed stringK). This is caused by having insufficient SGA memory available for PX buffers. You need to reconfigure the SGA to have at least (MAX
- CURRENT
) bytes of additional memory.By default, Oracle allocates parallel execution buffers from the shared pool.
If Oracle displays the following error on startup:
ORA-27102: out of memory SVR4 Error: 12: Not enough space
You should reduce the value for SHARED_POOL_SIZE
low enough so your database starts. After reducing the value of SHARED_POOL_SIZE
, you might see the error:
ORA-04031: unable to allocate 16084 bytes of shared memory ("SHARED pool","unknown object","SHARED pool heap","PX msg pool")
If so, execute the following query to determine why Oracle could not allocate the 16,084 bytes:
SELECT NAME, SUM(BYTES) FROM V$SGASTAT WHERE POOL='SHARED POOL' GROUP BY ROLLUP (NAME);
Your output should resemble the following:
NAME SUM(BYTES) -------------------------- ---------- PX msg pool 1474572 free memory 562132 2036704
If you specify SHARED_POOL_SIZE
and the amount of memory you need to reserve is bigger than the pool, Oracle does not allocate all the memory it can get. Instead, it leaves some space. When the query runs, Oracle tries to get what it needs. Oracle uses the 560 KB and needs another 16KB when it fails. The error does not report the cumulative amount that is needed. The best way of determining how much more memory is needed is to use the formulas in "Adding Memory for Message Buffers".
To resolve the problem in the current example, increase the value for SHARED_POOL_SIZE
. As shown in the sample output, the SHARED_POOL_SIZE
is about 2 MB. Depending on the amount of memory available, you could increase the value of SHARED_POOL_SIZE
to 4 MB and attempt to start your database. If Oracle continues to display an ORA-4031
message, gradually increase the value for SHARED_POOL_SIZE
until startup is successful.
After you determine the initial setting for the shared pool, you must calculate additional memory requirements for message buffers and determine how much additional space you need for cursors.
You must increase the value for the SHARED_POOL_SIZE
parameter to accommodate message buffers. The message buffers allow query server processes to communicate with each other.
Oracle uses a fixed number of buffers for each virtual connection between producer query servers and consumer query servers. Connections increase as the square of the DOP increases. For this reason, the maximum amount of memory used by parallel execution is bound by the highest DOP allowed on your system. You can control this value by using either the PARALLEL_MAX_SERVERS
parameter or by using policies and profiles.
To calculate the amount of memory required, use one of the following formulas:
For SMP systems:
mem in bytes = (3 x size x users x groups x connections)
For SMP Real Application Clusters and MPP systems:
mem in bytes = ((3 x local) + (2 x remote)) x (size x users x groups) / instances
Each instance uses the memory computed by the formula.
The terms are:
SIZE
= PARALLEL_EXECUTION_MESSAGE_SIZE
USERS
= the number of concurrent parallel execution users that you expect to have running with the optimal DOP
GROUPS
= the number of query server process groups used for each query
A simple SQL statement requires only one group. However, if your queries involve subqueries which will be processed in parallel, then Oracle uses an additional group of query server processes.
CONNECTIONS
= (DOP2 + 2 x DOP)
If your system is a cluster or MPP, then you should account for the number of instances because this will increase the DOP. In other words, using a DOP of 4 on a two instance cluster results in a DOP of 8. A value of PARALLEL_MAX_SERVERS
times the number of instances divided by four is a conservative estimate to use as a starting point.
LOCAL
= CONNECTIONS
/INSTANCES
REMOTE
= CONNECTIONS
- LOCAL
Add this amount to your original setting for the shared pool. However, before setting a value for either of these memory structures, you must also consider additional memory for cursors, as explained in the following section.
The formulas in this section are just starting points. Whether you are using automated or manual tuning, you should monitor usage on an on-going basis to make sure the size of memory is not too large or too small. To do this, tune the shared pool using the following query:
SELECT POOL, NAME, SUM(BYTES) FROM V$SGASTAT WHERE POOL LIKE '%pool%' GROUP BY ROLLUP (POOL, NAME);
Your output should resemble the following:
POOL NAME SUM(BYTES) ----------- -------------------------- ---------- shared pool Checkpoint queue 38496 shared pool KGFF heap 1964 shared pool KGK heap 4372 shared pool KQLS heap 1134432 shared pool LRMPD SGA Table 23856 shared pool PLS non-lib hp 2096 shared pool PX subheap 186828 shared pool SYSTEM PARAMETERS 55756 shared pool State objects 3907808 shared pool character set memory 30260 shared pool db_block_buffers 200000 shared pool db_block_hash_buckets 33132 shared pool db_files 122984 shared pool db_handles 52416 shared pool dictionary cache 198216 shared pool dlm shared memory 5387924 shared pool enqueue_resources 29016 shared pool event statistics per sess 264768 shared pool fixed allocation callback 1376 shared pool free memory 26329104 shared pool gc_* 64000 shared pool latch nowait fails or sle 34944 shared pool library cache 2176808 shared pool log_buffer 24576 shared pool log_checkpoint_timeout 24700 shared pool long op statistics array 30240 shared pool message pool freequeue 116232 shared pool miscellaneous 267624 shared pool processes 76896 shared pool session param values 41424 shared pool sessions 170016 shared pool sql area 9549116 shared pool table columns 148104 shared pool trace_buffers_per_process 1476320 shared pool transactions 18480 shared pool trigger inform 24684 shared pool 52248968 90641768
Evaluate the memory used as shown in your output, and alter the setting for SHARED_POOL_SIZE
based on your processing needs.
To obtain more memory usage statistics, execute the following query:
SELECT * FROM V$PX_PROCESS_SYSSTAT WHERE STATISTIC LIKE 'Buffers%';
Your output should resemble the following:
STATISTIC VALUE ------------------- ----- Buffers Allocated 23225 Buffers Freed 23225 Buffers Current 0 Buffers HWM 3620
The amount of memory used appears in the Buffers
Current
and Buffers
HWM
statistics. Calculate a value in bytes by multiplying the number of buffers by the value for PARALLEL_EXECUTION_MESSAGE_SIZE
. Compare the high water mark to the parallel execution message pool size to determine if you allocated too much memory. For example, in the first output, the value for large pool as shown in px
msg
pool
is 38,092,812 or 38 MB. The Buffers
HWM
from the second output is 3,620, which when multiplied by a parallel execution message size of 4,096 is 14,827,520, or approximately 15 MB. In this case, the high water mark has reached approximately 40 percent of its capacity.
The recommended value for the PARALLEL_MIN_PERCENT
parameter is 0 (zero).
This parameter enables users to wait for an acceptable DOP, depending on the application in use. Setting this parameter to values other than 0 (zero) causes Oracle to return an error when the requested DOP cannot be satisfied by the system at a given time. For example, if you set PARALLEL_MIN_PERCENT
to 50, which translates to 50 percent, and the DOP is reduced by 50 percent or greater because of the adaptive algorithm or because of a resource limitation, then Oracle returns ORA-12827
. For example:
SELECT /*+ PARALLEL(e, 8, 1) */ d.department_id, SUM(SALARY) FROM employees e, departments d WHERE e.department_id = d.department_id GROUP BY d.department_id ORDER BY d.department_id;
Oracle responds with this message:
ORA-12827: insufficient parallel query slaves available
The first group of parameters discussed in this section affects memory and resource consumption for all parallel operations, in particular, for parallel execution. These parameters are:
A second subset of parameters discussed in this section explains parameters affecting parallel DML and DDL.
To control resource consumption, you should configure memory at two levels:
At the Oracle level, so the system uses an appropriate amount of memory from the operating system.
At the operating system level for consistency. On some platforms, you might need to set operating system parameters that control the total amount of virtual memory available, summed across all processes.
The SGA is typically part of real physical memory. The SGA is static and of fixed size; if you want to change its size, shut down the database, make the change, and restart the database. Oracle allocates the shared pool out of the SGA.
A large percentage of the memory used in data warehousing operations is more dynamic. This memory comes from process memory (PGA), and both the size of process memory and the number of processes can vary greatly. Use the PGA_AGGREGATE_TARGET
parameter to control both the process memory and the number of processes.
You can simplify and improve the way PGA memory is allocated by enabling automatic PGA memory management. In this mode, Oracle dynamically adjusts the size of the portion of the PGA memory dedicated to work areas, based on an overall PGA memory target explicitly set by the DBA. To enable automatic PGA memory management, you have to set the initialization parameter PGA_AGGREGATE_TARGET
. See Oracle Database Performance Tuning Guide for descriptions of how to use PGA_AGGREGATE_TARGET
in different scenarios.
The PARALLEL_EXECUTION_MESSAGE_SIZE
parameter specifies the size of the buffer used for parallel execution messages. The default value is os specific, but is typically 2K. This value should be adequate for most applications, however, increasing this value can improve performance. Consider increasing this value if you have adequate free memory in the shared pool or if you have sufficient operating system memory and can increase your shared pool size to accommodate the additional amount of memory required.
The parameters that affect parallel DML and parallel DDL resource consumption are:
Parallel inserts, updates, and deletes require more resources than serial DML operations. Similarly, PARALLEL
CREATE
TABLE
... AS
SELECT
and PARALLEL
CREATE
INDEX
can require more resources. For this reason, you may need to increase the value of several additional initialization parameters. These parameters do not affect resources for queries.
For parallel DML and DDL, each query server process starts a transaction. The parallel coordinator uses the two-phase commit protocol to commit transactions; therefore, the number of transactions being processed increases by the DOP. As a result, you might need to increase the value of the TRANSACTIONS
initialization parameter.
The TRANSACTIONS
parameter specifies the maximum number of concurrent transactions. The default assumes no parallelism. For example, if you have a DOP of 20, you will have 20 more new server transactions (or 40, if you have two server sets) and 1 coordinator transaction. In this case, you should increase TRANSACTIONS
by 21 (or 41) if the transactions are running in the same instance. If you do not set this parameter, Oracle sets it to a value equal to 1.1 x SESSIONS
. This discussion does not apply if you are using server-managed undo.
If a system fails when there are uncommitted parallel DML or DDL transactions, you can speed up transaction recovery during startup by using the FAST_START_PARALLEL_ROLLBACK
parameter.
This parameter controls the DOP used when recovering terminated transactions. Terminated transactions are transactions that are active before a system failure. By default, the DOP is chosen to be at most two times the value of the CPU_COUNT
parameter.
If the default DOP is insufficient, set the parameter to the HIGH
. This gives a maximum DOP of at most four times the value of the CPU_COUNT
parameter. This feature is available by default.
Check the statistic redo
buffer
allocation
retries
in the V$SYSSTAT
view. If this value is high relative to redo
blocks
written
, try to increase the LOG_BUFFER
size. A common LOG_BUFFER
size for a system generating numerous logs is 3 MB to 5 MB. If the number of retries is still high after increasing LOG_BUFFER
size, a problem might exist with the disk on which the log files reside. In that case, tune the I/O subsystem to increase the I/O rates for redo. One way of doing this is to use fine-grained striping across multiple disks. For example, use a stripe size of 16 KB. A simpler approach is to isolate redo logs on their own disk.
This parameter specifies the maximum number of DML locks. Its value should equal the total number of locks on all tables referenced by all users. A parallel DML operation's lock and enqueue resource requirement is very different from serial DML. Parallel DML holds many more locks, so you should increase the value of the ENQUEUE_RESOURCES
and DML_LOCKS
parameters by equal amounts.
Table 25-4 shows the types of locks acquired by coordinator and parallel execution server processes for different types of parallel DML statements. Using this information, you can determine the value required for these parameters.
Table 25-4 Locks Acquired by Parallel DML Statements
Type of Statement | Coordinator Process Acquires: | Each Parallel Execution Server Acquires: |
---|---|---|
Parallel |
1 table lock SX 1 partition lock X for each pruned (sub)partition |
1 table lock SX 1 partition lock 1 partition-wait lock S for each pruned (sub)partition owned by the query server process |
Parallel row-migrating |
1 table lock SX 1 partition X lock for each pruned (sub)partition 1 partition lock SX for all other (sub)partitions |
1 table lock SX 1 partition lock 1 partition-wait lock S for each pruned partition owned by the query server process 1 partition lock SX for all other (sub)partitions |
Parallel |
1 table lock SX Partition locks X for all (sub)partitions |
1 table lock SX 1 partition lock 1 partition-wait lock S for each (sub)partition |
Parallel |
1 table lock SX 1 partition lock X for each specified (sub)partition |
1 table lock SX 1 partition lock 1 partition-wait lock S for each specified (sub)partition |
Parallel |
1 table lock X |
None |
Note:
Table, partition, and partition-wait DML locks all appear as TM locks in theV$LOCK
view.Consider a table with 600 partitions running with a DOP of 100. Assume all partitions are involved in a parallel UPDATE
or DELETE
statement with no row-migrations.
The coordinator acquires:
1 table lock SX
600 partition locks X
Total server processes acquires:
100 table locks SX
600 partition locks NULL
600 partition-wait locks S
The parameters that affect I/O are:
These parameters also affect the optimizer which ensures optimal performance for parallel execution I/O operations.
When you perform parallel updates, merges, and deletes, the buffer cache behavior is very similar to any OLTP system running a high volume of updates.
The recommended value for this parameter is 8 KB or 16 KB.
Set the database block size when you create the database. If you are creating a new database, use a large block size such as 8 KB or 16 KB.
The recommended value for this parameter is eight for 8 KB block size, or four for 16 KB block size. The default is 8.
This parameter determines how many database blocks are read with a single operating system READ
call. The upper limit for this parameter is platform-dependent. If you set DB_FILE_MULTIBLOCK_READ_COUNT
to an excessively high value, your operating system will lower the value to the highest allowable level when you start your database. In this case, each platform uses the highest value possible. Maximum values generally range from 64 KB to 1 MB.
The recommended value for both of these parameters is TRUE
.
These parameters enable or disable the operating system's asynchronous I/O facility. They allow query server processes to overlap I/O requests with processing when performing table scans. If the operating system supports asynchronous I/O, leave these parameters at the default value of TRUE
. Figure 25-6 illustrates how asynchronous read works.
Asynchronous operations are currently supported for parallel table scans, hash joins, sorts, and serial table scans. However, this feature can require operating system specific configuration and may not be supported on all platforms. See Oracle Database Installation Guide for more information.
You should do the following tasks when diagnosing parallel execution performance problems:
Quantify your performance expectations to determine whether there is a problem.
Determine whether a problem pertains to optimization, such as inefficient plans that might require reanalyzing tables or adding hints, or whether the problem pertains to execution, such as simple operations like scanning, loading, grouping, or indexing running much slower than published guidelines.
Determine whether the problem occurs when running in parallel, such as load imbalance or resource bottlenecks, or whether the problem is also present for serial operations.
Performance expectations are based on either prior performance metrics (for example, the length of time a given query took last week or on the previous version of Oracle) or scaling and extrapolating from serial execution times (for example, serial execution took 10 minutes while parallel execution took 5 minutes). If the performance does not meet your expectations, consider the following questions:
Did the execution plan change?
If so, you should gather statistics and decide whether to use index-only access and a CREATE
TABLE
AS
SELECT
statement. You should use index hints if your system is CPU-bound. You should also study the EXPLAIN
PLAN
output.
Did the data set change?
If so, you should gather statistics to evaluate any differences.
Is the hardware overtaxed?
If so, you should check CPU, I/O, and swap memory.
After setting your basic goals and answering these questions, you need to consider the following topics:
Does parallel execution's actual performance deviate from what you expected? If performance is as you expected, could there be an underlying performance problem? Perhaps you have a desired outcome in mind to which you are comparing the current outcome. Perhaps you have justifiable performance expectations that the system does not achieve. You might have achieved this level of performance or a particular execution plan in the past, but now, with a similar environment and operation, the system is not meeting this goal.
If performance is not as you expected, can you quantify the deviation? For data warehousing operations, the execution plan is key. For critical data warehousing operations, save the EXPLAIN
PLAN
results. Then, as you analyze and reanalyze the data, upgrade Oracle, and load new data, over time you can compare new execution plans with old plans. Take this approach either proactively or reactively.
Alternatively, you might find that plan performance improves if you use hints. You might want to understand why hints are necessary and determine how to get the optimizer to generate the desired plan without hints. Try increasing the statistical sample size: better statistics can give you a better plan.
See Oracle Database Performance Tuning Guide for information on preserving plans throughout changes to your system, using plan stability and outlines.
If there has been a change in the execution plan, determine whether the plan is or should be parallel or serial.
If the execution plan is or should be parallel, study the EXPLAIN
PLAN
output. Did you analyze all the tables? Perhaps you need to use hints in a few cases. Verify that the hint provides better performance. See utlxplp.sql
in the rdbms/admin
directory.
If the execution plan is or should be serial, consider the following strategies:
Use an index. Sometimes adding an index can greatly improve performance. Consider adding an extra column to the index. Perhaps your operation could obtain all its data from the index, and not require a table scan. Perhaps you need to use hints in a few cases. Verify that the hint provides better results.
Compute statistics. If you do not analyze often and you can spare the time, it is a good practice to compute statistics. This is particularly important if you are performing many joins, and it will result in better plans. Alternatively, you can estimate statistics. If you use different sample sizes, the plan may change. Generally, the higher the sample size, the better the plan.
Use histograms for nonuniform distributions.
Check initialization parameters to be sure the values are reasonable.
Replace bind variables with literals unless CURSOR_SHARING
is set to force
or similar
.
Determine whether execution is I/O- or CPU-bound. Then check the optimizer cost model.
Convert subqueries to joins.
Use the CREATE
TABLE
... AS
SELECT
statement to break a complex operation into smaller pieces. With a large query referencing five or six tables, it may be difficult to determine which part of the query is taking the most time. You can isolate bottlenecks in the query by breaking it into steps and analyzing each step.
If the cause of regression cannot be traced to problems in the plan, the problem must be an execution issue. For data warehousing operations, both serial and parallel, consider how the plan uses memory. Check the paging rate and make sure the system is using memory as effectively as possible. Check buffer, sort, and hash area sizing. After you run a query or DML operation, look at the V$SESSTAT
, V$PX_SESSTAT
, and V$PQ_SYSSTAT
views to see the number of server processes used and other information for the session and system.
If you are using parallel execution, is there unevenness in workload distribution? For example, if there are 10 CPUs and a single user, you can see whether the workload is evenly distributed across CPUs. This can vary over time, with periods that are more or less I/O intensive, but in general each CPU should have roughly the same amount of activity.
The statistics in V$PQ_TQSTAT
show rows produced and consumed for each parallel execution server. This is a good indication of skew and does not require single user operation.
Operating system statistics show you the per-processor CPU utilization and per-disk I/O activity. Concurrently running tasks make it harder to see what is going on, however. It may be useful to run in single-user mode and check operating system monitors that show system level CPU and I/O activity.
If I/O problems occur, you might need to reorganize your data by spreading it over more devices. If parallel execution problems occur, check to be sure you have followed the recommendation to spread data over at least as many devices as CPUs.
If there is no skew in workload distribution, check for the following conditions:
Is there device contention?
Is there controller contention?
Is the system I/O-bound with too little parallelism? If so, consider increasing parallelism up to the number of devices.
Is the system CPU-bound with too much parallelism? Check the operating system CPU monitor to see whether a lot of time is being spent in system calls. The resource might be overcommitted, and too much parallelism might cause processes to compete with themselves.
Are there more concurrent users than the system can support?
After your system has run for a few days, monitor parallel execution performance statistics to determine whether your parallel processing is optimal. Do this using any of the views discussed in this section.
In Oracle Real Application Clusters, global versions of the views described in this section aggregate statistics from multiple instances. The global views have names beginning with G
, such as GV$FILESTAT
for V$FILESTAT
, and so on.
The V$PX_BUFFER_ADVICE
view provides statistics on historical and projected maximum buffer usage by all parallel queries. You can consult this view to reconfigure SGA size in response to insufficient memory problems for parallel queries.
The V$PX_SESSION
view shows data about query server sessions, groups, sets, and server numbers. It also displays real-time data about the processes working on behalf of parallel execution. This table includes information about the requested DOP and the actual DOP granted to the operation.
The V$PX_SESSTAT
view provides a join of the session information from V$PX_SESSION
and the V$SESSTAT
table. Thus, all session statistics available to a normal session are available for all sessions performed using parallel execution.
The V$PX_PROCESS
view contains information about the parallel processes, including status, session ID, process ID, and other information.
The V$PX_PROCESS_SYSSTAT
view shows the status of query servers and provides buffer allocation statistics.
The V$PQ_SESSTAT
view shows the status of all current server groups in the system such as data about how queries allocate processes and how the multiuser and load balancing algorithms are affecting the default and hinted values. V$PQ_SESSTAT
will be obsolete in a future release.
You might need to adjust some parameter settings to improve performance after reviewing data from these views. In this case, refer to the discussion of "Tuning General Parameters for Parallel Execution". Query these views periodically to monitor the progress of long-running parallel operations.
For many dynamic performance views, you must set the parameter TIMED_STATISTICS
to TRUE
in order for Oracle to collect statistics for each view. You can use the ALTER
SYSTEM
or ALTER
SESSION
statements to turn TIMED_STATISTICS
on and off.
The V$FILESTAT
view sums read and write requests, the number of blocks, and service times for every datafile in every tablespace. Use V$FILESTAT
to diagnose I/O and workload distribution problems.
You can join statistics from V$FILESTAT
with statistics in the DBA_DATA_FILES
view to group I/O by tablespace or to find the filename for a given file number. Using a ratio analysis, you can determine the percentage of the total tablespace activity used by each file in the tablespace. If you make a practice of putting just one large, heavily accessed object in a tablespace, you can use this technique to identify objects that have a poor physical layout.
You can further diagnose disk space allocation problems using the DBA_EXTENTS
view. Ensure that space is allocated evenly from all files in the tablespace. Monitoring V$FILESTAT
during a long-running operation and then correlating I/O activity to the EXPLAIN
PLAN
output is a good way to follow progress.
The V$PARAMETER
view lists the name, current value, and default value of all system parameters. In addition, the view shows whether a parameter is a session parameter that you can modify online with an ALTER
SYSTEM
or ALTER
SESSION
statement.
As a simple example, consider a hash join between two tables, with a join on a column with only two distinct values. At best, this hash function will have one hash value to parallel execution server A and the other to parallel execution server B. A DOP of two is fine, but, if it is four, then at least two parallel execution servers have no work. To discover this type of skew, use a query similar to the following example:
SELECT dfo_number, tq_id, server_type, process, num_rows FROM V$PQ_TQSTAT ORDER BY dfo_number DESC, tq_id, server_type, process;
The best way to resolve this problem might be to choose a different join method; a nested loop join might be the best option. Alternatively, if one of the join tables is small relative to the other, a BROADCAST
distribution method can be hinted using PQ_DISTRIBUTE
hint. Note that the optimizer considers the BROADCAST
distribution method, but requires OPTIMIZER_FEATURES_ENABLE
set to 9.0.2 or higher.
Now, assume that you have a join key with high cardinality, but one of the values contains most of the data, for example, lava lamp sales by year. The only year that had big sales was 1968, and thus, the parallel execution server for the 1968 records will be overwhelmed. You should use the same corrective actions as described previously.
The V$PQ_TQSTAT
view provides a detailed report of message traffic at the table queue level. V$PQ_TQSTAT
data is valid only when queried from a session that is executing parallel SQL statements. A table queue is the pipeline between query server groups, between the parallel coordinator and a query server group, or between a query server group and the coordinator. The table queues are represented explicitly in the operation column by PX SEND <partitioning type>
(for example, PX SEND HASH
) and PX
RECEIVE
. For backward compatibility, the row labels of PARALLEL_TO_PARALLEL
, SERIAL_TO_PARALLEL
, or PARALLEL_TO_SERIAL
will continue to have the same semantics as previous releases and can be used as before to infer the table queue allocation. In addition, the top of the parallel plan is marked by a new node with operation PX
COORDINATOR
.
V$PQ_TQSTAT
has a row for each query server process that reads from or writes to in each table queue. A table queue connecting 10 consumer processes to 10 producer processes has 20 rows in the view. Sum the bytes column and group by TQ_ID
, the table queue identifier, to obtain the total number of bytes sent through each table queue. Compare this with the optimizer estimates; large variations might indicate a need to analyze the data using a larger sample.
Compute the variance of bytes grouped by TQ_ID
. Large variances indicate workload imbalances. You should investigate large variances to determine whether the producers start out with unequal distributions of data, or whether the distribution itself is skewed. If the data itself is skewed, this might indicate a low cardinality, or low number of distinct values.
Note that the V$PQ_TQSTAT
view will be renamed in a future release to V$PX_TQSTSAT
.
The V$SESSTAT
view provides parallel execution statistics for each session. The statistics include total number of queries, DML and DDL statements executed in a session and the total number of intrainstance and interinstance messages exchanged during parallel execution during the session.
V$SYSSTAT
provides the same statistics as V$SESSTAT
, but for the entire system.
These examples use the dynamic performance views described in "Monitoring Parallel Execution Performance with Dynamic Performance Views".
Use GV$PX_SESSION
to determine the configuration of the server group executing in parallel. In this example, sessions 9 is the query coordinator, while sessions 7 and 21 are in the first group, first set. Sessions 18 and 20 are in the first group, second set. The requested and granted DOP for this query is 2, as shown by Oracle's response to the following query:
SELECT QCSID, SID, INST_ID "Inst", SERVER_GROUP "Group", SERVER_SET "Set", DEGREE "Degree", REQ_DEGREE "Req Degree" FROM GV$PX_SESSION ORDER BY QCSID, QCINST_ID, SERVER_GROUP, SERVER_SET;
Your output should resemble the following:
QCSID SID Inst Group Set Degree Req Degree ---------- ---------- ---------- ---------- ---------- ---------- ---------- 9 9 1 9 7 1 1 1 2 2 9 21 1 1 1 2 2 9 18 1 1 2 2 2 9 20 1 1 2 2 2
For a single instance, use SELECT
FROM
V$PX_SESSION
and do not include the column name Instance
ID
.
The processes shown in the output from the previous example using GV$PX_SESSION
collaborate to complete the same task. The next example shows the execution of a join query to determine the progress of these processes in terms of physical reads. Use this query to track any specific statistic:
SELECT QCSID, SID, INST_ID "Inst", SERVER_GROUP "Group", SERVER_SET "Set", NAME "Stat Name", VALUE FROM GV$PX_SESSTAT A, V$STATNAME B WHERE A.STATISTIC# = B.STATISTIC# AND NAME LIKE 'PHYSICAL READS' AND VALUE > 0 ORDER BY QCSID, QCINST_ID, SERVER_GROUP, SERVER_SET;
Your output should resemble the following:
QCSID SID Inst Group Set Stat Name VALUE ------ ----- ------ ------ ------ ------------------ ---------- 9 9 1 physical reads 3863 9 7 1 1 1 physical reads 2 9 21 1 1 1 physical reads 2 9 18 1 1 2 physical reads 2 9 20 1 1 2 physical reads 2
Use the previous type of query to track statistics in V$STATNAME
. Repeat this query as often as required to observe the progress of the query server processes.
The next query uses V$PX_PROCESS
to check the status of the query servers.
SELECT * FROM V$PX_PROCESS;
Your output should resemble the following:
SERV STATUS PID SPID SID SERIAL ---- --------- ------ --------- ------ ------ P002 IN USE 16 16955 21 7729 P003 IN USE 17 16957 20 2921 P004 AVAILABLE 18 16959 P005 AVAILABLE 19 16962 P000 IN USE 12 6999 18 4720 P001 IN USE 13 7004 7 234
The V$SYSSTAT
and V$SESSTAT
views contain several statistics for monitoring parallel execution. Use these statistics to track the number of parallel queries, DMLs, DDLs, data flow operators (DFOs), and operations. Each query, DML, or DDL can have multiple parallel operations and multiple DFOs.
In addition, statistics also count the number of query operations for which the DOP was reduced, or downgraded, due to either the adaptive multiuser algorithm or the depletion of available parallel execution servers.
Finally, statistics in these views also count the number of messages sent on behalf of parallel execution. The following syntax is an example of how to display these statistics:
SELECT NAME, VALUE FROM GV$SYSSTAT WHERE UPPER (NAME) LIKE '%PARALLEL OPERATIONS%' OR UPPER (NAME) LIKE '%PARALLELIZED%' OR UPPER (NAME) LIKE '%PX%';
Your output should resemble the following:
NAME VALUE -------------------------------------------------- ---------- queries parallelized 347 DML statements parallelized 0 DDL statements parallelized 0 DFO trees parallelized 463 Parallel operations not downgraded 28 Parallel operations downgraded to serial 31 Parallel operations downgraded 75 to 99 pct 252 Parallel operations downgraded 50 to 75 pct 128 Parallel operations downgraded 25 to 50 pct 43 Parallel operations downgraded 1 to 25 pct 12 PX local messages sent 74548 PX local messages recv'd 74128 PX remote messages sent 0 PX remote messages recv'd 0
The following query shows the current wait state of each slave and QC process on the system:
SELECT px.SID "SID", p.PID, p.SPID "SPID", px.INST_ID "Inst", px.SERVER_GROUP "Group", px.SERVER_SET "Set", px.DEGREE "Degree", px.REQ_DEGREE "Req Degree", w.event "Wait Event" FROM GV$SESSION s, GV$PX_SESSION px, GV$PROCESS p, GV$SESSION_WAIT w WHERE s.sid (+) = px.sid AND s.inst_id (+) = px.inst_id AND s.sid = w.sid (+) AND s.inst_id = w.inst_id (+) AND s.paddr = p.addr (+) AND s.inst_id = p.inst_id (+) ORDER BY DECODE(px.QCINST_ID, NULL, px.INST_ID, px.QCINST_ID), px.QCSID, DECODE(px.SERVER_GROUP, NULL, 0, px.SERVER_GROUP), px.SERVER_SET, px.INST_ID;
There is considerable overlap between information available in Oracle and information available though operating system utilities (such as sar
and vmstat
on UNIX-based systems). Operating systems provide performance statistics on I/O, communication, CPU, memory and paging, scheduling, and synchronization primitives. The V$SESSTAT
view provides the major categories of operating system statistics as well.
Typically, operating system information about I/O devices and semaphore operations is harder to map back to database objects and operations than is Oracle information. However, some operating systems have good visualization tools and efficient means of collecting the data.
Operating system information about CPU and memory usage is very important for assessing performance. Probably the most important statistic is CPU usage. The goal of low-level performance tuning is to become CPU bound on all CPUs. Once this is achieved, you can work at the SQL level to find an alternate plan that might be more I/O intensive but use less CPU.
Operating system memory and paging information is valuable for fine tuning the many system parameters that control how memory is divided among memory-intensive data warehouse subsystems like parallel communication, sort, and hash join.
In a shared-disk cluster or MPP configuration, an instance of the Oracle Real Application Clusters is said to have affinity for a device if the device is directly accessed from the processors on which the instance is running. Similarly, an instance has affinity for a file if it has affinity for the devices on which the file is stored.
Determination of affinity may involve arbitrary determinations for files that are striped across multiple devices. Somewhat arbitrarily, an instance is said to have affinity for a tablespace (or a partition of a table or index within a tablespace) if the instance has affinity for the first file in the tablespace.
Oracle considers affinity when allocating work to parallel execution servers. The use of affinity for parallel execution of SQL statements is transparent to users.
Affinity in parallel queries increases the speed of scanning data from disk by doing the scans on a processor that is near the data. This can provide a substantial performance increase for machines that do not naturally support shared disks.
The most common use of affinity is for a table or index partition to be stored in one file on one device. This configuration provides the highest availability by limiting the damage done by a device failure and makes the best use of partition-parallel index scans.
DSS customers might prefer to stripe table partitions over multiple devices (probably a subset of the total number of devices). This configuration enables some queries to prune the total amount of data being accessed using partitioning criteria and still obtain parallelism through rowid-range parallel table (partition) scans. If the devices are configured as a RAID, availability can still be very good. Even when used for DSS, indexes should probably be partitioned on individual devices.
Other configurations (for example, multiple partitions in one file striped over multiple devices) will yield correct query results, but you may need to use hints or explicitly set object attributes to select the correct DOP.
For parallel DML (inserts, updates, and deletes), affinity enhancements improve cache performance by routing the DML operation to the node that has affinity for the partition.
Affinity determines how to distribute the work among the set of instances or parallel execution servers to perform the DML operation in parallel. Affinity can improve performance of queries in several ways:
For certain MPP architectures, Oracle uses device-to-node affinity information to determine on which nodes to spawn parallel execution servers (parallel process allocation) and which work granules (rowid ranges or partitions) to send to particular nodes (work assignment). Better performance is achieved by having nodes mainly access local devices, giving a better buffer cache hit ratio for every node and reducing the network overhead and I/O latency.
For SMP, cluster, and MPP architectures, process-to-device affinity is used to achieve device isolation. This reduces the chances of having multiple parallel execution servers accessing the same device simultaneously. This process-to-device affinity information is also used in implementing stealing between processes.
For partitioned tables and indexes, partition-to-node affinity information determines process allocation and work assignment. For shared-nothing MPP systems, Oracle Real Application Clusters tries to assign partitions to instances, taking the disk affinity of the partitions into account. For shared-disk MPP and cluster systems, partitions are assigned to instances in a round-robin manner.
Affinity is only available for parallel DML when running in an Oracle Real Application Clusters configuration. Affinity information which persists across statements improves buffer cache hit ratios and reduces block pings between instances.
This section contains some ideas for improving performance in a parallel execution environment and includes the following topics:
With the exception of parallel update and delete, parallel operations do not generally benefit from larger buffer cache sizes. Other parallel operations can benefit only if you increase the size of the buffer pool and thereby accommodate the inner table or index for a nested loop join.
The default DOP is appropriate for reducing response time while guaranteeing use of CPU and I/O resources for any parallel operations.
If it is memory-bound, or if several concurrent parallel operations are running, you might want to decrease the default DOP.
Oracle uses the default DOP for tables that have PARALLEL
attributed to them in the data dictionary or that have the PARALLEL
hint specified. If a table does not have parallelism attributed to it, or has NO_PARALLEL
(the default) attributed to it, and parallelism is not being forced through ALTER
SESSION
FORCE
PARALLEL
, then that table is never scanned in parallel. This override occurs regardless of the default DOP indicated by the number of CPUs, instances, and devices storing that table.
You can adjust the DOP by using the following guidelines:
Modify the default DOP by changing the value for the PARALLEL_THREADS_PER_CPU
parameter.
Adjust the DOP either by using ALTER
TABLE
, ALTER
SESSION
, or by using hints.
To increase the number of concurrent parallel operations, reduce the DOP, or set the parameter PARALLEL_ADAPTIVE_MULTI_USER
to TRUE
.
The most important issue for parallel execution is ensuring that all parts of the query plan that process a substantial amount of data execute in parallel. Use EXPLAIN
PLAN
to verify that all plan steps have an OTHER_TAG
of PARALLEL_TO_PARALLEL
, PARALLEL_TO_SERIAL
, PARALLEL_COMBINED_WITH_PARENT
, or PARALLEL_COMBINED_WITH_CHILD
. Any other keyword (or null) indicates serial execution and a possible bottleneck. Also verify that such plan steps end in the operation PX SEND <partitioning type>
node (for example, PX
SEND
HASH
).
You can also use the utlxplp.sql
script to present the EXPLAIN
PLAN
output with all relevant parallel information.
You can increase the optimizer's ability to generate parallel plans converting subqueries, especially correlated subqueries, into joins. Oracle can parallelize joins more efficiently than subqueries. This also applies to updates. See "Updating the Table in Parallel" for more information.
Oracle cannot return results to a user process in parallel. If a query returns a large number of rows, execution of the query might indeed be faster. However, the user process can only receive the rows serially. To optimize parallel execution performance for queries that retrieve large result sets, use PARALLEL
CREATE
TABLE
... AS
SELECT
or direct-path INSERT
to store the result set in the database. At a later time, users can view the result set serially.
Performing the SELECT
in parallel does not influence the CREATE
statement. If the CREATE
is parallel, however, the optimizer tries to make the SELECT
run in parallel also.
When combined with the NOLOGGING
option, the parallel version of CREATE
TABLE
... AS
SELECT
provides a very efficient intermediate table facility, for example:
CREATE TABLE summary PARALLEL NOLOGGING AS SELECT dim_1, dim_2 ..., SUM (meas_1) FROM facts GROUP BY dim_1, dim_2;
These tables can also be incrementally loaded with parallel INSERT
. You can take advantage of intermediate tables using the following techniques:
Common subqueries can be computed once and referenced many times. This can allow some queries against star schemas (in particular, queries without selective WHERE
-clause predicates) to be better parallelized. Note that star queries with selective WHERE
-clause predicates using the star-transformation technique can be effectively parallelized automatically without any modification to the SQL.
Decompose complex queries into simpler steps in order to provide application-level checkpoint or restart. For example, a complex multitable join on a database 1 terabyte in size could run for dozens of hours. A failure during this query would mean starting over from the beginning. Using CREATE
TABLE
... AS
SELECT
or PARALLEL
INSERT
AS
SELECT
, you can rewrite the query as a sequence of simpler queries that run for a few hours each. If a system failure occurs, the query can be restarted from the last completed step.
Implement manual parallel deletes efficiently by creating a new table that omits the unwanted rows from the original table, and then dropping the original table. Alternatively, you can use the convenient parallel delete feature, which directly deletes rows from the original table.
Create summary tables for efficient multidimensional drill-down analysis. For example, a summary table might store the sum of revenue grouped by month, brand, region, and salesman.
Reorganize tables, eliminating chained rows, compressing free space, and so on, by copying the old table to a new table. This is much faster than export/import and easier than reloading.
Be sure to use the DBMS_STATS
package on newly created tables. Also consider creating indexes. To avoid I/O bottlenecks, specify a tablespace with at least as many devices as CPUs. To avoid fragmentation in allocating space, the number of files in a tablespace should be a multiple of the number of CPUs. See Chapter 4, "Hardware and I/O Considerations in Data Warehouses", for more information about bottlenecks.
For optimal space management performance, you should use locally managed temporary tablespaces. The following is an example:
CREATE TEMPORARY TABLESPACE TStemp TEMPFILE '/dev/D31' SIZE 4096MB REUSE EXTENT MANAGEMENT LOCAL UNIFORM SIZE 10m;
You can associate temporary tablespaces to a database by issuing a statement such as:
ALTER DATABASE TEMPORARY TABLESPACE TStemp;
Once this is done, explicit assignment of users to tablespaces is not needed.
When using a locally managed temporary tablespace, extents are all the same size because this helps avoid fragmentation. As a general rule, temporary extents should be smaller than permanent extents because there are more demands for temporary space, and parallel processes or other operations running concurrently must share the temporary tablespace. Normally, temporary extents should be in the range of 1MB to 10MB. Once you allocate an extent, it is available for the duration of an operation. If you allocate a large extent but only need to use a small amount of space, the unused space in the extent is unavailable.
At the same time, temporary extents should be large enough that processes do not have to wait for space. Temporary tablespaces use less overhead than permanent tablespaces when allocating and freeing a new extent. However, obtaining a new temporary extent still requires the overhead of acquiring a latch and searching through the SGA structures, as well as SGA space consumption for the sort extent pool.
See Oracle Database Performance Tuning Guide for information regarding locally-managed temporary tablespaces.
After analyzing your tables and indexes, you should see performance improvements based on the DOP used.
As a general process, you should start with simple parallel operations and evaluate their total I/O throughput with a SELECT
COUNT(*)
FROM
facts
statement. Then, evaluate total CPU power by adding a complex WHERE
clause to the statement. An I/O imbalance might suggest a better physical database layout. After you understand how simple scans work, add aggregation, joins, and other operations that reflect individual aspects of the overall workload. In particular, you should look for bottlenecks.
Besides query performance, you should also monitor parallel load, parallel index creation, and parallel DML, and look for good utilization of I/O and CPU resources.
Use the EXPLAIN
PLAN
statement to see the execution plans for parallel queries. EXPLAIN
PLAN
output shows optimizer information in the COST
, BYTES
, and CARDINALITY
columns. You can also use the utlxplp.sql
script to present the EXPLAIN
PLAN
output with all relevant parallel information.
There are several ways to optimize the parallel execution of join statements. You can alter system configuration, adjust parameters as discussed earlier in this chapter, or use hints, such as the DISTRIBUTION
hint.
The key points when using EXPLAIN
PLAN
are to:
Verify optimizer selectivity estimates. If the optimizer thinks that only one row will be produced from a query, it tends to favor using a nested loop. This could be an indication that the tables are not analyzed or that the optimizer has made an incorrect estimate about the correlation of multiple predicates on the same table. A hint may be required to force the optimizer to use another join method. Consequently, if the plan says only one row is produced from any particular stage and this is incorrect, consider hints or gather statistics.
Use hash join on low cardinality join keys. If a join key has few distinct values, then a hash join may not be optimal. If the number of distinct values is less than the DOP, then some parallel query servers may be unable to work on the particular query.
Consider data skew. If a join key involves excessive data skew, a hash join may require some parallel query servers to work more than others. Consider using a hint to cause a BROADCAST
distribution method if the optimizer did not choose it. Note that the optimizer will consider the BROADCAST
distribution method only if the OPTIMIZER_FEATURES_ENABLE
is set to 9.0.2 or higher. See "V$PQ_TQSTAT" for further details.
When you want to refresh your data warehouse database using parallel insert, update, or delete on a data warehouse, there are additional issues to consider when designing the physical database. These considerations do not affect parallel execution operations. These issues are:
If a parallel restriction is violated, the operation is simply performed serially. If a direct-path INSERT
restriction is violated, then the APPEND
hint is ignored and a conventional insert is performed. No error message is returned.
If you are performing parallel UPDATE
, MERGE
, or DELETE
operations, the DOP is equal to or less than the number of partitions in the table.
For tables created prior to Oracle9i Database release version 9.0.1 or tables that do not have the PDML itl
invariant property, the previous PDML restriction applies to the calculation of the DOP. To see what tables do not have this property, issue the following statement:
SELECT u.name, o.name FROM obj$ o, tab$ t, user$ u WHERE o.obj# = t.obj# AND o.owner# = u.user# AND bitand(t.property,536870912) != 536870912;
Parallel updates and deletes work only on partitioned tables. They can generate a high number of random I/O requests during index maintenance.
For local index maintenance, local striping is most efficient in reducing I/O contention because one server process only goes to its own set of disks and disk controllers. Local striping also increases availability in the event of one disk failing.
For global index maintenance (partitioned or nonpartitioned), globally striping the index across many disks and disk controllers is the best way to distribute the number of I/Os.
If you have global indexes, a global index segment and global index blocks are shared by server processes of the same parallel DML statement. Even if the operations are not performed against the same row, the server processes can share the same index blocks. Each server transaction needs one transaction entry in the index block header before it can make changes to a block. Therefore, in the CREATE
INDEX
or ALTER
INDEX
statements, you should set INITRANS
, the initial number of transactions allocated within each data block, to a large value, such as the maximum DOP against this index.
There is a limitation on the available number of transaction free lists for segments in dictionary-managed tablespaces. Once a segment has been created, the number of process and transaction free lists is fixed and cannot be altered. If you specify a large number of process free lists in the segment header, you might find that this limits the number of transaction free lists that are available. You can abate this limitation the next time you re-create the segment header by decreasing the number of process free lists; this leaves more room for transaction free lists in the segment header.
For UPDATE
and DELETE
operations, each server process can require its own transaction free list. The parallel DML DOP is thus effectively limited by the smallest number of transaction free lists available on the table and on any of the global indexes the DML statement must maintain. For example, if the table has 25 transaction free lists and the table has two global indexes, one with 50 transaction free lists and one with 30 transaction free lists, the DOP is limited to 25. If the table had had 40 transaction free lists, the DOP would have been limited to 30.
The FREELISTS
parameter of the STORAGE
clause is used to set the number of process free lists. By default, no process free lists are created.
The default number of transaction free lists depends on the block size. For example, if the number of process free lists is not set explicitly, a 4 KB block has about 80 transaction free lists by default. The minimum number of transaction free lists is 25.
Parallel DDL and parallel DML operations can generate a large amount of redo logs. A single ARCH
process to archive these redo logs might not be able to keep up. To avoid this problem, you can spawn multiple archiver processes. This can be done manually or by using a job queue.
Parallel DML operations dirty a large number of data, index, and undo blocks in the buffer cache during a short period of time. For example, suppose you see a high number of free_buffer_waits
after querying the V$SYSTEM_EVENT
view, as in the following syntax:
SELECT TOTAL_WAITS FROM V$SYSTEM_EVENT WHERE EVENT = 'FREE BUFFER WAITS';
In this case, you should consider increasing the DBWn processes. If there are no waits for free buffers, the query will not return any rows.
The [NO]LOGGING
clause applies to tables, partitions, tablespaces, and indexes. Virtually no log is generated for certain operations (such as direct-path INSERT
) if the NOLOGGING
clause is used. The NOLOGGING
attribute is not specified at the INSERT
statement level but is instead specified when using the ALTER
or CREATE
statement for a table, partition, index, or tablespace.
When a table or index has NOLOGGING
set, neither parallel nor serial direct-path INSERT
operations generate redo logs. Processes running with the NOLOGGING
option set run faster because no redo is generated. However, after a NOLOGGING
operation against a table, partition, or index, if a media failure occurs before a backup is taken, then all tables, partitions, and indexes that have been modified might be corrupted.
Direct-path INSERT
operations (except for dictionary updates) never generate redo logs. The NOLOGGING
attribute does not affect undo, only redo. To be precise, NOLOGGING
allows the direct-path INSERT
operation to generate a negligible amount of redo (range-invalidation redo, as opposed to full image redo).
For backward compatibility, [UN]RECOVERABLE
is still supported as an alternate keyword with the CREATE
TABLE
statement. This alternate keyword might not be supported, however, in future releases.
At the tablespace level, the logging clause specifies the default logging attribute for all tables, indexes, and partitions created in the tablespace. When an existing tablespace logging attribute is changed by the ALTER
TABLESPACE
statement, then all tables, indexes, and partitions created after the ALTER
statement will have the new logging attribute; existing ones will not change their logging attributes. The tablespace-level logging attribute can be overridden by the specifications at the table, index, or partition level.
The default logging attribute is LOGGING
. However, if you have put the database in NOARCHIVELOG
mode, by issuing ALTER
DATABASE
NOARCHIVELOG
, then all operations that can be done without logging will not generate logs, regardless of the specified logging attribute.
Multiple processes can work together simultaneously to create an index. By dividing the work necessary to create an index among multiple server processes, Oracle Database can create the index more quickly than if a single server process created the index sequentially.
Parallel index creation works in much the same way as a table scan with an ORDER
BY
clause. The table is randomly sampled and a set of index keys is found that equally divides the index into the same number of pieces as the DOP. A first set of query processes scans the table, extracts key-rowid pairs, and sends each pair to a process in a second set of query processes based on key. Each process in the second set sorts the keys and builds an index in the usual fashion. After all index pieces are built, the parallel coordinator simply concatenates the pieces (which are ordered) to form the final index.
Parallel local index creation uses a single server set. Each server process in the set is assigned a table partition to scan and for which to build an index partition. Because half as many server processes are used for a given DOP, parallel local index creation can be run with a higher DOP. However, the DOP is restricted to be less than or equal to the number of index partitions you wish to create. To avoid this, you can use the DBMS_PCLXUTIL
package.
You can optionally specify that no redo and undo logging should occur during index creation. This can significantly improve performance but temporarily renders the index unrecoverable. Recoverability is restored after the new index is backed up. If your application can tolerate a window where recovery of the index requires it to be re-created, then you should consider using the NOLOGGING
clause.
The PARALLEL
clause in the CREATE
INDEX
statement is the only way in which you can specify the DOP for creating the index. If the DOP is not specified in the parallel clause of CREATE
INDEX
, then the number of CPUs is used as the DOP. If there is no PARALLEL
clause, index creation is done serially.
When creating an index in parallel, the STORAGE
clause refers to the storage of each of the subindexes created by the query server processes. Therefore, an index created with an INITIAL
of 5 MB and a DOP of 12 consumes at least 60 MB of storage during index creation because each process starts with an extent of 5 MB. When the query coordinator process combines the sorted subindexes, some of the extents might be trimmed, and the resulting index might be smaller than the requested 60 MB.
When you add or enable a UNIQUE
or PRIMARY
KEY
constraint on a table, you cannot automatically create the required index in parallel. Instead, manually create an index on the desired columns, using the CREATE
INDEX
statement and an appropriate PARALLEL
clause, and then add or enable the constraint. Oracle then uses the existing index when enabling or adding the constraint.
Multiple constraints on the same table can be enabled concurrently and in parallel if all the constraints are already in the ENABLE
NOVALIDATE
state. In the following example, the ALTER
TABLE
... ENABLE
CONSTRAINT
statement performs the table scan that checks the constraint in parallel:
CREATE TABLE a (a1 NUMBER CONSTRAINT ach CHECK (a1 > 0) ENABLE NOVALIDATE) PARALLEL; INSERT INTO a values (1); COMMIT; ALTER TABLE a ENABLE CONSTRAINT ach;
This section provides an overview of parallel DML functionality. The topics covered include:
Oracle INSERT
functionality can be summarized as follows:
Table 25-5 Summary of INSERT Features
Insert Type | Parallel | Serial | NOLOGGING |
---|---|---|---|
Conventional |
No |
Yes |
No |
Direct-path ( |
Yes, but requires:
|
Yes, but requires:
|
Yes, but requires:
|
If parallel DML is enabled and there is a PARALLEL
hint or PARALLEL
attribute set for the table in the data dictionary, then inserts are parallel and appended, unless a restriction applies. If either the PARALLEL
hint or PARALLEL
attribute is missing, the insert is performed serially.
The append mode is the default during a parallel insert: data is always inserted into a new block which is allocated to the table. Therefore the APPEND
hint is optional. You should use append mode to increase the speed of INSERT
operations, but not when space utilization needs to be optimized. You can use NOAPPEND
to override append mode.
The APPEND
hint applies to both serial and parallel insert: even serial inserts are faster if you use this hint. APPEND
, however, does require more space and locking overhead.
You can use NOLOGGING
with APPEND
to make the process even faster. NOLOGGING
means that no redo log is generated for the operation. NOLOGGING
is never the default; use it when you wish to optimize performance. It should not normally be used when recovery is needed for the table or partition. If recovery is needed, be sure to take a backup immediately after the operation. Use the ALTER
TABLE
[NO]LOGGING
statement to set the appropriate value.
When the table or partition has the PARALLEL
attribute in the data dictionary, that attribute setting is used to determine parallelism of INSERT
, UPDATE
, and DELETE
statements as well as queries. An explicit PARALLEL
hint for a table in a statement overrides the effect of the PARALLEL
attribute in the data dictionary.
You can use the NO_PARALLEL
hint to override a PARALLEL
attribute for the table in the data dictionary. In general, hints take precedence over attributes.
DML operations are considered for parallelization only if the session is in a PARALLEL
DML
enabled mode. (Use ALTER
SESSION
ENABLE
PARALLEL
DML
to enter this mode.) The mode does not affect parallelization of queries or of the query portions of a DML statement.
In the INSERT
... SELECT
statement you can specify a PARALLEL
hint after the INSERT
keyword, in addition to the hint after the SELECT
keyword. The PARALLEL
hint after the INSERT
keyword applies to the INSERT
operation only, and the PARALLEL
hint after the SELECT
keyword applies to the SELECT
operation only. Thus, parallelism of the INSERT
and SELECT
operations are independent of each other. If one operation cannot be performed in parallel, it has no effect on whether the other operation can be performed in parallel.
The ability to parallelize inserts causes a change in existing behavior if the user has explicitly enabled the session for parallel DML and if the table in question has a PARALLEL
attribute set in the data dictionary entry. In that case, existing INSERT
... SELECT
statements that have the select operation parallelized can also have their insert operation parallelized.
If you query multiple tables, you can specify multiple SELECT
PARALLEL
hints and multiple PARALLEL
attributes.
Example 25-7 Parallelizing INSERT ... SELECT
Add the new employees who were hired after the acquisition of ACME
.
INSERT /*+ PARALLEL(employees) */ INTO employees SELECT /*+ PARALLEL(ACME_EMP) */ * FROM ACME_EMP;
The APPEND
keyword is not required in this example because it is implied by the PARALLEL
hint.
The PARALLEL
hint (placed immediately after the UPDATE
or DELETE
keyword) applies not only to the underlying scan operation, but also to the UPDATE
or DELETE
operation. Alternatively, you can specify UPDATE
or DELETE
parallelism in the PARALLEL
clause specified in the definition of the table to be modified.
If you have explicitly enabled parallel DML for the session or transaction, UPDATE
or DELETE
statements that have their query operation parallelized can also have their UPDATE
or DELETE
operation parallelized. Any subqueries or updatable views in the statement can have their own separate PARALLEL
hints or clauses, but these parallel directives do not affect the decision to parallelize the update or delete. If these operations cannot be performed in parallel, it has no effect on whether the UPDATE
or DELETE
portion can be performed in parallel.
Tables must be partitioned in order to support parallel UPDATE
and DELETE
.
Example 25-8 Parallelizing UPDATE and DELETE
Give a 10 percent salary raise to all clerks in Dallas.
UPDATE /*+ PARALLEL(employees) */ employees SET SAL=SAL * 1.1 WHERE JOB='CLERK' AND DEPTNO IN (SELECT DEPTNO FROM DEPT WHERE LOCATION='DALLAS');
The PARALLEL
hint is applied to the UPDATE
operation as well as to the scan.
Example 25-9 Parallelizing UPDATE and DELETE
Remove all products in the grocery category because the grocery business line was recently spun off into a separate company.
DELETE /*+ PARALLEL(PRODUCTS) */ FROM PRODUCTS WHERE PRODUCT_CATEGORY ='GROCERY';
Again, the parallelism is applied to the scan as well as UPDATE
operation on table employees
.
Parallel DML combined with the updatable join views facility provides an efficient solution for refreshing the tables of a data warehouse system. To refresh tables is to update them with the differential data generated from the OLTP production system.
In the following example, assume that you want to refresh a table named customer
that has columns c_key
, c_name
, and c_addr
. The differential data contains either new rows or rows that have been updated since the last refresh of the data warehouse. In this example, the updated data is shipped from the production system to the data warehouse system by means of ASCII files. These files must be loaded into a temporary table, named diff_customer
, before starting the refresh process. You can use SQL*Loader with both the parallel and direct options to efficiently perform this task. You can use the APPEND
hint when loading in parallel as well.
Once diff_customer
is loaded, the refresh process can be started. It can be performed in two phases or by merging in parallel, as demonstrated in the following:
The following statement is a straightforward SQL implementation of the update using subqueries:
UPDATE customers SET(c_name, c_addr) = (SELECT c_name, c_addr FROM diff_customer WHERE diff_customer.c_key = customer.c_key) WHERE c_key IN(SELECT c_key FROM diff_customer);
Unfortunately, the two subqueries in this statement affect performance.
An alternative is to rewrite this query using updatable join views. To do this, you must first add a primary key constraint to the diff_customer
table to ensure that the modified columns map to a key-preserved table:
CREATE UNIQUE INDEX diff_pkey_ind ON diff_customer(c_key) PARALLEL NOLOGGING; ALTER TABLE diff_customer ADD PRIMARY KEY (c_key);
You can then update the customers
table with the following SQL statement:
UPDATE /*+ PARALLEL(cust_joinview) */ (SELECT /*+ PARALLEL(customers) PARALLEL(diff_customer) */ CUSTOMER.c_name AS c_name CUSTOMER.c_addr AS c_addr, diff_customer.c_name AS c_newname, diff_customer.c_addr AS c_newaddr FROM diff_customer WHERE customers.c_key = diff_customer.c_key) cust_joinview SET c_name = c_newname, c_addr = c_newaddr;
The base scans feeding the join view cust_joinview
are done in parallel. You can then parallelize the update to further improve performance, but only if the customers
table is partitioned.
The last phase of the refresh process consists of inserting the new rows from the diff_customer
temporary table to the customer
table. Unlike the update case, you cannot avoid having a subquery in the INSERT
statement:
INSERT /*+PARALLEL(customers)*/ INTO customers SELECT * FROM diff_customer s);
However, you can guarantee that the subquery is transformed into an anti-hash join by using the HASH_AJ
hint. Doing so enables you to use parallel INSERT
to execute the preceding statement efficiently. Parallel INSERT
is applicable even if the table is not partitioned.
You can combine updates and inserts into one statement, commonly known as a merge. The following statement achieves the same result as all of the statements in "Updating the Table in Parallel" and "Inserting the New Rows into the Table in Parallel":
MERGE INTO customers USING diff_customer ON (diff_customer.c_key = customer.c_key) WHEN MATCHED THEN UPDATE SET (c_name, c_addr) = (SELECT c_name, c_addr FROM diff_customer WHERE diff_customer.c_key = customers.c_key) WHEN NOT MATCHED THEN INSERT VALUES (diff_customer.c_key,diff_customer.c_data);
Query optimization is a sophisticated approach to finding the best execution plan for SQL statements. Oracle automatically uses query optimization with parallel execution.
You must use the DBMS_STATS
package to gather current statistics for cost-based optimization. In particular, tables used in parallel should always be analyzed. Always keep your statistics current by using the DBMS_STATS
package. Failure to do so may result in degraded execution performance due to non-optimal execution plans.
Use discretion in employing hints. If used, hints should come as a final step in tuning and only when they demonstrate a necessary and significant performance advantage. In such cases, begin with the execution plan recommended by query optimization, and go on to test the effect of hints only after you have quantified your performance expectations. Remember that hints are powerful. If you use them and the underlying data changes, you might need to change the hints. Otherwise, the effectiveness of your execution plans might deteriorate.
The FIRST_ROWS(n)
hint enables the optimizer to use a new optimization mode to optimize the query to return n rows in the shortest amount of time. Oracle recommends that you use this new hint in place of the old FIRST_ROWS
hint for online queries because the new optimization mode may improve the response time compared to the old optimization mode.
Use the FIRST_ROWS(n)
hint in cases where you want the first n number of rows in the shortest possible time. For example, to obtain the first 10 rows in the shortest possible time, use the hint as follows:
SELECT /*+ FIRST_ROWS(10) */ article_id FROM articles_tab WHERE CONTAINS(article, 'Oracle')>0 ORDER BY pub_date DESC;
Dynamic sampling allows Oracle to derive more accurate statistics and thereby improve query performance when statistics do not exist or are out of date. This is particularly useful in data warehousing environments or when you expect long transactions or queries. In these situations, making sure that Oracle uses the best execution plan is important. Dynamic sampling does, however, have a small cost, so you should use it when that cost is likely to be a small fraction of the total execution time.
If you enable dynamic statistic sampling, Oracle determines at compile time whether a query would benefit from dynamic sampling. If so, a recursive SQL statement is issued to scan a small, random sample of the table's blocks, and to apply the relevant single table predicates to estimate predicate selectivities. Relevant table, index and column statistics are also estimated. More accurate selectivity and statistics estimates allow the optimizer to produce better performing plans.
Dynamic sampling is controlled with the initialization parameter OPTIMIZER_DYNAMIC_SAMPLING
, which can be set to a value between 0 and 10, inclusive. Increasing the value of the parameter will result in more aggressive application of dynamic sampling, in terms of both the type (unanalyzed/analyzed) of tables sampled and the amount of I/O spent on sampling.
Oracle also provides the table-specific hint DYNAMIC_SAMPLING
. If the table name is omitted, the hint is considered cursor-level. The table-level hint forces dynamic sampling for the table.
See Oracle Database Performance Tuning Guide for more information regarding dynamic sampling.
