You can access Oracle Streams Advanced Queuing (AQ) over the Internet by using Simple Object Access Protocol (SOAP). Internet Data Access Presentation (IDAP) is the SOAP specification for Oracle Streams AQ operations. IDAP defines XML message structure for the body of the SOAP request. An IDAP-structured message is transmitted over the Internet using HTTP.
Users can register for notifications using the IDAP interface.
This chapter contains these topics:
See Also:
|
This section contains these topics:
Figure 6-1 shows the architecture for performing Oracle Streams AQ operations over HTTP. The major components are:
Oracle Streams AQ client program
Web server/servlet runner hosting the Oracle Streams AQ servlet
Oracle Database server
A Web browser or any other HTTP client can serve as an Oracle Streams AQ client program, sending XML messages conforming to IDAP to the Oracle Streams AQ servlet, which interprets the incoming XML messages. The Oracle Streams AQ servlet connects to the Oracle Database server and performs operations on user queues.
Figure 6-1 Architecture for Performing Oracle Streams AQ Operations Using HTTP
Oracle Streams AQ supports messages of three types: RAW, Oracle object, and Java Message Service (JMS). All these message types can be accessed using SOAP and Web services. If the queue holds messages in RAW, Oracle object, or JMS format, then XML payloads are transformed to the appropriate internal format during enqueue and stored in the queue. During dequeue, when messages are obtained from queues containing messages in any of the preceding formats, they are converted to XML before being sent to the client.
The message payload type depends on the queue type on which the operation is being performed:
The contents of RAW queues are raw bytes. You must supply the hex representation of the message payload in the XML message. For example, <raw>023f4523</raw>
.
For Oracle object type queues that are not JMS queues (that is, they are not type AQ$_JMS_*
), the type of the payload depends on the type specified while creating the queue table that holds the queue. The content of the XML elements must map to the attributes of the object type of the queue table.
For queues with JMS types (that is, those with payloads of type AQ$_JMS_*
), there are four XML elements, depending on the JMS type. IDAP supports queues or topics with the following JMS types:
TextMessage
MapMessage
BytesMessage
ObjectMessage
JMS queues with payload type StreamMessage
are not supported through IDAP.
After the servlet is installed, the Web server must be configured to authenticate all users that send POST
requests to the Oracle Streams AQ servlet. The Oracle Streams AQ servlet allows only authenticated users to access the servlet. If the user is not authenticated, then an error is returned by the servlet.
The Web server can be configured in multiple ways to restrict access. Some of the common techniques are basic authentication (username/password) over SSL and client certificates. Consult your Web server documentation to see how you can restrict access to servlets.
In the context of the Oracle Streams AQ servlet, the username that is used to connect to the Web server is known as the Oracle Streams AQ HTTP agent or Oracle Streams AQ Internet user.
An Oracle Streams AQ client begins a request to the Oracle Streams AQ servlet using HTTP by opening a connection to the server. The client logs in to the server using HTTP basic authentication (with or without SSL) or SSL certificate-based client authentication. The client constructs an XML message representing the send, publish, receive or register request.
The client sends an HTTP POST
to the servlet at the remote server.
See Also: Table 1-3, "Oracle Streams AQ XML Demonstrations" for the locations of AQ XML demonstrations illustratingPOST requests using HTTP |
After a client is authenticated and connects to the Oracle Streams AQ servlet, an HTTP session is created on behalf of the user. The first request in the session also implicitly starts a new database transaction. This transaction remains open until it is explicitly committed or terminated. The responses from the servlet includes the session ID in the HTTP headers as cookies.
If the client wishes to continue work in the same transaction, then it must include this HTTP header containing the session ID cookie in subsequent requests. This is automatically accomplished by most Web browsers. However, if the client is using a Java or C client to post requests, then this must be accomplished programmatically.
See Also: Table 1-3, "Oracle Streams AQ XML Demonstrations" for the locations of AQ XML demonstrations illustrating a Java program used to post requests as part of the same session |
An explicit commit or rollback must be applied to end the transaction. The commit or rollback requests can also be included as part of other Oracle Streams AQ operations.
The server accepts the client HTTP(S) connection and authenticates the user (Oracle Streams AQ agent) specified by the client. The server receives the POST
request and invokes the Oracle Streams AQ servlet.
If this is the first request from this client, then a new HTTP session is created. The XML message is parsed and its contents are validated. If a session ID is passed by the client in the HTTP headers, then this operation is performed in the context of that session.
The servlet determines which object (queue/topic) the agent is trying to perform operations on. The servlet looks through the list of database users that map to this Oracle Streams AQ agent. If any one of these users has privileges to access the queue/topic specified in the request, then the Oracle Streams AQ servlet superuser creates a session on behalf of this user.
If no transaction is active in the HTTP session, then a new database transaction is started. Subsequent requests in the session are part of the same transaction until an explicit COMMIT
or ROLLBACK
request is made. The effects of the transaction are visible only after it is committed. If the transaction remains inactive for 120 seconds, then it is automatically terminated.
The requested operation is performed. The response is formatted as an XML message and sent back the client. The response also includes the session ID in the HTTP headers as a cookie.

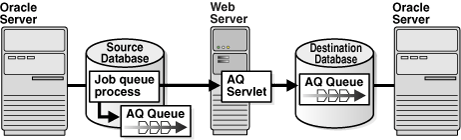

You can propagate over HTTP and HTTPS (HTTP over SSL) instead of Oracle Net Services. HTTP, unlike Oracle Net Services, is easy to configure for firewalls. The background process doing propagation pushes messages to an Oracle Streams AQ servlet that enqueues them into the destination database, as shown in Figure 6-2.
You can set up any application to use Oracle Streams AQ HTTP propagation without any change to the existing code. An application using Oracle Streams AQ HTTP propagation can easily switch back to Net Services propagation just by re-creating the database link with a Net Services connection string, without any other changes.
Follow these steps to deploy the AQ XML servlet using OC4J:
For JDK1.2.x or JDK1.3.x, include the following in your CLASSPATH
:
ORACLE_HOME/jdbc/lib/classes12.zip ORACLE_HOME/jdbc/lib/nls_charset12.zip ORACLE_HOME/jlib/javax-ssl-1_1.jar ORACLE_HOME/jlib/jndi.jar ORACLE_HOME/jlib/jssl-1_1.jar ORACLE_HOME/jlib/jta.jar ORACLE_HOME/jlib/orai18n.jar ORACLE_HOME/jlib/orai18n-collation.jar ORACLE_HOME/jlib/orai18n-mapping.jar ORACLE_HOME/jlib/orai18n-utility.jar ORACLE_HOME/lib/http_client.jar ORACLE_HOME/lib/lclasses12.zip ORACLE_HOME/lib/servlet.jar ORACLE_HOME/lib/xmlparserv2.jar ORACLE_HOME/lib/xschema.jar ORACLE_HOME/lib/xsu12.jar ORACLE_HOME/rdbms/jlib/aqapi.jar ORACLE_HOME/rdbms/jlib/aqxml.jar ORACLE_HOME/rdbms/jlib/jmscommon.jar ORACLE_HOME/rdbms/jlib/xdb.jar ORACLE_HOME/rdbms/jlib/xsu12.jar
For JDK1.4.x, include the following in your CLASSPATH
:
ORACLE_HOME/jdbc/lib/ojdbc14.jar ORACLE_HOME/jlib/javax-ssl-1_1.jar ORACLE_HOME/jlib/jndi.jar ORACLE_HOME/jlib/jssl-1_1.jar ORACLE_HOME/jlib/jta.jar ORACLE_HOME/jlib/orai18n.jar ORACLE_HOME/jlib/orai18n-collation.jar ORACLE_HOME/jlib/orai18n-mapping.jar ORACLE_HOME/jlib/orai18n-utility.jar ORACLE_HOME/lib/http_client.jar ORACLE_HOME/lib/lclasses12.zip ORACLE_HOME/lib/servlet.jar ORACLE_HOME/lib/xmlparserv2.jar ORACLE_HOME/lib/xschema.jar ORACLE_HOME/lib/xsu12.jar ORACLE_HOME/rdbms/jlib/aqapi.jar ORACLE_HOME/rdbms/jlib/aqxml.jar ORACLE_HOME/rdbms/jlib/jmscommon.jar ORACLE_HOME/rdbms/jlib/xdb.jar
Note: http_client.jar , jssl-1_1.jar , and javax-ssl-1_1.jar are required by HTTPClient used in AQHttp.java and AQHttpRq.java . |
Compile AQHttpRq.java
:
cd ORACLE_HOME/rdbms/demo
javac AQHttpRq.java AQHttp.java
Set the following database initialization parameters to the indicated values:
job_queue_processes=2 compatible=10.2.0
Restart the database and listener.
Set up queues and authenticate users for restricted access.
See Also: aqxmlREADME.txt and aqxmldmo.sql in ORACLE_HOME /rdbms/demo for additional information. |
Deploy the servlet and start the OC4J instance:
cd ORACLE_HOME/bin
sh aqxmlctl deploy
sh aqxmlctl start
Note: Usesh aqxmlctl stop to stop the OC4J instance. The deploy servlet and start OC4J instance steps might have been done during your Oracle Database installation. You can verify this in the following steps. |
Check the status of the servlet and information on the protocol and port number used for deploying the servlet in the following files:
ORACLE_HOME/rdbms/demo/aqxml.ini ORACLE_HOME/oc4j/j2ee/OC4J_AQ/config/rmi.xml ORACLE_HOME/oc4j/j2ee/OC4J_AQ/config/http-web-site.xml
Point a web browser to the following URL:
https://hostname:portnumber/aqserv/servlet/AQDemoServlet
where hostname
is the server name, and portnumber
is the value discovered in the previous step. After you respond to a username/password prompt, the servlet displays:
Sample AQ Servlet AQxmlServlet is working!
Create an SSL Certificate and generate a keystore. The following files provide examples:
ORACLE_HOME/rdbms/demo/aqxmloc4j.cert ORACLE_HOME/rdbms/demo/keystore
See Also: Keytool documentation athttp://java.sun.com/j2se/1.4.2/docs/tooldocs/solaris/keytool.html |
The following tags in ORACLE_HOME
/oc4j/j2ee/OC4J_AQ/config/http-web-site.xml
indicate that the Web site is secure and keystore is used for SSL authentication:
<web-site port="443" secure="true">
....
<ssl-config
keystore="ORACLE_HOME/oc4j/j2ee/home/keystore"
keystore-password="welcome" />
</web-site>
To make the site access only HTTP requests, remove secure="true"
and <ssl-config>
from http-web-site.xml
.
Stop and restart the AQ XML servlet:
sh aqxmlctl stop sh aqxmlctl start
Internet Data Access Presentation (IDAP) uses the Content-Type of text/xml
to specify the body of the SOAP request. XML provides the presentation for IDAP request and response messages as follows:
All request and response tags are scoped in the SOAP namespace.
Oracle Streams AQ operations are scoped in the IDAP namespace.
The sender includes namespaces in IDAP elements and attributes in the SOAP body.
The receiver processes SOAP messages that have correct namespaces and returns an invalid request error for requests with incorrect namespaces.
The SOAP namespace has the value http://schemas.xmlsoap.org/soap/envelope/
The IDAP namespace has the value http://ns.oracle.com/AQ/schemas/access
SOAP structures a message request or response as follows:
This is the root or top element in an XML tree. Its tag is SOAP:Envelope
. SOAP defines a global attribute SOAP:encodingStyle
that indicates serialization rules used instead of those described by the SOAP specification. This attribute can appear on any element and is scoped to that element and all child elements not themselves containing such an attribute. Omitting this attribute means that type specification has been followed unless overridden by a parent element.
The SOAP envelope also contains namespace declarations and additional attributes, provided they are namespace-qualified. Additional namespace-qualified subelements can follow the body.
This is the first element under the root. Its tag is SOAP:Header
. A SOAP header passes necessary information, such as the transaction identifier. The header is encoded as a child of the SOAP:Envelope
XML element. Headers are identified by the name element and are namespace-qualified. A header entry is encoded as an embedded element.
This is the Oracle Streams AQ XML document. Its tag is SOAP:Body
, and it contains a first subelement whose name is the method name. This method request element contains elements for each input and output parameter. The element names are the parameter names. The body also contains SOAP:Fault
, indicating information about an error. The Oracle Streams AQ XML document has the namespace http://ns.oracle.com/AQ/schemas/access
A method invocation is performed by creating the request header and body and processing the returned response header and body. The request and response headers can consist of standard transport protocol-specific and extended headers.
The POST
method within the HTTP request header performs the SOAP method invocation. The request should include the header SOAPMethodName,
whose value indicates the method to be invoked on the target. The value is of the form URI
#
method name
. For example:
SOAPMethodName: http://ns.oracle.com/AQ/schemas/access#AQXmlSend
The URI used for the interface must match the implied or specified namespace qualification of the method name element in the SOAP:Body
part of the payload. The method name must not include the "#" character.
SOAP method invocation consists of a method request and optionally a method response. The SOAP method request and method response are an HTTP request and response, respectively, whose contents are XML documents consisting of the root and mandatory body elements. These XML documents are referred to as SOAP payloads in the rest of this chapter.
A SOAP payload is defined as follows:
The SOAP root element is the top element in the XML tree.
The SOAP payload headers contain additional information that must travel with the request.
The method request is represented as an XML element with additional elements for parameters. It is the first child of the SOAP:Body
element. This request can be one of the Oracle Streams AQ XML client requests described in the next section.
The response is the return value or an error or exception that is passed back to the client.
At the receiving site, a request can have one of the following outcomes:
The HTTP infrastructure on the receiving site is able to receive and process the request. In this case, the HTTP infrastructure passes the headers and body to the SOAP infrastructure.
The HTTP infrastructure on the receiving site cannot receive and process the request. In this case, the result is an HTTP response containing an HTTP error in the status field and no XML body.
The SOAP infrastructure on the receiving site is able to decode the input parameters, dispatch to an appropriate server indicated by the server address, and invoke an application-level function corresponding semantically to the method indicated in the method request. In this case, the result of the method request consists of a response or error.
The SOAP infrastructure on the receiving site cannot decode the input parameters, dispatch to an appropriate server indicated by the server address, and invoke an application-level function corresponding semantically to the interface or method indicated in the method request. In this case, the result of the method is an error that prevented the dispatching infrastructure on the receiving side from successful completion.
In the last two cases, additional message headers can be present in the results of the request for extensibility.
The body of a SOAP message is an IDAP message. This XML document has the namespace http://ns.oracle.com/AQ/schemas/access
. The body represents:
Server responses to client requests for enqueue, dequeue, and registration
Notifications from the server to the client
Note: Oracle Streams AQ Internet access is supported only for 8.1or higher style queues. |
This section contains these topics:
Client send and publish requests use AQXmlSend
to enqueue to a single-consumer queue and AQXmlPublish
to enqueue to multiconsumer queues/topics
AQXmlSend
and AQXmlPublish
contain the following elements:
This is a required element. It contains the following child elements:
destination
This element is required. It specifies the queue/topic to which messages are to be sent. It has an optional lookup_type
attribute, which determines how the destination value is interpreted. If lookup_type is DATABASE
, which is the default, then the destination is interpreted as schema.queue_name
. If lookup_type
is LDAP
, then the LDAP server is used to resolve the destination.
This element is optional. It determines when an enqueue becomes visible. The default is ON_COMMIT
, which makes the enqueue visible when the current transaction commits. If IMMEDIATE
is specified, then the effects of the enqueue are visible immediately after the request is completed. The enqueue is not part of the current transaction. The operation constitutes a transaction on its own.
transformation
This element is optional. It specifies the PL/SQL transformation to be invoked before the message is enqueued.
This is a required element and contains one or more messages. Each message consists of a message_header and a message_payload.
This element is optional. It contains the following child elements:
sender_id
If a message_header
element is included, then it must contain a sender_id
element, which specifies an application-specific identifier. The sender_id
element can contain agent_name
, address
, protocol
, and agent_alias
elements. The agent_alias
element resolves to a name, address, and protocol using LDAP.
message_id
This element is optional. It is a unique identifier of the message, supplied during dequeue.
correlation
This element is optional. It is the correlation identifier of the message.
delay
This element is optional. It specifies the duration in seconds after which a message is available for processing.
expiration
This element is optional. It specifies the duration in seconds that a message is available for dequeuing. This parameter is an offset from the delay. By default messages never expire. If a message is not dequeued before it expires, then it is moved to an exception queue in the EXPIRED
state.
priority
This element is optional. It specifies the priority of the message. The priority can be any number, including negative numbers. A smaller number indicates higher priority.
recipient_list
This element is optional. It is a list of recipients which overrides the default subscriber list. Each recipient is represented in recipient_list
by a recipient
element, which can contain agent_name
, address
, protocol
, and agent_alias
elements. The agent_alias
element resolves to a name, address, and protocol using LDAP.
message_state
This element is optional. It specifies the state of the message. It is filled in automatically during dequeue. If message_state
is 0, then the message is ready to be processed. If it is 1, then the message delay has not yet been reached. If it is 2, then the message has been processed and is retained. If it is 3, then the message has been moved to an exception queue.
exception_queue
This element is optional. It specifies the name of the queue to which the message is moved if the number of unsuccessful dequeue attempts has exceeded max_retries
or the message has expired. All messages in the exception queue are in the EXPIRED
state.
If the exception queue specified does not exist at the time of the move, then the message is moved to the default exception queue associated with the queue table, and a warning is logged in the alert log. If the default exception queue is used, then the parameter returns a NULL
value at dequeue time.
This is a required element. It can contain different elements based on the payload type of the destination queue/topic. The different payload types are described in "IDAP Client Requests for Dequeue".
This is an optional empty element. If it is included, then the transaction is committed at the end of the request.
Client requests for dequeue use AQXmlReceive
, which contains the following elements:
This is a required element. It contains the following child elements:
destination
This element is required. It specifies the queue/topic from which messages are to be received. The destination
element has an optional lookup_type
attribute, which determines how the destination value is interpreted. If lookup_type is DATABASE
, which is the default, then the destination is interpreted as schema.queue_name
. If lookup_type
is LDAP
, then the LDAP server is used to resolve the destination.
consumer_name
This element is optional. It specifies the name of the consumer. Only those messages matching the consumer name are accessed. If a queue is not set up for multiple consumers, then this field should not be specified.
wait_time
This element is optional. It specifies the number of seconds to wait if there is no message currently available which matches the search criteria.
selector
This element is optional. It specifies criteria used to select the message. It can contain child elements correlation
, message_id
, or condition
.
A dequeue condition
element is a Boolean expression using syntax similar to the WHERE
clause of a SQL query. This Boolean expression can include conditions on message properties, user object payload data properties, and PL/SQL or SQL functions. Message properties include priority
, corrid
and other columns in the queue table.
To specify dequeue conditions on a message payload, use attributes of the object type in clauses. You must prefix each attribute with tab
.user_data
as a qualifier to indicate the specific column of the queue table that stores the payload.
A dequeue condition
element cannot exceed 4000 characters.
Note: When a dequeue condition or correlation identifier is used, the order of the messages dequeued is indeterminate, and the sort order of the queue is not honored. |
This element is optional. It determines when a dequeue becomes visible. The default is ON_COMMIT
, which makes the dequeue visible when the current transaction commits. If IMMEDIATE
is specified, then the effects of the dequeue are visible immediately after the request is completed. The dequeue is not part of the current transaction. The operation constitutes a transaction on its own.
dequeue_mode
This element is optional. It specifies the locking action associated with the dequeue. The possible values are REMOVE
, BROWSE
, and LOCKED
.
REMOVE
is the default and causes the message to be read and deleted. The message can be retained in the queue table based on the retention properties. BROWSE
reads the message without acquiring any lock on it. This is equivalent to a select statement. LOCKED
reads the message and obtains a write lock on it. The lock lasts for the duration of the transaction. This is equivalent to a select for update statement.
navigation_mode
This element is optional. It specifies the position of the message that is retrieved. First, the position is determined. Second, the search criterion is applied. Finally, the message is retrieved. Possible values are FIRST_MESSAGE
, NEXT_MESSAGE
, and NEXT_TRANSACTION
.
FIRST_MESSAGE
retrieves the first message which is available and which matches the search criteria. This resets the position to the beginning of the queue. NEXT_MESSAGE
is the default and retrieves the next message which is available and which matches the search criteria. If the previous message belongs to a message group, then Oracle Streams AQ retrieves the next available message which matches the search criteria and which belongs to the message group.NEXT_TRANSACTION
skips the remainder of the current transaction group and retrieves the first message of the next transaction group. This option can only be used if message grouping is enabled for the current queue.
transformation
This element is optional. It specifies the PL/SQL transformation to be invoked after the message is dequeued.
This is an optional empty element. If it is included, then the transaction is committed at the end of the request.
Client requests for registration use AQXmlRegister
, which must contain a register_options
element. The register_options
element contains the following child elements:
destination
This element is required. It specifies the queue/topic on which notifications are registered. The destination
element has an optional lookup_type
attribute, which determines how the destination value is interpreted. If lookup_type is DATABASE
, which is the default, then the destination is interpreted as schema.queue_name
. If lookup_type
is LDAP
, then the LDAP server is used to resolve the destination.
consumer_name
This element is optional. It specifies the consumer name for multiconsumer queues or topics. This parameter must not be specified for single-consumer queues.
notify_url
This element is required. It specifies where notification is sent when a message is enqueued. The form can be http://
url
, mailto://
email address
or plsql://
pl/sql procedure
.
A request to commit all actions performed by the user in a session uses AQXmlCommit
. A commit request has the following format:
<?xml version="1.0"?> <Envelope xmlns="http://schemas.xmlsoap.org/soap/envelope/"> <Body> <AQXmlCommit xmlns="http://ns.oracle.com/AQ/schemas/access"/> </Body> </Envelope>
A request to roll back all actions performed by the user in a session uses AQXmlRollback
. Actions performed with IMMEDIATE
visibility are not rolled back. An IDAP client rollback request has the following format:
<?xml version="1.0"?> <Envelope xmlns="http://schemas.xmlsoap.org/soap/envelope/"> <Body> <AQXmlRollback xmlns="http://ns.oracle.com/AQ/schemas/access"/> </Body> </Envelope>
The response to an enqueue request to a single-consumer queue uses AQXmlSendResponse
. It contains the following elements:
status_response
This element contains child elements status_code
, error_code
, and error_message
. The status_code
element takes value 0
for success or -1
for failure. The error_code
element contains an Oracle error code. The error_message
element contains a description of the error.
send_result
This element contains child elements destination
and message_id
. The destination
element specifies where the message was sent. The message_id
element uniquely identifies every message sent.
The response to an enqueue request to a multiconsumer queue or topic uses AQXmlPublishResponse
. It contains the following elements:
status_response
This element contains child elements status_code
, error_code
, and error_message
. The status_code
element takes value 0
for success or -1
for failure. The error_code
element contains an Oracle error code. The error_message
element contains a description of the error.
publish_result
This element contains child elements destination
and message_id
. The destination
element specifies where the message was sent. The message_id
element uniquely identifies every message sent.
The response to a dequeue request uses AQXmlReceiveResponse
. It contains the following elements:
status_response
This element contains child elements status_code
, error_code
, and error_message
. The status_code
element takes value 0
for success or -1
for failure. The error_code
element contains an Oracle error code. The error_message
element contains a description of the error.
receive_result
This element contains child elements destination
and message_set
. The destination
element specifies where the message was sent. The message_set
element specifies the set of messages dequeued.
The response to a register request uses AQXmlRegisterResponse
. It contains the status_response
element described in "IDAP Server Response to a Dequeue Request".
The response to a commit request uses AQXmlCommitResponse. It contains the status_response
element described in "IDAP Server Response to a Dequeue Request". The response to a commit request has the following format:
<?xml version = '1.0'?> <Envelope xmlns="http://schemas.xmlsoap.org/soap/envelope/"> <Body> <AQXmlCommitResponse xmlns="http://ns.oracle.com/AQ/schemas/access"> <status_response> <status_code>0</status_code> </status_response> </AQXmlCommitResponse> </Body> </Envelope>
The response to a rollback request uses AQXmlRollbackResponse
. It contains the status_response
element described in "IDAP Server Response to a Dequeue Request".
When an event for which a client has registered occurs, a notification is sent to the client at the URL specified in the REGISTER
request using AQXmlNotification
. It contains the following elements:
notification_options
This element has child elements destination
and consumer_name
. The destination
element specifies the destination queue/topic on which the event occurred. The consumer_name element specifies the consumer name for which the even occurred. It applies only to multiconsumer queues/topics.
message_set
This element specifies the set of message properties.
In case of an error in any of the preceding requests, a FAULT
is generated. The FAULT
element contains the following elements:
faultcode
This element specifies the error code for the fault.
faultstring
This element indicates a client error or a server error. A client error means that the request is not valid. A server error indicates that the Oracle Streams AQ servlet has not been set up correctly.
detail
This element contains the status_response
element, which is described in "IDAP Server Response to a Dequeue Request".
Here are the steps for setting up your database for e-mail notifications:
Set the SMTP mail host by invoking DBMS_AQELM.SET_MAILHOST
as an Oracle Streams AQ administrator.
Set the SMTP mail port by invoking DBMS_AQELM.SET_MAILPORT
as an Oracle Streams AQ administrator. If not explicit, set defaults to 25.
Set the SendFrom address by invoking DBMS_AQELM.SET_SENDFROM
.
After setup, you can register for e-mail notifications using the Oracle Call Interface (OCI) or PL/SQL API.
