This chapter contains:
This section contains:
This section contains:
From Database Control, you can use the Oracle Database Vault pages to monitor a Database Vault-enabled database and view Database Vault reports.
However, you cannot create policies or perform other Database Vault Administrator-related actions from Database Control. If you want to perform these tasks, use Database Vault Administrator, described under "Starting Oracle Database Vault Administrator". If you want to propagate Database Vault policies to other Database Vault-enabled databases, then see "Accessing Oracle Database Vault Pages from Grid Control".
To access the Oracle Database Vault pages from Database Control:
From My Oracle Support (formerly OracleMetaLink), download and install patch 760748.1 (Managing Database Vault From Grid Control 10.2.0.5).
You can access My Oracle Support from the following Web site:
Start Database Control.
For example:
https://myserver.example.com:1158/em
Log in to Database Control with the following information:
Username: Enter the name of a user who has been granted the appropriate Oracle Database Vault role:
Creating and propagating Database Vault policies: DV_OWNER
or DV_ADMIN
Viewing Database Vault alerts and reports: DV_OWNER
, DV_ADMIN
, or DV_SECANALYST
Creating and managing user accounts and roles: DV_ACCTMGR
The Oracle Database Vault roles do not need any additional privileges (such as SELECT ANY DICTIONARY
) to use Database Control.
See "About Oracle Database Vault Roles" for more information.
Password: Enter your password.
Connect As: Select Normal from the list.
Save as Preferred Credential check box: Select this check box if you want these credentials to be automatically filled in for you the next time that this page appears.
In the Home page, click Server to display the Server subpage.
Under Security, select Database Vault.
The Oracle Database Vault home page appears.
From Grid Control, you can use the Oracle Database Vault pages to propagate Database Vault policies to other Database Vault-protected databases, administer and monitor Database Vault-protected databases from a centralized console, automate alerts, and view Database Vault reports.
However, you cannot create policies or perform other Database Vault Administrator-related actions from Grid Control. If you want to perform these functions, then use Database Vault Administrator, described under "Starting Oracle Database Vault Administrator".
To access the Oracle Database Vault pages from Grid Control:
From My Oracle Support, download and install patch 760748.1 (Managing Database Vault From Grid Control 10.2.0.5).
You can access My Oracle Support from the following Web site:
Ensure that you have configured the Grid Control target databases that you plan to use with Database Vault.
See the Oracle Enterprise Manager online help and Oracle Enterprise Manager Advanced Configuration for more information about configuring target databases.
Start Grid Control.
For example:
https://myserver.example.com:1158/em
Log in to Oracle Enterprise Manager as user SYSMAN
and connect as Normal
.
In the Oracle Enterprise Manager Database Home page (Database Home page), select the Targets subpage.
Select the Databases subpage.
In the Databases page, select the link for the Oracle Database Vault-protected database to which you want to connect.
The home page for the database instance appears.
In the Home page, click Server to display the Server subpage.
Under Security, select Database Vault.
The Oracle Database Vault login page appears.
Enter the following information:
Username: Enter the name of a user who has been granted the appropriate Oracle Database Vault role:
Creating and propagating Database Vault policies: DV_OWNER
or DV_ADMIN
Viewing Database Vault alerts and reports: DV_OWNER
, DV_ADMIN
, or DV_SECANALYST
Creating and managing user accounts and roles: DV_ACCTMGR
The Oracle Database Vault roles do not need any additional privileges (such as SELECT ANY DICTIONARY
) to use Grid Control.
See "About Oracle Database Vault Roles" for more information.
Password: Enter your password.
Connect As: Select Normal from the list.
Save as Preferred Credential check box: Select this check box if you want these credentials to be automatically filled in for you the next time that this page appears.
Click the Login button.
The Oracle Database Vault home page appears.
This section describes how to start Oracle Database Vault Administrator without Oracle Enterprise Manager.
Tip:
If you are using Oracle Enterprise Manager Database Control, you can configure it for an SSL (HTTPS) secure connection. For more information, see Oracle Enterprise Manager Advanced Configuration in Oracle Enterprise Manager 10g Release 10.1. To access this manual, visit Oracle Technology Network (OTN) athttp://www.oracle.com/technetwork/index.html
Follow these steps:
From the Documentation menu, select Enterprise Manager.
On the Oracle Enterprise Manager 10g Release Documentation page, under Other Releases, select the Oracle Enterprise Manager Release 1 (10.1) Documentation link.
On the Oracle Enterprise Manager 10g Release 1 (10.1) Documentation page, select either PDF or HTML for Oracle Enterprise Manager Advanced Configuration, whose part number is B12013-03.
In Chapter 4, "Enterprise Manager Security," go to "Configuring Security for the Database Control."
To start Oracle Database Vault Administrator:
From a browser, enter the following URL:
http://host_name:port/dva
In this specification:
host_name
: The server where you installed Oracle Database Vault
port
: The Oracle Enterprise Manager Console HTTP port number
For example:
http://myserver:1158/dva
If you are unsure of the port number, open the ORACLE_HOME
/
host_sid
/sysman/config/emd.properties
file and search for REPOSITORY_URL
. In most cases, the host name and port number are the same as Oracle Enterprise Database Control.
If you cannot start Oracle Database Vault Administrator, check that the Oracle database console process is running.
UNIX: Navigate to the $ORACLE_HOME/bin
directory and run the following command:
./emctl status dbconsole
If you must start the dbconsole
process, then run the following command:
./emctl start dbconsole
Windows: In the Administrative Services, select the Services utility, and then right-click the OracleDBConsolesid service. If necessary, select Start from the menu to start the database console.
Log files are in the following directory:
$ORACLE_HOME/sysman/log
When the login page appears, log in by using the appropriate Oracle Database Vault account.
Creating and managing Database Vault policies: DV_OWNER
or DV_ADMIN
Viewing Database Vault reports: DV_OWNER
, DV_ADMIN
, or DV_SECANALYST
Creating and managing user accounts and roles: DV_ACCTMGR
See "About Oracle Database Vault Roles" for more information.
By default, you cannot log in to Oracle Database Vault Administrator by using the SYS
, SYSTEM
, or other non-Oracle Database VAult administrative accounts.

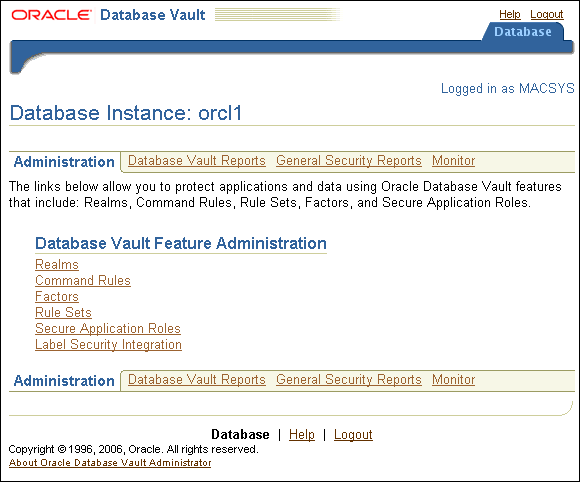

Figure 3-1 shows the Oracle Database Vault Administrator home page, which appears after you log in.
Figure 3-1 Oracle Database Vault Administrator Home Page
This section contains:
In this tutorial, you create a simple security configuration for the HR
sample database schema. In the HR
schema, the EMPLOYEES
table has information such as salaries that should be hidden from most employees in the company, including those with administrative access. To accomplish this, you add the HR
schema to the secured objects of the protection zone, which in Oracle Database Vault is called a realm, inside the database. Then you grant limited authorizations to this realm. Afterward, you test the realm to make sure it has been properly secured. And finally, to see how Oracle Database Vault provides an audit trail on suspicious activities like the one you will try when you test the realm, you will run a report.
Before you can use this tutorial, ensure that the HR
sample schema is installed. See Oracle Database Sample Schemas for information on installing the sample schemas.
In this tutorial, the SYSTEM
user grants the ANY
privilege to a new user account, SEBASTIAN
. To do this, you must include SYSTEM
in the Oracle Data Dictionary realm.
To include SYSTEM
in the Oracle Data Dictionary realm:
Log in to Oracle Database Vault Administrator as a user who has been granted the DV_OWNER
or DV_ADMIN
role.
"Starting Oracle Database Vault" explains how to log in.
In the Administration page, under Database Vault Feature Administration, click Realms.
In the Realms page, select Oracle Data Dictionary from the list and then click Edit.
In the Edit Realm: Oracle Data Dictionary page, under Realm Authorizations, click Create.
In the Create Realm Authorization Page, from the Grantee list, select SYSTEM [USER].
For Authorization Type, select Owner.
Leave Authorization Rule Set at <Non Selected>.
Click OK.
In the Edit Realm: Oracle Data Dictionary page, SYSTEM
should be listed as an owner under the Realm Authorizations.
Click OK to return to the Realms page.
To return to the Administration page, click the Database Instance instance_name link over Realms.
Log in to SQL*Plus as user SYSTEM
and access the HR
schema.
sqlplus system
Enter password: password
SELECT FIRST_NAME, LAST_NAME, SALARY FROM HR.EMPLOYEES WHERE ROWNUM < 10;
Output similar to the following appears:
FIRST_NAME LAST_NAME SALARY -------------------- ------------------------- ---------- Donald OConnell 2600 Douglas Grant 2600 Jennifer Whalen 4400 Michael Hartstein 13000 Pat Fay 6000 Susan Mavris 6500 Hermann Baer 10000 Shelley Higgins 12000 William Gietz 8300 9 rows selected.
If the HR
schema is locked and expired, log in to SQL*Plus as the Database Vault Account Manager and unlock and unexpire the account. For example:
sqlplus amalcolm_dvacctmgr Enter password: password ALTER USER HR ACCOUNT UNLOCK IDENTIFIED BY password
Replace password
with a password that is secure.
As you can see, SYSTEM
has access to the salary information in the EMPLOYEES
table of the HR
schema. This is because SYSTEM
is automatically granted the DBA
role, which includes the SELECT ANY TABLE
system privilege.
Realms can protect one or more schemas, individual schema objects, and database roles. Once you create a realm, you can create security restrictions that apply to the schemas and their schema objects within the realm. Your first step is to create a realm for the HR
schema.
In the Realms page of Oracle Database Vault Administrator, click Create.
In the Create Realm page, under General, enter HR Realm
after Name.
After Status, ensure that Enabled is selected so that the realm can be used.
Under Audit Options, ensure that Audit On Failure is selected so that you can create an audit trial later on.
Click OK.
The Realms Summary page appears, with HR Realm in the list of realms.
At this stage, you are ready to add the EMPLOYEES
table in the HR
schema to the secured objects of the HR realm.
In the Realms page, select HR Realm from the list and then click Edit.
In the Edit Realm: HR Realm page, scroll to Realm Secured Objects and then click Create.
In the Create Realm Secured Object page, enter the following settings:
Object Owner: Select HR
from the list.
Object Type: Select TABLE from the list.
Object Name: Enter EMPLOYEES
.
Click OK.
In the Edit Realm: HR Realm page, click OK.
At this stage, there are no database accounts or roles authorized to access or otherwise manipulate the database objects the realm will protect. So, the next step is to authorize database accounts or database roles so that they can have access to the schemas within the realm. You will create the SEBASTIAN
user account. After you authorize him for the realm, SEBASTIAN
is able to view and modify the EMPLOYEES
table.
In SQL*Plus, connect as the Database Vault Account Manager, who has the DV_ACCTMGR
role, and create user SEBASTIAN
.
For example:
CONNECT amalcolm_dvacctmgr Enter password: password CREATE USER SEBASTIAN IDENTIFIED BY password;
Replace password
with a password that is secure.
Connect as SYSTEM
privilege, and then grant SEBASTIAN
the following additional privileges.
CONNECT SYSTEM
Enter password: password
GRANT CREATE SESSION, SELECT ANY TABLE TO SEBASTIAN;
Do not exit SQL*Plus; you will need it for Step 6: Test the Realm, when you test the realm.
At this stage, even though SEBASTIAN
has the SELECT ANY TABLE
privilege, he cannot select from the HR.EMPLOYEES
table because it is protected by a realm.
Next, authorize user SEBASTIAN
to have access to the HR Realm as follows:
In the Realms page of Database Vault Administrator, select the HR Realm in the list of realms, and then click Edit.
In the Edit Realm: HR Realm page, scroll down to Realm Authorizations and then click Create.
In the Create Realm Authorization page, under Grantee, select SEBASTIAN[USER] from the list.
If SEBASTIAN
does not appear in the list, select the Refresh button in your browser.
SEBASTIAN
is the only user who has access to the EMPLOYEES
table in the HR
schema.
Under Authorization Type, select Participant.
The Participant authorization allows the user SEBASTIAN
in the HR realm to manage access, manipulate, and create objects protected by the HR realm. In this case, the HR
user and SEBASTIAN
are the only users allowed to view the EMPLOYEES
table.
Under Authorization Rule Set, select <Not Assigned>, because rule sets are not needed to govern this realm.
Click OK.
To test the realm, try accessing the EMPLOYEES
table as a user other than HR
. The SYSTEM
account normally has access to all objects in the HR
schema, but now that you have safeguarded the EMPLOYEES
table with Oracle Database Vault, this is no longer the case.
In SQL*Plus, connect as SYSTEM
, and then try accessing the salary information in the EMPLOYEES
table again:
sqlplus system
Enter password: password
SELECT FIRST_NAME, LAST_NAME, SALARY FROM HR.EMPLOYEES WHERE ROWNUM <10;
The following output should appear:
Error at line 1: ORA-01031: insufficient privileges
SYSTEM
no longer has access to the salary information in the EMPLOYEES
table. However, user SEBASTIAN
does have access to this information. Try the following:
CONNECT SEBASTIAN
Enter password: password
SELECT FIRST_NAME, LAST_NAME, SALARY FROM HR.EMPLOYEES WHERE ROWNUM <10;
Output similar to the following appears:
FIRST_NAME LAST_NAME SALARY -------------------- ------------------------- ---------- Donald OConnell 2600 Douglas Grant 2600 Jennifer Whalen 4400 Michael Hartstein 13000 Pat Fay 6000 Susan Mavris 6500 Hermann Baer 10000 Shelley Higgins 12000 William Gietz 8300 9 rows selected.
Because you enabled auditing on failure for the HR Realm, you can generate a report to find any security violations such as the one you attempted in Step 6: Test the Realm.
In the Oracle Database Vault Administrator home page, click Database Vault Reports.
Before you can run the report, you must log in using an account that has the DV_OWNER
, DV_ADMIN
, or DV_SECANALYST
role. Note that user SEBASTIAN
cannot run the report, even if it affects his own realm. "Oracle Database Vault Roles" describes these roles in detail. Currently, you should be logged in as the Database Vault Owner (DV_OWNER
) account.
In the Database Vault Reports page, scroll down to Database Vault Auditing Reports and select Realm Audit.
Click Run Report.
Oracle Database Vault generates a report listing the type of violation (in this case, the SELECT
statement entered in the previous section), when and where it occurred, the login account who tried the violation, and what the violation was.
Remove the SYSTEM
account from the Data Dictionary Realm.
Ensure that you are logged on to Oracle Database Vault Administrator using a database account that has been granted the DV_OWNER
role.
From the Administration page, select Realms.
From the list of realms, select Oracle Data Dictionary, and then click Edit.
Under Realm Authorizations, select SYSTEM
.
Click Remove, and in the Confirmation window, click Yes.
Delete the HR Realm.
In the Realms page, select HR Realm
from the list of realms.
Click Remove, and in the Confirmation window, click Yes.
Drop user SEBASTIAN
.
In SQL*Plus, log on as the Oracle Database Vault account manager (for example, amalcolm_dvacctmgr
) you created when you installed Oracle Database Vault, and then drop SEBASTIAN
as follows:
sqlplus amalcolm_dvacctmgr
Enter password: password
DROP USER SEBASTIAN;
If necessary, lock and expire the HR
account.
ALTER USER HR ACCOUNT LOCK PASSWORD EXPIRE;
