12.3 Using the Services View to Review and Update ESB Systems

The Services view of Oracle ESB Control enables you to view and update system definitions.

Figure 12-1 provides an example of the system Definition tab of the Services view in Oracle ESB Control.

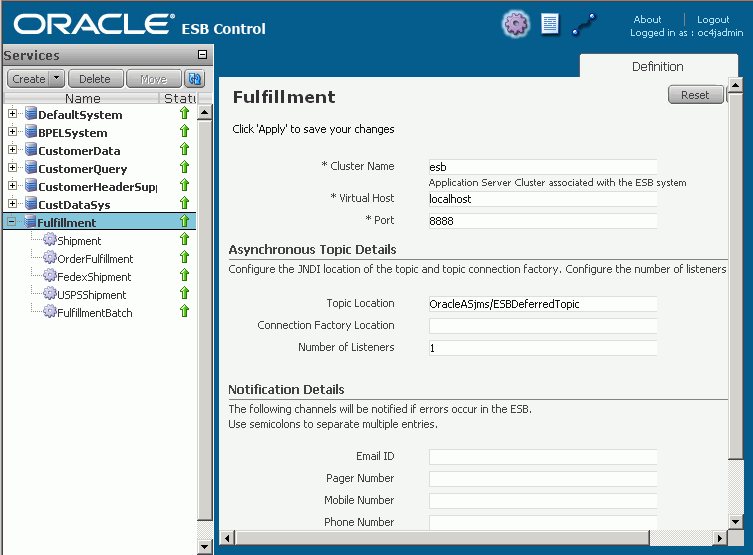

Figure 12-1 Oracle ESB Control Services View - System Definition Tab

Description of "Figure 12-1 Oracle ESB Control Services View - System Definition Tab"

The system Definition tab of the Services view displays the name, cluster name, virtual host, port, asynchronous topic details, and notification details for the ESB system.

You can update the system definitions. For example, you can enter contact information in the notification channels under notification details. With the notification channels you can specify the people to be notified in the event that an error occurs in the processing of message instances.

12.3.1 How to View and Modify System Definitions

You can view and update an ESB system definition in the Services view of Oracle ESB Control. When you select a system in the navigation tree of the services panel, the system Definition tab displays.

To view and modify system definitions:

1. Open the Services view of Oracle ESB Control.

2. In the Services navigation tree, select the ESB system for which you want to set notification channels.

   The Definition tab appears similar to Figure 12-1.

3. Review the definitions and specify values for one or more of the system definition fields if necessary.

4. Click Apply to save your changes.
