You will need the following details about your environment for the installer to successfully deploy the RIB applications. Depending on the options you select, you may not see some screens.

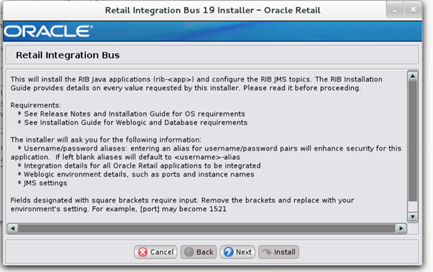

Screen: Welcome Page

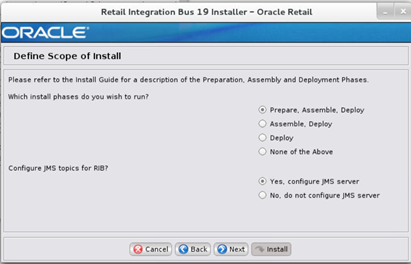

Screen: Define Scope
Field Title | Which installation phases do you wish to run? |
---|---|
Field Description | Used by the installer's build.xml to determine which phases to run during the installation. Each installation phase will run a different command-line tool.Preparation Phase:check-version-and-unpack.shAssembly Phase:rib-app-compiler.shDeployment Phase: rib-app-deployer.sh -deploy-rib-func-artifact-warand/orrib-app-deployer.sh -deploy-rib-app-ear rib-<app> |
Field Title | Configure JMS topics for RIB? |
---|---|
Field Description | Used by the installer's build.xml to determine whether to configure the JMS topics.Will run the command-line tool:rib-app-deployer.sh -prepare-jms |

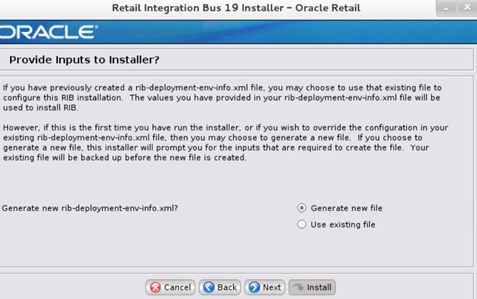

Screen: Provide Inputs to Installer?
Field Title | Generate new config file? |
---|---|
Field Description | Used by the installer to determine whether to prompt user for inputs needed to generate the rib-deployment-env-info.xml file. Also used by the installer's build.xml to determine whether or not to actually generate the new file. |

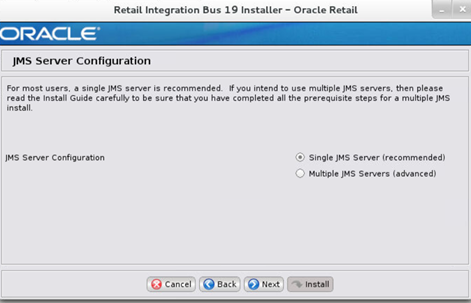

Screen: JMS Server Configuration
Field Title | JMS Server Configuration |
---|---|
Field Description | Used by the installer to determine how many sets of JMS server inputs should be collected from the user. |

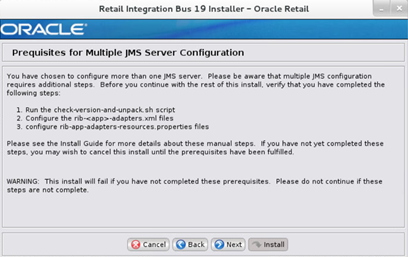

Screen: Prerequisites for Multiple JMS Server Configuration

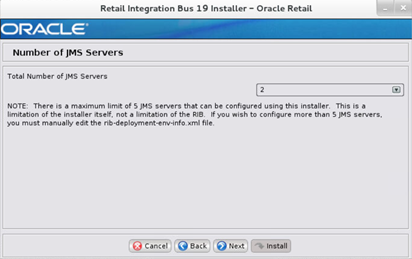

Screen: Number of JMS Servers
Field Title | Total Number of JMS Servers |
---|---|
Field Description | Used by the installer to determine how many sets of JMS server inputs should be collected from the user. |
Example | 5 |

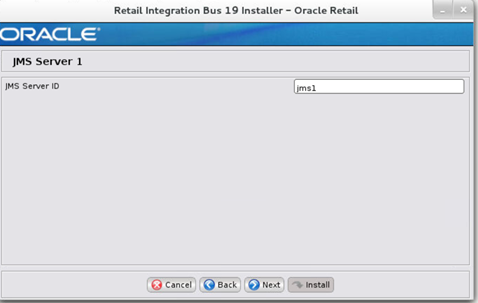

Screen: JMS Server 1
Note: The installer will request input for as many JMS servers as were chosen on the previous screen. There will be one input screen for each JMS server. |
Field Title | JMS Server ID |
---|---|
Field Description | The name of the JMS server. |
Destination | rib-deployment-env-info.xml |
Example | jms1 |

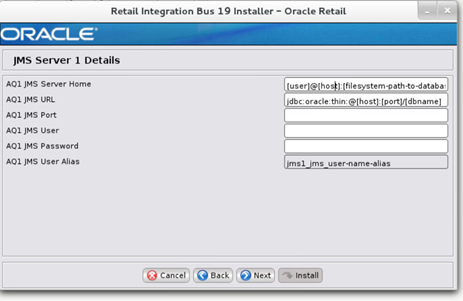

Screen: JMS Server 1 Details
Field Title | AQ1 JMS Server Home |
---|---|
Field Description | The AQ1 JMS server home |
Destination | rib-deployment-env-info.xml |
Example | oracle@myhost:/u01/oradata |
Field Title | AQ1 JMS URL |
---|---|
Field Description | The AQ1 JMS URL |
Destination | rib-deployment-env-info.xml |
Example | oracle@myhost:/u01/oradata |
Field Title | AQ1 JMS Port |
---|---|
Field Description | The AQ1 JMS port |
Destination | rib-deployment-env-info.xml |
Example | 1521 |
Field Title | AQ1 JMS User |
---|---|
Field Description | The AQ1 JMS user |
Destination | rib-deployment-env-info.xml |
Field Title | AQ1 JMS Password |
---|---|
Field Description | The AQ1 JMS password. |
Destination | rib-deployment-env-info.xml |
Field Title | AQ1 JMS Alias |
---|---|
Field Description | The alias is used by the application to access user names and passwords in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |

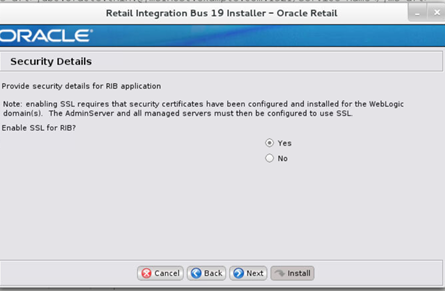

Screen: Security Details
Field Title | Enable SSL for RIB |
---|---|
Field Description | Option to deploy RIB to a secured environment, by selecting enable SSL flag to YES and providing SSL port while configuring wls. RIB deployed to SSL enabled WebLogic server. By setting Enable SSL for RIB to No, RIB will be deployed to a non SSL environment |
Example | YES/NO |

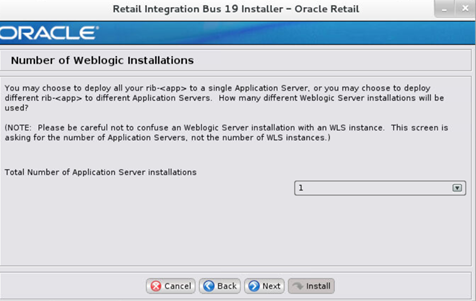

Screen: Number of WebLogic Installations
Field Title | Total Number of Oracle WebLogic Server Installations |
---|---|
Field Description | The number of different WebLogic Servers to which your rib-<app> applications will be installed. The installer uses this information to determine how many Oracle WebLogic servers it must request input for. |
Example | 1 |

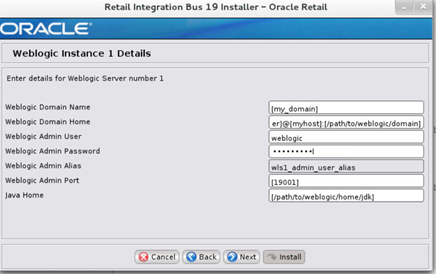

Screen: WebLogic Instance <X> Details
Note: The installer will request input for as many Oracle WebLogic servers as were chosen on the previous screen. There will be one input screen for each Oracle WebLogic server. |
Field Title | WebLogic Domain Name |
---|---|
Field Description | Your App Server's domain name. |
Destination | rib-deployment-env-info.xml |
Example | rib_domain |
Field Title | WebLogic Domain Home |
---|---|
Field Description | The format should be:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>where<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the installed domain. |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost:/path/to/weblogic/domain/home |
Field Title | WebLogic Admin User |
---|---|
Field Description | The WebLogic admin user for this WebLogic instance. |
Destination | rib-deployment-env-info.xml |
Field Title | WebLogic Admin Password |
---|---|
Field Description | The WebLogic admin password for this WebLogic instance. |
Destination | rib-deployment-env-info.xml |
Field Title | WebLogic Admin Alias |
---|---|
Field Description | The alias is used by the application to access user names and passwords in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | weblogic-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | WebLogic Admin Port |
---|---|
Field Description | The port used to access the AdminServer for this domain. It is found in $WEBLOGIC_DOMAIN_HOME/config/config.xml. |
Destination | rib-deployment-env-info.xml |
Example | 7001 |
Field Title | Java Home |
---|---|
Field Description | The JDK in the ORACLE_HOME. |
Destination | rib-deployment-env-info.xml |
Example | /path/to/jdk |

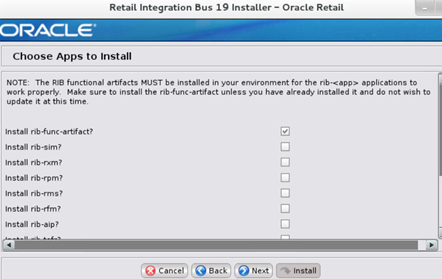

Screen: Choose Apps to Install
Field Title | Install rib-<app> |
---|---|
Field Description | Used by the installer's build.xml to determine which applications to deploy during the Deployment Phase. Tick the checkbox for the applications which are in scope of deployment (eg: rib-ext).
This screen may also be shown if you have chosen not to run the Deployment Phase, but have chosen to generate a new rib-deployment-env-info.xml file. In this case, it is used by the installer to determine the input to request from the user to create the rib-deployment-env-info.xml file. |
Destination | rib-deployment-env-info.xml |

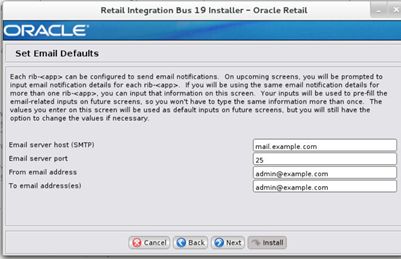

Screen: Set Email Defaults
Field Title | Email server host (SMTP) |
---|---|
Field Description | If you are going to use the same email host for multiple rib <app> applications, you can enter it here. |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | If you are going to use the same email port for multiple rib-<app> applications you can enter it here. |
Example | 25 |
Field Title | From email address |
---|---|
Field Description | If you are going to use the same email originator address for multiple rib-<app> applications you can enter it here. |
Example | rib@example.com |
Field Title | To email addresses |
---|---|
Field Description | If you are going to use the same email recipients list for multiple rib-<app> applications you can enter it here. |
Example | name1@example.com, name2@example.com |

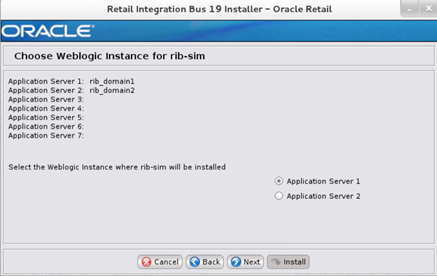

Screen: Choose App Server for rib-<app>
Note: The screen capture above shows rib-sim. There are similar screens for rib-func-artifacts and for each other rib-<app> that you have chosen to install. |
Field Title | Select the App Server where rib-<app> will be installed |
---|---|
Field Description | Used by the installer's build.xml to determine the application server with which to associate the rib-<app>'s WLS instance. Note: The installer requests this information for rib-func-artifact, even if you have chosen to install rib-func-artifact at this time. The reason is that the rib-func-artifact inputs must exist in the rib-deployment-env-info.xml file to deploy any rib-<app:>. |
Destination | rib-deployment-env-info.xml |

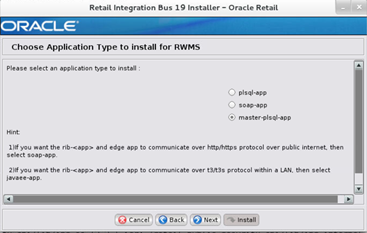

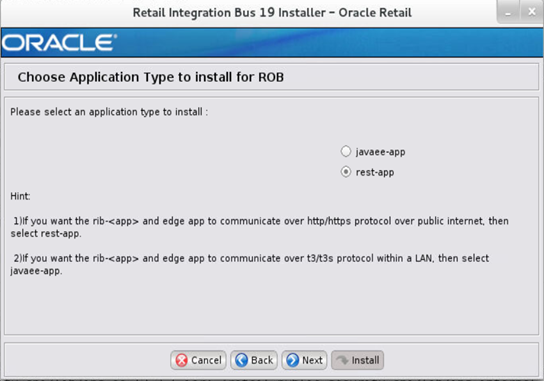

Screen: rib-<app> Install Type
rib-sim can be deployed as soap-app or javaee-app . In case of hybrid cloud scenario in which app is on-premise and rib-<app> is on cloud communication between two will be over the internet (http/https protocol).
Pick the appropriate type from the options.

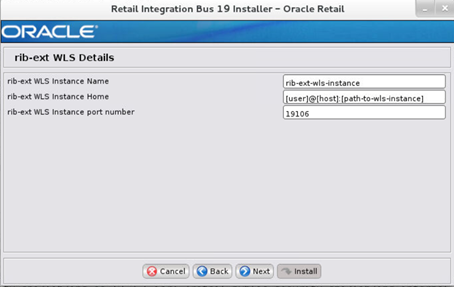

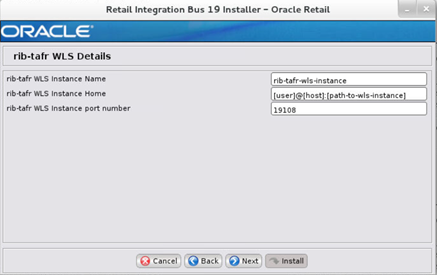

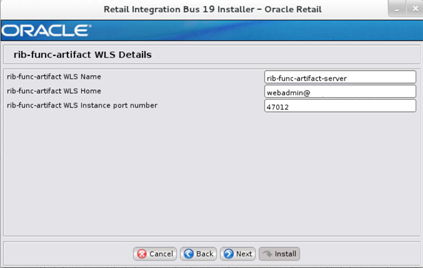

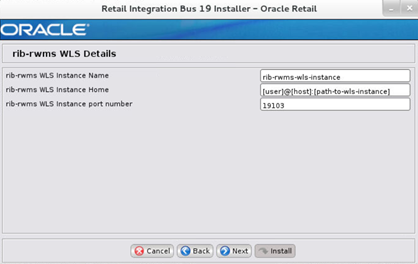

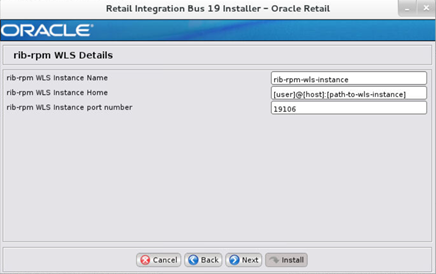

Screen: rib-<app> WLS Details
Note: The screen capture above shows the WLS details input screen for rib-sim. Depending on which rib-<app> applications you are installing, the installer may display one or more input screens for each rib-<app>. |
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-sim-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-sim-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |
Field Title | rib-<app> WLS User |
---|---|
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | rib-<app> WLS Password |
---|---|
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | rib-<app> WLS Alias |
---|---|
Field Description | The alias is used by the application to access user names and passwords in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |

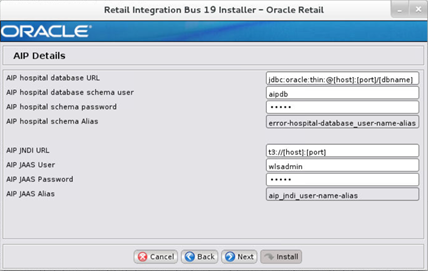

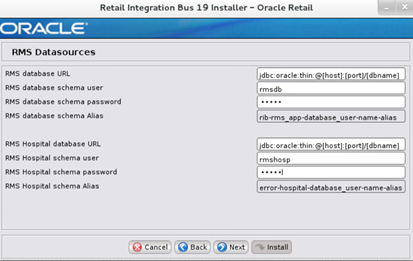

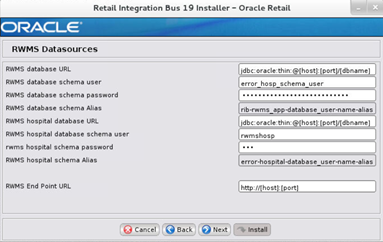

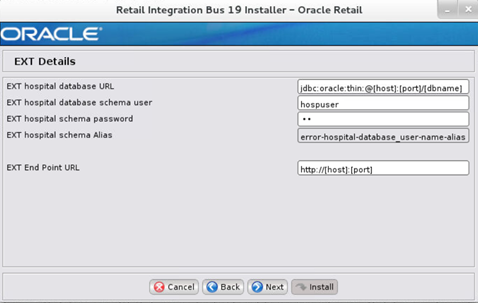

Screen: <app> Details
Note: The screen capture above shows the Details screen for SIM. Depending on which rib-<app> applications you are installing, you will see different details input screens. For some of the Oracle Retail applications, these inputs may appear on separate installer screens rather than all on one screen. |
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | SIM_USER |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> End Point URL |
---|---|
Field Description | URL used by rib-<app> to call the injector service hosted by <app> application. |
Destination | rib-deployment-env-info.xml |
Example | http://simhost:7111 |

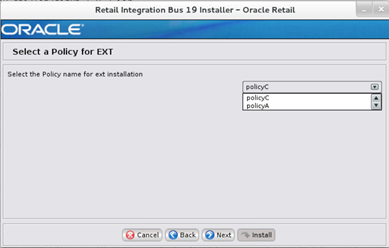

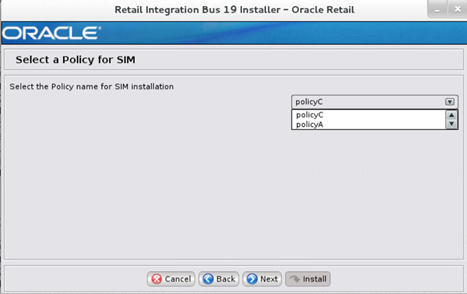

Screen: Select a Policy for SIM
Field Title | Select the Policy name for SIM installation |
---|---|
Field Description | Policy that need to selected. |
Notes | Appropriate policy need to be selected . RIB supports policyC and policyA. This injector service URL should be secured, by using policyA or policyC. |

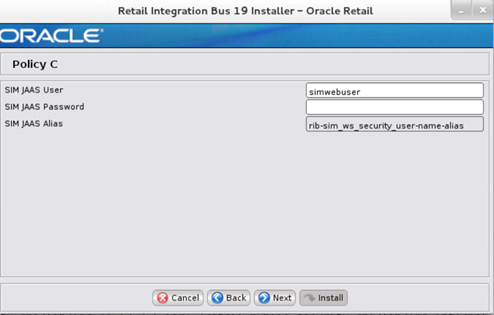

Screen: Enter username/password for Injector Service
Field Title | <app> JAAS User |
---|---|
Field Description | When rib-<app> authenticates to the injector service through the URL in the previous field, it will provide this user name. This secured user, with which the service is secured should belong to the IntegrationGroup in myrealm of the retail application's weblogic domain. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | simwebuser |
Field Title | <app> JAAS Password |
---|---|
Field Description | The password for the <app> JAAS user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> JAAS Alias |
---|---|
Field Description | The alias for the <app> JAAS user stored in the wallet file cwallet.sso. |
Destination | <rib-deployment-env-info.xml |
Example | sim-jaas-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |

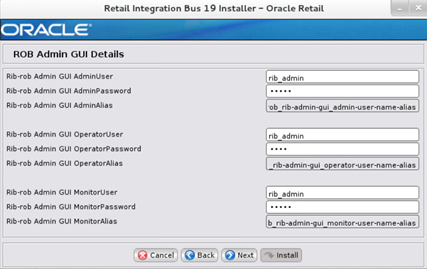

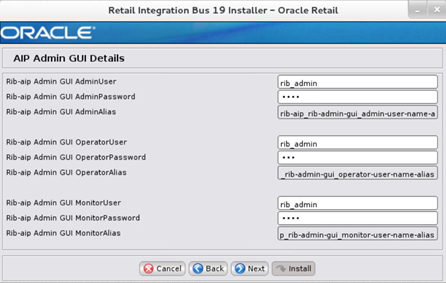

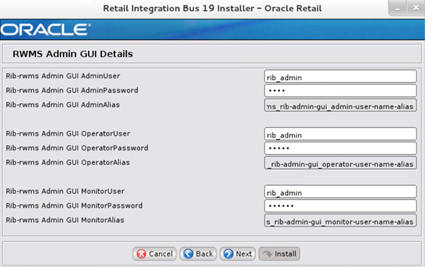

Screen: rib-<app> Admin GUI Details
Note: The screen capture above shows the Admin GUI Details screen for rib-sim. The installer may show similar screens for other rib-<app>, depending on which rib-<app> applications you are currently installing. |
Field Title | <app> Admin GUI Admin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in an admin role. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribadmin |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | From WLS 12.2.1 onwards, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Admin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-sim_rib-admin-gui_admin-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | riboperator |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-sim_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-sim_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |

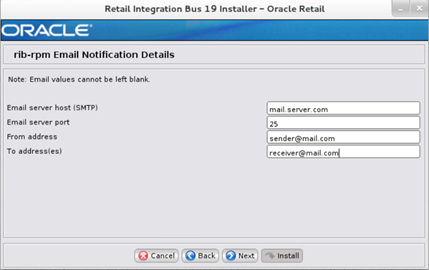

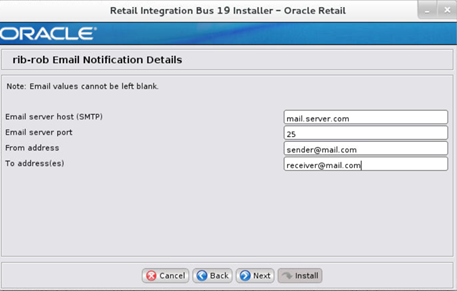

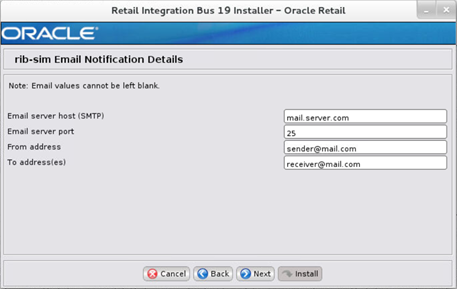

Screen: rib-<app> Email Notification Details
Note: The screen capture above shows the Email Notification Details screen for rib-sim. The installer may show similar screens for other rib-<app>, depending on which rib-<app> applications you are currently installing. |
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From address |
---|---|
Field Description | The email address from which the rib-<app>email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
Screen: rib-<app> Install Type
rib-rob can be deployed as rest-app or javaee-app . In case of hybrid cloud scenario in which app is on-premise and rib-<app> is on cloud communication between two will be over the internet (http/https protocol).
Pick the appropriate type from the options.
Screen: rib-rob WLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-rob-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows: <user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-rob-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |
Screen: ROB Details
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Endpoint url |
---|---|
Field Description | The application url of the rob application |
Destination | rib-deployment-env-info.xml |
Notes | The url of the rob application server with the port number assigned for rob. |
Screen: Select a Policy for ROB
Field Title | Select the Policy name for ROB installation |
---|---|
Field Description | Policy that need to selected. |
Notes | Appropriate policy need to be selected for non-secure / secure environment /message encryption. E.g: PolicyA/PolicyC |
Screen: Enter username/password for Injector Service
Field Title | <app> JAAS User |
---|---|
Field Description | When rib-<app> authenticates to the injector service through the URL in the previous field, it will provide this user name. This secured user, with which the service is secured should belong to the IntegrationGroup in myrealm of the retail application's weblogic domain. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | robwsuser |
Field Title | <app> JAAS Password |
---|---|
Field Description | The password for the <app> JAAS user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> JAAS Alias |
---|---|
Field Description | The alias for the <app> JAAS user stored in the wallet file cwallet.sso. |
Destination | <rib-deployment-env-info.xml |
Example | rob-jaas-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: ROB Admin GUI Details
Field Title | <app> Admin GUI Admin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | From WLS 12.2.1 onwards, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Admin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rob_rib-admin-gui_admin-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | <app> Admin GUI Operator User |
Destination | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Example | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | <app> Admin GUI Operator Password |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | From WLS 12.2.1 onwards, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rob_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | From WLS 12.2.1 onwards, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rob_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-rob Email Notification Details
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From address |
---|---|
Field Description | The email address from which the rib-<app> email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
Screen: rib-ext Install Type
rib-ext can be deployed as soap-app or javaee-app . In case of hybrid cloud scenario in which app is on-premise and rib-<app> is on cloud communication between two will be over the internet (http/https protocol).
Pick the appropriate type from the options
Screen: rib-extWLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-ext-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers/<wls-instance> where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_ HOME>/servers/rib-ext-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |
Screen: Ext Details
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Endpoint url |
---|---|
Field Description | The url of the thirdparty application |
Destination | rib-deployment-env-info.xml |
Notes | The url of the thirdparty application server with the port number assigned for. |
Screen: Select a Policy for Ext
Field Title | Select the Policy name for OMS installation |
---|---|
Field Description | Policy that need to selected. |
Notes | Appropriate policy need to be selected for non-secure / secure environment /message encryption. E.g: none/PolicyA |
Screen: Ext Admin GUI Details
Field Title | <app> Admin GUI Admin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | From WLS 12.2.1 onwards, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Admin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | ext-admin-gui-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | riboperator |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | From WLS 12.2.1 onwards, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-ext_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | From WLS 12.2.1 onwards, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-ext_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-ext Email Notification Details
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From address |
---|---|
Field Description | The email address from which the rib-<app> email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
Screen: rib-rpm install type
rib-rpm can be deployed as soap-app or javaee-app . In case of hybrid cloud scenario in which app is on-premise and rib-<app> is on cloud communication between two will be over the internet (http/https protocol).
Pick the appropriate type from the options
Screen: rib-rpm WLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | Rib-rpm-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-rpm-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |
Screen: RPM Details
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> JNDI URL |
---|---|
Field Description | URL used by rib-<app> to connect to the <app> application. |
Destination | rib-deployment-env-info.xml |
Example | t3://myhost:7111 |
Field Title | <app> JAAS User |
---|---|
Field Description | When rib-<app> authenticates to the <app> JNDI naming service through the URL in the previous field, it will provide this user name. This should be the user name of the RPM application. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> JAAS Password |
---|---|
Field Description | The password for the <app> JAAS user. This should be the password of the RPM application. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> JAAS Alias |
---|---|
Field Description | The alias for the <app> JAAS user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rpm-jaas-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: RPM Admin GUI Details
Field Title | <app> Admin GUI Admin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI ADmin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rpm-admin-gui-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | riboperator |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso. |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rpm_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rpm_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-rpm Email Notification Details
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From address |
---|---|
Field Description | The email address from which the rib-<app> email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
Screen: rib-rms WLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-rms-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-rms-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |
Screen: RMS Datasources
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: RMS Admin GUI Details
Field Title | <app> Admin GUI Admin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Admin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rms-admin-gui-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | riboperator |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rms_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rms_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-rms Email Notification Details
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From address |
---|---|
Field Description | The email address from which the rib-<app> email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
Screen: rib-tafr WLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-rob-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-rob-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |

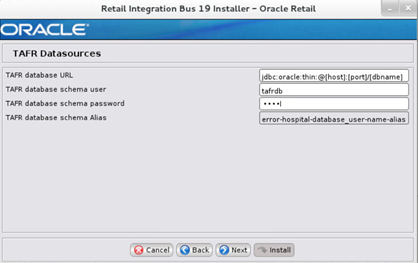

Screen: TAFR Datasources
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: TAFR Admin GUI Details
Field Title | <app> Admin GUI Admin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Admin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | tafr-admin-gui-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | riboperator |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-tafr_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-tafr_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-tafr Email Notification Details
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From address |
---|---|
Field Description | The email address from which the rib-<app> email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
Screen: rib-aip install type
rib-aip can be deployed as soap-app or javaee-app . In case of hybrid cloud scenario in which app is on-premise and rib-<app> is on cloud communication between two will be over the internet (http/https protocol).
Pick the appropriate type from the options.
Screen: rib-aip WLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-aip-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-aip-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |
Screen: AIP Details
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> JNDI URL |
---|---|
Field Description | URL used by rib-<app> to connect to the <app> application. |
Destination | rib-deployment-env-info.xml |
Example | t3://myhost:7111 |
Field Title | <app> JAAS User |
---|---|
Field Description | When rib-<app> authenticates to the <app> JNDI naming service through the URL in the previous field, it will provide this user name. This should be the user name of the AIP application. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> JAAS Password |
---|---|
Field Description | The password for the <app> JAAS user. This should be the password of the AIP application. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> JAAS Alias |
---|---|
Field Description | The alias for the <app> JAAS user stored in the wallet file cwallet.sso. |
Destination | <rib-deployment-env-info.xml |
Example | aip-jaas-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: AIP Admin GUI Details
Field Title | <app> Admin GUI ADmin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Admin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | aip-admin-gui-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | riboperator |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-aip_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-aip_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-aip Email Notification Details
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From address |
---|---|
Field Description | The email address from which the rib-<app> email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
Screen: rib-func-artifacts WLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-func-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-func-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |

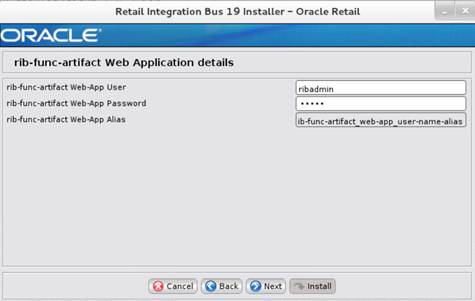

Screen: rib-func-artifact Web Application Details
Field Title | rib-func-artifact Web-App User |
---|---|
Field Description | When logging in to the web application for rib-func-artifact, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | rib-func-artifact Web-App Password |
---|---|
Field Description | The password for the rib-func-artifact Web-App user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1, passwords must include at least one numeral. |
Field Title | rib-func-artifact Web-App Alias |
---|---|
Field Description | The alias for the rib-func-artifact web-app user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | func-artifact_web-app_user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-rwms install type
rib-rwms can be deployed as plsql-app, soap-app or master-plsql-app . In case of hybrid cloud scenario in which app is on-premise and rib-<app> is on cloud communication between two will be over the internet (http/https protocol).
Pick the appropriate type from the options.
Screen: rib-rwms WLS Details
Field Title | rib-<app> WLS Instance Name |
---|---|
Field Description | The name of the WebLogic managed server instance where the rib-<app> will be deployed. |
Destination | rib-deployment-env-info.xml |
Example | rib-rwms-wls-instance |
Field Title | rib-<app> WLS Instance Home |
---|---|
Field Description | The format should be as follows:<user>@<host>:<WEBLOGIC_DOMAIN_HOME>/servers /<wls-instance>where:<user> is the user who owns the files in the ORACLE_HOME<host> is the name or IP address of the server where the App Server is installed<WEBLOGIC_DOMAIN_HOME> is the filesystem path to the WEBLOGIC_DOMAIN_HOME<wls-instance> is the WebLogic managed server instance name |
Destination | rib-deployment-env-info.xml |
Example | myuser@myhost://<WEBLOGIC_DOMAIN_HOME>/servers/rib-rwms-wls-instance |
Field Title | rib-<app> WLS Instance port number |
---|---|
Field Description | The port number used by this WebLogic managed server instance. |
Destination | rib-deployment-env-info.xml |
Example | 7011 |
Screen: RWMS Datasources
Field Title | <app> database URL |
---|---|
Field Description | JDBC URL for the database |
Destination | rib-deployment-env-info.xml |
Example | single instance thin client: jdbc:oracle:thin:@myhost:1521:mydb |
Field Title | <app> database schema User |
---|---|
Field Description | Database user where the <app> database schema was installed |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema password |
---|---|
Field Description | Password for the <app> database schema user |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> database schema alias |
---|---|
Field Description | Alias for the <app> database schema user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> end point url |
---|---|
Field Description | URL of slave rwms host |
Destination | rib-deployment-env-info.xml |
Notes | This is the url of the server where rwms slave app is hosted. |
Screen: RWMS Admin GUI Details
Field Title | <app> Admin GUI Admin User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Field Title | <app> Admin GUI Admin Password |
---|---|
Field Description | The password for the <app> Admin GUI user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Admin Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rwms-admin-gui-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Operator User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name.This user is in operator role, so will have limited access control in rib-admin-gui compared to adminrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | riboperator |
Field Title | <app> Admin GUI Operator Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Operator Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rwms_rib-admin-gui_operator-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Field Title | <app> Admin GUI Monitor User |
---|---|
Field Description | When logging in to the admin GUI for rib-<app>, use this user name. This user is in monitor role, so will have limited access control in rib-admin-gui compared to adminrole and operatorrole. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Example | ribmonitor |
Field Title | <app> Admin GUI Monitor Password |
---|---|
Field Description | The password for the <app> Admin GUI operator user. |
Destination | <RIB_HOME>/deployment-home/conf/security/cwallet.sso |
Notes | For WLS 12.2.1.3, passwords must include at least one numeral. |
Field Title | <app> Admin GUI Monitor Alias |
---|---|
Field Description | The alias for the <app> Admin GUI user stored in the wallet file cwallet.sso. |
Destination | rib-deployment-env-info.xml |
Example | rib-rwms_rib-admin-gui_monitor-user-name-alias |
Notes | This alias must be unique. Do not use the same value for any other alias fields in the installer. If the same alias is used, entries in the wallet can override each other and cause problems with the application. |
Screen: rib-rwms Email Notification Details
Field Title | Email server host (SMTP) |
---|---|
Field Description | The SMTP server that will be used to send notification emails from RIB. |
Destination | rib-deployment-env-info.xml |
Example | smtp.example.com |
Field Title | Email server port |
---|---|
Field Description | The port for outgoing emails |
Destination | rib-deployment-env-info.xml |
Example | 25 |
Field Title | From Address |
---|---|
Field Description | The email address from which the rib-<app> email notifications will originate. |
Destination | rib-deployment-env-info.xml |
Example | rib@example.com |
Field Title | To Addresses |
---|---|
Field Description | List of recipients for rib-<app> email notifications. |
Destination | rib-deployment-env-info.xml |
Example | name1@example.com, name2@example.com |
