Web Services in RSB have the following lifecycle stages.
Design and Development
Deployment and Configuration
Service Runtime
Insight Time
The web services and corresponding decorator services are developed using the development time tools like Artifact Generator (AG) and Retail SOA Enabler (RSE). The web services are hosted on the edge app servers. The decorators are deployed on the RSB Server using rsb-home tools. The decorators run on the OSB runtime. The health and other service related activities are monitored using the web tools like Retail Integration Console (RIC).

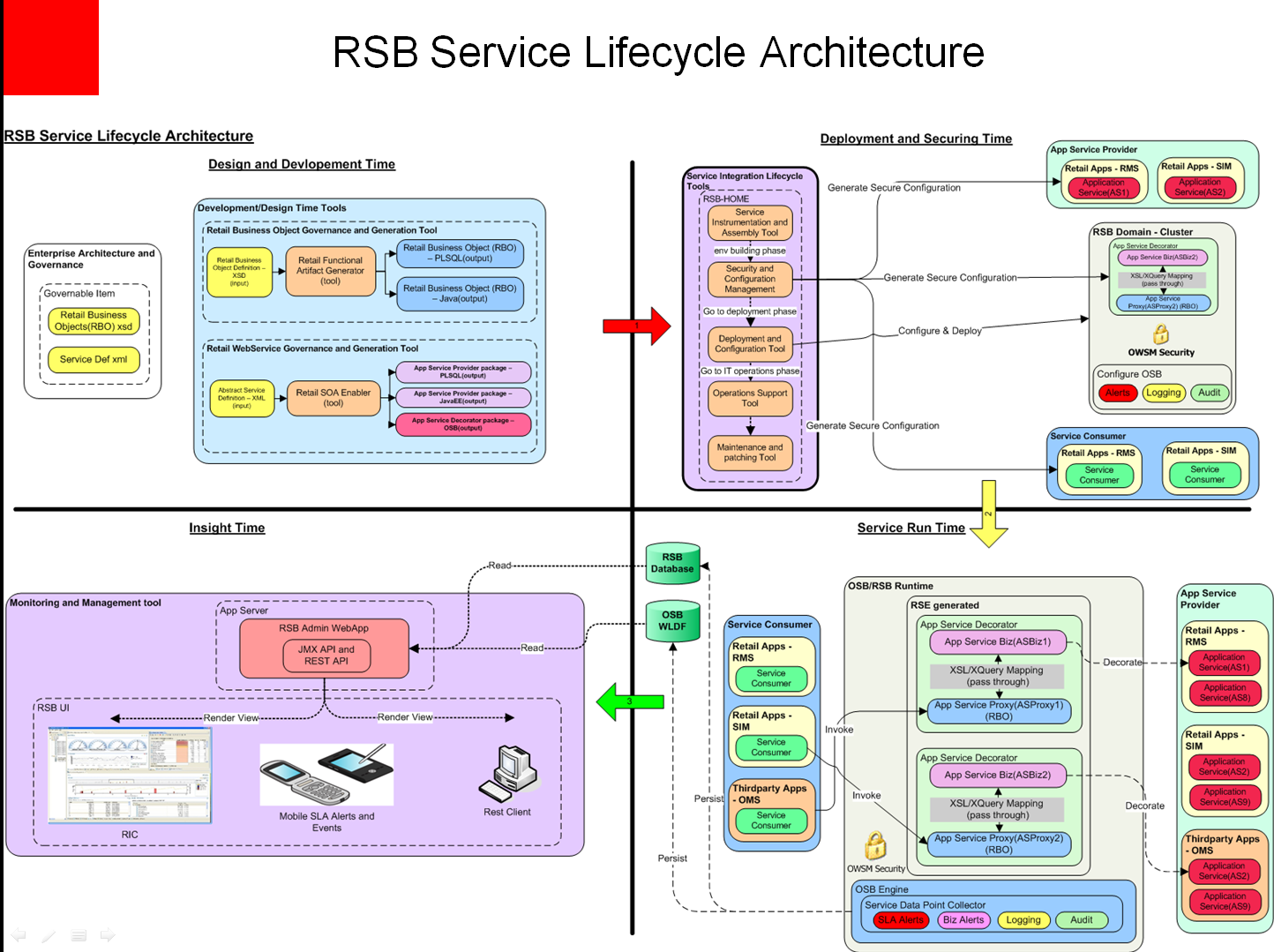

The diagram below shows the architecture of the RSB service lifecycle in detail.
