10 ODI Setup Tasks (Not Applicable for CFIN Implementation)

This chapter includes:

• Prerequisite

• Copy ODI-Specific Files

• Create Tablespaces

• Create the ODI Master Repository Database User

• Create the ODI Work Repository Database User

• ODI - Set Up Master Repository and Work Repository

• Validation - Master Repository and Work Repository Schema creation

• Create Master Repository

• Create Work Repository

• Import ODI Interfaces

• Update Connection Information

• Scenario Test

Prerequisite

It is assumed Oracle Data Integrator has already been configured with the appropriate details for your installation. This ODI installation location is referred to as ODI_INSTALL_DIR for the remainder of this chapter. The ODI domain should be created on the same host as the WebLogic server where the BdiEdgeAppJobAdminPak21.0.000ForRfi21.0.000 application is installed.

Copy ODI-Specific Files

1. Log in to the UNIX server as a user who has sufficient access to run sqlplus from the Oracle Database installation.

2. Create the retail-financial-integration-solution in <INSTALL_DIR> folder.

3. From the ORFI server, copy the <INSTALL_DIR>/retail-financial-integration-solution/etl-based-integration folder to <INSTALL_DIR>/retail-financial-integration-solution folder on the ODI server.




   Note: All references to the ODI server are indicative of RfiBulkServer.




Create Tablespaces

Before you run the ODI Master and Work database user, make sure that the following tablespace has been created in the database: ODI_DATA. Below is a sample tablespace creation statement for this tablespace. Oracle Retail recommends the use of locally managed tablespaces with automatic extent and segment space management.

Note: These tablespaces are not sized for a production environment. The customer's Database Administrator should create the tablespace based on their datacenter database architecture and size it appropriately based on expected data volume for their peak data usage.

CREATE TABLESPACE ODI_DATA DATAFILE
'<datafile_path>/odi_data01.dbf' SIZE 500M
AUTOEXTEND ON NEXT 100M MAXSIZE 2000M
EXTENT MANAGEMENT LOCAL
SEGMENT SPACE MANAGEMENT AUTO
;

Create the ODI Master Repository Database User

You must create an ODI Master Repository schema using a create_user.sql that comes with installer distribution. This will be used to execute ODI Interface at run time. This create_user.sql script can be used for this:

$INSTALL_DIR/retail-financial-integration-solution/etl-based-integration/retail-to-ebsfin-etl-flows/setup-data/ddl/create_user.sql

The script takes three arguments on the command line in sqlplus: username, password, and ODI Master tablespace.

For example: SQL> @create_user.sql <ODI Master Schema> <ODI Master Schema Password> <ODI Master tablespace name>

Review this script and run it as a user with adequate permissions, such as SYSTEM.

Create the ODI Work Repository Database User

You must create an ODI Work Repository schema using a creat_user.sql that is included with the installer distribution. This will be used to execute ODI Interface at run time. This create_user.sql script can be used for this:

$INSTALL_DIR/ retail-financial-integration-solution\service-based-integration\install\setup-data\ddl create_user.sql

Or

The script takes three arguments on the command line in sqlplus: username, password, and ODI Work tablespace.

For example: SQL> @create_user.sql <ODI Work Schema> <ODI Work Schema Password> <ODI Work tablespace name>

Review this script and run it as a user with adequate permissions, such as SYSTEM.

ODI - Set Up Master Repository and Work Repository

Note: If you have not had a master and work repository created, you need to create it beforehand as described in the Oracle Data Integrator administrator guide or follow the steps given below.

Validation - Master Repository and Work Repository Schema creation

Run the below SQL. This should return 2 records each with name of the ODI Master & ODI Work repository schema names given in the previous two steps. Proceed further only if query gives you two records with schema names provided by you in the previous steps. If not ensure to successfully execute above two steps with help of DBA:

SQL> select * from all_users where username in (<ODI Work Schema>, <ODI Master Schema >);

Please replace <ODI Work Schema> & <ODI Master Schema> with the names given while creating Master and Work repository schema.

Create Master Repository

Prerequisite:

• Make sure database schemas for Master and Work Repositories are present in the ODI database.




  Note: These schema creation steps are done as part of ODI setup tasks in this chapter.




• Make sure the RFI_ODI_TEMP schema exists in the E-Business Suite or PeopleSoft database (Based on your integration financials application).




  Note: These schema creation steps are done as part of "Create the ODI Staging Database User" in chapter 5.




• Make sure the ORFI infrastructure database setup is completed.




  Note: These schema creation steps are done as part of "Create the ORFI Database User" in chapter 3.




• Give database administrator privileges to the schema in the E-Business Suite OR PeopleSoft database depending on which is your integrating Financials system

Use the following procedure to create the Master Repository:

1. Launch Oracle Data Integrator (ODI) Studio to create a Master Repository:

   Click File->New and select "Master Repository Creation Wizard" and click OK.

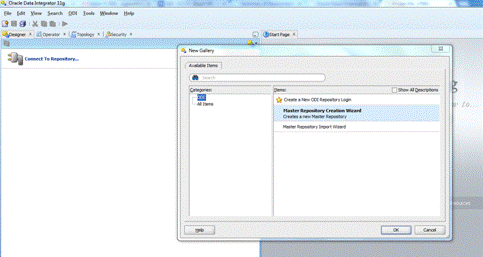

   Figure 10-1 Master Repository Creation Wizard




2. Enter the Master Repository Database connection details and click Next.

   • Database Connection - Enter valid Master Repository schema details.




     Note: In JDBC url field, use the OdiMasterDataSource/ jdbcUrl entered in rfi-deployment-env-info.json file. You have to enter sysdba credentials in DBA User and DBA Password fields.




   • Repository Configuration - Enter any ID other than 804 or 805 in the Id field.

     Figure 10-2 Repository Configuration




3. Test your credentials information using the Test Connection button. If you are successful, click OK in the Information popup and then click Next.

   Figure 10-3 Test Connection




4. Enter <supervisor password> and click Next.




   Note: This password will be used in further installation steps, so keep a record of it.




   Figure 10-4 Authentication




5. Click Finish.

   Figure 10-5 Password Storage




6. Click OK.

Create Work Repository

Use the following procedure to create the Work Repository:

1. Select the ODI Menu->Connect option to log in to the Master Repository in Oracle Data Integrator (ODI) Studio to create a Work Repository.

2. Create Master Repository login credentials by selecting the + button from the Oracle Data Integrator Login dialog.

   Figure 10-6 Oracle Data Integrator Login




3. Update the Repository Connection Information as below:

   1. Oracle Data Integrator Connection:

      • Login Name: <Login Name>

      • User: <Enter "SUPERVISOR" in this field>

      • Password: <supervisor password>




      Note: See ODI documentation for information on users with the correct (supervisor level) permissions. The SUPERVISOR user is created by ODI and has the correct permissions by default.




   2. Database Connection (Master Repository):

      • Enter Master Repository database credentials for User and Password fields.

      • Select "Oracle JDBC Driver" from the drop-down list for Driver List field.

      • Enter Url (use the OdiMasterDataSource/ jdbcUrl entered in rfi-deployment-env-info.json file) field as shown below:

        jdbc:oracle:thin:@<host>:<port>:<sid>


   3. Work Repository:

      • Select the Master Repository Only option.

        Figure 10-7 Repository Connection Information




4. Test your credentials information using the Test button. If you are successful then click OK.

   Figure 10-8 Test




5. Select OK from Oracle Data Integrator Login dialog.

   Figure 10-9 Oracle Data Integrator Login




6. From the Topology tab, select Repositories and then right-click on the Work Repositories. Select the New Work Repository option.

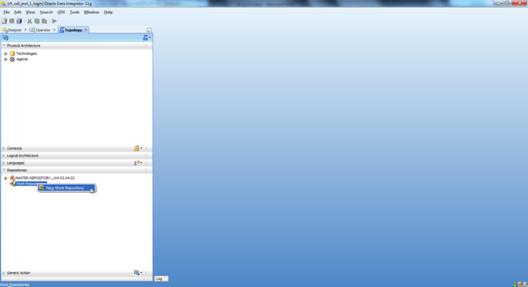

   Figure 10-10 Repositories




7. Enter the work repository database credentials details.

8. Test your credentials information using the Test button. If you are successful then click Next.

   Figure 10-11 Test




9. Update ODI Work Repository properties:

   1. Enter any ID other than 804 or 805 (For EBS integration) / 501 or 502 (For PeopleSoft Integration) in the Id field.

   2. Enter Name and Password (should be SUPERVISOR user and <supervisor password>) for work repository and click Finish.

      Figure 10-12 ODI Work Repository




10. Click Yes to create an ODI login for the work repository.

    Figure 10-13 Confirmation




11. Enter the ODI work repository login name in the dialog.

    Figure 10-14 Login Name




12. Select the ODI Menu->Disconnect option to connect to the Work Repository.

    Figure 10-15 Disconnect




13. Select the ODI Menu->Connect option.

    1. From the ODI Login popup, select Login Name from dropdown list (select the name you created in step7).

    2. Enter user as "SUPERVISOR".

    3. Enter <supervisor password>.

    4. Select the Edit option.

       Figure 10-16 Connect




14. Validate the Repository Connection Information:

    1. Oracle Data Integrator Connection

       • Login Name: <work repository login name>

       • User: <"SUPERVISOR">

       • Password: <supervisor password>

    2. Database Connection (Master Repository)

       • Validate the Master Repository database details.

    3. Work Repository

       • Select the Work Repository option and select the repository you just created.

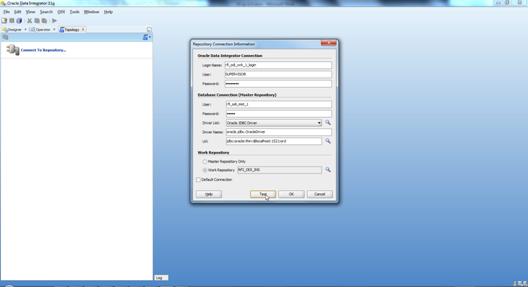

         Figure 10-17 Repository Connection Information




15. Test your credentials information using the Test button. If you are successful then click OK.

    Figure 10-18 Test




16. Select OK from Oracle Data Integrator Login dialog.

    Figure 10-19 Oracle Data Integrator Login




Import ODI Interfaces

Use the following procedure to import ODI interfaces using Smart Import:

1. Log in to the Work Repository in Oracle Data Integrator (ODI) Studio to import all the interfaces:

2. Select the Import option from the Designer tab.

   Figure 10-20 Import




3. Select the Smart Import option on the Import Selection dialog and click OK.

   Figure 10-21 Smart Import




4. If integration is with EBS, then

   Select SmartExport_RMS_EBS_Account_Entry.xml file in the File Selection Field and click Next. This file can be found in $INSTALL_DIR/retail-financial-integration-solution/etl-based-integration/retail-to-ebsfin-etl-flows/retail-to-ebsfin-odi-project/WorkRepository/.

   If integration is with PeopleSoft, then

   • Select SmartExport_RMS_PSFT_Account_Entry.xml file in the File Selection Field and click Next. This file can be found in $INSTALL_DIR/retail-financial-integration-solution/etl-based-integration/retail-to-psftfin-etl-flows/retail-to-psftfin-odi-project/WorkRepository/.

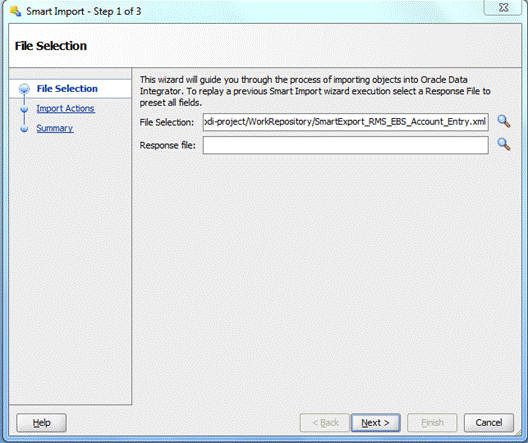

     Figure 10-22 Smart Import - Step 1 of 3




5. Click Next.

   Figure 10-23 Smart Import - Step 2 of 3




6. Click Finish.

   Figure 10-24 Smart Import - Step 3 of 3




7. Similarly, perform Smart Import for the other ODI Interfaces listed below based on whether integrating financial applications is EBS or PeopleSoft

   If EBS then,

   • SmartExport_ReIM_EBS_Account_Entry.xml

   • SmartExport_ReIM_EBS_Invoice_Entry.xml

   If PeopleSoft then

   • SmartExport_ReIM_PSFT_Account_Entry.xml

   • SmartExport_ReIM_PSFT_Invoice_Entry.xml

Update Connection Information

For EBS Integration:

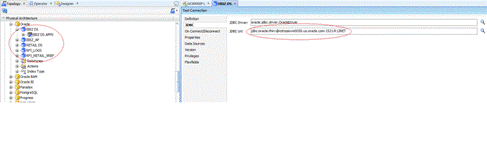

In Topology, under Physical Architecture, Technologies -> Oracle, update the Database Connection details in the Physical Server and Physical schema as shown in the table below.

Figure 10-25 Database Connection Details

Table 10-1 Database Connection Details - Physical Server and Physical Schema

Physical Server (Data Server)			Physical Schema
Name	Definition > Connection	JDBC	Schema (Schema)	Schema (Work Schema)
EBIZ DS	User: <APPS Schema Name> Password: <APPS Schema Password>	Update EBS JDBCUrl	APPS Schema	RFI_ODI_TEMP Schema
EBIZ_AP	User: <AP Schema Name> Password: <AP Schema Password>	Update EBS JDBCUrl	AP Schema	RFI_ODI_TEMP Schema
RETAIL DS	User: <RMS User Schema Name> Or <BDI RFI Schema Name>(On Hybrid Cloud) Password: <RMS User Schema Password> Or <BDI RFI Schema Password>(On Hybrid Cloud)	Update RMS Or BDI RFI (On Hybrid Cloud) JDBCUrl	RMS Schema Owner Or BDI RFI Shema Owner (On Hybrid Cloud)	RMS Schema Owner Or BDI RFI Shema Owner (On Hybrid Cloud)
RFI_LOGS	User: <ORFI Schema Name> Password: <ORFI Schema Password>	Update ORFI JDBCUrl	ORFI Schema	ORFI Schema
RFI_RETAIL_XREF	User: <ORFI Schema Name> Password: <ORFI Schema Password>	Update ORFI JDBCUrl	ORFI Schema	ORFI Schema

1. For EBIZ DS, EBIZ_AP, provide the E-Business Suite database connection.

2. For RETAIL DS, provide the Retail database connection.

3. For RFI_LOGS, RFI_RETAIL_XREF provide the ORFI Infrastructure database connection.

4. Click Test Connection on the physical server to verify that the connection information is correct.

5. In the physical schema, verify that the context (Global and RETL_TO_EBIZ) is mapped to the logical schemas as shown in the table below. If the mapping is missing, map the logical schemas as shown in the table below.

   Figure 10-26 Verify




Table 10-2 Logical Schema Mapping

Physical Schema	Logical Schema
EBIZ DS.APPS	EBIZ_GL
EBIZ_AP.AP	EBIZ_AP
RETAIL DS.RMS Or BDI_RFI_EDGE_SCHEMA (On Hybrid Cloud)	Retail
RFI_LOGS.RFI	RFI_LOGS
RFI_RETAIL_XREF.RFI	RFI_RETAIL_XREF

For PeopleSoft Integration:-

In Topology, under Physical Architecture, Technologies -> Oracle, update the Database Connection details in the Physical Server and Physical schema as shown in the table below.

Table 10-3 Database Connection Details - Physical Server and Physical Schema

Physical Server (Data Server)			Physical Schema
Name	Definition > Connection	JDBC	Schema (Schema)	Schema (Work Schema)
PEOPLESOFT DS	User: <APPS Schema Name> Password: <APPS Schema Password>	Update PeopleSoft JDBCUrl	SYADM Schema	RFI_ODI_TEMP Schema
RETAIL DS	User: <RMS User Schema Name> Password: <RMS User Schema Password>	Update RMS JDBCUrl	RMS Schema Owner	RMS Schema Owner
RFI_LOGS	User: <ORFI Schema Name> Password: <ORFI Schema Password>	Update ORFI JDBCUrl	ORFI Schema	ORFI Schema
RFI_RETAIL_XREF	User: <ORFI Schema Name> Password: <ORFI Schema Password>	Update ORFI JDBCUrl	ORFI Schema	ORFI Schema

1. For PEOPLESOFT DS, provide the PeopleSoft Suite database connection.

2. For RETAIL DS, provide the Retail database connection.

3. For RFI_LOGS, RFI_RETAIL_XREF provide the ORFI Infrastructure database connection.

4. Click Test Connection on the physical server to verify that the connection information is correct.

5. In the physical schema, verify that the context (Global and RETL_TO_PSFT) is mapped to the logical schemas as shown in the table below. If the mapping is missing, map the logical schemas as shown in the table below.

Table 10-4 Logical Schema Mapping

Physical Schema	Logical Schema
PEPOPLESOFT DS.SYSADM	PeopleSoft
RETAIL DS.RMS01	Retail
RFI_LOGS.RFI01	RFI_LOGS
RFI_RETAIL_XREF.RFI01	RFI_RETAIL_XREF

Scenario Test

In this section, you need to do similar things to the three packages in ORFI. In this guide we only use the Migrate RMS to EBIZ Acc Entry Package / Migrate RMS to PSFT Acc Entry Package, for example.

Scenario

In ODI Topology, navigate to Physical Architecture -> Agents.

Make sure the RFI_AGENT is available and default to port 20910

Figure 10-27 Agents

Run Agent Scheduler

The following steps are provided as guidance and can be found in ODI documentation.

These graphical UI steps will guide you for standalone ODI agent configuration, starting and testing the agent. ODI 12c agent configuration is now graphical wizard tool. The domain is similar to WLS domain.

1. Navigate to <odi install directory>Oracle/Middleware/Oracle_Home/odi/common/bin.

   In Unix:

   ./config.sh


   For Windows:

   The configuration wizard pops up. Select the "Create a new domain" option.

   Figure 10-28 Configuration Type Window




2. After providing/choosing the domain location, Click Next.

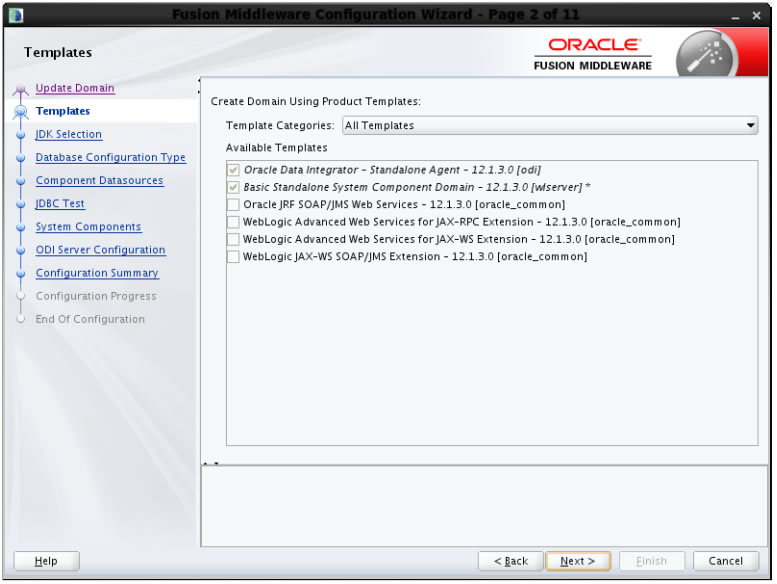

   Figure 10-29 Templates Window




3. Chose the first checkbox, Oracle Data Integrator-Standalone Agent -12.2.1.4.0.

   Figure 10-30 JDK Selection Window




4. Chose the JDK path.

5. Enter DBMS/Service information (not a database instance) example orcl.example.com and enter DB host name, port information.

   Figure 10-31 JDBC Component Schema Window




6. Enter dev_stb schema hostname, service and port information and also password, this is the services related table that would be been created using RCU. Enter similar information for ODI master schema.

   Figure 10-32 JDBC Component Schema Test Window




   Figure 10-33 System Components Window




   Figure 10-34 ODI Server Configuration Window




   Figure 10-35 Configuration Summary Window




To start the RFI_AGENT agent

Navigate to location where you created the odi base domain, refer to first step.<Domain home>Oracle/Middleware/Oracle_Home/user_projects/domains/base_domain/bin and type.

agent.sh -NAME=RFI_AGENT -PORT=20910

You should see:

<date and time> NOTIFICATION ODI-1111 Agent RFI_AGENT started. Agent version: 12.2.1.4.0 - date. Port: 20910. JMX Port: 22100.

Do not close the window.

To test if the agent is successfully running:

Log into ODI with appropriate credentials and navigate to Topology tab. On the physical agent section, expand Agents, and click on RFI_AGENT. On the right pallet, click on 'Test' tab.

Figure 10-36 Test Tab

You should see this message.

Figure 10-37 Test Message

The following scripts are located in <ODI_INSTALL_DIR>/oracledi/agent/bin/.

You need to configure odiparams.sh script to schedule an ODI agent. This odiparams.sh script is located in <ODI_INSTALL_DIR>/oracledi/agent/bin/odiparams.sh

1. You need to run encode.sh script to generate your password in the encoded format and this is used in odiparams.sh script.

   The script takes one argument on the command line: password.

   Example: prompt$ encode <password>

2. sh encode.sh <password>

3. Modify odiparams file. Set the following lines as indicated in order to connect them to the work repository. For example:

   In Windows OS (odiparams.bat),

   set ODI_MASTER_DRIVER=oracl.jdbc.driver.OracleDriver
   set ODI_MASTER_URL=<JDBC Connection URL to ODI>
   set ODI_MASTER_USER=<ODI Master Schema>
   set ODI_MASTER_ENCODED_PASS=<ODI Master Schema password>
   set ODI_SUPERVISOR=SUPERVISOR
   set ODI_SUPERVISOR_ENCODED_PASS=<ODI SUPERVISOR password>
   set ODI_SECU_WORK_REP=<ODI Work Repository name>


   In Linux/Unix OS (odiparams.sh),

   ODI_MASTER_DRIVER=oracle.jdbc.driver.OracleDriver
   ODI_MASTER_URL=<JDBC Connection URL to ODI>
   ODI_MASTER_USER=<ODI Master Schema>
   ODI_MASTER_ENCODED_PASS=<ODI Master Schema password>
   ODI_SUPERVISOR=SUPERVISOR
   ODI_SUPERVISOR_ENCODED_PASS=<ODI SUPERVISOR password>
   ODI_SECU_WORK_REP=<ODI Work Repository name>


4. Use the agent.sh script to start an agent.

   Example:

   prompt$ agent "-NAME=<physical agent name>"

   prompt$ agent "-NAME=RFI_AGENT"

   sh agent.sh "-NAME=<physical agent name>

   You should see a message that the agent is started successfully.

5. Test the agent to ensure it is up and running. Click on the Test portion of the menu (View Schedule, Update Schedule, Test, and Generate Server Template). Agent Test Successful message should be displayed.

Generate Scheduler

1. In ODI designer, navigate to Load Plans and Scenarios, and select scenario MIGRATE_RMS_TO_EBIZ_ACC_ENTRY_PACKAGE if integrating with EBS. While integrating with PeopleSoft then MIGRATE_RMS_TO_PSFT_ACC_ENTRY_PACKAGE

2. Select Existing Scheduling. Make sure the context is set to RETL_TO_EBIZ and the agent is selected as RFI_AGENT

3. You need to select an Execution option based on the ORFI requirement and then save the changes.

   Figure 10-38 Scheduling




4. Similarly, schedule the scenarios for the other ODI Interfaces

5. LOAD_REIM_TO_EBS_INVOICE_ENTRY_PACKAGE if integrating with EBS. While integrating with PeopleSoft then REIM_TO_EBS_ACCOUNT_ENTRY_DATA_MIGRATION if integrating with EBS. While integrating with PeopleSoft then

   • Load ReIM To PSFT Acct Entry PKG

Update Schedule

Go back to Topology and find your physical agent and then right-click and update the schedule.

Check

The agent runs at a predefined execution time as defined in the schedule. When it runs, you can check it in the Operator. You can also check the data in the EBS side interface tables to determine if the execution is successful and the data has been moved to the EBS interface tables.
